Projecting 3D Lines in Unity

2023-12-08 16:12 UTC gpt-4 Open in ChatGPT ↗

To project your list of 3D lines onto a 2D plane using perspective projection in Unity, and utilizing the matrix of an existing camera, you will need to follow these steps:

Get the Camera’s Projection Matrix: First, you need to access the camera’s projection matrix. This matrix is responsible for transforming 3D coordinates into 2D coordinates on the screen, considering perspective.
```
Camera cam = ...; // Your existing camera
Matrix4x4 projectionMatrix = cam.projectionMatrix;
```
Get the Camera’s View Matrix: The view matrix represents the camera’s position and orientation in the world. You can get this from the camera’s transform.
```
Matrix4x4 viewMatrix = cam.worldToCameraMatrix;
```
Combine Projection and View Matrices: To get the final transformation matrix, combine the projection and view matrices. This will be used to transform your 3D points.
```
Matrix4x4 transformationMatrix = projectionMatrix * viewMatrix;
```

Transform 3D Points to 2D: For each line in your list, transform its 3D points using the transformation matrix. This converts them into 2D points as per the camera’s perspective.

foreach (Line3D line in lines) {
    Vector3 point1_3D = line.startPoint;
    Vector3 point2_3D = line.endPoint;

    Vector3 point1_2D = transformationMatrix.MultiplyPoint3x4(point1_3D);
    Vector3 point2_2D = transformationMatrix.MultiplyPoint3x4(point2_3D);

    // Now, point1_2D and point2_2D are the transformed 2D points
}

Note that these 2D points are in screen space.

Rendering 2D Lines: Finally, you can use these 2D points to render lines on a 2D plane or GUI. You might need to further transform these coordinates depending on your specific requirements for drawing (e.g., fitting them within a certain area).
Optional - Handling Depth: If you want to handle depth (z-value) for sorting or other purposes, keep in mind that the z-value of the transformed points can be used for this.

This process essentially projects the 3D lines onto a 2D plane as the camera would see them. Be sure to update this projection if the camera moves or if the lines change.

You’re correct. To factor in the frame’s width and height, you’ll need to adjust the 2D points so that they fit within your specific viewport dimensions. After obtaining the 2D points in screen space, you must convert them to pixel coordinates based on the camera’s viewport.

Here’s how to do it:

Convert to Normalized Device Coordinates: First, convert the 3D points to normalized device coordinates (NDC). In NDC, the x and y coordinates range from -1 to 1, where (-1, -1) is the bottom-left corner of the screen, and (1, 1) is the top-right corner.
```
Vector3 point1_NDC = Camera.main.WorldToViewportPoint(point1_3D);
Vector3 point2_NDC = Camera.main.WorldToViewportPoint(point2_3D);
```
WorldToViewportPoint does this conversion for you.

Convert NDC to Pixel Coordinates: To convert these NDC points to pixel coordinates, you’ll use the width and height of the viewport (typically the screen size).

int screenWidth = Camera.main.pixelWidth;
int screenHeight = Camera.main.pixelHeight;

Vector2 point1_Pixel = new Vector2(
    (point1_NDC.x * screenWidth),
    (point1_NDC.y * screenHeight)
);
Vector2 point2_Pixel = new Vector2(
    (point2_NDC.x * screenWidth),
    (point2_NDC.y * screenHeight)
);

Drawing Lines: Now, you can draw these lines using whatever method is appropriate for your application. If you’re drawing them on a UI canvas, make sure your canvas is set to Screen Space and use the pixel coordinates directly. If you’re drawing them in the game world, you’ll need to transform these pixel coordinates back into world space.
Clipping: Note that points outside the range of (-1, -1) to (1, 1) in NDC will be off-screen. You might want to clip or ignore these points based on your specific requirements.

By incorporating the viewport dimensions, your projection will now accurately reflect the camera’s perspective, considering the actual screen size.

To ensure your 3D lines occupy the exact size on the screen as you intend, while treating them as 3D points, you need to consider both the camera’s perspective and the screen dimensions. Since you’re working with 3D lines but want them to appear in a specific size on the screen, you’ll need to adjust their positions and possibly their scales in the 3D space. This process involves several steps:

Determine Desired Screen Size for Lines: First, decide the exact size you want the lines to appear on the screen. This should be in terms of screen dimensions (e.g., pixels).
Calculate Screen Position for Each Line: For each line, decide where on the screen it should appear. You’ll need to convert these screen positions back to world positions.
Place Lines in 3D Space According to Camera View: Position your lines in the 3D world such that when viewed through the camera, they appear at the desired screen positions and sizes. This is the most complex part and generally involves some trial and error. Here’s a basic approach:
- Position the line in the 3D space.
- Project the endpoints of the line to screen space (using Camera.WorldToScreenPoint).
- Compare the projected size on the screen with your desired size.
- Adjust the line’s position and/or scale in 3D space.
- Iterate this process until the size on the screen matches your requirements.
```
Vector3 startPoint3D = ...; // starting point of the line in world space
Vector3 endPoint3D = ...; // ending point of the line in world space

Vector3 startPointScreen = Camera.main.WorldToScreenPoint(startPoint3D);
Vector3 endPointScreen = Camera.main.WorldToScreenPoint(endPoint3D);

float desiredScreenWidth = ...; // desired screen width of the line in pixels
float currentScreenWidth = Vector3.Distance(startPointScreen, endPointScreen);

// Adjust scale or position based on the difference between currentScreenWidth and desiredScreenWidth
```
Adjust Line Scale or Position: If the size of the line in screen space doesn’t match your desired size, adjust the line’s position or scale in the 3D world and recheck its size in screen space.
Handle Perspective Distortion: Keep in mind that perspective distortion will affect the appearance of lines, especially if they’re further away from the camera. If you want the lines to maintain a consistent screen size regardless of their distance from the camera, you might need to dynamically adjust their scale based on their distance from the camera.
Clipping and Visibility: Ensure that the lines are within the camera’s view frustum. Lines outside the camera’s field of view won’t be visible.

This process requires a good understanding of how 3D transformations and projections work in Unity. It might involve some iterative tweaking to get the exact results you want. Remember that due to perspective, lines further away from the camera will appear smaller, so you might need to scale them differently based on their distance to the camera.

The WorldToViewportPoint function in Unity converts a point from world space into viewport space. Viewport space is normalized and relative to the camera. In viewport coordinates, x and y values range from 0 to 1, with (0,0) being the bottom left corner of the viewport and (1,1) being the top right corner.

The formula for converting a point from world space to viewport space involves several steps and uses both the camera’s view matrix and its projection matrix. Here’s a high-level overview of the process:

Convert World Coordinates to Camera Space: First, the point in world coordinates is transformed to camera space (or view space). This is done using the camera’s view matrix, which represents the camera’s position and orientation in the world.

$ \text{Point}{\text{camera}} = \text{ViewMatrix} \times \text{Point}{\text{world}} $
Projection Transformation: Next, the point in camera space is transformed to clip space using the camera’s projection matrix. This step applies perspective division.

$ \text{Point}{\text{clip}} = \text{ProjectionMatrix} \times \text{Point}{\text{camera}} $
Perspective Division: After the projection transformation, the x, y, and z coordinates of the point are divided by the w component of the clip space coordinates. This step is what creates the perspective effect.

$ \text{Point}{\text{NDC}} = \left( \frac{\text{Point}{\text{clip}.x}}{\text{Point}{\text{clip}.w}}, \frac{\text{Point}{\text{clip}.y}}{\text{Point}{\text{clip}.w}}, \frac{\text{Point}{\text{clip}.z}}{\text{Point}_{\text{clip}.w}} \right) $

This transforms the point into normalized device coordinates (NDC).
Viewport Transformation: Finally, the NDC are scaled and shifted to transform them into viewport space. This involves scaling the x and y coordinates from the [-1, 1] range (of NDC) to the [0, 1] range.

$ \text{Point}{\text{viewport}} = \left( \frac{\text{Point}{\text{NDC}.x} + 1}{2}, \frac{\text{Point}{\text{NDC}.y} + 1}{2}, \text{Point}{\text{NDC}.z} \right) $

In Unity, this entire process is encapsulated within the Camera.WorldToViewportPoint method, making it unnecessary to manually perform these calculations in most cases. However, understanding the process can be very helpful for custom shader programming or advanced graphics work.

Writing a WorldToViewportPoint function from scratch in VBA involves several steps, including handling matrix multiplication. Since VBA does not have built-in support for matrix operations or 3D graphics transformations, you’ll need to implement these functionalities yourself. Here’s a step-by-step guide:

Step 1: Define Data Structures

First, you need to define data structures for matrices and vectors:

Type Vector3D
    x As Double
    y As Double
    z As Double
    w As Double
End Type

Type Matrix4x4
    m(1 To 4, 1 To 4) As Double
End Type

Step 2: Implement Matrix Multiplication

Implement a function for multiplying two 4x4 matrices:

Function MultiplyMatrix(a As Matrix4x4, b As Matrix4x4) As Matrix4x4
    Dim result As Matrix4x4
    Dim i As Integer, j As Integer, k As Integer

    For i = 1 To 4
        For j = 1 To 4
            result.m(i, j) = 0
            For k = 1 To 4
                result.m(i, j) = result.m(i, j) + a.m(i, k) * b.m(k, j)
            Next k
        Next j
    Next i

    MultiplyMatrix = result
End Function

Step 3: Implement Matrix-Vector Multiplication

Implement a function for multiplying a matrix with a vector:

Function MultiplyMatrixVector(m As Matrix4x4, v As Vector3D) As Vector3D
    Dim result As Vector3D
    result.x = m.m(1, 1) * v.x + m.m(1, 2) * v.y + m.m(1, 3) * v.z + m.m(1, 4) * v.w
    result.y = m.m(2, 1) * v.x + m.m(2, 2) * v.y + m.m(2, 3) * v.z + m.m(2, 4) * v.w
    result.z = m.m(3, 1) * v.x + m.m(3, 2) * v.y + m.m(3, 3) * v.z + m.m(3, 4) * v.w
    result.w = m.m(4, 1) * v.x + m.m(4, 2) * v.y + m.m(4, 3) * v.z + m.m(4, 4) * v.w
    MultiplyMatrixVector = result
End Function

Step 4: Perspective Division

Implement a function for perspective division:

Function PerspectiveDivide(v As Vector3D) As Vector3D
    If v.w <> 0 Then
        v.x = v.x / v.w
        v.y = v.y / v.w
        v.z = v.z / v.w
    End If
    PerspectiveDivide = v
End Function

Step 5: WorldToViewportPoint Function

Now, implement the WorldToViewportPoint function. This function will take a point in world space, transform it through the camera’s view and projection matrices, and then convert it to viewport space:

Function WorldToViewportPoint(worldPoint As Vector3D, viewMatrix As Matrix4x4, projectionMatrix As Matrix4x4, viewportWidth As Double, viewportHeight As Double) As Vector3D
    Dim clipPoint As Vector3D
    Dim ndcPoint As Vector3D
    Dim viewportPoint As Vector3D

    ' Transform point to camera space
    clipPoint = MultiplyMatrixVector(viewMatrix, worldPoint)

    ' Transform point to clip space
    clipPoint = MultiplyMatrixVector(projectionMatrix, clipPoint)

    ' Apply perspective division
    ndcPoint = PerspectiveDivide(clipPoint)

    ' Convert to viewport space
    viewportPoint.x = (ndcPoint.x + 1) / 2 * viewportWidth
    viewportPoint.y = (1 - ndcPoint.y) / 2 * viewportHeight
    viewportPoint.z = ndcPoint.z

    WorldToViewportPoint = viewportPoint
End Function

Step 6: Provide Camera Matrices

You’ll need to provide the view and projection matrices for your camera. These matrices encapsulate the camera’s position, orientation, and lens properties (like field of view, aspect ratio, near and far clipping planes).

Since VBA doesn’t natively handle 3D graphics, calculating these matrices can be complex and would typically require a good understanding of 3D graphics principles. If you already have these matrices from another source or system, you can use them directly in the WorldToViewportPoint function.

Note

Ensure you provide the correct viewport dimensions.
This implementation is a basic representation and may require adjustments based on your specific use case, especially in terms of handling camera properties and constructing view and projection matrices.

Creating a camera matrix for a simple perspective camera in 3D space generally involves two components: the view matrix and the projection matrix. The view matrix represents the camera’s position and orientation in the world, while the projection matrix handles the perspective projection, converting 3D points into 2D points as they would appear on a screen.

1. View Matrix

The view matrix is used to transform world coordinates to camera coordinates. It’s defined by the camera’s position, the target point it’s looking at, and the up direction. Here’s how to create a simple view matrix:

Assumptions:

Camera position is camPos (Vector3D).
Camera target is camTarget (Vector3D).
Up direction is upDir (Vector3D).

Function CreateViewMatrix(camPos As Vector3D, camTarget As Vector3D, upDir As Vector3D) As Matrix4x4
    Dim viewMatrix As Matrix4x4
    Dim zAxis As Vector3D, xAxis As Vector3D, yAxis As Vector3D

    ' Calculate camera direction vectors
    zAxis = NormalizeVector(SubtractVectors(camPos, camTarget)) ' Camera looks towards negative Z
    xAxis = NormalizeVector(CrossProduct(upDir, zAxis))
    yAxis = CrossProduct(zAxis, xAxis)

    ' Fill view matrix
    With viewMatrix
        .m(1, 1) = xAxis.x
        .m(1, 2) = xAxis.y
        .m(1, 3) = xAxis.z
        .m(1, 4) = -DotProduct(xAxis, camPos)

        .m(2, 1) = yAxis.x
        .m(2, 2) = yAxis.y
        .m(2, 3) = yAxis.z
        .m(2, 4) = -DotProduct(yAxis, camPos)

        .m(3, 1) = zAxis.x
        .m(3, 2) = zAxis.y
        .m(3, 3) = zAxis.z
        .m(3, 4) = -DotProduct(zAxis, camPos)

        .m(4, 1) = 0
        .m(4, 2) = 0
        .m(4, 3) = 0
        .m(4, 4) = 1
    End With

    CreateViewMatrix = viewMatrix
End Function

2. Projection Matrix

The projection matrix transforms camera coordinates to screen coordinates. For a simple perspective projection, the matrix depends on the field of view (FOV), aspect ratio, and near and far clipping planes.

Assumptions:

Field of view is fov (in radians).
Aspect ratio is aspectRatio (width divided by height of the viewport).
Near clipping plane is zNear.
Far clipping plane is zFar.

Function CreateProjectionMatrix(fov As Double, aspectRatio As Double, zNear As Double, zFar As Double) As Matrix4x4
    Dim projectionMatrix As Matrix4x4
    Dim f As Double

    f = 1.0 / Tan(fov / 2)

    With projectionMatrix
        .m(1, 1) = f / aspectRatio
        .m(1, 2) = 0
        .m(1, 3) = 0
        .m(1, 4) = 0

        .m(2, 1) = 0
        .m(2, 2) = f
        .m(2, 3) = 0
        .m(2, 4) = 0

        .m(3, 1) = 0
        .m(3, 2) = 0
        .m(3, 3) = (zFar + zNear) / (zNear - zFar)
        .m(3, 4) = (2 * zFar * zNear) / (zNear - zFar)

        .m(4, 1) = 0
        .m(4, 2) = 0
        .m(4, 3) = -1
        .m(4, 4) = 0
    End With

    CreateProjectionMatrix = projectionMatrix
End Function

Additional Functions

You will also need to implement a few helper functions like NormalizeVector, SubtractVectors, CrossProduct, and DotProduct for vector operations.

Combining the Matrices

To transform a point from world space to screen space, you multiply it with the view matrix

Creating a hash function for a line in such a way that two lines with almost the same coordinates (including reversed coordinates) have the same hash requires some considerations. The key aspects are handling the floating-point precision and ensuring that the line direction (normalization of start and end point order) does not affect the hash.

Here’s a conceptual approach in pseudocode:

Define a Tolerance Level: Decide a tolerance level that defines “almost the same”. For instance, tolerance = 0.001.
Normalize Line Coordinates: Sort the start and end points so that the lower value is always first. This helps in handling reversed coordinates.
Round Coordinates: Round the coordinates to a certain precision level, based on your tolerance.
Create a String Representation: Concatenate the rounded coordinates into a string.
Generate Hash: Use a standard hash function (like MD5, SHA1, etc.) on the string representation.

Here’s how this might look in pseudocode:

function getLineHash(line):
    tolerance = 0.001

    // Normalize the line
    if line.start > line.end:
        swap(line.start, line.end)

    // Round coordinates
    line.start.x = round(line.start.x / tolerance) * tolerance
    line.start.y = round(line.start.y / tolerance) * tolerance
    line.end.x = round(line.end.x / tolerance) * tolerance
    line.end.y = round(line.end.y / tolerance) * tolerance

    // Create string representation
    lineString = line.start.x + "," + line.start.y + ";" + line.end.x + "," + line.end.y

    // Generate hash
    return hashFunction(lineString)

In this approach:

Normalization ensures that the line direction doesn’t affect the hash.
Rounding addresses the issue of “almost the same” coordinates by bringing nearby points to the same value.
Hashing the string provides a unique identifier for each distinct line within the given tolerance.

This method is quite flexible and can be adapted to different levels of precision by adjusting the tolerance value. The specific implementation details (like the choice of hash function) can vary based on the programming environment and requirements.

To implement a hash function in C# for a line where the points are defined as Vector3 and you want lines with almost the same coordinates (even if reversed) to have the same hash, you will need to override the GetHashCode method. The method should consider the normalization of the line’s direction and a tolerance level for coordinate comparison.

Here’s how you can do it:

Create a Line Class: Define a Line class with two Vector3 points.
Define Tolerance Level: Choose a tolerance level for comparing coordinates.
Normalize Line Direction: Ensure the line’s direction doesn’t affect the hash by sorting the points.
Implement GetHashCode: Calculate the hash based on the normalized line coordinates, considering the tolerance.

Below is a C# implementation:

using System;
using System.Numerics;

public class Line
{
    public Vector3 Start { get; set; }
    public Vector3 End { get; set; }
    private const float Tolerance = 0.001f;

    public Line(Vector3 start, Vector3 end)
    {
        Start = start;
        End = end;
    }

    private static Vector3 RoundVector(Vector3 vector)
    {
        return new Vector3(
            (float)Math.Round(vector.X / Tolerance) * Tolerance,
            (float)Math.Round(vector.Y / Tolerance) * Tolerance,
            (float)Math.Round(vector.Z / Tolerance) * Tolerance
        );
    }

    public override int GetHashCode()
    {
        // Normalize line direction
        Vector3 normalizedStart = RoundVector(Start);
        Vector3 normalizedEnd = RoundVector(End);

        if (normalizedEnd.CompareTo(normalizedStart) < 0)
        {
            (normalizedStart, normalizedEnd) = (normalizedEnd, normalizedStart);
        }

        // Compute hash
        int hash = 17;
        hash = hash * 31 + normalizedStart.GetHashCode();
        hash = hash * 31 + normalizedEnd.GetHashCode();

        return hash;
    }

    // Optional: Override Equals as well if necessary
}

In this implementation:

RoundVector rounds the coordinates of the vectors to the nearest value defined by Tolerance.
In GetHashCode, the line is normalized by sorting its points, so the direction of the line doesn’t affect the hash.
The hash is calculated based on the normalized start and end points.

This approach ensures that two lines with almost the same coordinates, even if reversed, will have the same hash value. Remember to override Equals as well if you need to compare Line objects for equality.

You’re right; in Unity, Vector3 does not have a CompareTo method, so we’ll need to implement our own comparison logic for Vector3. The idea is to compare the vectors in a consistent way that respects the tolerance level. Since we are dealing with floating-point numbers, we’ll round them off to a certain precision and then compare them.

Here’s a revised version of the GetHashCode method for the Line class in Unity, including a custom method for comparing Vector3 objects:

using UnityEngine;

public class Line
{
    public Vector3 Start { get; private set; }
    public Vector3 End { get; private set; }
    private const float Tolerance = 0.001f;

    public Line(Vector3 start, Vector3 end)
    {
        Start = start;
        End = end;
    }

    private Vector3 RoundVector(Vector3 vector)
    {
        return new Vector3(
            Mathf.Round(vector.x / Tolerance) * Tolerance,
            Mathf.Round(vector.y / Tolerance) * Tolerance,
            Mathf.Round(vector.z / Tolerance) * Tolerance
        );
    }

    private static int CompareVectors(Vector3 v1, Vector3 v2)
    {
        if (v1.x != v2.x)
            return v1.x.CompareTo(v2.x);
        if (v1.y != v2.y)
            return v1.y.CompareTo(v2.y);
        return v1.z.CompareTo(v2.z);
    }

    public override int GetHashCode()
    {
        // Normalize line direction
        Vector3 normalizedStart = RoundVector(Start);
        Vector3 normalizedEnd = RoundVector(End);

        if (CompareVectors(normalizedEnd, normalizedStart) < 0)
        {
            (normalizedStart, normalizedEnd) = (normalizedEnd, normalizedStart);
        }

        // Compute hash
        int hash = 17;
        hash = hash * 31 + normalizedStart.GetHashCode();
        hash = hash * 31 + normalizedEnd.GetHashCode();

        return hash;
    }

    // Optional: Override Equals as well if necessary
}

In this version:

RoundVector is used to round the coordinates of the Vector3 to a certain precision based on the Tolerance.
CompareVectors is a custom method to compare two Vector3 instances. It compares the vectors component-wise, starting from the x-coordinate, then y, and finally z.
The GetHashCode method uses this comparison to normalize the line’s direction before calculating the hash. This ensures that two lines with almost the same coordinates, even if reversed, will have the same hash.

Converting the Line hash code calculation to Unity’s Data-Oriented Technology Stack (DOTS) for improved performance involves leveraging Unity’s Mathematics library for vector operations. DOTS is designed for high-performance parallel computing and works best with large data sets and operations that can be parallelized.

However, it’s important to note that operations like hashing a single line or a small number of lines might not see a significant performance improvement with DOTS, as the overhead of setting up Jobs and the Burst compiler might outweigh the benefits for such small-scale operations. DOTS excels in scenarios where you have to perform operations on thousands or millions of entities.

That said, here’s how you could adapt the Line hashing to use Unity’s Mathematics library, which is part of DOTS:

Import Unity Mathematics: Ensure you have the Unity Mathematics package included in your project.
Use float3 Instead of Vector3: The Mathematics library uses float3 for 3D vectors.
Adapt the Line Class: Modify the Line class to use float3 and leverage the Mathematics library for calculations.

Here’s an example implementation:

using Unity.Mathematics;

public class Line
{
    public float3 Start { get; private set; }
    public float3 End { get; private set; }
    private const float Tolerance = 0.001f;

    public Line(float3 start, float3 end)
    {
        Start = start;
        End = end;
    }

    private float3 RoundVector(float3 vector)
    {
        return new float3(
            math.round(vector.x / Tolerance) * Tolerance,
            math.round(vector.y / Tolerance) * Tolerance,
            math.round(vector.z / Tolerance) * Tolerance
        );
    }

    private static int CompareVectors(float3 v1, float3 v2)
    {
        if (!math.approximately(v1.x, v2.x))
            return v1.x.CompareTo(v2.x);
        if (!math.approximately(v1.y, v2.y))
            return v1.y.CompareTo(v2.y);
        return v1.z.CompareTo(v2.z);
    }

    public override int GetHashCode()
    {
        // Normalize line direction
        float3 normalizedStart = RoundVector(Start);
        float3 normalizedEnd = RoundVector(End);

        if (CompareVectors(normalizedEnd, normalizedStart) < 0)
        {
            (normalizedStart, normalizedEnd) = (normalizedEnd, normalizedStart);
        }

        // Compute hash
        int hash = 17;
        hash = hash * 31 + normalizedStart.GetHashCode();
        hash = hash * 31 + normalizedEnd.GetHashCode();

        return hash;
    }

    // Optional: Override Equals as well if necessary
}

Notes:

The Mathematics library’s float3 type and functions like math.round are used for vector operations.
math.approximately is used for floating-point comparisons with a tolerance.
This implementation doesn’t leverage the full parallelization capabilities of DOTS. To truly harness DOTS, you’d typically structure your data and operations to work with Unity’s ECS (Entity Component System), where operations can be executed in parallel on multiple entities.

For operations on large sets of lines, consider implementing this logic in a DOTS Job to take advantage of parallel processing. However, for individual or small numbers of lines, traditional C# and Unity’s standard libraries are usually sufficient and simpler to implement.

You’re correct. To fully leverage the benefits of vectorization in Unity’s Data-Oriented Technology Stack (DOTS) and Unity Mathematics, we should avoid using classes and instead focus on struct-based designs that align well with the data-oriented approach. Additionally, vectorization can be maximized by processing multiple lines in parallel, rather than focusing on individual lines.

Here’s a revised approach using structs and more vectorized operations:

Struct-Based Design: Use a struct for the line data to align with DOTS principles.
Vectorized Operations: Utilize Unity Mathematics for operations to take advantage of SIMD (Single Instruction, Multiple Data) capabilities.
Parallel Processing: Ideally, you’d process multiple lines in a job system to truly benefit from DOTS. However, for simplicity, I’ll show a single line struct that can be easily adapted to a job system.

Revised Line Struct Example:

using Unity.Mathematics;

public struct Line
{
    public float3 Start;
    public float3 End;
    private const float Tolerance = 0.001f;

    public Line(float3 start, float3 end)
    {
        Start = start;
        End = end;
    }

    private float3 RoundVector(float3 vector)
    {
        return math.round(vector / Tolerance) * Tolerance;
    }

    public int GetHashCode()
    {
        // Normalize line direction
        float3 normalizedStart = RoundVector(Start);
        float3 normalizedEnd = RoundVector(End);

        // Compare and sort the points
        bool shouldSwap = math.any(normalizedEnd < normalizedStart);
        float3 minPoint = math.select(normalizedEnd, normalizedStart, shouldSwap);
        float3 maxPoint = math.select(normalizedStart, normalizedEnd, shouldSwap);

        // Compute hash
        uint hash = 17;
        hash = hash * 31 + math.hash(minPoint);
        hash = hash * 31 + math.hash(maxPoint);

        return (int)hash;
    }
}

Notes:

We use struct instead of class to make it more efficient for DOTS and Unity Mathematics.
math.round and math.hash are used for rounding and hashing, taking advantage of SIMD operations.
The math.select function is used for conditional assignment, which is more efficient and SIMD-friendly.
This struct can be easily adapted for use in a job system where multiple lines are processed in parallel, maximizing the benefits of DOTS.

Remember, the full advantage of DOTS and vectorization is seen when processing large amounts of data. For a small number of lines, the performance difference might be negligible, but for large datasets, these optimizations can lead to significant improvements.

Sure, you can easily rename the Start and End properties of the Line struct to A and B. This change is straightforward:

using Unity.Mathematics;

public struct Line
{
    public float3 A;
    public float3 B;
    private const float Tolerance = 0.001f;

    public Line(float3 a, float3 b)
    {
        A = a;
        B = b;
    }

    private float3 RoundVector(float3 vector)
    {
        return math.round(vector / Tolerance) * Tolerance;
    }

    public int GetHashCode()
    {
        // Normalize line direction
        float3 normalizedA = RoundVector(A);
        float3 normalizedB = RoundVector(B);

        // Compare and sort the points
        bool shouldSwap = math.any(normalizedB < normalizedA);
        float3 minPoint = math.select(normalizedB, normalizedA, shouldSwap);
        float3 maxPoint = math.select(normalizedA, normalizedB, shouldSwap);

        // Compute hash
        uint hash = 17;
        hash = hash * 31 + math.hash(minPoint);
        hash = hash * 31 + math.hash(maxPoint);

        return (int)hash;
    }
}

In this updated struct:

The points are now named A and B instead of Start and End.
The constructor and other methods have been updated to reflect this change.

This change does not affect the functionality of the struct; it merely renames the properties for clarity or preference.

Check this out. It converts 3D lines to 2d. How can I parallelize it using Burst and Jobs? void Update() { int i = 0; int original = 0; screenSize = new Vector2(cam.pixelWidth, cam.pixelHeight); lineBuffer = new HashSet();

    foreach (var triangle in triangles)
    {
        if ( Vector3.Dot(triangle.GetNormal(verts),
                           (triangle.GetCenter(verts)-cam.transform.position).normalized) <0.01f)

        {

            var a = lines[i * 3];
            var b = lines[i * 3 + 1];
            var c = lines[i * 3 + 2];

            lineBuffer.Add(a);
            lineBuffer.Add(b);
            lineBuffer.Add(c);
            original += 3;
        }

        i++;
    }

    Debug.Log($"{original} ORIGINAL --> {lineBuffer.Count} REDUCED");

    foreach (var line in lineBuffer)
    {
        Debug.DrawLine(ProjectPoint(line.A, cam), ProjectPoint(line.B, cam));
    }
}

To parallelize your line processing code using Unity’s Burst Compiler and the Job System, you’ll need to restructure your code to fit into the Entity Component System (ECS) paradigm. This involves creating a job to handle the line processing and then scheduling this job within your Update method. The main benefits of this approach are improved performance and better utilization of multi-core processors.

Here’s a high-level overview of the steps involved:

Define a Job Structure: Create a struct that implements the IJob interface for processing the lines. This job will handle the logic currently in your foreach loops.
Move Data to Native Collections: Transfer your data (like lines and triangles) to Native Collections that are compatible with the Job System.
Schedule the Job: In your Update method, schedule the job to run, and then complete it to ensure that it finishes before the next frame.
Use Burst Compiler: Add [BurstCompile] attribute to your job struct to enable Burst compilation for the job, which significantly improves performance.

Example Implementation:

Below is a simplified example to give you an idea of how it could look:

1. Define a Job Structure

using Unity.Collections;
using Unity.Jobs;
using Unity.Burst;
using Unity.Mathematics;
using UnityEngine;

[BurstCompile]
public struct ProcessLinesJob : IJob
{
    public NativeArray<Line> Lines;
    public NativeHashSet<Line> LineBuffer;
    // Other necessary fields...

    public void Execute()
    {
        int i = 0;
        foreach (var triangle in triangles) // Ensure triangles are in a NativeArray or similar
        {
            if (math.dot(triangle.GetNormal(verts), math.normalize(triangle.GetCenter(verts) - camPos)) < 0.01f)
            {
                var a = Lines[i * 3];
                var b = Lines[i * 3 + 1];
                var c = Lines[i * 3 + 2];

                LineBuffer.Add(a);
                LineBuffer.Add(b);
                LineBuffer.Add(c);
            }
            i++;
        }
    }
}

2. Schedule the Job in `Update`

void Update()
{
    NativeArray<Line> lines = new NativeArray<Line>(/* your line data */, Allocator.TempJob);
    NativeHashSet<Line> lineBuffer = new NativeHashSet<Line>(1, Allocator.TempJob);
    // Other necessary data preparations...

    ProcessLinesJob job = new ProcessLinesJob
    {
        Lines = lines,
        LineBuffer = lineBuffer,
        // Set other fields...
    };

    JobHandle handle = job.Schedule();
    handle.Complete();

    // Use lineBuffer results...

    // Dispose of native arrays
    lines.Dispose();
    lineBuffer.Dispose();
}

Important Notes:

Memory Management: Remember to dispose of any NativeArray or NativeHashSet you create once you’re done with them, usually after handle.Complete().
Camera Data: You’ll need to pass any necessary data (like camera position) to the job, as the job can’t access MonoBehaviour properties directly.
Debugging: Debug.DrawLine cannot be called from a job. You’ll need to store the results from the job and use them back in the main thread (after handle.Complete()) to draw lines.
Burst Limitations: Some Unity API calls and .NET features are not supported by the Burst compiler. Make sure your job’s code is compatible with Burst.

Using DOTS, the Burst Compiler, and the Job System requires careful planning and understanding of data-oriented design. This example provides a basic structure, but the actual implementation might require additional adjustments based on your specific use case and data structures.

To process each line in parallel using IJobParallelFor, you’ll modify the structure of your job to work with this interface. IJobParallelFor allows each iteration of a loop to be executed in parallel, making it ideal for your scenario where each line can be processed independently.

Here’s how you can restructure your code:

Step 1: Define the Job Struct for `IJobParallelFor`

using Unity.Burst;
using Unity.Collections;
using Unity.Jobs;
using Unity.Mathematics;

[BurstCompile]
public struct ProcessLinesJob : IJobParallelFor
{
    [ReadOnly] public NativeArray<Line> Lines;
    [ReadOnly] public float3 CameraPosition;
    [WriteOnly] public NativeArray<bool> ShouldProcessLine;

    public void Execute(int index)
    {
        var line = Lines[index];
        var triangleNormal = ... // Calculate the triangle's normal
        var triangleCenter = ... // Calculate the triangle's center

        if (math.dot(triangleNormal, math.normalize(triangleCenter - CameraPosition)) < 0.01f)
        {
            ShouldProcessLine[index] = true;
        }
        else
        {
            ShouldProcessLine[index] = false;
        }
    }
}

In this struct:

Lines is an array of lines you want to process.
CameraPosition is the position of the camera, passed as a float3.
ShouldProcessLine is an array of booleans indicating whether each line should be processed.

Step 2: Schedule and Run the Job in `Update`

void Update()
{
    NativeArray<Line> lines = new NativeArray<Line>(/* your line data */, Allocator.TempJob);
    NativeArray<bool> shouldProcessLine = new NativeArray<bool>(lines.Length, Allocator.TempJob);

    ProcessLinesJob job = new ProcessLinesJob
    {
        Lines = lines,
        CameraPosition = cam.transform.position,
        ShouldProcessLine = shouldProcessLine
    };

    JobHandle handle = job.Schedule(lines.Length, 64); // 64 is the batch size
    handle.Complete();

    for (int i = 0; i < lines.Length; i++)
    {
        if (shouldProcessLine[i])
        {
            // Process the line, e.g., add to a buffer or draw it
        }
    }

    lines.Dispose();
    shouldProcessLine.Dispose();
}

Notes:

Each line is processed independently in parallel.
ShouldProcessLine array is used to store whether each line meets your processing criteria.
After the job is completed, you iterate through the results to perform further processing (like adding to a buffer or drawing).
Remember to dispose of all NativeArray instances to avoid memory leaks.
Adjust the batch size in the Schedule method for optimal performance based on your workload and target hardware.

This implementation takes advantage of parallel processing for each line and should provide a significant performance boost, especially when dealing with a large number of lines.

Your approach of using multiple jobs, each specializing in a specific task, is a good strategy in Unity’s DOTS for maximizing performance. Splitting the tasks into different jobs allows for better parallelization and can help keep the code organized and maintainable. Here’s a refined approach based on your idea:

Job 1: Filter Lines using `IJobParallelForFilter`

The first job will filter out lines based on the triangle normal and camera position. This job can use IJobParallelFor or IJobParallelForFilter (if you’re using a more recent Unity version that supports it).

[BurstCompile]
public struct FilterLinesJob : IJobParallelFor
{
    [ReadOnly] public NativeArray<Line> Lines;
    [ReadOnly] public float3 CameraPosition;
    public NativeArray<bool> ShouldProcessLine;

    public void Execute(int index)
    {
        var line = Lines[index];
        // Calculate triangle normal and center based on line information
        bool isFacingCamera = ...; // logic to determine if facing the camera

        ShouldProcessLine[index] = isFacingCamera;
    }
}

Job 2: Process Lines and Add to HashSet

The second job will iterate over the lines and, based on the results from the first job, perform further processing like adding them to a HashSet.

Since jobs can’t directly modify hash sets or other non-blittable types, you’d typically collect the indices of the lines to process in an array, and then handle the HashSet addition back in the main thread.

[BurstCompile]
public struct ProcessLinesJob : IJob
{
    [ReadOnly] public NativeArray<Line> Lines;
    [ReadOnly] public NativeArray<bool> ShouldProcessLine;
    public NativeList<int> LineIndicesToProcess; // Store indices of lines to process

    public void Execute()
    {
        for (int i = 0; i < Lines.Length; i++)
        {
            if (ShouldProcessLine[i])
            {
                LineIndicesToProcess.Add(i);
            }
        }
    }
}

Job 3: Matrix Projections

The third job will handle the matrix projections. This job will read the line indices from the NativeList<int> produced by the second job and perform the necessary matrix operations.

[BurstCompile]
public struct MatrixProjectionJob : IJobParallelFor
{
    [ReadOnly] public NativeArray<Line> Lines;
    [ReadOnly] public NativeArray<int> LineIndicesToProcess;
    // Additional fields for projection matrices...

    public void Execute(int index)
    {
        int lineIndex = LineIndicesToProcess[index];
        Line line = Lines[lineIndex];

        // Perform matrix projection on the line
        // Store or process the projected line as needed
    }
}

Main Thread Logic in `Update`

In the Update method, you would schedule and complete these jobs in sequence. After the second job, you would handle the HashSet population in the main thread:

void Update()
{
    // Set up NativeArrays and jobs...

    JobHandle filterHandle = filterLinesJob.Schedule(lines.Length, 64);
    filterHandle.Complete();

    JobHandle processHandle = processLinesJob.Schedule();
    processHandle.Complete();

    // Populate HashSet in the main thread
    HashSet<Line> lineBuffer = new HashSet<Line>();
    foreach (int index in processLinesJob.LineIndicesToProcess)
    {
        lineBuffer.Add(lines[index]);
    }

    // Schedule and complete the matrix projection job...

    // Dispose of NativeArrays...
}

Summary

Filter Lines Job: Filters lines based on whether they face the camera.
Process Lines Job: Determines which lines to process and stores their indices.
Matrix Projection Job: Performs matrix projections on the filtered lines.
Main Thread: Handles operations that can’t be done in jobs, like populating a HashSet.

This approach maximizes parallel processing while respecting the constraints of the Unity Job system and Burst compiler. Remember, Unity’s DOTS and Job system have specific requirements and limitations, especially regarding memory safety and accessing Unity objects, so ensure that all data passed into jobs is blittable and properly managed.

I apologize for the oversight. Let’s refine the approach to better utilize Unity’s Job System and the Burst Compiler for optimal performance. We’ll employ NativeHashMap for efficient data handling and ensure that all jobs are parallelized.

Overview of the Revised Approach

Filter Lines Job (IJobParallelFor): This job will determine whether each line should be processed, based on its orientation relative to the camera.
Process Lines Job (IJobParallelFor): This job will perform further processing on lines that passed the filter, adding them to a NativeHashMap.
Matrix Projection Job (IJobParallelFor): This job will handle the matrix projections for each line in the NativeHashMap.

Step 1: Filter Lines Job

[BurstCompile]
public struct FilterLinesJob : IJobParallelFor
{
    [ReadOnly] public NativeArray<Line> Lines;
    [ReadOnly] public float3 CameraPosition;
    [WriteOnly] public NativeArray<bool> ShouldProcessLine;

    public void Execute(int index)
    {
        var line = Lines[index];
        // Calculate triangle normal and center based on line information
        bool isFacingCamera = ...; // logic to determine if facing the camera

        ShouldProcessLine[index] = isFacingCamera;
    }
}

Step 2: Process Lines Job

[BurstCompile]
public struct ProcessLinesJob : IJobParallelFor
{
    [ReadOnly] public NativeArray<Line> Lines;
    [ReadOnly] public NativeArray<bool> ShouldProcessLine;
    public NativeHashMap<int, Line>.ParallelWriter LineBuffer;

    public void Execute(int index)
    {
        if (ShouldProcessLine[index])
        {
            Line line = Lines[index];
            LineBuffer.TryAdd(index, line);
        }
    }
}

In this job, we use NativeHashMap<int, Line>.ParallelWriter to allow concurrent writes to the NativeHashMap.

Step 3: Matrix Projection Job

[BurstCompile]
public struct MatrixProjectionJob : IJobParallelFor
{
    [ReadOnly] public NativeArray<Line> Lines;
    // Additional fields for projection matrices...

    public void Execute(int index)
    {
        Line line = Lines[index];

        // Perform matrix projection on the line
        // Store or process the projected line as needed
    }
}

This job will handle the matrix projections. The lines to be processed can be accessed from the NativeHashMap created in the second job.

Scheduling Jobs in `Update`

void Update()
{
    // Set up NativeArrays and NativeHashMap...

    JobHandle filterHandle = new FilterLinesJob
    {
        Lines = lines,
        CameraPosition = cam.transform.position,
        ShouldProcessLine = shouldProcessLine
    }.Schedule(lines.Length, 64);

    filterHandle.Complete();

    var lineBuffer = new NativeHashMap<int, Line>(lines.Length, Allocator.TempJob);
    JobHandle processHandle = new ProcessLinesJob
    {
        Lines = lines,
        ShouldProcessLine = shouldProcessLine,
        LineBuffer = lineBuffer.AsParallelWriter()
    }.Schedule(lines.Length, 64);

    processHandle.Complete();

    // Schedule and complete the matrix projection job...

    lineBuffer.Dispose();
    // Dispose of other NativeArrays...
}

Final Notes

Parallel Execution: Each job is parallelized, efficiently utilizing multiple cores.
NativeHashMap: Used in the Process Lines Job for concurrent writes.
Memory Management: Remember to properly dispose of all NativeArray and NativeHashMap instances to prevent memory leaks.

This revised approach should provide a more efficient and parallel solution, fully utilizing Unity’s Job System and the Burst Compiler for high-performance computations.

I apologize for the confusion earlier. Let’s correctly utilize the IJobParallelForFilter interface in your scenario. The IJobParallelForFilter interface is specifically designed for scenarios where you need to perform parallel operations with a conditional check, making it suitable for your requirement to filter lines.

Here’s how you can structure your jobs using IJobParallelForFilter and follow-up processing:

Step 1: Filter Lines Job with `IJobParallelForFilter`

The IJobParallelForFilter job will iterate over each line and determine whether it should be processed based on its orientation relative to the camera.

[BurstCompile]
public struct FilterLinesJob : IJobParallelForFilter
{
    [ReadOnly] public NativeArray<Line> Lines;
    [ReadOnly] public float3 CameraPosition;

    public bool Execute(int index)
    {
        var line = Lines[index];
        // Calculate triangle normal and center based on line information
        return ...; // Return true if line faces the camera, false otherwise
    }
}

Step 2: Process and Projection Jobs

After filtering, you can process the lines that passed the filter. Since IJobParallelForFilter doesn’t directly output a list of filtered indices, you’ll need to handle the filtered lines either by storing a flag in a parallel array or by using a subsequent job to process only the filtered lines.

For the projection job, you would process each line, possibly using IJobParallelFor, to apply the matrix projections.

Scheduling Jobs in `Update`

Schedule the FilterLinesJob first. After completing this job, schedule the processing and projection jobs.

void Update()
{
    NativeArray<Line> lines = // Initialize your lines
    float3 cameraPosition = cam.transform.position;

    JobHandle filterHandle = new FilterLinesJob
    {
        Lines = lines,
        CameraPosition = cameraPosition
    }.Schedule(lines.Length, 64); // Batch size can be adjusted

    filterHandle.Complete();

    // Process the filtered lines
    // This may involve another job or direct processing in the main thread,
    // depending on how you're handling the filtered results.

    // Schedule and complete the matrix projection job...

    // Clean up
    lines.Dispose();
}

Notes:

Parallel Filtering: IJobParallelForFilter allows for efficient parallel filtering based on a condition.
Follow-up Processing: You’ll need a strategy to process the filtered lines, as IJobParallelForFilter does not directly provide a list of indices that passed the filter.
Memory Management: Ensure all native collections are properly disposed of.

By using IJobParallelForFilter, your code will efficiently parallelize the task of determining which lines should be processed, based on their orientation relative to the camera. The subsequent processing and projection steps would then operate on this filtered set of lines.

To create a version of the CompareVectors function that works with Unity’s Mathematics library and uses float3 instead of Vector3, you can follow a similar approach. Since float3 doesn’t have a CompareTo method, you’ll need to manually compare the components. Also, remember that direct comparison of floating-point numbers can be unreliable due to precision issues, so it’s common to use a tolerance value or math.abs to check for approximate equality.

Here’s how you can implement CompareVectors with float3:

using Unity.Mathematics;

private static int CompareVectors(float3 v1, float3 v2)
{
    float tolerance = 1e-6f; // Define an appropriate tolerance value

    if (math.abs(v1.x - v2.x) > tolerance)
        return v1.x > v2.x ? 1 : -1;
    if (math.abs(v1.y - v2.y) > tolerance)
        return v1.y > v2.y ? 1 : -1;
    if (math.abs(v1.z - v2.z) > tolerance)
        return v1.z > v2.z ? 1 : -1;

    return 0; // Vectors are approximately equal
}

In this function:

We first check if the difference between the x-components of v1 and v2 is greater than a specified tolerance. If so, we return 1 or -1 based on whether v1.x is greater than v2.x.
We repeat this process for the y and z components.
If all components are approximately equal (within the tolerance), we return 0, indicating equality.

This approach handles floating-point precision issues by considering two values equal if they are within a certain small range (tolerance) of each other, which is often necessary in floating-point arithmetic to avoid issues due to minor inaccuracies in calculations.

Vectorizing the comparison of two float3 vectors in Unity’s Mathematics library can be approached by using SIMD (Single Instruction, Multiple Data) operations provided by the library. These operations can perform the same action on multiple data points simultaneously, leading to potential performance gains.

However, a direct vectorization of a lexicographic comparison (like the one you’ve done with CompareVectors) is a bit tricky because SIMD operations are more suited for element-wise operations rather than sequential comparisons. Nevertheless, we can attempt an approximation that leverages SIMD for a more efficient comparison, with the caveat that it might not exactly replicate the lexicographic comparison in all edge cases.

Here’s an example of how you might vectorize the comparison using Unity Mathematics:

using Unity.Mathematics;

private static int CompareVectors(float3 v1, float3 v2)
{
    float tolerance = 1e-6f;
    float3 diff = v1 - v2;
    bool3 greater = diff > tolerance;
    bool3 less = diff < -tolerance;

    if (math.any(greater))
    {
        return 1;
    }
    else if (math.any(less))
    {
        return -1;
    }
    return 0;
}

In this function:

We calculate the difference between the vectors v1 and v2.
We create two boolean vectors: greater and less, which hold whether the difference in each corresponding component is greater than or less than the tolerance, respectively.
If any component of greater is true, we return 1.
If any component of less is true, we return -1.
If neither condition is met, the vectors are considered approximately equal, and we return 0.

This version utilizes SIMD operations (math.any, element-wise comparisons) for efficiency. However, it doesn’t perfectly replicate a lexicographical comparison since it doesn’t compare component by component in sequence (x, then y, then z). Instead, it checks all components simultaneously and determines if v1 is overall greater than, less than, or approximately equal to v2.

This method might be suitable for many applications where a rough comparison is sufficient, but keep in mind that it won’t behave exactly like a lexicographic comparison in all cases.

Certainly, the vector comparison function can be condensed using ternary operators and some streamlined logic. Here’s a more concise version of the CompareVectors function using float3 from Unity Mathematics:

using Unity.Mathematics;

private static int CompareVectors(float3 v1, float3 v2)
{
    float tolerance = 1e-6f;
    float3 diff = v1 - v2;
    bool3 greaterThanTolerance = diff > tolerance;
    bool3 lessThanNegativeTolerance = diff < -tolerance;

    return math.any(greaterThanTolerance) ? 1 : (math.any(lessThanNegativeTolerance) ? -1 : 0);
}

In this version:

The greaterThanTolerance and lessThanNegativeTolerance boolean vectors are used to check if any component of v1 is significantly greater or less than the corresponding component of v2.
The ternary operator (?:) is used to return 1 if any component of v1 is greater than v2 by more than the tolerance, -1 if any component of v1 is less than v2 by more than the tolerance, and 0 otherwise (meaning the vectors are approximately equal within the specified tolerance).

This version provides a compact and efficient way to compare float3 vectors, utilizing SIMD operations for improved performance. Keep in mind that this comparison is not a strict lexicographical comparison but rather a simultaneous evaluation of all components with respect to the specified tolerance.

To draw a series of lines represented by X, Y, X, Y pairs (indicating the start and end points of each line) in Excel using VBA, you can follow these steps:

Parse the CSV Data: Read the CSV file and parse the data into a format that can be used to draw lines. Assuming your CSV is formatted with each line as X1,Y1,X2,Y2, you will need to read each line and extract these values.
Create a Chart: Add a scatter chart to your worksheet.
Draw Lines on the Chart: For each line in your CSV, add a series to the chart with two points: the start point (X1, Y1) and the end point (X2, Y2).

Here’s a VBA script that demonstrates this process:

Sub DrawLinesFromCSV()
    Dim ws As Worksheet
    Dim chartObj As ChartObject
    Dim series As Series
    Dim filePath As String
    Dim fileContent As String
    Dim lines() As String
    Dim lineParts() As String
    Dim i As Integer

    ' Replace with your CSV file path
    filePath = "C:\path\to\your\file.csv"

    ' Read file content
    fileContent = ReadTextFile(filePath)

    ' Split file content into lines
    lines = Split(fileContent, vbCrLf)

    Set ws = ThisWorkbook.Sheets("Sheet1") ' Change to your sheet name
    Set chartObj = ws.ChartObjects.Add(Left:=100, Width:=375, Top:=50, Height:=225)
    chartObj.Chart.ChartType = xlXYScatterLinesNoMarkers

    ' Loop through each line and draw it
    For i = LBound(lines) To UBound(lines)
        If lines(i) <> "" Then
            lineParts = Split(lines(i), ",")
            Set series = chartObj.Chart.SeriesCollection.NewSeries
            series.XValues = Array(lineParts(0), lineParts(2))
            series.Values = Array(lineParts(1), lineParts(3))
        End If
    Next i
End Sub

' Function to read text file content
Function ReadTextFile(filePath As String) As String
    Dim fileNum As Integer
    Dim content As String

    fileNum = FreeFile()
    Open filePath For Input As fileNum
    content = Input$(LOF(fileNum), fileNum)
    Close fileNum

    ReadTextFile = content
End Function

Before running this script, replace filePath with the path to your CSV file and adjust the sheet name if necessary. This script assumes that your data is correctly formatted and that the CSV file doesn’t contain headers.

When run, this VBA script will create a scatter chart on the specified worksheet and draw each line from the CSV as a separate series. Keep in mind that Excel’s charting capabilities are somewhat limited in terms of drawing arbitrary lines, so this approach uses scatter plots to simulate line segments.

If the lines are already loaded in Excel rows with each row containing X1, Y1, X2, Y2, you can create a chart directly from this data using VBA. Here’s how you can do it:

Identify the Range: Determine the range of cells that contains your line data.
Create a Chart: Add a scatter chart to your worksheet.
Add Lines to the Chart: For each row in your range, add a series to the chart with two points: the start point (X1, Y1) and the end point (X2, Y2).

Below is a VBA script that demonstrates this process:

Sub DrawLinesFromExcelData()
    Dim ws As Worksheet
    Dim chartObj As ChartObject
    Dim series As Series
    Dim dataRange As Range
    Dim i As Long

    Set ws = ThisWorkbook.Sheets("Sheet1") ' Change to your sheet name
    Set chartObj = ws.ChartObjects.Add(Left:=100, Width:=375, Top:=50, Height:=225)
    chartObj.Chart.ChartType = xlXYScatterLinesNoMarkers

    ' Set this to the range where your data is
    Set dataRange = ws.Range("A1:D10") ' Change to your actual data range

    For i = 1 To dataRange.Rows.Count
        Set series = chartObj.Chart.SeriesCollection.NewSeries
        With series
            .XValues = Array(dataRange.Cells(i, 1).Value, dataRange.Cells(i, 3).Value)
            .Values = Array(dataRange.Cells(i, 2).Value, dataRange.Cells(i, 4).Value)
        End With
    Next i
End Sub

Replace "Sheet1" with the name of your sheet and adjust "A1:D10" to the actual range of your data. This script assumes that each row in dataRange represents a line with X1, Y1, X2, Y2.

When you run this script, it will create a scatter chart on the specified worksheet and draw each line from your data range as a separate series. This method is effective for visualizing line segments in Excel, though keep in mind Excel’s limitations for complex graphical representations.

To create a plot with only the lines and no additional decorations such as axis labels, legends, or gridlines, you can modify the chart’s properties in your VBA script. Here’s how you can update the script to create a minimalistic plot:

Sub DrawMinimalisticLines()
    Dim ws As Worksheet
    Dim chartObj As ChartObject
    Dim series As Series
    Dim dataRange As Range
    Dim i As Long

    Set ws = ThisWorkbook.Sheets("Sheet1") ' Change to your sheet name
    Set chartObj = ws.ChartObjects.Add(Left:=100, Width:=375, Top:=50, Height:=225)
    With chartObj.Chart
        .ChartType = xlXYScatterLinesNoMarkers

        ' Hide chart elements
        .HasLegend = False
        .Axes(xlCategory, xlPrimary).HasTitle = False
        .Axes(xlValue, xlPrimary).HasTitle = False
        .Axes(xlCategory).HasMajorGridlines = False
        .Axes(xlValue).HasMajorGridlines = False
        .Axes(xlCategory).HasMinorGridlines = False
        .Axes(xlValue).HasMinorGridlines = False
        .Axes(xlCategory).TickLabels.Font.Size = 1 ' Hide axis labels by setting font size to 1
        .Axes(xlValue).TickLabels.Font.Size = 1
        .PlotArea.Interior.Color = RGB(255, 255, 255) ' Set plot area background color to white
        .PlotArea.Border.Color = RGB(255, 255, 255) ' Set plot area border color to white
    End With

    ' Set this to the range where your data is
    Set dataRange = ws.Range("A1:D10") ' Change to your actual data range

    For i = 1 To dataRange.Rows.Count
        Set series = chartObj.Chart.SeriesCollection.NewSeries
        With series
            .XValues = Array(dataRange.Cells(i, 1).Value, dataRange.Cells(i, 3).Value)
            .Values = Array(dataRange.Cells(i, 2).Value, dataRange.Cells(i, 4).Value)
        End With
    Next i
End Sub

This script creates a chart with only the lines visible. It hides the legend, axis titles, gridlines, and sets the axis labels’ font size to 1, effectively hiding them. The plot and border colors are set to white to match the worksheet’s background, creating a clean and minimalistic look.

Ensure that your data range and sheet name match your actual Excel setup. When you run this script, you’ll get a scatter chart with just the lines and no additional chart decorations.

To enhance the performance of the chart and avoid creating a new chart every time the script runs, you can modify the script to check if a chart already exists and update it instead of creating a new one. Also, using a single color for all lines will further streamline the process.

Here’s the updated VBA script:

Sub DrawOrUpdateLines()
    Dim ws As Worksheet
    Dim chartObj As ChartObject
    Dim series As Series
    Dim dataRange As Range
    Dim i As Long
    Dim chartExists As Boolean
    Dim chartColor As Long

    Set ws = ThisWorkbook.Sheets("Sheet1") ' Change to your sheet name
    chartExists = False
    chartColor = RGB(0, 0, 255) ' Set a single color for all lines, e.g., blue

    ' Check if the chart already exists
    For Each chartObj In ws.ChartObjects
        If chartObj.Name = "MyLineChart" Then
            chartExists = True
            Exit For
        End If
    Next chartObj

    If Not chartExists Then
        Set chartObj = ws.ChartObjects.Add(Left:=100, Width:=375, Top:=50, Height:=225)
        chartObj.Name = "MyLineChart" ' Give a unique name to the chart
    End If

    With chartObj.Chart
        .ChartType = xlXYScatterLinesNoMarkers
        .SeriesCollection.Clear ' Clear existing series before adding new ones

        ' Customize the chart for minimalistic look
        .HasLegend = False
        .Axes(xlCategory).TickLabels.Font.Size = 1
        .Axes(xlValue).TickLabels.Font.Size = 1
        .Axes(xlCategory).HasMajorGridlines = False
        .Axes(xlValue).HasMajorGridlines = False
    End With

    ' Set this to the range where your data is
    Set dataRange = ws.Range("A1:D10") ' Change to your actual data range

    ' Add series to the chart
    For i = 1 To dataRange.Rows.Count
        Set series = chartObj.Chart.SeriesCollection.NewSeries
        With series
            .XValues = Array(dataRange.Cells(i, 1).Value, dataRange.Cells(i, 3).Value)
            .Values = Array(dataRange.Cells(i, 2).Value, dataRange.Cells(i, 4).Value)
            .Format.Line.ForeColor.RGB = chartColor ' Set the line color
        End With
    Next i
End Sub

In this script:

It first checks if a chart named "MyLineChart" already exists. If it does, it uses that chart; otherwise, it creates a new one.
It sets a single color for all lines to enhance performance.
It clears any existing series before adding new ones, which allows the same chart to be reused for updated data.

This approach avoids the overhead of creating a new chart object each time and simplifies the color scheme for better performance. Remember to adjust the data range and sheet name as per your actual Excel setup.

The error message “Object doesn’t support this property or method” in VBA usually occurs when you try to call a property or method that doesn’t exist for a specific object type. In the context of the provided script, this error might be related to the chart customization or the way we’re attempting to reuse an existing chart.

Let’s correct the script to ensure compatibility with Excel’s VBA environment:

Properly Handle Chart Creation and Updating: Excel VBA might not support dynamically assigning a name to a ChartObject or checking its existence in the way we tried. We need a different approach to handle this.
Simplify Chart Customization: Ensure all chart customization steps are compatible with the Chart object in Excel VBA.

Here is the revised script:

Sub DrawOrUpdateLines()
    Dim ws As Worksheet
    Dim chartObj As ChartObject
    Dim series As Series
    Dim dataRange As Range
    Dim i As Long
    Dim chartColor As Long

    Set ws = ThisWorkbook.Sheets("Sheet1") ' Change to your sheet name
    chartColor = RGB(0, 0, 255) ' Set a single color for all lines, e.g., blue

    ' Check if the chart already exists (assuming it's the first chart object)
    If ws.ChartObjects.Count > 0 Then
        Set chartObj = ws.ChartObjects(1)
    Else
        Set chartObj = ws.ChartObjects.Add(Left:=100, Width:=375, Top:=50, Height:=225)
    End If

    With chartObj.Chart
        .ChartType = xlXYScatterLinesNoMarkers
        .SeriesCollection.Clear ' Clear existing series before adding new ones

        ' Customize the chart for minimalistic look
        .HasLegend = False
        .Axes(xlCategory).HasMajorGridlines = False
        .Axes(xlValue).HasMajorGridlines = False
        .Axes(xlCategory).TickLabels.Font.Size = 1
        .Axes(xlValue).TickLabels.Font.Size = 1
    End With

    ' Set this to the range where your data is
    Set dataRange = ws.Range("A1:D10") ' Change to your actual data range

    ' Add series to the chart
    For i = 1 To dataRange.Rows.Count
        Set series = chartObj.Chart.SeriesCollection.NewSeries
        With series
            .XValues = Array(dataRange.Cells(i, 1).Value, dataRange.Cells(i, 3).Value)
            .Values = Array(dataRange.Cells(i, 2).Value, dataRange.Cells(i, 4).Value)
            .Format.Line.ForeColor.RGB = chartColor ' Set the line color
        End With
    Next i
End Sub

This script assumes the first chart object in the worksheet is the one we want to use or update. If you have multiple charts, you might need a more sophisticated method to identify the correct one.

Additionally, this script sets the line color and attempts to minimize chart decorations to create a high-performance, minimalistic plot. Make sure to adjust the data range ("A1:D10") and sheet name ("Sheet1") to match your Excel setup.

To set the lines in an Excel chart as fast as possible without using loops, you can use a different approach where you directly bind the chart series to a range in the worksheet. This method is much faster as it leverages Excel’s native handling of ranges and avoids the overhead of VBA loops.

Here’s how you can do it:

Organize Your Data: Arrange your data in a way that each pair of rows represents the X and Y values of a line. For example, suppose your data is in columns A to D (A: X1, B: Y1, C: X2, D: Y2), then you would rearrange it so that A and C are X values and B and D are Y values in two separate rows for each line.
Create a Chart: Add a scatter chart to your worksheet.
Bind the Chart Series to the Range: Set the chart series to the entire range of your data.

Here’s a revised VBA script:

Sub DrawLinesFast()
    Dim ws As Worksheet
    Dim chartObj As ChartObject
    Dim lastRow As Long

    Set ws = ThisWorkbook.Sheets("Sheet1") ' Change to your sheet name
    lastRow = ws.Cells(ws.Rows.Count, "A").End(xlUp).Row

    Set chartObj = ws.ChartObjects.Add(Left:=100, Width:=375, Top:=50, Height:=225)
    With chartObj.Chart
        .ChartType = xlXYScatterLinesNoMarkers
        .SeriesCollection.NewSeries
        .SeriesCollection(1).XValues = ws.Range("A1:C" & lastRow) ' Assuming X values are in A & C
        .SeriesCollection(1).Values = ws.Range("B1:D" & lastRow) ' Assuming Y values are in B & D

        ' Customize the chart for minimalistic look
        .HasLegend = False
        .Axes(xlCategory).HasMajorGridlines = False
        .Axes(xlValue).HasMajorGridlines = False
        .Axes(xlCategory).TickLabels.Font.Size = 1
        .Axes(xlValue).TickLabels.Font.Size = 1
    End With
End Sub

In this script:

The chart is created and a single series is added.
The XValues and Values of the series are set to the ranges that contain the X and Y coordinates of the lines, respectively.
The chart is customized for a minimalistic appearance.

This approach assumes that the X and Y values of your lines are laid out in a specific manner in the worksheet. Adjust the range references in .XValues and .Values to match the layout of your data. This method will be much faster than looping through each line in VBA, as it leverages Excel’s native processing of ranges.

Given your data range from A1 to D400, where each row contains X1, Y1, X2, Y2 for a line, the approach to draw lines quickly in Excel using VBA without looping through each line is to convert this range into two series of X and Y values. However, Excel’s chart series typically expect a series of Y values against a single range of X values.

Since your requirement involves pairs of X and Y values for each line, we can’t directly map the entire range as standard X and Y values for a single series. Instead, we can use a helper column approach to rearrange data suitably.

Here’s how you can do it:

Rearrange Data with Helper Columns: Create helper columns in Excel to split each line’s start and end points into separate rows.
Create a Chart: Add a scatter chart to your worksheet.
Bind the Chart Series to the Range: Set the chart series to the range of your helper columns.

VBA Script to Setup Helper Columns and Chart:

Sub DrawLinesFast()
    Dim ws As Worksheet
    Dim chartObj As ChartObject
    Dim lastRow As Long, i As Long

    Set ws = ThisWorkbook.Sheets("Sheet1") ' Change to your sheet name
    lastRow = 400 ' Number of lines

    ' Set up helper columns
    For i = 1 To lastRow
        ws.Cells(i * 2 - 1, "F") = ws.Cells(i, "A") ' X1
        ws.Cells(i * 2 - 1, "G") = ws.Cells(i, "B") ' Y1
        ws.Cells(i * 2, "F") = ws.Cells(i, "C")     ' X2
        ws.Cells(i * 2, "G") = ws.Cells(i, "D")     ' Y2
    Next i

    Set chartObj = ws.ChartObjects.Add(Left:=100, Width:=375, Top:=50, Height:=225)
    With chartObj.Chart
        .ChartType = xlXYScatterLinesNoMarkers
        .SeriesCollection.NewSeries
        .SeriesCollection(1).XValues = ws.Range("F1:F" & lastRow * 2)
        .SeriesCollection(1).Values = ws.Range("G1:G" & lastRow * 2)

        ' Customize the chart for minimalistic look
        .HasLegend = False
        .Axes(xlCategory).HasMajorGridlines = False
        .Axes(xlValue).HasMajorGridlines = False
        .Axes(xlCategory).TickLabels.Font.Size = 1
        .Axes(xlValue).TickLabels.Font.Size = 1
    End With
End Sub

Explanation:

This script first uses a loop to create helper columns (F and G in this example) that reformat your data into a sequence that Excel’s chart can interpret. Each line’s start and end points are placed in consecutive rows.
A scatter chart is then created using these helper columns.
The script sets the X and Y values of the chart series to the ranges in the helper columns.

Note:

This approach still uses a loop to prepare the data, but this is done only once. The actual chart plotting does not involve VBA looping over lines, which is more efficient.
Ensure that the helper columns (F and G in this example) do not overwrite any existing data in your worksheet. Adjust the column references if necessary.
This script assumes a fixed number of rows (400 in this case). Adjust the lastRow variable if your data range changes.

You’re right. Using a single series for all line segments will connect all lines end-to-end, creating a tangled mess. To correctly plot each line segment independently in Excel, you’ll need to add each line as a separate series in the chart. This will prevent the lines from being connected to each other.

Unfortunately, Excel doesn’t natively support batch-adding series without a loop in VBA. However, you can optimize the performance by minimizing the interactions with the Excel object model within the loop. Here’s an approach to do this:

Create a Chart: Add a scatter chart to your worksheet.
Add Each Line as a Separate Series: Use a loop to add each line (X1,Y1 to X2,Y2) as a separate series.

Here’s the VBA script:

Sub DrawIndependentLines()
    Dim ws As Worksheet
    Dim chartObj As ChartObject
    Dim series As Series
    Dim i As Long

    Set ws = ThisWorkbook.Sheets("Sheet1") ' Change to your sheet name
    Set chartObj = ws.ChartObjects.Add(Left:=100, Width:=375, Top:=50, Height:=225)

    With chartObj.Chart
        .ChartType = xlXYScatterLinesNoMarkers

        ' Customize the chart for minimalistic look
        .HasLegend = False
        .Axes(xlCategory).HasMajorGridlines = False
        .Axes(xlValue).HasMajorGridlines = False
        .Axes(xlCategory).TickLabels.Font.Size = 1
        .Axes(xlValue).TickLabels.Font.Size = 1
    End With

    ' Add each line as a separate series
    For i = 1 To 400 ' Assuming 400 lines
        Set series = chartObj.Chart.SeriesCollection.NewSeries
        With series
            .XValues = Array(ws.Cells(i, "A").Value, ws.Cells(i, "C").Value)
            .Values = Array(ws.Cells(i, "B").Value, ws.Cells(i, "D").Value)
            .Format.Line.ForeColor.RGB = RGB(0, 0, 0) ' Set color to black
        End With
    Next i
End Sub

This script adds each line in your data range as a separate series to the chart, which prevents them from being connected. While this method uses a loop, it’s optimized to reduce the overhead of interacting with the Excel object model.

Please ensure that the range in the script matches your data layout. If your data range is dynamic, you’ll need to adjust the loop to match the actual number of lines.

To enhance the performance while the lines are being added to the chart in Excel, it’s a good practice to temporarily disable certain Excel features like automatic calculations, screen updating, and events. This can significantly speed up the process, especially when dealing with a large number of operations.

Here’s how you can modify the VBA script to pause calculations and other updates while the lines are being added:

Sub DrawIndependentLinesOptimized()
    Dim ws As Worksheet
    Dim chartObj As ChartObject
    Dim series As Series
    Dim i As Long
    Dim originalCalcMode As XlCalculation
    Dim originalScreenUpdating As Boolean
    Dim originalEnableEvents As Boolean

    ' Store original settings
    With Application
        originalCalcMode = .Calculation
        originalScreenUpdating = .ScreenUpdating
        originalEnableEvents = .EnableEvents

        ' Turn off features to speed up the process
        .Calculation = xlCalculationManual
        .ScreenUpdating = False
        .EnableEvents = False
    End With

    Set ws = ThisWorkbook.Sheets("Sheet1") ' Change to your sheet name
    Set chartObj = ws.ChartObjects.Add(Left:=100, Width:=375, Top:=50, Height:=225)

    With chartObj.Chart
        .ChartType = xlXYScatterLinesNoMarkers
        .HasLegend = False
        .Axes(xlCategory).HasMajorGridlines = False
        .Axes(xlValue).HasMajorGridlines = False
        .Axes(xlCategory).TickLabels.Font.Size = 1
        .Axes(xlValue).TickLabels.Font.Size = 1
    End With

    ' Add each line as a separate series
    For i = 1 To 400 ' Assuming 400 lines
        Set series = chartObj.Chart.SeriesCollection.NewSeries
        With series
            .XValues = Array(ws.Cells(i, "A").Value, ws.Cells(i, "C").Value)
            .Values = Array(ws.Cells(i, "B").Value, ws.Cells(i, "D").Value)
            .Format.Line.ForeColor.RGB = RGB(0, 0, 0) ' Set color to black
        End With
    Next i

    ' Restore original settings
    With Application
        .Calculation = originalCalcMode
        .ScreenUpdating = originalScreenUpdating
        .EnableEvents = originalEnableEvents
    End With
End Sub

In this script:

Before adding the lines, Excel’s calculation mode is set to manual (xlCalculationManual), screen updating is turned off, and events are disabled.
After the lines are added, the original settings for calculation mode, screen updating, and events are restored.

This approach ensures that Excel does not try to recalculate or refresh the screen after each line is added, which can significantly speed up the execution of the script, especially with a large dataset. Remember to adjust the loop’s range to match your actual data.

To optimize the VBA script for drawing lines in Excel, you can modify it to check if a chart series already exists and use it instead of adding a new series each time. This approach is efficient, especially if you only need one series to represent all lines.

Here’s the revised script:

Sub DrawIndependentLinesOptimized()
    Dim ws As Worksheet
    Dim chartObj As ChartObject
    Dim series As Series
    Dim i As Long
    Dim xValues As Variant
    Dim yValues As Variant

    Set ws = ThisWorkbook.Sheets("Sheet1") ' Change to your sheet name
    Set chartObj = ws.ChartObjects.Add(Left:=100, Width:=375, Top:=50, Height:=225)

    With chartObj.Chart
        .ChartType = xlXYScatterLinesNoMarkers
        .HasLegend = False
        .Axes(xlCategory).HasMajorGridlines = False
        .Axes(xlValue).HasMajorGridlines = False
        .Axes(xlCategory).TickLabels.Font.Size = 1
        .Axes(xlValue).TickLabels.Font.Size = 1

        If .SeriesCollection.Count > 0 Then
            Set series = .SeriesCollection(1)
        Else
            Set series = .SeriesCollection.NewSeries
        End If
    End With

    ' Prepare data for the series
    ReDim xValues(1 To 800)
    ReDim yValues(1 To 800)

    For i = 1 To 400 ' Assuming 400 lines
        xValues(i * 2 - 1) = ws.Cells(i, "A").Value
        yValues(i * 2 - 1) = ws.Cells(i, "B").Value
        xValues(i * 2) = ws.Cells(i, "C").Value
        yValues(i * 2) = ws.Cells(i, "D").Value
    Next i

    ' Set the series data
    With series
        .XValues = xValues
        .Values = yValues
        .Format.Line.ForeColor.RGB = RGB(0, 0, 0) ' Set color to black
    End With
End Sub

In this script:

The script checks if there is already a series in the chart. If so, it uses the first series; otherwise, it creates a new series.
It uses arrays (xValues and yValues) to store the X and Y values for all lines. This avoids repeatedly accessing the Excel range within the loop, which can be a performance bottleneck.
After the loop, it sets the XValues and Values of the series to these arrays in one operation.

This approach reduces the number of operations performed on the chart object, which should improve the performance, especially with a large number of lines. Remember to adjust the script to match the actual range of your data.

In VBA (Visual Basic for Applications), you can suppress error messages and pop-ups by using error handling strategies. The most common approach is to use the On Error Resume Next statement, which instructs VBA to continue executing the next line of code after an error occurs, effectively ignoring the error.

Here’s how you can use On Error Resume Next:

Sub ExampleSub()
    On Error Resume Next ' This will suppress all error pop-ups

    ' Your code here

    On Error GoTo 0 ' This will reset error handling to default behavior
End Sub

In this example, any errors that occur between On Error Resume Next and On Error GoTo 0 will be ignored, and no error pop-ups will be shown. The script will continue to execute subsequent lines of code even if an error occurs.

However, while On Error Resume Next is useful for suppressing error messages, it should be used with caution. Ignoring errors can lead to unexpected behavior and can make debugging more difficult. It’s often better to handle errors properly rather than suppressing them. For instance, you can use structured error handling with Try...Catch blocks or specific On Error GoTo ErrorHandler statements to handle errors more gracefully.

Here’s an example of using structured error handling:

Sub ExampleSub()
    On Error GoTo ErrorHandler

    ' Your code here

    Exit Sub

ErrorHandler:
    ' Error handling code
    MsgBox "An error occurred: " & Err.Description
End Sub

In this approach, if an error occurs, execution jumps to the ErrorHandler label, and you can manage the error as needed, for example, by displaying a custom message box or logging the error.

Remember, while suppressing errors might be necessary in some scenarios, it’s generally good practice to handle errors appropriately to maintain robust and reliable code.

When you’re working with error handling inside a loop in VBA, it’s important to reset the error handler at the beginning of each iteration. This ensures that each iteration starts with a clean slate and any errors are handled correctly. If you are using On Error Resume Next to suppress errors, you should also check for errors after the lines of code where errors might occur and handle them as needed.

Here’s an example of how to implement error handling inside a loop:

Sub LoopWithErrorHandling()
    Dim i As Integer
    For i = 1 To 10 ' Example loop
        On Error Resume Next ' Suppress errors in the loop

        ' Code that might cause an error
        ' ...

        ' Check if an error occurred
        If Err.Number <> 0 Then
            ' Handle the error
            Debug.Print "Error on iteration " & i & ": " & Err.Description
            Err.Clear ' Clear the error
        End If

        On Error GoTo 0 ' Reset error handling
    Next i
End Sub

In this script:

On Error Resume Next is used at the start of the loop to suppress any errors for each iteration.
After the code that might cause an error, Err.Number is checked. If it’s not zero, an error has occurred.
The error is handled (in this example, printed to the Immediate Window with Debug.Print).
Err.Clear is used to clear the error. This is important to reset the error state for the next iteration.
On Error GoTo 0 at the end of the loop iteration resets the error handling to its default state (which is to stop execution and display an error message).

This approach ensures that errors are suppressed and handled within each iteration of the loop, but it also ensures that errors do not go completely unchecked. Adjust the error-handling code as per your requirements, for example, logging errors to a file or taking specific corrective actions.

To make changes to an Excel sheet while a loop is running in VBA, you need to periodically refresh the Excel interface and process any pending user interactions. This can be achieved using DoEvents within your loop. DoEvents yields execution so that the operating system can process other events.

Here’s how you can integrate DoEvents into your loop:

Sub LoopWithDoEvents()
    Dim i As Long
    For i = 1 To 10000 ' Example large loop
        ' Your code here...

        ' Periodically call DoEvents
        If i Mod 100 = 0 Then ' Example: Call DoEvents every 100 iterations
            DoEvents
        End If
    Next i
End Sub

In this script, DoEvents is called every 100 iterations (you can adjust this number based on your needs). This allows Excel to handle other events, such as screen updates or user inputs, making the Excel interface more responsive.

Important Considerations:

Performance: Frequent calls to DoEvents can slow down your loop. You’ll need to find a balance between responsiveness and performance.
Control and Stability: While DoEvents allows user interaction during the loop, it can potentially lead to issues if the user interacts with the workbook in ways that conflict with the ongoing process (like editing cells that the loop is processing).
Error Handling: When you allow user interaction during a loop, consider adding error handling within your loop to manage any unexpected errors that might arise from user actions.
User Control: If you want to provide the user with more control, consider adding a mechanism to pause or stop the loop based on user input.

Using DoEvents is a simple and effective way to keep the Excel interface responsive during long-running VBA procedures, but it should be used judiciously and with consideration of the potential impact on the stability and performance of your code.

The statement On Error GoTo 0 in VBA doesn’t actually direct the program flow to line 0 or any specific line in your code. Instead, it’s a special command used to reset the error handling in your VBA script to its default behavior. When error handling is set to On Error GoTo 0, it means that if an error occurs, VBA will stop executing the code and display the standard error message dialog.

Here’s a breakdown of its usage:

On Error Resume Next: This tells VBA to ignore errors and continue executing the next line of code when an error occurs. It’s useful for bypassing known, non-critical errors without stopping the entire process.
On Error GoTo 0: This resets the error handling to its default state. After this statement, if an error occurs, VBA will no longer ignore it and will instead display the standard error dialog.

Example:

Sub ExampleSub()
    On Error Resume Next ' Ignore errors

    ' Code that might cause an error

    On Error GoTo 0 ' Reset error handling to default behavior

    ' More code
End Sub

In this example, any error that occurs in the code between On Error Resume Next and On Error GoTo 0 will be ignored, and the script will continue. However, after On Error GoTo 0, any subsequent errors will cause the script to halt and display an error message.

Using On Error GoTo 0 is a good practice to ensure that error handling doesn’t remain disabled for the entire duration of your script, which could lead to unhandled errors and make debugging difficult. It’s particularly useful when you want to bypass specific errors but ensure that unexpected errors are still caught and reported.

Creating a bar chart in Excel where bars are colorized based on their value, similar to conditional formatting, can be achieved using VBA. However, Excel doesn’t directly support conditional formatting in charts, so you’ll have to manually set the colors of the bars based on their values.

Here’s an outline of the steps you need to follow, along with a VBA script example:

Create the Bar Chart: First, create a bar chart based on your data.
Loop Through the Bars: Use VBA to loop through each bar (data point) in the series.
Determine the Color: For each bar, determine the color based on its value. You can define your own criteria for the colors.
Apply the Color: Set the color of each bar individually based on the determined color.

Here’s a sample VBA script demonstrating this process:

Sub ColorizeBarChart()
    Dim chartObj As ChartObject
    Dim series As series
    Dim point As Point
    Dim i As Integer
    Dim value As Double

    ' Assumes you have a chart in your worksheet
    Set chartObj = ThisWorkbook.Sheets("Sheet1").ChartObjects(1)
    Set series = chartObj.Chart.SeriesCollection(1)

    ' Loop through each point (bar) in the series
    For i = 1 To series.Points.Count
        Set point = series.Points(i)
        value = series.Values(i)

        ' Determine the color based on value
        Select Case value
            Case Is >= 10
                point.Format.Fill.ForeColor.RGB = RGB(0, 176, 80) ' Green
            Case Is >= 5
                point.Format.Fill.ForeColor.RGB = RGB(255, 255, 0) ' Yellow
            Case Else
                point.Format.Fill.ForeColor.RGB = RGB(255, 0, 0)   ' Red
        End Select
    Next i
End Sub

In this script:

It’s assumed that your worksheet contains a bar chart and it’s the first chart object.
Each bar in the chart is colored based on its value. In this example, values >= 10 are green, values >= 5 and < 10 are yellow, and values < 5 are red.

You should customize the Select Case statement to fit your specific criteria for colorization.

Please ensure that the worksheet name and chart object index match your actual Excel setup. If your chart is dynamically updated, you may need to run this macro each time the data changes to refresh the bar colors.

To highlight the currently selected cell in Excel using VBA, you can use the Selection property to identify the selected cell(s) and then apply formatting to it. The following VBA script demonstrates how to change the background color of the currently selected cell:

Sub HighlightSelectedCell()
    Dim selectedRange As Range

    ' Check if the selection is a range
    If TypeName(Selection) = "Range" Then
        Set selectedRange = Selection

        ' Clear formatting from previous selections
        Application.Cells.Interior.ColorIndex = xlNone

        ' Apply a background color to the selected cell
        selectedRange.Interior.Color = RGB(255, 255, 0) ' Yellow color
    End If
End Sub

In this script:

The Selection object is checked to ensure it’s a range (a cell or group of cells).
The script then clears any previous formatting from all cells in the workbook to remove highlights from earlier selections.
The selected cell(s) is highlighted with a yellow background (RGB(255, 255, 0)). You can change the RGB values to use a different color.

Note: This script highlights the currently selected cell(s) when it runs. If you select a different cell after running the script, you’ll need to run the script again to move the highlight. Also, it clears the background color of all cells in the workbook before applying the highlight. If you don’t want this behavior, you can remove the line that clears the formatting.

To set the previously selected cell(s) to “No Fill” before highlighting the new selection, you can store the address of the last selected range in a global variable. Each time the macro runs, it will first remove the fill from this previously stored range before applying a new highlight.

Here’s how you can modify the VBA script to include this functionality:

Global lastSelection As String

Sub HighlightSelectedCell()
    Dim currentSelection As Range
    Dim lastRange As Range

    ' Check and clear the last selection if it exists
    On Error Resume Next ' In case the last selection is no longer valid
    Set lastRange = Range(lastSelection)
    lastRange.Interior.ColorIndex = xlNone
    On Error GoTo 0 ' Reset error handling

    ' Check if the current selection is a range
    If TypeName(Selection) = "Range" Then
        Set currentSelection = Selection

        ' Apply a background color to the selected cell
        currentSelection.Interior.Color = RGB(255, 255, 0) ' Yellow color

        ' Store the address of the current selection
        lastSelection = currentSelection.Address
    End If
End Sub

In this updated script:

A global variable lastSelection is used to store the address of the last highlighted range.
Each time the macro runs, it first attempts to clear the fill from the range specified in lastSelection.
Error handling is used to avoid issues if lastSelection refers to an invalid range (e.g., if cells were deleted).
After updating the highlight, the address of the current selection is stored in lastSelection for use in the next run.

This script will now clear the highlight from the previously selected cells before applying a new highlight to the current selection. Remember to run this macro each time you want to move the highlight to a new selection.

To get the value of the currently selected cell in Excel using VBA and return it from the subroutine, you can modify the HighlightSelectedCell subroutine to be a function. This function will not only highlight the selected cell but also return its value.

Here’s the modified VBA code:

Global lastSelection As String

Function GetValueAndHighlightSelectedCell() As Variant
    Dim currentSelection As Range
    Dim lastRange As Range
    Dim selectedValue As Variant

    ' Check and clear the last selection if it exists
    On Error Resume Next ' In case the last selection is no longer valid
    Set lastRange = Range(lastSelection)
    lastRange.Interior.ColorIndex = xlNone
    On Error GoTo 0 ' Reset error handling

    ' Check if the current selection is a single cell
    If TypeName(Selection) = "Range" And Selection.Count = 1 Then
        Set currentSelection = Selection

        ' Get the value of the selected cell
        selectedValue = currentSelection.Value

        ' Apply a background color to the selected cell
        currentSelection.Interior.Color = RGB(255, 255, 0) ' Yellow color

        ' Store the address of the current selection
        lastSelection = currentSelection.Address
    Else
        selectedValue = "Multiple cells or non-range object selected"
    End If

    ' Return the selected value
    GetValueAndHighlightSelectedCell = selectedValue
End Function

In this function:

It first checks if the selection is a single cell (Selection.Count = 1). If it’s more than one cell, the function will return a message indicating that multiple cells are selected.
The value of the selected cell is stored in the variable selectedValue.
The function then highlights the selected cell and updates lastSelection.
Finally, the function returns the value of the selected cell.

To use this function, you can call it from another subroutine or from the Immediate Window in VBA. For example:

Sub Test()
    Dim cellValue As Variant
    cellValue = GetValueAndHighlightSelectedCell()
    MsgBox "Selected cell value: " & cellValue
End Sub

This Test subroutine will display the value of the selected cell in a message box. Remember that this function is designed to work with single cell selections. If you select a range of multiple cells, it will return a message indicating that multiple cells are selected.

In Excel VBA, you can use the Worksheet_SelectionChange event to detect when a cell in a specific range is clicked and update a global value based on that selection. This event is triggered every time a new cell or range of cells is selected in the worksheet.

Here’s a step-by-step guide and sample code on how to implement this:

Open the VBA Editor: Press ALT + F11 to open the VBA editor.
Insert a New Module: In the VBA editor, right-click on any of the items in the “Project” window, and select Insert > Module. This will create a new module for global variables.
Define Global Variables: In the new module, declare your global variables.

Public GlobalWaveSpeed As Variant
Public GlobalWaveFrequency As Variant

Double-Click on the Sheet: In the Project window, double-click on the sheet that contains the lists. This will open the code window for that specific worksheet.
Add the Worksheet_SelectionChange Event: In the worksheet’s code window, create a SelectionChange event procedure.

Private Sub Worksheet_SelectionChange(ByVal Target As Range)
    ' Assuming the wave speed is in column I (9) and wave frequency is in column J (10)
    If Not Intersect(Target, Me.Range("I:I")) Is Nothing Then
        GlobalWaveSpeed = Target.Value ' Update the global wave speed
    ElseIf Not Intersect(Target, Me.Range("J:J")) Is Nothing Then
        GlobalWaveFrequency = Target.Value ' Update the global wave frequency
    End If
End Sub

In this code:

The Worksheet_SelectionChange event checks if the selection (Target) intersects with the range of your lists (column I for wave speed and column J for wave frequency).
If the selected cell is in one of the specified columns, it updates the corresponding global variable.

Usage:

Whenever you click on a cell in column I, GlobalWaveSpeed will be updated.
Whenever you click on a cell in column J, GlobalWaveFrequency will be updated.

The values of these global variables can then be used elsewhere in your VBA code. Remember that these global variables will retain their value only while the workbook is open; they will reset when the workbook is closed or when Excel is restarted.

To highlight the currently selected cell and remove the highlight from the previously selected cell, you can use a global variable to keep track of the last selected range. Here’s how you can modify the Worksheet_SelectionChange event to achieve this:

Define a Global Variable: In a VBA module, declare a global variable to store the address of the last selected cell.

Public LastSelectedRange As String

Use the Worksheet_SelectionChange Event: In the worksheet’s code window, set up the SelectionChange event to highlight the current selection and clear the last one.

Here’s the VBA code:

Private Sub Worksheet_SelectionChange(ByVal Target As Range)
    Dim rngWaveSpeed As Range
    Dim rngWaveFrequency As Range
    Set rngWaveSpeed = Me.Range("I:I")
    Set rngWaveFrequency = Me.Range("J:J")

    ' Clear the last selection
    If LastSelectedRange <> "" Then
        Range(LastSelectedRange).Interior.ColorIndex = xlNone
    End If

    ' Highlight the current selection and update the global variables
    If Not Intersect(Target, rngWaveSpeed) Is Nothing Then
        GlobalWaveSpeed = Target.Value
        Target.Interior.Color = RGB(255, 255, 0) ' Yellow for wave speed
    ElseIf Not Intersect(Target, rngWaveFrequency) Is Nothing Then
        GlobalWaveFrequency = Target.Value
        Target.Interior.Color = RGB(0, 255, 0) ' Green for wave frequency
    End If

    ' Store the address of the current selection
    LastSelectedRange = Target.Address
End Sub

Insert the Code in the Correct Place:
- The global variable declaration should be in a VBA module.
- The Worksheet_SelectionChange event should be in the code window for the specific sheet where you want this functionality.

When you click on a cell in the specified columns, this code will highlight the current selection and remove the highlight from the previous selection. The global variables GlobalWaveSpeed and GlobalWaveFrequency will be updated with the values of the currently selected cells, if applicable.

Remember to ensure that LastSelectedRange is cleared when you first open the workbook or when you no longer need the last selection. You might want to add a workbook open event or similar to handle this.

This approach uses the Interior.ColorIndex property set to xlNone to clear the fill. This works if you have no other cell formatting to preserve. If you do, you may need a more sophisticated method to reset the formatting.

To clear the last selection only if it was in the same column as the new selection, you can modify the Worksheet_SelectionChange event to check the column of the new selection against the column of the last selection. Here’s how you can implement this in VBA:

First, you would declare a global variable to store the address of the last selected cell.

Public LastSelectedRange As Range

Then, in the Worksheet_SelectionChange event of the appropriate worksheet, you’d write the following code:

Private Sub Worksheet_SelectionChange(ByVal Target As Range)
    ' Check if the Target range is a single cell, not multiple cells
    If Target.CountLarge > 1 Then Exit Sub

    ' Define the range for the wave speed and wave frequency columns
    Dim rngWaveSpeed As Range
    Dim rngWaveFrequency As Range
    Set rngWaveSpeed = Me.Columns("I")
    Set rngWaveFrequency = Me.Columns("J")

    ' Check if the last selected cell is in the same column as the new selection
    If Not LastSelectedRange Is Nothing Then
        If LastSelectedRange.Column = Target.Column Then
            LastSelectedRange.Interior.ColorIndex = xlNone ' Clear the last selection
        End If
    End If

    ' Highlight the current selection and update the global variables
    If Not Intersect(Target, rngWaveSpeed) Is Nothing Then
        GlobalWaveSpeed = Target.Value ' Assuming a global variable for wave speed
        Target.Interior.Color = RGB(255, 255, 0) ' Yellow for wave speed
    ElseIf Not Intersect(Target, rngWaveFrequency) Is Nothing Then
        GlobalWaveFrequency = Target.Value ' Assuming a global variable for wave frequency
        Target.Interior.Color = RGB(0, 255, 0) ' Green for wave frequency
    End If

    ' Store the current selection range
    Set LastSelectedRange = Target
End Sub

In this code:

LastSelectedRange is a global Range object that stores the last selected cell.
The Worksheet_SelectionChange event checks if the column of the last selected cell (LastSelectedRange) is the same as the column of the new selection (Target). If they are the same, it clears the formatting from the last selected cell.
Then it checks if the new selection is in either the wave speed or wave frequency columns and updates the global variables and cell formatting accordingly.
Finally, it updates LastSelectedRange to reference the new selection.

Remember to initialize LastSelectedRange correctly at the start, and ensure that the global variables GlobalWaveSpeed and GlobalWaveFrequency are declared in a standard module, not within the worksheet module, so they maintain their values across different event calls.

To store two ranges and clear each one whenever the user clicks on any cell in the same column, you’ll want to use two global Range variables. These will hold the last selected cell for each of the two columns you’re monitoring.

Here’s how you can implement it:

First, declare two global Range variables in a VBA module to hold the last selections:

Public LastSelectedWaveSpeed As Range
Public LastSelectedWaveFrequency As Range

Then, in the Worksheet_SelectionChange event in the specific worksheet’s code window, write the following code:

Private Sub Worksheet_SelectionChange(ByVal Target As Range)
    ' Check if the Target range is a single cell, not multiple cells
    If Target.CountLarge > 1 Then Exit Sub

    ' Clear the last selection in the Wave Speed column if the new selection is in the same column
    If Not LastSelectedWaveSpeed Is Nothing Then
        If LastSelectedWaveSpeed.Column = Target.Column Then
            LastSelectedWaveSpeed.Interior.ColorIndex = xlNone ' Clear the last selection
            Set LastSelectedWaveSpeed = Nothing ' Clear the stored range
        End If
    End If

    ' Clear the last selection in the Wave Frequency column if the new selection is in the same column
    If Not LastSelectedWaveFrequency Is Nothing Then
        If LastSelectedWaveFrequency.Column = Target.Column Then
            LastSelectedWaveFrequency.Interior.ColorIndex = xlNone ' Clear the last selection
            Set LastSelectedWaveFrequency = Nothing ' Clear the stored range
        End If
    End If

    ' Check the column of the selected cell and highlight it
    ' Assuming Wave Speed is in column I (9) and Wave Frequency is in column J (10)
    If Target.Column = 9 Then
        Target.Interior.Color = RGB(255, 255, 0) ' Yellow for wave speed
        Set LastSelectedWaveSpeed = Target ' Store the current selection
    ElseIf Target.Column = 10 Then
        Target.Interior.Color = RGB(0, 255, 0) ' Green for wave frequency
        Set LastSelectedWaveFrequency = Target ' Store the current selection
    End If
End Sub

In this code:

We define two separate Range objects to store the last selected cells for the “Wave Speed” and “Wave Frequency” columns.
When a new cell is selected, the code checks if it is in the same column as either of the stored Range objects and, if so, clears the highlighting.
Then, depending on which column the new selection is in, the code highlights the cell and updates the corresponding Range object to point to the new selection.

Remember to place the global Range variable declarations in a standard module and the Worksheet_SelectionChange event code in the worksheet module where you want to track the selections. This setup will ensure that the last cell selected in either column will be cleared when a new cell in the same column is selected.

To erase the fill of specific ranges and then select the first item in both when a button is clicked, you can write a VBA subroutine that handles the button click event. This subroutine will reset the fills for the designated ranges and then select the first cell in each.

Here’s how you can set up your VBA code:

Insert a Button: In Excel, go to the Developer tab, click on “Insert,” and under “Form Controls,” click on “Button.” Draw the button onto your worksheet.
Assign Macro: After drawing the button, Excel will prompt you to assign a macro. Click “New” to create a new subroutine in the VBA editor.
Write the VBA Code: In the VBA editor, write a subroutine that clears the fill from your specified ranges and selects the first cell of each range.

Here’s an example of what the subroutine could look like:

Public Sub ResetAndSelect()
    Dim ws As Worksheet
    Set ws = ThisWorkbook.Sheets("Sheet1") ' Adjust the sheet name as needed

    ' Define your ranges for Wave Speed and Wave Frequency
    Dim rngWaveSpeed As Range
    Dim rngWaveFrequency As Range
    Set rngWaveSpeed = ws.Range("I2:I400") ' Adjust the range as needed
    Set rngWaveFrequency = ws.Range("J2:J400") ' Adjust the range as needed

    ' Clear the fills from both ranges
    rngWaveSpeed.Interior.ColorIndex = xlNone
    rngWaveFrequency.Interior.ColorIndex = xlNone

    ' Select the first cell of each range
    rngWaveSpeed.Cells(1, 1).Select
    ' Optional: If you need to also select the first cell of the second range, use Application.Union
    ' Application.Union(rngWaveSpeed.Cells(1, 1), rngWaveFrequency.Cells(1, 1)).Select
End Sub

In this code:

We first set the worksheet where your ranges are located.
We define the ranges for “Wave Speed” and “Wave Frequency” and clear the interior color of these ranges.
Then, we select the first cell in the “Wave Speed” range.

Note on Multiple Selections: Excel does not allow non-contiguous ranges to be selected simultaneously through VBA if they are not on the same row or column. Therefore, the Application.Union method is commented out as it won’t work for separate columns. If you need to select cells in different columns at the same time, this would have to be done manually or by controlling Excel through another automation tool that can simulate user actions.

Assign this macro to the button you have created. When the button is clicked, it will execute the ResetAndSelect subroutine, clearing the fills and selecting the first cell in the “Wave Speed” column. If needed, you can manually click on the first cell of the “Wave Frequency” column afterward.

Private Sub Worksheet_SelectionChange(ByVal Target As Range) ’ Check if the Target range is a single cell, not multiple cells If Target.CountLarge > 1 Then Exit Sub

' Clear the last selection in the Wave Speed column if the new selection is in the same column
If Not LastSelectedWaveSpeed Is Nothing Then
    If LastSelectedWaveSpeed.Column = Target.Column Then
        LastSelectedWaveSpeed.Interior.ColorIndex = xlNone ' Clear the last selection
        Set LastSelectedWaveSpeed = Nothing ' Clear the stored range
    End If
End If

' Clear the last selection in the Wave Frequency column if the new selection is in the same column
If Not LastSelectedWaveFrequency Is Nothing Then
    If LastSelectedWaveFrequency.Column = Target.Column Then
        LastSelectedWaveFrequency.Interior.ColorIndex = xlNone ' Clear the last selection
        Set LastSelectedWaveFrequency = Nothing ' Clear the stored range
    End If
End If

' Check the column of the selected cell and highlight it
' Assuming Wave Speed is in column I (9) and Wave Frequency is in column J (10)
If Target.Column = 9 Then
    Target.Interior.Color = RGB(255, 255, 0) ' Yellow for wave speed
    Set LastSelectedWaveSpeed = Target ' Store the current selection
ElseIf Target.Column = 10 Then
    Target.Interior.Color = RGB(0, 255, 0) ' Green for wave frequency
    Set LastSelectedWaveFrequency = Target ' Store the current selection
End If

End Sub

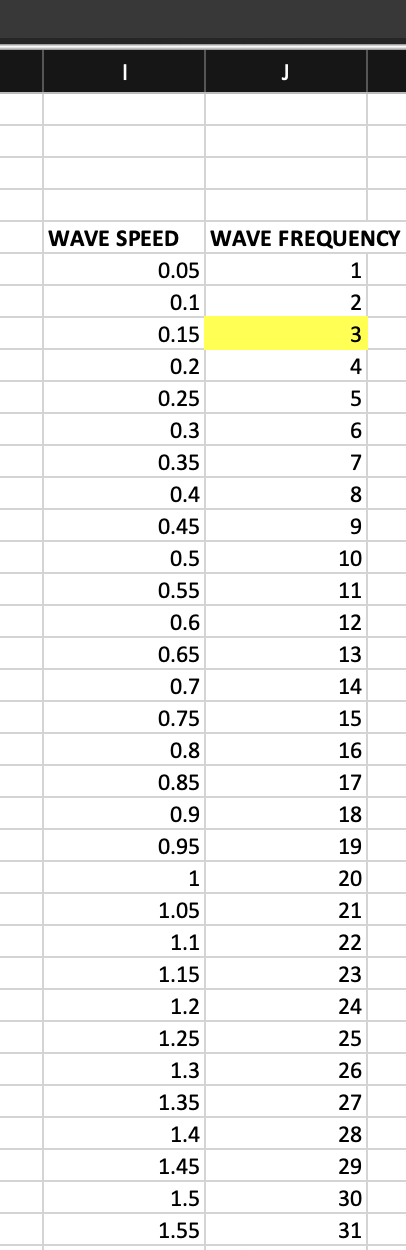

this doesnt update teh values, only the ranges

The provided Worksheet_SelectionChange event procedure changes the fill color of the selected cells but doesn’t update any values. To also update global variables with the values of the selected cells, you need to define global variables and assign them the values of the selected cells when they’re clicked.

Here’s how to modify the code to update global values:

In a VBA module (not in the sheet’s code), declare the global variables:

Public GlobalWaveSpeed As Variant
Public GlobalWaveFrequency As Variant

Modify the Worksheet_SelectionChange event procedure to update these global variables based on the selection:

Private Sub Worksheet_SelectionChange(ByVal Target As Range)
    ' Ensure only one cell is selected and it is within our columns of interest
    If Target.CountLarge = 1 And (Target.Column = 9 Or Target.Column = 10) Then

        ' Clear the last selection if it's in the same column
        If Not LastSelectedWaveSpeed Is Nothing And Target.Column = 9 Then
            LastSelectedWaveSpeed.Interior.ColorIndex = xlNone
            Set LastSelectedWaveSpeed = Nothing
        ElseIf Not LastSelectedWaveFrequency Is Nothing And Target.Column = 10 Then
            LastSelectedWaveFrequency.Interior.ColorIndex = xlNone
            Set LastSelectedWaveFrequency = Nothing
        End If

        ' Update the global variable and highlight the selected cell
        If Target.Column = 9 Then ' Wave Speed column
            GlobalWaveSpeed = Target.Value
            Target.Interior.Color = RGB(255, 255, 0) ' Yellow
            Set LastSelectedWaveSpeed = Target
        ElseIf Target.Column = 10 Then ' Wave Frequency column
            GlobalWaveFrequency = Target.Value
            Target.Interior.Color = RGB(0, 255, 0) ' Green
            Set LastSelectedWaveFrequency = Target
        End If

    End If
End Sub

In this modified code:

When a cell in column I (Wave Speed) or column J (Wave Frequency) is selected, the corresponding global variable (GlobalWaveSpeed or GlobalWaveFrequency) is updated with the value of the selected cell.
The LastSelectedWaveSpeed and LastSelectedWaveFrequency ranges are used to clear the previous selections’ fill if they are in the same column as the new selection.
The Interior.Color of the newly selected cell is set to yellow or green, and the corresponding LastSelected... range is updated to refer to the new selection.

Make sure that the LastSelectedWaveSpeed and LastSelectedWaveFrequency variables are declared in the worksheet module where you’re using them and are set to Nothing when the workbook is opened. You can use the Workbook_Open event in the ThisWorkbook module to initialize these variables:

Private Sub Workbook_Open()
    Set LastSelectedWaveSpeed = Nothing
    Set LastSelectedWaveFrequency = Nothing
End Sub

This way, you have the cell values stored in global variables that you can use elsewhere in your VBA project, and the highlighting will only persist for the most recently selected cell in each column.
