Flipped Normals in Unreal

2026-01-20 10:45 UTC gpt-5-2-thinking Open in ChatGPT ↗

You

in unreal material how can i check if normals are flipped and change them back ?

ChatGPT

In Unreal, a material can’t reliably “detect flipped normals” in the sense of “this mesh’s vertex normals are backwards, fix them” — because the material only sees the final surface normal it’s using for shading (and it doesn’t know what the artist “intended”). But you can (a) check for backfaces / reversed winding and (b) force correct shading for two-sided materials, and (c) actually fix bad normals in the mesh import / DCC.

Here are the practical options, from fastest to most correct:

1) Quick check: is it actually backfaces / flipped triangles?

• In the viewport: Show → Advanced → Mesh Edges + rotate around; if polygons disappear from one side, it’s likely backface culling (winding).
• Try temporarily enabling the material option Two Sided.
  • If the “missing” faces appear, your issue is probably faces pointing the wrong way (or you need a two-sided material like leaves/cloth).

2) Material-side “fix” for two-sided shading (common for foliage/cloth)

If you intend the material to be two-sided, you should also fix lighting so the “back” doesn’t shade inside-out:

In the Material:

• Enable Two Sided (in the material’s Details panel).
• Enable Two Sided Normal (or Tangent Space Normal stays on, but you need to correct the normal for the backface).

Node solution (works well):

• Use TwoSidedSign node:
  • Multiply your tangent-space normal’s X and Y by TwoSidedSign, keep Z as-is.
  • Then plug into Normal.

Conceptually:

• N.xy *= TwoSidedSign
• N.z unchanged

This flips the tangent basis for the backface so lighting doesn’t look inverted.

When to use this:

• Foliage cards, thin cloth, paper, decals that must render both sides.

3) If you’re using a normal map and it “looks inverted”

Sometimes the mesh is fine, but the normal map green channel is “wrong” for Unreal (DirectX vs OpenGL convention).

• Unreal expects DirectX style (green channel direction).
• Quick test: in the texture asset, check if there’s an “Flip Green Channel” option (or invert G in your normal map pipeline). If flipping green fixes it, your mesh normals weren’t flipped — the normal map convention was.

4) The real fix: correct the mesh normals (best practice)

If the mesh’s vertex normals or triangle winding are actually wrong, fix it in:

• Your DCC (Blender/Maya/Max): recalc normals outside / flip selected faces.
• Or re-import with correct settings:
  • In the Static Mesh import options: try Compute Normals / Compute Tangents (MikkTSpace), or “Import Normals and Tangents” depending on what you trust more.
  • If triangles are wound backwards, you typically must fix that in the DCC (materials can’t “rewind” geometry).

5) Debug visualization inside UE

Useful to confirm what’s happening:

• View Mode: Buffer Visualization → World Normal (shows normal direction as colors)
• Also try Lit → Lighting Only to see if it’s a shading issue vs geometry issue.

---

What I’d do in order

1. Switch to World Normal visualization to see if they’re pointing wrong.
2. Temporarily enable Two Sided to see if it’s backface/winding.
3. If it’s foliage/cloth: use TwoSidedSign normal correction.
4. If it’s a solid object: fix normals/winding in DCC and reimport.
5. If only the normal map looks “inside out”: flip green channel.

If you tell me whether it’s a two-sided asset (foliage/cloth) or a solid mesh, and whether the problem appears only when a normal map is plugged in, I can point you to the exact best fix.

You

wait, withing the vertex shader there is no option to check vertex normals?

ChatGPT

You can access vertex normals in Unreal’s material vertex stage — but there are a couple of gotchas about what you can “check” and what you can truly “fix”.

What you can read in the vertex shader (material)

In a Material, you can read normals via:

• VertexNormalWS (world-space vertex normal)
• VertexTangentWS (world-space tangent)
• VertexBitangentWS (sometimes available via cross product / tangent basis depending on setup)
• PixelNormalWS (pixel normal after normal maps; that’s pixel stage)

So yes: you can “check” the vertex normal direction as data.

But why “detect flipped” is tricky

“Flipped” relative to what reference?

A normal isn’t “wrong” by itself — it’s just a direction. To decide it’s flipped, you need a reference direction, like:

• the triangle facing (front vs back),
• the camera/view direction,
• or some expected outward direction (e.g., from object center to vertex).

Materials don’t get a clean “this triangle is front-facing” signal in the vertex stage the way HLSL has SV_IsFrontFace (that’s pixel stage only, and Unreal exposes a version of that mainly through TwoSidedSign logic for two-sided materials).

Practical checks you can do in vertex stage

1) “Is this normal pointing toward the camera?”

You can compute:

• dot(VertexNormalWS, CameraVectorWS) If that’s > 0, the normal points roughly toward the camera; < 0 means away.

That can help debug, but it doesn’t prove “flipped” in the mesh sense. It just tells you orientation relative to view.

2) “Is this normal pointing outward from object center?”

If your mesh is roughly convex / “outward” is definable:

• Compute dir = normalize(WorldPosition - ObjectPosition)
• Check dot(VertexNormalWS, dir) If it’s negative, the normal points inward relative to the object origin.

This works decently for spheres/characters/rocks, but fails for concave shapes, shells, mirrored parts, or meshes whose pivot isn’t central.

Can you “change them back” in vertex shader?

You can fake it for shading, but you can’t rewrite the mesh’s stored normals permanently.

For shading only:

• In the pixel stage, you can flip the final normal used for lighting by multiplying by -1 in some cases, but:
  • If you’re using tangent-space normal maps, you must handle tangents/bitangents consistently (this is where TwoSidedSign is the standard solution).
  • Flipping normals in the vertex stage doesn’t automatically fix tangent basis / normal map interpretation.

For real geometry correctness:

You must fix it in DCC (Blender/Maya/Max) or via reimport/recompute normals in Unreal. Materials can’t “edit the asset”.

The Unreal-standard way (when the issue is backfaces / two-sided)

If the problem is “backside lighting looks inverted” on a two-sided material:

• Enable Two Sided
• Use TwoSidedSign to correct the normal map (flip XY in tangent space)

That’s the “engine-approved” fix because it aligns with how front/back facing is determined.

---

If you tell me which case you’re in, I’ll give the exact node graph

1. Solid mesh looks inside-out / faces culled (likely flipped triangles)
2. Two-sided mesh (foliage/cloth) shades wrong on the back
3. Only wrong when normal map is plugged in (green channel / tangent basis issue)

Each one has a different “best” solution.

You

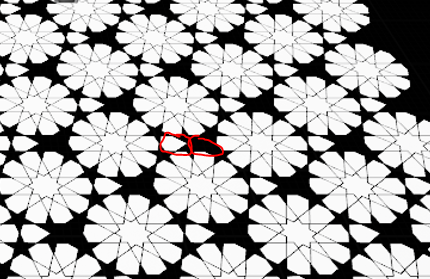

ok here is my example . there should be another element similar to the one i have circled but its normals are flipped. I am doing thin on the shader but unsuccesfully

ChatGPT

[Unsupported Content]

ChatGPT

[Unsupported Content]

ChatGPT

[Unsupported Content]

ChatGPT

[Unsupported Content]

ChatGPT

From your screenshot it looks like that “missing” tile is not rendering at all (it’s just the black background), not merely “shading wrong”. If that’s the case:

✅ Key point

Flipping normals in a material will NOT make a back-culled triangle render.
Backface culling is based on triangle winding order, not the normal vector.

So if that one element was authored/generated with reversed winding, it will disappear on a one-sided material no matter what you do with VertexNormalWS.

---

1) Make it appear (material-side)

If it’s a thin surface and you want both sides visible:

1. In the material Details, enable Two Sided.

That alone should make the “missing” element show up.

If it shows up but lighting looks inverted, then do the proper two-sided normal fix:

Two-sided normal fix (lighting)

• Use TwoSidedSign (this is the correct “front/back” signal in materials)
• If you are feeding a tangent-space normal map into Normal:

Nodes:

• TwoSidedSign → multiply NormalMap RG (X,Y) by it, keep B (Z) the same.
• Re-append to float3 and plug into Normal.

Conceptually:

• NormalTS = float3(N.x * TwoSidedSign, N.y * TwoSidedSign, N.z)

This fixes “inside-out” lighting on the back side.

Important: TwoSidedSign is effectively a pixel (per-fragment) frontface test. You won’t get a reliable equivalent in the vertex stage.

---

2) If you must keep it one-sided: you have to fix the mesh

If you don’t want Two Sided, the only real fix is:

• in DCC: flip faces / recalc normals, or
• in your procedural mesh code: reverse index order for those triangles
  (swap i1 and i2 so winding matches the rest).

That’s the correct fix for “one element disappears”.

---

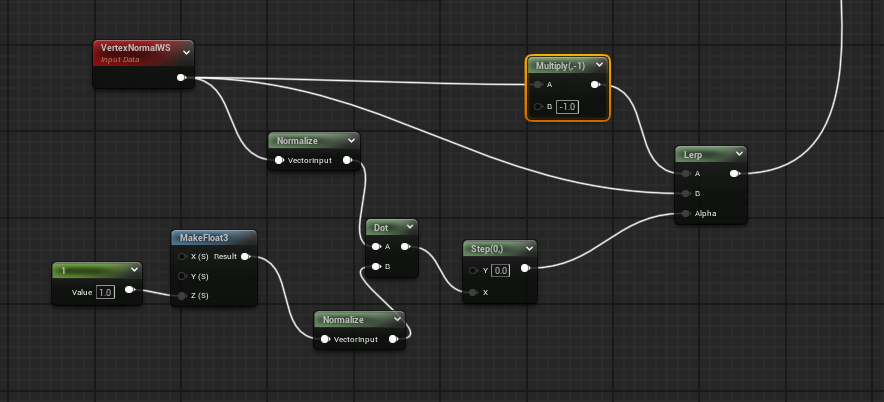

3) Why your current node setup doesn’t work

In your graph you’re doing:

• dot(VertexNormalWS, (1,0,0)) → step → lerp between N and -N

That only flips based on whether the normal points toward +X vs -X. It’s not testing “flipped relative to the surface” or “front/back face”, so it won’t reliably catch the bad piece.

Also: even a perfect normal flip still won’t change culling.

---

4) If the “missing” is caused by your own normal-based masking/blending

If your shader uses normal components as weights (triplanar / axis blend / etc.), flipped normals can create negative weights and you get black.

In that case, don’t “detect flipped”, just make it sign-invariant:

• Use Abs(VertexNormalWS) (or Abs of the normal you’re using) for weights.

---

Quick diagnosis question (no screenshots needed)

When you enable Two Sided, does the missing element appear?

• Yes → it’s reversed winding / backface culling. Fix mesh or keep Two Sided + TwoSidedSign normal fix.
• No → then it’s not culling; it’s your material math (likely normal-based weighting/mask), and Abs() is usually the fix.

If you tell me whether it appears with Two Sided, I’ll give you the exact minimal node graph for your case.
