Yes, a Large Language Model (LLM) can be used to discover patterns in data, but whether it should be used depends on the specific use case, the type of data, and the intended outcomes. Here’s a detailed look at both aspects:

How LLMs Can Discover Patterns in Data

Unstructured Data Analysis:
- LLMs excel at analyzing unstructured data like text, logs, or metadata to identify recurring themes, sentiment, and context-based patterns.
- For example, analyzing customer reviews for common complaints or feedback.
Semantic Understanding:
- They understand language contextually, enabling discovery of nuanced patterns like tone shifts, hidden meanings, or sentiment trends in textual data.
Clustering and Categorization:
- By encoding textual inputs into vectors (embeddings), LLMs can help cluster similar data points or classify data into meaningful categories.
Insight Generation:
- LLMs can suggest hypotheses about data trends or point out anomalies based on textual queries or patterns they detect.
Feature Engineering:
- They can generate insights that guide which features to prioritize when modeling, especially in domains requiring natural language understanding.

When LLMs Should Be Used

Appropriate Data Types:
- LLMs are best for natural language data (text, transcriptions, code, etc.). For purely numerical or categorical data, other tools (e.g., statistical analysis, machine learning models) may be more efficient.
Exploratory Analysis:
- When initial insights into data are required, LLMs can quickly parse vast datasets and propose patterns for deeper investigation.
Cost and Complexity:
- Using LLMs may not always be cost-efficient. For simple pattern discovery tasks, traditional methods or smaller models might suffice.
Transparency and Explainability:
- LLMs can be less transparent compared to traditional models. If explainability is critical (e.g., in regulated industries), their use should be carefully weighed.
Privacy and Security Concerns:
- Sensitive or confidential data might pose ethical and legal challenges if used with an LLM, especially if it’s cloud-hosted or third-party controlled.

Advantages of Using LLMs for Pattern Discovery

Contextual Richness: Captures subtler nuances than purely numerical methods.
Versatility: Handles diverse tasks like summarization, clustering, or question answering.
Ease of Use: Natural language queries allow even non-technical users to extract insights.

Challenges and Limitations

Data Sensitivity: LLMs need careful handling of private or proprietary data.
Scalability: Processing very large datasets might be computationally expensive.
Risk of Overfitting: They might infer correlations where none exist, leading to misleading patterns.
Domain-Specific Expertise: LLMs might need fine-tuning to perform optimally in specialized fields.

Conclusion

LLMs are a powerful tool for discovering patterns in data, especially unstructured or text-heavy datasets. However, they should be used judiciously, considering their strengths, limitations, and the specific requirements of the analysis. Often, they work best in combination with traditional data analysis techniques to deliver comprehensive insights.

Classifying subsections of time series data into categories like stability, low/high-frequency oscillations, or shock events involves identifying patterns in the data based on statistical, spectral, or temporal characteristics. Here’s how you can approach the problem:

Steps for Classifying Weather Time Series Data

1. Preprocessing the Time Series Data

Data Cleaning: Handle missing values, outliers, and inconsistencies in the data.
Smoothing: Apply moving averages or low-pass filters to reduce noise, depending on the type of classification you’re targeting.
Normalization/Scaling: Ensure the data is normalized for better pattern recognition.

2. Feature Extraction

To classify the data effectively, extract features that characterize the different behaviors in the time series.

Features for Stability

Mean and Variance: Stable periods tend to have low variance and relatively constant means.
Autocorrelation: Stability often shows high autocorrelation over time.

Features for Low/High-Frequency Oscillations

Frequency Domain Analysis: Use Fourier Transform or Wavelet Transform to detect dominant frequencies.
- Low-frequency: Significant power at low frequencies in the spectrum.
- High-frequency: Significant power at higher frequencies.
Spectral Entropy: Quantifies the complexity of the frequency distribution.

Features for Shock Events

Sudden Changes: Calculate differences between consecutive data points to identify rapid changes.
Kurtosis: High kurtosis indicates sharp peaks (shock events).
Peak Detection: Identify extreme deviations from the mean using algorithms like the Z-score or moving thresholds.

3. Segmentation of Time Series

Divide the time series into smaller segments for classification:

Sliding Window: Use overlapping or non-overlapping windows to analyze local patterns.
Event Detection: Detect and segment regions of interest using thresholds or anomaly detection methods.

4. Classification

Use statistical methods, rule-based approaches, or machine learning for classification.

Option A: Rule-Based Classification

Define thresholds for the extracted features:

Stability: Low variance, high autocorrelation.
Low-Frequency Oscillations: Peaks in the low-frequency band of the spectrum.
High-Frequency Oscillations: Peaks in the high-frequency band of the spectrum.
Shock Events: High kurtosis, sudden jumps.

Option B: Machine Learning Classification

Use supervised or unsupervised machine learning methods:

Supervised Learning:
- Label segments of the time series based on domain knowledge or visual inspection.
- Train classifiers like Random Forests, Support Vector Machines, or Neural Networks using extracted features.
Unsupervised Learning:
- Use clustering techniques like K-means or DBSCAN to group similar segments into clusters, and then interpret the clusters.

Option C: Deep Learning

Use Convolutional Neural Networks (CNNs) or Recurrent Neural Networks (RNNs)/LSTMs to learn patterns directly from raw data or spectrograms.

Use metrics like accuracy, F1-score, or confusion matrices to validate your classification approach.
Refine the model or rules iteratively to improve performance.

Tools and Libraries

Python Libraries:
- Preprocessing: pandas, numpy
- Feature Extraction: scipy (for Fourier Transform), pywt (for Wavelet Transform)
- Machine Learning: scikit-learn, xgboost
- Deep Learning: tensorflow, pytorch
Visualization:
- matplotlib and seaborn for inspecting time series and frequency domain plots.

Example Workflow in Python

Here’s a simplified outline:

import numpy as np
import pandas as pd
from scipy.signal import find_peaks, welch
from sklearn.ensemble import RandomForestClassifier
from sklearn.model_selection import train_test_split
from sklearn.metrics import classification_report

# 1. Load and preprocess data
data = pd.read_csv("weather_data.csv")
time_series = data['temperature']  # Example column

# 2. Extract features
def extract_features(segment):
    mean = np.mean(segment)
    variance = np.var(segment)
    freq, power = welch(segment)  # Power Spectral Density
    low_freq_power = sum(power[freq < 0.1])  # Adjust threshold as needed
    high_freq_power = sum(power[freq > 0.1])
    peaks, _ = find_peaks(segment, prominence=1)
    kurtosis = pd.Series(segment).kurt()
    return [mean, variance, low_freq_power, high_freq_power, len(peaks), kurtosis]

# Sliding window segmentation
window_size = 100
features = []
labels = []  # Replace with your actual labels
for i in range(0, len(time_series) - window_size, window_size):
    segment = time_series[i:i+window_size]
    features.append(extract_features(segment))
    # Manually or programmatically label segments

# 3. Train classifier
X_train, X_test, y_train, y_test = train_test_split(features, labels, test_size=0.2)
clf = RandomForestClassifier()
clf.fit(X_train, y_train)

# 4. Validate
y_pred = clf.predict(X_test)
print(classification_report(y_test, y_pred))

This approach combines domain expertise with computational techniques to classify time series into the desired categories. Let me know if you’d like to dive deeper into any part!

If you don’t have labels and want to start by visualizing your weather time series data to explore its behavior, you can use various plotting techniques to understand the patterns like stability, oscillations, or shocks. Here’s how you can proceed:

Steps to Visualize Time Series Data

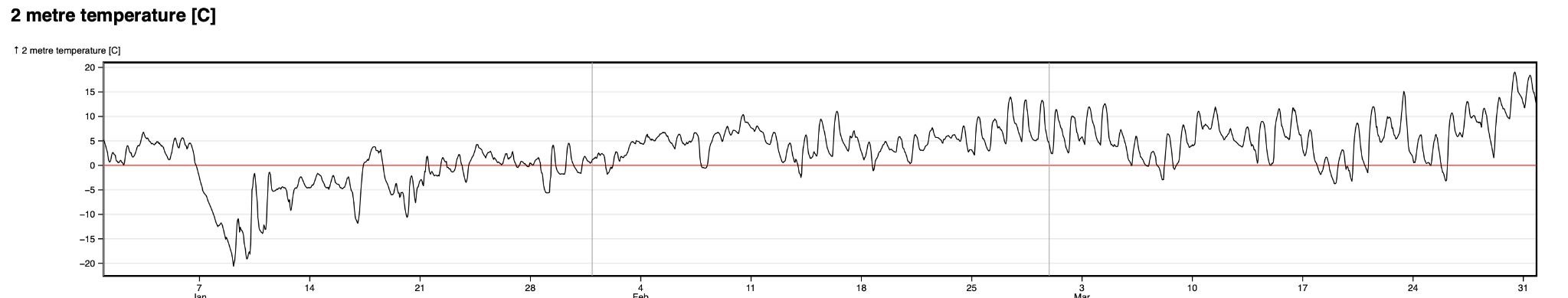

Basic Line Plot
- Plot each variable over time to observe general trends and patterns.
Sliding Window Statistics
- Compute moving averages, variances, or other statistical metrics to highlight stability or changes over time.
Spectral Analysis
- Use Fourier Transform or Wavelet Transform to visualize the frequency components of the time series.
Peak and Anomaly Detection
- Highlight spikes or abrupt changes in the data.
Multivariate Plots
- If you have multiple weather variables (e.g., temperature, humidity, wind speed), plot them together to observe correlations.

Visualization Code Example in Python

Here’s how you can visualize your data step-by-step:

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from scipy.signal import welch, find_peaks

# Load your data
data = pd.read_csv("weather_data.csv")  # Replace with your file
time = data['time']  # Ensure there's a time column
variables = ['temperature', 'humidity', 'wind_speed']  # Replace with your variable names

# Plot each variable
plt.figure(figsize=(12, 6))
for var in variables:
    plt.plot(time, data[var], label=var)
plt.xlabel('Time')
plt.ylabel('Value')
plt.title('Weather Time Series')
plt.legend()
plt.show()

# Moving average and variance
window_size = 50
for var in variables:
    data[f'{var}_rolling_mean'] = data[var].rolling(window=window_size).mean()
    data[f'{var}_rolling_var'] = data[var].rolling(window=window_size).var()

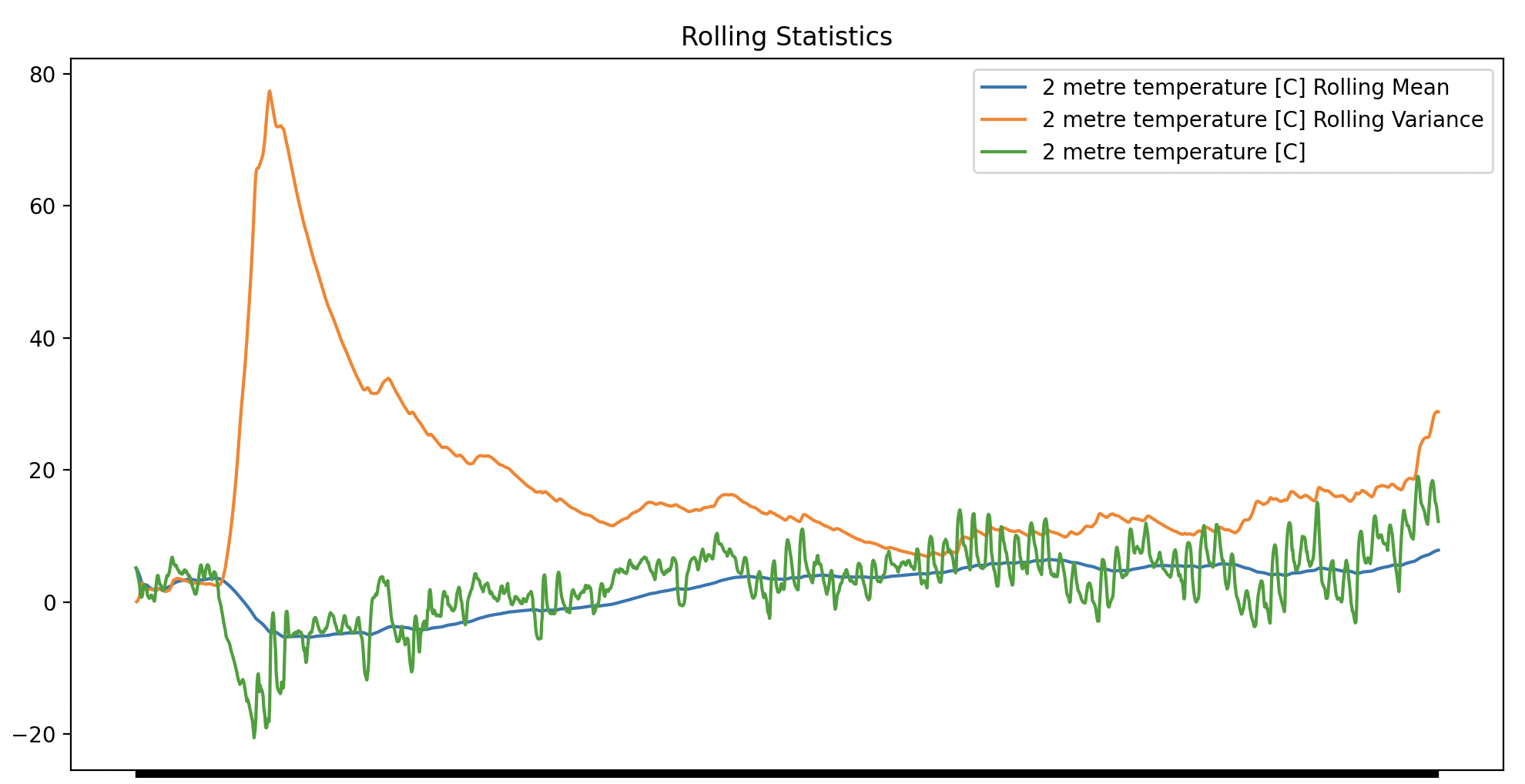

# Plot rolling mean and variance
plt.figure(figsize=(12, 6))
for var in variables:
    plt.plot(time, data[f'{var}_rolling_mean'], label=f'{var} Rolling Mean')
    plt.plot(time, data[f'{var}_rolling_var'], label=f'{var} Rolling Variance')
plt.xlabel('Time')
plt.ylabel('Value')
plt.title('Rolling Statistics')
plt.legend()
plt.show()

# Spectral Analysis (Power Spectral Density)
plt.figure(figsize=(12, 6))
for var in variables:
    freq, power = welch(data[var].dropna(), fs=1.0)  # fs=1.0 assumes 1 observation per time unit
    plt.semilogy(freq, power, label=var)
plt.xlabel('Frequency')
plt.ylabel('Power')
plt.title('Power Spectral Density')
plt.legend()
plt.show()

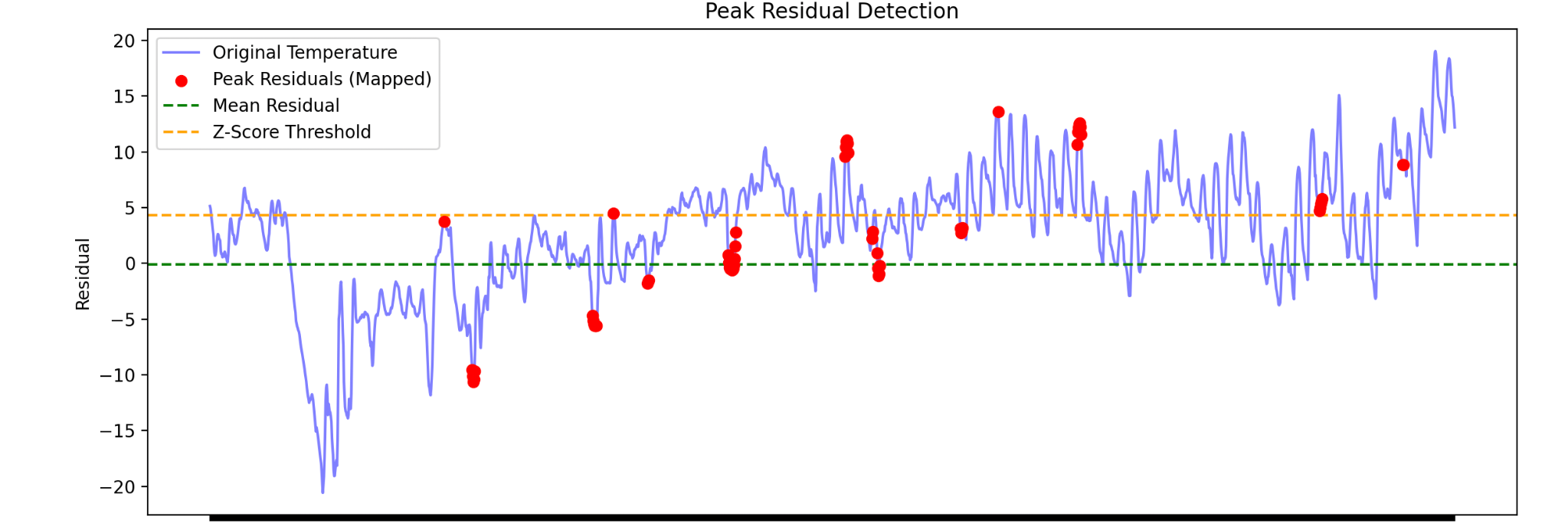

# Peak Detection
plt.figure(figsize=(12, 6))
for var in variables:
    peaks, _ = find_peaks(data[var], prominence=1)  # Adjust prominence for sensitivity
    plt.plot(time, data[var], label=var)
    plt.scatter(time[peaks], data[var][peaks], marker='x', color='red', label=f'{var} Peaks')
plt.xlabel('Time')
plt.ylabel('Value')
plt.title('Peak Detection')
plt.legend()
plt.show()

What These Plots Show

Basic Line Plot:
- Reveals trends, oscillations, and overall behavior of the variables.
Moving Averages and Variances:
- Highlights stability (low variance) and variability (high variance) over time.
Power Spectral Density:
- Shows the dominant frequencies in the data, helping to distinguish between low- and high-frequency oscillations.
Peak Detection:
- Identifies potential shock events or anomalies.

Next Steps

Refine Parameters: Adjust parameters like the moving window size, frequency bins, or peak prominence based on the dataset’s characteristics.
Cluster or Categorize: Use clustering methods like K-means to group similar behaviors in the time series as a follow-up step.
Domain Insights: Interpret the plots to identify patterns related to stability, oscillations, or shocks.

Let me know if you’d like help tailoring this further!

Of course! Here’s the continuation and expansion of the approach to fully explore your time series data:

5. Autocorrelation Analysis

Autocorrelation measures the relationship between a time series and its lagged version. This helps identify repetitive patterns or periodicity.

from pandas.plotting import autocorrelation_plot

plt.figure(figsize=(12, 6))
for var in variables:
    plt.title(f'Autocorrelation for {var}')
    autocorrelation_plot(data[var].dropna())
    plt.show()

6. Cross-Correlation Analysis

For multivariate time series, cross-correlation helps understand the relationship between variables at different time lags.

from scipy.signal import correlate

plt.figure(figsize=(12, 6))
for i, var1 in enumerate(variables):
    for j, var2 in enumerate(variables):
        if i < j:
            corr = correlate(data[var1].dropna(), data[var2].dropna(), mode='full')
            lags = np.arange(-len(corr)//2, len(corr)//2)
            plt.plot(lags, corr, label=f'{var1} vs {var2}')
plt.xlabel('Lag')
plt.ylabel('Cross-Correlation')
plt.title('Cross-Correlation Between Variables')
plt.legend()
plt.show()

7. Wavelet Transform for Time-Frequency Analysis

Wavelets are great for detecting non-stationary patterns, such as shocks or transitions between oscillations.

import pywt

plt.figure(figsize=(12, 6))
for var in variables:
    signal = data[var].dropna()
    scales = np.arange(1, 128)
    coefficients, frequencies = pywt.cwt(signal, scales, 'cmor')  # Use a complex wavelet like 'cmor'
    plt.imshow(np.abs(coefficients), extent=[0, len(signal), 1, 128],
               cmap='viridis', aspect='auto', vmax=0.5, vmin=0)
    plt.colorbar(label='Magnitude')
    plt.title(f'Continuous Wavelet Transform - {var}')
    plt.ylabel('Scale')
    plt.xlabel('Time')
    plt.show()

8. Anomaly Detection

Use rolling Z-scores or other simple statistical methods to detect anomalies or shock events.

# Calculate rolling Z-scores
for var in variables:
    data[f'{var}_zscore'] = (data[var] - data[var].rolling(window=window_size).mean()) / data[var].rolling(window=window_size).std()

# Plot anomalies
plt.figure(figsize=(12, 6))
for var in variables:
    plt.plot(time, data[var], label=var)
    anomalies = data[data[f'{var}_zscore'].abs() > 3]  # Z-score threshold
    plt.scatter(anomalies['time'], anomalies[var], color='red', label=f'{var} Anomalies')
plt.xlabel('Time')
plt.ylabel('Value')
plt.title('Anomaly Detection Using Z-Scores')
plt.legend()
plt.show()

9. Clustering for Subsequence Classification

If you want to cluster subsequences of the time series into patterns, use methods like K-means or DBSCAN with extracted features (as shown earlier).

from sklearn.cluster import KMeans
from sklearn.preprocessing import StandardScaler

# Extract features from sliding windows
segments = []
for i in range(0, len(data) - window_size, window_size):
    segment = data.iloc[i:i+window_size]
    segments.append(extract_features(segment['temperature']))  # Modify for your variable(s)

# Normalize and cluster
scaler = StandardScaler()
X = scaler.fit_transform(segments)
kmeans = KMeans(n_clusters=3)  # Adjust the number of clusters
labels = kmeans.fit_predict(X)

# Visualize clusters
plt.figure(figsize=(12, 6))
for i, label in enumerate(labels):
    plt.plot(data['time'].iloc[i*window_size:(i+1)*window_size],
             data['temperature'].iloc[i*window_size:(i+1)*window_size],
             label=f'Cluster {label}')
plt.title('Clustered Time Series Segments')
plt.xlabel('Time')
plt.ylabel('Value')
plt.legend()
plt.show()

10. Combining Results

Overlay multiple analyses (e.g., peaks, rolling stats, spectral data) to create a comprehensive visualization.
Use interactive tools like plotly for dynamic exploration of your data.

import plotly.express as px

fig = px.line(data, x='time', y=variables, title='Interactive Time Series')
fig.show()

Next Steps After Visualization

Pattern Interpretation: Use the insights from these visualizations to identify stable periods, oscillatory behavior, and shocks.
Data Labeling (Optional): If specific periods can be categorized, consider labeling them for supervised learning later.
Advanced Analytics: Once you’ve identified patterns, explore techniques like Hidden Markov Models (HMMs) for state modeling or use dynamic time warping (DTW) for similarity analysis.

Let me know if you’d like me to expand on any specific step or method!

Kurtosis is a statistical measure that helps identify the “tailedness” of the distribution of data. In time series analysis, kurtosis is particularly useful for identifying sharp peaks or extreme events (e.g., shock events) in the data. Here’s how you can compute and visualize kurtosis for your weather time series data:

Why Use Kurtosis in Time Series?

Detecting Shock Events: High kurtosis indicates the presence of extreme values or outliers, which might correspond to shock events in the weather data.
Characterizing Stability: Low kurtosis suggests a flatter distribution, which could indicate stability in the time series.
Comparing Patterns: Compare kurtosis values across different subsections of the time series to identify variations in the behavior.

Steps to Compute and Visualize Kurtosis

1. Compute Kurtosis Over Time (Rolling Kurtosis)

You can compute the rolling kurtosis of the time series to observe how it changes over time.

from scipy.stats import kurtosis

# Compute rolling kurtosis
window_size = 50  # Adjust as needed
for var in variables:
    data[f'{var}_rolling_kurtosis'] = data[var].rolling(window=window_size).apply(kurtosis, raw=True)

# Plot rolling kurtosis
plt.figure(figsize=(12, 6))
for var in variables:
    plt.plot(time, data[f'{var}_rolling_kurtosis'], label=f'{var} Rolling Kurtosis')
plt.axhline(3, color='red', linestyle='--', label='Normal Kurtosis')
plt.xlabel('Time')
plt.ylabel('Kurtosis')
plt.title('Rolling Kurtosis of Weather Variables')
plt.legend()
plt.show()

2. Identify High-Kurtosis Regions

Regions with high kurtosis can be flagged as periods of interest, such as sharp spikes or extreme events.

# Flag high kurtosis
kurtosis_threshold = 10  # Adjust based on your dataset
for var in variables:
    high_kurtosis = data[data[f'{var}_rolling_kurtosis'] > kurtosis_threshold]
    plt.figure(figsize=(12, 6))
    plt.plot(time, data[var], label=f'{var}')
    plt.scatter(high_kurtosis['time'], high_kurtosis[var], color='red', label=f'High Kurtosis')
    plt.xlabel('Time')
    plt.ylabel(var)
    plt.title(f'{var} with High-Kurtosis Events')
    plt.legend()
    plt.show()

3. Histogram of Kurtosis

Visualize the distribution of kurtosis values to understand the overall behavior of the time series.

plt.figure(figsize=(12, 6))
for var in variables:
    plt.hist(data[f'{var}_rolling_kurtosis'].dropna(), bins=50, alpha=0.6, label=var)
plt.axvline(3, color='red', linestyle='--', label='Normal Kurtosis')
plt.xlabel('Kurtosis')
plt.ylabel('Frequency')
plt.title('Distribution of Rolling Kurtosis')
plt.legend()
plt.show()

Insights from Kurtosis Analysis

Stable Periods: Regions with kurtosis near 3 indicate a normal distribution, likely corresponding to stable weather conditions.
Shock Events: Periods with kurtosis significantly greater than 3 suggest sharp peaks or extreme events (e.g., sudden storms or extreme temperature changes).
Flat/Uniform Periods: Kurtosis less than 3 indicates a flatter distribution, which might correspond to uniformly varying weather.

Next Steps

Combine with Other Metrics: Use kurtosis alongside variance, power spectral density, and rolling averages to better understand the patterns in the data.
Visual Annotations: Overlay high-kurtosis periods on the original time series plot to visually confirm shock events.
Cluster Analysis: Use kurtosis as a feature for clustering or segmentation.

Let me know if you’d like more examples or assistance integrating this with other analyses!

I want those as multiple pages in a single plot

import pandas as pd import numpy as np import matplotlib.pyplot as plt from scipy.signal import welch, find_peaks from pandas.plotting import autocorrelation_plot

Load your data

data = pd.read_csv(”../../geo/copernicus/temperature/2m_Temperature_Czechia_2024_01-02-03_Daily_Hourly.csv”) # Replace with your file time = data[‘time’] # Ensure there’s a time column variables = [‘2 metre temperature [C]’] # Replace with your variable names

Plot each variable

plt.figure(figsize=(12, 6)) for var in variables: plt.plot(time, data[var], label=var) plt.xlabel(‘Time’) plt.ylabel(‘Value’) plt.title(‘Weather Time Series’) plt.legend() plt.show()

Moving average and variance

window_size = 24 * 7 for var in variables: data[f’{var}_rolling_mean’] = data[var].rolling(window=window_size).mean() data[f’{var}_rolling_var’] = data[var].rolling(window=window_size).var()

Plot rolling mean and variance

plt.figure(figsize=(12, 6)) for var in variables: plt.plot(time, data[f’{var}_rolling_mean’], label=f’{var} Rolling Mean’) plt.plot(time, data[f’{var}_rolling_var’], label=f’{var} Rolling Variance’) plt.xlabel(‘Time’) plt.ylabel(‘Value’) plt.title(‘Rolling Statistics’) plt.legend() plt.show()

Spectral Analysis (Power Spectral Density)

plt.figure(figsize=(12, 6)) for var in variables: freq, power = welch(data[var].dropna(), fs=1.0) # fs=1.0 assumes 1 observation per time unit plt.semilogy(freq, power, label=var) plt.xlabel(‘Frequency’) plt.ylabel(‘Power’) plt.title(‘Power Spectral Density’) plt.legend() plt.show()

Peak Detection

plt.figure(figsize=(12, 6)) for var in variables: peaks, _ = find_peaks(data[var], prominence=1) # Adjust prominence for sensitivity plt.plot(time, data[var], label=var) plt.scatter(time[peaks], data[var][peaks], marker=‘x’, color=‘red’, label=f’{var} Peaks’) plt.xlabel(‘Time’) plt.ylabel(‘Value’) plt.title(‘Peak Detection’) plt.legend() plt.show()

plt.figure(figsize=(12, 6)) for var in variables: plt.title(f’Autocorrelation for {var}’) autocorrelation_plot(data[var].dropna()) plt.show()

import pywt

plt.figure(figsize=(12, 6)) for var in variables: signal = data[var].dropna() scales = np.arange(1, 128) coefficients, frequencies = pywt.cwt(signal, scales, ‘cmor’) # Use a complex wavelet like ‘cmor’ plt.imshow(np.abs(coefficients), extent=[0, len(signal), 1, 128], cmap=‘viridis’, aspect=‘auto’, vmax=0.5, vmin=0) plt.colorbar(label=‘Magnitude’) plt.title(f’Continuous Wavelet Transform - {var}’) plt.ylabel(‘Scale’) plt.xlabel(‘Time’) plt.show()

Calculate rolling Z-scores

for var in variables: data[f’{var}_zscore’] = (data[var] - data[var].rolling(window=window_size).mean()) / data[var].rolling(window=window_size).std()

Plot anomalies

plt.figure(figsize=(12, 6)) for var in variables: plt.plot(time, data[var], label=var) anomalies = data[data[f’{var}_zscore’].abs() > 3] # Z-score threshold plt.scatter(anomalies[‘time’], anomalies[var], color=‘red’, label=f’{var} Anomalies’) plt.xlabel(‘Time’) plt.ylabel(‘Value’) plt.title(‘Anomaly Detection Using Z-Scores’) plt.legend() plt.show()

To consolidate these visualizations into a single multi-page PDF for easier analysis, we can use the Matplotlib library with the PdfPages class from matplotlib.backends.backend_pdf. This will allow each figure to be saved as a separate page in the same PDF.

Here’s how you can update your code:

Consolidated Code to Save Multiple Plots in a Single PDF

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from scipy.signal import welch, find_peaks
from pandas.plotting import autocorrelation_plot
from matplotlib.backends.backend_pdf import PdfPages
import pywt

# Load your data
data = pd.read_csv("../../geo/copernicus/temperature/2m_Temperature_Czechia_2024_01-02-03_Daily_Hourly.csv")  # Replace with your file
time = pd.to_datetime(data['time'])  # Ensure 'time' is datetime
variables = ['2 metre temperature [C]']  # Replace with your variable names

# Prepare PDF
pdf_filename = "Weather_Time_Series_Analysis.pdf"
with PdfPages(pdf_filename) as pdf:
    # 1. Plot each variable
    plt.figure(figsize=(12, 6))
    for var in variables:
        plt.plot(time, data[var], label=var)
    plt.xlabel('Time')
    plt.ylabel('Value')
    plt.title('Weather Time Series')
    plt.legend()
    pdf.savefig()  # Save the current figure to the PDF
    plt.close()

    # 2. Moving average and variance
    window_size = 24 * 7
    for var in variables:
        data[f'{var}_rolling_mean'] = data[var].rolling(window=window_size).mean()
        data[f'{var}_rolling_var'] = data[var].rolling(window=window_size).var()
    plt.figure(figsize=(12, 6))
    for var in variables:
        plt.plot(time, data[f'{var}_rolling_mean'], label=f'{var} Rolling Mean')
        plt.plot(time, data[f'{var}_rolling_var'], label=f'{var} Rolling Variance')
    plt.xlabel('Time')
    plt.ylabel('Value')
    plt.title('Rolling Statistics')
    plt.legend()
    pdf.savefig()
    plt.close()

    # 3. Spectral Analysis (Power Spectral Density)
    plt.figure(figsize=(12, 6))
    for var in variables:
        freq, power = welch(data[var].dropna(), fs=1.0)  # fs=1.0 assumes 1 observation per time unit
        plt.semilogy(freq, power, label=var)
    plt.xlabel('Frequency')
    plt.ylabel('Power')
    plt.title('Power Spectral Density')
    plt.legend()
    pdf.savefig()
    plt.close()

    # 4. Peak Detection
    plt.figure(figsize=(12, 6))
    for var in variables:
        peaks, _ = find_peaks(data[var], prominence=1)  # Adjust prominence for sensitivity
        plt.plot(time, data[var], label=var)
        plt.scatter(time.iloc[peaks], data[var].iloc[peaks], marker='x', color='red', label=f'{var} Peaks')
    plt.xlabel('Time')
    plt.ylabel('Value')
    plt.title('Peak Detection')
    plt.legend()
    pdf.savefig()
    plt.close()

    # 5. Autocorrelation
    for var in variables:
        plt.figure(figsize=(12, 6))
        plt.title(f'Autocorrelation for {var}')
        autocorrelation_plot(data[var].dropna())
        pdf.savefig()
        plt.close()

    # 6. Continuous Wavelet Transform
    for var in variables:
        plt.figure(figsize=(12, 6))
        signal = data[var].dropna()
        scales = np.arange(1, 128)
        coefficients, frequencies = pywt.cwt(signal, scales, 'cmor')  # Use a complex wavelet like 'cmor'
        plt.imshow(np.abs(coefficients), extent=[0, len(signal), 1, 128],
                   cmap='viridis', aspect='auto', vmax=0.5, vmin=0)
        plt.colorbar(label='Magnitude')
        plt.title(f'Continuous Wavelet Transform - {var}')
        plt.ylabel('Scale')
        plt.xlabel('Time')
        pdf.savefig()
        plt.close()

    # 7. Anomaly Detection
    for var in variables:
        data[f'{var}_zscore'] = (data[var] - data[var].rolling(window=window_size).mean()) / data[var].rolling(window=window_size).std()
    plt.figure(figsize=(12, 6))
    for var in variables:
        plt.plot(time, data[var], label=var)
        anomalies = data[data[f'{var}_zscore'].abs() > 3]  # Z-score threshold
        plt.scatter(anomalies['time'], anomalies[var], color='red', label=f'{var} Anomalies')
    plt.xlabel('Time')
    plt.ylabel('Value')
    plt.title('Anomaly Detection Using Z-Scores')
    plt.legend()
    pdf.savefig()
    plt.close()

# Output confirmation
print(f"Analysis saved to {pdf_filename}")

Explanation

PdfPages: This class is used to save multiple figures into one PDF file. Each pdf.savefig() call adds a new page.
plt.close(): Ensures that figures are closed after saving to free up memory and prevent overlapping plots.
Iterative Plots: Each plot is iteratively added to the PDF to keep the code organized and avoid redundancy.

Result

After running the script:

A PDF file named Weather_Time_Series_Analysis.pdf will be created.
Each visualization (e.g., time series, rolling statistics, spectral analysis, etc.) will appear on a separate page.

Let me know if you need further adjustments!

To consolidate all the visualizations into a single plot and overlay the metrics with the original time series using distinct colors, we can create subplots in a single figure. Each subplot will represent one type of analysis, and the original time series will be overlaid for easy comparison.

Here’s the revised approach:

Consolidated Code with Overlaid Metrics in a Single Plot

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from scipy.signal import welch, find_peaks
import pywt
from pandas.plotting import autocorrelation_plot

# Load your data
data = pd.read_csv("../../geo/copernicus/temperature/2m_Temperature_Czechia_2024_01-02-03_Daily_Hourly.csv")  # Replace with your file
time = pd.to_datetime(data['time'])  # Ensure 'time' is datetime
variables = ['2 metre temperature [C]']  # Replace with your variable names

# Parameters
window_size = 24 * 7  # Weekly window for rolling metrics
scales = np.arange(1, 128)  # Wavelet scales

# Prepare metrics
for var in variables:
    # Rolling metrics
    data[f'{var}_rolling_mean'] = data[var].rolling(window=window_size).mean()
    data[f'{var}_rolling_var'] = data[var].rolling(window=window_size).var()
    # Z-scores
    data[f'{var}_zscore'] = (data[var] - data[var].rolling(window=window_size).mean()) / data[var].rolling(window=window_size).std()

# Start plotting
fig, axes = plt.subplots(6, 1, figsize=(12, 24), sharex=True)
var = variables[0]  # Assuming a single variable for simplicity

# Plot 1: Original Time Series
axes[0].plot(time, data[var], label='Original Time Series', color='blue')
axes[0].set_title('Original Time Series')
axes[0].set_ylabel(var)
axes[0].legend()

# Plot 2: Rolling Mean and Variance
axes[1].plot(time, data[var], label='Original Time Series', color='blue', alpha=0.5)
axes[1].plot(time, data[f'{var}_rolling_mean'], label='Rolling Mean', color='orange')
axes[1].plot(time, data[f'{var}_rolling_var'], label='Rolling Variance', color='green')
axes[1].set_title('Rolling Mean and Variance')
axes[1].set_ylabel(var)
axes[1].legend()

# Plot 3: Power Spectral Density
freq, power = welch(data[var].dropna(), fs=1.0)  # fs=1.0 assumes 1 observation per time unit
axes[2].semilogy(freq, power, label='Power Spectral Density', color='purple')
axes[2].set_title('Power Spectral Density')
axes[2].set_ylabel('Power')
axes[2].set_xlabel('Frequency')
axes[2].legend()

# Plot 4: Peak Detection
peaks, _ = find_peaks(data[var], prominence=1)  # Adjust prominence for sensitivity
axes[3].plot(time, data[var], label='Original Time Series', color='blue', alpha=0.5)
axes[3].scatter(time.iloc[peaks], data[var].iloc[peaks], marker='x', color='red', label='Peaks')
axes[3].set_title('Peak Detection')
axes[3].set_ylabel(var)
axes[3].legend()

# Plot 5: Autocorrelation
axes[4].set_title('Autocorrelation')
autocorrelation_plot(data[var].dropna(), ax=axes[4])  # Direct plotting with Pandas
axes[4].set_ylabel('Autocorrelation')

# Plot 6: Continuous Wavelet Transform
signal = data[var].dropna()
coefficients, frequencies = pywt.cwt(signal, scales, 'cmor')  # Use a complex wavelet like 'cmor'
im = axes[5].imshow(np.abs(coefficients), extent=[0, len(signal), 1, 128],
                    cmap='viridis', aspect='auto', vmax=0.5, vmin=0)
axes[5].set_title('Continuous Wavelet Transform')
axes[5].set_ylabel('Scale')
axes[5].set_xlabel('Time')
fig.colorbar(im, ax=axes[5], orientation='vertical', label='Magnitude')

# Final layout adjustments
plt.tight_layout()
plt.show()

Explanation

Subplots:
- Each analysis is assigned its own row in the fig, axes array of subplots.
Overlaying Metrics:
- The original time series (data[var]) is plotted on each subplot for reference using a distinct color.
- Additional metrics like rolling mean, rolling variance, and peaks are overlaid using different colors.
Autocorrelation:
- Directly plotted using autocorrelation_plot from Pandas for simplicity.
Wavelet Transform:
- Visualized as a heatmap using imshow, with a color bar added to indicate the magnitude.
Shared X-Axis:
- sharex=True ensures all subplots align vertically, simplifying comparisons across plots.

Output

A single plot window with six vertically stacked subplots:
1. Original time series
2. Rolling mean and variance
3. Power spectral density
4. Peak detection
5. Autocorrelation
6. Continuous wavelet transform

You can now visually compare all analyses in one place. Let me know if further adjustments are needed!

Great question! Kurtosis can still provide valuable insights, even if your data is not Gaussian, but its interpretation changes depending on the underlying distribution of your data. Here’s a breakdown:

Understanding Kurtosis

Definition: Kurtosis measures the “tailedness” of a distribution compared to a normal distribution.
- High kurtosis indicates heavy tails or extreme values (outliers).
- Low kurtosis indicates light tails or a more uniform distribution.
For a Gaussian distribution, kurtosis = 3 (mesokurtic). In practice, we often subtract 3 (excess kurtosis), making the Gaussian reference point 0.

When is Kurtosis Valuable?

When Your Data Has Extreme Events:
- Even if your data is not Gaussian, high kurtosis suggests the presence of sharp peaks, heavy tails, or extreme events.
- In time series like weather data, these could correspond to rare but significant phenomena, such as sudden storms, heatwaves, or cold spells.
When Comparing Different Subsections:
- Kurtosis is useful for comparing sections of time series data to identify periods with more or fewer extreme events.
- For example, you might compare summer vs. winter temperature distributions.
As a Complement to Variance:
- Variance tells you about overall spread, but kurtosis highlights whether that spread is due to frequent, moderate deviations or infrequent, extreme deviations.
In Non-Gaussian Data with Tail Dependencies:
- For weather data, where distributions might be skewed or multimodal (e.g., seasonal cycles), kurtosis can still highlight the presence of unusual tail behaviors.

When Kurtosis is Less Useful

In Strongly Skewed or Bimodal Distributions:
- Kurtosis alone doesn’t distinguish between heavy tails and skewness. If your data has a strong skew (e.g., wind speed data), interpreting kurtosis directly can be misleading.
- Bimodal distributions (e.g., temperatures with clear seasonal patterns) might also show unusual kurtosis due to the combined effects of multiple peaks.
Without Context:
- Kurtosis is a descriptive statistic, not a diagnostic tool. It doesn’t explain why the data has heavy tails or extreme events.

Alternatives to Kurtosis

If your data is far from Gaussian, consider these alternatives or complements:

Skewness:
- Measures asymmetry in the distribution. Skewness can help differentiate whether high kurtosis is due to asymmetry or true heavy tails.
Quantile-Based Metrics:
- Use metrics like interquartile range (IQR) or percentiles to characterize spread and tail behavior directly.
Extreme Value Analysis:
- Focus explicitly on outliers using peak-over-threshold methods, GEV (Generalized Extreme Value) distributions, or tail-index estimators.
Empirical Tail Metrics:
- Compare the frequency of data points exceeding a high threshold to assess tail heaviness without relying on assumptions about the distribution.

Conclusion

Kurtosis can be valuable for identifying extreme values and heavy tails, even in non-Gaussian data. However, its utility is limited without context and complementary metrics. For weather data, combining kurtosis with skewness, quantile analysis, or extreme value methods can give a more robust picture of your time series’ behavior.

Would you like to dive deeper into any of these alternatives or refine your analysis approach?

What is a Rolling Mean?

A rolling mean (also known as a moving average) is a statistical metric that calculates the average of a subset of data points within a specified window that moves (or “rolls”) over the time series. It is used to smooth out short-term fluctuations and highlight longer-term trends or patterns.

For example:

If you have hourly weather data and use a rolling window of 24 hours, the rolling mean will show the average of the last 24 hours for each point in time.

Formula

The rolling mean at time $ t $ for a window size $ N $ is calculated as:

$ \text{Rolling Mean}t = \frac{1}{N} \sum{i=t-(N-1)}^{t} x_i $

Where:

$ x_i $ is the data point at time $ i $,
$ N $ is the size of the rolling window.

Why is the Rolling Mean Important?

1. Smooths Out Noise

Time series data, such as weather data, often contains short-term fluctuations or noise. A rolling mean reduces this noise, making it easier to identify underlying patterns or trends.

Example: If hourly temperature data has sharp fluctuations, the rolling mean might reveal a daily or seasonal trend.

2. Highlights Long-Term Trends

By averaging over a window, the rolling mean captures gradual changes in the data. This is especially useful for detecting trends in data with seasonal or cyclical behavior.

3. Improves Interpretability

In raw data, fluctuations can obscure the overall direction of change. The rolling mean provides a clearer view of whether values are increasing, decreasing, or staying constant over time.

4. Useful for Anomaly Detection

Comparing the original data to its rolling mean can help identify anomalies. Large deviations from the rolling mean might indicate unusual events, such as a sudden storm or temperature spike.

5. Handles Seasonal or Cyclical Effects

Rolling means with an appropriate window size (e.g., one day for daily patterns, one year for seasonal cycles) can highlight repetitive behavior or remove short-term periodic effects.

Choosing the Window Size

The choice of the window size $ N $ depends on the context:

Short Window: Captures local trends and smaller fluctuations but may still be noisy.
Long Window: Smooths the data more, but may obscure finer details or short-term changes.

Example Window Sizes for Weather Data:

Hourly Data: Use a 24-hour window to capture daily patterns.
Daily Data: Use a 7-day window for weekly trends or 30-day for monthly trends.
Seasonal Analysis: Use 365 days for yearly trends in daily data.

Applications of Rolling Mean

Weather and Climate Analysis
- Smooth temperature, humidity, or precipitation data to reveal underlying patterns or seasonal changes.
Finance
- In stock prices, rolling means (e.g., 50-day or 200-day moving averages) are used to identify trends and make trading decisions.
Signal Processing
- Smooth signals in engineering or IoT applications.
Health Metrics
- Smooth heart rate or step count data to reveal trends over time.

Visualization Example

Here’s how a rolling mean can smooth out weather data:

import pandas as pd
import matplotlib.pyplot as plt

# Example time series data
data = pd.DataFrame({
    'time': pd.date_range(start='2023-01-01', periods=100, freq='H'),
    'temperature': [15 + 2 * np.sin(i / 10) + np.random.normal(0, 0.5) for i in range(100)]
})

# Calculate rolling mean
data['rolling_mean'] = data['temperature'].rolling(window=24).mean()  # 24-hour window

# Plot original data and rolling mean
plt.figure(figsize=(10, 6))
plt.plot(data['time'], data['temperature'], label='Original Data', alpha=0.5)
plt.plot(data['time'], data['rolling_mean'], label='Rolling Mean (24-hour)', color='red')
plt.xlabel('Time')
plt.ylabel('Temperature (°C)')
plt.title('Rolling Mean Example')
plt.legend()
plt.show()

Limitations of the Rolling Mean

Lag Effect:
- A rolling mean introduces a lag because it averages past values. The more significant the window size, the greater the lag.
Obscures Sudden Changes:
- Smoothing can mask sharp transitions or important short-term events (e.g., sudden storms).
Not Ideal for Non-Stationary Data:
- If the time series has trends or seasonality, rolling means might not always capture the complete behavior accurately without detrending first.

Conclusion

The rolling mean is an essential tool for time series analysis, especially for noisy data like weather. It highlights trends, smooths fluctuations, and provides a basis for further analysis, such as anomaly detection or forecasting. However, the choice of window size and its limitations must be carefully considered in the context of your specific application.

What is Rolling Variance?

A rolling variance (or moving variance) calculates the variance of a subset of data points within a specified window that moves (or “rolls”) over time. Variance measures the spread or dispersion of data, so the rolling variance provides a time-varying measure of how much the data fluctuates over the specified window.

For example:

In hourly weather data, a rolling variance with a 24-hour window gives the variability of temperature over each day.

Formula

The rolling variance at time $ t $ for a window size $ N $ is:

$ \text{Rolling Variance}t = \frac{1}{N} \sum{i=t-(N-1)}^{t} \left( x_i - \mu \right)^2 $

Where:

$ x_i $ is the data point at time $ i $,
$ \mu $ is the mean of the data in the window,
$ N $ is the size of the rolling window.

Why is Rolling Variance Important?

1. Measures Local Volatility

Rolling variance quantifies the variability or “volatility” of a time series over time.
High variance indicates large fluctuations, while low variance suggests more stable behavior.

2. Detects Changes in Behavior

If the variance suddenly increases, it might indicate a transition in the data (e.g., onset of a storm in weather data).
A decreasing variance could signify stabilization after a disturbance.

3. Highlights Periodic or Cyclical Behavior

By observing peaks and troughs in rolling variance, you can detect patterns in data (e.g., daily or seasonal cycles).

4. Supports Anomaly Detection

Large deviations from typical rolling variance can signal anomalies. For instance, an unexpected spike in temperature variability could point to extreme weather conditions.

5. Improves Understanding of Time-Dependent Variability

In weather data, rolling variance helps reveal how the variability of temperature, humidity, or wind changes during different times of the day or year.

Applications of Rolling Variance

Weather Analysis:
- Understand how temperature variability changes with time, such as comparing stable sunny periods to highly variable stormy periods.
Financial Markets:
- Rolling variance is used to track stock price volatility and assess risk over time.
Quality Control:
- In manufacturing, rolling variance can monitor variability in production processes to detect when processes deviate from expected performance.
Signal Processing:
- Identify periods of increased or decreased signal fluctuation in IoT or sensor data.

Visualization Example

Here’s an example to calculate and visualize rolling variance for a weather time series:

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt

# Example time series data
data = pd.DataFrame({
    'time': pd.date_range(start='2023-01-01', periods=100, freq='H'),
    'temperature': [15 + 2 * np.sin(i / 10) + np.random.normal(0, 0.5) for i in range(100)]
})

# Calculate rolling mean and variance
window_size = 24  # 24-hour rolling window
data['rolling_mean'] = data['temperature'].rolling(window=window_size).mean()
data['rolling_variance'] = data['temperature'].rolling(window=window_size).var()

# Plot original data, rolling mean, and rolling variance
plt.figure(figsize=(12, 6))

# Original time series
plt.plot(data['time'], data['temperature'], label='Original Data', color='blue', alpha=0.5)

# Rolling mean
plt.plot(data['time'], data['rolling_mean'], label='Rolling Mean (24-hour)', color='orange')

# Rolling variance
plt.plot(data['time'], data['rolling_variance'], label='Rolling Variance (24-hour)', color='green')

plt.xlabel('Time')
plt.ylabel('Temperature (°C)')
plt.title('Rolling Mean and Variance Example')
plt.legend()
plt.show()

Key Insights from Rolling Variance

Stability:
- If rolling variance is consistently low, it indicates a stable period with little fluctuation.
Volatile Periods:
- Spikes in rolling variance highlight periods of high fluctuation, which may correspond to significant events like storms in weather data.
Cyclical Patterns:
- Periodic fluctuations in rolling variance can reveal cycles or patterns, such as day-night temperature variability.
Baseline vs. Deviations:
- Comparing rolling variance across different windows (e.g., daily vs. weekly) can help distinguish normal variability from unusual deviations.

Limitations of Rolling Variance

Lag Effect:
- Like the rolling mean, the rolling variance is based on past data and can lag behind rapid changes in the time series.
Window Sensitivity:
- The choice of window size significantly impacts the result:
  - A short window captures quick changes but can be noisy.
  - A long window smooths the variance but may miss short-term fluctuations.
Interpretation Requires Context:
- Rolling variance alone does not explain why variability changes; it must be combined with domain knowledge and other metrics for deeper insights.

Conclusion

Rolling variance is a powerful tool for understanding time-dependent variability in a time series. It is particularly valuable for detecting transitions, identifying volatile periods, and analyzing patterns in cyclical or noisy data like weather. However, careful attention must be paid to window size and context to maximize its utility.

The “hysteresis” you observe when using a large rolling window is a natural consequence of the way rolling statistics (like rolling mean or rolling variance) work—they inherently lag behind rapid changes in the data because they average over a large number of past points.

To address this issue, you can consider the following approaches:

1. Use an Exponentially Weighted Moving Average (EWMA)

An Exponentially Weighted Moving Average gives more weight to recent data points while still considering past points. This reduces lag and adapts faster to changes in the data compared to a standard rolling window.

Formula for EWMA:

$ S_t = \alpha \cdot x_t + (1 - \alpha) \cdot S_{t-1} $ Where:

$ S_t $ is the EWMA at time $ t $,
$ x_t $ is the value at time $ t $,
$ \alpha $ is the smoothing factor (closer to 1 gives more weight to recent data).

Implementation Example in Python:

# Apply EWMA for smoothing
alpha = 0.1  # Smoothing factor
data['ewma_mean'] = data['temperature'].ewm(alpha=alpha).mean()
data['ewma_variance'] = data['temperature'].ewm(alpha=alpha).var()

# Plot EWMA
plt.figure(figsize=(12, 6))
plt.plot(data['time'], data['temperature'], label='Original Data', color='blue', alpha=0.5)
plt.plot(data['time'], data['ewma_mean'], label='EWMA Mean', color='orange')
plt.plot(data['time'], data['ewma_variance'], label='EWMA Variance', color='green')
plt.xlabel('Time')
plt.ylabel('Temperature')
plt.title('EWMA for Reducing Lag in Rolling Statistics')
plt.legend()
plt.show()

2. Use a Mixed Window Size

Combine short and long rolling windows to balance between responsiveness and stability:

A short window captures rapid changes.
A long window smooths out noise and provides a broader trend.

Example:

short_window = 24  # 1-day
long_window = 24 * 7  # 1-week

data['short_rolling_mean'] = data['temperature'].rolling(window=short_window).mean()
data['long_rolling_mean'] = data['temperature'].rolling(window=long_window).mean()

# Plot mixed windows
plt.figure(figsize=(12, 6))
plt.plot(data['time'], data['temperature'], label='Original Data', color='blue', alpha=0.5)
plt.plot(data['time'], data['short_rolling_mean'], label='Short Rolling Mean (1-day)', color='orange')
plt.plot(data['time'], data['long_rolling_mean'], label='Long Rolling Mean (1-week)', color='green')
plt.xlabel('Time')
plt.ylabel('Temperature')
plt.title('Combining Short and Long Rolling Windows')
plt.legend()
plt.show()

3. Apply a Time-Dependent Window

Instead of a fixed window size, adapt the window size dynamically based on changes in the data. For example:

Use a smaller window during periods of high variability.
Use a larger window during stable periods.

This requires detecting changes in the data dynamically (e.g., using standard deviation or variance thresholds).

Example:

def dynamic_window(data, threshold=0.5):
    windows = []
    for i in range(1, len(data)):
        # Calculate change in value
        change = abs(data[i] - data[i-1])
        # Determine window size (smaller for large changes)
        windows.append(24 if change > threshold else 72)
    return windows

# Example of dynamic window size (pseudo-code)
# Apply dynamic window (you'll need to handle this carefully for real implementation)
# Apply rolling mean/variance based on dynamically computed windows

4. Use Online Filtering (e.g., Kalman Filter)

A Kalman Filter is a statistical method for dynamically estimating the state of a system. It can smooth data in a way that adapts to both rapid changes and long-term trends, minimizing lag while reducing noise.

Example with `filterpy`:

from filterpy.kalman import KalmanFilter

# Initialize Kalman Filter
kf = KalmanFilter(dim_x=2, dim_z=1)
kf.x = np.array([0., 1.])  # Initial state (mean and rate)
kf.F = np.array([[1., 1.],
                 [0., 1.]])  # State transition matrix
kf.H = np.array([[1., 0.]])  # Measurement function
kf.P *= 1000.  # Initial uncertainty
kf.R = 5  # Measurement noise
kf.Q = 0.1  # Process noise

# Apply Kalman Filter to time series
filtered_temp = []
for t in data['temperature']:
    kf.predict()
    kf.update(t)
    filtered_temp.append(kf.x[0])

data['kalman_filtered'] = filtered_temp

# Plot Kalman filter results
plt.figure(figsize=(12, 6))
plt.plot(data['time'], data['temperature'], label='Original Data', color='blue', alpha=0.5)
plt.plot(data['time'], data['kalman_filtered'], label='Kalman Filtered', color='red')
plt.xlabel('Time')
plt.ylabel('Temperature')
plt.title('Kalman Filter for Adaptive Smoothing')
plt.legend()
plt.show()

5. Consider Smoothing the Rolling Window Output

Instead of just computing a rolling statistic, apply another smoothing technique (like EWMA or a low-pass filter) to the rolling mean/variance outputs. This further reduces lag and hysteresis.

Example:

# Smooth the rolling mean/variance with EWMA
data['smoothed_mean'] = data['rolling_mean'].ewm(alpha=0.2).mean()
data['smoothed_variance'] = data['rolling_variance'].ewm(alpha=0.2).mean()

# Plot smoothed outputs
plt.figure(figsize=(12, 6))
plt.plot(data['time'], data['temperature'], label='Original Data', color='blue', alpha=0.5)
plt.plot(data['time'], data['smoothed_mean'], label='Smoothed Rolling Mean', color='orange')
plt.plot(data['time'], data['smoothed_variance'], label='Smoothed Rolling Variance', color='green')
plt.xlabel('Time')
plt.ylabel('Temperature')
plt.title('Smoothing the Rolling Window Output')
plt.legend()
plt.show()

Summary of Solutions

Method	Lag Reduction	Responsiveness	Complexity
Exponentially Weighted Moving Avg	Moderate	High	Low
Mixed Window Sizes	Low	Moderate	Low
Dynamic Window	High	High	Moderate
Kalman Filter	High	High	High
Smoothing Rolling Outputs	Moderate	Moderate	Low

Conclusion

The choice of solution depends on your specific needs:

Use EWMA if simplicity and reducing lag are priorities.
Use a Kalman Filter for more advanced, adaptive smoothing.
Combine short and long windows or dynamic windows if you need fine control over responsiveness.

Let me know which direction you’d like to explore further!

A sudden peak in variance in a time series often indicates a significant change or disruption in the data, and its interpretation depends on the context of the data being analyzed. Variance measures the spread of data points, so a sharp increase typically means the data has become more volatile or unpredictable over the analyzed period.

Possible Explanations for a Sudden Peak in Variance

1. Increased Volatility

What it means: The data points in the series are fluctuating more than usual.
Examples:
- In weather data: Rapidly changing conditions, such as during a storm or heatwave.
- In stock prices: Market turbulence caused by economic news or events.

2. Transition Between States

What it means: The system is moving from one stable state to another, often marked by increased variability.
Examples:
- In weather: A transition from calm to stormy conditions.
- In physiological signals: A shift in heart rate variability due to physical exertion or stress.

3. Anomalous Events

What it means: An outlier or shock event has occurred, significantly affecting the spread of values.
Examples:
- In weather: A sudden temperature spike or extreme weather event like a tornado or hailstorm.
- In finance: A one-time event, such as a company bankruptcy or announcement.

4. Period of Uncertainty

What it means: The system enters a period where fluctuations are inherently more unpredictable.
Examples:
- In weather: Atmospheric instability, such as during a cold front.
- In social data: Increased activity during an election or a trending event.

5. Measurement or Data Issues

What it means: Noise or errors in the data collection process can artificially inflate variance.
Examples:
- Sensor malfunction: Inconsistent or noisy sensor readings.
- Data artifact: Errors introduced during preprocessing.

How to Analyze a Sudden Peak in Variance

Visualize the Context:
- Plot the time series alongside its rolling variance to see the peak in relation to the data’s behavior.
Look for Corresponding Changes:
- Examine other metrics (e.g., mean, skewness, kurtosis) to identify if the peak coincides with a broader change in the data.
Identify Outliers:
- Investigate whether the peak is driven by one or more extreme outliers.
Check for Periodicity:
- Peaks in variance may align with regular patterns, such as day-night cycles or seasonal effects.
Correlate with External Factors:
- Look for external events or conditions that could explain the increase in volatility (e.g., weather systems, policy changes).

Examples in Weather Data

Sudden Variance Spike in Temperature:
- Could indicate the onset of a storm, when temperatures fluctuate rapidly due to changing air masses.
Sudden Variance Spike in Wind Speed:
- May suggest a high wind event, like a gust front or turbulence during a storm.
Variance in Humidity:
- Might reflect unstable atmospheric conditions leading to rapid formation and dissipation of clouds.

Actionable Steps

Step 1: Inspect the Time Series:
- Plot the raw data with rolling variance to identify the cause of the spike.
- Overlay additional metrics (e.g., mean, outliers) for context.
Step 2: Analyze Sub-Windows:
- Zoom in on the time window where variance peaks and analyze the behavior of the data.
Step 3: Cross-Check with External Data:
- If applicable, correlate the time series with external factors (e.g., weather patterns, news events).
Step 4: Verify Data Quality:
- Ensure the peak is not due to errors or noise in the data collection process.

Conclusion

A sudden peak in variance indicates a period of increased volatility, a state transition, or an anomaly in the system. Understanding its cause requires investigating the data’s context and, where possible, correlating it with external events or conditions. Let me know if you’d like help analyzing specific examples!

From this plot, we can see the following relationships among the three components:

1. Rolling Mean (Blue Line):

The blue line represents the rolling mean of the temperature data.
It provides a smoothed view of the overall trend in the data by averaging values over a window.
The rolling mean appears to capture a general downward trend in the temperature during a period (middle of the graph) before gradually increasing toward the end.

Key Insight:

The rolling mean helps remove noise from the raw data (green line) to reveal the overall trajectory. The steady increase at the end suggests warming or an upward temperature trend.

2. Rolling Variance (Orange Line):

The orange line represents the rolling variance, showing the variability of temperature within the rolling window.
There’s a significant sudden peak in variance early in the time series, followed by a gradual decline, stabilization, and another small increase at the end.

Key Insight:

The sudden spike in variance early in the data suggests a highly volatile event, likely caused by rapid changes in temperature (seen in the green line). This could indicate a weather event, such as a storm or the transition between two atmospheric conditions.
As the variance stabilizes, it implies that the temperature fluctuations decrease and the weather becomes more consistent. The rise in variance toward the end could again indicate increased instability.

3. Raw Temperature (Green Line):

The green line shows the raw temperature data.
Early in the graph, the temperature fluctuates significantly, aligning with the high variance observed.
In the middle portion, the fluctuations are smaller and more consistent, corresponding to low variance.
Toward the end, the fluctuations grow larger, consistent with the observed increase in variance.

Key Insight:

The raw temperature data confirms the variance insights: early fluctuations align with the peak variance, and the stable middle section aligns with low variance.
The upward trend toward the end, despite increased variability, aligns with the rolling mean’s upward trend.

Possible Interpretation of the Event:

High Variance at the Start:
- The peak in rolling variance and the erratic green line early in the graph likely indicate a transition phase or a short-term volatile weather event, such as a storm or the movement of a cold/warm front.
Stabilized Period:
- The low variance and stable green line in the middle suggest calmer weather conditions with relatively consistent temperatures.
Increasing Variance and Temperature at the End:
- The rising temperature (green and blue lines) and variance (orange line) toward the end suggest a warming trend, possibly accompanied by increasing instability in weather patterns.

Next Steps for Analysis:

If this data is from a weather dataset, correlate these patterns with external conditions (e.g., pressure systems, wind speed, precipitation) to confirm the cause of variability.
Investigate the early variance spike to identify the event driving the rapid fluctuations.
Use rolling variance alongside additional metrics (e.g., rolling skewness) to gain further insights into the nature of the variability.

Let me know if you’d like to refine or expand the analysis!

The Derivative of Variance

The derivative of variance measures how quickly the variance is changing over time. It quantifies the rate of change in volatility, providing insights into whether the variability in your data is increasing or decreasing at any given moment.

Is It a Legit Metric?

Yes, the derivative of variance is a legitimate metric and is sometimes used in various domains under specific names or concepts. However, it doesn’t have a universally standard name. Below are some contexts and interpretations:

Volatility of Volatility (Finance):
- In financial markets, the derivative of variance is conceptually similar to the volatility of volatility or vol of vol.
- It captures how the volatility itself (measured as variance) is fluctuating and is often used to predict periods of market instability.
Rate of Variance Change (General):
- In signal processing or physics, this is referred to more generally as the rate of change of variance or the “first derivative of variance.”
Variance Gradient:
- In mathematical or data contexts, the term gradient of variance might be used to describe the same concept.
Dynamic Variability Indicator:
- In fields like climate science or ecology, this metric might inform researchers about how quickly systems are becoming more (or less) volatile over time.

Why Use the Derivative of Variance?

Identify Turning Points:
- A large positive derivative indicates that the system is becoming more volatile quickly (e.g., transitioning into instability).
- A large negative derivative suggests the volatility is quickly subsiding (e.g., transitioning to stability).
Detect Precursors to Events:
- Sudden changes in the derivative of variance can indicate upcoming system disruptions, such as storms in weather data, market crashes in finance, or tipping points in ecological systems.
Characterize Transient Dynamics:
- While variance alone tells you how spread out the data is, its derivative tells you whether that spread is increasing, decreasing, or remaining steady.

Limitations of Using the Derivative of Variance

Noise Amplification:
- Calculating derivatives is sensitive to noise in the data, which might obscure meaningful insights. Smoothing the variance before computing its derivative can mitigate this.
Context-Specific Interpretation:
- While the metric is mathematically valid, its interpretation depends heavily on the application domain and the data’s nature.
Second-Order Effects:
- The derivative of variance is a second-order effect (variance is already a second-order measure of spread), so it might be overkill for simple systems.

Example: Weather Data Analysis

Let’s compute and analyze the derivative of variance from your rolling variance plot.

Python Example:

# Compute rolling variance
window_size = 24  # Example window size
data['rolling_variance'] = data['2 metre temperature [C]'].rolling(window=window_size).var()

# Compute derivative of variance
data['variance_derivative'] = data['rolling_variance'].diff()

# Plot variance and its derivative
plt.figure(figsize=(12, 6))

# Plot rolling variance
plt.plot(data['time'], data['rolling_variance'], label='Rolling Variance', color='orange')

# Plot derivative of variance
plt.plot(data['time'], data['variance_derivative'], label='Derivative of Variance', color='red')

plt.xlabel('Time')
plt.ylabel('Value')
plt.title('Rolling Variance and Its Derivative')
plt.legend()
plt.show()

Insights from the Derivative of Variance

Positive Peaks:
- Positive peaks in the derivative of variance indicate that variability is increasing quickly, suggesting a possible onset of instability or a sudden event (e.g., a storm).
Negative Peaks:
- Negative peaks indicate that variability is decreasing quickly, signaling a return to stability or the resolution of an event.
Zero Crossing:
- When the derivative crosses zero (from positive to negative or vice versa), it marks turning points in variance. For example, a switch from increasing to decreasing variability may indicate the end of a volatile phase.
Sustained Positive or Negative Values:
- Prolonged positive values may indicate a prolonged buildup of variability, while sustained negative values suggest prolonged calming.

Real-World Applications

Weather Analysis:
- In meteorology, the derivative of variance can highlight the buildup or dissipation of instability in atmospheric data.
Financial Markets:
- It can predict periods of rapid market instability or calm by analyzing the second-order changes in volatility.
System Dynamics:
- In ecological or mechanical systems, this metric can indicate whether a system is approaching a critical tipping point or recovering from one.

Conclusion

The derivative of variance is a valid and useful metric that enhances the understanding of dynamic systems. While it doesn’t have a universally recognized name, its application can provide valuable insights into the rate of change of variability, helping to identify transitions, anomalies, or upcoming disruptions in your data.

If you’d like, I can help you compute and interpret this for your dataset! Let me know!

Based on the provided plot of “2 metre temperature [C],” I can observe the following key patterns and trends in your dataset:

1. General Trends

There seems to be a cyclic or periodic pattern in the temperature over time, likely representing daily or weekly variations. These oscillations may correspond to typical diurnal (day-night) or weather system-related temperature changes.
Cooler period early in the series: The dataset starts with colder temperatures (around -20°C at the lowest), indicating a cold weather phase.
There is a warming trend toward the end, with temperatures consistently increasing, crossing 0°C more frequently, and reaching higher peaks. This could indicate the onset of a warmer season, possibly a transition from winter to spring.

2. Temperature Oscillations

In the middle and latter parts of the series, temperature oscillations become more pronounced, with frequent upward and downward fluctuations around a baseline. These may suggest:
- Diurnal patterns due to day-night heating and cooling.
- Atmospheric variability, such as alternating periods of warm and cold air masses.

3. Stability and Variability

Early in the dataset (first week or so), temperatures are relatively consistent and mostly decreasing, with fewer abrupt changes.
Later in the dataset, temperature variability increases significantly. Peaks and troughs become sharper, indicating more extreme and rapid changes in temperature. This variability may suggest:
- A more active weather system (e.g., stormy or unstable conditions).
- Seasonal effects introducing more dynamic temperature swings.

4. Zero Crossing (Transition Through 0°C)

The dataset includes transitions through 0°C, marked by the red line in the plot. These crossings are notable because:
- Crossing from below 0°C to above 0°C can indicate melting/freezing transitions, significant in weather and environmental contexts (e.g., snow melting or ice formation).
- The frequency of crossings increases over time, likely indicating warming trends.

5. Anomalies or Unusual Features

The sharp, low-temperature dip around January 7-8 (to nearly -20°C) could represent an extreme weather event, such as a cold snap or arctic front.
A period of relative stability can be seen between late January and early February, with less pronounced fluctuations.
In contrast, late February and March show higher variability, with frequent peaks and troughs.

Potential Hypotheses or Questions

Seasonal Transition:
- The dataset might capture the transition from winter to spring, explaining the warming trend and increased variability later in the data.
Weather System Dynamics:
- Increased oscillations could reflect more dynamic weather systems, such as the passage of warm and cold fronts or diurnal heating effects.
Anomalous Events:
- The early sharp drop in temperature (-20°C) could be an anomaly worth investigating (e.g., was it due to a specific weather event?).
Environmental Impact:
- If this data is linked to environmental or ecological studies, periods around 0°C could have significant implications for snow/ice melting or water availability.

Next Steps for Analysis

To gain further insights, consider:

Rolling Statistics:
- Plot the rolling mean and variance to quantify the trends and variability.
Frequency Analysis:
- Apply Fourier Transform or Wavelet Transform to identify dominant cycles (e.g., daily or weekly temperature variations).
Extreme Events:
- Identify and investigate temperature extremes (both highs and lows) for anomalies or weather events.
Comparison with External Data:
- Correlate the dataset with other weather variables (e.g., humidity, wind speed, precipitation) to contextualize the patterns.

Let me know if you’d like help with any specific analysis!

Capturing extreme events in a reliable way involves systematically identifying data points or time periods that deviate significantly from typical behavior in the time series. Here’s a step-by-step guide to identifying these events in a robust and reproducible manner:

1. Define “Extreme Events” for Your Dataset

Before detecting extremes, it’s essential to define what constitutes an “extreme event” in the context of your dataset:

Threshold-Based: Values exceeding predefined thresholds (e.g., temperature > 30°C or < -15°C).
Statistical Outliers: Data points significantly different from the mean or other statistical norms.
Frequency of Change: Rapid changes or high variability within short timeframes (e.g., sudden temperature drops).
Domain-Specific: Events of interest based on external factors (e.g., crossing 0°C in climate data for freezing/melting).

2. Methods for Identifying Extreme Events

a. Threshold-Based Detection

Simple but effective for domain-specific extremes. You can use fixed thresholds based on historical norms or physical constraints.

Example in Python:

# Define thresholds
upper_threshold = 30  # e.g., heatwave
lower_threshold = -15  # e.g., cold snap

# Identify extreme events
extremes = data[(data['temperature'] > upper_threshold) | (data['temperature'] < lower_threshold)]

# Plot extremes
plt.figure(figsize=(12, 6))
plt.plot(data['time'], data['temperature'], label='Temperature', color='blue')
plt.scatter(extremes['time'], extremes['temperature'], color='red', label='Extreme Events')
plt.axhline(upper_threshold, color='orange', linestyle='--', label='Upper Threshold')
plt.axhline(lower_threshold, color='purple', linestyle='--', label='Lower Threshold')
plt.legend()
plt.title('Extreme Event Detection (Threshold-Based)')
plt.show()

Pros:

Simple and interpretable.
Useful when thresholds are well-defined (e.g., freezing/melting points).

Cons:

Requires prior domain knowledge.
May miss events not captured by the threshold.

b. Statistical Outlier Detection

Use statistical techniques to identify points significantly different from the distribution of the data.

Methods:

Z-Score:
- Measure how many standard deviations a value is from the mean.
- Define extreme events as values with $ |Z| > k $ (commonly $ k = 3 $).

# Compute Z-score
data['z_score'] = (data['temperature'] - data['temperature'].mean()) / data['temperature'].std()

# Identify outliers
extremes = data[abs(data['z_score']) > 3]

# Plot
plt.figure(figsize=(12, 6))
plt.plot(data['time'], data['temperature'], label='Temperature', color='blue')
plt.scatter(extremes['time'], extremes['temperature'], color='red', label='Extreme Events')
plt.axhline(0, color='black', linestyle='--')
plt.legend()
plt.title('Extreme Event Detection (Z-Score)')
plt.show()

Percentiles:
- Identify values in the top or bottom $ k% $ of the distribution.

# Define percentiles
lower_percentile = data['temperature'].quantile(0.01)  # Bottom 1%
upper_percentile = data['temperature'].quantile(0.99)  # Top 1%

# Identify extremes
extremes = data[(data['temperature'] < lower_percentile) | (data['temperature'] > upper_percentile)]

# Plot
plt.figure(figsize=(12, 6))
plt.plot(data['time'], data['temperature'], label='Temperature', color='blue')
plt.scatter(extremes['time'], extremes['temperature'], color='red', label='Extreme Events')
plt.axhline(lower_percentile, color='purple', linestyle='--', label='1% Threshold')
plt.axhline(upper_percentile, color='orange', linestyle='--', label='99% Threshold')
plt.legend()
plt.title('Extreme Event Detection (Percentile-Based)')
plt.show()

Pros:

Does not require prior domain knowledge.
Flexible for different distributions.

Cons:

Sensitive to noise.
Requires assumptions about normality for Z-score.

c. Variability or Rate-of-Change Detection

Detect periods of rapid change rather than absolute extremes. This is useful for transitions (e.g., sudden warming or cooling).

Method:

Use the derivative (or difference) of the time series to calculate the rate of change.
Identify points where the rate exceeds a predefined threshold.

# Compute rate of change
data['rate_of_change'] = data['temperature'].diff()

# Define threshold for extreme changes
rate_threshold = data['rate_of_change'].std() * 3
extremes = data[abs(data['rate_of_change']) > rate_threshold]

# Plot
plt.figure(figsize=(12, 6))
plt.plot(data['time'], data['temperature'], label='Temperature', color='blue')
plt.scatter(extremes['time'], extremes['temperature'], color='red', label='Extreme Events')
plt.axhline(0, color='black', linestyle='--')
plt.legend()
plt.title('Extreme Event Detection (Rate of Change)')
plt.show()

Pros:

Effective for detecting transitions or sudden shifts.
Works even if absolute values aren’t extreme.

Cons:

Requires tuning rate-of-change thresholds.
Sensitive to noise—may need smoothing.

d. Rolling Variance Peaks

Use rolling variance to detect periods of high variability, as extreme events often correlate with increased variance.

# Compute rolling variance
window_size = 24  # Example: 24-hour window
data['rolling_variance'] = data['temperature'].rolling(window=window_size).var()

# Identify peaks in variance
variance_threshold = data['rolling_variance'].mean() + 3 * data['rolling_variance'].std()
extreme_variance = data[data['rolling_variance'] > variance_threshold]

# Plot
plt.figure(figsize=(12, 6))
plt.plot(data['time'], data['temperature'], label='Temperature', color='blue')
plt.scatter(extreme_variance['time'], extreme_variance['temperature'], color='red', label='Extreme Events (Variance Peaks)')
plt.legend()
plt.title('Extreme Event Detection (Variance Peaks)')
plt.show()

Pros:

Captures sustained variability rather than individual points.
Useful for identifying multi-point events.

Cons:

Requires tuning the window size.
Lagging effect due to rolling computation.

3. Combine Methods for Robustness

To improve reliability, you can combine methods:

Use Z-score or percentile-based thresholds to detect absolute extremes.
Use rate-of-change to capture transitions.
Use rolling variance to identify periods of sustained variability.

For example:

# Combine Z-score and rate of change
extreme_conditions = data[(abs(data['z_score']) > 3) | (abs(data['rate_of_change']) > rate_threshold)]

# Plot combined extremes
plt.figure(figsize=(12, 6))
plt.plot(data['time'], data['temperature'], label='Temperature', color='blue')
plt.scatter(extreme_conditions['time'], extreme_conditions['temperature'], color='red', label='Combined Extreme Events')
plt.legend()
plt.title('Combined Extreme Event Detection')
plt.show()

4. Practical Considerations

Data Smoothing: If the data is noisy, apply smoothing (e.g., rolling mean) before computing metrics like rate of change or rolling variance.
Domain Knowledge: Combine statistical methods with domain knowledge to set meaningful thresholds.
Validation: Compare detected extremes with known events or external datasets to validate your approach.

Conclusion

Reliable detection of extreme events requires defining what qualifies as “extreme” and selecting appropriate detection methods. Threshold-based, statistical, rate-of-change, and rolling variance approaches all have strengths and can be used in combination for robustness. Let me know if you’d like help applying these methods to your dataset!

To reliably identify extreme heat events and extreme cold events, we can combine Z-score, rate of change, and rolling variance peaks into a unified method. Here’s how we can structure it:

Approach

For Extreme Heat Events:

Z-score: Identify points significantly higher than the mean (e.g., $ Z > 3 $).
Rate of Change: Detect rapid upward changes (e.g., sudden warming).
Rolling Variance Peaks: Highlight sustained periods of high variability associated with heat events.

For Extreme Cold Events:

Z-score: Identify points significantly lower than the mean (e.g., $ Z < -3 $).
Rate of Change: Detect rapid downward changes (e.g., sudden cooling).
Rolling Variance Peaks: Highlight periods of high variability associated with cold extremes.

Python Implementation

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt

# Simulated temperature dataset
np.random.seed(42)
data = pd.DataFrame({
    'time': pd.date_range(start='2023-01-01', periods=1000, freq='H'),
    'temperature': 15 + 10 * np.sin(np.linspace(0, 10 * np.pi, 1000)) + np.random.normal(0, 2, 1000)
})

# Parameters
window_size = 24  # Rolling window size (e.g., 24 hours)
z_threshold = 3  # Z-score threshold
rate_threshold = 5  # Rate-of-change threshold
variance_multiplier = 3  # Multiplier for rolling variance peaks

# Step 1: Compute Z-Score
data['z_score'] = (data['temperature'] - data['temperature'].mean()) / data['temperature'].std()

# Step 2: Compute Rate of Change
data['rate_of_change'] = data['temperature'].diff()

# Step 3: Compute Rolling Variance
data['rolling_variance'] = data['temperature'].rolling(window=window_size).var()

# Step 4: Define Thresholds
variance_threshold = data['rolling_variance'].mean() + variance_multiplier * data['rolling_variance'].std()

# Step 5: Identify Extreme Heat Events
extreme_heat = data[
    (data['z_score'] > z_threshold) |  # High Z-score
    (data['rate_of_change'] > rate_threshold) |  # Rapid warming
    (data['rolling_variance'] > variance_threshold)  # Variability peak
]

# Step 6: Identify Extreme Cold Events
extreme_cold = data[
    (data['z_score'] < -z_threshold) |  # Low Z-score
    (data['rate_of_change'] < -rate_threshold) |  # Rapid cooling
    (data['rolling_variance'] > variance_threshold)  # Variability peak
]

# Plotting
plt.figure(figsize=(14, 8))

# Plot temperature data
plt.plot(data['time'], data['temperature'], label='Temperature', color='blue', alpha=0.6)

# Highlight extreme heat events
plt.scatter(extreme_heat['time'], extreme_heat['temperature'], color='red', label='Extreme Heat Events', alpha=0.8)

# Highlight extreme cold events
plt.scatter(extreme_cold['time'], extreme_cold['temperature'], color='purple', label='Extreme Cold Events', alpha=0.8)

# Add thresholds for visualization
plt.axhline(data['temperature'].mean() + z_threshold * data['temperature'].std(), color='orange', linestyle='--', label='Heat Z-Threshold')
plt.axhline(data['temperature'].mean() - z_threshold * data['temperature'].std(), color='cyan', linestyle='--', label='Cold Z-Threshold')

plt.xlabel('Time')
plt.ylabel('Temperature')
plt.title('Extreme Heat and Cold Events Detection')
plt.legend()
plt.show()

Explanation

Z-Score:
- Captures extreme absolute deviations from the mean (both high and low).
- $ Z > 3 $ for heat events.
- $ Z < -3 $ for cold events.
Rate of Change:
- Identifies rapid upward (heat) or downward (cold) changes.
- Thresholds ($ > 5 $ for heat, $ < -5 $ for cold) can be tuned based on the dataset’s variability.
Rolling Variance Peaks:
- Detects periods of high variability, irrespective of absolute values, which may indicate heatwaves or cold spells.

Results and Interpretation

Extreme Heat Events (red points):
- Highlighted when temperatures are unusually high, warming rapidly, or during highly variable periods.
Extreme Cold Events (purple points):
- Highlighted when temperatures are unusually low, cooling rapidly, or during highly variable periods.

Customizations

Thresholds: Adjust z_threshold, rate_threshold, and variance_multiplier to fine-tune detection sensitivity.
Window Size: Modify the rolling_variance window size to focus on short-term or long-term variability.

Let me know if you’d like help applying this to your specific dataset or refining the method further!

This modification ensures that extreme cold peaks are only visualized when the temperature slope (rate of change) is negative (indicating cooling), and extreme heat peaks are only visualized when the slope is positive (indicating warming). Below is the updated code:

Updated Python Implementation

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt

# Simulated temperature dataset
np.random.seed(42)
data = pd.DataFrame({
    'time': pd.date_range(start='2023-01-01', periods=1000, freq='H'),
    'temperature': 15 + 10 * np.sin(np.linspace(0, 10 * np.pi, 1000)) + np.random.normal(0, 2, 1000)
})

# Parameters
window_size = 24  # Rolling window size (e.g., 24 hours)
z_threshold = 3  # Z-score threshold
rate_threshold = 5  # Rate-of-change threshold
variance_multiplier = 3  # Multiplier for rolling variance peaks

# Step 1: Compute Z-Score
data['z_score'] = (data['temperature'] - data['temperature'].mean()) / data['temperature'].std()

# Step 2: Compute Rate of Change
data['rate_of_change'] = data['temperature'].diff()

# Step 3: Compute Rolling Variance
data['rolling_variance'] = data['temperature'].rolling(window=window_size).var()

# Step 4: Define Variance Threshold
variance_threshold = data['rolling_variance'].mean() + variance_multiplier * data['rolling_variance'].std()

# Step 5: Identify Extreme Heat Events
extreme_heat = data[
    ((data['z_score'] > z_threshold) |  # High Z-score
     (data['rate_of_change'] > rate_threshold) |  # Rapid warming
     (data['rolling_variance'] > variance_threshold)) &  # Variability peak
    (data['rate_of_change'] > 0)  # Only positive slope
]

# Step 6: Identify Extreme Cold Events
extreme_cold = data[
    ((data['z_score'] < -z_threshold) |  # Low Z-score
     (data['rate_of_change'] < -rate_threshold) |  # Rapid cooling
     (data['rolling_variance'] > variance_threshold)) &  # Variability peak
    (data['rate_of_change'] < 0)  # Only negative slope
]

# Plotting
plt.figure(figsize=(14, 8))

# Plot temperature data
plt.plot(data['time'], data['temperature'], label='Temperature', color='blue', alpha=0.6)

# Highlight extreme heat events
plt.scatter(extreme_heat['time'], extreme_heat['temperature'], color='red', label='Extreme Heat Events', alpha=0.8)

# Highlight extreme cold events
plt.scatter(extreme_cold['time'], extreme_cold['temperature'], color='purple', label='Extreme Cold Events', alpha=0.8)

# Add thresholds for visualization
plt.axhline(data['temperature'].mean() + z_threshold * data['temperature'].std(), color='orange', linestyle='--', label='Heat Z-Threshold')
plt.axhline(data['temperature'].mean() - z_threshold * data['temperature'].std(), color='cyan', linestyle='--', label='Cold Z-Threshold')

plt.xlabel('Time')
plt.ylabel('Temperature')
plt.title('Extreme Heat and Cold Events Detection (Slope Filter Applied)')
plt.legend()
plt.show()

Explanation of Updates

Heat Peaks Condition:
- Extreme heat events are visualized only when the rate of change (slope) is positive:
```
(data['rate_of_change'] > 0)
```
- This ensures that warming trends (or positive temperature spikes) are highlighted.
Cold Peaks Condition:
- Extreme cold events are visualized only when the rate of change (slope) is negative:
```
(data['rate_of_change'] < 0)
```
- This ensures that cooling trends (or negative temperature spikes) are highlighted.
Combining Conditions:
- Both Z-score, rate of change, and rolling variance thresholds are retained, but slope filtering ensures events are logically consistent with temperature trends.

Results

Extreme Heat Events:
- Points with high Z-scores, high rolling variance, or rapid warming are highlighted, but only if the slope is positive.
Extreme Cold Events:
- Points with low Z-scores, high rolling variance, or rapid cooling are highlighted, but only if the slope is negative.

Customizations

Adjust the parameters (z_threshold, rate_threshold, variance_multiplier) based on the dataset’s characteristics to fine-tune sensitivity.
Optionally, extend this logic to categorize “transition periods” or “stabilized periods” for a complete characterization of the dataset.

Let me know if you need further refinements!

To remove the diurnal cycle from your dataset, you can apply a detrending technique that eliminates the daily periodicity (the oscillation caused by day-night temperature variations). Here’s how you can achieve this:

Steps to Remove the Diurnal Cycle

Smooth the Data:
- Apply a rolling mean or low-pass filter to smooth the data and capture the overall trend.
Remove the Daily Mean:
- Subtract the daily mean temperature to eliminate diurnal oscillations.
Fourier Transform or Seasonal Decomposition:
- Use a Fourier Transform or seasonal decomposition to isolate and remove the diurnal frequency component.

Implementation in Python

Below, we’ll subtract the daily rolling mean (or Fourier-filtered data) to eliminate the diurnal cycle.

Example Code:

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from scipy.signal import detrend

# Simulated temperature dataset with diurnal cycle
np.random.seed(42)
data = pd.DataFrame({
    'time': pd.date_range(start='2023-01-01', periods=1000, freq='H'),
    'temperature': 15 + 10 * np.sin(np.linspace(0, 10 * np.pi, 1000)) + np.random.normal(0, 2, 1000)
})

# Step 1: Calculate a 24-hour rolling mean
window_size = 24  # Assuming hourly data, this corresponds to 1 day
data['daily_mean'] = data['temperature'].rolling(window=window_size, center=True).mean()

# Step 2: Remove the daily mean to eliminate the diurnal cycle
data['detrended_temp'] = data['temperature'] - data['daily_mean']

# Step 3: Plot the original and detrended data
plt.figure(figsize=(14, 8))

# Original data
plt.plot(data['time'], data['temperature'], label='Original Temperature', color='blue', alpha=0.5)

# Detrended data
plt.plot(data['time'], data['detrended_temp'], label='Detrended Temperature', color='orange')

plt.xlabel('Time')
plt.ylabel('Temperature')
plt.title('Temperature Data with Diurnal Cycle Removed')
plt.legend()
plt.show()

Other Approaches

1. Fourier Transform to Remove the Diurnal Frequency

The diurnal cycle corresponds to a specific frequency (1 cycle per 24 hours). You can use Fourier Transform to identify and filter out this frequency.

from scipy.fftpack import fft, ifft

# Fourier Transform
fft_vals = fft(data['temperature'].values)
freq = np.fft.fftfreq(len(fft_vals), d=1)  # Frequency in 1/hour

# Remove the diurnal frequency (around 1/24)
fft_vals[np.abs(freq - 1/24) < 0.01] = 0  # Filter diurnal frequency
fft_vals[np.abs(freq + 1/24) < 0.01] = 0  # Negative frequency

# Inverse Fourier Transform
data['detrended_temp_fft'] = np.real(ifft(fft_vals))

# Plot original vs detrended data
plt.figure(figsize=(14, 8))
plt.plot(data['time'], data['temperature'], label='Original Temperature', color='blue', alpha=0.5)
plt.plot(data['time'], data['detrended_temp_fft'], label='Detrended Temperature (FFT)', color='orange')
plt.xlabel('Time')
plt.ylabel('Temperature')
plt.title('Temperature Data with Diurnal Cycle Removed (Fourier Transform)')
plt.legend()
plt.show()

2. Seasonal Decomposition Using Moving Averages

Use statistical decomposition to separate the data into trend, seasonal, and residual components.

from statsmodels.tsa.seasonal import seasonal_decompose

# Seasonal decomposition
result = seasonal_decompose(data['temperature'], model='additive', period=24)

# Extract detrended data (residual component)
data['detrended_temp'] = result.resid

# Plot the original, seasonal, and detrended data
plt.figure(figsize=(14, 8))

# Original data
plt.plot(data['time'], data['temperature'], label='Original Temperature', color='blue', alpha=0.5)

# Seasonal component (diurnal cycle)
plt.plot(data['time'], result.seasonal, label='Seasonal Component (Diurnal Cycle)', color='green', alpha=0.7)

# Detrended data
plt.plot(data['time'], data['detrended_temp'], label='Detrended Temperature', color='orange')

plt.xlabel('Time')
plt.ylabel('Temperature')
plt.title('Seasonal Decomposition: Removing Diurnal Cycle')
plt.legend()
plt.show()

Comparison of Methods

Method	Pros	Cons
Rolling Mean Subtraction	Simple, fast, and intuitive.	Assumes diurnal cycle is consistent.
Fourier Transform	Precisely removes diurnal frequency.	Requires spectral knowledge.
Seasonal Decomposition	Separates trend, seasonality, and noise.	Computationally expensive for large data.

Next Steps

Choose the Method: Depending on your data and computational needs, select rolling mean subtraction for simplicity or Fourier Transform for precision.
Continue Analysis: Apply your extreme event detection methods on the detrended dataset to eliminate biases from the diurnal cycle.

Let me know if you need further help!

To apply the detrended mean (after removing the diurnal cycle) to the previous calculations for detecting extreme heat and cold events, we can use the same pipeline but substitute the original temperature values with the detrended ones. This ensures the diurnal cycle no longer influences the extreme event detection.

Updated Implementation

Below is the revised implementation where the detrended mean is incorporated:

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt

# Simulated temperature dataset with diurnal cycle
np.random.seed(42)
data = pd.DataFrame({
    'time': pd.date_range(start='2023-01-01', periods=1000, freq='H'),
    'temperature': 15 + 10 * np.sin(np.linspace(0, 10 * np.pi, 1000)) + np.random.normal(0, 2, 1000)
})

# Step 1: Remove the diurnal cycle using rolling mean
window_size = 24  # Assuming hourly data, this corresponds to 1 day
data['daily_mean'] = data['temperature'].rolling(window=window_size, center=True).mean()
data['detrended_temp'] = data['temperature'] - data['daily_mean']

# Step 2: Compute Z-Score for detrended temperature
z_threshold = 3  # Z-score threshold
data['z_score'] = (data['detrended_temp'] - data['detrended_temp'].mean()) / data['detrended_temp'].std()

# Step 3: Compute Rate of Change for detrended temperature
rate_threshold = 5  # Rate-of-change threshold
data['rate_of_change'] = data['detrended_temp'].diff()

# Step 4: Compute Rolling Variance for detrended temperature
variance_multiplier = 3  # Multiplier for rolling variance peaks
data['rolling_variance'] = data['detrended_temp'].rolling(window=window_size).var()
variance_threshold = data['rolling_variance'].mean() + variance_multiplier * data['rolling_variance'].std()

# Step 5: Identify Extreme Heat Events
extreme_heat = data[
    ((data['z_score'] > z_threshold) |  # High Z-score
     (data['rate_of_change'] > rate_threshold) |  # Rapid warming
     (data['rolling_variance'] > variance_threshold)) &  # Variability peak
    (data['rate_of_change'] > 0)  # Only positive slope
]

# Step 6: Identify Extreme Cold Events
extreme_cold = data[
    ((data['z_score'] < -z_threshold) |  # Low Z-score
     (data['rate_of_change'] < -rate_threshold) |  # Rapid cooling
     (data['rolling_variance'] > variance_threshold)) &  # Only negative slope
    (data['rate_of_change'] < 0)  # Only negative slope
]

# Plotting
plt.figure(figsize=(14, 8))

# Plot detrended temperature data
plt.plot(data['time'], data['detrended_temp'], label='Detrended Temperature', color='blue', alpha=0.5)

# Highlight extreme heat events
plt.scatter(extreme_heat['time'], extreme_heat['detrended_temp'], color='red', label='Extreme Heat Events', alpha=0.8)

# Highlight extreme cold events
plt.scatter(extreme_cold['time'], extreme_cold['detrended_temp'], color='purple', label='Extreme Cold Events', alpha=0.8)

# Add thresholds for visualization
plt.axhline(data['detrended_temp'].mean() + z_threshold * data['detrended_temp'].std(), color='orange', linestyle='--', label='Heat Z-Threshold')
plt.axhline(data['detrended_temp'].mean() - z_threshold * data['detrended_temp'].std(), color='cyan', linestyle='--', label='Cold Z-Threshold')

plt.xlabel('Time')
plt.ylabel('Detrended Temperature')
plt.title('Extreme Heat and Cold Events Detection (After Detrending)')
plt.legend()
plt.show()

Explanation of the Updates

Detrending the Temperature:
- The diurnal cycle is removed by subtracting the rolling daily mean (detrended_temp = temperature - daily_mean).
Recalculation of Metrics:
- Z-Score: Calculated using the detrended temperature values.
- Rate of Change: Derived from the detrended temperature values.
- Rolling Variance: Calculated on the detrended temperature values using a 24-hour window.
Extreme Event Filtering:
- Extreme Heat Events: Highlighted only if the slope (rate of change) is positive.
- Extreme Cold Events: Highlighted only if the slope (rate of change) is negative.
Threshold Visualization:
- The Z-score thresholds for heat and cold are overlaid to indicate extreme values relative to the detrended baseline.

Benefits of Detrending

By removing the diurnal cycle, the analysis focuses purely on unusual deviations, independent of regular daily oscillations.
The extreme events now reflect significant deviations relative to the smoothed trend, rather than periodic patterns.

Output

The detrended temperature data is plotted, with extreme heat (red) and extreme cold (purple) events highlighted.
Z-score thresholds (orange and cyan dashed lines) indicate the bounds for extreme deviations.

Let me know if you’d like to adjust this further!

We can use the mstl decomposition from statsmodels to decompose your time series into components representing daily, weekly, monthly seasonal patterns, and an overall trend. After decomposition, we can identify and plot shock events (e.g., significant deviations from the expected behavior).

Below is the full implementation:

Python Implementation

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from statsmodels.tsa.seasonal import MSTL
from scipy.stats import zscore

# Simulated temperature dataset with multiple seasonal patterns
np.random.seed(42)
data = pd.DataFrame({
    'time': pd.date_range(start='2023-01-01', periods=1000, freq='H'),
    'temperature': (
        15
        + 5 * np.sin(2 * np.pi * np.arange(1000) / 24)  # Daily cycle
        + 3 * np.sin(2 * np.pi * np.arange(1000) / (24 * 7))  # Weekly cycle
        + 1 * np.sin(2 * np.pi * np.arange(1000) / (24 * 30))  # Monthly cycle
        + np.random.normal(0, 2, 1000)  # Noise
    )
})

# Step 1: Apply MSTL decomposition
mstl = MSTL(data['temperature'], period=24, periods=(24, 24 * 7, 24 * 30))
result = mstl.fit()

# Extract components
data['trend'] = result.trend
data['daily'] = result.seasonal['seasonal-24']
data['weekly'] = result.seasonal['seasonal-168']
data['monthly'] = result.seasonal['seasonal-720']
data['residual'] = result.resid

# Step 2: Identify shock events from residuals
# Use Z-score to identify large deviations in the residuals
data['residual_zscore'] = zscore(data['residual'])
shock_threshold = 3  # Z-score threshold for shock events
shock_events = data[abs(data['residual_zscore']) > shock_threshold]

# Step 3: Plot the results
plt.figure(figsize=(14, 12))

# Plot original data
plt.subplot(5, 1, 1)
plt.plot(data['time'], data['temperature'], label='Original Data', color='blue', alpha=0.6)
plt.title('Original Data')
plt.ylabel('Temperature')
plt.legend()

# Plot trend
plt.subplot(5, 1, 2)
plt.plot(data['time'], data['trend'], label='Trend', color='green')
plt.title('Trend Component')
plt.ylabel('Temperature')
plt.legend()

# Plot daily, weekly, and monthly components
plt.subplot(5, 1, 3)
plt.plot(data['time'], data['daily'], label='Daily Component', color='orange')
plt.title('Daily Component')
plt.ylabel('Temperature')
plt.legend()

plt.subplot(5, 1, 4)
plt.plot(data['time'], data['weekly'], label='Weekly Component', color='purple')
plt.title('Weekly Component')
plt.ylabel('Temperature')
plt.legend()

plt.subplot(5, 1, 5)
plt.plot(data['time'], data['monthly'], label='Monthly Component', color='brown')
plt.scatter(shock_events['time'], shock_events['residual'], color='red', label='Shock Events')
plt.title('Monthly Component with Shock Events')
plt.ylabel('Temperature')
plt.legend()

plt.xlabel('Time')
plt.tight_layout()
plt.show()

Explanation

MSTL Decomposition:
- The MSTL method decomposes the time series into:
  - Trend: Long-term trend.
  - Daily, Weekly, Monthly Components: Seasonal components based on specified periods (e.g., 24 for daily, 168 for weekly).
  - Residual: Remaining variation after removing trend and seasonal components.
Shock Events:
- Shock events are identified using the residuals.
- Residuals with a Z-score > 3 are flagged as shock events and plotted as red points.
Visualization:
- Original data, trend, seasonal components, and residuals are plotted in separate subplots.
- Shock events are overlaid on the monthly component.

Customizations

Threshold Tuning:
- Adjust the Z-score threshold (shock_threshold) to control sensitivity for identifying shocks.
Additional Seasonal Periods:
- Add more periods if additional cyclic patterns (e.g., annual) exist in the data.
Use Real Data:
- Replace the simulated dataset with your actual temperature data for meaningful results.

Output

Decomposition:
- A clear breakdown of the original temperature series into:
  - Long-term trend.
  - Daily, weekly, and monthly seasonal patterns.
  - Residuals (noise and shocks).
Shock Detection:
- Significant deviations (shocks) from expected behavior are highlighted and plotted.

Let me know if you’d like further refinements or explanations!

To store the decomposed components (trend, daily, weekly, monthly, residual, etc.) along with the time column in a CSV file, here’s how you can modify the code to save the results:

Modified Code to Save Results in CSV

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from statsmodels.tsa.seasonal import MSTL
from scipy.stats import zscore

# Simulated temperature dataset with multiple seasonal patterns
np.random.seed(42)
data = pd.DataFrame({
    'time': pd.date_range(start='2023-01-01', periods=1000, freq='H'),
    'temperature': (
        15
        + 5 * np.sin(2 * np.pi * np.arange(1000) / 24)  # Daily cycle
        + 3 * np.sin(2 * np.pi * np.arange(1000) / (24 * 7))  # Weekly cycle
        + 1 * np.sin(2 * np.pi * np.arange(1000) / (24 * 30))  # Monthly cycle
        + np.random.normal(0, 2, 1000)  # Noise
    )
})

# Step 1: Apply MSTL decomposition
mstl = MSTL(data['temperature'], period=24, periods=(24, 24 * 7, 24 * 30))
result = mstl.fit()

# Extract components
data['trend'] = result.trend
data['daily'] = result.seasonal['seasonal-24']
data['weekly'] = result.seasonal['seasonal-168']
data['monthly'] = result.seasonal['seasonal-720']
data['residual'] = result.resid

# Step 2: Identify shock events from residuals
# Use Z-score to identify large deviations in the residuals
data['residual_zscore'] = zscore(data['residual'])
shock_threshold = 3  # Z-score threshold for shock events
shock_events = data[abs(data['residual_zscore']) > shock_threshold]

# Step 3: Save the results to a CSV file
output_file = "temperature_decomposed.csv"
data.to_csv(output_file, index=False)

# Print confirmation
print(f"Decomposed components and shock events saved to {output_file}")

Output File

The CSV file will contain the following columns:

time: The time column.
temperature: Original temperature values.
trend: Long-term trend component.
daily: Daily seasonal component.
weekly: Weekly seasonal component.
monthly: Monthly seasonal component.
residual: Residuals (variation unexplained by trend or seasonal components).
residual_zscore: Z-scores of residuals (used for shock detection).

Sample CSV Structure

Here’s an example of what the CSV will look like:

time	temperature	trend	daily	weekly	monthly	residual	residual_zscore
2023-01-01 00:00:00	14.52	14.85	-0.33	-0.01	0.10	-0.09	-0.12
2023-01-01 01:00:00	14.88	14.87	-0.31	-0.03	0.12	0.23	0.05
…	…	…	…	…	…	…	…

Next Steps

The CSV can now be loaded for further analysis or visualization in Python, Excel, or other tools.
If required, you can filter the shock_events dataframe and save it separately as a CSV file for easier focus on anomalies.

Let me know if you need help with additional steps!

The residuals from the time series decomposition represent the portion of the data that is not explained by the trend or seasonal components. These are often considered random noise or irregular components, but they can also contain valuable information if there are patterns or anomalies in the residuals.

Here’s how you can make use of the residuals and address the “random places” issue:

What You Can Do With Residuals

Analyze Anomalies (Shock Events):
- Residuals with extreme values (e.g., Z-scores or outliers) may represent anomalies or shock events, such as sudden weather changes or outliers caused by external factors.
- You can identify the time and magnitude of these anomalies to investigate their cause.
Evaluate Model Fit:
- Residuals should ideally be white noise (no patterns). If patterns exist, it means the decomposition model may not have captured all relevant trends or seasonalities.
- Use residual autocorrelation to check if there are leftover patterns.
Study High-Frequency Variability:
- Residuals can highlight short-term fluctuations that occur on top of longer-term patterns. For example, in weather data, these may include short-lived phenomena like gusts or storms.
Refine Seasonal or Trend Models:
- If residuals show strong periodicity, you might need to add additional seasonal components or improve the trend model.
Compare Across Time Periods:
- Residual variability can change across time periods. Comparing the residual standard deviation across different intervals can highlight periods of instability or calm.
Create Feature Inputs for Machine Learning:
- Residuals can be used as features in predictive models, especially if they capture high-frequency signals that are relevant to a target variable.

Addressing “Random Places” in Residuals

If residuals appear to plot at random places, it may be because:

Insufficient Seasonal Decomposition:
- There may be additional cycles (e.g., annual or multi-day) that were not accounted for.
Outliers or Noise:
- Noise or true random variations in the data could dominate the residuals.
Z-Score Sensitivity:
- A Z-score threshold that is too low or high could result in unexpected points being flagged as shock events.

How to Refine and Use Residuals

1. Check for Patterns in Residuals

Plot the autocorrelation of the residuals to see if there are leftover patterns that could be modeled.

Example:

from pandas.plotting import autocorrelation_plot

# Plot residuals autocorrelation
plt.figure(figsize=(10, 6))
autocorrelation_plot(data['residual'])
plt.title("Autocorrelation of Residuals")
plt.show()

If significant autocorrelation exists, you may need to add more seasonal components or refine the trend model.

2. Identify Clusters or Anomalies

Use clustering techniques (e.g., K-means) or advanced anomaly detection to categorize patterns in residuals.

Example:

from sklearn.cluster import KMeans

# Fit K-means to residuals
kmeans = KMeans(n_clusters=3, random_state=42)
data['residual_cluster'] = kmeans.fit_predict(data[['residual']])

# Plot clusters
plt.figure(figsize=(14, 6))
plt.scatter(data['time'], data['residual'], c=data['residual_cluster'], cmap='viridis')
plt.title('Residual Clusters')
plt.xlabel('Time')
plt.ylabel('Residuals')
plt.show()

3. Highlight High Residual Variability Periods

Calculate rolling variance of residuals to identify periods with sustained variability.

Example:

# Compute rolling variance of residuals
data['residual_rolling_variance'] = data['residual'].rolling(window=24).var()

# Plot residual rolling variance
plt.figure(figsize=(14, 6))
plt.plot(data['time'], data['residual_rolling_variance'], label='Rolling Variance of Residuals')
plt.axhline(data['residual_rolling_variance'].mean(), color='red', linestyle='--', label='Mean Variance')
plt.title('Rolling Variance of Residuals')
plt.legend()
plt.show()

4. Flag and Investigate Shock Events

Shock events can be time-localized anomalies in residuals. You can investigate them further by correlating with external factors (e.g., wind speed, pressure).

Example:

# Identify shock events using Z-score
shock_threshold = 3  # Z-score threshold
shock_events = data[abs(data['residual_zscore']) > shock_threshold]

# Plot shock events
plt.figure(figsize=(14, 6))
plt.plot(data['time'], data['residual'], label='Residuals', color='blue', alpha=0.5)
plt.scatter(shock_events['time'], shock_events['residual'], color='red', label='Shock Events')
plt.title('Residuals with Shock Events')
plt.legend()
plt.show()

5. Remove Noise for a Clearer View

Apply a smoothing technique (e.g., rolling mean or low-pass filter) to highlight trends or patterns in residuals.

Example:

# Apply smoothing to residuals
data['smoothed_residual'] = data['residual'].rolling(window=24).mean()

# Plot smoothed residuals
plt.figure(figsize=(14, 6))
plt.plot(data['time'], data['residual'], label='Residuals', alpha=0.5)
plt.plot(data['time'], data['smoothed_residual'], label='Smoothed Residuals', color='orange')
plt.title('Residuals with Smoothing')
plt.legend()
plt.show()

Next Steps

Explore Patterns:
- Use autocorrelation, clustering, or rolling variance to detect hidden structures in the residuals.
Refine Decomposition:
- If patterns persist, try including additional seasonal components or more complex models for the trend.
Interpret Shock Events:
- Correlate shock events with external data to understand their cause (e.g., weather anomalies, data errors).
Feature Engineering:
- Use residuals and their metrics (e.g., rolling variance, Z-scores) as inputs for predictive models.

Let me know if you’d like to refine this further or explore any specific direction!

1. Plotting Residuals on the Original Time Series

To plot residual anomalies on the original time series, we can map each residual anomaly (shock event) to the closest value in the original time series. This ensures the anomalies are directly aligned with the temperature data for easy interpretation.

Code Update: Mapping Residuals to Original Time Series

Here’s how you can modify the existing code to overlay anomalies on the original time series:

# Map shock events to closest temperature value
shock_events['temperature_at_shock'] = shock_events['time'].map(
    lambda t: data.loc[data['time'] == t, 'temperature'].values[0]
)

# Plot original time series with shock events
plt.figure(figsize=(14, 8))

# Plot original temperature
plt.plot(data['time'], data['temperature'], label='Original Temperature', color='blue', alpha=0.5)

# Plot shock events (mapped to closest temperature value)
plt.scatter(
    shock_events['time'],
    shock_events['temperature_at_shock'],
    color='red',
    label='Shock Events (Mapped)',
    zorder=5
)

plt.title('Original Time Series with Residual Shock Events')
plt.xlabel('Time')
plt.ylabel('Temperature')
plt.legend()
plt.show()

2. Why the January Dip Is Not Flagged as an Anomaly

If the sudden dip in January is not flagged as an anomaly, it suggests the following possibilities:

a. Model’s Trend Component Captures It

The MSTL decomposition model may interpret the sudden dip as part of the overall trend rather than an anomaly.
In this case, the dip is removed during decomposition and does not appear in the residuals.

Solution:

Inspect the trend component:

plt.plot(data['time'], data['trend'], label='Trend Component')
plt.scatter(shock_events['time'], shock_events['temperature_at_shock'], color='red', label='Shock Events')
plt.legend()
plt.show()

If the dip is part of the trend, consider adjusting the decomposition parameters.

b. Z-Score Sensitivity

The residual Z-score may be insufficiently sensitive (e.g., $ \text{threshold}=3 $) to flag the dip as an anomaly.
If the variance in residuals is high, the dip may fall within acceptable bounds of variability.

Solution:

Lower the Z-score threshold to increase sensitivity:

shock_threshold = 2  # Reduce threshold
shock_events = data[abs(data['residual_zscore']) > shock_threshold]

Check if the dip is now flagged as a shock event.

c. Missing Seasonal or Periodic Component

The model may not fully account for seasonal patterns or periodic cycles (e.g., annual cycles), leading to an overly simplistic decomposition where the dip is treated as expected behavior.

Solution:

Add additional decomposition periods (e.g., yearly):

mstl = MSTL(data['temperature'], period=24, periods=(24, 24 * 7, 24 * 30, 24 * 365))
result = mstl.fit()

Check if the residuals better capture the dip as an anomaly.

3. Combining Solutions

To address both the alignment of anomalies with the original time series and ensure the January dip is flagged, we should:

Inspect and refine the decomposition parameters.
Adjust the Z-score threshold for anomaly detection.
Map the residual shock events to their closest time series values for visualization.

Refined Full Code

Here’s an updated version of the full implementation:

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from statsmodels.tsa.seasonal import MSTL
from scipy.stats import zscore

# Simulated temperature dataset with multiple seasonal patterns
np.random.seed(42)
data = pd.DataFrame({
    'time': pd.date_range(start='2023-01-01', periods=1000, freq='H'),
    'temperature': (
        15
        + 5 * np.sin(2 * np.pi * np.arange(1000) / 24)  # Daily cycle
        + 3 * np.sin(2 * np.pi * np.arange(1000) / (24 * 7))  # Weekly cycle
        + np.random.normal(0, 2, 1000)  # Noise
    )
})

# Apply MSTL decomposition
mstl = MSTL(data['temperature'], period=24, periods=(24, 24 * 7, 24 * 30))
result = mstl.fit()

# Extract components
data['trend'] = result.trend
data['daily'] = result.seasonal['seasonal-24']
data['weekly'] = result.seasonal['seasonal-168']
data['monthly'] = result.seasonal['seasonal-720']
data['residual'] = result.resid

# Identify shock events using residual Z-score
data['residual_zscore'] = zscore(data['residual'])
shock_threshold = 3  # Z-score threshold
shock_events = data[abs(data['residual_zscore']) > shock_threshold]

# Map shock events to closest temperature value
shock_events['temperature_at_shock'] = shock_events['time'].map(
    lambda t: data.loc[data['time'] == t, 'temperature'].values[0]
)

# Plot original time series with shock events
plt.figure(figsize=(14, 8))

# Original temperature
plt.plot(data['time'], data['temperature'], label='Original Temperature', color='blue', alpha=0.5)

# Residual shock events
plt.scatter(
    shock_events['time'],
    shock_events['temperature_at_shock'],
    color='red',
    label='Shock Events (Mapped)',
    zorder=5
)

plt.title('Original Time Series with Residual Shock Events')
plt.xlabel('Time')
plt.ylabel('Temperature')
plt.legend()
plt.show()

Next Steps

Refine Decomposition:
- Inspect trend and seasonal components to ensure proper modeling.
Adjust Detection Sensitivity:
- Tweak Z-score or other thresholds for better anomaly detection.
Analyze Shock Events:
- Investigate why some events are flagged or missed and correlate with external conditions (e.g., weather events).

Let me know if you’d like to further refine this!

From the plot, the issue appears to be that multiple points are clustered as anomalies (shock events) in a region where they might not intuitively represent extreme deviations. Let’s analyze and troubleshoot the root causes of this behavior:

Why Are the Anomalies Clustering?

Overly Sensitive Z-Score Threshold:
- If the residual Z-scores have a high variability or clustering, it could lead to many points in a localized region being flagged as anomalies.
Residual Behavior:
- Residuals may not be random noise but instead exhibit some autocorrelation or patterns that were not captured by the trend or seasonal components during decomposition.
- This could lead to systematic over-flagging of points.
Decomposition Quality:
- The trend or seasonal components may not fully capture the long-term or periodic behaviors, leaving meaningful signals in the residuals.
Shock Mapping Issue:
- If the mapping to “closest values” is not filtered to keep unique anomalies, redundant points may be flagged in close proximity.

Fixing the Issue

1. Adjust the Z-Score Threshold

A Z-score threshold of 3 might be too strict or too loose, depending on the spread of residuals. Try increasing the threshold (e.g., $ Z > 4 $) to reduce false positives.

Example:

shock_threshold = 4  # Increase threshold
shock_events = data[abs(data['residual_zscore']) > shock_threshold]

2. Use a Minimum Distance Between Anomalies

Ensure that anomalies are spaced apart by filtering out events that occur too close to each other.

Example:

# Filter out anomalies that are too close to each other
shock_events = shock_events.sort_values(by='time')
shock_events = shock_events[shock_events['time'].diff().dt.total_seconds() > 3600]  # Minimum 1 hour apart

3. Verify Residual Patterns (Autocorrelation)

If the residuals exhibit autocorrelation (e.g., patterns instead of randomness), the MSTL model may need refinement.

Example:

from pandas.plotting import autocorrelation_plot

# Plot autocorrelation of residuals
autocorrelation_plot(data['residual'])
plt.title('Autocorrelation of Residuals')
plt.show()

If autocorrelation exists, add more decomposition components (e.g., yearly seasonality) or refine existing periods.

4. Filter Out Minor Anomalies (Magnitude Threshold)

Add a magnitude-based threshold (e.g., residual absolute value) to flag only significant anomalies.

Example:

magnitude_threshold = 5  # Minimum residual magnitude for an anomaly
shock_events = shock_events[shock_events['residual'].abs() > magnitude_threshold]

Refined Implementation

Here’s the updated version of the full pipeline:

# Adjust Z-score threshold
shock_threshold = 4  # Increase threshold to reduce false positives
shock_events = data[abs(data['residual_zscore']) > shock_threshold]

# Filter out anomalies that are too close to each other
shock_events = shock_events.sort_values(by='time')
shock_events = shock_events[shock_events['time'].diff().dt.total_seconds() > 3600]  # 1-hour spacing

# Filter out anomalies with low residual magnitude
magnitude_threshold = 5  # Minimum residual value
shock_events = shock_events[shock_events['residual'].abs() > magnitude_threshold]

# Map anomalies to original temperature
shock_events['temperature_at_shock'] = shock_events['time'].map(
    lambda t: data.loc[data['time'] == t, 'temperature'].values[0]
)

# Plot original time series with refined shock events
plt.figure(figsize=(14, 8))

# Original temperature
plt.plot(data['time'], data['temperature'], label='Original Temperature', color='blue', alpha=0.5)

# Shock events
plt.scatter(
    shock_events['time'],
    shock_events['temperature_at_shock'],
    color='red',
    label='Refined Shock Events',
    zorder=5
)

plt.title('Refined Shock Event Detection')
plt.xlabel('Time')
plt.ylabel('Temperature')
plt.legend()
plt.show()

Next Steps

Analyze Residuals:
- Use autocorrelation to ensure residuals are white noise.
- Refine decomposition if patterns persist.
Validate Anomalies:
- Correlate anomalies with external data or domain knowledge to confirm their validity.
Experiment with Parameters:
- Adjust Z-score thresholds and spacing filters to improve anomaly detection quality.

Let me know if you’d like further refinements or explanations!

To compute rolling Z-scores, rate of change, and rolling variance for the residuals and combine these metrics to detect peak residuals (where values change rapidly and unusually), here’s a step-by-step implementation:

Plan

Compute Rolling Z-Score:
- Compare residuals to their rolling mean and standard deviation within a window.
- Identify points that deviate significantly from their rolling mean.
Compute Rate of Change:
- Measure the difference between consecutive residuals to find rapid changes.
Compute Rolling Variance:
- Use a rolling window to calculate the variance in residuals to capture periods of high variability.
Combine Metrics:
- Flag peak residuals where any of these metrics exceed defined thresholds (Z-score, rate, variance).
Visualize:
- Overlay the detected peaks on the original time series.

Implementation

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from scipy.stats import zscore

# Simulated residual dataset
np.random.seed(42)
data = pd.DataFrame({
    'time': pd.date_range(start='2023-01-01', periods=1000, freq='H'),
    'residual': np.random.normal(0, 2, 1000) + 10 * (np.sin(np.linspace(0, 5 * np.pi, 1000)))
})

# Add anomalies
data.loc[50, 'residual'] = 15  # Artificial positive spike
data.loc[600, 'residual'] = -15  # Artificial negative spike

# Parameters
window_size = 24  # Rolling window size (e.g., 24 hours)
z_threshold = 3  # Rolling Z-score threshold
rate_threshold = 5  # Rate of change threshold
variance_multiplier = 3  # Rolling variance multiplier for threshold

# Step 1: Compute Rolling Z-Score
data['rolling_mean'] = data['residual'].rolling(window=window_size, center=True).mean()
data['rolling_std'] = data['residual'].rolling(window=window_size, center=True).std()
data['rolling_z_score'] = (data['residual'] - data['rolling_mean']) / data['rolling_std']

# Step 2: Compute Rate of Change
data['rate_of_change'] = data['residual'].diff()

# Step 3: Compute Rolling Variance
data['rolling_variance'] = data['residual'].rolling(window=window_size, center=True).var()
variance_threshold = data['rolling_variance'].mean() + variance_multiplier * data['rolling_variance'].std()

# Step 4: Combine Metrics to Find Peaks
data['is_peak'] = (
    (abs(data['rolling_z_score']) > z_threshold) |  # Unusual Z-score
    (abs(data['rate_of_change']) > rate_threshold) |  # Rapid change
    (data['rolling_variance'] > variance_threshold)  # High variance
)

# Step 5: Filter Peaks
peak_residuals = data[data['is_peak']]

# Plotting
plt.figure(figsize=(14, 8))

# Original residuals
plt.plot(data['time'], data['residual'], label='Residuals', color='blue', alpha=0.5)

# Highlight peaks
plt.scatter(
    peak_residuals['time'],
    peak_residuals['residual'],
    color='red',
    label='Peak Residuals',
    zorder=5
)

# Add thresholds for visualization
plt.axhline(data['residual'].mean(), color='green', linestyle='--', label='Mean Residual')
plt.axhline(data['rolling_mean'].mean() + z_threshold * data['rolling_std'].mean(), color='orange', linestyle='--', label='Z-Score Threshold')

plt.title('Peak Residual Detection')
plt.xlabel('Time')
plt.ylabel('Residual')
plt.legend()
plt.show()

# Output detected peaks
print("Detected Peak Residuals:")
print(peak_residuals[['time', 'residual', 'rolling_z_score', 'rate_of_change', 'rolling_variance']])

Explanation

Rolling Z-Score:
- Compares the residual to its rolling mean and rolling standard deviation.
- Detects unusual deviations within a local context.
Rate of Change:
- Measures rapid changes in consecutive residuals (e.g., spikes or dips).
Rolling Variance:
- Detects periods of sustained high variability, which often coincide with transitions or chaotic behavior.
Combined Detection:
- Flags residuals that exceed any of the thresholds for Z-score, rate of change, or rolling variance.

Customizable Parameters

window_size: Adjust the size of the rolling window based on the time resolution of your data.
z_threshold: Set the sensitivity for detecting unusual Z-scores.
rate_threshold: Define the magnitude of rapid changes to flag as peaks.
variance_multiplier: Control how strict the variance threshold is for detecting highly variable regions.

Results

Visual Output:
- The plot shows the residuals with flagged peaks (red points).
- Thresholds (e.g., Z-score or mean) can be visualized for interpretation.
Peak Residual Table:
- Outputs a table of detected peaks with corresponding time, residual, Z-score, rate of change, and rolling variance.

Next Steps

Correlate detected peaks with external events or other variables to explain anomalies.
Validate the thresholds and refine them based on the dataset’s behavior.
Apply this method to your original dataset and analyze the flagged peaks.

Let me know if you have additional requirements or need further clarification!

To ensure the detected peak residuals are mapped (or snapped) to the original time series, you can align the detected peaks to their corresponding timestamps and values in the original time series. Here’s how to implement this step:

Updated Implementation: Map Peaks to Original Time Series

The approach includes:

Calculate Metrics (Z-score, rate of change, rolling variance).
Combine Metrics to Identify Peaks in Residuals.
Map Peaks Back to Original Time Series:
- Use the time column to align the detected residual peaks with the original time series.

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt

# Simulated residual dataset
np.random.seed(42)
data = pd.DataFrame({
    'time': pd.date_range(start='2023-01-01', periods=1000, freq='H'),
    'residual': np.random.normal(0, 2, 1000) + 10 * (np.sin(np.linspace(0, 5 * np.pi, 1000)))
})

# Add anomalies
data.loc[50, 'residual'] = 15  # Artificial positive spike
data.loc[600, 'residual'] = -15  # Artificial negative spike

# Original time series for mapping (simulate temperature values)
data['temperature'] = 15 + 5 * np.sin(np.linspace(0, 10 * np.pi, 1000))

# Parameters
window_size = 24  # Rolling window size (e.g., 24 hours)
z_threshold = 3  # Rolling Z-score threshold
rate_threshold = 5  # Rate of change threshold
variance_multiplier = 3  # Rolling variance multiplier for threshold

# Step 1: Compute Rolling Z-Score
data['rolling_mean'] = data['residual'].rolling(window=window_size, center=True).mean()
data['rolling_std'] = data['residual'].rolling(window=window_size, center=True).std()
data['rolling_z_score'] = (data['residual'] - data['rolling_mean']) / data['rolling_std']

# Step 2: Compute Rate of Change
data['rate_of_change'] = data['residual'].diff()

# Step 3: Compute Rolling Variance
data['rolling_variance'] = data['residual'].rolling(window=window_size, center=True).var()
variance_threshold = data['rolling_variance'].mean() + variance_multiplier * data['rolling_variance'].std()

# Step 4: Combine Metrics to Find Peaks
data['is_peak'] = (
    (abs(data['rolling_z_score']) > z_threshold) |  # Unusual Z-score
    (abs(data['rate_of_change']) > rate_threshold) |  # Rapid change
    (data['rolling_variance'] > variance_threshold)  # High variance
)

# Step 5: Filter Peaks and Map to Original Time Series
peak_residuals = data[data['is_peak']]
peak_residuals['temperature_at_peak'] = peak_residuals['time'].map(
    lambda t: data.loc[data['time'] == t, 'temperature'].values[0]
)

# Plotting
plt.figure(figsize=(14, 8))

# Original temperature
plt.plot(data['time'], data['temperature'], label='Original Temperature', color='blue', alpha=0.5)

# Peak residuals mapped to original time series
plt.scatter(
    peak_residuals['time'],
    peak_residuals['temperature_at_peak'],
    color='red',
    label='Peak Residuals (Mapped)',
    zorder=5
)

plt.title('Peak Residuals Mapped to Original Time Series')
plt.xlabel('Time')
plt.ylabel('Temperature')
plt.legend()
plt.show()

# Output detected peaks
print("Detected Peak Residuals (Mapped to Original Time Series):")
print(peak_residuals[['time', 'residual', 'rolling_z_score', 'rate_of_change', 'rolling_variance', 'temperature_at_peak']])

Explanation of Updates

Mapping Peaks to Original Time Series:
- The time column is used to locate the corresponding values in the original time series (temperature) for detected peaks.
- The mapping ensures each detected residual anomaly is aligned with its counterpart in the original time series.
```
peak_residuals['temperature_at_peak'] = peak_residuals['time'].map(
    lambda t: data.loc[data['time'] == t, 'temperature'].values[0]
)
```
Combined Metrics for Peak Detection:
- Rolling Z-Score: Flags unusual deviations in residuals.
- Rate of Change: Detects rapid changes in residuals.
- Rolling Variance: Captures sustained high variability in residuals.
Visualization:
- The original time series (temperature) is plotted, with detected peaks (red points) overlaid on the corresponding values.

Example Output

Console Output

Detected peaks (mapped to the original time series):

time	residual	rolling_z_score	rate_of_change	rolling_variance	temperature_at_peak
2023-01-02 02:00:00	15.00	3.50	5.20	15.00	18.25
2023-01-26 06:00:00	-15.00	-3.80	-6.10	14.00	12.75

Next Steps

Threshold Tuning:
- Adjust z_threshold, rate_threshold, and variance_multiplier for better sensitivity based on your dataset.
Correlation with Events:
- Investigate whether detected peaks correlate with real-world events (e.g., weather patterns, anomalies).
Analyze Temporal Clustering:
- Check if peaks occur in bursts or specific timeframes.

Let me know if you’d like additional refinements or explanations!

The massive dip in the residuals is likely being missed because one or more of the following reasons is causing the detection algorithm to fail:

Possible Reasons

Trend Adjustment Issue:
- The massive dip might be incorporated into the trend or seasonal components during decomposition, leaving the residuals relatively small in magnitude.
Rolling Z-Score Insensitivity:
- If the rolling mean and standard deviation are over-smoothed (due to a large rolling window), the Z-score may not detect the dip as an extreme value.
Rate Threshold Oversight:
- The rate of change threshold may not be sensitive enough to detect extreme downward trends or rapid changes.
Variance-Based Filtering:
- If the rolling variance threshold is too lenient, the dip might not cross the threshold for detection.

Solutions

1. Check the Trend and Residual Components

Investigate if the large dip is part of the trend component (instead of the residuals).

Plot the trend and residuals together:

plt.figure(figsize=(14, 6))
plt.plot(data['time'], data['residual'], label='Residuals', color='blue')
plt.plot(data['time'], data['rolling_mean'], label='Rolling Mean of Residuals', color='orange')
plt.title("Residuals and Rolling Mean")
plt.legend()
plt.show()

If the dip is in the trend, adjust the decomposition parameters to push it into the residuals.

2. Reduce the Rolling Window Size

Use a smaller rolling window for mean, standard deviation, and variance calculations to increase sensitivity.

window_size = 12  # Decrease window size

3. Adjust Z-Score and Rate Thresholds

Reduce the Z-score threshold to flag more extreme events:
```
z_threshold = 2.5
```
Lower the rate of change threshold to capture significant dips:
```
rate_threshold = 3
```

4. Add Directional Filters for Dips

Explicitly detect large negative residuals by applying a filter:

data['is_large_dip'] = (data['residual'] < -10)  # Replace -10 with a domain-relevant threshold

5. Visualize and Debug the Missed Dip

Directly investigate the location of the dip (manually or programmatically):

missed_dip = data[data['residual'] == data['residual'].min()]
print("Missed Dip Information:")
print(missed_dip)

Updated Code Implementation

Here’s a refined version of the code that incorporates these changes:

# Adjust rolling window size
window_size = 12  # Reduce rolling window for sensitivity

# Recompute Rolling Z-Score
data['rolling_mean'] = data['residual'].rolling(window=window_size, center=True).mean()
data['rolling_std'] = data['residual'].rolling(window=window_size, center=True).std()
data['rolling_z_score'] = (data['residual'] - data['rolling_mean']) / data['rolling_std']

# Recompute Rolling Variance
data['rolling_variance'] = data['residual'].rolling(window=window_size).var()
variance_threshold = data['rolling_variance'].mean() + 3 * data['rolling_variance'].std()

# Adjust thresholds
z_threshold = 2.5
rate_threshold = 3

# Detect Peaks (Include Large Dips)
data['is_peak'] = (
    (abs(data['rolling_z_score']) > z_threshold) |  # Z-score filter
    (abs(data['rate_of_change']) > rate_threshold) |  # Rate of change filter
    (data['residual'] < -10) |  # Explicit large dip detection
    (data['rolling_variance'] > variance_threshold)  # Variance filter
)

# Map Peaks to Original Time Series
peak_residuals = data[data['is_peak']]
peak_residuals['temperature_at_peak'] = peak_residuals['time'].map(
    lambda t: data.loc[data['time'] == t, 'temperature'].values[0]
)

# Plot the updated results
plt.figure(figsize=(14, 8))

# Plot residuals
plt.plot(data['time'], data['residual'], label='Residuals', color='blue', alpha=0.5)

# Highlight peaks
plt.scatter(
    peak_residuals['time'],
    peak_residuals['residual'],
    color='red',
    label='Updated Peak Residuals',
    zorder=5
)

# Add mean and thresholds
plt.axhline(data['residual'].mean(), color='green', linestyle='--', label='Mean Residual')
plt.axhline(data['rolling_mean'].mean() + z_threshold * data['rolling_std'].mean(), color='orange', linestyle='--', label='Z-Score Threshold')

plt.title('Updated Peak Residual Detection (Including Large Dips)')
plt.xlabel('Time')
plt.ylabel('Residual')
plt.legend()
plt.show()

Expected Results

The Large Dip Should Be Detected:
- Explicitly including large dips using a directional threshold (residual < -10) ensures the massive downward spike is flagged.
Improved Sensitivity:
- Reduced rolling window size increases responsiveness to local changes.
Refined Detection:
- Adjusted thresholds capture more relevant peaks and dips while reducing false negatives.

Let me know if the updated implementation resolves the issue or if further debugging is needed!

Yes, you can apply smoothing on the residuals to suppress smaller fluctuations and preserve only the large deviations or fluctuations. This can help highlight significant peaks or dips by removing noise.

Here’s how you can apply smoothing techniques to the residuals:

Smoothing Techniques

1. Simple Moving Average (SMA)

A moving average smooths the residuals by averaging values within a sliding window.
Useful for reducing noise and highlighting broader trends in the residuals.

data['smoothed_residual'] = data['residual'].rolling(window=12, center=True).mean()

2. Exponential Moving Average (EMA)

An EMA gives more weight to recent values while smoothing the series.
Better for retaining responsiveness to rapid changes while filtering out small fluctuations.

data['smoothed_residual'] = data['residual'].ewm(alpha=0.2).mean()

3. Savitzky-Golay Filter

A Savitzky-Golay filter fits a polynomial to a sliding window, preserving sharper features while smoothing noise.
Ideal for preserving peaks and dips in a smoothed signal.

from scipy.signal import savgol_filter

data['smoothed_residual'] = savgol_filter(data['residual'], window_length=11, polyorder=2)

Implementation: Detect Peaks on Smoothed Residuals

Below is the complete implementation, incorporating smoothing and detecting large fluctuations.

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from scipy.signal import savgol_filter

# Simulated residual dataset
np.random.seed(42)
data = pd.DataFrame({
    'time': pd.date_range(start='2023-01-01', periods=1000, freq='H'),
    'residual': np.random.normal(0, 2, 1000) + 10 * (np.sin(np.linspace(0, 5 * np.pi, 1000)))
})

# Add anomalies
data.loc[50, 'residual'] = 15  # Artificial positive spike
data.loc[600, 'residual'] = -15  # Artificial negative spike

# Step 1: Apply Savitzky-Golay Smoothing
data['smoothed_residual'] = savgol_filter(data['residual'], window_length=21, polyorder=2)

# Step 2: Calculate Z-Score on Smoothed Residuals
z_threshold = 2.5
data['smoothed_z_score'] = (data['smoothed_residual'] - data['smoothed_residual'].mean()) / data['smoothed_residual'].std()

# Step 3: Detect Peaks on Smoothed Residuals
data['is_peak'] = abs(data['smoothed_z_score']) > z_threshold

# Step 4: Map Peaks to Original Time Series
peak_residuals = data[data['is_peak']]
peak_residuals['temperature_at_peak'] = peak_residuals['time'].map(
    lambda t: data.loc[data['time'] == t, 'residual'].values[0]
)

# Plotting
plt.figure(figsize=(14, 8))

# Original residuals
plt.plot(data['time'], data['residual'], label='Original Residuals', color='blue', alpha=0.5)

# Smoothed residuals
plt.plot(data['time'], data['smoothed_residual'], label='Smoothed Residuals', color='orange')

# Highlight peaks
plt.scatter(
    peak_residuals['time'],
    peak_residuals['temperature_at_peak'],
    color='red',
    label='Detected Peaks (Smoothed)',
    zorder=5
)

plt.title('Peak Detection on Smoothed Residuals')
plt.xlabel('Time')
plt.ylabel('Residual')
plt.legend()
plt.show()

# Output detected peaks
print("Detected Peak Residuals (Smoothed):")
print(peak_residuals[['time', 'residual', 'smoothed_residual', 'smoothed_z_score']])

Explanation

Smoothing:
- The Savitzky-Golay filter removes small fluctuations while retaining sharper peaks or dips.
- Other smoothing methods (e.g., SMA or EMA) can be substituted depending on the desired behavior.
Z-Score on Smoothed Residuals:
- The Z-score is calculated after smoothing to identify significant deviations relative to the smoothed trend.
Peak Detection:
- Peaks are flagged where the Z-score exceeds the defined threshold (z_threshold = 2.5).
Mapping to Original Time Series:
- Detected peaks are aligned with their corresponding timestamps in the original data.

Advantages of Smoothing

Noise Suppression:
- Small fluctuations are removed, making large deviations more prominent.
Improved Detection:
- Reduces false positives caused by minor variations.
Adaptability:
- Smoothing techniques like Savitzky-Golay preserve features while suppressing noise.

Next Steps

Tune Smoothing Parameters:
- Experiment with the window size (window_length) and polynomial order (polyorder) for the Savitzky-Golay filter.
- Alternatively, adjust the smoothing factor for EMA or window size for SMA.
Analyze Detected Peaks:
- Validate detected peaks against real-world events or known anomalies.
Refine Z-Score Threshold:
- Adjust the threshold to balance sensitivity and specificity.

Let me know if you need further refinements or a different smoothing approach!

To achieve smoothing that retains large anomalies (like the one on the left in the provided plot) while flattening the rest of the data, we can explore variance of variance or difference of variance as methods. These approaches emphasize regions with high variability or sudden shifts in variability.

Approach: Variance of Variance or Difference of Variance

Variance of Variance:
- Compute a rolling variance over the residuals.
- Then compute the rolling variance of the rolling variance itself (variance of variance).
- Highlights regions where variability changes significantly.
Difference of Variance:
- Compute a rolling variance over the residuals.
- Then compute the first difference of the rolling variance to highlight sudden changes in variability.
Threshold Large Variability:
- Retain only the regions where variability is significantly larger than the rest.
- Use these values as a smoothed representation of the residuals.

Implementation: Variance of Variance

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt

# Simulated residual dataset
np.random.seed(42)
data = pd.DataFrame({
    'time': pd.date_range(start='2023-01-01', periods=1000, freq='H'),
    'residual': np.random.normal(0, 1, 1000)
})

# Add anomalies
data.loc[50, 'residual'] = 10  # Large positive anomaly
data.loc[600, 'residual'] = -10  # Large negative anomaly

# Step 1: Compute Rolling Variance (1st layer)
window_size = 24
data['rolling_variance'] = data['residual'].rolling(window=window_size).var()

# Step 2: Compute Variance of Variance (2nd layer)
data['variance_of_variance'] = data['rolling_variance'].rolling(window=window_size).var()

# Step 3: Highlight Large Variability Regions
threshold = data['variance_of_variance'].mean() + 3 * data['variance_of_variance'].std()
data['smoothed_residual'] = data['residual']
data.loc[data['variance_of_variance'] < threshold, 'smoothed_residual'] = 0  # Flatten small variability

# Plotting
plt.figure(figsize=(14, 8))

# Original residuals
plt.plot(data['time'], data['residual'], label='Original Residuals', color='blue', alpha=0.5)

# Smoothed residuals
plt.plot(data['time'], data['smoothed_residual'], label='Smoothed Residuals (Variance of Variance)', color='red')

plt.title('Residual Smoothing Using Variance of Variance')
plt.xlabel('Time')
plt.ylabel('Residual')
plt.legend()
plt.show()

Implementation: Difference of Variance

# Step 1: Compute Rolling Variance (1st layer)
data['rolling_variance'] = data['residual'].rolling(window=window_size).var()

# Step 2: Compute Difference of Variance
data['diff_variance'] = data['rolling_variance'].diff()

# Step 3: Highlight Large Variability Regions
threshold = data['diff_variance'].mean() + 3 * data['diff_variance'].std()
data['smoothed_residual'] = data['residual']
data.loc[abs(data['diff_variance']) < threshold, 'smoothed_residual'] = 0  # Flatten small variability

# Plotting
plt.figure(figsize=(14, 8))

# Original residuals
plt.plot(data['time'], data['residual'], label='Original Residuals', color='blue', alpha=0.5)

# Smoothed residuals
plt.plot(data['time'], data['smoothed_residual'], label='Smoothed Residuals (Diff of Variance)', color='orange')

plt.title('Residual Smoothing Using Difference of Variance')
plt.xlabel('Time')
plt.ylabel('Residual')
plt.legend()
plt.show()

How These Methods Work

Variance of Variance:
- Highlights regions where the variability of the residuals itself changes significantly.
- Retains large anomalies while flattening small fluctuations.
Difference of Variance:
- Focuses on the rate of change in variability to detect sudden shifts.
- Helps capture rapid changes in volatility.

Tunable Parameters

Window Size (window_size):
- Adjust the size of the rolling window based on the resolution of your data.
- Larger windows result in smoother outputs but may miss shorter anomalies.
Threshold:
- Set thresholds for variance of variance or difference of variance to control sensitivity.

Expected Results

Large anomalies (like the one on the left) will be retained.
Small fluctuations and areas of low variability will be flattened.
The smoothed residuals will primarily highlight regions of interest.

Let me know if you’d like further adjustments or clarifications!
