X-Axis Label Filter

2025-01-16 20:27 UTC gpt-4o Open in ChatGPT ↗

You

ensure that only 1 every 360 x labels are shown

    .chart-container {
        margin: 20px auto;
        width: 80%;
    }

    #fileInputContainer {
        text-align: center;
        margin: 20px;
    }
</style>

Multi-Dataset Visualization

<script type="module">
   function createPlot(container, data, column) {
        const plot = Plot.plot({
            marks: [
                Plot.line(data, { x: "time", y: column, stroke: "steelblue", strokeWidth: 2 }),
                Plot.dot(data, { x: "time", y: column, fill: "steelblue", r: 2 })
            ],
            x: {
                label: "Time",
                tickRotate: -45
            },
            y: {
                label: column
            },
            marginLeft: 50,
            marginRight: 20,
            marginBottom: 50
        });

        container.appendChild(plot);
    }

    function updateCharts(data, columns) {
        const chartContainer = document.getElementById("chartContainer");
        chartContainer.innerHTML = ""; // Clear existing charts

        columns.forEach((column) => {
            const chartDiv = document.createElement("div");
            chartDiv.className = "chart-container";
            chartContainer.appendChild(chartDiv);

            createPlot(chartDiv, data, column);
        });
    }

    document.getElementById("csvFileInput").addEventListener("change", function (event) {
        const file = event.target.files[0];
        if (file) {
            const reader = new FileReader();
            reader.onload = function (e) {
                const csvData = e.target.result;

                // Parse CSV using D3
                const data = d3.csvParse(csvData, d3.autoType);

                // Extract column names (ignore "time")
                const columns = data.columns.filter((col) => col !== "time");

                // Update charts using parsed data
                updateCharts(data, columns);
            };
            reader.readAsText(file);
        }
    });
</script>

ChatGPT

To ensure only one label for every 360 labels is shown on the x-axis, you need to adjust the x configuration in the Plot.plot function by defining a custom tickFilter or tickValues property. Here’s the updated code:

Updated JavaScript Section

function createPlot(container, data, column) {
    const tickValues = data
        .map((d, i) => (i % 360 === 0 ? d.time : null)) // Only include every 360th label
        .filter((d) => d !== null); // Remove null values

    const plot = Plot.plot({
        marks: [
            Plot.line(data, { x: "time", y: column, stroke: "steelblue", strokeWidth: 2 }),
            Plot.dot(data, { x: "time", y: column, fill: "steelblue", r: 2 })
        ],
        x: {
            label: "Time",
            tickRotate: -45,
            ticks: tickValues.length, // Adjust the number of ticks
            tickValues: tickValues // Specify the filtered tick values
        },
        y: {
            label: column
        },
        marginLeft: 50,
        marginRight: 20,
        marginBottom: 50
    });

    container.appendChild(plot);
}

Explanation of Changes

1. tickValues Calculation:
   • Use map and filter to create an array of x-axis values (time) where the index is divisible by 360.
2. tickValues in Plot Configuration:
   • Add the tickValues property to specify which labels to show on the x-axis.
3. ticks Adjustment:
   • Ensure the number of ticks corresponds to the filtered values.

With these changes, the chart will display x-axis labels for every 360th point, ensuring the axis remains readable even with large datasets.

You

make the charts extend to the full width of the pgae

ChatGPT

To make the charts extend to the full width of the page, you need to adjust the CSS and the chart container’s dimensions dynamically. Here’s the updated code:

Updated CSS

Ensure the chart containers and plots use 100% width for responsiveness.

<style>
    * {
        font-family: sans-serif;
    }

    .chart-container {
        margin: 20px 0;
        width: 100%; /* Full width */
    }

    #fileInputContainer {
        text-align: center;
        margin: 20px;
    }

    #chartContainer {
        width: 100%; /* Full width */
    }

    canvas, svg {
        width: 100% !important; /* Ensure SVG extends fully */
    }
</style>

Updated JavaScript

Modify the createPlot function to set the chart’s width to the full width of the page.

function createPlot(container, data, column) {
    const plot = Plot.plot({
        width: container.offsetWidth, // Use container's full width
        height: 400, // Optional: Adjust height as needed
        marks: [
            Plot.line(data, { x: "time", y: column, stroke: "steelblue", strokeWidth: 2 }),
            Plot.dot(data, { x: "time", y: column, fill: "steelblue", r: 2 })
        ],
        x: {
            label: "Time",
            tickRotate: -45,
            ticks: Math.min(data.length / 360, 10), // Adjust for large datasets
            tickValues: data.map((d, i) => (i % 360 === 0 ? d.time : null)).filter((d) => d !== null)
        },
        y: {
            label: column
        },
        marginLeft: 50,
        marginRight: 20,
        marginBottom: 50
    });

    container.appendChild(plot);
}

Explanation of Changes

1. CSS Adjustments:

   • The width: 100% ensures that the container and the chart expand fully to the page width.
   • The svg and canvas elements are explicitly set to 100% width using !important to override defaults.

2. JavaScript Chart Width:

   • Dynamically set the width of the Plot.plot to match the container’s width using container.offsetWidth.
   • This makes the charts responsive and extend fully across the page.

3. Chart Height:

   • Adjust the height property for consistency; a value like 400 works well for most use cases.

With these updates, your charts will now span the full width of the page dynamically while maintaining responsiveness.

You

this filter doesn’t seem to remove the ticks

const tickValues = data .map((d, i) => (i % 360 === 0 ? d.time : null)) // Only include every 360th label .filter((d) => d !== null); // Remove null values

ChatGPT

If the filtering logic for tickValues isn’t working as intended, it might be due to the mismatch between the format of the time values in your dataset and how they are being interpreted by the charting library. Here’s how to fix it:

Revised Approach

Instead of using map and filter, we’ll create a filtered list of indices and directly set the tickValues with the corresponding time values. Here’s the updated code:

function createPlot(container, data, column) {
    // Extract tick values: Use the raw indices and map to the corresponding time values
    const tickValues = data
        .filter((_, i) => i % 360 === 0) // Only keep every 360th data point
        .map((d) => d.time); // Extract the time values

    const plot = Plot.plot({
        width: container.offsetWidth, // Full width
        height: 400, // Optional: Adjust height as needed
        marks: [
            Plot.line(data, { x: "time", y: column, stroke: "steelblue", strokeWidth: 2 }),
            Plot.dot(data, { x: "time", y: column, fill: "steelblue", r: 2 })
        ],
        x: {
            label: "Time",
            tickRotate: -45,
            tickValues: tickValues // Set the filtered tick values
        },
        y: {
            label: column
        },
        marginLeft: 50,
        marginRight: 20,
        marginBottom: 50
    });

    container.appendChild(plot);
}

Key Changes

1. Filter Logic:

   • The .filter((_, i) => i % 360 === 0) ensures only indices divisible by 360 are included.
   • This avoids introducing null values.

2. Mapped time Values:

   • After filtering, the .map((d) => d.time) ensures the correct time values are passed to tickValues.

3. Direct Use of tickValues:

   • The tickValues array directly specifies which x-axis labels should appear.

Debugging Tips

If this still doesn’t remove the unnecessary ticks:

• Check the format of data.time. If it’s not a string or number, it might not match the expected values.
• Log tickValues to the console to ensure it contains the desired values.
• Verify the x.tickValues property is properly recognized by @observablehq/plot.

With this approach, the x-axis will only display labels for every 360th data point.

You

WHY do all the ticks show up, and they are not automatically reduced?

    .chart-container {
        margin: 20px auto;
        width: 100%;
    }

    #fileInputContainer {
        text-align: center;
        margin: 20px;
    }
</style>

Multi-Dataset Visualization

<script type="module">
   function createPlot(container, data, column) {
        // Extract tick values: Use the raw indices and map to the corresponding time values
const tickValues = data
    .filter((_, i) => i % 360 === 0) // Only keep every 360th data point
    .map((d) => d.time); // Extract the time values

const plot = Plot.plot({
    width: container.offsetWidth, // Full width
    height: 400, // Optional: Adjust height as needed
    marks: [
    Plot.ruleY([0], {stroke: "red"}),
    Plot.line(data, Plot.windowY(24,{x:"time", y:column})) ],
    x:{

        tickRotate: -30,
    },
     y: {
    grid: true
},
    marginLeft: 50,
    marginRight: 20,
    marginBottom: 50
});

container.appendChild(plot);
    }

    function updateCharts(data, columns) {
        const chartContainer = document.getElementById("chartContainer");
        chartContainer.innerHTML = ""; // Clear existing charts

        columns.forEach((column) => {
            const chartDiv = document.createElement("div");
            chartDiv.className = "chart-container";
            chartContainer.appendChild(chartDiv);

            createPlot(chartDiv, data, column);
        });
    }

    document.getElementById("csvFileInput").addEventListener("change", function (event) {
        const file = event.target.files[0];
        if (file) {
            const reader = new FileReader();
            reader.onload = function (e) {
                const csvData = e.target.result;

                // Parse CSV using D3
                const data = d3.csvParse(csvData, d3.autoType);

                // Extract column names (ignore "time")
                const columns = data.columns.filter((col) => col !== "time"  && col !== "fid" && col !== "x" && col !== "y");

                // Update charts using parsed data
                updateCharts(data, columns);
            };
            reader.readAsText(file);
        }
    });
</script>

ChatGPT

The issue where all x-axis ticks are displayed arises because the @observablehq/plot library does not automatically reduce the number of ticks for dense data unless explicitly told to do so. By default, it tries to show ticks for all distinct x-axis values unless a custom tickValues or ticks property is set. Here’s how to address this:

Why All Ticks Show Up

• Dense Data: The x-axis likely contains a large number of distinct time values, and the library doesn’t automatically aggregate or filter them.
• Custom Filtering Not Set: Without explicitly setting tickValues or ticks, the library attempts to plot ticks for every value in the x-axis domain.

Fix

We can resolve this by limiting the number of ticks using the ticks or tickValues properties for the x-axis. Here’s how to modify your createPlot function:

Updated createPlot Function

function createPlot(container, data, column) {
    const tickInterval = 360; // Adjust the interval for tick labels
    const tickValues = data
        .filter((_, i) => i % tickInterval === 0) // Select every 360th data point
        .map((d) => d.time); // Map to the time values

    const plot = Plot.plot({
        width: container.offsetWidth, // Full width
        height: 400, // Optional: Adjust height as needed
        marks: [
            Plot.ruleY([0], { stroke: "red" }),
            Plot.line(data, Plot.windowY(24, { x: "time", y: column }))
        ],
        x: {
            tickRotate: -30,
            tickValues: tickValues, // Specify the filtered tick values
        },
        y: {
            grid: true
        },
        marginLeft: 50,
        marginRight: 20,
        marginBottom: 50
    });

    container.appendChild(plot);
}

Key Changes

1. tickInterval:

   • Set a fixed interval (e.g., 360) to reduce the number of x-axis ticks.
   • Use filter to pick only every tickInterval-th value.

2. tickValues:

   • Pass the filtered time values to the tickValues property. This explicitly tells the library which ticks to display.

3. tickRotate:

   • Rotates tick labels for better readability.

4. Plot.windowY:

   • Your existing Plot.windowY mark will aggregate data points, ensuring the visual line is still meaningful.

Testing & Debugging

• Console Logs: Log tickValues to ensure it’s correctly populated.
• Data Sampling: For very large datasets, confirm that the x-axis domain has meaningful values.

With these changes, only one tick for every tickInterval points will appear, making the x-axis much cleaner and more readable. If you need further clarification or adjustments, feel free to ask!

You

but in all of their examples, they never have to filter ticks

ChatGPT

You’re absolutely right to observe that in most examples from @observablehq/plot, the library appears to handle ticks automatically without requiring manual filtering. However, there are key contextual factors that explain why this doesn’t happen in your implementation. Let’s explore:

---

Why Observable Plot Examples Don’t Need Manual Filtering

1. Simpler or Aggregated Data:

   • Examples in the documentation often use datasets that are either small or already aggregated, meaning there aren’t hundreds or thousands of unique x-axis values.

2. Implicit Downsampling:

   • For quantitative or temporal scales, Observable Plot automatically adjusts the number of ticks based on the plot’s width and the scale type. If your x field (time) is interpreted as a string or a categorical variable instead of temporal, this automatic reduction does not occur.

3. Consistent Time Format:

   • If time is not correctly parsed as a date or numeric value, Observable Plot treats each unique value as a category and displays every one of them on the axis.

---

Why Your Case Displays All Ticks

1. Dense or High-Cardinality Data:

   • If time has many unique values (e.g., hundreds or thousands), Observable Plot tries to plot a tick for each unless explicitly told otherwise.

2. Categorical vs Temporal Scale:

   • If time is being interpreted as a string (categorical), it will try to show all values. This often happens when CSV data is parsed without proper date/time formatting.

---

The Fix: Ensure Proper Temporal Parsing

To leverage Observable Plot’s automatic tick reduction, ensure the time column is correctly parsed as a temporal or numeric value. Modify your data parsing to handle this:

Updated CSV Parsing with Temporal Conversion

const data = d3.csvParse(csvData, (d) => {
    d.time = new Date(d.time); // Parse 'time' as a JavaScript Date object
    return d;
});

Updated createPlot Function

With time now a temporal value, Observable Plot should automatically adjust the ticks based on the scale and available space:

function createPlot(container, data, column) {
    const plot = Plot.plot({
        width: container.offsetWidth, // Full width
        height: 400,
        marks: [
            Plot.ruleY([0], { stroke: "red" }),
            Plot.line(data, { x: "time", y: column, stroke: "steelblue", strokeWidth: 2 })
        ],
        x: {
            label: "Time",
            tickRotate: -30, // Optional rotation for readability
        },
        y: {
            label: column,
            grid: true
        },
        marginLeft: 50,
        marginRight: 20,
        marginBottom: 50
    });

    container.appendChild(plot);
}

---

Why This Works

1. Temporal Scales Automatically Adjust:

   • When time is a Date object or numeric value, the library applies smart defaults to reduce the number of displayed ticks. It uses heuristics based on the plot’s width.

2. No Manual Filtering Required:

   • With time correctly interpreted as a temporal or quantitative value, you don’t need to filter or manually specify tickValues.

---

Debugging Tips

• Check time Parsing: Log the time field for the first few rows:

  console.log(data.slice(0, 5));

  Confirm time is a Date object.

• Inspect the X-Axis Scale:

  • In the browser console, inspect the generated Plot.plot object to verify how x is being interpreted:

    console.log(plot.x.scale);

If the above steps are followed, your chart should behave like the Observable examples without manually filtering ticks. Let me know if you’d like additional clarification!

You

how can I make the line chart interactive?

ChatGPT

To make the line chart interactive in Observable Plot, you can enhance it with features such as tooltips, zooming, or highlighting specific data points. Below is a step-by-step guide to implementing an interactive line chart:

---

1. Adding Tooltips

Tooltips can display specific data values when hovering over points on the chart. Here’s how to add them:

Example with Tooltips

function createInteractivePlot(container, data, column) {
    const tooltip = document.createElement("div");
    tooltip.style.position = "absolute";
    tooltip.style.backgroundColor = "white";
    tooltip.style.border = "1px solid #ccc";
    tooltip.style.padding = "5px";
    tooltip.style.borderRadius = "5px";
    tooltip.style.pointerEvents = "none";
    tooltip.style.visibility = "hidden";
    document.body.appendChild(tooltip);

    const plot = Plot.plot({
        width: container.offsetWidth, // Full width
        height: 400,
        marks: [
            Plot.line(data, { x: "time", y: column, stroke: "steelblue", strokeWidth: 2 }),
            Plot.dot(data, {
                x: "time",
                y: column,
                r: 4, // Larger dots for hover effect
                fill: "steelblue",
                title: (d) => `Time: ${d.time}\nValue: ${d[column]}`
            })
        ],
        x: {
            label: "Time",
            tickRotate: -30
        },
        y: {
            label: column,
            grid: true
        },
        marginLeft: 50,
        marginRight: 20,
        marginBottom: 50
    });

    // Add tooltip event listeners to the plot
    plot.addEventListener("pointermove", (event) => {
        const dot = event.target.closest("circle");
        if (dot) {
            tooltip.textContent = dot.getAttribute("title");
            tooltip.style.visibility = "visible";
            tooltip.style.left = `${event.pageX + 10}px`;
            tooltip.style.top = `${event.pageY + 10}px`;
        } else {
            tooltip.style.visibility = "hidden";
        }
    });

    plot.addEventListener("pointerout", () => {
        tooltip.style.visibility = "hidden";
    });

    container.appendChild(plot);
}

---

2. Adding Zoom and Pan

For zooming and panning, you can use D3’s zoom behavior in conjunction with Observable Plot.

Example with Zoom

function createZoomablePlot(container, data, column) {
    const svg = d3.create("svg")
        .attr("width", container.offsetWidth)
        .attr("height", 400);

    const zoom = d3.zoom()
        .scaleExtent([1, 10]) // Zoom limits
        .translateExtent([[0, 0], [container.offsetWidth, 400]]) // Pan limits
        .on("zoom", zoomed);

    const plot = Plot.plot({
        width: container.offsetWidth,
        height: 400,
        marks: [
            Plot.line(data, { x: "time", y: column, stroke: "steelblue", strokeWidth: 2 })
        ],
        x: {
            label: "Time",
            tickRotate: -30
        },
        y: {
            label: column,
            grid: true
        },
        marginLeft: 50,
        marginRight: 20,
        marginBottom: 50
    });

    svg.call(zoom);
    svg.node().appendChild(plot);

    function zoomed(event) {
        const { transform } = event;
        plot.style.transform = `translate(${transform.x}px, ${transform.y}px) scale(${transform.k})`;
    }

    container.appendChild(svg.node());
}

---

3. Highlighting on Hover

To highlight the hovered part of the line, you can add hover effects using pointerover and pointerout events.

Example with Line Highlight

function createHighlightablePlot(container, data, column) {
    const plot = Plot.plot({
        width: container.offsetWidth,
        height: 400,
        marks: [
            Plot.line(data, {
                x: "time",
                y: column,
                stroke: "steelblue",
                strokeWidth: 2,
                strokeOpacity: 0.7,
                hover: (d) => `Time: ${d.time}\nValue: ${d[column]}`
            })
        ],
        x: {
            label: "Time",
            tickRotate: -30
        },
        y: {
            label: column,
            grid: true
        },
        marginLeft: 50,
        marginRight: 20,
        marginBottom: 50
    });

    plot.addEventListener("pointerover", (event) => {
        const line = event.target.closest("path");
        if (line) {
            line.style.strokeWidth = "4px";
            line.style.strokeOpacity = "1";
        }
    });

    plot.addEventListener("pointerout", (event) => {
        const line = event.target.closest("path");
        if (line) {
            line.style.strokeWidth = "2px";
            line.style.strokeOpacity = "0.7";
        }
    });

    container.appendChild(plot);
}

---

Which Features Should You Use?

1. Tooltips: For providing context on specific data points.
2. Zoom and Pan: For exploring dense or wide-ranging datasets.
3. Highlighting: To emphasize certain areas when hovering.

You can combine these features for a fully interactive and user-friendly visualization. Let me know if you’d like to see a combined example!

You

the tooltip example is a mess. all sorts of dots appear, I want no dots apart from the tooltip location

You

I want to format all data as numbers and all time as Date when I parse

ChatGPT

To format all data as numbers (where possible) and all time as Date during CSV parsing, you can use a custom parser with d3.csvParse. Here’s how to achieve this:

Updated CSV Parsing Function

const data = d3.csvParse(csvData, (d) => {
    const parsed = {};
    for (const key in d) {
        if (key === "time") {
            // Parse "time" as a JavaScript Date object
            parsed[key] = new Date(d[key]);
        } else {
            // Attempt to parse other columns as numbers
            const value = +d[key];
            parsed[key] = isNaN(value) ? d[key] : value;
        }
    }
    return parsed;
});

---

Explanation

1. Loop Through All Keys:

   • The for (const key in d) loop ensures we process every column in the CSV row.

2. time as Date:

   • If the key is "time", the value is parsed using new Date(d[key]).

3. Other Columns as Numbers:

   • Use the + unary operator to convert values to numbers. If +d[key] results in NaN, the original string value is preserved.

4. Return Parsed Row:

   • The function returns an object (parsed) with all columns formatted correctly.

---

Applying It to Your Existing Code

Update the reader.onload callback with the new parsing logic:

reader.onload = function (e) {
    const csvData = e.target.result;

    // Parse CSV using D3 with custom formatting
    const data = d3.csvParse(csvData, (d) => {
        const parsed = {};
        for (const key in d) {
            if (key === "time") {
                parsed[key] = new Date(d[key]); // Parse "time" as Date
            } else {
                const value = +d[key]; // Parse other columns as numbers
                parsed[key] = isNaN(value) ? d[key] : value;
            }
        }
        return parsed;
    });

    // Extract column names (ignore "time")
    const columns = data.columns.filter((col) => col !== "time");

    // Update charts using parsed data
    updateCharts(data, columns);
};

---

Debugging Tips

• Log the first few rows of the parsed data to verify:

  console.log(data.slice(0, 5));

• Ensure your "time" column is formatted consistently in the CSV file (e.g., YYYY-MM-DD, ISO 8601, or similar formats recognizable by new Date).

This ensures all columns are properly formatted as Date or numbers during parsing, eliminating the need for manual conversions later in the script. Let me know if you need further clarification!

You

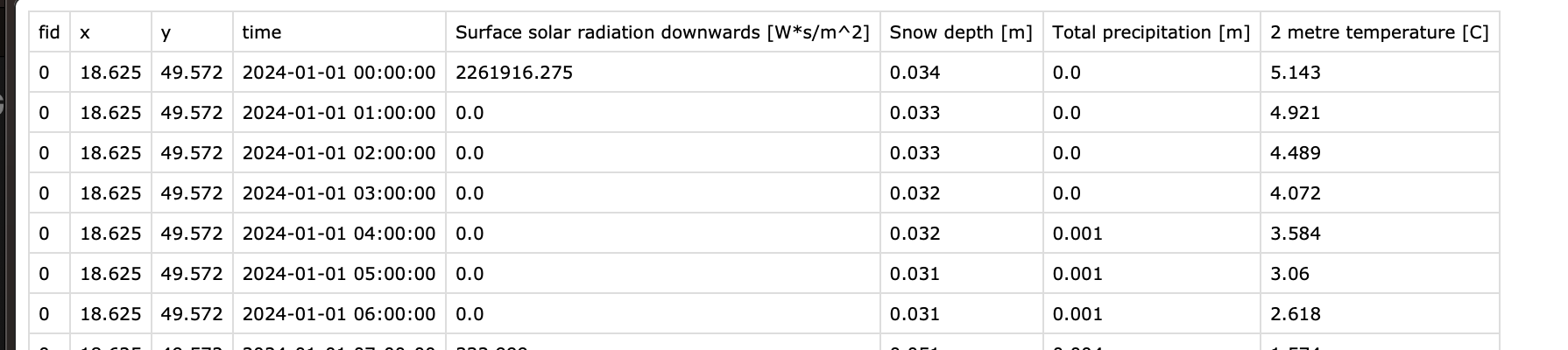

my data looks like this. what if I want to turn each column into a facet?

ChatGPT

To turn each column of your data into a facet (e.g., separate subplots for each column), you can use the facet feature in Observable Plot. Below is an example implementation:

---

Steps to Create Faceted Charts

1. Parse your data to ensure the time column is a Date object and other numeric columns are properly formatted.
2. Use the facet feature in Observable Plot to create subplots for each column.
3. Exclude unnecessary columns (fid, x, y, etc.) from the facets.

---

Example Implementation

function createFacetedPlot(container, data) {
    // Columns to visualize, excluding unnecessary ones
    const columns = data.columns.filter(
        (col) => !["fid", "x", "y", "time"].includes(col)
    );

    // Generate the plot
    const plot = Plot.plot({
        width: 800, // Full width of the plot
        height: 300 * columns.length, // Adjust height based on the number of facets
        facet: {
            data: columns,
            x: (d) => d, // Use each column name as a facet
        },
        marks: [
            Plot.line(data, {
                x: "time",
                y: (d, _, {facet}) => data[facet], // Use column data dynamically
                stroke: "steelblue",
                strokeWidth: 1.5,
            }),
        ],
        x: {
            label: "Time",
            tickRotate: -45,
            domain: d3.extent(data, (d) => d.time), // Ensure consistent x-axis
        },
        y: {
            grid: true,
            label: (d) => d, // Use column names as labels
        },
    });

    // Append the plot to the container
    container.appendChild(plot);
}

---

Explanation of the Code

1. Filter Relevant Columns:

   • Use data.columns.filter() to exclude columns that are not needed in the facets, such as "fid", "x", "y", and "time".

2. Facet by Column Names:

   • The facet property creates subplots for each column, using the column names dynamically.

3. Dynamic Data Access:

   • The y accessor in Plot.line dynamically selects the column data based on the current facet.

4. Dynamic Height:

   • Adjust the height of the plot based on the number of columns being faceted (e.g., 300px per column).

5. Consistent X-Axis:

   • Use d3.extent(data, (d) => d.time) to ensure all subplots share the same time domain.

---

How to Use

• Pass your parsed data to the createFacetedPlot function along with the target container.
• Ensure data.columns contains the names of your dataset’s columns.

If you would like a fully tailored solution or further enhancements (e.g., tooltips, specific colors, etc.), let me know!

You

for some reason, I see no line

// Columns to visualize, excluding unnecessary ones const columns = data.columns.filter( (col) => ![“fid”, “x”, “y”, “time”].includes(col) );

const plot = Plot.plot({
    width: container.offsetWidth, // Full width
    height: 400, // Optional: Adjust height as needed
     facet: {
        data: columns,
        x: (d) => d, // Use each column name as a facet
    },
    marks: [
    Plot.frame(),
    Plot.ruleY([0], {stroke: "red"}),
    Plot.line(data, {x:"time", y: (d, _, {facet}) => data[facet]
    }),
    ],
    x:{
     label: "Time",
     domain: d3.extent(data, (d) => d.time),
    },
     y: {
    grid: true,
    label: (d) => d,
},
    marginLeft: 100,
    marginRight: 20,
    marginBottom: 50
});

ChatGPT

The issue with your current implementation is related to how facets and data binding work in Observable Plot. Specifically:

1. Incorrect facet.data:

   • The data for facets should correspond to the main dataset, not the column names.

2. Dynamic y Field:

   • In your code, you’re trying to dynamically access data[facet] for the y field, but this doesn’t align with how Observable Plot processes facets.

---

Correct Implementation for Faceted Line Charts

Here’s how to correctly implement faceted line charts:

function createFacetedPlot(container, data) {
    // Columns to visualize, excluding unnecessary ones
    const columns = data.columns.filter(
        (col) => !["fid", "x", "y", "time"].includes(col)
    );

    // Create a new dataset for faceting, with a `facet` column
    const facetedData = columns.flatMap((col) =>
        data.map((d) => ({ time: d.time, value: d[col], facet: col }))
    );

    const plot = Plot.plot({
        width: container.offsetWidth, // Full width
        height: 300, // Adjust based on container
        facet: {
            data: facetedData,
            y: "facet", // Each unique column becomes a facet
        },
        marks: [
            Plot.line(facetedData, {
                x: "time",
                y: "value",
                stroke: "steelblue",
                strokeWidth: 1.5,
            }),
        ],
        x: {
            label: "Time",
            tickRotate: -45,
            domain: d3.extent(data, (d) => d.time), // Ensure consistent x-axis
        },
        y: {
            grid: true,
        },
        facet: {
            marginBottom: 30, // Space between facets
        },
    });

    container.appendChild(plot);
}

---

Explanation of Changes

1. Flatten the Data:

   • Use columns.flatMap to create a new array (facetedData) where each column’s data is represented as a row, with an additional facet field indicating the column name.

2. facet.data:

   • Pass the facetedData array as the dataset, allowing Observable Plot to split the chart by the facet field.

3. Dynamic y Values:

   • Use a single y field (value) to represent all columns’ values dynamically.

4. Consistent X-Axis:

   • Use d3.extent(data, (d) => d.time) to share the same time domain across all facets.

5. Faceted Layout:

   • The facet option handles splitting the plot into subplots based on the facet field.

---

Expected Output

This will produce a faceted line chart:

• Each column (e.g., “Surface solar radiation”, “Snow depth”, etc.) becomes its own subplot.
• The x-axis (time) is shared across all facets.
• The y-axis represents the column values, dynamically changing for each facet.

---

Debugging Tips

1. Check facetedData:

   • Ensure the facetedData array is constructed correctly:

     console.log(facetedData.slice(0, 10));

2. Ensure time Parsing:

   • Ensure the time column is correctly parsed as a Date object.

If you still encounter issues, let me know, and I can help refine the solution further!

You

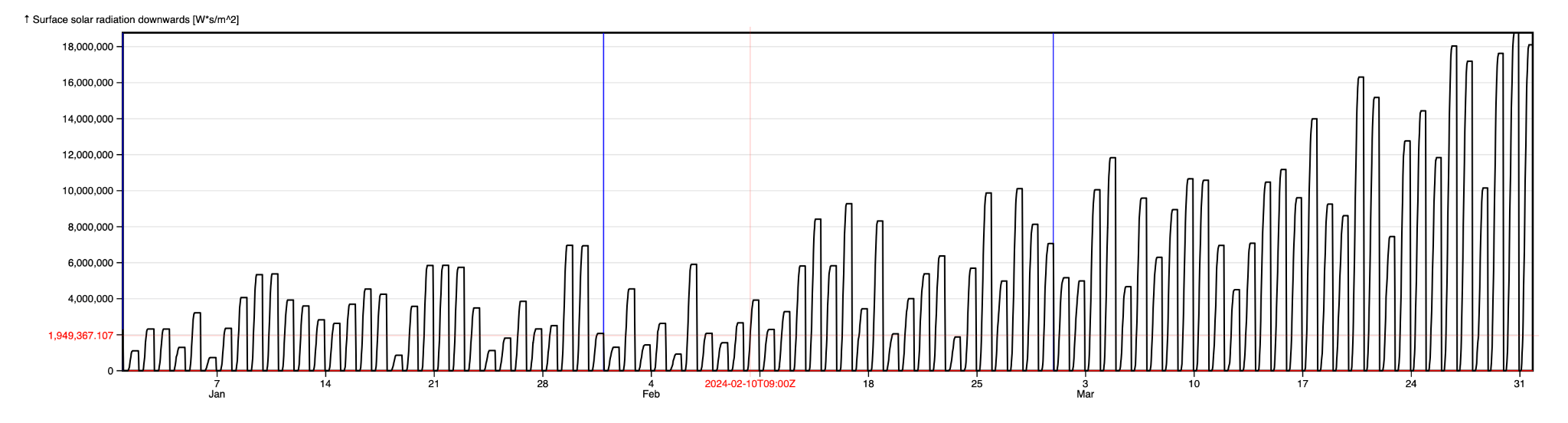

I have hourly data. I want to create ruleX at the beginning of each month

ChatGPT

To create vertical rules (ruleX) at the beginning of each month in your hourly data, you can preprocess the data to extract the unique timestamps corresponding to the start of each month. Here’s how you can implement this:

Implementation

function createFacetedPlotWithMonthlyRules(container, data) {
    // Columns to visualize, excluding unnecessary ones
    const columns = data.columns.filter(
        (col) => !["fid", "x", "y", "time"].includes(col)
    );

    // Create a new dataset for faceting, with a `facet` column
    const facetedData = columns.flatMap((col) =>
        data.map((d) => ({ time: d.time, value: d[col], facet: col }))
    );

    // Extract unique timestamps at the beginning of each month
    const monthlyMarkers = data
        .filter((d, i, arr) => {
            const currentDate = d.time;
            const prevDate = i > 0 ? arr[i - 1].time : null;
            return (
                currentDate.getMonth() !== (prevDate ? prevDate.getMonth() : -1) ||
                currentDate.getFullYear() !== (prevDate ? prevDate.getFullYear() : -1)
            );
        })
        .map((d) => d.time);

    const plot = Plot.plot({
        width: container.offsetWidth, // Full width
        height: 300, // Adjust based on container
        facet: {
            data: facetedData,
            y: "facet", // Each unique column becomes a facet
        },
        marks: [
            Plot.ruleX(monthlyMarkers, { stroke: "black", strokeWidth: 1 }),
            Plot.line(facetedData, {
                x: "time",
                y: "value",
                stroke: "steelblue",
                strokeWidth: 1.5,
            }),
        ],
        x: {
            label: "Time",
            tickRotate: -45,
            domain: d3.extent(data, (d) => d.time), // Ensure consistent x-axis
        },
        y: {
            grid: true,
        },
        facet: {
            marginBottom: 30, // Space between facets
        },
    });

    container.appendChild(plot);
}

---

Explanation

1. Extract Monthly Markers:

   • Use filter to identify rows where the month (getMonth()) or year (getFullYear()) changes compared to the previous row. These rows mark the start of a new month.
   • Map the filtered rows to their time values.

2. Add ruleX:

   • Add Plot.ruleX to the marks array. Pass the monthlyMarkers array to draw vertical lines at these points.

3. Line Chart:

   • The main line chart remains unchanged, plotting the data for each facet.

4. Shared X-Axis:

   • The x-axis uses d3.extent(data, (d) => d.time) to ensure consistency across all facets.

---

Debugging Tips

• Check monthlyMarkers: Log the extracted timestamps to verify they correspond to the start of each month:

  console.log(monthlyMarkers);

• Date Parsing: Ensure the time column is properly parsed as a Date object when reading the CSV data:

  const data = d3.csvParse(csvData, (d) => ({
      ...d,
      time: new Date(d.time),
  }));

---

This code will draw vertical lines (ruleX) at the beginning of each month on the hourly data while maintaining the faceted layout for different columns. Let me know if you need further assistance!

You

I’m using this, no facets

    .chart-container {
        margin: 20px auto;
        width: 90%;
    }

    #fileInputContainer {
        text-align: center;
        margin: 20px;
    }
</style>

Multi-Dataset Visualization

<script type="module">
   function createPlot(container, data, column) {

const plot = Plot.plot({
    width: container.offsetWidth, // Full width
    height: 400, // Optional: Adjust height as needed
    marks: [
    Plot.frame({strokeWidth:2}),
    Plot.ruleY([0], {stroke: "red"}),
    Plot.ruleY
    Plot.line(data, {x:"time", y:column}),
    Plot.crosshairX(data, {x:"time", y:column, stroke: "red"})
    ],
    x:{},
     y: {
    grid: true
},
    marginLeft: 100,
    marginRight: 20,
    marginBottom: 50
});

container.appendChild(plot);
    }

    function updateCharts(data, columns) {
        const chartContainer = document.getElementById("chartContainer");
        chartContainer.innerHTML = ""; // Clear existing charts

        columns.forEach((column) => {
            const chartDiv = document.createElement("div");
            chartDiv.className = "chart-container";
            chartContainer.appendChild(chartDiv);

            createPlot(chartDiv, data, column);
        });
    }

    document.getElementById("csvFileInput").addEventListener("change", function (event) {
        const file = event.target.files[0];
        if (file) {
            const reader = new FileReader();
            reader.onload = function (e) {
                const csvData = e.target.result;

                // Parse CSV using D3
               const data = d3.csvParse(csvData, (d) => {
               const parsed = {};
for (const key in d) {
    if (key === "time") {
        // Parse "time" as a JavaScript Date object
        parsed[key] = new Date(d[key]);
    } else {
        // Attempt to parse other columns as numbers
        const value = +d[key];
        parsed[key] = isNaN(value) ? d[key] : value;
    }
}
return parsed;
                    });

                // Extract column names (ignore "time")
                const columns = data.columns.filter((col) => col !== "time"  && col !== "fid" && col !== "x" && col !== "y");

                // Update charts using parsed data
                updateCharts(data, columns);
            };
            reader.readAsText(file);
        }
    });
</script>

ChatGPT

To add vertical lines (ruleX) at the beginning of each month in your hourly data for this single chart implementation, you need to identify the time values corresponding to the start of each month and pass them to a Plot.ruleX mark.

Here’s how to modify your existing createPlot function:

Updated createPlot Function

function createPlot(container, data, column) {
    // Extract unique timestamps at the beginning of each month
    const monthlyMarkers = data
        .filter((d, i, arr) => {
            const currentDate = d.time;
            const prevDate = i > 0 ? arr[i - 1].time : null;
            return (
                currentDate.getMonth() !== (prevDate ? prevDate.getMonth() : -1) ||
                currentDate.getFullYear() !== (prevDate ? prevDate.getFullYear() : -1)
            );
        })
        .map((d) => d.time);

    // Create the plot
    const plot = Plot.plot({
        width: container.offsetWidth, // Full width
        height: 400, // Optional: Adjust height as needed
        marks: [
            Plot.frame({ strokeWidth: 2 }),
            Plot.ruleY([0], { stroke: "red" }), // Horizontal rule at Y=0
            Plot.ruleX(monthlyMarkers, { stroke: "black", strokeWidth: 1 }), // Vertical rules at the start of each month
            Plot.line(data, { x: "time", y: column, stroke: "steelblue", strokeWidth: 2 }),
            Plot.crosshairX(data, { x: "time", y: column, stroke: "red" }) // Add crosshair
        ],
        x: {
            label: "Time",
            tickRotate: -45, // Rotate ticks for better readability
            domain: d3.extent(data, (d) => d.time) // Consistent x-axis range
        },
        y: {
            label: column,
            grid: true // Add gridlines
        },
        marginLeft: 100,
        marginRight: 20,
        marginBottom: 50
    });

    container.appendChild(plot);
}

---

Explanation of Changes

1. monthlyMarkers:

   • Filter data to find rows where the month (getMonth()) or year (getFullYear()) changes compared to the previous row.
   • Map these rows to their time values to get a list of timestamps for the start of each month.

2. Plot.ruleX:

   • Add Plot.ruleX(monthlyMarkers, { stroke: "black", strokeWidth: 1 }) to draw vertical lines at the extracted timestamps.

3. X-Axis Rotation:

   • Rotate the x-axis ticks by -45 degrees for better readability of dense datetime labels.

4. Horizontal Rule:

   • Retain the Plot.ruleY([0], { stroke: "red" }) for a horizontal line at y = 0.

5. Dynamic Line Chart:

   • Use Plot.line(data, { x: "time", y: column }) to plot the specified column.

---

Debugging Tips

• Check monthlyMarkers:

  • Log the monthlyMarkers array to ensure the correct timestamps are being identified:

    console.log(monthlyMarkers);

• Date Parsing:

  • Ensure the time column is being parsed as Date objects during CSV parsing.

---

Result

This implementation will:

• Plot a line chart for each column.
• Draw vertical lines at the beginning of each month.
• Rotate x-axis tick labels for better readability.

Let me know if you need further clarification or additional features!

You

also adjust the ticks so that the beginning of each month is signified

ChatGPT

To adjust the ticks on the x-axis to align with the beginning of each month while ensuring vertical lines (ruleX) are placed correctly, you can modify your code as follows:

Updated createPlot Function

function createPlot(container, data, column) {
    // Extract unique timestamps at the beginning of each month
    const monthlyMarkers = data
        .filter((d, i, arr) => {
            const currentDate = d.time;
            const prevDate = i > 0 ? arr[i - 1].time : null;
            return (
                currentDate.getMonth() !== (prevDate ? prevDate.getMonth() : -1) ||
                currentDate.getFullYear() !== (prevDate ? prevDate.getFullYear() : -1)
            );
        })
        .map((d) => d.time);

    // Create the plot
    const plot = Plot.plot({
        width: container.offsetWidth, // Full width
        height: 400, // Adjust height as needed
        marks: [
            Plot.frame({ strokeWidth: 2 }), // Frame around the chart
            Plot.ruleY([0], { stroke: "red" }), // Horizontal rule at Y=0
            Plot.ruleX(monthlyMarkers, { stroke: "blue", strokeWidth: 1 }), // Vertical lines for the start of each month
            Plot.line(data, { x: "time", y: column, stroke: "black", strokeWidth: 2 }), // Line chart
        ],
        x: {
            label: "Time",
            tickRotate: -45, // Rotate ticks for better readability
            tickValues: monthlyMarkers, // Use monthlyMarkers for tick positions
            tickFormat: d3.timeFormat("%b"), // Format ticks as short month names (e.g., "Jan", "Feb")
            domain: d3.extent(data, (d) => d.time), // Consistent x-axis range
        },
        y: {
            label: column,
            grid: true, // Add gridlines
        },
        marginLeft: 100,
        marginRight: 20,
        marginBottom: 50,
    });

    container.appendChild(plot);
}

---

Key Adjustments

1. monthlyMarkers for Ticks and Lines:

   • The monthlyMarkers array is used both for Plot.ruleX and x.tickValues to ensure the beginning of each month is clearly signified with both a vertical line and an x-axis tick.

2. Formatted Ticks:

   • The tickFormat property uses d3.timeFormat("%b") to display short month names like “Jan” and “Feb”.

3. Dynamic Tick Placement:

   • The tickValues property ensures that only the beginning-of-month markers are used as ticks.

4. Rotated Tick Labels:

   • The tickRotate: -45 ensures the tick labels don’t overlap when displayed.

---

Example Output

The x-axis will now:

• Show ticks only at the beginning of each month.
• Label each tick with the corresponding month (e.g., “Jan”, “Feb”).
• Include vertical blue lines (ruleX) at the same positions for visual clarity.

Let me know if further adjustments are needed!

You

how to add a bit of vertical padding so that the values don’t touch the border?

ChatGPT

To add vertical padding so that the chart values don’t touch the top and bottom borders of the plot, you can extend the y.domain slightly. This can be done by calculating a small percentage of the value range and adding it as padding to the top and bottom of the domain.

Here’s how you can adjust your createPlot function to include vertical padding:

Updated createPlot Function

function createPlot(container, data, column) {
    // Extract unique timestamps at the beginning of each month
    const monthlyMarkers = data
        .filter((d, i, arr) => {
            const currentDate = d.time;
            const prevDate = i > 0 ? arr[i - 1].time : null;
            return (
                currentDate.getMonth() !== (prevDate ? prevDate.getMonth() : -1) ||
                currentDate.getFullYear() !== (prevDate ? prevDate.getFullYear() : -1)
            );
        })
        .map((d) => d.time);

    // Calculate y-domain with padding
    const yValues = data.map((d) => d[column]);
    const yMin = Math.min(...yValues);
    const yMax = Math.max(...yValues);
    const padding = (yMax - yMin) * 0.05; // Add 5% padding to the range

    // Create the plot
    const plot = Plot.plot({
        width: container.offsetWidth, // Full width
        height: 400, // Adjust height as needed
        marks: [
            Plot.frame({ strokeWidth: 2 }), // Frame around the chart
            Plot.ruleY([0], { stroke: "red" }), // Horizontal rule at Y=0
            Plot.ruleX(monthlyMarkers, { stroke: "blue", strokeWidth: 1 }), // Vertical lines for the start of each month
            Plot.line(data, { x: "time", y: column, stroke: "black", strokeWidth: 2 }), // Line chart
        ],
        x: {
            label: "Time",
            tickRotate: -45, // Rotate ticks for better readability
            tickValues: monthlyMarkers, // Use monthlyMarkers for tick positions
            tickFormat: d3.timeFormat("%b"), // Format ticks as short month names (e.g., "Jan", "Feb")
            domain: d3.extent(data, (d) => d.time), // Consistent x-axis range
        },
        y: {
            label: column,
            domain: [yMin - padding, yMax + padding], // Add vertical padding
            grid: true, // Add gridlines
        },
        marginLeft: 100,
        marginRight: 20,
        marginBottom: 50,
    });

    container.appendChild(plot);
}

---

Key Changes

1. Calculate y.domain with Padding:

   • Extract all values for the column from data into yValues.
   • Compute the yMin and yMax values.
   • Add padding by calculating 5% (0.05) of the value range (yMax - yMin) and extending the domain to [yMin - padding, yMax + padding].

2. Dynamic Padding:

   • The padding dynamically adjusts to the range of the data, ensuring that it works for both small and large value ranges.

---

Result

This adjustment ensures:

• There’s some vertical space between the highest and lowest values and the plot’s borders.
• The padding is proportional to the data range.

You can tweak the padding percentage (0.05) to increase or decrease the amount of space. Let me know if you need further customizations!

You

how to add horizontal padding as well ?

ChatGPT

To add horizontal padding (in addition to vertical padding), you can extend the x.domain slightly by calculating a small percentage of the time range and adding it to the start and end of the domain.

Here’s the updated createPlot function to include both vertical and horizontal padding:

---

Updated createPlot Function with Horizontal and Vertical Padding

function createPlot(container, data, column) {
    // Extract unique timestamps at the beginning of each month
    const monthlyMarkers = data
        .filter((d, i, arr) => {
            const currentDate = d.time;
            const prevDate = i > 0 ? arr[i - 1].time : null;
            return (
                currentDate.getMonth() !== (prevDate ? prevDate.getMonth() : -1) ||
                currentDate.getFullYear() !== (prevDate ? prevDate.getFullYear() : -1)
            );
        })
        .map((d) => d.time);

    // Calculate y-domain with padding
    const yValues = data.map((d) => d[column]);
    const yMin = Math.min(...yValues);
    const yMax = Math.max(...yValues);
    const yPadding = (yMax - yMin) * 0.05; // Add 5% vertical padding

    // Calculate x-domain with padding
    const xExtent = d3.extent(data, (d) => d.time); // Min and max time
    const xPadding = (xExtent[1] - xExtent[0]) * 0.02; // Add 2% horizontal padding
    const xDomain = [new Date(xExtent[0] - xPadding), new Date(xExtent[1] + xPadding)];

    // Create the plot
    const plot = Plot.plot({
        width: container.offsetWidth, // Full width
        height: 400, // Adjust height as needed
        marks: [
            Plot.frame({ strokeWidth: 2 }), // Frame around the chart
            Plot.ruleY([0], { stroke: "red" }), // Horizontal rule at Y=0
            Plot.ruleX(monthlyMarkers, { stroke: "blue", strokeWidth: 1 }), // Vertical lines for the start of each month
            Plot.line(data, { x: "time", y: column, stroke: "black", strokeWidth: 2 }), // Line chart
        ],
        x: {
            label: "Time",
            tickRotate: -45, // Rotate ticks for better readability
            tickValues: monthlyMarkers, // Use monthlyMarkers for tick positions
            tickFormat: d3.timeFormat("%b"), // Format ticks as short month names (e.g., "Jan", "Feb")
            domain: xDomain, // Add horizontal padding
        },
        y: {
            label: column,
            domain: [yMin - yPadding, yMax + yPadding], // Add vertical padding
            grid: true, // Add gridlines
        },
        marginLeft: 100,
        marginRight: 20,
        marginBottom: 50,
    });

    container.appendChild(plot);
}

---

Key Changes

1. Horizontal Padding (x.domain):

   • Extract the minimum and maximum timestamps using d3.extent.
   • Calculate xPadding as a small percentage (2% in this example) of the total time range.
   • Extend the xDomain by subtracting xPadding from the minimum and adding it to the maximum.
   • Ensure the domain values are converted back into Date objects (necessary when working with timestamps).

2. Vertical Padding (y.domain):

   • This is the same as before, using 5% padding based on the range of y-values.

3. Dynamic Ticks:

   • The tickValues for the x-axis are still aligned with monthlyMarkers.

---

Result

• Vertical Padding:
  • The values will no longer touch the top or bottom of the chart.
• Horizontal Padding:
  • The line chart won’t start or end at the very edges of the chart, leaving some space for better visual clarity.

---

Adjust Padding Percentages

You can tweak the 0.05 (vertical padding) and 0.02 (horizontal padding) to increase or decrease the space based on your preferences. Let me know if you need further adjustments!

You

make it remember the last opened file

ChatGPT

To make your application remember the last opened file, you can use the localStorage API to store the file content (or the file name and data). When the page reloads, the app can load the file from localStorage if it exists.

Here’s how you can implement it:

---

Updated Code with File Persistence Using localStorage

<script type="module">
    function createPlot(container, data, column) {
        // Extract unique timestamps at the beginning of each month
        const monthlyMarkers = data
            .filter((d, i, arr) => {
                const currentDate = d.time;
                const prevDate = i > 0 ? arr[i - 1].time : null;
                return (
                    currentDate.getMonth() !== (prevDate ? prevDate.getMonth() : -1) ||
                    currentDate.getFullYear() !== (prevDate ? prevDate.getFullYear() : -1)
                );
            })
            .map((d) => d.time);

        // Calculate y-domain with padding
        const yValues = data.map((d) => d[column]);
        const yMin = Math.min(...yValues);
        const yMax = Math.max(...yValues);
        const yPadding = (yMax - yMin) * 0.05; // Add 5% vertical padding

        // Calculate x-domain with padding
        const xExtent = d3.extent(data, (d) => d.time); // Min and max time
        const xPadding = (xExtent[1] - xExtent[0]) * 0.02; // Add 2% horizontal padding
        const xDomain = [new Date(xExtent[0] - xPadding), new Date(xExtent[1] + xPadding)];

        // Create the plot
        const plot = Plot.plot({
            width: container.offsetWidth, // Full width
            height: 400, // Adjust height as needed
            marks: [
                Plot.frame({ strokeWidth: 2 }), // Frame around the chart
                Plot.ruleY([0], { stroke: "red" }), // Horizontal rule at Y=0
                Plot.ruleX(monthlyMarkers, { stroke: "blue", strokeWidth: 1 }), // Vertical lines for the start of each month
                Plot.line(data, { x: "time", y: column, stroke: "black", strokeWidth: 2 }), // Line chart
            ],
            x: {
                label: "Time",
                tickRotate: -45, // Rotate ticks for better readability
                tickValues: monthlyMarkers, // Use monthlyMarkers for tick positions
                tickFormat: d3.timeFormat("%b"), // Format ticks as short month names (e.g., "Jan", "Feb")
                domain: xDomain, // Add horizontal padding
            },
            y: {
                label: column,
                domain: [yMin - yPadding, yMax + yPadding], // Add vertical padding
                grid: true, // Add gridlines
            },
            marginLeft: 100,
            marginRight: 20,
            marginBottom: 50,
        });

        container.appendChild(plot);
    }

    function updateCharts(data, columns) {
        const chartContainer = document.getElementById("chartContainer");
        chartContainer.innerHTML = ""; // Clear existing charts

        columns.forEach((column) => {
            const chartDiv = document.createElement("div");
            chartDiv.className = "chart-container";
            chartContainer.appendChild(chartDiv);

            createPlot(chartDiv, data, column);
        });
    }

    // Save file content to localStorage
    function saveFileToLocalStorage(fileContent) {
        localStorage.setItem("lastOpenedFile", fileContent);
    }

    // Load file content from localStorage
    function loadFileFromLocalStorage() {
        const fileContent = localStorage.getItem("lastOpenedFile");
        if (fileContent) {
            processCSV(fileContent); // Process the saved file if it exists
        }
    }

    // Process CSV data and update the charts
    function processCSV(csvData) {
        // Parse CSV using D3
        const data = d3.csvParse(csvData, (d) => {
            const parsed = {};
            for (const key in d) {
                if (key === "time") {
                    // Parse "time" as a JavaScript Date object
                    parsed[key] = new Date(d[key]);
                } else {
                    // Attempt to parse other columns as numbers
                    const value = +d[key];
                    parsed[key] = isNaN(value) ? d[key] : value;
                }
            }
            return parsed;
        });

        // Extract column names (ignore "time")
        const columns = data.columns.filter(
            (col) => col !== "time" && col !== "fid" && col !== "x" && col !== "y"
        );

        // Update charts using parsed data
        updateCharts(data, columns);
    }

    // File input event listener
    document.getElementById("csvFileInput").addEventListener("change", function (event) {
        const file = event.target.files[0];
        if (file) {
            const reader = new FileReader();
            reader.onload = function (e) {
                const csvData = e.target.result;
                saveFileToLocalStorage(csvData); // Save file content to localStorage
                processCSV(csvData); // Process the CSV file
            };
            reader.readAsText(file);
        }
    });

    // Load the last opened file on page load
    window.addEventListener("load", () => {
        loadFileFromLocalStorage();
    });
</script>

---

Key Changes

1. saveFileToLocalStorage:

   • Saves the file content (CSV data) to localStorage with the key "lastOpenedFile".

2. loadFileFromLocalStorage:

   • Loads the file content from localStorage when the page is reloaded.
   • If data exists, it processes the CSV data and updates the charts.

3. processCSV:

   • Centralized function to handle parsing and processing of CSV data for both file input and localStorage loading.

4. Event Listener on window.load:

   • Ensures the last opened file is loaded and displayed when the page is reloaded.

---

How It Works

• When you upload a file:
  • Its content is saved in localStorage.
  • The content is processed and displayed as a chart.
• When you reload the page:
  • The file content is retrieved from localStorage and automatically processed to display the chart.

---

Limitations

• Large Files: The localStorage limit is typically around 5MB. If your CSV file exceeds this size, it won’t be saved.
• Security: Ensure the data being stored isn’t sensitive, as localStorage is accessible by client-side scripts.

Let me know if you need further adjustments!

You

how to adjust the decimal places of the values?

ChatGPT

To adjust the number of decimal places of the values, you can use the toFixed method for numbers during data processing or formatting. Here’s how you can implement it:

---

Adjusting Decimal Places During Data Processing

If you want to standardize the decimal places for all numeric values in your dataset during parsing, update the CSV parsing function as follows:

Example

const data = d3.csvParse(csvData, (d) => {
    const parsed = {};
    for (const key in d) {
        if (key === "time") {
            // Parse "time" as a JavaScript Date object
            parsed[key] = new Date(d[key]);
        } else {
            // Parse other columns as numbers and adjust decimal places
            const value = +d[key];
            parsed[key] = isNaN(value) ? d[key] : parseFloat(value.toFixed(2)); // Keep 2 decimal places
        }
    }
    return parsed;
});

---

Dynamically Format Values in Tooltips or Labels

If you only want to adjust the decimal places when displaying values (e.g., in tooltips, labels, or axes), you can format them dynamically.

Example: Formatting Values in Tooltips

Plot.crosshairX(data, {
    x: "time",
    y: column,
    stroke: "red",
    title: (d) => `Time: ${d3.timeFormat("%Y-%m-%d %H:%M")(d.time)}\nValue: ${d[column].toFixed(2)}`, // Format y-value to 2 decimals
});

Example: Formatting Axes

For formatting values on the y-axis:

y: {
    label: column,
    grid: true,
    tickFormat: (d) => d.toFixed(2), // Format y-axis ticks to 2 decimals
}

---

Combined Implementation

Here’s the complete solution that adjusts the decimal places during parsing, in tooltips, and on axes:

Updated createPlot Function

function createPlot(container, data, column) {
    // Extract unique timestamps at the beginning of each month
    const monthlyMarkers = data
        .filter((d, i, arr) => {
            const currentDate = d.time;
            const prevDate = i > 0 ? arr[i - 1].time : null;
            return (
                currentDate.getMonth() !== (prevDate ? prevDate.getMonth() : -1) ||
                currentDate.getFullYear() !== (prevDate ? prevDate.getFullYear() : -1)
            );
        })
        .map((d) => d.time);

    // Calculate y-domain with padding
    const yValues = data.map((d) => d[column]);
    const yMin = Math.min(...yValues);
    const yMax = Math.max(...yValues);
    const yPadding = (yMax - yMin) * 0.05; // Add 5% vertical padding

    // Calculate x-domain with padding
    const xExtent = d3.extent(data, (d) => d.time); // Min and max time
    const xPadding = (xExtent[1] - xExtent[0]) * 0.02; // Add 2% horizontal padding
    const xDomain = [new Date(xExtent[0] - xPadding), new Date(xExtent[1] + xPadding)];

    // Create the plot
    const plot = Plot.plot({
        width: container.offsetWidth, // Full width
        height: 400, // Adjust height as needed
        marks: [
            Plot.frame({ strokeWidth: 2 }), // Frame around the chart
            Plot.ruleY([0], { stroke: "red" }), // Horizontal rule at Y=0
            Plot.ruleX(monthlyMarkers, { stroke: "blue", strokeWidth: 1 }), // Vertical lines for the start of each month
            Plot.line(data, { x: "time", y: column, stroke: "black", strokeWidth: 2 }), // Line chart
            Plot.crosshairX(data, {
                x: "time",
                y: column,
                stroke: "red",
                title: (d) => `Time: ${d3.timeFormat("%Y-%m-%d %H:%M")(d.time)}\nValue: ${d[column].toFixed(2)}`, // Format tooltip to 2 decimals
            }),
        ],
        x: {
            label: "Time",
            tickRotate: -45, // Rotate ticks for better readability
            tickValues: monthlyMarkers, // Use monthlyMarkers for tick positions
            tickFormat: d3.timeFormat("%b"), // Format ticks as short month names (e.g., "Jan", "Feb")
            domain: xDomain, // Add horizontal padding
        },
        y: {
            label: column,
            domain: [yMin - yPadding, yMax + yPadding], // Add vertical padding
            grid: true, // Add gridlines
            tickFormat: (d) => d.toFixed(2), // Format y-axis ticks to 2 decimals
        },
        marginLeft: 100,
        marginRight: 20,
        marginBottom: 50,
    });

    container.appendChild(plot);
}

---

Summary

• During Parsing: Use toFixed to adjust decimal places for all numeric values (use parseFloat to retain the number type).
• In Tooltips: Use toFixed to format the displayed values dynamically.
• On Axes: Use the tickFormat property to format axis ticks to a fixed number of decimals.

You can adjust the number of decimal places by replacing 2 in toFixed(2) with your desired precision. Let me know if you need further customization!

You

I don’t want fixed decimals, I want dynamic depending on the number

ChatGPT

If you want to dynamically adjust the number of decimal places based on the magnitude of the number (e.g., fewer decimals for large numbers and more decimals for small numbers), you can use d3-format to handle dynamic number formatting.

Solution with Dynamic Decimal Formatting

Here’s how you can implement dynamic formatting for your values:

---

Using d3.format for Dynamic Decimal Places

d3.format provides powerful options for formatting numbers dynamically. For example:

• Use ~ to trim unnecessary zeros.
• Use precision specifiers to control the number of decimal places dynamically.

Example format: d3.format("~g") dynamically adjusts decimal places.

---

Updated createPlot Function

function createPlot(container, data, column) {
    // Extract unique timestamps at the beginning of each month
    const monthlyMarkers = data
        .filter((d, i, arr) => {
            const currentDate = d.time;
            const prevDate = i > 0 ? arr[i - 1].time : null;
            return (
                currentDate.getMonth() !== (prevDate ? prevDate.getMonth() : -1) ||
                currentDate.getFullYear() !== (prevDate ? prevDate.getFullYear() : -1)
            );
        })
        .map((d) => d.time);

    // Calculate y-domain with padding
    const yValues = data.map((d) => d[column]);
    const yMin = Math.min(...yValues);
    const yMax = Math.max(...yValues);
    const yPadding = (yMax - yMin) * 0.05; // Add 5% vertical padding

    // Calculate x-domain with padding
    const xExtent = d3.extent(data, (d) => d.time); // Min and max time
    const xPadding = (xExtent[1] - xExtent[0]) * 0.02; // Add 2% horizontal padding
    const xDomain = [new Date(xExtent[0] - xPadding), new Date(xExtent[1] + xPadding)];

    // Use d3.format for dynamic decimal places
    const formatDynamic = d3.format("~g"); // Automatically adjust decimals based on magnitude

    // Create the plot
    const plot = Plot.plot({
        width: container.offsetWidth, // Full width
        height: 400, // Adjust height as needed
        marks: [
            Plot.frame({ strokeWidth: 2 }), // Frame around the chart
            Plot.ruleY([0], { stroke: "red" }), // Horizontal rule at Y=0
            Plot.ruleX(monthlyMarkers, { stroke: "blue", strokeWidth: 1 }), // Vertical lines for the start of each month
            Plot.line(data, { x: "time", y: column, stroke: "black", strokeWidth: 2 }), // Line chart
            Plot.crosshairX(data, {
                x: "time",
                y: column,
                stroke: "red",
                title: (d) => `Time: ${d3.timeFormat("%Y-%m-%d %H:%M")(d.time)}\nValue: ${formatDynamic(d[column])}`, // Dynamic formatting for tooltip
            }),
        ],
        x: {
            label: "Time",
            tickRotate: -45, // Rotate ticks for better readability
            tickValues: monthlyMarkers, // Use monthlyMarkers for tick positions
            tickFormat: d3.timeFormat("%b"), // Format ticks as short month names (e.g., "Jan", "Feb")
            domain: xDomain, // Add horizontal padding
        },
        y: {
            label: column,
            domain: [yMin - yPadding, yMax + yPadding], // Add vertical padding
            grid: true, // Add gridlines
            tickFormat: formatDynamic, // Dynamic formatting for y-axis ticks
        },
        marginLeft: 100,
        marginRight: 20,
        marginBottom: 50,
    });

    container.appendChild(plot);
}

---

Explanation of Changes

1. Dynamic Formatting Using d3.format("~g"):

   • The ~g specifier removes unnecessary trailing zeros and adjusts the precision based on the number’s magnitude.
   • Examples:
     • Large numbers like 123456 remain as 123456 (no decimals).
     • Small numbers like 0.0001234 are displayed with appropriate precision, such as 1.234e-4.

2. Dynamic Tooltip Values:

   • The tooltip now dynamically adjusts the precision of the displayed values using formatDynamic.

3. Dynamic Axis Ticks:

   • The tickFormat property for the y-axis is set to use formatDynamic, ensuring the axis ticks also adjust dynamically based on the range of values.

---

Result

• Tooltips: Values in the tooltip dynamically adjust their precision.
• Y-Axis Ticks: The y-axis ticks use the same dynamic formatting.
• Readable Values: Both small and large values are displayed clearly without unnecessary trailing or leading zeros.

---

Let me know if you need further customization or adjustments!
