You

In touch designer I need to split a ramp into 5 different constants, each constant should be one of the 5 colours in the ramp

ChatGPT

To split a ramp into 5 different constants in TouchDesigner, where each constant represents one of the colors in the ramp, follow these steps:

1. Create a Ramp TOP

• Start by adding a Ramp TOP. This will generate the gradient of colors that you want to split into constants.
• Adjust the ramp settings to include exactly 5 points/colors. You can do this by clicking on the Ramp parameter and setting the number of points.

2. Sample Colors from the Ramp

To extract the specific colors from the ramp, we need to sample the ramp at specific positions:

• Add a Lookup TOP. This will allow you to sample colors at specific points in the ramp.
• Create a Constant CHOP and set it to 5 channels (each channel will represent a sampling point from the ramp).
• Set the values in the Constant CHOP to the normalized positions you want to sample, for example:
  • Channel 0 = 0 (for the first color)
  • Channel 1 = 0.25 (for the second color)
  • Channel 2 = 0.5 (for the third color)
  • Channel 3 = 0.75 (for the fourth color)
  • Channel 4 = 1 (for the fifth color)
• Plug the Ramp TOP into the first input of the Lookup TOP, and the Constant CHOP into the second input. This will now sample the Ramp TOP at those specified positions.

3. Extract and Convert to Constants

Now you will use the sampled colors to generate individual constants:

• Add 5 Constant TOPs.
• Use a TOP to CHOP node to extract the color values from the Lookup TOP for each of the sampling points. Set the TOP to CHOP’s “Resolution” parameter to “Full Image” and make sure the “RGBA” options are checked so that it captures all color channels.
• Add a Select CHOP and set the channels to pick the specific color values for each position (R, G, B, and A).
• Use these CHOP channels to drive the values of each Constant TOP by exporting the R, G, B, and A channels into the color parameters of the respective Constant TOPs.

4. Final Setup

Now, each of the Constant TOPs will hold the exact color values from the 5 points sampled in the Ramp. You can now use these constants in your network.

This process breaks down the colors from the Ramp and applies them individually to constants that can be used in various parts of your project.

You

I need the constant colours to update when I change the ramp colours

ChatGPT

To ensure that the constant colors update dynamically whenever you change the ramp colors in TouchDesigner, you need to make sure the process of extracting the colors from the ramp is linked in real-time. Here’s how to set it up properly:

1. Create a Ramp TOP (Same as before)

• Add a Ramp TOP.
• Set the number of points to 5 (or however many colors you want to split).

2. Sample the Ramp Dynamically (Updated approach)

Instead of using fixed sampling points, we’ll dynamically sample the ramp’s colors based on normalized positions, and this will be tied directly to the ramp.

Steps:

• Add a Lookup TOP: Connect the Ramp TOP to the first input of the Lookup TOP.

• Add a Constant CHOP: Create a Constant CHOP that will contain the normalized positions for sampling the colors from the ramp. Set it to 5 channels, and assign values from 0 to 1 at equal intervals, e.g.,

  • Channel 0: 0
  • Channel 1: 0.25
  • Channel 2: 0.5
  • Channel 3: 0.75
  • Channel 4: 1

• Connect the Constant CHOP to the second input of the Lookup TOP. This will ensure that the colors are sampled at the exact positions you specified.

3. Extract Colors to CHOP (Dynamic)

• Add a TOP to CHOP node and connect the output of the Lookup TOP to this node. Make sure the TOP to CHOP is set to “RGBA” so it extracts all the color information.

• Now, the CHOP will contain 5 sets of R, G, B, A values corresponding to each of the 5 color points in the ramp.

4. Use Exporting for Real-Time Updating

• Add 5 Constant TOPs (one for each color). Instead of manually inputting the values for each color, you’ll dynamically link the color channels.

• Add 5 Select CHOPs. Each Select CHOP will extract one set of RGBA channels from the TOP to CHOP node. For example:

  • Select CHOP 1: Selects R1, G1, B1, A1 (first color)
  • Select CHOP 2: Selects R2, G2, B2, A2 (second color)
  • And so on for all 5 colors.

• Export the Channels from the Select CHOPs to the color parameters (R, G, B, and A) of each Constant TOP.

  • Right-click the desired channel (R, G, B, or A) in the Select CHOP and choose “Export CHOP” to export it to the corresponding parameter of the Constant TOP.
  • Do this for all RGBA channels for each constant.

5. Result

Now, when you adjust the colors in the Ramp TOP, the color values will be dynamically updated and propagated to the corresponding Constant TOPs in real-time. Each Constant TOP will always display the current colors of the ramp.

Alternative: Python Expression for More Flexibility

If you prefer more control or want to programmatically ensure constant updates, you can use Python expressions to bind the ramp’s colors to the constants:

• Instead of manually exporting, in the Color parameters of the Constant TOP, you can use Python expressions to directly pull values from the TOP to CHOP. For example, for the red channel, you could use:

  op('toptochop1')['r0']  # r0 corresponds to the first color's red value

This will give you a dynamic setup where the constants always update whenever the ramp’s colors are changed.

You

Can you write python script, that will be executed as a script top that does this. Exporting the 5 values from ‘ramp 5’ to 5 different constant tops?

ChatGPT

Certainly! Below is a Python script that can be executed in a Script TOP in TouchDesigner to automatically export the 5 color values from a Ramp TOP named 'ramp5' and apply them to 5 different Constant TOPs.

This script assumes:

• Your ramp is called 'ramp5'.
• The constant TOPs are named 'constant1', 'constant2', 'constant3', 'constant4', and 'constant5'.

The script will sample 5 color values from the Ramp and apply them dynamically to the Constant TOPs.

Script for the Script TOP:

# Get references to the Ramp TOP and the Constant TOPs
ramp_top = op('ramp5')

constant_tops = [
    op('constant1'),
    op('constant2'),
    op('constant3'),
    op('constant4'),
    op('constant5')
]

# Define the positions to sample from the ramp (evenly spaced 0 to 1)
sample_positions = [0.0, 0.25, 0.5, 0.75, 1.0]

# Loop through each sample position, get the color, and set it to each constant
for i, pos in enumerate(sample_positions):
    # Use the sample method to get the color at the specific position
    color = ramp_top.sample(pos, 0.5)  # Sample in the middle of the y-axis (0.5 for vertical center)

    # The color is a tuple (r, g, b, a), so set the corresponding RGBA values of the constant TOP
    constant_tops[i].par.colorr = color[0]  # Set Red channel
    constant_tops[i].par.colorg = color[1]  # Set Green channel
    constant_tops[i].par.colorb = color[2]  # Set Blue channel
    constant_tops[i].par.colora = color[3]  # Set Alpha channel

Explanation:

• ramp_top.sample(pos, y): This method samples a color from the Ramp TOP at a given normalized horizontal (pos) and vertical (y) position. In this case, we are sampling at pos values of 0, 0.25, 0.5, 0.75, and 1 (which corresponds to 5 equally spaced points along the ramp), and we are using 0.5 for the vertical position (middle of the ramp vertically).
• constant_tops[i].par.colorr/g/b/a: This sets the color parameters (colorr, colorg, colorb, colora) of the respective Constant TOPs with the RGBA values extracted from the ramp.

How to Set It Up:

1. Add a Script TOP.
2. Paste this Python script into the Script TOP.
3. Ensure your Ramp TOP is named 'ramp5' and you have 5 Constant TOPs named 'constant1', 'constant2', etc.
4. Set the Script TOP to execute, and it will automatically sample the colors from 'ramp5' and apply them to the 5 Constant TOPs.

Automatic Updates:

If you want this script to run every time the Ramp TOP changes, you can:

• Set the Execute mode of the Script TOP to “Always” or tie it to a specific event (like when the ramp is modified).

Or, you could trigger the script manually whenever you make changes to the ramp.

Let me know if you need further adjustments!

You

change to constant8,9,10,11,12 please

ChatGPT

Certainly! Here’s the updated Python script for the Script TOP that will export the 5 color values from 'ramp5' to Constant TOPs named 'constant8', 'constant9', 'constant10', 'constant11', and 'constant12':

Updated Python Script:

# Get references to the Ramp TOP and the Constant TOPs
ramp_top = op('ramp5')

constant_tops = [
    op('constant8'),
    op('constant9'),
    op('constant10'),
    op('constant11'),
    op('constant12')
]

# Define the positions to sample from the ramp (evenly spaced 0 to 1)
sample_positions = [0.0, 0.25, 0.5, 0.75, 1.0]

# Loop through each sample position, get the color, and set it to each constant
for i, pos in enumerate(sample_positions):
    # Use the sample method to get the color at the specific position
    color = ramp_top.sample(pos, 0.5)  # Sample in the middle of the y-axis (0.5 for vertical center)

    # The color is a tuple (r, g, b, a), so set the corresponding RGBA values of the constant TOP
    constant_tops[i].par.colorr = color[0]  # Set Red channel
    constant_tops[i].par.colorg = color[1]  # Set Green channel
    constant_tops[i].par.colorb = color[2]  # Set Blue channel
    constant_tops[i].par.colora = color[3]  # Set Alpha channel

Explanation:

• The Ramp TOP is still 'ramp5'.
• The constant TOPs are now named 'constant8', 'constant9', 'constant10', 'constant11', and 'constant12'.
• The rest of the script remains the same, sampling colors from the ramp and updating the respective constants.

How to Use:

1. Add the Script TOP and paste this script into it.
2. Make sure your Ramp TOP is named 'ramp5' and your Constant TOPs are named 'constant8', 'constant9', 'constant10', 'constant11', and 'constant12'.
3. Set the Script TOP to execute as needed (either manually or automatically depending on how you want it to run).

This will now update the color values of 'constant8' through 'constant12' with the colors sampled from 'ramp5'. Let me know if you need anything else!

You

Traceback (most recent call last): File “/project1/Fluid_Rig/script1_callbacks”, line 18 td.tdError: Call contains unexpected positional arguments: Value:(0.0, 0.5) Type:<class ‘tuple’>. python >>>

ChatGPT

It looks like there was an issue with the sample() method. The error suggests that the function doesn’t expect a tuple with two arguments. The correct way to sample a color from the Ramp TOP is by specifying the position along the horizontal axis only (since a ramp is a horizontal gradient in most cases).

To fix the issue, we’ll remove the second 0.5 argument that specifies the Y position. Instead, we’ll just use the sample() method with one argument: the normalized horizontal position.

Here’s the corrected script:

Corrected Python Script:

# Get references to the Ramp TOP and the Constant TOPs
ramp_top = op('ramp5')

constant_tops = [
    op('constant8'),
    op('constant9'),
    op('constant10'),
    op('constant11'),
    op('constant12')
]

# Define the positions to sample from the ramp (evenly spaced 0 to 1)
sample_positions = [0.0, 0.25, 0.5, 0.75, 1.0]

# Loop through each sample position, get the color, and set it to each constant
for i, pos in enumerate(sample_positions):
    # Use the sample method to get the color at the specific position (no need for Y position)
    color = ramp_top.sample(pos)  # Sample just with horizontal position

    # The color is a tuple (r, g, b, a), so set the corresponding RGBA values of the constant TOP
    constant_tops[i].par.colorr = color[0]  # Set Red channel
    constant_tops[i].par.colorg = color[1]  # Set Green channel
    constant_tops[i].par.colorb = color[2]  # Set Blue channel
    constant_tops[i].par.colora = color[3]  # Set Alpha channel

Explanation of the Fix:

• ramp_top.sample(pos): The method only requires the horizontal position (pos), not a tuple (pos, y). So the Y-axis is implicitly handled, and we just provide the normalized horizontal position.
• The rest of the script remains unchanged, but this adjustment should now allow the script to run without errors.

Let me know if this resolves the issue or if further adjustments are needed!

You

Traceback (most recent call last): File “/project1/Fluid_Rig/script1_callbacks”, line 18 td.tdError: Call contains unexpected positional arguments: Value:(0.0,) Type:<class ‘tuple’>. python >>>

ChatGPT

It seems the issue lies in how the sample() method in TouchDesigner works. The sample() function in a TOP expects two arguments: one for the x-position and one for the y-position. These arguments should not be passed as a tuple but rather separately.

To fix the issue, we will pass the two arguments separately, not as a tuple.

Here’s the corrected version of the script:

Corrected Python Script with Separate Arguments for sample():

# Get references to the Ramp TOP and the Constant TOPs
ramp_top = op('ramp5')

constant_tops = [
    op('constant8'),
    op('constant9'),
    op('constant10'),
    op('constant11'),
    op('constant12')
]

# Define the positions to sample from the ramp (evenly spaced 0 to 1)
sample_positions = [0.0, 0.25, 0.5, 0.75, 1.0]

# Loop through each sample position, get the color, and set it to each constant
for i, pos in enumerate(sample_positions):
    # Use the sample method to get the color at the specific position
    # Provide x (horizontal) position as 'pos' and y (vertical) position as 0.5 (middle)
    color = ramp_top.sample(pos, 0.5)

    # The color is a tuple (r, g, b, a), so set the corresponding RGBA values of the constant TOP
    constant_tops[i].par.colorr = color[0]  # Set Red channel
    constant_tops[i].par.colorg = color[1]  # Set Green channel
    constant_tops[i].par.colorb = color[2]  # Set Blue channel
    constant_tops[i].par.colora = color[3]  # Set Alpha channel

Explanation of the Fix:

• ramp_top.sample(pos, 0.5): The method now correctly takes the x (horizontal) and y (vertical) positions as separate arguments. The x position is pos (which varies), and the y position is fixed at 0.5 (the middle of the ramp vertically).
• The rest of the code remains the same. The color variable contains the RGBA values sampled from the ramp, and these values are applied to the respective constant TOPs.

This should resolve the error regarding unexpected positional arguments. Let me know if it works now!

You

Traceback (most recent call last): File “/project1/Fluid_Rig/script1_callbacks”, line 19 td.tdError: Call contains unexpected positional arguments: Value:(0.0, 0.5) Type:<class ‘tuple’>. python >>>

ChatGPT

It seems that the sample() function is still receiving the values in a way it doesn’t expect. The issue is that in TouchDesigner, when working with TOPs, the sampling might require slightly different handling, especially when working with color data.

We will approach this differently by using a TOP to CHOP to extract the color data from the Ramp TOP and then use the CHOP data to drive the Constant TOPs. This method is more robust and avoids issues with sample().

Here’s a new approach using Python, but this time we’ll handle it using a TOP to CHOP:

Steps for the New Approach

1. Add a TOP to CHOP Node:

   • Connect the ramp5 TOP to a TOP to CHOP node.
   • In the TOP to CHOP parameters, set the resolution to 5 (width 5, height 1) so you sample 5 pixels evenly across the ramp.

2. Python Script to Set Colors Dynamically: Here’s the Python script that will now fetch color values from the TOP to CHOP and apply them to the constant TOPs.

Python Script for Script TOP:

# Get references to the TOP to CHOP node
top_to_chop = op('toptochop1')  # Assume you named the TOP to CHOP node 'toptochop1'

# Get references to the Constant TOPs
constant_tops = [
    op('constant8'),
    op('constant9'),
    op('constant10'),
    op('constant11'),
    op('constant12')
]

# Loop through each constant TOP and set their color values
for i in range(5):  # We have 5 colors to extract from the CHOP
    # Fetch RGBA values from the TOP to CHOP (assuming channels are named 'r', 'g', 'b', 'a')
    r = top_to_chop['chan1r'][i]  # Red channel for ith pixel
    g = top_to_chop['chan1g'][i]  # Green channel for ith pixel
    b = top_to_chop['chan1b'][i]  # Blue channel for ith pixel
    a = top_to_chop['chan1a'][i]  # Alpha channel for ith pixel

    # Set the corresponding Constant TOP's color
    constant_tops[i].par.colorr = r
    constant_tops[i].par.colorg = g
    constant_tops[i].par.colorb = b
    constant_tops[i].par.colora = a

Explanation:

• TOP to CHOP: Converts the Ramp TOP into CHOP channels, so we can access individual pixel color values as CHOP data.
• Loop through 5 positions: We are extracting the colors from 5 positions on the ramp (using TOP to CHOP), and each position provides RGBA values. These values are then assigned to the Constant TOPs.

Instructions:

1. Connect your ramp5 TOP to the TOP to CHOP.
   • Make sure the resolution in the TOP to CHOP is set to 5 (so it samples 5 evenly spaced colors along the ramp).
2. Add the Script TOP and place the script inside it.
   • Ensure that the TOP to CHOP is named correctly (as per the script, it’s toptochop1).
3. Make sure the constant TOPs are named correctly (constant8 to constant12).

With this approach, you’ll have dynamic color updates as the ramp changes. This method avoids issues with the sample() function and uses TOP to CHOP to reliably extract color data.

Let me know how this works out for you!

You

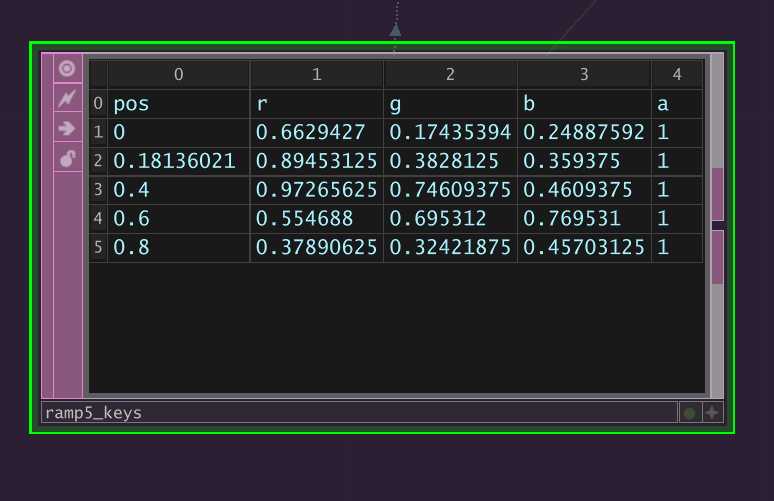

Okay lets try something different. I now have a table dat I need each of these rows to drive the value of a constant top. Write a new script that assigns these values to 5 constants

ChatGPT

Great! Now that you’re working with a Table DAT to store the colors, we’ll use the table’s values to assign colors to the Constant TOPs dynamically.

Assuming the table is called 'ramp5_keys' and the rows in the table represent color values for the constants, here’s a script that reads the table and applies the RGBA values to five different Constant TOPs (constant8, constant9, constant10, constant11, and constant12).

Python Script for Script TOP:

# Get reference to the table DAT
table_dat = op('ramp5_keys')

# Get references to the Constant TOPs
constant_tops = [
    op('constant8'),
    op('constant9'),
    op('constant10'),
    op('constant11'),
    op('constant12')
]

# Loop through each row in the table and set color to each constant
for i in range(5):  # Loop through the first 5 rows of the table (index starts at 1)
    # Get RGBA values from the table (assuming r, g, b, a are in columns 1, 2, 3, and 4)
    r = float(table_dat[i+1, 1])  # Column 1 for red
    g = float(table_dat[i+1, 2])  # Column 2 for green
    b = float(table_dat[i+1, 3])  # Column 3 for blue
    a = float(table_dat[i+1, 4])  # Column 4 for alpha

    # Set the corresponding Constant TOP's color
    constant_tops[i].par.colorr = r
    constant_tops[i].par.colorg = g
    constant_tops[i].par.colorb = b
    constant_tops[i].par.colora = a

Explanation:

• op('ramp5_keys'): This gets the reference to the table DAT named 'ramp5_keys'.
• Loop through rows 1-5: The table’s first row is usually headers, so we skip it and start from the second row (index 1).
• Extract RGBA values: For each row, we grab the red (r), green (g), blue (b), and alpha (a) values from columns 1, 2, 3, and 4 respectively.
• Assign to Constant TOPs: The extracted values are assigned to each corresponding constant.

How to Set It Up:

1. Ensure the table is named 'ramp5_keys'.
2. Ensure your Constant TOPs are named 'constant8', 'constant9', 'constant10', 'constant11', and 'constant12'.
3. Add a Script TOP and paste this script into it.
4. Run the script, and it will dynamically set the colors of the Constant TOPs based on the values from the table.

Let me know how this works for you!

You

Traceback (most recent call last): File “/project1/Fluid_Rig/script1_callbacks”, line 25 AttributeError: ‘td.ParCollection’ object has no attribute ‘colora’ python >>>

ChatGPT

The error you’re encountering occurs because Constant TOPs in TouchDesigner don’t have a direct .colora parameter (alpha). Instead, the Constant TOP uses a single color parameter for RGB values (colorr, colorg, colorb), but the alpha channel is usually part of the image’s overall transparency rather than a separate color parameter.

To adjust the alpha channel, you typically modify the opacity parameter for a Constant TOP.

Here’s the updated Python script that sets RGB values and the alpha (opacity) value correctly:

Updated Python Script:

# Get reference to the table DAT
table_dat = op('ramp5_keys')

# Get references to the Constant TOPs
constant_tops = [
    op('constant8'),
    op('constant9'),
    op('constant10'),
    op('constant11'),
    op('constant12')
]

# Loop through each row in the table and set color to each constant
for i in range(5):  # Loop through the first 5 rows of the table (index starts at 1)
    # Get RGBA values from the table (assuming r, g, b, a are in columns 1, 2, 3, and 4)
    r = float(table_dat[i+1, 1])  # Column 1 for red
    g = float(table_dat[i+1, 2])  # Column 2 for green
    b = float(table_dat[i+1, 3])  # Column 3 for blue
    a = float(table_dat[i+1, 4])  # Column 4 for alpha

    # Set the corresponding Constant TOP's color (RGB)
    constant_tops[i].par.colorr = r
    constant_tops[i].par.colorg = g
    constant_tops[i].par.colorb = b

    # Set the opacity/alpha (usually in the form of the 'opacity' parameter)
    constant_tops[i].par.opacity = a

Changes:

• Removed .colora: Constant TOPs use an opacity parameter to control alpha.
• Set opacity: We now set the opacity parameter for the alpha value.

Explanation:

• colorr, colorg, colorb: These parameters set the RGB values of the Constant TOP.
• opacity: This parameter controls the alpha (transparency) of the constant.

This should now properly set both the colors and opacity of your Constant TOPs. Let me know if this works as expected!

You

Traceback (most recent call last): File “/project1/Fluid_Rig/script1_callbacks”, line 27 AttributeError: ‘td.ParCollection’ object has no attribute ‘opacity’ python >>>

We dont need to worry about the alpha value because it will always be 1

ChatGPT

Thank you for the clarification! Since you don’t need to worry about the alpha value, we can simply omit the handling of the alpha channel and focus on assigning just the RGB values to the Constant TOPs.

Here’s the simplified Python script without the alpha value:

Updated Python Script (Without Alpha):

# Get reference to the table DAT
table_dat = op('ramp5_keys')

# Get references to the Constant TOPs
constant_tops = [
    op('constant8'),
    op('constant9'),
    op('constant10'),
    op('constant11'),
    op('constant12')
]

# Loop through each row in the table and set color to each constant
for i in range(5):  # Loop through the first 5 rows of the table (index starts at 1)
    # Get RGB values from the table (assuming r, g, b are in columns 1, 2, and 3)
    r = float(table_dat[i+1, 1])  # Column 1 for red
    g = float(table_dat[i+1, 2])  # Column 2 for green
    b = float(table_dat[i+1, 3])  # Column 3 for blue

    # Set the corresponding Constant TOP's color (RGB)
    constant_tops[i].par.colorr = r
    constant_tops[i].par.colorg = g
    constant_tops[i].par.colorb = b

Explanation:

• The script now only extracts the red (r), green (g), and blue (b) values from the table and assigns them to the colorr, colorg, and colorb parameters of the respective Constant TOPs.
• The alpha value is omitted since it will always be 1, as you mentioned.

This should now work without any issues related to alpha or opacity, and it will correctly set the RGB values of the Constant TOPs from your table.

Let me know if this works as expected!
