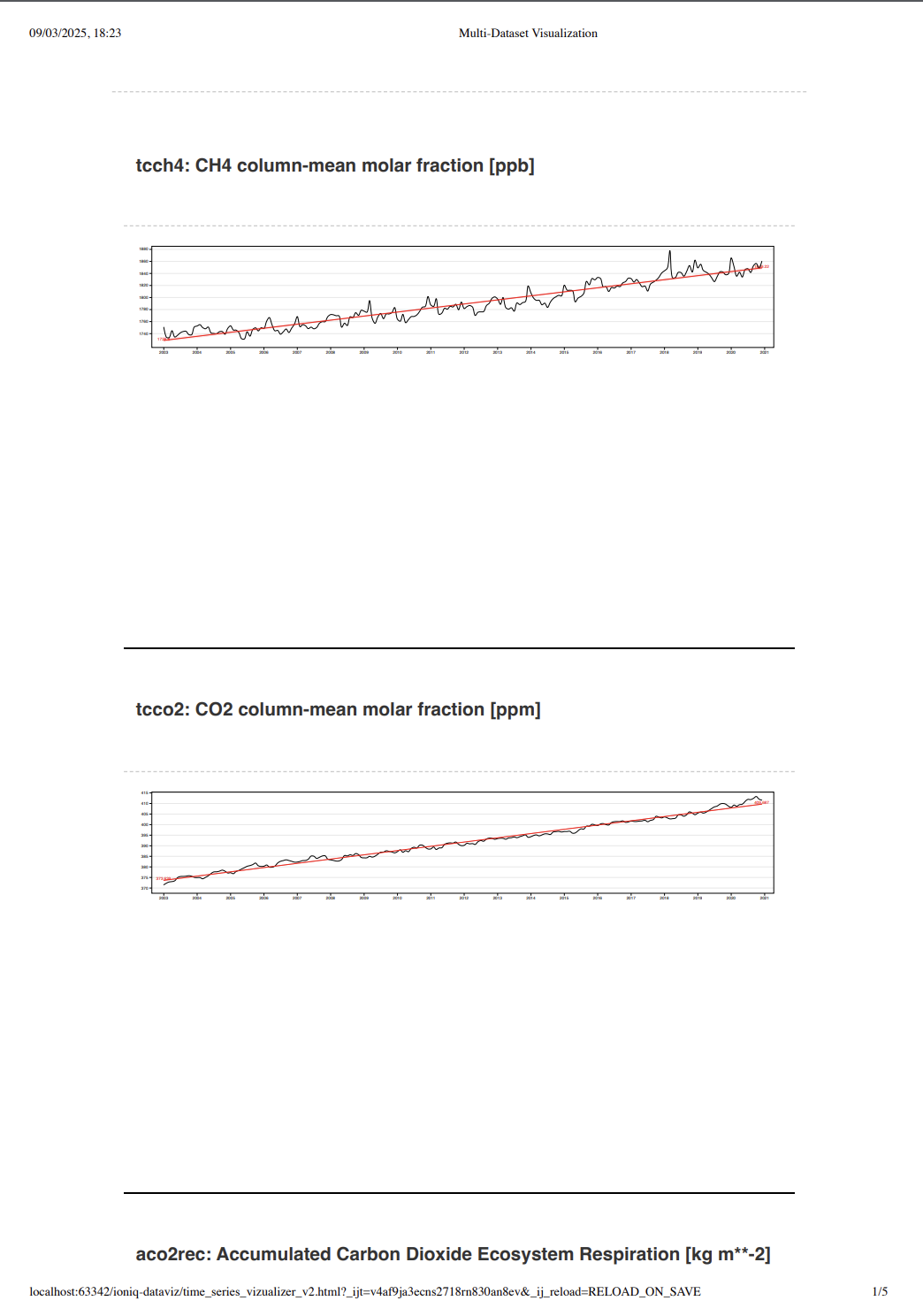

When I print these charts with Safari’s Export As PDF, I only get a single page, with 2 charts.

it seems that every other chart beloew is omitted.

when i tree to print, each chart area is stretched to cover a single page.

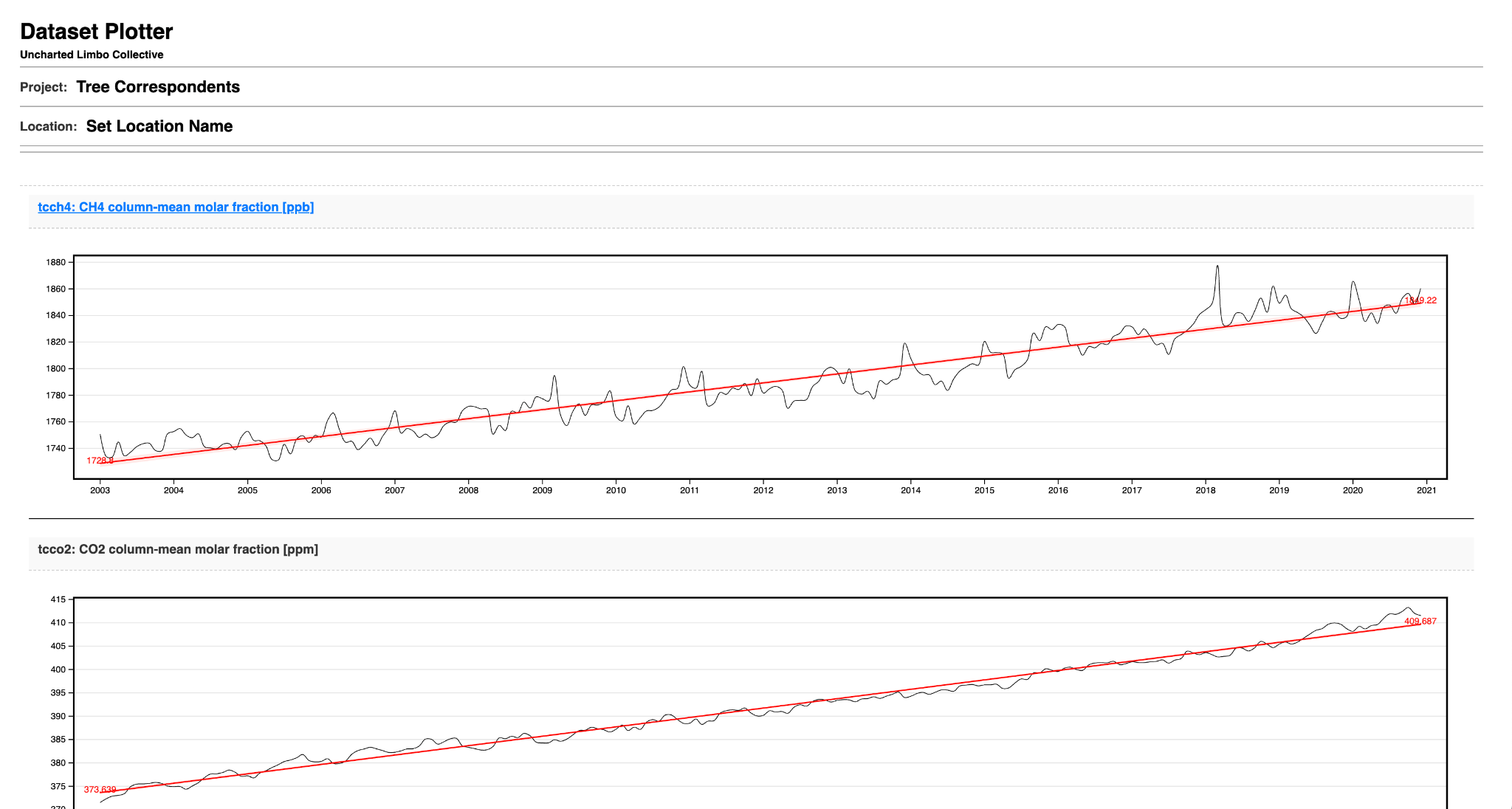

I want to ensure that exactly what i see on the page is what is printed

Multi-Dataset Visualization

#fileInputContainer {
    text-align: center;
}

h1, h2, h3, h4, h5, h6 {
    margin: 5px 0;
}

hr {
    border: 0.5px solid rgba(0, 0, 0, 0.4);
}

body {
    font-size: 12px;
}

.plot-container {
    border-bottom: 1px solid black;
    padding: 0;
    background-color: #f9f9f9;
    margin-bottom: 15px;
}

h3 {
    color: #333;
    margin: 0;
    padding: 5px 0;
}

h3:hover {
    color: #007BFF;
    text-decoration: underline;
}

.chart-area {
    min-height: 300px;
    margin-top: 10px;
    border-top: 1px dashed #ccc;
    padding: 10px;
    background-color: white;
}

.drag-zone {
    transition: border-color 0.2s ease;
    cursor: pointer;
}

.drag-zone:hover {
    border-color: #007BFF;
    background-color: #f9f9f9;
}

#chartContainer {
    overflow-y: auto;
}

@media print {
    body {
        font-size: 10pt;
        margin: 10mm;
    }

    /*h1, h2, h3 {*/
    /*    color: black;*/
    /*    page-break-after: avoid;*/
    /*}*/

    .plot-container,
    .chart-area {
        page-break-inside: avoid;
        box-shadow: none;
        margin: 10mm 0;
    }

    .drag-zone,
    #fileInputContainer {
        display: none;
    }

    #chartContainer {
        overflow: visible;
    }

    a {
        text-decoration: underline;
        color: blue;
    }
}

@media print {
    html, body {
        height: auto;
        overflow: visible;
    }
}</style>

<div id="fileInputContainer" style="text-align: left; margin-bottom: 20px;">
    <h1>Dataset Plotter</h1>
    <h4>Uncharted Limbo Collective</h4>
    <hr>
    <div style="display: flex; align-items: center;">
        <h3 >Project:</h3>
        <h2 style="margin-left: 10px;">Tree Correspondents</h2>
    </div>
    <hr>
    <div id="locationContainer" style="display: flex; align-items: center;">
        <h3 id="locationLabel">Location:</h3>
        <h2 id="locationName" style="cursor: pointer; margin-left: 10px;">Set Location Name</h2>
    </div>
    <hr>

    <hr>

</div>

<div id="chartContainer" style="height: 100%"></div>

This is a common issue with Safari’s handling of print styles when using flex layouts and explicit heights. In your case, the combination of the flex container with a fixed height (100vh) and the print-specific rules (like page-break-inside: avoid) is causing each chart area to be treated as if it should fill a whole page. Here are a few suggestions to get the printed output to match what you see on the screen:

1. Override Fixed Heights for Print

Since the main container uses height: 100vh (and possibly other fixed heights), override those in your print stylesheet so that elements can flow naturally. For example, add:

@media print {
  html, body, #chartContainer, .plot-container {
    height: auto;
  }
}

2. Adjust Page Break Properties

The rule page-break-inside: avoid can force entire containers to stick together, sometimes causing unexpected page breaks or stretching. You might try removing or modifying this rule:

@media print {
  .plot-container, .chart-area {
    /* Either remove or change to auto */
    page-break-inside: auto;
    margin: 10mm 0;
  }
}

3. Remove/Modify Flexbox Properties if Needed

Flexbox can sometimes interfere with print layouts. If possible, consider removing or overriding flex-related properties for print:

@media print {
  div[style*="display: flex"] {
    display: block !important;
  }
}

4. Verify Overflow Settings

Ensure that containers aren’t set to hide overflow on print. You already set overflow: visible for some elements, but double-check that no container is inadvertently clipping content.

5. Use @page Rule for More Control

You can also specify page margins using the @page rule:

@page {
  margin: 10mm;
}

Summary

Safari’s PDF export can behave unexpectedly when print styles force each element to be a “page.” Overriding the fixed heights and modifying the page-break and flexbox rules should allow the page to print as it appears on screen. You may need to tweak these suggestions to fit your exact layout, but removing the constraints that force each chart area into its own page is the key.

Give these changes a try, and if you still experience issues, consider testing in a different browser’s print-to-PDF functionality to help narrow down whether it’s a Safari-specific quirk.

Below is a revised version of your CSS that overrides the flex layout and fixed heights during printing, and removes the forced page breaks. This should help Safari print exactly what you see on screen without stretching each chart to a single page:

* {
    font-family: sans-serif;
}

#fileInputContainer {
    text-align: center;
}

h1, h2, h3, h4, h5, h6 {
    margin: 5px 0;
}

hr {
    border: 0.5px solid rgba(0, 0, 0, 0.4);
}

body {
    font-size: 12px;
}

.plot-container {
    border-bottom: 1px solid black;
    padding: 0;
    background-color: #f9f9f9;
    margin-bottom: 15px;
}

h3 {
    color: #333;
    margin: 0;
    padding: 5px 0;
}

h3:hover {
    color: #007BFF;
    text-decoration: underline;
}

.chart-area {
    min-height: 300px;
    margin-top: 10px;
    border-top: 1px dashed #ccc;
    padding: 10px;
    background-color: white;
}

.drag-zone {
    transition: border-color 0.2s ease;
    cursor: pointer;
}

.drag-zone:hover {
    border-color: #007BFF;
    background-color: #f9f9f9;
}

#chartContainer {
    overflow-y: auto;
}

/* --- Print Styles --- */
@media print {
    /* Remove fixed heights so the layout flows naturally */
    html, body, #chartContainer, .plot-container {
        height: auto !important;
    }

    body {
        font-size: 10pt;
        margin: 10mm;
    }

    /* Override flex display to avoid stretching issues */
    div[style*="display: flex"] {
        display: block !important;
    }

    /* Allow natural page breaks */
    .plot-container, .chart-area {
        page-break-inside: auto;
        margin: 10mm 0;
        box-shadow: none;
    }

    .drag-zone,
    #fileInputContainer {
        display: none;
    }

    #chartContainer {
        overflow: visible;
    }

    a {
        text-decoration: underline;
        color: blue;
    }
}

/* Optional: Define page margins */
@page {
    margin: 10mm;
}

Explanation

Fixed Heights: The print rules reset heights (html, body, #chartContainer, .plot-container { height: auto !important; }) so that your elements aren’t forced to fill the viewport height.
Flex Layout: The rule targeting elements with inline display: flex forces them to display as block during printing.
Page Breaks: Removing page-break-inside: avoid (setting it to auto) allows content to break naturally between pages.
Overflow: Changing the container overflow to visible ensures all chart content is printed.

Give this revised CSS a try, and it should produce printed output that matches your on-screen layout in Safari’s Export as PDF.

Below is a modified CSS that removes the forced height: 100vh in print, overrides flex layouts, and allows charts to flow naturally onto the page in Safari. The key changes are:

Override inline display: flex; height: 100vh; in print, so the layout doesn’t force each chart onto its own page.
Remove page-break-inside: avoid; (or replace it with auto), so Safari doesn’t keep each container on a separate page.
Ensure all containers are set to height: auto; overflow: visible; for printing.

/* Base styles */
* {
    font-family: sans-serif;
}

#fileInputContainer {
    text-align: center;
}

h1, h2, h3, h4, h5, h6 {
    margin: 5px 0;
}

hr {
    border: 0.5px solid rgba(0, 0, 0, 0.4);
}

body {
    font-size: 12px;
}

.plot-container {
    border-bottom: 1px solid black;
    padding: 0;
    background-color: #f9f9f9;
    margin-bottom: 15px;
}

h3 {
    color: #333;
    margin: 0;
    padding: 5px 0;
}

h3:hover {
    color: #007BFF;
    text-decoration: underline;
}

.chart-area {
    min-height: 300px;
    margin-top: 10px;
    border-top: 1px dashed #ccc;
    padding: 10px;
    background-color: white;
}

.drag-zone {
    transition: border-color 0.2s ease;
    cursor: pointer;
}

.drag-zone:hover {
    border-color: #007BFF;
    background-color: #f9f9f9;
}

#chartContainer {
    overflow-y: auto;
}

/* --- Print Styles --- */
@media print {
    /* Remove fixed heights so layout flows naturally */
    html, body {
        height: auto !important;
        overflow: visible !important;
        margin: 10mm !important; /* Or adjust as needed */
    }

    /* Override any inline flex styling for printing */
    div[style*="display: flex"] {
        display: block !important;
        flex-direction: initial !important;
        height: auto !important;
        margin: 0 !important; /* Removes extra top/bottom margins if needed */
        padding: 0 !important;
    }

    /* Let .plot-container and .chart-area break across pages if needed */
    .plot-container, .chart-area {
        page-break-inside: auto !important;  /* or remove entirely */
        break-inside: auto !important;       /* For modern browsers */
        -webkit-column-break-inside: auto;   /* Safari/Chrome legacy support */
        -webkit-region-break-inside: auto;
        box-shadow: none;
        margin: 10px 0; /* Adjust spacing as needed */
    }

    /* Hide drag/drop and file input on print */
    .drag-zone,
    #fileInputContainer {
        display: none !important;
    }

    /* Ensure container doesn’t clip charts */
    #chartContainer {
        overflow: visible !important;
        height: auto !important;
    }

    a {
        text-decoration: underline;
        color: blue !important;
    }
}

/* Optional: page margins (some Safari versions require @page) */
@page {
    margin: 10mm;
}

Key Points

Override Inline Styles: Because your container uses style="display: flex; flex-direction: column; height: 100vh;" inline, you must override it in @media print using div[style*="display: flex"] { … }.
Allow Page Breaks: Replace or remove page-break-inside: avoid; so Safari won’t keep each .plot-container on a single page.
Remove Fixed Heights: height: auto !important; overflow: visible !important; ensures the charts stack without forcing a new page for each chart.

With these changes, Safari should place multiple charts on the same page (as seen on screen) instead of forcing each chart onto a separate page when printing or exporting to PDF.
