Resolution Mismatch Error

2024-09-02 08:43 UTC gpt-4o Open in ChatGPT ↗

You

I’m working with a stream diffusion setup in touchdesigner, testing out different resolutions and trying to find a good balance of quality to performance. A major issue is that certain resolutions are causing the error “ValueError: cannot reshape array of size 786432 into shape (448,800,3)”, here I’m trying a resolution of 800x450. By comparison a resolution of 640x360 doesnt result in an error

ChatGPT

The error you’re encountering, ValueError: cannot reshape array of size 786432 into shape (448,800,3), suggests that there’s a mismatch between the size of the array and the shape you’re trying to reshape it into.

Explanation:

• Array Size: The size of the array in your case is 786,432 elements.
• Desired Shape: The shape you’re trying to reshape into is (448, 800, 3).

Let’s break this down:

1. Array Size Calculation:

   • The size of the array is typically the product of the width, height, and number of channels (for an image, usually 3 channels for RGB).
   • In your case, you want to reshape it into (448, 800, 3). This would require an array of size 448 * 800 * 3 = 1,075,200 elements.
   • However, your array has only 786,432 elements, which is less than the required 1,075,200.

2. Possible Causes:

   • Resolution Mismatch: The array might have been generated at a different resolution than the one you’re trying to reshape it to.
   • Data Source: The source of your data might be providing frames or data of a different resolution than expected.
   • Downstream Processing: Some process earlier in the pipeline might be altering the data, leading to a mismatch.

3. Comparison to 640x360:

   • For the 640x360 resolution, if you calculate the array size: 640 * 360 * 3 = 691,200 elements, which matches a different (but appropriate) shape.
   • This suggests that when using 640x360, the data aligns correctly with the expected dimensions, hence no error.

Possible Solutions:

1. Check the Input Resolution:

   • Ensure that the data or stream you’re working with is correctly set to the resolution you want (800x450 in this case). Verify the input data dimensions before attempting to reshape.

2. Adjust the Reshape Operation:

   • If the input data cannot be modified, consider adjusting the reshape operation to match the actual dimensions of the incoming data.
   • For example, if you’re receiving data intended for 640x360, reshape it accordingly.

3. Recalculate the Expected Shape:

   • If you need to work with a specific resolution, ensure that your data source is providing the correct number of elements.
   • For 800x450 resolution, the correct shape would be (450, 800, 3), needing 1,080,000 elements. Ensure your data source matches this.

Steps to Debug:

• Print the shape of the data before the reshape operation.
• Check if there’s any processing step that might be altering the resolution unexpectedly.
• Use conditionals to check the size of the data before attempting to reshape, and handle exceptions or mismatches gracefully.

By ensuring that the data size matches the intended resolution, you should be able to avoid this error and find a balance between quality and performance in your TouchDesigner project.

You

My input data is 1920x1080, how should I adjust this to allow for a resolution of 800x450

ChatGPT

To adjust your 1920x1080 input data to a resolution of 800x450, you can follow these steps:

1. Resizing the Input Data:

• You need to scale down your 1920x1080 input data to 800x450. This involves resizing the image while maintaining the aspect ratio (if necessary).
• The easiest way to achieve this is by using a TOP (Texture Operator) in TouchDesigner like a Transform TOP or Resolution TOP to resize your texture to the desired resolution.

2. Reshape Operation:

• After resizing, ensure that the resulting data can be reshaped to (450, 800, 3).

Steps in TouchDesigner:

1. Add a Resolution TOP:

   • Place a Resolution TOP after your input data source (which is 1920x1080).
   • Set the resolution of the Resolution TOP to 800x450.

2. Check the Output:

   • The output of the Resolution TOP should now be an image of size 800x450 pixels.
   • This should match the data size required for your downstream operations and avoid any reshaping errors.

Example Calculation:

• Original Size: 1920 * 1080 * 3 = 6,220,800 elements.
• Target Size: 800 * 450 * 3 = 1,080,000 elements.

After resizing, your data should be correctly reshaped to the desired resolution without encountering the mismatch error.

Code Implementation (if applicable):

If you are doing this in a Python script within TouchDesigner, you can resize the image data as follows:

import numpy as np
import cv2  # If using OpenCV for resizing

# Assuming you have an image array of shape (1080, 1920, 3)
input_data = np.random.rand(1080, 1920, 3)  # Example placeholder for your actual input data

# Resize to 800x450 using OpenCV
resized_data = cv2.resize(input_data, (800, 450))

# Now resized_data has the correct shape (450, 800, 3)

Key Considerations:

• Aspect Ratio: If maintaining the original aspect ratio is important, you may need to adjust the scaling accordingly or consider cropping the image before resizing.
• Interpolation Method: Depending on your use case, you may choose a different interpolation method for resizing (e.g., nearest-neighbor, bilinear, bicubic).

This approach should allow you to downscale your 1920x1080 input to 800x450, resolving the reshaping issue and ensuring that your data is processed correctly in your TouchDesigner setup.

You

ValueError: cannot reshape array of size 786432 into shape (448,800,3)

Tried using a resolution TOP to change my input to 800x450 and got this error

ChatGPT

The error you’re encountering, ValueError: cannot reshape array of size 786432 into shape (448,800,3), suggests there’s still a mismatch between the size of the array after resizing and the expected shape.

Let’s break down the issue and address it:

1. Understanding the Array Size:

• The size of 786,432 elements typically corresponds to an image with the shape: $ \text{Width} \times \text{Height} \times 3 = 786,432 $ If we divide 786,432 by 3 (for the RGB channels), we get 262,144 pixels, which does not correspond to 800x450 (which should have 360,000 pixels).

2. Identifying the Source of the Mismatch:

• The resolution 800x450 with 3 color channels should give you: $ 800 \times 450 \times 3 = 1,080,000 \text{ elements} $
• However, the error shows you’re getting an array of size 786,432, which corresponds to a shape like 512x512 (which is a common power-of-two texture resolution).

3. Possible Causes:

• Resolution TOP Settings: The Resolution TOP may not be correctly resizing to 800x450. Instead, it might be outputting a different resolution, such as 512x512.
• Input Data Issues: Ensure that your input data source is not being altered before reaching the Resolution TOP.

4. Debugging Steps:

• Verify the Actual Output Resolution:

  • Check the resolution of the texture after it passes through the Resolution TOP. You can do this by inspecting the TOP’s parameters or output.

• Force the Correct Resolution:

  • In the Resolution TOP, explicitly set the output resolution to 800x450, ensuring that no scaling mode or other settings override this.

• Check the Process Flow:

  • Ensure that no other TOPs are modifying the resolution between the Resolution TOP and the operation where you’re attempting to reshape the array.

5. Code-Level Adjustment (If applicable):

If you’re working with a Python script within TouchDesigner:

import numpy as np
import cv2  # If OpenCV is available for image processing

# Example input data (this should be your actual image data)
input_data = np.random.rand(1080, 1920, 3)

# Resize to exactly 800x450
resized_data = cv2.resize(input_data, (800, 450))

# Check the shape
print("Resized Data Shape:", resized_data.shape)

# Now you can safely reshape if needed
reshaped_data = resized_data.reshape(450, 800, 3)
print("Reshaped Data Shape:", reshaped_data.shape)

6. Adjusting the Shape Expectation:

• If the shape still doesn’t match, and you expect the data to be reshaped into (450, 800, 3), ensure that the Resolution TOP is the only element modifying the data size.

• If you’re resizing from a non-standard resolution (like 1920x1080), ensure there are no additional adjustments that might alter the final output size.

Conclusion:

The most likely issue is that your Resolution TOP is not producing the expected 800x450 output, either due to incorrect settings or an intermediary process altering the texture size. Double-check the output of the Resolution TOP to confirm it is indeed 800x450. Once this is verified, the reshaping operation should succeed without errors.

You

Its definitely outputting 800x450, 360000 pixels

ChatGPT

Given that your Resolution TOP is correctly outputting an 800x450 resolution (which corresponds to 360,000 pixels), and you’re still encountering the error when attempting to reshape the array, the issue likely lies in the way the data is being handled in your script or environment. Here’s a step-by-step approach to troubleshooting and resolving the issue:

1. Verify the Array Size Before Reshaping:

• Ensure that the data you’re trying to reshape has the correct number of elements (1,080,000 for an 800x450 RGB image).
• You can do this by printing or checking the size of the array immediately before the reshaping step.

print(f"Array size: {array.size}")
print(f"Array shape: {array.shape}")

2. Ensure Proper Reshaping:

• Reshaping should only occur if the array size matches the target shape. For 800x450 resolution with 3 color channels (RGB), your array should have exactly 1,080,000 elements. The correct shape after reshaping should be (450, 800, 3).

if array.size == 1_080_000:
    reshaped_array = array.reshape(450, 800, 3)
else:
    print("Array size does not match the expected number of elements for 800x450 resolution.")

3. Confirm Data Integrity:

• Verify that the data isn’t getting altered or corrupted before the reshape operation. Ensure that the Resolution TOP output is directly connected to the script or node performing the reshaping, with no intermediate steps that might change the data size.

4. Check for Processing Issues:

• If you’re working in an environment where other processes might alter the data (such as cropping, padding, or other adjustments), ensure these operations are not introducing errors or discrepancies in the data size.

5. Handling Edge Cases:

• If you’re absolutely sure the output is 800x450 and still encountering issues, consider adding debug checks to verify the data at each step:

# Assuming 'data' is the output from Resolution TOP
print(f"Expected size: 1,080,000, Actual size: {data.size}")
print(f"Expected shape: (450, 800, 3), Actual shape: {data.shape}")

6. Using Correct Reshape Parameters:

• Ensure you’re using the correct reshape parameters, matching the exact resolution of the output:

reshaped_data = data.reshape((450, 800, 3))

Potential Issues to Watch For:

• Data Channels: Make sure there’s no issue with the number of channels (it should be 3 for RGB). A mismatch here could lead to errors in reshaping.
• Hidden Downstream Changes: Sometimes, settings or nodes further down the pipeline might inadvertently change the resolution or data size. Double-check all connected nodes.

Final Steps:

• If after all checks the issue persists, consider resetting the nodes or re-importing the data. There could be a bug or glitch causing the mismatch.
• If the environment allows, try running a simplified version of the same process to isolate the problem.

By ensuring that the data size and shape are correctly managed throughout the entire pipeline, you should be able to avoid this ValueError and successfully reshape the array to the desired resolution.

You

ValueError: cannot reshape array of size 786432 into shape (720,1280,3)

ChatGPT

The error message ValueError: cannot reshape array of size 786432 into shape (720,1280,3) indicates that you’re trying to reshape an array that has 786,432 elements into a shape that requires 2,764,800 elements. Let’s break down what this means and how to troubleshoot it.

Understanding the Issue

1. Array Size:

   • The array size you have is 786,432 elements.
   • The shape you want to reshape to is (720, 1280, 3), which requires: $ 720 \times 1280 \times 3 = 2,764,800 \text{ elements} $
   • There’s a clear mismatch because 786,432 is much smaller than 2,764,800.

2. Possible Shape for 786,432 Elements:

   • If you divide 786,432 by 3 (for RGB channels), you get 262,144 pixels.
   • If you’re expecting a 2D image, this corresponds to a resolution of: $ \sqrt{262,144} = 512 \times 512 \text{ pixels} $

Potential Causes

• Resolution Mismatch: It seems that the data you’re working with is likely still in a different resolution (e.g., 512x512) rather than the 720x1280 resolution you’re attempting to reshape it to.
• Incorrect Data Source: The data may not be coming from the source you expect, or the resizing operation you think is happening isn’t actually being applied.

Steps to Resolve the Issue

1. Verify the Actual Data Resolution:

   • Before attempting to reshape, check the shape of the array to confirm its resolution:

   print(f"Array shape before reshaping: {array.shape}")

   This will tell you the current resolution of the data you’re dealing with.

2. Ensure Proper Resizing:

   • If you need to resize the data to match 720x1280, ensure that the resizing step is correctly applied and that the output is indeed in the required resolution.
   • In TouchDesigner, make sure the Resolution TOP is correctly configured and applied to the input data.

3. Handle the Reshaping Operation:

   • Only attempt to reshape the array if it has the correct number of elements for the target resolution.
   • For a resolution of 720x1280 with 3 channels, the array should have 2,764,800 elements.

4. Adjust the Data Handling Process:

   • If you’re working with a fixed array size (e.g., 512x512), and you need it to be 720x1280, you might need to either resize or pad the data to fit the desired shape.

Example Code

If your goal is to work with a 720x1280 resolution:

import numpy as np
import cv2

# Example input data, assuming this is where the issue arises
input_data = np.random.rand(512, 512, 3)  # This should be your actual input data

# Resize to 720x1280 if required
resized_data = cv2.resize(input_data, (1280, 720))

# Check the size and shape before reshaping
print(f"Resized Data Shape: {resized_data.shape}")
print(f"Expected Size: {720 * 1280 * 3}, Actual Size: {resized_data.size}")

# Now you can reshape safely if the size matches
if resized_data.size == 720 * 1280 * 3:
    reshaped_data = resized_data.reshape((720, 1280, 3))
    print(f"Reshaped Data Shape: {reshaped_data.shape}")
else:
    print("Error: Resized data does not match the expected shape for 720x1280 resolution.")

Final Thoughts

This issue is most likely due to a resolution mismatch between what you expect and what the array actually contains. By carefully tracing the data flow and ensuring that the resizing step is correctly applied, you should be able to resolve this issue. If the array is correctly resized, reshaping it should work without errors.

You

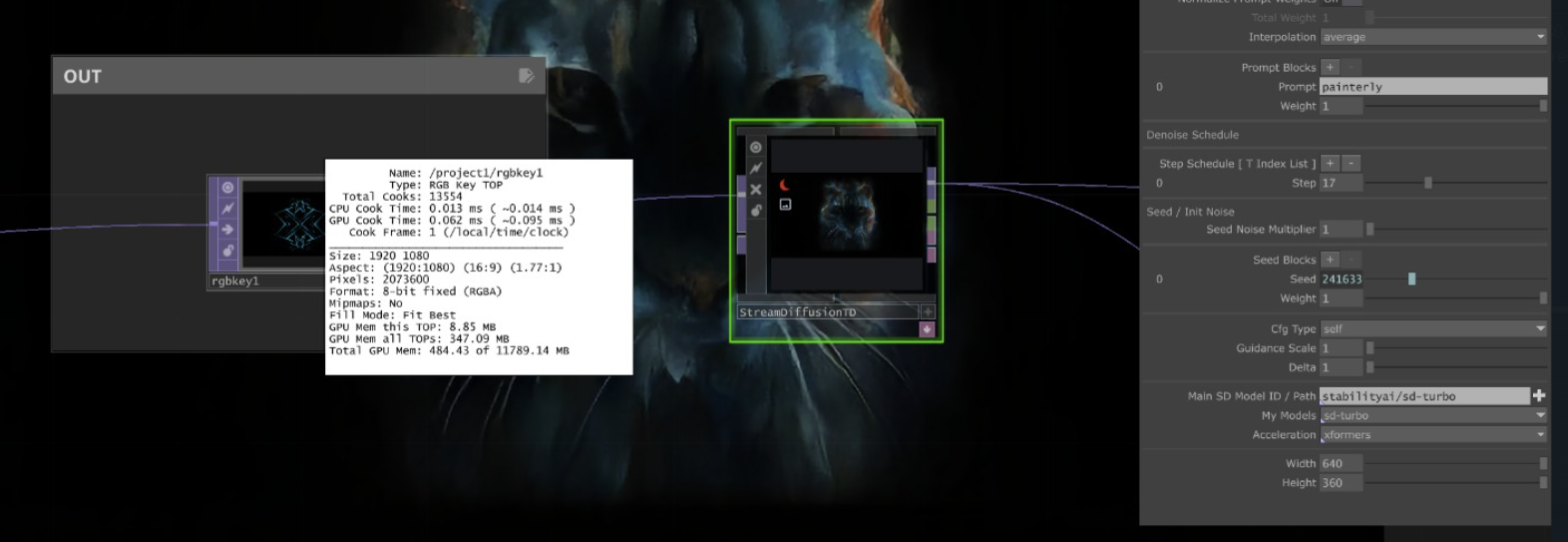

So you can see the setup here. I’m inputting a video with a resolution of 1920x1080 into the Stream Diffusion TOP, the width and height paramters of which are set to 640x360. This works fine. If I increase the width and height to 1280 x 720 it throws the error

ChatGPT

Based on the setup you’ve described and the screenshot you’ve provided, it looks like you’re feeding a 1920x1080 video into a Stream Diffusion TOP in TouchDesigner, and while it works at 640x360, increasing the resolution to 1280x720 causes an error.

Understanding the Issue

• Resolution Settings:
  • The Stream Diffusion TOP is set to 640x360 (which works fine), but when you increase it to 1280x720, it throws an error.
• Array Size and Reshaping Error:
  • The reshaping error occurs because the input data’s array size doesn’t match what the Stream Diffusion TOP expects when you change the resolution.

Why Does This Happen?

1. Input Resolution Mismatch:

   • The Stream Diffusion TOP expects a specific array size based on the width and height you set. When you change the resolution to 1280x720, the expected array size increases significantly, but the actual input data might not be matching this expectation, causing the error.

2. Memory or Processing Limitation:

   • Another potential issue could be a memory or GPU processing limitation. Increasing the resolution from 640x360 to 1280x720 significantly increases the number of pixels, which requires more processing power and memory.

Troubleshooting Steps

1. Check the Output of the Stream Diffusion TOP:

   • After changing the resolution to 1280x720, verify the output resolution of the Stream Diffusion TOP using a Resolution TOP or Info CHOP to ensure it’s processing at the correct resolution.

2. Verify Data Handling:

   • Ensure that no unexpected data processing or transformation happens before or within the Stream Diffusion TOP that might cause a mismatch between expected and actual array sizes.

3. Test Incremental Resolution Increases:

   • Try gradually increasing the resolution in smaller steps, such as going from 640x360 to 800x450, then to 1024x576, and finally to 1280x720. This can help identify the point at which the error occurs and whether it’s related to processing power or a specific resolution.

4. Check GPU and Memory Usage:

   • Monitor your GPU memory usage while increasing the resolution. If the GPU memory is running out, it could explain why the higher resolution causes errors.

5. Update or Reconfigure the Stream Diffusion TOP:

   • There might be specific settings within the Stream Diffusion TOP or the underlying model that need to be adjusted for higher resolutions. Check the documentation or experiment with different settings.

Final Thoughts

• The error likely stems from a mismatch between the input data’s array size and what the Stream Diffusion TOP expects, especially at higher resolutions like 1280x720. By carefully monitoring and adjusting the resolution and ensuring the data flow is consistent with the expected array size, you should be able to avoid the error.

If you still encounter the issue after these steps, consider testing with different input resolutions and simplifying the pipeline to isolate the cause further.
