Reading a comma-separated text file in C++ where the data is organized in groups of four (x and y coordinates, size, and color in hex format) can be accomplished by using file I/O operations along with string parsing. Here’s a step-by-step guide to do this:

Step 1: Include Necessary Headers

You’ll need to include headers for file I/O and string manipulation:

#include <iostream>
#include <fstream>
#include <sstream>
#include <string>

Step 2: Define a Structure

Define a structure to hold a group of data:

struct Data {
    int x, y;
    int size;
    std::string color;
};

Step 3: Open the File

Open the CSV file for reading:

std::ifstream file("yourfile.csv");

Step 4: Read and Parse the File

Read each line from the file, split it by commas, and parse each group:

std::string line;
while (std::getline(file, line)) {
    std::istringstream iss(line);
    std::string token;
    Data data;

    // Get x coordinate
    std::getline(iss, token, ',');
    data.x = std::stoi(token);

    // Get y coordinate
    std::getline(iss, token, ',');
    data.y = std::stoi(token);

    // Get size
    std::getline(iss, token, ',');
    data.size = std::stoi(token);

    // Get color
    std::getline(iss, token, ',');
    data.color = token;

    // Now you can process 'data' as needed
}

Step 5: Close the File

After reading and processing the data, close the file:

file.close();

Important Notes

Make sure to handle exceptions and errors, like file not opening or parsing errors.
If the CSV file contains header rows or different formats, adjust the parsing logic accordingly.
The std::stoi function is used for converting string to integer. Ensure that your x, y, and size values are indeed integers or use the appropriate conversion function.
The color is stored as a string. You might need to convert it from hex to another format, depending on how you plan to use it.

This is a basic example. You might need to adapt or expand it depending on the specifics of your CSV file and the requirements of your project.

If you receive the entire file content as one big string, you can still parse it in a similar manner, with some adjustments. Since your data is in groups of four (x and y coordinates, size, and color in hex format), you can split this string first by lines and then by commas within each line.

Here’s how you can do it:

Step 1: Include Necessary Headers

Include the headers for string manipulation:

#include <iostream>
#include <sstream>
#include <string>
#include <vector>

Step 2: Define a Structure

Define a structure to hold each group of data:

struct Data {
    int x, y;
    int size;
    std::string color;
};

Step 3: Parse the String

Assuming you have the entire file content in a std::string named fileContent, you can parse it as follows:

std::istringstream fileStream(fileContent);
std::string line;
std::vector<Data> dataList;

while (std::getline(fileStream, line)) {
    std::istringstream lineStream(line);
    std::string token;
    Data data;

    // Get x coordinate
    std::getline(lineStream, token, ',');
    data.x = std::stoi(token);

    // Get y coordinate
    std::getline(lineStream, token, ',');
    data.y = std::stoi(token);

    // Get size
    std::getline(lineStream, token, ',');
    data.size = std::stoi(token);

    // Get color
    std::getline(lineStream, token, ',');
    data.color = token;

    dataList.push_back(data);
}

Step 4: Process the Data

Now, dataList contains all your parsed data, and you can process it as needed.

Important Notes

This code assumes that each line in your big string represents one set of data (x, y, size, color).
Error handling (e.g., for invalid format or stoi conversion errors) should be added based on your specific requirements.
The parsing logic might need to be adjusted if your data format varies.

This approach should work well for parsing CSV-like data from a large string in C++.

If your file is one long string with no distinct line breaks and the data is grouped in sets of four (x and y coordinates, size, and color in hex format), you’ll need to parse the string by repeatedly extracting each group of four values, separated by commas. Here’s a revised approach for this scenario:

Step 1: Include Necessary Headers

You still need headers for string manipulation:

#include <iostream>
#include <sstream>
#include <string>
#include <vector>

Step 2: Define a Structure

Create a structure to store each data group:

struct Data {
    int x, y;
    int size;
    std::string color;
};

Step 3: Parse the String

Given the entire file content in a single std::string named fileContent, parse it as follows:

std::istringstream iss(fileContent);
std::string token;
std::vector<Data> dataList;

while (std::getline(iss, token, ',')) {
    Data data;

    // Parse x coordinate
    data.x = std::stoi(token);

    // Parse y coordinate
    if (!std::getline(iss, token, ',')) break;
    data.y = std::stoi(token);

    // Parse size
    if (!std::getline(iss, token, ',')) break;
    data.size = std::stoi(token);

    // Parse color
    if (!std::getline(iss, token, ',')) break;
    data.color = token;

    dataList.push_back(data);

    // Check for the end of string or if the next character is a delimiter
    if (iss.peek() == ',' || iss.peek() == EOF) {
        break;
    }
}

Step 4: Handle the Data

Now, dataList contains all the parsed data, which you can use as needed.

Important Notes

The code above assumes that your data is correctly formatted and each group of four values is consistently separated by commas.
Add error handling for cases like invalid data format or conversion errors with std::stoi.
If the size of the data groups is consistent but the number of groups is not known in advance, this loop will automatically stop parsing when it reaches the end of the string.
If your data has a different structure or additional complexities, you may need to adjust the parsing logic.

This approach should effectively parse your string into structured data according to your specified format.

Yes, you can certainly pass a string as an argument in a C++ method. In C++, std::string is a commonly used data type for representing and manipulating strings, and it can be passed to functions or methods just like other data types.

There are generally three ways to pass a string to a function or method:

Pass by value: This creates a copy of the string for use within the function. It’s simple but can be inefficient for large strings, as it involves copying the entire string.
```
void myFunction(std::string str) {
    // Use 'str' here
}
```
Pass by reference: This avoids copying the string and allows the function to modify the original string.
```
void myFunction(std::string &str) {
    // Use and possibly modify 'str' here
}
```
Pass by const reference: This avoids copying the string while preventing the function from modifying it, combining efficiency with safety.
```
void myFunction(const std::string &str) {
    // Use 'str' here, but cannot modify it
}
```

Here’s a simple example to illustrate passing a string to a method:

#include <iostream>
#include <string>

class MyClass {
public:
    void printString(const std::string &str) {
        std::cout << str << std::endl;
    }
};

int main() {
    MyClass myObject;
    std::string myString = "Hello, World!";
    myObject.printString(myString);

    return 0;
}

In this example, printString is a method of MyClass that takes a string as a constant reference. When you call this method from main, you can pass a std::string variable to it. This approach is efficient and is generally preferred in C++ when dealing with strings that don’t need to be modified within the function.

In VBA (Visual Basic for Applications) for Excel, if you want to retrieve all cells with data from a specific row where the values are consecutive with no gaps, you can use a range object to refer to that row and then loop through the cells until you find an empty one. Here’s a basic example of how you might do this:

Step 1: Open the VBA Editor

First, open the VBA editor in Excel by pressing Alt + F11.

Step 2: Insert a New Module

Insert a new module by right-clicking on any of the items in the Project Explorer, selecting Insert, and then Module.

Step 3: Write the VBA Code

Now, you can write a subroutine to get all cells with data from a specific row. Here’s an example:

Sub GetAllDataFromRow()
    Dim ws As Worksheet
    Set ws = ThisWorkbook.Sheets("Sheet1") ' Change to your sheet name

    Dim targetRow As Integer
    targetRow = 2 ' Change to your target row

    Dim cell As Range
    Dim lastColumn As Integer
    lastColumn = ws.Cells(targetRow, Columns.Count).End(xlToLeft).Column

    ' Loop through each cell in the row until the last column with data
    For i = 1 To lastColumn
        Set cell = ws.Cells(targetRow, i)
        If Not IsEmpty(cell.Value) Then
            Debug.Print cell.Value ' Print the value to the Immediate Window
            ' You can also add your logic here
        End If
    Next i
End Sub

Step 4: Run the Code

You can run this code by pressing F5 while the cursor is inside the subroutine or by attaching the subroutine to a button in your Excel workbook.

Explanation

The targetRow variable should be set to the row number you want to check.
The lastColumn is determined by finding the last used cell in the row and then looping from the first column to this column.
The Debug.Print statement outputs the value of each cell to the Immediate Window in the VBA editor. You can replace this with whatever logic you need, such as storing values in an array or performing calculations.

Remember that Excel VBA indexing starts at 1, not 0, so the first row and the first column are numbered as 1. Also, adjust the sheet name (Sheet1 in this example) to match the name of your sheet.

You’re absolutely right. If your goal is simply to gather all the values from a specific row into an array, and since the values are consecutive with no gaps, there’s no need to loop through each cell. Instead, you can directly assign the range of cells to an array. This method is more efficient and straightforward.

Here’s how you can do it in VBA:

Step 1: Open VBA Editor

Open the VBA editor in Excel by pressing Alt + F11.

Step 2: Insert a New Module

Insert a new module by right-clicking on any of the items in the Project Explorer, selecting Insert, and then Module.

Step 3: Write the VBA Code

Write a subroutine that assigns all values from a row to an array:

Sub GetRowDataIntoArray()
    Dim ws As Worksheet
    Set ws = ThisWorkbook.Sheets("Sheet1") ' Change to your sheet name

    Dim targetRow As Integer
    targetRow = 2 ' Change to your target row number

    Dim lastColumn As Integer
    lastColumn = ws.Cells(targetRow, Columns.Count).End(xlToLeft).Column

    Dim myArray() As Variant
    If lastColumn > 1 Then
        myArray = ws.Range(ws.Cells(targetRow, 1), ws.Cells(targetRow, lastColumn)).Value
    Else
        ReDim myArray(1 To 1, 1 To 1)
        myArray(1, 1) = ws.Cells(targetRow, 1).Value
    End If

    ' Example: Print the array values to the Immediate Window
    Dim i As Integer
    For i = LBound(myArray, 2) To UBound(myArray, 2)
        Debug.Print myArray(1, i)
    Next i
End Sub

Step 4: Run the Code

Run this code by pressing F5 while the cursor is inside the subroutine.

Explanation

This code first finds the last column with data in your specified row.
It then creates an array (myArray) and assigns the values of the entire row up to the last column to this array.
The range of values is directly assigned to the array, which is much more efficient than looping through each cell.
An If condition is used to handle the special case where there is only one cell with data in the row.
The example includes a loop to print the values to the Immediate Window for demonstration. You can replace or remove this part according to your needs.

Remember to adjust the sheet name (Sheet1 in this example) and the row number (targetRow) to your specific requirements.

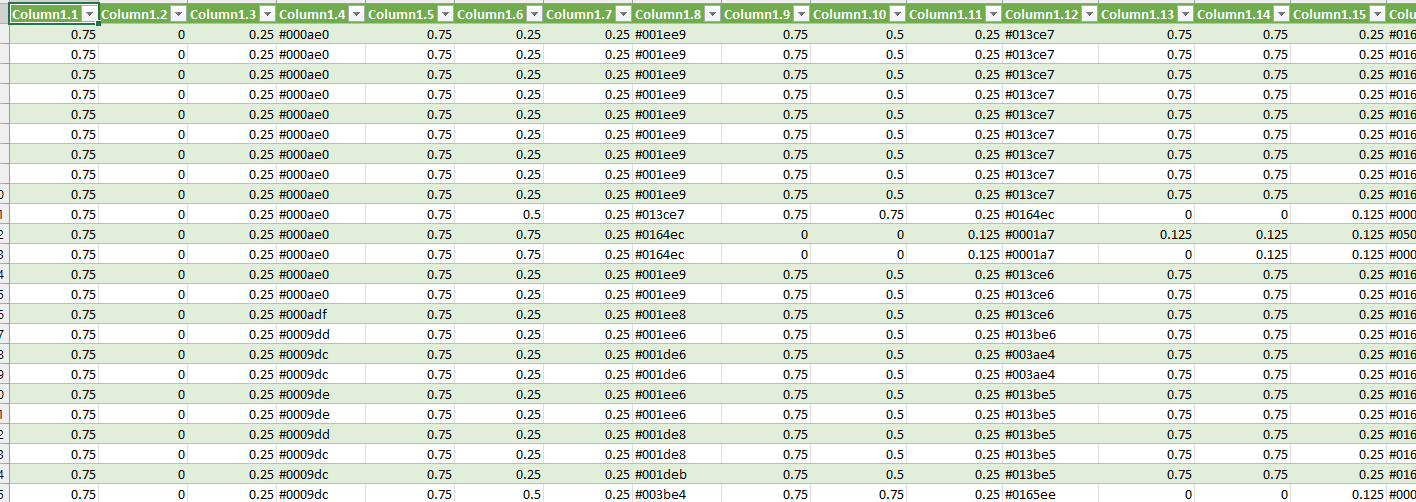

To translate the data from your Excel row into colored regions in an Excel grid, you would need to write a VBA script to do the following:

Read the Data: Extract the values for the coordinates, size, and color from each group of four cells across the row.
Calculate the Region: Based on the X, Y coordinates and the size, calculate which cells in the 64x64 grid will be covered by each region.
Apply the Color: Convert the hex color value to an RGB value that Excel can use and apply it to the calculated region.

Here’s a VBA procedure that outlines how you might do this:

Sub ColorRegions()
    Dim ws As Worksheet
    Set ws = ThisWorkbook.Sheets("Sheet1")  ' Change to your actual sheet name

    Dim gridWidth As Integer, gridHeight As Integer
    gridWidth = 64
    gridHeight = 64

    Dim targetRow As Integer
    targetRow = 2  ' Change to the row with your data

    Dim lastColumn As Long
    lastColumn = ws.Cells(targetRow, ws.Columns.Count).End(xlToLeft).Column

    Dim i As Long
    For i = 1 To lastColumn Step 4
        Dim x As Double, y As Double, size As Double
        Dim colorHex As String
        x = ws.Cells(targetRow, i).Value
        y = ws.Cells(targetRow, i + 1).Value
        size = ws.Cells(targetRow, i + 2).Value
        colorHex = ws.Cells(targetRow, i + 3).Value

        ' Calculate top-left cell based on X, Y, and Size
        Dim topLeftCellRow As Long, topLeftCellColumn As Long
        topLeftCellRow = Int(y * gridHeight) + 1
        topLeftCellColumn = Int(x * gridWidth) + 1

        ' Calculate bottom-right cell based on Size
        Dim bottomRightCellRow As Long, bottomRightCellColumn As Long
        bottomRightCellRow = topLeftCellRow + Int(size * gridHeight) - 1
        bottomRightCellColumn = topLeftCellColumn + Int(size * gridWidth) - 1

        ' Apply color to region
        Dim colorRGB As Long
        colorRGB = HexToRGB(colorHex)
        With ws.Range(ws.Cells(topLeftCellRow, topLeftCellColumn), ws.Cells(bottomRightCellRow, bottomRightCellColumn))
            .Interior.Color = colorRGB
        End With
    Next i
End Sub

Function HexToRGB(hexColor As String) As Long
    ' Remove the hash at the beginning if it's there
    If Left(hexColor, 1) = "#" Then hexColor = Right(hexColor, Len(hexColor) - 1)
    ' Convert hex to RGB
    Dim red As Long, green As Long, blue As Long
    red = CLng("&H" & Left(hexColor, 2))
    green = CLng("&H" & Mid(hexColor, 3, 2))
    blue = CLng("&H" & Mid(hexColor, 5, 2))
    HexToRGB = RGB(red, green, blue)
End Function

Important Notes:

This code assumes that your Excel workbook is set up with a sheet that can accommodate a 64x64 grid.
The HexToRGB function converts a hex color string to an RGB color that Excel can use.
The Int function is used to truncate the decimal, which may or may not be what you want depending on how you wish to handle the normalization of coordinates and size.
Ensure that the Excel cells are square for the regions to appear square.
The color conversion assumes hex values are provided in the standard RGB hex format (e.g., “FF0000” for red).

To run this VBA code, you’ll need to open the VBA editor in Excel (with Alt + F11), insert a new module, and paste this code. You can then run the ColorRegions subroutine to apply the colors to the regions as per your data. Make sure to adjust the sheet name and row number to your actual data.

You’re correct that constantly calling .Cells is not the most efficient way to handle this in VBA, especially if you’re dealing with a large number of cells. It’s also a good practice to manipulate a different sheet to visualize the data without altering the original dataset. You should cache the range objects where possible, and resize the cells to make them square only once if all cells are going to be square.

Here’s an improved version of the VBA code that addresses these points:

Sub ColorizeRegions()
    Dim dataWs As Worksheet
    Dim visualWs As Worksheet
    Set dataWs = ThisWorkbook.Sheets("Data")  ' Change to your actual data sheet name
    Set visualWs = ThisWorkbook.Sheets("Visualization")  ' Change to your visualization sheet name

    ' Prepare the visualization sheet
    With visualWs
        .Cells.ClearFormats  ' Clear any existing formatting
        ' Resize cells to be square, assuming each cell represents a pixel
        .Rows.RowHeight = .Columns("A:A").ColumnWidth * 0.75
    End With

    Dim gridWidth As Integer, gridHeight As Integer
    gridWidth = 64
    gridHeight = 64

    Dim targetRow As Integer
    targetRow = 2  ' Change to the row with your data

    Dim lastColumn As Long
    lastColumn = dataWs.Cells(targetRow, dataWs.Columns.Count).End(xlToLeft).Column

    Application.ScreenUpdating = False  ' Turn off screen updating for performance

    Dim i As Long
    For i = 1 To lastColumn Step 4
        Dim x As Double, y As Double, size As Double
        Dim colorHex As String
        x = dataWs.Cells(targetRow, i).Value
        y = dataWs.Cells(targetRow, i + 1).Value
        size = dataWs.Cells(targetRow, i + 2).Value
        colorHex = dataWs.Cells(targetRow, i + 3).Value

        ' Calculate top-left and bottom-right cells based on X, Y, and Size
        Dim topLeftRow As Long, topLeftColumn As Long
        Dim bottomRightRow As Long, bottomRightColumn As Long
        topLeftRow = Int(y * gridHeight) + 1
        topLeftColumn = Int(x * gridWidth) + 1
        bottomRightRow = topLeftRow + Int(size * gridHeight) - 1
        bottomRightColumn = topLeftColumn + Int(size * gridWidth) - 1

        ' Apply color to the calculated range
        Dim cellRange As Range
        Set cellRange = visualWs.Range(visualWs.Cells(topLeftRow, topLeftColumn), _
                                       visualWs.Cells(bottomRightRow, bottomRightColumn))
        cellRange.Interior.Color = HexToRGB(colorHex)
    Next i

    Application.ScreenUpdating = True  ' Turn screen updating back on
End Sub

Function HexToRGB(hexColor As String) As Long
    ' Remove the hash at the beginning if it's there
    If Left(hexColor, 1) = "#" Then hexColor = Right(hexColor, Len(hexColor) - 1)
    ' Convert hex to RGB
    Dim red As Long, green As Long, blue As Long
    red = CLng("&H" & Left(hexColor, 2))
    green = CLng("&H" & Mid(hexColor, 3, 2))
    blue = CLng("&H" & Mid(hexColor, 5, 2))
    HexToRGB = RGB(red, green, blue)
End Function

Key Improvements:

Separation of Concerns: The dataWs worksheet refers to the sheet with the raw data, and visualWs is used for visualization.
Efficiency: The Range object cellRange is now cached and reused inside the loop instead of calling .Cells each time.
Square Cells: Cells in the visualWs worksheet are resized once at the start to make them square.
Performance: Screen updating is turned off before the loop begins and turned on after it ends to enhance performance.

Make sure to have a sheet named “Data” (or whatever your data sheet is named) and another sheet named “Visualization” (or your preferred name) in the workbook. Adjust the targetRow variable to the row where your data is located.

After creating this VBA script, you can run the ColorizeRegions subroutine, and it will read the data from the “Data” sheet and visualize it on the “Visualization” sheet. Remember to enable the ScreenUpdating property back to True if your subroutine encounters an error, to avoid being left with a non-responsive Excel interface.

My apologies for the oversight. To ensure the cells are square, we must set the row height and column width to the same size in points, since Excel measures row height in points (1 point = 1/72 inch) and column width in character units, which are based on the default font and font size of the Normal style.

The following code will attempt to square the cells by setting the row height equal to the column width in points. Please note that due to the way Excel handles column widths and row heights, it might not be possible to get a perfect square, but this will be close:

Sub ColorizeRegions()
    Dim dataWs As Worksheet
    Dim visualWs As Worksheet
    Set dataWs = ThisWorkbook.Sheets("Data")  ' Change to your actual data sheet name
    Set visualWs = ThisWorkbook.Sheets("Visualization")  ' Change to your visualization sheet name

    ' Prepare the visualization sheet
    With visualWs
        .Cells.ClearFormats  ' Clear any existing formatting
        ' Attempt to square the cells
        Dim colWidth As Double
        colWidth = 3  ' A column width of 3 usually corresponds to a width of 2.14 to 2.29 points
        .Columns.ColumnWidth = colWidth
        .Rows.RowHeight = Application.PointsToScreenPixelsY(Application.InchesToPoints(1 / 72)) * colWidth
    End With

    Dim gridWidth As Integer, gridHeight As Integer
    gridWidth = 64
    gridHeight = 64

    Dim targetRow As Integer
    targetRow = 2  ' Change to the row with your data

    Dim lastColumn As Long
    lastColumn = dataWs.Cells(targetRow, dataWs.Columns.Count).End(xlToLeft).Column

    Application.ScreenUpdating = False  ' Turn off screen updating for performance

    Dim i As Long
    For i = 1 To lastColumn Step 4
        Dim x As Double, y As Double, size As Double
        Dim colorHex As String
        x = dataWs.Cells(targetRow, i).Value
        y = dataWs.Cells(targetRow, i + 1).Value
        size = dataWs.Cells(targetRow, i + 2).Value
        colorHex = dataWs.Cells(targetRow, i + 3).Value

        ' Calculate top-left and bottom-right cells based on X, Y, and Size
        Dim topLeftRow As Long, topLeftColumn As Long
        Dim bottomRightRow As Long, bottomRightColumn As Long
        topLeftRow = Int(y * gridHeight) + 1
        topLeftColumn = Int(x * gridWidth) + 1
        bottomRightRow = topLeft

I apologize for the confusion earlier. You are correct; Application.PointsToScreenPixelsY is not a valid Excel VBA method. To set the height of the rows and the width of the columns so that cells appear as squares on the screen, we need to rely on an approximation because Excel does not have a direct method for setting exact square dimensions that accounts for screen resolution, zoom level, and font metrics.

Here’s a corrected approach using an approximation where we assume the standard default font and size:

Sub ColorizeRegions()
    Dim dataWs As Worksheet

The Application Defined Error 1004 on the line constructing the region might be due to several reasons:

The calculated topLeftRow, topLeftColumn, bottomRightRow, and bottomRightColumn may reference a cell that is outside the bounds of the Excel worksheet.
The value of size might be causing the region to extend beyond the limits of the grid or worksheet.
There may be an issue with the hex color string format that is causing the HexToRGB function to fail.

To debug this, you can add error handling to catch the error and print out the problematic values. Here’s how you could modify the code to include basic error handling:

Sub ColorizeRegions()
    ' ... (the rest of your code above this line)

    On Error GoTo ErrorHandler

    Dim i As Long
    For i = 1 To lastColumn Step 4
        ' ... (the rest of your loop code)

        Dim cellRange As Range
        Set cellRange = visualWs.Range(visualWs.Cells(topLeftRow, topLeftColumn), _
                                       visualWs.Cells(bottomRightRow, bottomRightColumn))

        ' Error handling
        If Not cellRange Is Nothing Then
            cellRange.Interior.Color = HexToRGB(colorHex)
        End If
    Next i

    Exit Sub

ErrorHandler:
    MsgBox "An error occurred: " & Err.Description & _
           " (Error " & Err.Number & "). At region with top-left: (" & _
           topLeftRow & ", " & topLeftColumn & ") and bottom-right: (" & _
           bottomRightRow & ", " & bottomRightColumn & "), Color: " & colorHex
    Resume Next
End Sub

In this modified version of your subroutine, On Error GoTo ErrorHandler directs the code to jump to the ErrorHandler label if an error occurs. Inside the error handler, a message box displays the error description, error number, and details about the region that caused the error. After showing the message box, the Resume Next statement tells VBA to proceed with the next iteration of the loop.

Remember to ensure that the values used to calculate the cell range are within the acceptable limits of the Excel worksheet (1 to 1048576 for rows and 1 to 16384 for columns in Excel 2007 and later versions). The color value must also be a valid hex color code.

Finally, double-check the HexToRGB function to ensure it can handle the hex color strings you’re providing it. If there’s a chance the color string might not start with a ”#”, or might include invalid characters, you’ll need to add appropriate error checking and handling to that function as well.

To apply a white solid outline to each region, you will need to modify the part of the VBA code where you apply the color to also set the border properties of the cellRange. Here is how you could modify the loop to include this:

Sub ColorizeRegions()
    ' ... (initialization code)

    Application.ScreenUpdating = False  ' Turn off screen updating for performance

    Dim i As Long
    For i = 1 To lastColumn Step 4
        ' ... (code to get x, y, size, and colorHex)

        ' Calculate top-left and bottom-right cells based on X, Y, and Size
        ' ... (code to calculate topLeftRow, topLeftColumn, bottomRightRow, bottomRightColumn)

        On Error GoTo ErrorHandler

        Dim cellRange As Range
        Set cellRange = visualWs.Range(visualWs.Cells(topLeftRow, topLeftColumn), _
                                       visualWs.Cells(bottomRightRow, bottomRightColumn))

        ' Apply color to the calculated range
        If Not cellRange Is Nothing Then
            With cellRange
                .Interior.Color = HexToRGB(colorHex)
                .Borders(xlEdgeTop).LineStyle = xlContinuous
                .Borders(xlEdgeTop).Color = RGB(255, 255, 255)
                .Borders(xlEdgeBottom).LineStyle = xlContinuous
                .Borders(xlEdgeBottom).Color = RGB(255, 255, 255)
                .Borders(xlEdgeLeft).LineStyle = xlContinuous
                .Borders(xlEdgeLeft).Color = RGB(255, 255, 255)
                .Borders(xlEdgeRight).LineStyle = xlContinuous
                .Borders(xlEdgeRight).Color = RGB(255, 255, 255)
            End With
        End If
    Next i

    Application.ScreenUpdating = True  ' Turn screen updating back on

    Exit Sub

ErrorHandler:
    MsgBox "An error occurred: " & Err.Description & _
           " (Error " & Err.Number & "). At region with top-left: (" & _
           topLeftRow & ", " & topLeftColumn & ") and bottom-right: (" & _
           bottomRightRow & ", " & bottomRightColumn & "), Color: " & colorHex
    Resume Next
End Sub

Key Points:

The With cellRange block is where the color fill and border styles are being set.
.Borders(xlEdgeTop), .Borders(xlEdgeBottom), .Borders(xlEdgeLeft), and .Borders(xlEdgeRight) are used to set the borders on all four sides of the cells in the range.
The .LineStyle = xlContinuous property and .Color = RGB(255, 255, 255) are used to define a solid white line for the borders.

This code will outline each region with a white border while filling it with the specified color. It’s assumed that HexToRGB function is defined elsewhere in your module to convert the hex color string to an RGB color that Excel can use.

Yes, there is a faster way to set the borders for all sides of a range simultaneously in VBA. Instead of setting each border individually, you can set all borders at once using the .Borders collection. Here’s how to modify the border setting part of your code:

With cellRange
    .Interior.Color = HexToRGB(colorHex)
    With .Borders(xlInsideVertical)
        .LineStyle = xlContinuous
        .Color = RGB(255, 255, 255)
    End With
    With .Borders(xlInsideHorizontal)
        .LineStyle = xlContinuous
        .Color = RGB(255, 255, 255)
    End With
    With .Borders(xlEdgeTop)
        .LineStyle = xlContinuous
        .Color = RGB(255, 255, 255)
    End With
    With .Borders(xlEdgeBottom)
        .LineStyle = xlContinuous
        .Color = RGB(255, 255, 255)
    End With
    With .Borders(xlEdgeLeft)
        .LineStyle = xlContinuous
        .Color = RGB(255, 255, 255)
    End With
    With .Borders(xlEdgeRight)
        .LineStyle = xlContinuous
        .Color = RGB(255, 255, 255)
    End With
End With

In this revised code:

The .Borders(xlInsideVertical) and .Borders(xlInsideHorizontal) are used to apply borders to all the vertical and horizontal lines inside the range, respectively.
The .Borders(xlEdgeTop), .Borders(xlEdgeBottom), .Borders(xlEdgeLeft), and .Borders(xlEdgeRight) are used to apply borders to the outside edges of the entire range.

This will apply a continuous white border to both the inside and outside borders of the cells within the cellRange. It is more efficient because it avoids repeatedly accessing the same properties for different border sides.

Remember, if you have a large number of cells, setting borders can still be time-consuming, and you might want to set Application.ScreenUpdating to False before the operation and then back to True afterwards, which you already did in your code. This prevents Excel from redrawing the screen after each change, which significantly speeds up the code execution.

The Style object in Excel VBA is indeed a fast and efficient way to change several cell-formatting properties simultaneously on multiple cells. According to Microsoft’s documentation, using the Style object can quickly alter attributes like font, number format, alignment, and more across multiple cells【35†source】. This approach can be more efficient than setting each property individually, especially when dealing with a large number of cells. However, changing a style property will affect all cells already formatted with that style, so it’s important to apply styles thoughtfully to avoid unintended changes to your workbook’s formatting【35†source】.

For more in-depth performance considerations or benchmarks, more specific testing in the context of a given Excel workbook would be necessary, as performance can vary based on several factors, including the version of Excel, the system’s performance, and the complexity of the workbook itself.

Clearing the formatting of all cells before moving to the next frame in a quadtree visualization could make sense if:

You’re animating: If you are creating a sequence of frames showing different stages of the quadtree and need to reset the formatting to accurately represent the new frame.
No cumulative data: If the next frame does not build upon the previous one, and keeping the old formatting might cause confusion or misrepresentation of the data.
Performance: If the process of clearing and reapplying formatting is not causing a significant slowdown in the animation or visualization process.

However, if the next frame builds on the previous one or if clearing and reformatting significantly affects performance, it might be better to only adjust the cells that change between frames. This would require keeping track of the changes and only updating those specific cells.

To clear the formatting from cells in Excel VBA, you can use the ClearFormats method. To create and reuse style objects programmatically, you can define a new style or modify an existing one and then apply it to a range of cells. Here’s an example of how to do both:

Clear Formatting

Sub ClearCellFormatting()
    Dim ws As Worksheet
    Set ws = ThisWorkbook.Sheets("Visualization") ' Change to your specific sheet name
    ws.Cells.ClearFormats
End Sub

Create and Apply a Style

Sub CreateAndApplyStyle()
    Dim ws As Worksheet
    Set ws = ThisWorkbook.Sheets("Visualization") ' Change to your specific sheet name

    ' Create a new style (if it doesn't already exist)
    On Error Resume Next ' Ignore error if style already exists
    Dim newStyle As Style
    Set newStyle = ThisWorkbook.Styles.Add("MyNewStyle")
    On Error GoTo 0 ' Resume normal error handling

    ' Define style properties
    With newStyle
        .Interior.Color = RGB(255, 255, 255) ' White background
        .Font.Name = "Arial"
        .Font.Size = 10
        .Borders.LineStyle = xlContinuous
        .Borders.Color = RGB(0, 0, 0) ' Black borders
        .NumberFormat = "@" ' Text format
        ' Add more properties if needed
    End With

    ' Apply the style to a range
    ws.Range("A1:D64").Style = "MyNewStyle"
End Sub

When you run CreateAndApplyStyle, it checks if the style “MyNewStyle” exists and creates it if not. It then sets various formatting properties for the new style and applies it to a range of cells from A1 to D64. The ClearCellFormatting subroutine can be used before this to ensure that no previous formats interfere with the new styles being applied.

Creating a 256-color palette that sensibly covers the RGB range involves selecting colors that provide a broad and balanced representation across the entire spectrum. A common approach is to use an 8-bit color scheme, where there are 8 levels for each of the red, green, and blue components (since $ 8 \times 8 \times 8 = 512 $, you would need to reduce the combinations to fit into a 256-color palette).

Here’s a simplified example of how you could create a 256-color palette with an equal number of red, green, and blue variations:

#000000 #000033 #000066 #000099 #0000CC #0000FF
#003300 #003333 #003366 #003399 #0033CC #0033FF
#006600 #006633 #006666 #006699 #0066CC #0066FF
#009900 #009933 #009966 #009999 #0099CC #0099FF
#00CC00 #00CC33 #00CC66 #00CC99 #00CCCC #00CCFF
#00FF00 #00FF33 #00FF66 #00FF99 #00FFCC #00FFFF
... (more colors) ...
#FF0000 #FF0033 #FF0066 #FF0099 #FF00CC #FF00FF
#FF3300 #FF3333 #FF3366 #FF3399 #FF33CC #FF33FF
#FF6600 #FF6633 #FF6666 #FF6699 #FF66CC #FF66FF
#FF9900 #FF9933 #FF9966 #FF9999 #FF99CC #FF99FF
#FFCC00 #FFCC33 #FFCC66 #FFCC99 #FFCCCC #FFCCFF
#FFFF00 #FFFF33 #FFFF66 #FFFF99 #FFFFCC #FFFFFF

The above list shows a series of hexadecimal color codes, each representing a color in the palette. This example starts with all variations of blue, then introduces green, and finally red as you move towards #FFFFFF (white). The increments are by 33 in hexadecimal (which is 51 in decimal), providing an even distribution across a 256-color spectrum. To fit exactly 256 colors, you would have to fine-tune the distribution, possibly by removing some intermediate colors.

Creating an optimized 256-color palette that’s well-distributed across the RGB spectrum can be complex and might involve more sophisticated algorithms for color quantization, like median cut, octree, or k-means clustering, which are beyond the scope of this response but can be explored further for more accurate color representation.

To index a list of 256 styles with their corresponding 8-bit color using an RGB color, you can approximate the given RGB color to the nearest color in your palette. This process is known as color quantization.

Here’s a general algorithm to find the index of the closest color in the palette to a given RGB color:

Normalize the RGB Values: If your RGB color is in the standard 24-bit format (values from 0 to 255), you might need to normalize these to an 8-bit format. Since there are 256 colors in your palette, this typically means reducing each color component (R, G, B) to one of 6 levels (since $6^3 = 216$, which is close to 256).
Calculate the Index: For a simple 216-color cube (6x6x6), you could calculate the index as follows: index = 36 * R + 6 * G + B, where R, G, and B are the normalized values ranging from 0 to 5. If you have a palette that is not a perfect cube or has specific color entries, you would need a lookup table or a function that maps RGB values to palette indices.
Find the Closest Color: Compare the normalized RGB color to each color in your palette and calculate the Euclidean distance. The palette entry with the smallest distance is the closest color.

Here’s a pseudocode function that demonstrates this process, assuming you have a list of colors in a palette:

function findClosestPaletteIndex(rgbColor, palette):
    minDistance = INFINITY
    closestIndex = -1

    for index from 0 to length(palette)-1:
        paletteColor = palette[index]
        distance = sqrt((paletteColor.R - rgbColor.R)^2 +
                        (paletteColor.G - rgbColor.G)^2 +
                        (paletteColor.B - rgbColor.B)^2)
        if distance < minDistance:
            minDistance = distance
            closestIndex = index

    return closestIndex

To use this in practice, you’d need to replace the pseudocode with actual VBA code, define your palette array with the 256 colors, and call findClosestPaletteIndex with your rgbColor and palette as arguments. This function would then return the index of the closest color in the palette to the given RGB color.

If your 256-color palette is sorted and uniformly distributed across the RGB color space, you can directly calculate the index of an RGB color in the palette without iterating over all colors. This assumes that the RGB values are quantized into 256 levels in a predictable pattern.

Here’s a function in pseudocode that does this for a sorted palette:

function getPaletteIndex(rgbColor):
    # Assume each color channel (R, G, B) is quantized into 6 levels (0-5)
    # This quantization assumes the colors are evenly distributed in the palette
    quantizedR = quantizeColorComponent(rgbColor.R, 256/6)
    quantizedG = quantizeColorComponent(rgbColor.G, 256/6)
    quantizedB = quantizeColorComponent(rgbColor.B, 256/6)

    # Calculate the index based on the quantized values
    index = (36 * quantizedR) + (6 * quantizedG) + quantizedB
    return index

function quantizeColorComponent(componentValue, numberOfLevels):
    # Convert the 8-bit color component value to a value between 0 and numberOfLevels-1
    return floor((componentValue * numberOfLevels) / 256)

In this pseudocode:

quantizeColorComponent is a function that maps a color component from the range 0-255 to a range 0-(numberOfLevels-1), which in this case is 0-5, as we’re assuming a 6-level quantization for simplicity.
The getPaletteIndex function then uses these quantized values to compute the index in the palette.

In a real scenario, you may need to adjust the quantization function to fit the specific distribution of your palette. If your palette is not uniformly distributed or does not follow a straightforward pattern, then a direct calculation may not be possible, and you might still need to iterate over the palette or use a more complex mapping function to find the closest color match.

In Excel VBA, to select one of the preexisting styles and apply it to a range, you would reference the style by its name and assign it. Here is how you could do it:

Sub ApplyPreexistingStyle()
    Dim ws As Worksheet
    Set ws = ThisWorkbook.Sheets("YourSheetName")  ' Replace with your actual sheet name
    Dim rng As Range
    Set rng = ws.Range("YourRange")  ' Replace with your actual range, e.g., "A1:B10"

    ' Replace "Normal" with the name of the preexisting style you want to use
    rng.Style = "Normal"
End Sub

This VBA subroutine sets the style of the specified range to the “Normal” style, which is a built-in style in Excel. If you want to use a different preexisting style, simply replace "Normal" with the name of that style. Make sure the style name you use is exactly as it appears in Excel, as VBA is case-sensitive.

To achieve your goal, you’ll need to perform several steps in Python:

Convert Hex Color to Closest 8-bit Color: Create a function to map a hex color to its closest equivalent in an 8-bit color palette.
Pack Data into a 4-byte Structure: Use the struct module to pack the x, y coordinates, size, and 8-bit color into a 4-byte structure.
Compress Data with Gzip: After processing all regions, compress the byte array using the gzip module.
Save to a File: Finally, write the compressed data to a file.

Here’s a rough implementation outline:

Step 1: Convert Hex Color to 8-bit Color

This step requires you to have or create an 8-bit color palette. Then you would map the hex color to the nearest color in this palette.

def hex_to_8bit_color(hex_color, palette):
    # Convert hex to RGB
    rgb_color = tuple(int(hex_color[i:i+2], 16) for i in (0, 2, 4))
    # Find the closest color in the palette
    # (This function needs to be implemented based on your palette)
    return find_closest_palette_color(rgb_color, palette)

Step 2: Pack Data into a 4-byte Structure

You can use Python’s struct module. Assuming x, y, and size are each 1 byte and the color is also 1 byte:

import struct

def pack_data(x, y, size, color):
    # Ensure x, y, size, and color fit in 1 byte each
    return struct.pack('BBBB', x, y, size, color)

Step 3: Compress Data with Gzip

After processing all regions and packing the data:

import gzip

def compress_data(data):
    return gzip.compress(data)

Step 4: Save to a File

def save_to_file(compressed_data, filename):
    with open(filename, 'wb') as file:
        file.write(compressed_data)

Complete Workflow

# Define your color palette
palette = [...]

# Process your regions
packed_data = bytearray()
for region in regions:  # regions should be a list of your regions with x, y, size, and color
    color_8bit = hex_to_8bit_color(region['color'], palette)
    packed = pack_data(region['x'], region['y'], region['size'], color_8bit)
    packed_data.extend(packed)

# Compress the data
compressed_data = compress_data(packed_data)

# Save to a file
save_to_file(compressed_data, 'regions.gz')

This is a high-level overview. The details, especially in color conversion and data packing, depend on the specifics of your data and palette. The find_closest_palette_color function would need to be implemented to match your specific color mapping logic.

To write unit tests for the hex_to_8bit_color function, you’ll first need a clear definition of the function, including its expected behavior and output. Since we don’t have a specific 8-bit color palette or the implementation of find_closest_palette_color, I’ll provide a generic example. You can adapt these tests according to your actual implementation.

Example Unit Tests

First, set up your testing environment. I’ll use Python’s built-in unittest framework:

import unittest

# Assuming this is your function to be tested
def hex_to_8bit_color(hex_color, palette):
    # Dummy implementation - replace with your actual logic
    return 0

# A mock palette (replace with your actual palette)
palette = [...]

class TestHexTo8BitColor(unittest.TestCase):
    def test_black_color(self):
        self.assertEqual(hex_to_8bit_color('000000', palette), expected_index_for_black)

    def test_white_color(self):
        self.assertEqual(hex_to_8bit_color('FFFFFF', palette), expected_index_for_white)

    def test_red_color(self):
        self.assertEqual(hex_to_8bit_color('FF0000', palette), expected_index_for_red)

    # Add more tests for different colors and edge cases

if __name__ == '__main__':
    unittest.main()

In this test suite:

Replace palette with your actual color palette.
Define expected_index_for_black, expected_index_for_white, expected_index_for_red, etc., according to the expected indexes of these colors in your palette.
Add more test methods for different hex colors and edge cases.

Run these tests to validate the behavior of your hex_to_8bit_color function. You should update the function’s implementation and rerun the tests until all tests pass, ensuring the function behaves as expected.

Remember, the effectiveness of unit tests greatly depends on the completeness of your test cases and the accuracy of your expected outcomes. Make sure to cover a wide range of scenarios, including typical use cases, boundary values, and potential edge cases.

To implement a full hex_to_8bit_color function and run unit tests, we first need to define the function and the color palette. For the sake of this example, I’ll create a simple 8-bit color palette (with fewer colors for simplicity) and then implement the function and its unit tests.

1. Define the Color Palette

Here’s a simplified palette:

# Simplified 8-bit color palette (normally, this would have 256 colors)
palette = [(0, 0, 0), (255, 0, 0), (0, 255, 0), (0, 0, 255), (255, 255, 255)]

2. Implement `hex_to_8bit_color` Function

def hex_to_rgb(hex_color):
    return tuple(int(hex_color[i:i+2], 16) for i in (0, 2, 4))

def find_closest_palette_color(rgb_color, palette):
    min_dist = float('inf')
    closest_color = None
    for color in palette:
        dist = sum((c1 - c2) ** 2 for c1, c2 in zip(color, rgb_color))
        if dist < min_dist:
            min_dist = dist
            closest_color = color
    return palette.index(closest_color)

def hex_to_8bit_color(hex_color, palette):
    rgb_color = hex_to_rgb(hex_color)
    return find_closest_palette_color(rgb_color, palette)

3. Write and Run Unit Tests

Now, let’s write some unit tests:

import unittest

class TestHexTo8BitColor(unittest.TestCase):
    def test_black_color(self):
        self.assertEqual(hex_to_8bit_color('000000', palette), 0)

    def test_white_color(self):
        self.assertEqual(hex_to_8bit_color('FFFFFF', palette), 4)

    def test_red_color(self):
        self.assertEqual(hex_to_8bit_color('FF0000', palette), 1)

    # Add more tests for different colors and edge cases

if __name__ == '__main__':
    unittest.main()

To run these tests, make sure you have all the code (palette definition, hex_to_8bit_color function, and the test class) in the same Python file or appropriately imported if spread across multiple files. The tests will validate the function against the specified colors and expected indices in the palette.

This code is a basic example to demonstrate the concept. In a real-world scenario, the palette would contain 256 colors, and you might need more sophisticated methods for finding the closest color depending on the color distribution in your palette.

The line in question is a Python list comprehension intended to convert a hex color string to an RGB tuple. It should work correctly, but it’s possible that there may be an issue with the format of the hex_color string you are using. Here’s a breakdown of the line:

return tuple(int(hex_color[i:i+2], 16) for i in (0, 2, 4))

This line does the following:

Iterates over the indices 0, 2, and 4 of the hex_color string.
For each index i, it takes a slice of the string from i to i+2, which should correspond to one of the color components in hexadecimal (e.g., ‘FF’ for red in ‘FF0000’).
Converts this two-character string to an integer with base 16, which effectively converts it from hexadecimal to decimal.
The result for each component is put into a tuple representing the RGB color.

If this line is not working for you, consider the following possibilities:

Make sure that hex_color is a string exactly 6 characters long, representing a hexadecimal color code without the ’#’ character (e.g., ‘FF0000’ for red).
Ensure that no leading or trailing whitespaces are present in the hex_color string.

If your hex_color string includes the ’#’ character (e.g., ‘#FF0000’), you need to modify the string slicing to account for this:

return tuple(int(hex_color[i+1:i+3], 16) for i in (0, 2, 4))

This adjustment skips the first character (’#’) when slicing the string.

To store RGB values as a VBA-compatible Long (considering a 65536-color range limitation) in Python, you need to convert the RGB values into a format that VBA recognizes. In VBA, a color is typically represented as a Long integer with the blue component in the least significant 8 bits, the green component in the next 8 bits, and the red component in the next 8 bits.

The formula for converting RGB to a VBA-compatible Long is:

LongColor = (Red * 65536) + (Green * 256) + Blue

Here’s how you can do this conversion in Python:

def rgb_to_vba_long(rgb):
    """
    Convert an RGB tuple to a VBA-compatible Long integer.

    :param rgb: A tuple (R, G, B) with each value in the range 0-255
    :return: A Long integer representing the color in VBA
    """
    r, g, b = rgb
    return (r << 16) + (g << 8) + b

To apply this to a list of RGB values:

vba_compatible_colors = [rgb_to_vba_long(color) for color in palette_256]

This will give you a list of Long integers, each representing a color in the format VBA expects. You can then use these values directly in VBA without needing any further conversion.
