Pulse Replicator on OSC

2024-06-24 13:48 UTC gpt-4o Open in ChatGPT ↗

You

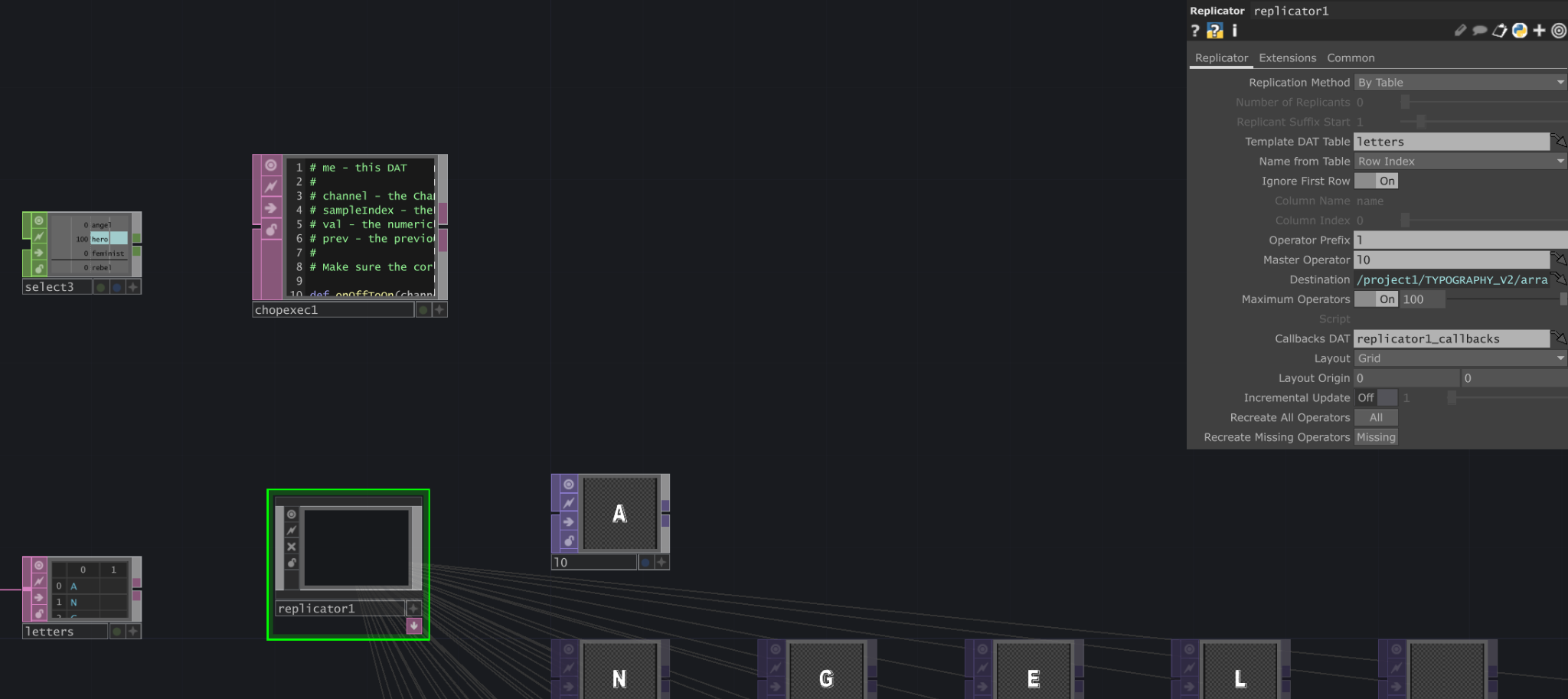

In touchdesigner I need to pulse the ‘Recreate All Operators’ parameter on a replicator when a new osc signla is received. Using a chop execute

ChatGPT

To pulse the ‘Recreate All Operators’ parameter on a replicator when a new OSC signal is received in TouchDesigner, you can use a CHOP Execute DAT to monitor the incoming OSC signal and then trigger the pulse action.

Here’s a step-by-step guide on how to set this up:

1. Add a CHOP Execute DAT: You already have a chopexec1 in your project. This DAT will be used to detect changes in the OSC signal.

2. Set up the CHOP Execute DAT:

   • Attach it to the CHOP that receives the OSC signal.
   • Configure it to execute the script when the OSC signal value changes.

3. Write the Python script: In the CHOP Execute DAT, write a script that pulses the ‘Recreate All Operators’ parameter on the replicator.

Here’s an example of what the script could look like:

def onValueChange(channel, sampleIndex, val, prev):
    # Get the replicator component
    replicator = op('/project1/TYPOGRAPHY_V2/replicator1')

    # Pulse the 'Recreate All Operators' parameter
    replicator.par.recreatealloperators.pulse()

    return

Make sure to adjust the path to the replicator component to match your project structure.

4. Test the setup: Send an OSC signal and check if the replicator’s operators are recreated as expected.

This script will pulse the ‘Recreate All Operators’ parameter every time a new OSC signal is received, ensuring that the replicator updates its contents accordingly.

You

File “/project1/TYPOGRAPHY_V2/arranging_text/letters/chopexec1”, line 6, in onValueChange AttributeError: ‘NoneType’ object has no attribute ‘par’

ChatGPT

The error AttributeError: 'NoneType' object has no attribute 'par' indicates that the script is not able to find the replicator1 operator, resulting in a None value when you try to access its parameters.

This can happen if the path to the replicator1 operator is incorrect. Double-check the path and ensure it’s accurate.

Here’s a revised approach with additional debugging to ensure we are getting the correct path:

1. Verify the replicator path: Make sure the path to the replicator1 is correct. You can do this by using the op() function in a Text DAT to see if it returns the replicator operator.

2. Add debugging prints: Add some print statements to the script to debug the issue.

Here’s an updated script with additional debugging:

def onValueChange(channel, sampleIndex, val, prev):
    # Debugging: Print the path we're trying to access
    print("Trying to access /project1/TYPOGRAPHY_V2/arranging_text/replicator1")

    # Get the replicator component
    replicator = op('/project1/TYPOGRAPHY_V2/arranging_text/replicator1')

    if replicator is None:
        # Debugging: If the replicator is not found, print an error message
        print("Error: Could not find replicator at /project1/TYPOGRAPHY_V2/arranging_text/replicator1")
    else:
        # Pulse the 'Recreate All Operators' parameter
        replicator.par.recreatealloperators.pulse()
        print("Recreate All Operators pulsed")

    return

If you still encounter issues, ensure that the path /project1/TYPOGRAPHY_V2/arranging_text/replicator1 is correct. You can manually verify the path by navigating through the TouchDesigner network editor.

If the path is correct and the issue persists, consider the following:

1. Check for correct network structure: Ensure that the replicator operator is actually placed at the specified path.
2. Check operator availability: Make sure the replicator operator exists and is not deleted or renamed during the process.

This script should provide more insights into what is going wrong if the operator cannot be found.

You

I now need to fill the text DAT with the text parameter from the Text TOP, can we use a script to do this?

ChatGPT

Certainly! You can use a script to fill a Text DAT with the text parameter from a Text TOP in TouchDesigner. Here’s how you can do it:

1. Identify the Text TOP: Ensure you know the path to the Text TOP whose text parameter you want to retrieve.

2. Identify the Text DAT: Ensure you know the path to the Text DAT where you want to set the text.

3. Write the script: The script will fetch the text parameter from the Text TOP and set it as the content of the Text DAT.

Here’s an example script that accomplishes this:

def onValueChange(channel, sampleIndex, val, prev):
    # Get the Text TOP
    text_top = op('/project1/TYPOGRAPHY_V2/arranging_text/text_top1')

    if text_top is None:
        print("Error: Could not find Text TOP at /project1/TYPOGRAPHY_V2/arranging_text/text_top1")
        return

    # Get the text parameter from the Text TOP
    text_content = text_top.par.text.eval()

    # Get the Text DAT
    text_dat = op('/project1/TYPOGRAPHY_V2/arranging_text/text_dat1')

    if text_dat is None:
        print("Error: Could not find Text DAT at /project1/TYPOGRAPHY_V2/arranging_text/text_dat1")
        return

    # Set the content of the Text DAT
    text_dat.text = text_content

    print("Text DAT updated with content from Text TOP")
    return

Steps to Set This Up:

1. Add a CHOP Execute DAT: Attach it to the CHOP that receives the OSC signal or any other trigger.

2. Write the script in the CHOP Execute DAT: Use the above script in the onValueChange function of your CHOP Execute DAT.

3. Adjust the paths: Make sure to replace the paths /project1/TYPOGRAPHY_V2/arranging_text/text_top1 and /project1/TYPOGRAPHY_V2/arranging_text/text_dat1 with the actual paths to your Text TOP and Text DAT, respectively.

Example Usage:

• Text TOP path: /project1/TYPOGRAPHY_V2/arranging_text/text_top1
• Text DAT path: /project1/TYPOGRAPHY_V2/arranging_text/text_dat1

Ensure that these paths are correct and match your network structure in TouchDesigner.

This script will update the content of the Text DAT with the text from the Text TOP every time the onValueChange function is triggered by the CHOP Execute DAT.

You

Its working but there seems to be a lag, it only updates after a new signal is sent after the original signal

ChatGPT

The lag you’re experiencing might be due to the fact that the onValueChange function is only triggered when a change is detected in the monitored CHOP channel. To make sure the Text DAT updates immediately when the text in the Text TOP changes, you can use a different approach.

Solution: Use a Text TOP Callback

Instead of relying on the CHOP Execute DAT, you can directly use a callback from the Text TOP to update the Text DAT. This will ensure that any change in the Text TOP’s text parameter immediately updates the Text DAT.

Here’s how you can set this up:

1. Add a Parameter Execute DAT: This DAT will monitor the text parameter of the Text TOP.

2. Configure the Parameter Execute DAT:

   • Set the monitored operator to your Text TOP.
   • Select the text parameter to monitor.
   • Write a script that updates the Text DAT when the text parameter changes.

Steps to Implement:

1. Create a Parameter Execute DAT and set it to monitor the Text TOP’s text parameter:

   • Right-click on the network and select “DAT” -> “Parameter Execute”.
   • Set the “Operator” parameter to your Text TOP (e.g., /project1/TYPOGRAPHY_V2/arranging_text/text_top1).
   • Set the “Parameters” parameter to text.

2. Write the Script:

   • In the Parameter Execute DAT, write a script that updates the Text DAT when the text parameter changes.

Here’s an example script for the Parameter Execute DAT:

def onValueChange(par):
    # Get the Text TOP
    text_top = op('/project1/TYPOGRAPHY_V2/arranging_text/text_top1')

    if text_top is None:
        print("Error: Could not find Text TOP at /project1/TYPOGRAPHY_V2/arranging_text/text_top1")
        return

    # Get the text parameter from the Text TOP
    text_content = text_top.par.text.eval()

    # Get the Text DAT
    text_dat = op('/project1/TYPOGRAPHY_V2/arranging_text/text_dat1')

    if text_dat is None:
        print("Error: Could not find Text DAT at /project1/TYPOGRAPHY_V2/arranging_text/text_dat1")
        return

    # Set the content of the Text DAT
    text_dat.text = text_content

    print("Text DAT updated with content from Text TOP")
    return

Example Usage:

• Text TOP path: /project1/TYPOGRAPHY_V2/arranging_text/text_top1
• Text DAT path: /project1/TYPOGRAPHY_V2/arranging_text/text_dat1

Ensure these paths match your actual network structure.

By using a Parameter Execute DAT, the Text DAT will be updated immediately whenever the text parameter of the Text TOP changes, eliminating the lag you experienced with the CHOP Execute DAT approach.

You

on value change talkes 1 positional argument but 3 were given

ChatGPT

The error “onValueChange takes 1 positional argument but 3 were given” indicates that the function signature doesn’t match the expected format for a parameter execute DAT callback.

For the Parameter Execute DAT, the callback function should have the following signature:

def onValueChange(par, prev):
    # Your code here

The par argument represents the parameter that changed, and prev represents the previous value of that parameter.

Here’s the corrected script for the Parameter Execute DAT:

def onValueChange(par, prev):
    # Get the Text TOP
    text_top = op('/project1/TYPOGRAPHY_V2/arranging_text/text_top1')

    if text_top is None:
        print("Error: Could not find Text TOP at /project1/TYPOGRAPHY_V2/arranging_text/text_top1")
        return

    # Get the text parameter from the Text TOP
    text_content = text_top.par.text.eval()

    # Get the Text DAT
    text_dat = op('/project1/TYPOGRAPHY_V2/arranging_text/text_dat1')

    if text_dat is None:
        print("Error: Could not find Text DAT at /project1/TYPOGRAPHY_V2/arranging_text/text_dat1")
        return

    # Set the content of the Text DAT
    text_dat.text = text_content

    print("Text DAT updated with content from Text TOP")
    return

Steps to Implement:

1. Create a Parameter Execute DAT and set it to monitor the Text TOP’s text parameter:

   • Right-click on the network and select “DAT” -> “Parameter Execute”.
   • Set the “Operator” parameter to your Text TOP (e.g., /project1/TYPOGRAPHY_V2/arranging_text/text_top1).
   • Set the “Parameters” parameter to text.

2. Write the Script in the Parameter Execute DAT:

   • Use the corrected script above to ensure the Text DAT updates immediately when the text parameter of the Text TOP changes.

Example Usage:

• Text TOP path: /project1/TYPOGRAPHY_V2/arranging_text/text_top1
• Text DAT path: /project1/TYPOGRAPHY_V2/arranging_text/text_dat1

Make sure these paths match your actual network structure. This script should eliminate the lag by ensuring the Text DAT updates as soon as the text in the Text TOP changes.

You

I’m getting no errors but it’s not updating the text in the text dat

ChatGPT

If there are no errors but the text is not updating in the Text DAT, there might be an issue with how the parameter execute DAT is set up or how the script interacts with the Text TOP and Text DAT. Let’s go through the setup step by step to ensure everything is correctly configured.

Step-by-Step Implementation:

1. Create a Parameter Execute DAT:

   • Right-click in the network editor and select “DAT” -> “Parameter Execute”.
   • Place the Parameter Execute DAT in your network.

2. Configure the Parameter Execute DAT:

   • Set the “Operator” parameter to your Text TOP’s path (e.g., /project1/TYPOGRAPHY_V2/arranging_text/text_top1).
   • Set the “Parameters” parameter to text.

3. Write the Callback Script:

   • In the Parameter Execute DAT, ensure the script is placed in the appropriate callback function (e.g., onValueChange).

Here’s a complete script for the Parameter Execute DAT:

def onValueChange(par, prev):
    # Get the Text TOP
    text_top = op('/project1/TYPOGRAPHY_V2/arranging_text/text_top1')

    if text_top is None:
        print("Error: Could not find Text TOP at /project1/TYPOGRAPHY_V2/arranging_text/text_top1")
        return

    # Get the text parameter from the Text TOP
    text_content = text_top.par.text.eval()

    # Get the Text DAT
    text_dat = op('/project1/TYPOGRAPHY_V2/arranging_text/text_dat1')

    if text_dat is None:
        print("Error: Could not find Text DAT at /project1/TYPOGRAPHY_V2/arranging_text/text_dat1")
        return

    # Set the content of the Text DAT
    text_dat.text = text_content

    print("Text DAT updated with content from Text TOP: " + text_content)
    return

Double-Check the Setup:

1. Verify the Operator Paths:

   • Ensure the paths /project1/TYPOGRAPHY_V2/arranging_text/text_top1 and /project1/TYPOGRAPHY_V2/arranging_text/text_dat1 are correct.
   • You can test this by running op('/project1/TYPOGRAPHY_V2/arranging_text/text_top1') in a Textport to see if it returns the correct operator.

2. Ensure the Parameter is Being Monitored:

   • Make sure the “Parameters” field in the Parameter Execute DAT includes text.

3. Confirm the Parameter Execute DAT is Active:

   • Ensure the Parameter Execute DAT is set to “Active” (the Active checkbox is checked).

4. Manually Test the Script:

   • Temporarily add the script to a Text DAT and run it manually to check if it updates the Text DAT correctly.
   • For example, place the script in a Text DAT and run it to see if it updates the Text DAT with the text from the Text TOP.

Example Manual Test:

text_top = op('/project1/TYPOGRAPHY_V2/arranging_text/text_top1')
if text_top is None:
    print("Error: Could not find Text TOP at /project1/TYPOGRAPHY_V2/arranging_text/text_top1")
else:
    text_content = text_top.par.text.eval()
    text_dat = op('/project1/TYPOGRAPHY_V2/arranging_text/text_dat1')
    if text_dat is None:
        print("Error: Could not find Text DAT at /project1/TYPOGRAPHY_V2/arranging_text/text_dat1")
    else:
        text_dat.text = text_content
        print("Text DAT manually updated with content from Text TOP: " + text_content)

Run this script in a Text DAT to verify it works. If it does, then the issue lies in the Parameter Execute DAT setup. If it doesn’t work, there might be an issue with the operator paths or the interaction between the operators.
