NAdam Optimizer Learning Rate

2024-07-29 14:22 UTC gpt-4o Open in ChatGPT ↗

You

I want to use the NAdam optimizer for my LSTM RNN training. what is a good learning rate?

ChatGPT

Choosing the right learning rate for the NAdam optimizer when training an LSTM RNN can significantly impact the performance and convergence of your model. While the optimal learning rate can depend on various factors such as the specific problem, dataset, and model architecture, here are some general guidelines to get you started:

1. Start with a Default Value: A common starting point for the learning rate when using the NAdam optimizer is 0.001. This value is often used as a default in many deep learning frameworks and works well in a wide range of scenarios.

2. Experiment with Lower and Higher Values: If the default value does not yield satisfactory results, you can experiment with lower and higher learning rates. Typical values to try are 0.0001, 0.0005, 0.005, and 0.01.

3. Learning Rate Scheduling: Implementing a learning rate schedule can help improve training. This can be done by reducing the learning rate by a factor (e.g., 0.1) after a certain number of epochs or when the validation loss plateaus.

4. Gradual Warm-Up: For some models, starting with a lower learning rate and gradually increasing it to the desired value (warm-up) can stabilize training in the initial phases.

5. Monitor Training and Validation Loss: Keep an eye on the training and validation loss curves. If the loss is decreasing too slowly, consider increasing the learning rate. If the loss is fluctuating wildly or increasing, reduce the learning rate.

6. Grid Search or Random Search: Perform a systematic search over a range of learning rates. This can be done manually or using automated techniques like grid search or random search.

Here’s a simple example code snippet using Keras (TensorFlow) with NAdam optimizer for training an LSTM model:

from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import LSTM, Dense
from tensorflow.keras.optimizers import Nadam

# Define your LSTM model
model = Sequential()
model.add(LSTM(50, return_sequences=True, input_shape=(timesteps, features)))
model.add(LSTM(50))
model.add(Dense(1))

# Initialize the NAdam optimizer with a learning rate
learning_rate = 0.001
optimizer = Nadam(learning_rate=learning_rate)

# Compile the model
model.compile(optimizer=optimizer, loss='mean_squared_error')

# Train the model
history = model.fit(X_train, y_train, epochs=50, batch_size=32, validation_split=0.2)

In this example, replace timesteps, features, X_train, and y_train with your actual data.

Remember, the best learning rate can vary depending on the specific details of your problem, so it is essential to experiment and find the optimal value for your particular use case.

You

why use a mean_squared_error loss?

ChatGPT

The choice of loss function depends on the type of problem you are trying to solve. Mean Squared Error (MSE) is commonly used in many scenarios, particularly in regression tasks where the goal is to predict continuous values. Here are some reasons why MSE might be chosen:

1. Suitability for Regression Tasks: MSE is particularly suited for regression tasks where the output is a continuous variable. It measures the average of the squares of the errors—that is, the average squared difference between the predicted values and the actual values.

2. Sensitivity to Large Errors: MSE penalizes larger errors more than smaller ones because the errors are squared. This can be useful when you want your model to avoid large mistakes.

3. Smooth Gradient: The derivative of the MSE loss function is continuous and smooth, which is beneficial for gradient-based optimization algorithms like NAdam. This smoothness helps in achieving stable and effective training.

4. Statistical Interpretation: MSE has a straightforward statistical interpretation as it is equivalent to the variance of the errors under the assumption that errors are normally distributed.

However, MSE is not the only loss function available, and there are scenarios where other loss functions might be more appropriate:

• Mean Absolute Error (MAE): MAE is another common loss function for regression tasks. It measures the average of the absolute errors. Unlike MSE, it does not square the errors, so it is less sensitive to outliers.
• Huber Loss: Huber loss is a combination of MSE and MAE. It is less sensitive to outliers than MSE and more robust, making it a good choice when you have data with some outliers.
• Cross-Entropy Loss: For classification tasks, especially multi-class classification, cross-entropy loss is typically used instead of MSE.

Here is a brief comparison of MSE with other loss functions:

• Mean Squared Error (MSE): Suitable for regression, penalizes larger errors more heavily.
• Mean Absolute Error (MAE): Suitable for regression, less sensitive to outliers compared to MSE.
• Huber Loss: Suitable for regression, robust to outliers, combines benefits of MSE and MAE.
• Cross-Entropy Loss: Suitable for classification, measures the difference between two probability distributions.

Example with Different Loss Functions

Here’s how you might set up an LSTM model with different loss functions in Keras:

Using Mean Squared Error (MSE)

from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import LSTM, Dense
from tensorflow.keras.optimizers import Nadam

# Define your LSTM model
model = Sequential()
model.add(LSTM(50, return_sequences=True, input_shape=(timesteps, features)))
model.add(LSTM(50))
model.add(Dense(1))

# Compile the model with MSE loss
optimizer = Nadam(learning_rate=0.001)
model.compile(optimizer=optimizer, loss='mean_squared_error')

# Train the model
history = model.fit(X_train, y_train, epochs=50, batch_size=32, validation_split=0.2)

Using Mean Absolute Error (MAE)

# Compile the model with MAE loss
model.compile(optimizer=optimizer, loss='mean_absolute_error')

# Train the model
history = model.fit(X_train, y_train, epochs=50, batch_size=32, validation_split=0.2)

Using Huber Loss

from tensorflow.keras.losses import Huber

# Compile the model with Huber loss
model.compile(optimizer=optimizer, loss=Huber())

# Train the model
history = model.fit(X_train, y_train, epochs=50, batch_size=32, validation_split=0.2)

Selecting the appropriate loss function is crucial and should be based on the specific requirements and characteristics of your task and data.

You

check out my model. Apply strict criticism and suggest optimizations to increase accuracy. it will be trained on choreographic sequences of 100 frames for each window (maximum)

def create_model(self, input_shape, num_classes):
    """
    Creates and compiles the LSTM model.
    Parameters:
        input_shape (tuple): Shape of the input data (time steps, features).
        num_classes (int): Number of classes in the dataset.
    """

    # A Sequential model in Keras is a linear stack of layers
    self.model = Sequential()
    # An LSTM layer is added to the model as the first layer
    self.model.add(
        LSTM(self.nNeurons,
             return_sequences=True,
             input_shape=input_shape,
             kernel_regularizer=l2(0.01),
             recurrent_regularizer=l2(0.01),
             recurrent_dropout=0.2,
             dropout=0.1)
             )

    # Another LSTM layer is added to the model
    self.model.add(LSTM(self.nNeurons,
                        kernel_regularizer=l2(0.01),
                        recurrent_regularizer=l2(0.01),
                        recurrent_dropout=0.2,
                        dropout=0.1))

    self.model.add(Dense(num_classes, activation='softmax'))
    self.model.compile(optimizer=keras.optimizers.Nadam(learning_rate=0.001), loss=self.loss, metrics=['accuracy'])

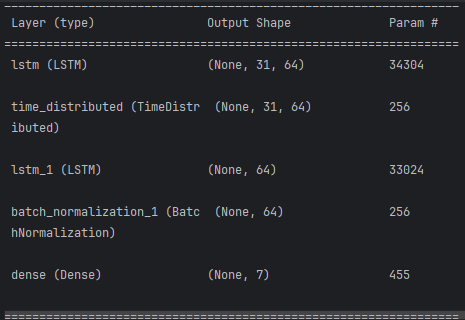

    # prints a summary representation of the model, showing the layout of the layers,
    # the shape of the output from each layer, and the number of parameters (weights and biases) in each layer
    self.model.summary()

ChatGPT

Here is a review of your model and some suggestions for optimization to potentially increase accuracy:

Review and Critique

1. Architecture

   • LSTM Layers: You have two LSTM layers with return_sequences=True on the first layer and return_sequences=False on the second layer. This is a common and generally good approach, ensuring that the second LSTM layer processes the output from the first LSTM layer properly.
   • Regularization: You are using L2 regularization and dropout in both LSTM layers. This helps in preventing overfitting but might also cause underfitting if not balanced properly.

2. Output Layer

   • Dense Layer: You are using a Dense layer with a softmax activation function, which is appropriate for multi-class classification tasks.

3. Compilation

   • Optimizer: NAdam is a good choice, and the learning rate of 0.001 is a reasonable starting point.
   • Loss Function: You have not specified the loss function, but it should be appropriate for the task (e.g., categorical_crossentropy for multi-class classification).

Suggestions for Optimization

1. Model Architecture

   • Increase Model Capacity: Depending on the size of your dataset and complexity, you might want to experiment with increasing the number of neurons in each LSTM layer.
   • Bidirectional LSTM: Consider using Bidirectional LSTM layers, which can capture patterns in both forward and backward directions in the sequence.
   • Additional Layers: Adding more LSTM layers or a combination of LSTM and Dense layers can help if the model underfits. Consider adding a TimeDistributed layer with a Dense layer for more sophisticated feature extraction.

2. Regularization

   • Fine-tune Dropout and L2 Regularization: Experiment with different dropout rates and L2 regularization strengths. Sometimes, reducing regularization can improve performance if the model is underfitting.

3. Learning Rate Schedule

   • Learning Rate Scheduler: Implement a learning rate scheduler to adjust the learning rate during training dynamically. For example, you can reduce the learning rate when the validation accuracy plateaus.

4. Batch Normalization

   • Batch Normalization: Adding Batch Normalization after LSTM layers can stabilize and accelerate training.

5. Hyperparameter Tuning

   • Grid Search or Random Search: Perform hyperparameter tuning to find the best combination of learning rate, batch size, number of neurons, dropout rates, etc.

6. Data Augmentation

   • Data Augmentation: If applicable, use data augmentation techniques to increase the size and variability of your dataset.

Revised Model

Here’s a revised version of your model with some of these suggestions:

from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import LSTM, Dense, Dropout, BatchNormalization, Bidirectional
from tensorflow.keras.optimizers import Nadam
from tensorflow.keras.regularizers import l2

def create_model(self, input_shape, num_classes):
    """
    Creates and compiles the LSTM model.
    Parameters:
        input_shape (tuple): Shape of the input data (time steps, features).
        num_classes (int): Number of classes in the dataset.
    """
    self.model = Sequential()

    # First LSTM layer with bidirectionality and batch normalization
    self.model.add(Bidirectional(LSTM(self.nNeurons,
                                      return_sequences=True,
                                      kernel_regularizer=l2(0.01),
                                      recurrent_regularizer=l2(0.01),
                                      recurrent_dropout=0.2,
                                      dropout=0.1),
                                 input_shape=input_shape))
    self.model.add(BatchNormalization())

    # Second LSTM layer with bidirectionality and batch normalization
    self.model.add(Bidirectional(LSTM(self.nNeurons,
                                      return_sequences=False,
                                      kernel_regularizer=l2(0.01),
                                      recurrent_regularizer=l2(0.01),
                                      recurrent_dropout=0.2,
                                      dropout=0.1)))
    self.model.add(BatchNormalization())

    # Dense layer for output
    self.model.add(Dense(num_classes, activation='softmax'))

    # Compile the model with Nadam optimizer and a learning rate scheduler
    optimizer = Nadam(learning_rate=0.001)
    self.model.compile(optimizer=optimizer, loss='categorical_crossentropy', metrics=['accuracy'])

    self.model.summary()

# Example usage:
# model_instance = YourModelClass()
# model_instance.create_model((100, number_of_features), number_of_classes)

Additional Tips

• Monitor Training: Use callbacks like EarlyStopping and ModelCheckpoint to monitor training and save the best model.
• Visualize Performance: Plot training and validation accuracy/loss to visually inspect how the model is learning and make adjustments as necessary.
• Hyperparameter Tuning: Utilize tools like Keras Tuner or Optuna for systematic hyperparameter tuning.

These changes should provide a more robust starting point and potential improvements in accuracy.

You

I have QUESTIONS!

1. Why do we add batch normalization?
2. why do we use categorical cross entropy instead of mse?

ChatGPT

Great questions! Let’s address each one:

1. Why Do We Add Batch Normalization?

Batch Normalization is a technique to improve the training of deep neural networks by normalizing the inputs to each layer. Here are the main reasons for adding batch normalization:

1. Stabilizes Learning: Batch normalization helps in stabilizing the learning process. By normalizing the input to each layer, it reduces the internal covariate shift, which is the change in the distribution of layer inputs during training.

2. Accelerates Training: It allows for higher learning rates by reducing the risk of gradients getting too large or too small. This can significantly speed up the training process.

3. Improves Generalization: It acts as a regularizer and can reduce the need for other forms of regularization like dropout. This can help in improving the generalization performance of the model on unseen data.

4. Reduces Dependence on Initialization: Batch normalization makes the training less sensitive to the initial weights. This means that it can help the network converge even if the initial weights are not well-chosen.

Here’s how batch normalization is typically applied in a neural network:

• For layers with activations, batch normalization is applied before the activation function.
• In the case of LSTM or other recurrent layers, batch normalization can be applied to the inputs or outputs of these layers.

2. Why Do We Use Categorical Cross Entropy Instead of MSE?

Categorical Cross Entropy is the preferred loss function for classification tasks, especially when dealing with multi-class problems. Here’s why:

1. Probability Distributions: Categorical cross entropy measures the difference between the true probability distribution (represented by the true labels) and the predicted probability distribution (output of the softmax layer). It is designed specifically for tasks where the output is a probability distribution over classes.

2. Gradient Behavior: MSE can lead to slow and inefficient training for classification tasks. The gradients from MSE can be very small when the predictions are close to 0 or 1, leading to slow convergence. In contrast, categorical cross entropy has gradients that are more informative for updating the weights in classification tasks.

3. Interpretability: Categorical cross entropy directly penalizes the incorrect classifications based on their predicted probabilities. If the correct class has a low predicted probability, the loss will be high, guiding the model to adjust its weights to improve accuracy.

4. Softmax and Probability: When using softmax activation in the output layer, it normalizes the outputs into a probability distribution. Categorical cross entropy is designed to work with such probability distributions, ensuring the loss is minimized when the predicted probabilities match the true labels.

Summary

• Batch Normalization is used to stabilize and accelerate training, improve generalization, and reduce dependence on weight initialization.
• Categorical Cross Entropy is used for classification tasks because it measures the performance of a model in terms of probability distributions, providing more informative gradients for training and better alignment with the nature of classification problems.

Example

Here’s an example snippet showing batch normalization and categorical cross entropy in your model:

from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import LSTM, Dense, BatchNormalization, Bidirectional
from tensorflow.keras.optimizers import Nadam
from tensorflow.keras.regularizers import l2

def create_model(self, input_shape, num_classes):
    """
    Creates and compiles the LSTM model.
    Parameters:
        input_shape (tuple): Shape of the input data (time steps, features).
        num_classes (int): Number of classes in the dataset.
    """
    self.model = Sequential()

    # First LSTM layer with bidirectionality and batch normalization
    self.model.add(Bidirectional(LSTM(self.nNeurons,
                                      return_sequences=True,
                                      kernel_regularizer=l2(0.01),
                                      recurrent_regularizer=l2(0.01),
                                      recurrent_dropout=0.2,
                                      dropout=0.1),
                                 input_shape=input_shape))
    self.model.add(BatchNormalization())

    # Second LSTM layer with bidirectionality and batch normalization
    self.model.add(Bidirectional(LSTM(self.nNeurons,
                                      return_sequences=False,
                                      kernel_regularizer=l2(0.01),
                                      recurrent_regularizer=l2(0.01),
                                      recurrent_dropout=0.2,
                                      dropout=0.1)))
    self.model.add(BatchNormalization())

    # Dense layer for output
    self.model.add(Dense(num_classes, activation='softmax'))

    # Compile the model with Nadam optimizer and categorical cross entropy loss
    optimizer = Nadam(learning_rate=0.001)
    self.model.compile(optimizer=optimizer, loss='categorical_crossentropy', metrics=['accuracy'])

    self.model.summary()

# Example usage:
# model_instance = YourModelClass()
# model_instance.create_model((100, number_of_features), number_of_classes)

This setup leverages batch normalization and the appropriate loss function for a classification task, aligning with the principles discussed above.

You

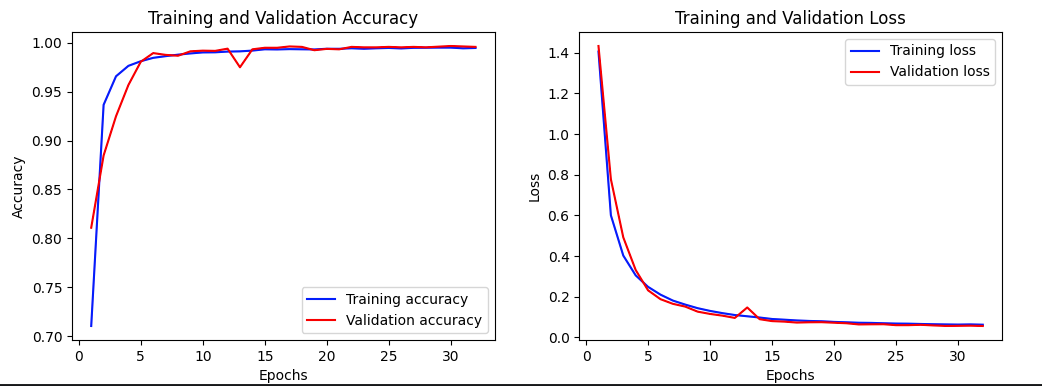

“Visualize Performance: Plot training and validation accuracy/loss to visually inspect how the model is learning and make adjustments as necessary.”

How to do this?

ChatGPT

Visualizing the performance of your model during training is a crucial step in understanding how well your model is learning and if there are any issues like overfitting or underfitting. You can plot the training and validation accuracy and loss using the training history returned by the fit method in Keras.

Here’s how you can do it:

1. Train your model and save the history: When you call the fit method, it returns a History object that contains the training history.
2. Plot the history: Use a plotting library like Matplotlib to visualize the training and validation accuracy and loss over epochs.

Here’s an example:

Step 1: Train Your Model and Save the History

import matplotlib.pyplot as plt
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import LSTM, Dense, BatchNormalization, Bidirectional
from tensorflow.keras.optimizers import Nadam
from tensorflow.keras.regularizers import l2

def create_model(input_shape, num_classes, nNeurons):
    """
    Creates and compiles the LSTM model.
    Parameters:
        input_shape (tuple): Shape of the input data (time steps, features).
        num_classes (int): Number of classes in the dataset.
        nNeurons (int): Number of neurons in each LSTM layer.
    """
    model = Sequential()

    # First LSTM layer with bidirectionality and batch normalization
    model.add(Bidirectional(LSTM(nNeurons,
                                      return_sequences=True,
                                      kernel_regularizer=l2(0.01),
                                      recurrent_regularizer=l2(0.01),
                                      recurrent_dropout=0.2,
                                      dropout=0.1),
                                 input_shape=input_shape))
    model.add(BatchNormalization())

    # Second LSTM layer with bidirectionality and batch normalization
    model.add(Bidirectional(LSTM(nNeurons,
                                      return_sequences=False,
                                      kernel_regularizer=l2(0.01),
                                      recurrent_regularizer=l2(0.01),
                                      recurrent_dropout=0.2,
                                      dropout=0.1)))
    model.add(BatchNormalization())

    # Dense layer for output
    model.add(Dense(num_classes, activation='softmax'))

    # Compile the model with Nadam optimizer and categorical cross entropy loss
    optimizer = Nadam(learning_rate=0.001)
    model.compile(optimizer=optimizer, loss='categorical_crossentropy', metrics=['accuracy'])

    return model

# Create and compile the model
input_shape = (100, number_of_features)  # Replace with your input shape
num_classes = number_of_classes  # Replace with your number of classes
nNeurons = 50  # Replace with your number of neurons
model = create_model(input_shape, num_classes, nNeurons)

# Train the model and save the history
history = model.fit(X_train, y_train, epochs=50, batch_size=32, validation_split=0.2)

Step 2: Plot the Training and Validation Accuracy and Loss

def plot_history(history):
    """
    Plots the training and validation accuracy and loss.

    Parameters:
        history: History object returned by the fit method.
    """
    # Extract the values for plotting
    acc = history.history['accuracy']
    val_acc = history.history['val_accuracy']
    loss = history.history['loss']
    val_loss = history.history['val_loss']
    epochs = range(1, len(acc) + 1)

    # Plot training and validation accuracy
    plt.figure(figsize=(12, 4))
    plt.subplot(1, 2, 1)
    plt.plot(epochs, acc, 'b', label='Training accuracy')
    plt.plot(epochs, val_acc, 'r', label='Validation accuracy')
    plt.title('Training and Validation Accuracy')
    plt.xlabel('Epochs')
    plt.ylabel('Accuracy')
    plt.legend()

    # Plot training and validation loss
    plt.subplot(1, 2, 2)
    plt.plot(epochs, loss, 'b', label='Training loss')
    plt.plot(epochs, val_loss, 'r', label='Validation loss')
    plt.title('Training and Validation Loss')
    plt.xlabel('Epochs')
    plt.ylabel('Loss')
    plt.legend()

    plt.show()

# Plot the history
plot_history(history)

Explanation

• Training: The fit method trains the model and returns a History object, which contains the training and validation accuracy and loss for each epoch.
• Plotting:
  • Extract the accuracy and loss for both training and validation sets from the History object.
  • Use Matplotlib to create subplots: one for accuracy and one for loss.
  • Plot the values for each epoch.
  • Add titles, labels, and legends to make the plots informative.

These visualizations will help you understand how well your model is performing over time, and you can adjust your model or training parameters accordingly based on these plots. For example, if you notice overfitting (training accuracy is much higher than validation accuracy), you might need to increase regularization or collect more training data. If you see underfitting (both accuracies are low), you might need to make your model more complex or train for more epochs.

You

can i see live using tensorboard?

ChatGPT

Yes, you can use TensorBoard to visualize live updates of your model’s training process. TensorBoard provides interactive visualizations and can display various metrics such as accuracy and loss over time, histograms of weights, and more.

Setting Up TensorBoard

1. Install TensorBoard: Ensure TensorBoard is installed. You can install it using pip if it’s not already installed.

pip install tensorboard

2. Configure Callbacks in Your Code: You need to set up a TensorBoard callback in your Keras model to log the metrics.

3. Run TensorBoard: Start the TensorBoard server to view the logs.

Here’s how you can set it up:

Step 1: Import TensorBoard and Set Up a Callback

import tensorflow as tf
from tensorflow.keras.callbacks import TensorBoard
import os

# Define a directory to save the logs
log_dir = os.path.join("logs", "fit", "model_name")

# Create a TensorBoard callback
tensorboard_callback = TensorBoard(log_dir=log_dir, histogram_freq=1)

# Create and compile your model
input_shape = (100, number_of_features)  # Replace with your input shape
num_classes = number_of_classes  # Replace with your number of classes
nNeurons = 50  # Replace with your number of neurons
model = create_model(input_shape, num_classes, nNeurons)

# Train the model and include the TensorBoard callback
history = model.fit(X_train, y_train, epochs=50, batch_size=32, validation_split=0.2, callbacks=[tensorboard_callback])

Step 2: Launch TensorBoard

After starting your training, launch TensorBoard from the command line:

tensorboard --logdir=logs/fit

By default, TensorBoard will start on http://localhost:6006/. You can open this URL in your web browser to see the live updates.

Step 3: Viewing TensorBoard

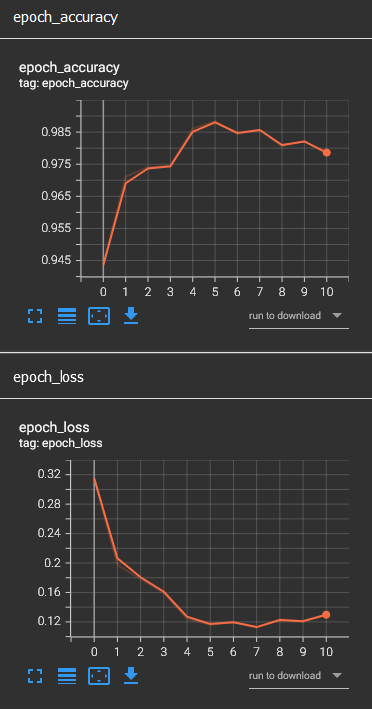

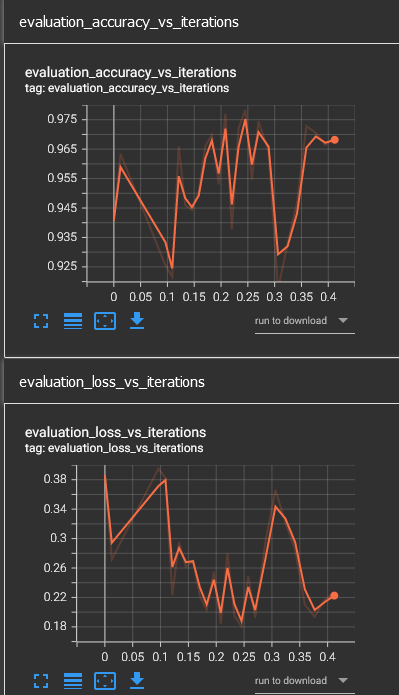

• Scalars Tab: View the training and validation accuracy and loss.
• Graphs Tab: Visualize the computational graph of your model.
• Histograms Tab: See the distribution of weights and biases over time.

Example Code

Here’s a complete example including the model creation, training, and TensorBoard setup:

import tensorflow as tf
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import LSTM, Dense, BatchNormalization, Bidirectional
from tensorflow.keras.optimizers import Nadam
from tensorflow.keras.regularizers import l2
from tensorflow.keras.callbacks import TensorBoard
import os

def create_model(input_shape, num_classes, nNeurons):
    model = Sequential()

    model.add(Bidirectional(LSTM(nNeurons,
                                 return_sequences=True,
                                 kernel_regularizer=l2(0.01),
                                 recurrent_regularizer=l2(0.01),
                                 recurrent_dropout=0.2,
                                 dropout=0.1),
                            input_shape=input_shape))
    model.add(BatchNormalization())

    model.add(Bidirectional(LSTM(nNeurons,
                                 return_sequences=False,
                                 kernel_regularizer=l2(0.01),
                                 recurrent_regularizer=l2(0.01),
                                 recurrent_dropout=0.2,
                                 dropout=0.1)))
    model.add(BatchNormalization())

    model.add(Dense(num_classes, activation='softmax'))

    optimizer = Nadam(learning_rate=0.001)
    model.compile(optimizer=optimizer, loss='categorical_crossentropy', metrics=['accuracy'])

    return model

# Define log directory
log_dir = os.path.join("logs", "fit", "model_name")

# Create TensorBoard callback
tensorboard_callback = TensorBoard(log_dir=log_dir, histogram_freq=1)

# Create and compile the model
input_shape = (100, number_of_features)  # Replace with your input shape
num_classes = number_of_classes  # Replace with your number of classes
nNeurons = 50  # Replace with your number of neurons
model = create_model(input_shape, num_classes, nNeurons)

# Train the model with TensorBoard callback
history = model.fit(X_train, y_train, epochs=50, batch_size=32, validation_split=0.2, callbacks=[tensorboard_callback])

# Launch TensorBoard
# Run this in your terminal:
# tensorboard --logdir=logs/fit

This setup will allow you to monitor your model training in real-time using TensorBoard, providing valuable insights into how your model is performing and adjusting parameters as necessary.

You

how to do hyperparameter tuning using keras?

ChatGPT

Hyperparameter tuning is a crucial step in optimizing the performance of your neural network models. Using Keras, you can perform hyperparameter tuning with libraries like Keras Tuner, which provides an easy and efficient way to search for the best hyperparameters.

Step-by-Step Guide to Hyperparameter Tuning with Keras Tuner

1. Install Keras Tuner: If you haven’t already, you need to install the Keras Tuner library.

   pip install keras-tuner

2. Define a Model-Building Function: Create a function that defines your model. This function will take a HyperParameters object as an argument, which you can use to define the hyperparameters to tune.

3. Initialize a Tuner: Choose a tuner from Keras Tuner (e.g., RandomSearch, BayesianOptimization, Hyperband) and initialize it with your model-building function.

4. Run the Hyperparameter Search: Use the search method of the tuner to start the hyperparameter search.

Example: Hyperparameter Tuning for an LSTM Model

Here’s an example of how to perform hyperparameter tuning on an LSTM model using Keras Tuner:

Step 1: Define the Model-Building Function

import tensorflow as tf
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import LSTM, Dense, BatchNormalization, Bidirectional
from tensorflow.keras.optimizers import Nadam
from tensorflow.keras.regularizers import l2
from kerastuner import HyperModel
from kerastuner.tuners import RandomSearch

# Define the model-building function
def build_model(hp):
    model = Sequential()

    # Hyperparameters to tune
    nNeurons = hp.Int('n_neurons', min_value=32, max_value=256, step=32)
    dropout_rate = hp.Float('dropout_rate', min_value=0.0, max_value=0.5, step=0.1)
    recurrent_dropout_rate = hp.Float('recurrent_dropout_rate', min_value=0.0, max_value=0.5, step=0.1)
    learning_rate = hp.Float('learning_rate', min_value=1e-4, max_value=1e-2, sampling='LOG')

    # First LSTM layer with bidirectionality and batch normalization
    model.add(Bidirectional(LSTM(nNeurons,
                                 return_sequences=True,
                                 kernel_regularizer=l2(0.01),
                                 recurrent_regularizer=l2(0.01),
                                 recurrent_dropout=recurrent_dropout_rate,
                                 dropout=dropout_rate),
                            input_shape=(100, number_of_features)))
    model.add(BatchNormalization())

    # Second LSTM layer with bidirectionality and batch normalization
    model.add(Bidirectional(LSTM(nNeurons,
                                 return_sequences=False,
                                 kernel_regularizer=l2(0.01),
                                 recurrent_regularizer=l2(0.01),
                                 recurrent_dropout=recurrent_dropout_rate,
                                 dropout=dropout_rate)))
    model.add(BatchNormalization())

    # Dense layer for output
    model.add(Dense(number_of_classes, activation='softmax'))

    # Compile the model
    optimizer = Nadam(learning_rate=learning_rate)
    model.compile(optimizer=optimizer, loss='categorical_crossentropy', metrics=['accuracy'])

    return model

Step 2: Initialize the Tuner

# Initialize the RandomSearch tuner
tuner = RandomSearch(
    build_model,
    objective='val_accuracy',
    max_trials=20,
    executions_per_trial=1,
    directory='my_dir',
    project_name='lstm_tuning'
)

Step 3: Run the Hyperparameter Search

# Start the hyperparameter search
tuner.search(X_train, y_train, epochs=50, batch_size=32, validation_split=0.2)

# Get the best model
best_model = tuner.get_best_models(num_models=1)[0]

# Print a summary of the best model
best_model.summary()

# Print the best hyperparameters
best_hyperparameters = tuner.get_best_hyperparameters(num_trials=1)[0]
print(best_hyperparameters.values)

Explanation

1. Model-Building Function: The build_model function constructs the model and uses the HyperParameters object (hp) to define the search space for various hyperparameters such as the number of neurons, dropout rates, and learning rate.

2. Tuner Initialization: The RandomSearch tuner is initialized with the build_model function, specifying the search objective (val_accuracy), the number of trials, and the directory to store the logs.

3. Hyperparameter Search: The search method starts the hyperparameter search, training the model with different hyperparameter combinations and evaluating them on the validation set.

4. Best Model and Hyperparameters: After the search is complete, you can retrieve the best model and the best hyperparameters.

This setup allows you to systematically explore different hyperparameter combinations and find the best configuration for your LSTM model. You can use other tuners like BayesianOptimization or Hyperband in a similar manner by simply changing the tuner initialization step.

You

why not use Bayesian?

ChatGPT

Bayesian Optimization is a powerful method for hyperparameter tuning that can often find the best hyperparameters more efficiently than random search. It builds a probabilistic model of the objective function and uses this model to select the most promising hyperparameters to evaluate in the real objective function.

Here are some advantages of using Bayesian Optimization:

1. Efficiency: Bayesian Optimization tends to be more sample-efficient than random search. It can often find good hyperparameters with fewer evaluations by using the information gathered from previous evaluations to guide the search process.

2. Informed Search: Unlike random search, which selects hyperparameters randomly, Bayesian Optimization uses a model to predict the performance of hyperparameter combinations and selects the most promising ones to evaluate.

3. Adaptivity: Bayesian Optimization adapts the search strategy based on the results of previous evaluations, which can lead to faster convergence to the optimal hyperparameters.

Here’s how you can use Bayesian Optimization with Keras Tuner for your LSTM model:

Step-by-Step Guide to Hyperparameter Tuning with Bayesian Optimization

Step 1: Define the Model-Building Function

import tensorflow as tf
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import LSTM, Dense, BatchNormalization, Bidirectional
from tensorflow.keras.optimizers import Nadam
from tensorflow.keras.regularizers import l2
from kerastuner import HyperModel
from kerastuner.tuners import BayesianOptimization

# Define the model-building function
def build_model(hp):
    model = Sequential()

    # Hyperparameters to tune
    nNeurons = hp.Int('n_neurons', min_value=32, max_value=256, step=32)
    dropout_rate = hp.Float('dropout_rate', min_value=0.0, max_value=0.5, step=0.1)
    recurrent_dropout_rate = hp.Float('recurrent_dropout_rate', min_value=0.0, max_value=0.5, step=0.1)
    learning_rate = hp.Float('learning_rate', min_value=1e-4, max_value=1e-2, sampling='LOG')

    # First LSTM layer with bidirectionality and batch normalization
    model.add(Bidirectional(LSTM(nNeurons,
                                 return_sequences=True,
                                 kernel_regularizer=l2(0.01),
                                 recurrent_regularizer=l2(0.01),
                                 recurrent_dropout=recurrent_dropout_rate,
                                 dropout=dropout_rate),
                            input_shape=(100, number_of_features)))
    model.add(BatchNormalization())

    # Second LSTM layer with bidirectionality and batch normalization
    model.add(Bidirectional(LSTM(nNeurons,
                                 return_sequences=False,
                                 kernel_regularizer=l2(0.01),
                                 recurrent_regularizer=l2(0.01),
                                 recurrent_dropout=recurrent_dropout_rate,
                                 dropout=dropout_rate)))
    model.add(BatchNormalization())

    # Dense layer for output
    model.add(Dense(number_of_classes, activation='softmax'))

    # Compile the model
    optimizer = Nadam(learning_rate=learning_rate)
    model.compile(optimizer=optimizer, loss='categorical_crossentropy', metrics=['accuracy'])

    return model

Step 2: Initialize the Bayesian Optimization Tuner

# Initialize the BayesianOptimization tuner
tuner = BayesianOptimization(
    build_model,
    objective='val_accuracy',
    max_trials=20,
    executions_per_trial=1,
    directory='my_dir',
    project_name='lstm_tuning_bayesian'
)

Step 3: Run the Hyperparameter Search

# Start the hyperparameter search
tuner.search(X_train, y_train, epochs=50, batch_size=32, validation_split=0.2)

# Get the best model
best_model = tuner.get_best_models(num_models=1)[0]

# Print a summary of the best model
best_model.summary()

# Print the best hyperparameters
best_hyperparameters = tuner.get_best_hyperparameters(num_trials=1)[0]
print(best_hyperparameters.values)

Explanation

1. Model-Building Function: The build_model function defines the LSTM model and specifies the hyperparameters to tune using the HyperParameters object (hp).

2. Tuner Initialization: The BayesianOptimization tuner is initialized with the build_model function. The objective is set to 'val_accuracy', which means the tuner will try to maximize validation accuracy. The max_trials parameter specifies the maximum number of different hyperparameter combinations to try.

3. Hyperparameter Search: The search method starts the hyperparameter search. It trains the model with different hyperparameter combinations and evaluates them on the validation set.

4. Best Model and Hyperparameters: After the search is complete, the best model and hyperparameters can be retrieved and inspected.

Benefits of Bayesian Optimization

By using Bayesian Optimization, you can potentially find better hyperparameters with fewer trials compared to random search. This is especially beneficial when training deep learning models, which can be computationally expensive and time-consuming.

Using Bayesian Optimization with Keras Tuner is straightforward and can significantly improve the efficiency and effectiveness of your hyperparameter tuning process.

You

where do you initialize hp?

ChatGPT

In Keras Tuner, the HyperParameters object (hp) is automatically created and managed by the tuner. When you define the build_model function, Keras Tuner passes this object to the function. You do not need to initialize it explicitly. Instead, you define the hyperparameters within the build_model function using the methods provided by the hp object.

Here is a detailed example showing how this works:

Full Example: Hyperparameter Tuning with Bayesian Optimization

Step 1: Define the Model-Building Function

import tensorflow as tf
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import LSTM, Dense, BatchNormalization, Bidirectional
from tensorflow.keras.optimizers import Nadam
from tensorflow.keras.regularizers import l2
from kerastuner import HyperModel
from kerastuner.tuners import BayesianOptimization

# Define the model-building function
def build_model(hp):
    model = Sequential()

    # Hyperparameters to tune
    nNeurons = hp.Int('n_neurons', min_value=32, max_value=256, step=32)
    dropout_rate = hp.Float('dropout_rate', min_value=0.0, max_value=0.5, step=0.1)
    recurrent_dropout_rate = hp.Float('recurrent_dropout_rate', min_value=0.0, max_value=0.5, step=0.1)
    learning_rate = hp.Float('learning_rate', min_value=1e-4, max_value=1e-2, sampling='LOG')

    # First LSTM layer with bidirectionality and batch normalization
    model.add(Bidirectional(LSTM(nNeurons,
                                 return_sequences=True,
                                 kernel_regularizer=l2(0.01),
                                 recurrent_regularizer=l2(0.01),
                                 recurrent_dropout=recurrent_dropout_rate,
                                 dropout=dropout_rate),
                            input_shape=(100, number_of_features)))
    model.add(BatchNormalization())

    # Second LSTM layer with bidirectionality and batch normalization
    model.add(Bidirectional(LSTM(nNeurons,
                                 return_sequences=False,
                                 kernel_regularizer=l2(0.01),
                                 recurrent_regularizer=l2(0.01),
                                 recurrent_dropout=recurrent_dropout_rate,
                                 dropout=dropout_rate)))
    model.add(BatchNormalization())

    # Dense layer for output
    model.add(Dense(number_of_classes, activation='softmax'))

    # Compile the model
    optimizer = Nadam(learning_rate=learning_rate)
    model.compile(optimizer=optimizer, loss='categorical_crossentropy', metrics=['accuracy'])

    return model

Step 2: Initialize the Bayesian Optimization Tuner

# Initialize the BayesianOptimization tuner
tuner = BayesianOptimization(
    build_model,
    objective='val_accuracy',
    max_trials=20,
    executions_per_trial=1,
    directory='my_dir',
    project_name='lstm_tuning_bayesian'
)

Step 3: Run the Hyperparameter Search

# Start the hyperparameter search
tuner.search(X_train, y_train, epochs=50, batch_size=32, validation_split=0.2)

# Get the best model
best_model = tuner.get_best_models(num_models=1)[0]

# Print a summary of the best model
best_model.summary()

# Print the best hyperparameters
best_hyperparameters = tuner.get_best_hyperparameters(num_trials=1)[0]
print(best_hyperparameters.values)

Explanation

1. HyperParameters Object (hp):

   • hp.Int: Used to define an integer hyperparameter. In this case, n_neurons is defined with a range from 32 to 256 with steps of 32.
   • hp.Float: Used to define a floating-point hyperparameter. dropout_rate, recurrent_dropout_rate, and learning_rate are defined with appropriate ranges and steps.
   • The hp object is automatically passed to the build_model function by the Keras Tuner.

2. Tuner Initialization: The BayesianOptimization tuner is initialized with the build_model function, search objective, and other parameters.

3. Search Method: The search method runs the hyperparameter tuning process, training the model with different combinations of hyperparameters and evaluating them on the validation set.

4. Retrieve Best Model and Hyperparameters: After the search, the best model and hyperparameters are retrieved for further inspection or use.

By using the hp object within the build_model function, you define the search space for your hyperparameters, and Keras Tuner manages the optimization process.

You

do you think it’s redundant to tune the regularizers?

ChatGPT

Tuning regularizers can be beneficial, but whether it is redundant or not depends on the specific context of your problem and your model. Here are some points to consider:

When to Tune Regularizers:

1. Overfitting: If your model tends to overfit (i.e., performs well on the training data but poorly on the validation/test data), tuning regularization parameters can help. Regularizers like L2 (ridge) regularization can reduce overfitting by penalizing large weights.

2. Complex Models: For complex models with many parameters (e.g., deep neural networks), regularization is crucial to prevent overfitting. In such cases, tuning the regularization strength can significantly impact model performance.

3. Data Scarcity: When you have limited training data, regularization can help generalize better to unseen data. Tuning the amount of regularization can balance the trade-off between bias and variance.

When It Might Be Redundant:

1. Already Good Performance: If your model already performs well on both training and validation data, and there’s no significant overfitting, additional tuning of regularizers might yield diminishing returns.

2. Computational Constraints: Hyperparameter tuning, including regularizers, can be computationally expensive. If you have limited resources, you might prioritize tuning other hyperparameters like learning rates, batch sizes, or layer sizes, which might have a more substantial impact on performance.

3. Simpler Models: For simpler models or when using a large amount of training data, the impact of regularization might be less pronounced, and tuning these parameters might not lead to significant improvements.

Balanced Approach:

A balanced approach is to start with standard regularization values and focus on tuning other critical hyperparameters first. If you observe overfitting or underfitting during this process, you can then include regularizers in the hyperparameter tuning.

Example of Including Regularizer Tuning:

If you decide to include regularizer tuning, here’s how you can integrate it into the Keras Tuner setup:

import tensorflow as tf
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import LSTM, Dense, BatchNormalization, Bidirectional
from tensorflow.keras.optimizers import Nadam
from kerastuner import HyperModel
from kerastuner.tuners import BayesianOptimization

# Define the model-building function
def build_model(hp):
    model = Sequential()

    # Hyperparameters to tune
    nNeurons = hp.Int('n_neurons', min_value=32, max_value=256, step=32)
    dropout_rate = hp.Float('dropout_rate', min_value=0.0, max_value=0.5, step=0.1)
    recurrent_dropout_rate = hp.Float('recurrent_dropout_rate', min_value=0.0, max_value=0.5, step=0.1)
    learning_rate = hp.Float('learning_rate', min_value=1e-4, max_value=1e-2, sampling='LOG')
    l2_regularization = hp.Float('l2_regularization', min_value=1e-5, max_value=1e-2, sampling='LOG')

    # First LSTM layer with bidirectionality and batch normalization
    model.add(Bidirectional(LSTM(nNeurons,
                                 return_sequences=True,
                                 kernel_regularizer=tf.keras.regularizers.l2(l2_regularization),
                                 recurrent_regularizer=tf.keras.regularizers.l2(l2_regularization),
                                 recurrent_dropout=recurrent_dropout_rate,
                                 dropout=dropout_rate),
                            input_shape=(100, number_of_features)))
    model.add(BatchNormalization())

    # Second LSTM layer with bidirectionality and batch normalization
    model.add(Bidirectional(LSTM(nNeurons,
                                 return_sequences=False,
                                 kernel_regularizer=tf.keras.regularizers.l2(l2_regularization),
                                 recurrent_regularizer=tf.keras.regularizers.l2(l2_regularization),
                                 recurrent_dropout=recurrent_dropout_rate,
                                 dropout=dropout_rate)))
    model.add(BatchNormalization())

    # Dense layer for output
    model.add(Dense(number_of_classes, activation='softmax'))

    # Compile the model
    optimizer = Nadam(learning_rate=learning_rate)
    model.compile(optimizer=optimizer, loss='categorical_crossentropy', metrics=['accuracy'])

    return model

# Initialize the BayesianOptimization tuner
tuner = BayesianOptimization(
    build_model,
    objective='val_accuracy',
    max_trials=20,
    executions_per_trial=1,
    directory='my_dir',
    project_name='lstm_tuning_bayesian'
)

# Start the hyperparameter search
tuner.search(X_train, y_train, epochs=50, batch_size=32, validation_split=0.2)

# Get the best model
best_model = tuner.get_best_models(num_models=1)[0]

# Print a summary of the best model
best_model.summary()

# Print the best hyperparameters
best_hyperparameters = tuner.get_best_hyperparameters(num_trials=1)[0]
print(best_hyperparameters.values)

Conclusion

While it might not always be necessary to tune regularizers, including them in the hyperparameter search can help if you observe overfitting or if you are working with complex models. A balanced approach is to prioritize tuning the most impactful hyperparameters first and then consider regularizers if needed.

You

Should i use the train or validation events to display on tensorboard?

ChatGPT

When using TensorBoard to visualize the training process of your model, it is beneficial to display both training and validation events. Here’s why:

Why Display Both Training and Validation Events?

1. Training Events: These metrics provide insight into how well your model is learning on the training data. This includes the loss and accuracy for each epoch or step. Monitoring these metrics can help you understand if your model is converging.

2. Validation Events: These metrics show how well your model is performing on unseen data (validation set). This is crucial for identifying overfitting. If the training metrics improve but the validation metrics do not, or if the validation metrics start to degrade, it indicates overfitting.

By comparing training and validation metrics, you can get a comprehensive view of your model’s performance and make better decisions about training strategies, hyperparameter tuning, and model adjustments.

Implementing TensorBoard with Both Training and Validation Metrics

Here’s how you can set up TensorBoard to display both training and validation events:

1. Define the Model and TensorBoard Callback:

   import tensorflow as tf
   from tensorflow.keras.callbacks import TensorBoard
   import os

   def create_model(input_shape, num_classes, nNeurons):
       model = Sequential()

       model.add(Bidirectional(LSTM(nNeurons,
                                    return_sequences=True,
                                    kernel_regularizer=tf.keras.regularizers.l2(0.01),
                                    recurrent_regularizer=tf.keras.regularizers.l2(0.01),
                                    recurrent_dropout=0.2,
                                    dropout=0.1),
                               input_shape=input_shape))
       model.add(BatchNormalization())

       model.add(Bidirectional(LSTM(nNeurons,
                                    return_sequences=False,
                                    kernel_regularizer=tf.keras.regularizers.l2(0.01),
                                    recurrent_regularizer=tf.keras.regularizers.l2(0.01),
                                    recurrent_dropout=0.2,
                                    dropout=0.1)))
       model.add(BatchNormalization())

       model.add(Dense(num_classes, activation='softmax'))

       optimizer = Nadam(learning_rate=0.001)
       model.compile(optimizer=optimizer, loss='categorical_crossentropy', metrics=['accuracy'])

       return model

2. Set Up TensorBoard Callback:

   log_dir = os.path.join("logs", "fit", "model_name")
   tensorboard_callback = TensorBoard(log_dir=log_dir, histogram_freq=1)

3. Train the Model with TensorBoard Callback:

   input_shape = (100, number_of_features)  # Replace with your input shape
   num_classes = number_of_classes  # Replace with your number of classes
   nNeurons = 50  # Replace with your number of neurons
   model = create_model(input_shape, num_classes, nNeurons)

   history = model.fit(X_train, y_train,
                       epochs=50,
                       batch_size=32,
                       validation_split=0.2,
                       callbacks=[tensorboard_callback])

4. Launch TensorBoard:

   tensorboard --logdir=logs/fit

   Open the URL provided by TensorBoard (typically http://localhost:6006/).

Visualizing Metrics on TensorBoard

Once TensorBoard is running, you can visualize the following:

• Scalars: Training and validation loss, training and validation accuracy over epochs.
• Graphs: Model architecture and computational graph.
• Histograms: Distribution of weights and biases over epochs (if histogram_freq is set).

Example Code Summary

Here is the complete example:

import tensorflow as tf
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import LSTM, Dense, BatchNormalization, Bidirectional
from tensorflow.keras.optimizers import Nadam
from tensorflow.keras.callbacks import TensorBoard
import os

# Define the model-building function
def create_model(input_shape, num_classes, nNeurons):
    model = Sequential()

    model.add(Bidirectional(LSTM(nNeurons,
                                 return_sequences=True,
                                 kernel_regularizer=tf.keras.regularizers.l2(0.01),
                                 recurrent_regularizer=tf.keras.regularizers.l2(0.01),
                                 recurrent_dropout=0.2,
                                 dropout=0.1),
                            input_shape=input_shape))
    model.add(BatchNormalization())

    model.add(Bidirectional(LSTM(nNeurons,
                                 return_sequences=False,
                                 kernel_regularizer=tf.keras.regularizers.l2(0.01),
                                 recurrent_regularizer=tf.keras.regularizers.l2(0.01),
                                 recurrent_dropout=0.2,
                                 dropout=0.1)))
    model.add(BatchNormalization())

    model.add(Dense(num_classes, activation='softmax'))

    optimizer = Nadam(learning_rate=0.001)
    model.compile(optimizer=optimizer, loss='categorical_crossentropy', metrics=['accuracy'])

    return model

# Define log directory and TensorBoard callback
log_dir = os.path.join("logs", "fit", "model_name")
tensorboard_callback = TensorBoard(log_dir=log_dir, histogram_freq=1)

# Create and compile the model
input_shape = (100, number_of_features)  # Replace with your input shape
num_classes = number_of_classes  # Replace with your number of classes
nNeurons = 50  # Replace with your number of neurons
model = create_model(input_shape, num_classes, nNeurons)

# Train the model with TensorBoard callback
history = model.fit(X_train, y_train,
                    epochs=50,
                    batch_size=32,
                    validation_split=0.2,
                    callbacks=[tensorboard_callback])

# Launch TensorBoard
# Run this in your terminal:
# tensorboard --logdir=logs/fit

Conclusion

Displaying both training and validation events on TensorBoard provides a comprehensive view of your model’s performance, allowing you to monitor learning dynamics, detect overfitting, and make informed adjustments to your training process.

You

what is going on here? (validation dataset)

ChatGPT

The graphs you’ve shared from TensorBoard show the evaluation accuracy and evaluation loss over iterations on the validation dataset. Here’s an analysis of what’s happening:

Evaluation Accuracy vs. Iterations

1. Fluctuations: The accuracy fluctuates significantly between iterations. This could indicate that the model is not consistently performing well on the validation set.
2. Overall Trend: Despite the fluctuations, there is an upward trend, suggesting that the model might be learning, but it’s not stable.

Evaluation Loss vs. Iterations

1. Fluctuations: The loss also shows significant fluctuations, similar to accuracy. Ideally, you want the validation loss to decrease and stabilize over time.
2. Overall Trend: There is a general downward trend in the loss, which is a positive sign. However, the fluctuations indicate instability.

Possible Issues and Solutions

1. Learning Rate: The fluctuations might be due to a high learning rate, causing the model to make large updates to the weights.

   • Solution: Consider reducing the learning rate. You can use a learning rate scheduler to dynamically adjust the learning rate during training.

2. Batch Size: A small batch size can cause noisy updates, leading to fluctuations in training.

   • Solution: Try increasing the batch size to see if it helps in stabilizing the training process.

3. Model Complexity: The model might be too complex for the given amount of data, leading to overfitting, where the model performs well on the training data but poorly on the validation data.

   • Solution: Simplify the model by reducing the number of layers or neurons, or add regularization techniques such as dropout or L2 regularization.

4. Data Augmentation: If the dataset is small or not diverse enough, the model might not generalize well.

   • Solution: Use data augmentation to artificially increase the size and variability of the dataset.

5. Early Stopping: The training might be continuing for too long, leading to overfitting.

   • Solution: Implement early stopping to halt training when the validation performance stops improving.

6. Validation Data Split: Ensure that the validation data is representative of the overall dataset and that there is no data leakage.

   • Solution: Double-check the data split and ensure that the validation data is properly separated from the training data.

Adjusting the Learning Rate

Here’s how you can add a learning rate scheduler to your model training:

from tensorflow.keras.callbacks import LearningRateScheduler

def scheduler(epoch, lr):
    if epoch < 10:
        return lr
    else:
        return lr * tf.math.exp(-0.1)

lr_scheduler = LearningRateScheduler(scheduler)

# Train the model with TensorBoard callback and Learning Rate Scheduler
history = model.fit(X_train, y_train,
                    epochs=50,
                    batch_size=32,
                    validation_split=0.2,
                    callbacks=[tensorboard_callback, lr_scheduler])

Implementing Early Stopping

Adding an early stopping callback to prevent overfitting:

from tensorflow.keras.callbacks import EarlyStopping

early_stopping = EarlyStopping(monitor='val_loss', patience=5, restore_best_weights=True)

# Train the model with TensorBoard callback and Early Stopping
history = model.fit(X_train, y_train,
                    epochs=50,
                    batch_size=32,
                    validation_split=0.2,
                    callbacks=[tensorboard_callback, early_stopping])

Conclusion

The fluctuations in evaluation accuracy and loss suggest that the model’s training is not stable. By adjusting the learning rate, batch size, and possibly simplifying the model, you can achieve more stable and reliable training results. Adding callbacks like learning rate schedulers and early stopping can further help in stabilizing and improving model performance.

You

my model now looks like this. do i need to add recurrent batch norm layers?

def create_model(self, input_shape, num_classes):
    """
    Creates and compiles the LSTM model.
    Parameters:
        input_shape (tuple): Shape of the input data (time steps, features).
        num_classes (int): Number of classes in the dataset.
    """

    # A Sequential model in Keras is a linear stack of layers
    self.model = Sequential()

    # The requirements to use the cuDNN implementation are:
    # ------------------------------------------------------
    # https://www.tensorflow.org/api_docs/python/tf/keras/layers/LSTM
    # activation == tanh
    # recurrent_activation == sigmoid
    # recurrent_dropout == 0
    # unroll is False
    # use_bias is True

    # An LSTM layer is added to the model as the first layer
    self.model.add(
        LSTM(self.nNeurons,
             return_sequences=True,
             input_shape=input_shape,
             kernel_regularizer=l2(0.01),
             recurrent_regularizer=l2(0.02),
             recurrent_dropout=0.0, # needs to be 0 for cuDNN
             dropout=0.1)
             )

    self.model.add(BatchNormalization())

    # Another LSTM layer is added to the model
    self.model.add(LSTM(self.nNeurons,
                        kernel_regularizer=l2(0.01),
                        recurrent_regularizer=l2(0.02),
                        recurrent_dropout=0.0, # needs to be 0 for cuDNN
                        dropout=0.1))

    self.model.add(BatchNormalization())

    self.model.add(Dense(num_classes, activation='softmax'))

    # Compile the model with Nadam optimizer and a learning rate scheduler
    optimizer = Nadam(learning_rate=0.001)

    self.model.compile(optimizer=optimizer, loss='categorical_crossentropy', metrics=['accuracy'])

    # prints a summary representation of the model, showing the layout of the layers,
    # the shape of the output from each layer, and the number of parameters (weights and biases) in each layer
    self.model.summary()

ChatGPT

Adding recurrent batch normalization can help stabilize training, especially in recurrent neural networks (RNNs) like LSTMs. However, it is important to consider the potential impact on performance and training speed. Recurrent batch normalization normalizes the inputs to the LSTM units at each time step, which can lead to more stable training and better convergence in some cases.

Key Points to Consider:

1. Stabilization: Recurrent batch normalization can help in stabilizing the training process by normalizing the activations across batches, reducing internal covariate shift.

2. Performance Impact: While it can improve stability, it can also introduce additional computational overhead. This overhead might not be significant, but it is something to consider.

3. Compatibility: Ensure that recurrent batch normalization is compatible with the requirements for using cuDNN optimizations, which provide significant performance improvements.

Implementing Recurrent Batch Normalization:

Keras does not have a built-in recurrent batch normalization layer, but you can use the tf.keras.layers.BatchNormalization layer in combination with the time_distributed wrapper to achieve similar functionality. Below is an example of how you can modify your model to include recurrent batch normalization:

from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import LSTM, Dense, BatchNormalization, TimeDistributed
from tensorflow.keras.optimizers import Nadam
from tensorflow.keras.regularizers import l2

def create_model(self, input_shape, num_classes):
    """
    Creates and compiles the LSTM model.
    Parameters:
        input_shape (tuple): Shape of the input data (time steps, features).
        num_classes (int): Number of classes in the dataset.
    """
    self.model = Sequential()

    # First LSTM layer with Batch Normalization
    self.model.add(
        LSTM(self.nNeurons,
             return_sequences=True,
             input_shape=input_shape,
             activation='tanh',
             recurrent_activation='sigmoid',
             kernel_regularizer=l2(0.01),
             recurrent_regularizer=l2(0.02),
             recurrent_dropout=0.0, # needs to be 0 for cuDNN
             dropout=0.1,
             use_bias=True)
             )

    # Recurrent batch normalization
    self.model.add(TimeDistributed(BatchNormalization()))

    # Second LSTM layer with Batch Normalization
    self.model.add(LSTM(self.nNeurons,
                        activation='tanh',
                        recurrent_activation='sigmoid',
                        kernel_regularizer=l2(0.01),
                        recurrent_regularizer=l2(0.02),
                        recurrent_dropout=0.0, # needs to be 0 for cuDNN
                        dropout=0.1,
                        use_bias=True))

    # Recurrent batch normalization
    self.model.add(BatchNormalization())

    # Dense layer for output
    self.model.add(Dense(num_classes, activation='softmax'))

    # Compile the model with Nadam optimizer and a learning rate scheduler
    optimizer = Nadam(learning_rate=0.001)

    self.model.compile(optimizer=optimizer, loss='categorical_crossentropy', metrics=['accuracy'])

    # Print model summary
    self.model.summary()

# Example usage
# model_instance = YourModelClass()
# model_instance.create_model((100, number_of_features), number_of_classes)

Explanation:

1. TimeDistributed Wrapper: TimeDistributed(BatchNormalization()) ensures that batch normalization is applied at each time step across the sequence.

2. LSTM Layer Parameters: The parameters for the LSTM layers are set to ensure compatibility with cuDNN optimizations.

3. BatchNormalization: Batch normalization layers are added after each LSTM layer to stabilize the training process.

Conclusion:

Including recurrent batch normalization can help improve the stability and convergence of your model. It is especially useful if you observe significant fluctuations in training and validation metrics. The provided implementation demonstrates how to integrate batch normalization with LSTM layers using the TimeDistributed wrapper. Make sure to monitor the training process and adjust parameters as necessary to achieve the best performance.

You

if the accuracy/loss curves between train and validation look similar, does this mean that my model trains well? am i missing something

ChatGPT

If the accuracy and loss curves for both training and validation datasets look similar, it generally indicates that your model is training well. However, there are several factors to consider to ensure that your model is truly performing optimally:

Factors Indicating Good Model Training:

1. Similar Trends: If the trends (both increasing or decreasing) in accuracy and loss are similar for both training and validation datasets, it means that the model generalizes well and is not overfitting.

2. Convergence: If both the training and validation loss decrease and eventually plateau, and the training and validation accuracy increase and eventually plateau, it suggests that the model has converged and is learning well from the data.

3. Small Gap: A small gap between training and validation accuracy/loss indicates that the model is neither overfitting nor underfitting.

Factors to Consider:

1. Overfitting: Even if the curves look similar, there could still be overfitting if the validation loss starts to increase after a point while the training loss continues to decrease. This indicates the model is learning the noise in the training data.

2. Underfitting: If both training and validation loss are high and the accuracy is low, it suggests underfitting. This can happen if the model is too simple or the data is not sufficient.

3. Plateau: If the curves plateau too early, the model might not be learning efficiently. This could be due to a suboptimal learning rate, insufficient data, or a model that is too simple.

Additional Checks:

1. Confusion Matrix: Check the confusion matrix for the validation data to see if the model is making specific types of errors.

2. Precision and Recall: Look at other metrics like precision, recall, and F1-score to ensure the model performs well across different classes.

3. Learning Rate: Experiment with different learning rates. Sometimes a model might train well with one learning rate but could perform better with a slightly adjusted one.

4. Early Stopping: Use early stopping to prevent overfitting. If early stopping is applied and the model stops at the right point, it generally indicates good training behavior.

5. Cross-Validation: Perform cross-validation to ensure the model’s performance is consistent across different subsets of the data.

6. Regularization: Ensure that regularization techniques (like dropout and L2 regularization) are appropriately applied to prevent overfitting.

Practical Example

Here’s an example of how you might visualize and compare the training and validation accuracy/loss:

import matplotlib.pyplot as plt

# Assuming 'history' is the output of model.fit
def plot_training_history(history):
    acc = history.history['accuracy']
    val_acc = history.history['val_accuracy']
    loss = history.history['loss']
    val_loss = history.history['val_loss']
    epochs = range(1, len(acc) + 1)

    plt.figure(figsize=(12, 4))

    # Plot training and validation accuracy
    plt.subplot(1, 2, 1)
    plt.plot(epochs, acc, 'b', label='Training accuracy')
    plt.plot(epochs, val_acc, 'r', label='Validation accuracy')
    plt.title('Training and Validation Accuracy')
    plt.xlabel('Epochs')
    plt.ylabel('Accuracy')
    plt.legend()

    # Plot training and validation loss
    plt.subplot(1, 2, 2)
    plt.plot(epochs, loss, 'b', label='Training loss')
    plt.plot(epochs, val_loss, 'r', label='Validation loss')
    plt.title('Training and Validation Loss')
    plt.xlabel('Epochs')
    plt.ylabel('Loss')
    plt.legend()

    plt.show()

# Example usage
# history = model.fit(...)
plot_training_history(history)

Conclusion

While similar accuracy and loss curves for training and validation data generally indicate good training, it is crucial to consider other factors and perform additional checks to ensure the model is truly optimal. Look for signs of overfitting or underfitting, use additional metrics, and employ techniques like cross-validation and regularization to confirm the model’s performance.

You

what about this? it seems to get wrose? this is validation

ChatGPT

The graphs you’ve shared show the validation accuracy and loss over epochs, and they indicate a concerning trend where the validation accuracy starts to decrease and the validation loss starts to increase after a certain point. This suggests that your model is overfitting.

Analysis of the Graphs

1. Validation Accuracy: The validation accuracy increases initially, reaching a peak around epoch 6, but then starts to decrease. This indicates that while the model initially learns and improves, it eventually starts to overfit the training data and performs worse on the validation data.

2. Validation Loss: The validation loss decreases initially, indicating that the model is learning. However, it starts to increase after epoch 6, which is a clear sign of overfitting.

Strategies to Address Overfitting

1. Early Stopping: Implement early stopping to halt training when the validation performance stops improving. This helps to prevent overfitting by stopping the training process before the model starts to overfit the training data.

2. Regularization: Increase the regularization strength. Since you are already using L2 regularization, you might want to increase the regularization parameter to penalize large weights more and prevent overfitting.

3. Dropout: Increase the dropout rate. Dropout is an effective regularization technique that helps prevent overfitting by randomly dropping units during training.

4. Data Augmentation: If applicable, use data augmentation techniques to artificially increase the size and variability of the training dataset. This helps the model to generalize better.

5. Reduce Model Complexity: Simplify the model by reducing the number of layers or the number of neurons in each layer. A less complex model is less likely to overfit.

6. Learning Rate Scheduling: Use a learning rate scheduler to reduce the learning rate during training. A lower learning rate can help the model converge more smoothly and avoid overfitting.

Implementing Early Stopping and Adjusting Regularization

Here’s an example of how you can implement early stopping and adjust regularization in your model:

from tensorflow.keras.callbacks import EarlyStopping, LearningRateScheduler

# Early stopping callback
early_stopping = EarlyStopping(monitor='val_loss', patience=3, restore_best_weights=True)

# Learning rate scheduler
def scheduler(epoch, lr):
    if epoch < 10:
        return lr
    else:
        return lr * 0.1

lr_scheduler = LearningRateScheduler(scheduler)

# Adjust the model creation function
def create_model(self, input_shape, num_classes):
    self.model = Sequential()
    self.model.add(
        LSTM(self.nNeurons,
             return_sequences=True,
             input_shape=input_shape,
             kernel_regularizer=l2(0.02),  # Increased regularization
             recurrent_regularizer=l2(0.03),  # Increased regularization
             recurrent_dropout=0.0,
             dropout=0.2)  # Increased dropout
    )
    self.model.add(BatchNormalization())
    self.model.add(LSTM(self.nNeurons,
                        kernel_regularizer=l2(0.02),  # Increased regularization
                        recurrent_regularizer=l2(0.03),  # Increased regularization
                        recurrent_dropout=0.0,
                        dropout=0.2))  # Increased dropout
    self.model.add(BatchNormalization())
    self.model.add(Dense(num_classes, activation='softmax'))
    optimizer = Nadam(learning_rate=0.001)
    self.model.compile(optimizer=optimizer, loss='categorical_crossentropy', metrics=['accuracy'])
    self.model.summary()

# Example usage
# model_instance = YourModelClass()
# model_instance.create_model((100, number_of_features), number_of_classes)

# Train the model with early stopping and learning rate scheduler
history = model.fit(X_train, y_train,
                    epochs=50,
                    batch_size=32,
                    validation_split=0.2,
                    callbacks=[tensorboard_callback, early_stopping, lr_scheduler])

Conclusion

The observed patterns in the validation accuracy and loss indicate overfitting. Implementing early stopping, increasing regularization, adjusting the dropout rate, and potentially using a learning rate scheduler can help mitigate overfitting and improve the generalization of your model. Monitoring these changes using TensorBoard will help you ensure that your adjustments are having the desired effect.

You

is a 2-layer LSTM good enough for choreo data?

ChatGPT

Determining whether a 2-layer LSTM is sufficient for choreographic data depends on various factors, including the complexity of the data, the length of the sequences, and the specific task you are trying to accomplish. Here are some considerations and guidelines to help you decide:

Factors to Consider:

1. Complexity of the Data: If the choreographic data contains complex temporal patterns and dependencies, a deeper network (more than 2 layers) might be required to capture these intricacies effectively.

2. Sequence Length: Longer sequences might benefit from additional layers to better capture long-term dependencies. However, very deep networks can also suffer from vanishing gradient problems, although LSTMs are designed to mitigate this to some extent.

3. Task Requirements: Different tasks (e.g., classification, generation, sequence prediction) might require different network complexities. For instance, sequence generation tasks often benefit from deeper architectures compared to classification tasks.

4. Performance Metrics: Empirical performance on validation data is the most reliable indicator. If your current model is not achieving satisfactory results, it might be worth experimenting with additional layers.

Practical Tips:

1. Start Simple: Begin with a simpler model (e.g., 2-layer LSTM) and evaluate its performance. Simpler models are easier to train and debug.

2. Incremental Complexity: Gradually increase the complexity by adding more layers or units if the simpler model does not meet the performance criteria. Monitor for overfitting and computational efficiency.

3. Regularization: As you increase model complexity, also increase regularization (e.g., dropout, L2 regularization) to prevent overfitting.

4. Grid Search: Perform hyperparameter tuning, including the number of layers, to find the optimal architecture for your specific dataset.

Example: Increasing Model Complexity

Here’s an example of how you can experiment with a deeper LSTM model:

from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import LSTM, Dense, BatchNormalization, Dropout
from tensorflow.keras.optimizers import Nadam
from tensorflow.keras.regularizers import l2

def create_model(self, input_shape, num_classes, n_layers=2, n_neurons=50):
    """
    Creates and compiles the LSTM model with a variable number of layers.
    Parameters:
        input_shape (tuple): Shape of the input data (time steps, features).
        num_classes (int): Number of classes in the dataset.
        n_layers (int): Number of LSTM layers.
        n_neurons (int): Number of neurons in each LSTM layer.
    """
    self.model = Sequential()

    for i in range(n_layers):
        if i == 0:
            self.model.add(
                LSTM(n_neurons,
                     return_sequences=True,
                     input_shape=input_shape,
                     kernel_regularizer=l2(0.01),
                     recurrent_regularizer=l2(0.02),
                     recurrent_dropout=0.0, # needs to be 0 for cuDNN
                     dropout=0.2)  # Increase dropout
            )
        else:
            self.model.add(
                LSTM(n_neurons,
                     return_sequences=(i < n_layers - 1),
                     kernel_regularizer=l2(0.01),
                     recurrent_regularizer=l2(0.02),
                     recurrent_dropout=0.0, # needs to be 0 for cuDNN
                     dropout=0.2)  # Increase dropout
            )
        self.model.add(BatchNormalization())

    self.model.add(Dense(num_classes, activation='softmax'))
    optimizer = Nadam(learning_rate=0.001)
    self.model.compile(optimizer=optimizer, loss='categorical_crossentropy', metrics=['accuracy'])
    self.model.summary()

# Example usage
# model_instance = YourModelClass()
# model_instance.create_model((100, number_of_features), number_of_classes, n_layers=3, n_neurons=100)

# Train the model
history = model.fit(X_train, y_train,
                    epochs=50,
                    batch_size=32,
                    validation_split=0.2,
                    callbacks=[tensorboard_callback, early_stopping, lr_scheduler])

Conclusion

A 2-layer LSTM can be a good starting point for choreographic data, but it may not always be sufficient depending on the data’s complexity and the task. Start with the simpler model, evaluate its performance, and then incrementally increase complexity if needed. Monitor training and validation metrics to guide your decisions and prevent overfitting.

You

our LSTM is used to create a latent space for choreo data, for search/retrieval/interpolation, not generation. why not use triplet semi hard loss?

ChatGPT

Using triplet semi-hard loss can be a very effective approach for creating a meaningful latent space, especially for tasks such as search, retrieval, and interpolation. Here’s why this might be a good idea and how you can implement it:

Why Use Triplet Semi-Hard Loss?

1. Discriminative Latent Space: Triplet loss helps create a latent space where similar inputs are closer together, and dissimilar inputs are farther apart. This is particularly useful for tasks like search and retrieval where you want to find similar items.

2. Semi-Hard Negative Mining: Semi-hard negative mining helps in focusing the training process on challenging examples that are neither too easy nor too hard, leading to more effective training and better generalization.

3. Interpolation: A well-structured latent space makes interpolation between points (e.g., different choreography sequences) more meaningful and smooth.

Implementing Triplet Semi-Hard Loss in Keras

Here’s a step-by-step guide on how to implement and use triplet semi-hard loss with an LSTM encoder:

Step 1: Define the Triplet Loss

You need to define a custom triplet loss function. Keras provides utilities for implementing triplet loss and semi-hard negative mining.

import tensorflow as tf

def triplet_loss(y_true, y_pred, alpha=0.2):
    anchor, positive, negative = y_pred[0], y_pred[1], y_pred[2]
    pos_dist = tf.reduce_sum(tf.square(anchor - positive), axis=-1)
    neg_dist = tf.reduce_sum(tf.square(anchor - negative), axis=-1)
    basic_loss = pos_dist - neg_dist + alpha
    loss = tf.reduce_mean(tf.maximum(basic_loss, 0.0))
    return loss

Step 2: Create a Triplet Data Generator

To use triplet loss, your data should be organized in triplets: (anchor, positive, negative). You need a data generator that yields these triplets.

import numpy as np

def generate_triplets(X, y, num_triplets, ap_pairs_per_class=10):
    triplets = []
    for class_idx in np.unique(y):
        class_mask = (y == class_idx)
        class_indices = np.where(class_mask)[0]
        num_class_examples = len(class_indices)
        if num_class_examples < 2:
            continue
        for i in range(min(num_class_examples, ap_pairs_per_class)):
            anchor = np.random.choice(class_indices)
            positive = np.random.choice(class_indices)
            negative_class = np.random.choice(np.setdiff1d(np.unique(y), class_idx))
            negative = np.random.choice(np.where(y == negative_class)[0])
            triplets.append((X[anchor], X[positive], X[negative]))
            if len(triplets) >= num_triplets:
                break
        if len(triplets) >= num_triplets:
            break
    return np.array(triplets)

# Example usage:
# triplets = generate_triplets(X_train, y_train, num_triplets=10000)

Step 3: Build the LSTM Model

Create an LSTM model that outputs embeddings.

from tensorflow.keras.models import Model
from tensorflow.keras.layers import Input, LSTM, Dense, BatchNormalization

def create_lstm_embedding_model(input_shape, n_neurons):
    inputs = Input(shape=input_shape)
    x = LSTM(n_neurons, return_sequences=True)(inputs)
    x = BatchNormalization()(x)
    x = LSTM(n_neurons)(x)
    x = BatchNormalization()(x)
    outputs = Dense(n_neurons, activation='relu')(x)
    model = Model(inputs, outputs)
    return model

input_shape = (100, number_of_features)  # Replace with your input shape
n_neurons = 50  # Replace with your number of neurons
embedding_model = create_lstm_embedding_model(input_shape, n_neurons)

Step 4: Combine into a Triplet Network

Create the triplet network model.

from tensorflow.keras.layers import Lambda

def triplet_network(input_shape, n_neurons):
    embedding_model = create_lstm_embedding_model(input_shape, n_neurons)

    anchor_input = Input(shape=input_shape, name="anchor_input")
    positive_input = Input(shape=input_shape, name="positive_input")
    negative_input = Input(shape=input_shape, name="negative_input")

    encoded_anchor = embedding_model(anchor_input)
    encoded_positive = embedding_model(positive_input)
    encoded_negative = embedding_model(negative_input)

    merged_vector = Lambda(lambda x: tf.stack(x, axis=1))([encoded_anchor, encoded_positive, encoded_negative])

    model = Model(inputs=[anchor_input, positive_input, negative_input], outputs=merged_vector)
    model.compile(optimizer='adam', loss=triplet_loss)
    return model

triplet_model = triplet_network(input_shape, n_neurons)

Step 5: Train the Model

Train the model using the triplet data generator.

# Generate triplets
triplets = generate_triplets(X_train, y_train, num_triplets=10000)

# Prepare the triplet inputs
anchor_input = triplets[:, 0]
positive_input = triplets[:, 1]
negative_input = triplets[:, 2]

# Train the triplet model
triplet_model.fit([anchor_input, positive_input, negative_input], np.zeros(len(anchor_input)), epochs=50, batch_size=32, validation_split=0.2)

Conclusion

Using triplet semi-hard loss can help create a more meaningful and discriminative latent space for tasks such as search, retrieval, and interpolation of choreographic data. This approach ensures that similar sequences are close together in the latent space, while dissimilar sequences are far apart. Implementing this involves creating a custom loss function, organizing data into triplets, and training a triplet network using LSTM embeddings. This setup can significantly improve the performance and usability of your choreographic data system.

You

tripler semi-hard loss or cross entropy?

ChatGPT

Choosing between triplet semi-hard loss and cross-entropy loss depends on the specific goals of your model. Let’s break down the considerations for each:

Triplet Semi-Hard Loss

Purpose: Triplet loss is used primarily for creating a meaningful and discriminative embedding space. It is particularly useful for tasks like similarity search, retrieval, and clustering.

Advantages:

1. Embedding Space: Creates an embedding space where similar items are close together and dissimilar items are far apart.
2. Flexibility: Effective for tasks where you want to measure the similarity between different samples, such as in search and retrieval systems.
3. Generalization: Often generalizes well to unseen data, as the embeddings capture the intrinsic relationships between data points.

Disadvantages:

1. Data Preparation: Requires careful preparation of triplets (anchor, positive, and negative samples), which can be complex and computationally intensive.
2. Training Complexity: Training can be more complex and may require more iterations to converge compared to standard classification tasks.

Cross-Entropy Loss

Purpose: Cross-entropy loss is commonly used for classification tasks where the goal is to assign input data to predefined classes.

Advantages:

1. Simplicity: Easier to implement and train. Requires only labeled data without the need for triplet sampling.
2. Performance: Often performs very well for tasks that are inherently classification-based.
3. Speed: Typically faster to train compared to triplet loss, especially when using large datasets.

Disadvantages:

1. Embedding Space: Does not explicitly create a meaningful embedding space for similarity measures. The learned features might not be as discriminative for tasks like retrieval or interpolation.
2. Generalization: May not generalize as well for tasks that require understanding the relationship between different classes or samples.

Choosing the Right Loss

Triplet Semi-Hard Loss: Choose this if your primary goal is to create a robust embedding space for tasks like:

• Similarity search
• Retrieval systems
• Clustering
• Interpolation of data points

Cross-Entropy Loss: Choose this if your primary goal is classification and you need to assign inputs to specific classes with high accuracy.

Example Implementation

Triplet Semi-Hard Loss Implementation

Here’s a concise implementation guide for a triplet network with semi-hard loss:

import tensorflow as tf
from tensorflow.keras.models import Model
from tensorflow.keras.layers import Input, LSTM, Dense, BatchNormalization, Lambda
from tensorflow.keras.optimizers import Adam
from tensorflow.keras.regularizers import l2

# Define triplet loss with semi-hard mining
def triplet_loss(y_true, y_pred, alpha=0.2):
    anchor, positive, negative = y_pred[:, 0], y_pred[:, 1], y_pred[:, 2]
    pos_dist = tf.reduce_sum(tf.square(anchor - positive), axis=-1)
    neg_dist = tf.reduce_sum(tf.square(anchor - negative), axis=-1)
    basic_loss = pos_dist - neg_dist + alpha
    loss = tf.reduce_mean(tf.maximum(basic_loss, 0.0))
    return loss

# Create LSTM embedding model
def create_lstm_embedding_model(input_shape, n_neurons):
    inputs = Input(shape=input_shape)
    x = LSTM(n_neurons, return_sequences=True)(inputs)
    x = BatchNormalization()(x)
    x = LSTM(n_neurons)(x)
    x = BatchNormalization()(x)
    outputs = Dense(n_neurons, activation='relu')(x)
    model = Model(inputs, outputs)
    return model

# Create triplet network
def triplet_network(input_shape, n_neurons):
    embedding_model = create_lstm_embedding_model(input_shape, n_neurons)

    anchor_input = Input(shape=input_shape, name="anchor_input")
    positive_input = Input(shape=input_shape, name="positive_input")
    negative_input = Input(shape=input_shape, name="negative_input")

    encoded_anchor = embedding_model(anchor_input)
    encoded_positive = embedding_model(positive_input)
    encoded_negative = embedding_model(negative_input)

    merged_vector = Lambda(lambda x: tf.stack(x, axis=1))([encoded_anchor, encoded_positive, encoded_negative])

    model = Model(inputs=[anchor_input, positive_input, negative_input], outputs=merged_vector)
    model.compile(optimizer=Adam(learning_rate=0.001), loss=triplet_loss)
    return model

# Example usage
input_shape = (100, number_of_features)  # Replace with your input shape
n_neurons = 50  # Replace with your number of neurons
triplet_model = triplet_network(input_shape, n_neurons)

# Generate triplets and train the model
triplets = generate_triplets(X_train, y_train, num_triplets=10000)
anchor_input = triplets[:, 0]
positive_input = triplets[:, 1]
negative_input = triplets[:, 2]
triplet_model.fit([anchor_input, positive_input, negative_input], epochs=50, batch_size=32, validation_split=0.2)

Cross-Entropy Loss Implementation

If you choose to use cross-entropy loss, the implementation remains similar to a standard classification model:

from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import LSTM, Dense, BatchNormalization
from tensorflow.keras.optimizers import Nadam
from tensorflow.keras.regularizers import l2

def create_classification_model(input_shape, num_classes, n_neurons):
    model = Sequential()
    model.add(LSTM(n_neurons, return_sequences=True, input_shape=input_shape, kernel_regularizer=l2(0.01), dropout=0.2))
    model.add(BatchNormalization())
    model.add(LSTM(n_neurons, kernel_regularizer=l2(0.01), dropout=0.2))
    model.add(BatchNormalization())
    model.add(Dense(num_classes, activation='softmax'))
    optimizer = Nadam(learning_rate=0.001)
    model.compile(optimizer=optimizer, loss='categorical_crossentropy', metrics=['accuracy'])
    return model

# Example usage
input_shape = (100, number_of_features)  # Replace with your input shape
num_classes = number_of_classes  # Replace with your number of classes
n_neurons = 50  # Replace with your number of neurons
classification_model = create_classification_model(input_shape, num_classes, n_neurons)
classification_model.fit(X_train, y_train, epochs=50, batch_size=32, validation_split=0.2)

Conclusion

For creating a latent space optimized for similarity search, retrieval, and interpolation, triplet semi-hard loss is a suitable choice. However, for straightforward classification tasks, cross-entropy loss remains the standard and often more efficient choice. Select the loss function based on the specific needs of your application.

You

should i increase the batch size if i can ?

ChatGPT

Increasing the batch size can have both positive and negative effects on training your model, and the best choice depends on several factors. Here are the key points to consider:

Benefits of Increasing Batch Size

1. Faster Training: Larger batch sizes can lead to faster training times because they make better use of parallel processing on GPUs. This can significantly reduce the time it takes to complete each epoch.

2. Stable Gradients: Larger batch sizes provide more stable gradient estimates, which can lead to smoother and more predictable convergence. This stability can sometimes allow you to increase the learning rate, further speeding up training.

3. Better Utilization of Hardware: If you have powerful hardware (like GPUs with large memory), increasing the batch size can help utilize the hardware more efficiently.

Drawbacks of Increasing Batch Size

1. Generalization: There is evidence suggesting that very large batch sizes might lead to poorer generalization. Smaller batch sizes introduce more noise into the training process, which can help the model escape local minima and improve generalization.

2. Memory Constraints: Larger batch sizes require more memory. If your batch size is too large, you may run into memory limitations, especially on GPUs.

3. Diminishing Returns: After a certain point, increasing the batch size does not lead to proportional improvements in training speed or stability. The benefits tend to plateau.

Practical Considerations

1. Experimentation: It’s often beneficial to experiment with different batch sizes to find the optimal one for your specific model and dataset.

2. Learning Rate Adjustment: If you increase the batch size, you might need to adjust the learning rate. A common heuristic is to increase the learning rate proportionally with the batch size.

3. Validation Performance: Always monitor validation performance when changing the batch size. If increasing the batch size leads to a significant drop in validation accuracy, it might not be worth the trade-off.

Example: Adjusting Batch Size and Learning Rate

Here’s an example showing how you might adjust the batch size and learning rate:

from tensorflow.keras.callbacks import EarlyStopping, LearningRateScheduler

# Early stopping callback
early_stopping = EarlyStopping(monitor='val_loss', patience=3, restore_best_weights=True)

# Learning rate scheduler
def scheduler(epoch, lr):
    if epoch < 10:
        return lr
    else:
        return lr * 0.1

lr_scheduler = LearningRateScheduler(scheduler)

# Define the model
def create_model(input_shape, num_classes, n_neurons):
    model = Sequential()
    model.add(LSTM(n_neurons, return_sequences=True, input_shape=input_shape, kernel_regularizer=l2(0.01), dropout=0.2))
    model.add(BatchNormalization())
    model.add(LSTM(n_neurons, kernel_regularizer=l2(0.01), dropout=0.2))
    model.add(BatchNormalization())
    model.add(Dense(num_classes, activation='softmax'))
    optimizer = Nadam(learning_rate=0.001)
    model.compile(optimizer=optimizer, loss='categorical_crossentropy', metrics=['accuracy'])
    return model

# Example usage
input_shape = (100, number_of_features)  # Replace with your input shape
num_classes = number_of_classes  # Replace with your number of classes
n_neurons = 50  # Replace with your number of neurons
model = create_model(input_shape, num_classes, n_neurons)

# Increase batch size and potentially adjust learning rate
batch_size = 64  # Increase this value based on your hardware capabilities
history = model.fit(X_train, y_train,
                    epochs=50,
                    batch_size=batch_size,
                    validation_split=0.2,
                    callbacks=[early_stopping, lr_scheduler])

Conclusion

Increasing the batch size can lead to faster and more stable training, but it might also affect generalization and memory usage. Experiment with different batch sizes to find the optimal value for your specific case, and consider adjusting the learning rate accordingly. Always monitor both training and validation performance to ensure that changes in batch size are beneficial overall.

You

why does a larger batch size lead to better gpu parallelization?

ChatGPT

A larger batch size leads to better GPU parallelization due to several factors related to how data is processed and how GPUs are designed to handle parallel computation. Here are the key reasons:

1. Data Throughput

GPUs are optimized for high throughput rather than low latency. This means they can process a large amount of data simultaneously more efficiently than processing small batches of data sequentially. Larger batch sizes enable the GPU to utilize its full capacity, resulting in higher data throughput and better performance.

2. Parallel Processing

GPUs are designed with many cores that can perform parallel computations. When you increase the batch size, you provide more data points that can be processed in parallel. This allows the GPU to fully utilize its cores, as each core can work on a different part of the data simultaneously.

3. Memory Access Patterns

Larger batch sizes can improve memory access patterns. When processing larger batches, data access can be more sequential and less random. This leads to more efficient use of the GPU’s memory bandwidth and cache, reducing the overhead associated with fetching data.

4. Kernel Execution Efficiency

Deep learning operations often involve matrix multiplications and convolutions, which are executed as kernels on the GPU. Larger batches result in larger matrices, which are more efficient for GPUs to process. This is because the overhead of launching a kernel is amortized over more operations, making each operation cheaper on average.

5. Reduced Overhead

When using small batch sizes, the overhead of transferring data to and from the GPU and the overhead of launching kernels becomes more significant. Larger batch sizes reduce this overhead as the same amount of setup work (data transfer, kernel launch) processes more data, leading to better utilization of GPU resources.

6. Batch Normalization and Statistics

Operations like batch normalization benefit from larger batch sizes because they can compute more accurate statistics (mean and variance) with more data points. This can lead to more stable training and better performance.

Example Visualization

To understand this concept better, consider a simplified example:

• Small Batch Size: Suppose you have a batch size of 2. Each GPU core processes one data point at a time. If you have 1000 data points, you will need 500 batches to complete one epoch, leading to frequent data transfers and kernel launches, underutilizing the GPU cores.

• Large Batch Size: With a batch size of 64, you reduce the number of batches to 16 for the same 1000 data points. Each batch will utilize more GPU cores simultaneously, leading to more efficient parallel processing and less overhead from data transfer and kernel launches.

Practical Considerations

1. Memory Limitations: Increasing the batch size requires more GPU memory. Ensure that your GPU has enough memory to handle the larger batches. If you exceed the GPU memory capacity, you will encounter out-of-memory errors.

2. Diminishing Returns: After a certain point, increasing the batch size further may not lead to significant performance improvements and can even hurt generalization performance.

3. Learning Rate Adjustment: Larger batch sizes often necessitate adjustments to the learning rate. A common heuristic is to increase the learning rate proportionally with the batch size.

Conclusion

Larger batch sizes lead to better GPU parallelization by maximizing the use of GPU cores, improving memory access patterns, reducing overhead, and leveraging the GPU’s design for high-throughput parallel processing. However, it’s essential to balance the batch size with available GPU memory and the potential impact on generalization performance. Experimenting with different batch sizes while monitoring both training speed and model accuracy can help you find the optimal batch size for your specific application.

You

whats a sensible batch size for an RTX 4070 super doing LSTM training?

ChatGPT

The NVIDIA RTX 4070 Super is a powerful GPU with a significant amount of memory and processing capability, making it suitable for deep learning tasks, including LSTM training. However, the optimal batch size can vary depending on your specific model architecture, the complexity of the LSTM network, and the size of your input data.

General Guidelines for Choosing a Batch Size:

1. GPU Memory: The RTX 4070 Super has 16GB of GDDR6 memory. The batch size should be chosen to fully utilize this memory without causing out-of-memory errors.

2. Model Complexity: More complex models with larger numbers of parameters will require more memory, reducing the feasible batch size.

3. Input Data Size: The dimensionality of your input data (number of time steps and features) will also impact the memory usage. Higher dimensional data will limit the batch size.

Practical Approach to Determine Batch Size:

1. Start with a Moderate Size: Begin with a moderate batch size, such as 32 or 64. These sizes often provide a good balance between training speed and memory usage.

2. Incrementally Increase: Gradually increase the batch size while monitoring the GPU memory usage. Tools like NVIDIA’s nvidia-smi can help you monitor memory usage in real-time.

3. Monitor Performance: Ensure that increasing the batch size does not degrade model performance in terms of validation accuracy or cause overfitting.

Example Code to Monitor GPU Usage:

You can use the following code snippet to start with a batch size of 32 and gradually increase it while checking for memory usage.

import tensorflow as tf
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import LSTM, Dense, BatchNormalization
from tensorflow.keras.optimizers import Nadam
from tensorflow.keras.regularizers import l2
from tensorflow.keras.callbacks import EarlyStopping, LearningRateScheduler
import numpy as np

def create_model(input_shape, num_classes, n_neurons):
    model = Sequential()
    model.add(LSTM(n_neurons, return_sequences=True, input_shape=input_shape, kernel_regularizer=l2(0.01), dropout=0.2))
    model.add(BatchNormalization())
    model.add(LSTM(n_neurons, kernel_regularizer=l2(0.01), dropout=0.2))
    model.add(BatchNormalization())
    model.add(Dense(num_classes, activation='softmax'))
    optimizer = Nadam(learning_rate=0.001)
    model.compile(optimizer=optimizer, loss='categorical_crossentropy', metrics=['accuracy'])
    return model

# Example usage
input_shape = (100, 30)  # Example input shape with 100 time steps and 30 features
num_classes = 10  # Example number of classes
n_neurons = 50  # Number of neurons in each LSTM layer

X_train = np.random.random((1000, 100, 30))  # Example training data
y_train = tf.keras.utils.to_categorical(np.random.randint(0, num_classes, 1000), num_classes)  # Example labels

batch_size = 32  # Start with a moderate batch size

model = create_model(input_shape, num_classes, n_neurons)

# Callbacks
early_stopping = EarlyStopping(monitor='val_loss', patience=3, restore_best_weights=True)

def scheduler(epoch, lr):
    if epoch < 10:
        return lr
    else:
        return lr * 0.1

lr_scheduler = LearningRateScheduler(scheduler)

# Train the model
history = model.fit(X_train, y_train,
                    epochs=50,
                    batch_size=batch_size,
                    validation_split=0.2,
                    callbacks=[early_stopping, lr_scheduler])

# Increase the batch size and monitor memory usage
for batch_size in [64, 128, 256]:
    try:
        print(f"Trying batch size: {batch_size}")
        history = model.fit(X_train, y_train,
                            epochs=1,  # Train for one epoch to check memory usage
                            batch_size=batch_size,
                            validation_split=0.2)
    except tf.errors.ResourceExhaustedError:
        print(f"Batch size {batch_size} is too large for the available GPU memory.")
        break

Conclusion:

For the NVIDIA RTX 4070 Super, starting with a batch size of 32 or 64 is reasonable. You can incrementally increase the batch size to 128 or 256 while monitoring the GPU memory usage. This approach ensures you fully utilize the GPU’s capabilities without running into memory issues. Always balance the batch size with the overall model performance to achieve the best results.

You

is a batch size of 2048 crazy?

ChatGPT

A batch size of 2048 is quite large and is generally considered unconventional for most deep learning tasks, including LSTM training. Whether or not it is “crazy” depends on several factors, including the specific use case, the available hardware, and the nature of the data. Here are some considerations:

Pros and Cons of Large Batch Sizes

Pros:

1. Faster Training per Epoch: Larger batch sizes can take advantage of GPU parallelism more effectively, potentially leading to faster training times per epoch.
2. Stable Gradients: Larger batches provide more stable gradient estimates, which can lead to smoother convergence.

Cons:

1. Memory Constraints: A batch size of 2048 can quickly exhaust the memory of even high-end GPUs like the NVIDIA RTX 4070 Super. You might encounter out-of-memory errors.
2. Generalization: There is evidence that very large batch sizes can negatively impact the generalization ability of models. This is because larger batches tend to smooth out the noise, potentially leading to models that do not generalize well to new data.
3. Diminishing Returns: After a certain point, increasing the batch size further does not significantly improve training speed and can even make convergence harder.

Practical Considerations

1. Hardware Limitations: Ensure that your GPU can handle such a large batch size without running out of memory. You can use tools like nvidia-smi to monitor GPU memory usage.
2. Learning Rate Adjustment: If you use a very large batch size, you might need to adjust the learning rate. A common practice is to scale the learning rate proportionally with the batch size.
3. Experimentation: It’s important to experiment with different batch sizes to find the optimal balance between training speed, memory usage, and model performance.

Testing a Batch Size of 2048

Here’s how you might test a very large batch size, ensuring that you monitor for memory errors:

import tensorflow as tf
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import LSTM, Dense, BatchNormalization
from tensorflow.keras.optimizers import Nadam
from tensorflow.keras.regularizers import l2
from tensorflow.keras.callbacks import EarlyStopping, LearningRateScheduler
import numpy as np

def create_model(input_shape, num_classes, n_neurons):
    model = Sequential()
    model.add(LSTM(n_neurons, return_sequences=True, input_shape=input_shape, kernel_regularizer=l2(0.01), dropout=0.2))
    model.add(BatchNormalization())
    model.add(LSTM(n_neurons, kernel_regularizer=l2(0.01), dropout=0.2))
    model.add(BatchNormalization())
    model.add(Dense(num_classes, activation='softmax'))
    optimizer = Nadam(learning_rate=0.001)
    model.compile(optimizer=optimizer, loss='categorical_crossentropy', metrics=['accuracy'])
    return model

# Example usage
input_shape = (100, 30)  # Example input shape with 100 time steps and 30 features
num_classes = 10  # Example number of classes
n_neurons = 50  # Number of neurons in each LSTM layer

X_train = np.random.random((10000, 100, 30))  # Example training data
y_train = tf.keras.utils.to_categorical(np.random.randint(0, num_classes, 10000), num_classes)  # Example labels

# Define the model
model = create_model(input_shape, num_classes, n_neurons)

# Callbacks
early_stopping = EarlyStopping(monitor='val_loss', patience=3, restore_best_weights=True)

def scheduler(epoch, lr):
    if epoch < 10:
        return lr
    else:
        return lr * 0.1

lr_scheduler = LearningRateScheduler(scheduler)

# Test batch size of 2048
batch_size = 2048

try:
    print(f"Trying batch size: {batch_size}")
    history = model.fit(X_train, y_train,
                        epochs=1,  # Train for one epoch to check memory usage
                        batch_size=batch_size,
                        validation_split=0.2,
                        callbacks=[early_stopping, lr_scheduler])
except tf.errors.ResourceExhaustedError:
    print(f"Batch size {batch_size} is too large for the available GPU memory.")

Conclusion

While a batch size of 2048 is quite large and unconventional, it’s not inherently “crazy” if your hardware can handle it and it provides benefits for your specific use case. However, it’s important to carefully monitor memory usage and the generalization performance of your model. In most practical scenarios, batch sizes in the range of 32 to 512 are more commonly used and provide a good balance between performance and memory usage.

You

will increasing the number of neurons result in better model?

ChatGPT

Increasing the number of neurons in your LSTM layers can potentially improve your model’s performance, but it comes with trade-offs and considerations. Here are the key points to keep in mind:

Potential Benefits

1. Capacity: More neurons increase the model’s capacity to learn and represent complex patterns in the data. This can lead to better performance on training and validation datasets if the original model was underfitting.

2. Feature Representation: More neurons can lead to richer feature representations, capturing more nuances in the temporal dependencies and patterns in the data.

Potential Drawbacks

1. Overfitting: A model with too many neurons can overfit the training data, especially if the dataset is not large enough. This leads to poor generalization to new, unseen data.

2. Computational Cost: Increasing the number of neurons significantly increases the computational cost and memory usage. This can lead to longer training times and might exceed the hardware capabilities.

3. Diminishing Returns: Beyond a certain point, adding more neurons may yield diminishing returns in performance improvement. The model might become more complex without a proportional gain in accuracy.

Practical Considerations

1. Start Simple: Begin with a reasonable number of neurons and progressively increase them while monitoring the model’s performance on both the training and validation sets.

2. Use Validation Metrics: Use validation accuracy and loss to guide the increase in neurons. If validation performance improves without overfitting, the increase might be beneficial.

3. Regularization: As you increase the number of neurons, use regularization techniques such as dropout and L2 regularization to prevent overfitting.

4. Hyperparameter Tuning: Use hyperparameter tuning techniques (e.g., grid search, random search, Bayesian optimization) to find the optimal number of neurons.

Example Implementation

Here’s an example of how you might increase the number of neurons in your LSTM layers and evaluate the impact:

import tensorflow as tf
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import LSTM, Dense, BatchNormalization
from tensorflow.keras.optimizers import Nadam
from tensorflow.keras.regularizers import l2
from tensorflow.keras.callbacks import EarlyStopping, LearningRateScheduler
import numpy as np

def create_model(input_shape, num_classes, n_neurons):
    model = Sequential()
    model.add(LSTM(n_neurons, return_sequences=True, input_shape=input_shape, kernel_regularizer=l2(0.01), dropout=0.2))
    model.add(BatchNormalization())
    model.add(LSTM(n_neurons, kernel_regularizer=l2(0.01), dropout=0.2))
    model.add(BatchNormalization())
    model.add(Dense(num_classes, activation='softmax'))
    optimizer = Nadam(learning_rate=0.001)
    model.compile(optimizer=optimizer, loss='categorical_crossentropy', metrics=['accuracy'])
    return model

# Example usage
input_shape = (100, 30)  # Example input shape with 100 time steps and 30 features
num_classes = 10  # Example number of classes
n_neurons_options = [50, 100, 200]  # Different numbers of neurons to test

X_train = np.random.random((10000, 100, 30))  # Example training data
y_train = tf.keras.utils.to_categorical(np.random.randint(0, num_classes, 10000), num_classes)  # Example labels

# Callbacks
early_stopping = EarlyStopping(monitor='val_loss', patience=3, restore_best_weights=True)

def scheduler(epoch, lr):
    if epoch < 10:
        return lr
    else:
        return lr * 0.1

lr_scheduler = LearningRateScheduler(scheduler)

# Train and evaluate models with different numbers of neurons
for n_neurons in n_neurons_options:
    print(f"Training model with {n_neurons} neurons per layer")
    model = create_model(input_shape, num_classes, n_neurons)
    history = model.fit(X_train, y_train,
                        epochs=50,
                        batch_size=64,
                        validation_split=0.2,
                        callbacks=[early_stopping, lr_scheduler])
    print(f"Finished training model with {n_neurons} neurons per layer")

Conclusion

Increasing the number of neurons can improve model performance by enhancing its capacity to learn complex patterns. However, it also increases the risk of overfitting and computational cost. Carefully monitor validation metrics, employ regularization techniques, and consider hyperparameter tuning to find the optimal number of neurons for your specific application.

You

how can I tell if my model is overfitting?

ChatGPT

Identifying overfitting in your model involves monitoring and analyzing the behavior of training and validation performance metrics over time. Here are key signs and methods to help you determine if your model is overfitting:

Key Signs of Overfitting

1. Divergence Between Training and Validation Metrics:

   • Training Accuracy/Loss: High accuracy and low loss on the training set.
   • Validation Accuracy/Loss: Significantly lower accuracy and higher loss on the validation set compared to the training set.

2. Validation Performance Degradation:

   • Validation Loss Increases: If the validation loss starts to increase while the training loss continues to decrease, this is a strong indication of overfitting.
   • Validation Accuracy Decreases: If the validation accuracy stagnates or decreases while training accuracy improves, the model is overfitting to the training data.

3. Early vs. Late Epochs:

   • Early Epochs: Initially, both training and validation metrics improve.
   • Later Epochs: After a certain number of epochs, validation performance stops improving or worsens, while training performance continues to improve.

Methods to Detect Overfitting

1. Plot Training and Validation Metrics:

   • Use visualization tools like Matplotlib or TensorBoard to plot training and validation accuracy and loss over epochs.

   import matplotlib.pyplot as plt

   def plot_training_history(history):
       acc = history.history['accuracy']
       val_acc = history.history['val_accuracy']
       loss = history.history['loss']
       val_loss = history.history['val_loss']
       epochs = range(1, len(acc) + 1)

       plt.figure(figsize=(12, 4))

       # Plot training and validation accuracy
       plt.subplot(1, 2, 1)
       plt.plot(epochs, acc, 'b', label='Training accuracy')
       plt.plot(epochs, val_acc, 'r', label='Validation accuracy')
       plt.title('Training and Validation Accuracy')
       plt.xlabel('Epochs')
       plt.ylabel('Accuracy')
       plt.legend()

       # Plot training and validation loss
       plt.subplot(1, 2, 2)
       plt.plot(epochs, loss, 'b', label='Training loss')
       plt.plot(epochs, val_loss, 'r', label='Validation loss')
       plt.title('Training and Validation Loss')
       plt.xlabel('Epochs')
       plt.ylabel('Loss')
       plt.legend()

       plt.show()

   # Example usage
   # history = model.fit(...)
   plot_training_history(history)

2. Early Stopping:

   • Implement early stopping to halt training when the validation performance stops improving. This prevents the model from overfitting by stopping the training process before it starts to memorize the training data.

   from tensorflow.keras.callbacks import EarlyStopping

   early_stopping = EarlyStopping(monitor='val_loss', patience=3, restore_best_weights=True)

   # Train the model with early stopping
   history = model.fit(X_train, y_train,
                       epochs=50,
                       batch_size=64,
                       validation_split=0.2,
                       callbacks=[early_stopping])

3. Cross-Validation:

   • Use k-fold cross-validation to evaluate the model on multiple splits of the data. This helps ensure that the model’s performance is consistent and not just due to overfitting to a single train-validation split.

   from sklearn.model_selection import KFold
   import numpy as np

   def cross_validate_model(model, X, y, n_splits=5):
       kfold = KFold(n_splits=n_splits, shuffle=True, random_state=42)
       val_scores = []

       for train_index, val_index in kfold.split(X):
           X_train, X_val = X[train_index], X[val_index]
           y_train, y_val = y[train_index], y[val_index]

           model.fit(X_train, y_train, epochs=50, batch_size=64, validation_data=(X_val, y_val), verbose=0)
           val_score = model.evaluate(X_val, y_val, verbose=0)
           val_scores.append(val_score)

       return np.mean(val_scores, axis=0)

   # Example usage
   # model = create_model(...)
   val_score = cross_validate_model(model, X_train, y_train)
   print(f"Validation Score: {val_score}")

Conclusion

To determine if your model is overfitting, you should monitor and compare training and validation performance metrics, plot these metrics over epochs, use early stopping to prevent overfitting, and consider cross-validation to ensure consistency. If you notice significant divergence between training and validation metrics or see validation performance degradation while training performance continues to improve, your model is likely overfitting. Implementing regularization techniques and fine-tuning your model can help mitigate overfitting.

You

where do i find “history” ?

ChatGPT

The history object is returned by the fit method when training a model in Keras. This object contains a record of training loss values and metrics values at successive epochs, as well as validation loss values and validation metrics values (if applicable).

Here’s a step-by-step guide to using the history object:

Step-by-Step Guide

1. Train the Model: When you call the fit method to train your model, save the returned history object.
2. Accessing the History: You can access the history of training and validation metrics through the history attribute of the history object.
3. Plotting the Metrics: Use the stored metrics to visualize the training and validation performance over epochs.

Example

Here’s a complete example demonstrating these steps:

Step 1: Define and Compile Your Model

from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import LSTM, Dense, BatchNormalization
from tensorflow.keras.optimizers import Nadam
from tensorflow.keras.regularizers import l2
from tensorflow.keras.callbacks import EarlyStopping

def create_model(input_shape, num_classes, n_neurons):
    model = Sequential()
    model.add(LSTM(n_neurons, return_sequences=True, input_shape=input_shape, kernel_regularizer=l2(0.01), dropout=0.2))
    model.add(BatchNormalization())
    model.add(LSTM(n_neurons, kernel_regularizer=l2(0.01), dropout=0.2))
    model.add(BatchNormalization())
    model.add(Dense(num_classes, activation='softmax'))
    optimizer = Nadam(learning_rate=0.001)
    model.compile(optimizer=optimizer, loss='categorical_crossentropy', metrics=['accuracy'])
    return model

Step 2: Train the Model and Get the History

# Example usage
input_shape = (100, 30)  # Example input shape with 100 time steps and 30 features
num_classes = 10  # Example number of classes
n_neurons = 50  # Number of neurons in each LSTM layer

X_train = np.random.random((10000, 100, 30))  # Example training data
y_train = tf.keras.utils.to_categorical(np.random.randint(0, num_classes, 10000), num_classes)  # Example labels

# Define the model
model = create_model(input_shape, num_classes, n_neurons)

# Callbacks
early_stopping = EarlyStopping(monitor='val_loss', patience=3, restore_best_weights=True)

# Train the model and get the history
history = model.fit(X_train, y_train,
                    epochs=50,
                    batch_size=64,
                    validation_split=0.2,
                    callbacks=[early_stopping])

Step 3: Plot the Training and Validation Metrics

import matplotlib.pyplot as plt

def plot_training_history(history):
    acc = history.history['accuracy']
    val_acc = history.history['val_accuracy']
    loss = history.history['loss']
    val_loss = history.history['val_loss']
    epochs = range(1, len(acc) + 1)

    plt.figure(figsize=(12, 4))

    # Plot training and validation accuracy
    plt.subplot(1, 2, 1)
    plt.plot(epochs, acc, 'b', label='Training accuracy')
    plt.plot(epochs, val_acc, 'r', label='Validation accuracy')
    plt.title('Training and Validation Accuracy')
    plt.xlabel('Epochs')
    plt.ylabel('Accuracy')
    plt.legend()

    # Plot training and validation loss
    plt.subplot(1, 2, 2)
    plt.plot(epochs, loss, 'b', label='Training loss')
    plt.plot(epochs, val_loss, 'r', label='Validation loss')
    plt.title('Training and Validation Loss')
    plt.xlabel('Epochs')
    plt.ylabel('Loss')
    plt.legend()

    plt.show()

# Plot the history
plot_training_history(history)

Summary

The history object, returned by the fit method, contains training and validation metrics. You can access these metrics through the history attribute of the history object and use them to plot the training and validation performance over time. This helps in diagnosing issues like overfitting and underfitting by visualizing the learning process.

You

what can you infer from this?

ChatGPT

The plots of training and validation accuracy and loss over epochs provide valuable insights into the performance and behavior of your model. Here are the key observations and inferences from the provided plots:

Observations

1. Training and Validation Accuracy:

   • Both training and validation accuracy start low and improve rapidly over the first few epochs.
   • Around epoch 5, both training and validation accuracy reach approximately 95%.
   • The accuracy continues to increase slightly and stabilizes, with both training and validation accuracy closely tracking each other and staying around 99%.

2. Training and Validation Loss:

   • Both training and validation loss start high and decrease rapidly over the first few epochs.
   • Around epoch 5, both training and validation loss decrease significantly and continue to decline, reaching a low and stable value.
   • The training and validation loss curves closely track each other, with occasional minor fluctuations but no significant divergence.

Inferences

1. No Overfitting:

   • The training and validation accuracy curves are very close to each other, and similarly, the training and validation loss curves are closely aligned. This indicates that the model is not overfitting, as it performs equally well on both the training and validation sets.

2. Good Generalization:

   • The close tracking of training and validation metrics suggests that the model generalizes well to unseen data. This is a sign of a well-trained model.

3. Convergence:

   • The model appears to have converged by epoch 5, as the accuracy and loss metrics stabilize with minor fluctuations. This indicates that further training may not yield significant improvements.

4. Sufficient Training:

   • The model achieves high accuracy (around 99%) and low loss on both training and validation sets, suggesting that it has learned the underlying patterns in the data effectively.

Recommendations

1. Early Stopping:

   • Given that the model converges by epoch 5, you might consider using early stopping with a patience parameter to avoid unnecessary training epochs. This can save computational resources.

   early_stopping = EarlyStopping(monitor='val_loss', patience=5, restore_best_weights=True)

2. Learning Rate Adjustment:

   • Since the model converges quickly, you might experiment with a learning rate schedule to fine-tune the learning process further.

   def scheduler(epoch, lr):
       if epoch < 10:
           return lr
       else:
           return lr * 0.1

   lr_scheduler = LearningRateScheduler(scheduler)

3. Hyperparameter Tuning:

   • Although the model performs well, you can still explore hyperparameter tuning to see if there are any further improvements in performance. Consider experimenting with the number of neurons, batch size, dropout rates, etc.

4. Regularization:

   • Continue to monitor for signs of overfitting, especially if you change the model architecture or add complexity. Regularization techniques like dropout and L2 regularization should be maintained to ensure robust performance.

Conclusion

The training and validation curves indicate that your model is well-trained, generalizes well, and does not suffer from overfitting. You can consider implementing early stopping and learning rate scheduling to optimize the training process further. Continue to monitor the model’s performance and adjust hyperparameters as needed to maintain or improve performance.

You

since the results are good, can I try increasing the learning rate?

ChatGPT

Increasing the learning rate can be a useful strategy to speed up training, especially if the model is converging too slowly. However, it’s important to do this carefully because too high a learning rate can cause the model to diverge or fail to converge properly.

Considerations for Increasing Learning Rate

1. Current Performance: Your model is already performing well, so any changes should be made cautiously and monitored closely.
2. Learning Rate Schedule: Instead of a constant high learning rate, using a learning rate scheduler that adjusts the learning rate over time can help maintain stability while potentially improving convergence speed.
3. Gradual Increase: Gradually increasing the learning rate can help you identify an optimal range without causing instability.

Practical Approach

1. Learning Rate Finder: Implement a learning rate range test to find the optimal learning rate. This involves training the model for a few epochs with exponentially increasing learning rates and observing the loss.
2. Learning Rate Scheduler: Use a learning rate scheduler to gradually reduce the learning rate during training. This helps in maintaining stability after an initial period of faster convergence.

Example Implementation

Step 1: Learning Rate Finder

A learning rate range test helps identify a good range for the learning rate:

import tensorflow as tf
from tensorflow.keras.callbacks import Callback
import matplotlib.pyplot as plt

class LearningRateFinder(Callback):
    def __init__(self, min_lr=1e-5, max_lr=1, steps_per_epoch=None, epochs=1):
        super().__init__()
        self.min_lr = min_lr
        self.max_lr = max_lr
        self.total_iterations = steps_per_epoch * epochs
        self.iteration = 0
        self.history = {}

    def on_batch_end(self, batch, logs=None):
        self.iteration += 1
        lr = self.min_lr * (self.max_lr / self.min_lr) ** (self.iteration / self.total_iterations)
        tf.keras.backend.set_value(self.model.optimizer.lr, lr)
        self.history.setdefault('lr', []).append(lr)
        self.history.setdefault('loss', []).append(logs['loss'])

    def on_train_end(self, logs=None):
        plt.plot(self.history['lr'], self.history['loss'])
        plt.xscale('log')
        plt.xlabel('Learning Rate')
        plt.ylabel('Loss')
        plt.show()

# Example usage
steps_per_epoch = len(X_train) // 64
lr_finder = LearningRateFinder(steps_per_epoch=steps_per_epoch)
model.fit(X_train, y_train, epochs=1, batch_size=64, callbacks=[lr_finder])

Step 2: Learning Rate Scheduler

Once you identify a suitable learning rate, implement a learning rate scheduler to start with a higher learning rate and reduce it over time.

from tensorflow.keras.callbacks import LearningRateScheduler

def scheduler(epoch, lr):
    if epoch < 10:
        return lr * 1.2  # Gradually increase the learning rate
    else:
        return lr * 0.9  # Gradually decrease the learning rate

lr_scheduler = LearningRateScheduler(scheduler)

# Re-compile and train the model with the learning rate scheduler
model.compile(optimizer=Nadam(learning_rate=0.001), loss='categorical_crossentropy', metrics=['accuracy'])
history = model.fit(X_train, y_train, epochs=50, batch_size=64, validation_split=0.2, callbacks=[early_stopping, lr_scheduler])

Monitoring and Adjustments

1. Monitor Training: Keep an eye on the training and validation metrics during the initial epochs to ensure that the increased learning rate does not cause instability.
2. Adjust as Necessary: If you observe divergence or significant instability, reduce the learning rate or revert to the previous setting.

Conclusion

Increasing the learning rate can potentially speed up training and improve convergence, but it should be done carefully. Using a learning rate finder and scheduler allows for controlled adjustments and helps identify the optimal learning rate range. Monitor the training process closely and be prepared to make adjustments if necessary.

You

is the number of total parameters the “dimensions” of the latent space?

ChatGPT

The number of total parameters in a neural network is not the same as the dimensions of the latent space. These are two different concepts:

Total Parameters

• Definition: The total parameters in a neural network include all the weights and biases that the network learns during training.
• Calculation: The number of parameters depends on the architecture of the network, including the number of layers, the number of neurons in each layer, and the connections between them.
• Impact: The total parameters determine the capacity of the network to learn complex functions. More parameters generally mean the network can learn more complex patterns, but it also increases the risk of overfitting and requires more computational resources.

Latent Space Dimensions

• Definition: The latent space dimensions refer to the size of the output from a specific layer in the network, often an intermediate layer used to represent the data in a compressed form. This is especially common in autoencoders, embeddings, and certain deep learning models like LSTMs when used for creating feature representations.
• Example: In an LSTM network, the latent space might be the output of the LSTM layer. For instance, if an LSTM layer has 128 units, the latent space dimension would be 128.
• Impact: The dimensions of the latent space determine how the data is represented internally by the network. A well-chosen latent space can capture essential features and relationships in the data, making it useful for tasks like clustering, retrieval, and interpolation.

Example: Calculating Parameters and Latent Space

Here’s an example using an LSTM model to illustrate the difference between total parameters and latent space dimensions:

LSTM Model Example

from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import LSTM, Dense, BatchNormalization
from tensorflow.keras.optimizers import Nadam

def create_model(input_shape, num_classes, n_neurons):
    model = Sequential()
    model.add(LSTM(n_neurons, return_sequences=True, input_shape=input_shape))
    model.add(BatchNormalization())
    model.add(LSTM(n_neurons))
    model.add(BatchNormalization())
    model.add(Dense(num_classes, activation='softmax'))
    return model

# Example usage
input_shape = (100, 30)  # 100 time steps, 30 features
num_classes = 10
n_neurons = 50
model = create_model(input_shape, num_classes, n_neurons)
model.summary()

Output Explanation

When you call model.summary(), it will display something like this:

_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
lstm (LSTM)                  (None, 100, 50)           16200
_________________________________________________________________
batch_normalization (BatchNo (None, 100, 50)           200
_________________________________________________________________
lstm_1 (LSTM)                (None, 50)                20200
_________________________________________________________________
batch_normalization_1 (Batch (None, 50)                200
_________________________________________________________________
dense (Dense)                (None, 10)                510
=================================================================
Total params: 37,310
Trainable params: 37,110
Non-trainable params: 200
_________________________________________________________________

• Total Parameters: 37,310 parameters, which include all weights and biases across all layers.
• Latent Space Dimensions: The output of the second LSTM layer has 50 dimensions. This is the size of the latent space created by the LSTM network.

Conclusion

• The total parameters are the sum of all learnable weights and biases in the network and reflect the model’s capacity.
• The latent space dimensions refer to the size of the internal representation (or the output) at a specific layer, often used for feature representation or embeddings.

Understanding both concepts is crucial for designing and evaluating neural network models, as they impact the model’s complexity, learning capability, and performance on specific tasks.

You

in this case what is the dimensionality of the latent space?

ChatGPT

In the given model summary, the dimensionality of the latent space is determined by the output of the second LSTM layer, which is (None, 64).

Explanation

• LSTM Layer 1:

  • Output Shape: (None, 31, 64)
  • This means the first LSTM layer processes sequences with 31 time steps, each with 64 features.

• TimeDistributed Layer:

  • Output Shape: (None, 31, 64)
  • This layer applies a layer (in this case, likely a Dense layer or another transformation) to each time step of the sequence. It maintains the sequence length and the dimensionality of each time step.

• LSTM Layer 2:

  • Output Shape: (None, 64)
  • This means the second LSTM layer processes the entire sequence and returns a single output vector of 64 dimensions for each input sequence.

• Batch Normalization Layer:

  • Output Shape: (None, 64)
  • This layer normalizes the output of the previous LSTM layer. The output shape remains the same, which is 64 dimensions.

• Dense Layer:

  • Output Shape: (None, 7)
  • This is the final output layer with 7 units, likely corresponding to 7 classes for a classification task.

Dimensionality of the Latent Space

• The latent space dimensionality is given by the output of the second LSTM layer before the final Dense layer, which is 64.
• This means that the representation (or embedding) of the input sequence learned by the model is a 64-dimensional vector.

Summary

The latent space dimensionality in this case is 64. This is the size of the vector representation produced by the LSTM network for each input sequence, which is then used by the final Dense layer for classification or other tasks.

You

why do large learning rates destabilize the smoothness of the loss/accuracy curves?

ChatGPT

Large learning rates can destabilize the smoothness of the loss and accuracy curves for several reasons related to the nature of gradient descent optimization. Here are the key points:

1. Large Steps in the Parameter Space

• Gradient Descent: During training, gradient descent updates the model’s parameters in the direction of the negative gradient of the loss function.
• Large Learning Rates: When the learning rate is large, each update involves a significant change in the parameter values.
• Impact: These large updates can cause the model to overshoot the optimal point in the parameter space. Instead of gradually approaching the minimum of the loss function, the parameters might bounce around the optimal point, leading to oscillations in the loss and accuracy curves.

2. Divergence and Exploding Gradients

• Exploding Gradients: In deep networks, gradients can become very large during backpropagation. Large learning rates amplify this effect, potentially causing parameter values to explode to very large values.
• Impact: This can lead to numerical instability, causing the loss to diverge (i.e., increase rapidly) and making it impossible for the model to converge.

3. Loss Surface Complexity

• Non-Convex Loss Surface: The loss surface in deep learning is often highly non-convex with many local minima, saddle points, and flat regions.
• Impact of Large Learning Rates: Large steps can cause the optimizer to jump over minima or get stuck in saddle points, resulting in erratic behavior of the loss and accuracy curves.

4. Inability to Settle into Minima

• Fine-Tuning Parameters: A smaller learning rate allows the model to make fine-grained adjustments to the parameters, which is crucial as the model approaches a minimum in the loss landscape.
• Impact: With a large learning rate, these fine adjustments are not possible, preventing the model from settling into a minimum. This leads to high variability in the loss and accuracy curves.

Visual Explanation

Imagine you are trying to descend a bumpy hill to find the lowest point:

• Small Steps (Small Learning Rate): You can carefully navigate the bumps and find the lowest point smoothly.
• Large Steps (Large Learning Rate): You might jump over bumps and end up in a higher position than before, leading to a jagged and unstable path.

Practical Example

Here’s a practical example using a simple gradient descent update rule to illustrate the effect of learning rates:

import numpy as np
import matplotlib.pyplot as plt

# Example loss function (quadratic for simplicity)
def loss_function(x):
    return x**2

# Gradient of the loss function
def gradient(x):
    return 2 * x

# Gradient descent function
def gradient_descent(initial_x, learning_rate, epochs):
    x = initial_x
    history = []
    for _ in range(epochs):
        x -= learning_rate * gradient(x)
        history.append(x)
    return history

# Parameters
initial_x = 10
epochs = 50

# Different learning rates
learning_rates = [0.1, 0.5, 1.0]

# Plotting the results
plt.figure(figsize=(10, 6))
for lr in learning_rates:
    history = gradient_descent(initial_x, lr, epochs)
    plt.plot(history, label=f'LR = {lr}')

plt.xlabel('Epochs')
plt.ylabel('Parameter Value')
plt.title('Gradient Descent with Different Learning Rates')
plt.legend()
plt.show()

Conclusion

Large learning rates can destabilize the smoothness of loss and accuracy curves because they cause large parameter updates that can overshoot minima, lead to divergence, and prevent the model from making fine-grained adjustments. To maintain stable and smooth training, it’s crucial to choose an appropriate learning rate, often found through experimentation or using learning rate schedules.

You

how can i reduce loss, while keeping low learning rate?

ChatGPT

Reducing loss while keeping the learning rate low can be achieved through several strategies that focus on improving the model’s training process and enhancing its ability to learn effectively. Here are some approaches:

1. Increase Training Time

• More Epochs: Training for more epochs allows the model to continue learning and improving its parameters.
• Patience: Use early stopping with a higher patience value to allow the model more time to train.

2. Optimize Batch Size

• Batch Size Adjustment: Finding the optimal batch size can help stabilize training and improve the model’s ability to learn. Experiment with different batch sizes to find the one that works best for your data and model.

3. Use Data Augmentation

• Augmentation Techniques: Apply data augmentation to artificially increase the size and variability of your training data, which can help the model generalize better and reduce overfitting.

4. Regularization Techniques

• Dropout: Apply dropout to prevent overfitting by randomly dropping units during training.
• L2 Regularization: Increase the L2 regularization strength to penalize large weights and encourage simpler models that generalize better.

5. Improved Model Architecture

• More Layers/Units: If your model is underfitting, consider adding more layers or units to increase its capacity.
• Residual Connections: Use residual connections (skip connections) to help train deeper networks.

6. Gradient Clipping

• Clipping Gradients: Implement gradient clipping to prevent the gradients from becoming too large and causing instability during training.

7. Learning Rate Schedulers

• Learning Rate Annealing: Use learning rate schedules to gradually reduce the learning rate during training, allowing the model to make fine-grained adjustments as it converges.
• Cyclical Learning Rates: Use cyclical learning rates to periodically vary the learning rate, which can help the model escape local minima and converge more effectively.

8. Advanced Optimization Algorithms

• Optimizers: Experiment with different optimizers such as Adam, Nadam, or RMSprop, which can adaptively adjust learning rates and often perform better than standard SGD.

Example Implementation

Here’s an example of how you might implement some of these strategies:

import tensorflow as tf
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import LSTM, Dense, BatchNormalization, Dropout
from tensorflow.keras.optimizers import Adam
from tensorflow.keras.regularizers import l2
from tensorflow.keras.callbacks import EarlyStopping, ReduceLROnPlateau

# Define the model
def create_model(input_shape, num_classes, n_neurons):
    model = Sequential()
    model.add(LSTM(n_neurons, return_sequences=True, input_shape=input_shape, kernel_regularizer=l2(0.01), dropout=0.2))
    model.add(BatchNormalization())
    model.add(LSTM(n_neurons, kernel_regularizer=l2(0.01), dropout=0.2))
    model.add(BatchNormalization())
    model.add(Dense(num_classes, activation='softmax'))
    return model

# Example usage
input_shape = (100, 30)  # Example input shape with 100 time steps and 30 features
num_classes = 10  # Example number of classes
n_neurons = 50  # Number of neurons in each LSTM layer

model = create_model(input_shape, num_classes, n_neurons)
optimizer = Adam(learning_rate=0.001)  # Low learning rate
model.compile(optimizer=optimizer, loss='categorical_crossentropy', metrics=['accuracy'])

# Callbacks
early_stopping = EarlyStopping(monitor='val_loss', patience=10, restore_best_weights=True)
reduce_lr = ReduceLROnPlateau(monitor='val_loss', factor=0.5, patience=5, min_lr=1e-6)

# Train the model with data augmentation and regularization
history = model.fit(X_train, y_train,
                    epochs=100,  # More epochs
                    batch_size=64,  # Adjust batch size
                    validation_split=0.2,
                    callbacks=[early_stopping, reduce_lr])

# Plot the training history
import matplotlib.pyplot as plt

def plot_training_history(history):
    acc = history.history['accuracy']
    val_acc = history.history['val_accuracy']
    loss = history.history['loss']
    val_loss = history.history['val_loss']
    epochs = range(1, len(acc) + 1)

    plt.figure(figsize=(12, 4))

    # Plot training and validation accuracy
    plt.subplot(1, 2, 1)
    plt.plot(epochs, acc, 'b', label='Training accuracy')
    plt.plot(epochs, val_acc, 'r', label='Validation accuracy')
    plt.title('Training and Validation Accuracy')
    plt.xlabel('Epochs')
    plt.ylabel('Accuracy')
    plt.legend()

    # Plot training and validation loss
    plt.subplot(1, 2, 2)
    plt.plot(epochs, loss, 'b', label='Training loss')
    plt.plot(epochs, val_loss, 'r', label='Validation loss')
    plt.title('Training and Validation Loss')
    plt.xlabel('Epochs')
    plt.ylabel('Loss')
    plt.legend()

    plt.show()

# Plot the history
plot_training_history(history)

Conclusion

By employing strategies such as increasing training time, optimizing batch size, using data augmentation, applying regularization techniques, improving model architecture, clipping gradients, using learning rate schedulers, and experimenting with advanced optimization algorithms, you can reduce loss while maintaining a low learning rate. Monitor the training and validation metrics closely to ensure that these strategies are effectively improving the model’s performance.

You

is a batch just a subset of the total parameters?

ChatGPT

No, a batch is not a subset of the total parameters. Let’s clarify these concepts:

Batch

A batch refers to a subset of the training data. When training a neural network, the data is typically divided into smaller groups called batches. The model processes one batch of data at a time rather than the entire dataset. This approach has several benefits:

1. Efficiency: Processing smaller batches of data can be more efficient and faster, especially on hardware like GPUs.
2. Memory Usage: Training on smaller batches uses less memory, which is crucial when dealing with large datasets.
3. Gradient Estimation: Using batches allows for more frequent updates to the model parameters, which can improve the learning process.

For example, if you have a dataset with 10,000 samples and you use a batch size of 64, then each epoch will involve approximately 156 updates (10000 / 64 = 156.25).

Total Parameters

Total parameters refer to the number of learnable parameters in a neural network, including weights and biases. The parameters are what the model learns during training. Each layer in the network contributes to the total number of parameters.

For example, in a simple dense layer, the total parameters include the weights connecting each input to each output neuron and the biases for each output neuron.

Relationship Between Batches and Parameters

• Batches: Subsets of the training data.
• Parameters: The weights and biases of the model that are adjusted during training.

When training a model, each batch is used to compute the loss and gradients, and these gradients are then used to update the parameters. The update is done using an optimizer like SGD, Adam, etc.

Example to Illustrate the Difference

Consider a neural network model with the following layers:

from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import Dense, LSTM, BatchNormalization

def create_model(input_shape, num_classes, n_neurons):
    model = Sequential()
    model.add(LSTM(n_neurons, return_sequences=True, input_shape=input_shape))
    model.add(BatchNormalization())
    model.add(LSTM(n_neurons))
    model.add(BatchNormalization())
    model.add(Dense(num_classes, activation='softmax'))
    return model

# Example usage
input_shape = (100, 30)  # 100 time steps, 30 features
num_classes = 10
n_neurons = 64
model = create_model(input_shape, num_classes, n_neurons)
model.summary()

When you call model.summary(), you might see something like this:

_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
lstm (LSTM)                  (None, 100, 64)           24320
_________________________________________________________________
batch_normalization (BatchNo (None, 100, 64)           256
_________________________________________________________________
lstm_1 (LSTM)                (None, 64)                33024
_________________________________________________________________
batch_normalization_1 (Batch (None, 64)                256
_________________________________________________________________
dense (Dense)                (None, 10)                650
=================================================================
Total params: 58,506
Trainable params: 58,250
Non-trainable params: 256
_________________________________________________________________

• Total Parameters: The model has 58,506 parameters that will be trained.
• Batch: If you train this model with a batch size of 64 on a dataset with 10,000 samples, each batch will contain 64 samples of data.

Training with Batches

During training, for each batch:

1. Forward Pass: The model makes predictions on the batch and calculates the loss.
2. Backward Pass: Gradients of the loss with respect to the parameters are computed.
3. Parameter Update: The model’s parameters are updated using the optimizer based on the computed gradients.

Conclusion

A batch is a subset of the training data used for one iteration of model training. Total parameters are the weights and biases in the model that are adjusted during training. While batches help in efficient and scalable training, parameters are the core components that the model learns and updates during the training process.
