Get signal emission time

2025-04-02 08:09 UTC gpt-4-5 Open in ChatGPT ↗

You

In unity, can i get the exact time of a signal emitter via C#?

ChatGPT

In Unity, there isn’t a built-in method specifically called “signal emitter,” but if you’re referring to Unity’s Timeline and the Signal Emitter component used within it, you can accurately obtain the exact time at which a Signal Emitter is triggered during Timeline playback by accessing the Timeline’s playable graph and evaluating the time.

Here’s how you can achieve this clearly and reliably via C#:

① Setup (if not done already):

• Ensure you have a SignalEmitter set up on your Timeline.
• You have a signal receiver to handle the emitted signals.

② Getting the exact signal emission time:

If your goal is to retrieve the exact time that a signal was emitted during Timeline playback (e.g., for logging, debugging, or game logic), the easiest way is by utilizing the context provided when the signal is triggered:

using UnityEngine;
using UnityEngine.Playables;
using UnityEngine.Timeline;

public class SignalReceiverScript : MonoBehaviour, INotificationReceiver
{
    public void OnNotify(Playable origin, INotification notification, object context)
    {
        // Check if notification is a SignalEmitter
        if (notification is SignalEmitter signalEmitter)
        {
            double signalTime = origin.GetTime(); // This gives you the exact timeline time
            Debug.Log($"Signal '{signalEmitter.name}' emitted at timeline time: {signalTime}");
        }
    }
}

Explanation:

• INotificationReceiver allows your script to listen to signals emitted by Timeline.
• The Playable origin passed to the OnNotify method contains context, including the current timeline time.
• Calling origin.GetTime() at the moment the signal triggers returns the exact time in seconds (double precision), which is exactly the Timeline playback time when the signal is emitted.

---

Alternative method (access directly from the timeline asset):

If you wish to find out the emission time beforehand (outside of runtime playback), you could access the SignalEmitter clip directly:

// Example: Find all SignalEmitter clips and their scheduled times
using UnityEngine;
using UnityEngine.Timeline;
using UnityEditor;
using System.Linq;

public class TimelineSignalTimes
{
    [MenuItem("Timeline/Print Signal Times")]
    static void PrintSignalTimes()
    {
        TimelineAsset timeline = Selection.activeObject as TimelineAsset;
        if (timeline == null)
        {
            Debug.LogError("Select a TimelineAsset first.");
            return;
        }

        foreach (var track in timeline.GetOutputTracks())
        {
            foreach (var clip in track.GetClips())
            {
                var signalEmitter = clip.asset as SignalEmitter;
                if (signalEmitter != null)
                {
                    Debug.Log($"Signal '{signalEmitter.name}' is set to emit at time {clip.start}");
                }
            }
        }
    }
}

Note: This is an Editor-time script and won’t run in a build, but it’s useful to examine your timeline layout.

---

Recommended Method:

For runtime accuracy and simplicity, the first method (INotificationReceiver) is strongly recommended and is considered best practice for accurately retrieving the exact timeline playback time at which a signal was emitted.

You

ok and does the signal receiver script need to be the one called on the emitter’s signa;l for this to work?

ChatGPT

Yes, for the OnNotify method to work correctly and retrieve the exact time a signal emitter fires, your receiver script must explicitly be connected to receive signals emitted by your Timeline.

Here’s how it typically works:

How the Signal System Works in Unity Timeline:

1. SignalEmitter (Timeline) emits a signal at a specified time.
2. SignalReceiver (typically on a GameObject) listens for and handles that signal.
3. To use the INotificationReceiver interface (as shown previously), the script implementing OnNotify must be attached to the GameObject configured as a receiver in the Timeline.

---

How to Properly Configure the SignalReceiver:

Option A (Recommended - via Timeline Inspector):

• On your Timeline asset, you have a Signal Track.
• Each SignalEmitter clip has a specified signal and targets a SignalReceiver on a specific GameObject.
• The GameObject that is targeted (receiver) must have the script implementing INotificationReceiver attached.

Example:

• Timeline → Signal Track → Signal Emitter → Targets GameObject MyReceiverObject.
• GameObject MyReceiverObject → has SignalReceiverScript component attached (implementing INotificationReceiver).

---

Option B (Programmatically):

If you’d rather do this via code (though less common), you can bind a playable director and set it programmatically:

public PlayableDirector playableDirector;
public SignalReceiver receiver;

void Start()
{
    playableDirector.SetGenericBinding(receiver, this);
}

This approach is rarer but allows runtime binding flexibility.

---

Common Mistakes to Avoid:

• Receiver not bound: If your script is never called, ensure your Timeline’s SignalEmitter explicitly targets the GameObject that has your receiver script.

• Wrong Interface: Ensure your receiving script implements INotificationReceiver and has the correct OnNotify method signature:

  public void OnNotify(Playable origin, INotification notification, object context)

• Signal assets not matched: Make sure the signal you emit matches the one the receiver listens for.

---

Minimal Correct Implementation (recommended):

Here’s a quick reminder of a correct and minimal receiver script:

using UnityEngine;
using UnityEngine.Playables;
using UnityEngine.Timeline;

public class SignalReceiverScript : MonoBehaviour, INotificationReceiver
{
    public void OnNotify(Playable origin, INotification notification, object context)
    {
        double time = origin.GetTime();
        Debug.Log($"Signal received at Timeline time: {time}");
    }
}

• Attach this script to your receiver GameObject.
• Bind this GameObject as the receiver for your signals in Timeline.

---

In summary:

• Yes, the script must be directly or indirectly targeted by the Timeline’s SignalEmitter.
• Ensure your script is attached to the GameObject specified as the SignalReceiver in your Timeline asset.

This setup ensures your receiver script’s OnNotify method is called at exactly the time the Timeline SignalEmitter fires, allowing accurate timing retrieval.

You

and how can i get the name of the emitter again in C#

ChatGPT

To get the name of the signal emitter that triggered your signal receiver in Unity, you can slightly adjust the OnNotify method as follows:

Corrected Implementation:

using UnityEngine;
using UnityEngine.Playables;
using UnityEngine.Timeline;

public class SignalReceiverScript : MonoBehaviour, INotificationReceiver
{
    public void OnNotify(Playable origin, INotification notification, object context)
    {
        string emitterName = "Unknown";

        if (notification is SignalEmitter signalEmitter && signalEmitter.asset != null)
        {
            emitterName = signalEmitter.asset.name;
        }
        else if (notification != null)
        {
            emitterName = notification.GetType().Name;
        }

        double signalTime = origin.GetTime();

        Debug.Log($"Signal '{emitterName}' emitted at timeline time: {signalTime}");
    }
}

---

Explanation of the adjustment:

• The SignalEmitter class itself doesn’t directly store the emitter’s name, but it has an asset (signalEmitter.asset) representing the signal asset associated with it.
• Typically, the name you see in the Unity Editor for the emitter is the signal asset’s name, so retrieving signalEmitter.asset.name gives you the clear identification you’ve defined.

---

Example Result:

When your SignalEmitter triggers this receiver, you’ll get a log like:

Signal 'ExplosionSignal' emitted at timeline time: 3.45

(“ExplosionSignal” is the name of your Signal asset in this example)

---

Quick Checklist for Accuracy:

• Ensure your Signal Emitters have clearly named Signal assets.
• Verify your script implements INotificationReceiver correctly.
• Attach this script directly to the GameObject receiving signals from your Timeline.

This approach gives you precise identification of each emitted signal directly at runtime.

You

it doesn’t look like OnNotify is trigger as the timeline passes through the signal

ChatGPT

If your OnNotify method isn’t triggered as your Timeline passes through the SignalEmitter, it’s usually due to a configuration issue. Here’s a step-by-step troubleshooting and resolution guide to ensure signals properly trigger OnNotify:

---

✅ Step 1: Confirm SignalReceiver Setup on GameObject

Check if you have correctly attached the INotificationReceiver script to your intended receiver GameObject:

using UnityEngine;
using UnityEngine.Playables;
using UnityEngine.Timeline;

public class SignalReceiverScript : MonoBehaviour, INotificationReceiver
{
    public void OnNotify(Playable origin, INotification notification, object context)
    {
        Debug.Log("Signal received at time: " + origin.GetTime());
    }
}

Make sure this script:

• Implements INotificationReceiver.
• Has a public, non-static OnNotify method.
• Is attached to the GameObject that you’re targeting in the Timeline.

---

✅ Step 2: Check Timeline and SignalEmitter Setup

• Open your Timeline.
• Check that you have a Signal Track with a valid SignalEmitter clip:
  • Ensure the SignalEmitter has a signal asset assigned.
  • Ensure it targets a Signal Receiver component on the correct GameObject.

Correct Setup:

Timeline (Signal Track)
 └── SignalEmitter (with Signal asset assigned)
      └── Targets SignalReceiver component on GameObject with SignalReceiverScript attached

---

✅ Step 3: Confirm Signal Receiver Component (Unity Built-in)

Unity’s Timeline signal system typically expects the built-in SignalReceiver component. If you’re directly using INotificationReceiver without the built-in component, your custom script may not trigger properly.

If you currently don’t have a built-in Unity SignalReceiver component attached:

• Select your receiver GameObject.
• Add a built-in Unity Signal Receiver component via the Inspector:
  • Inspector → Add Component → Signal Receiver.

Correct Setup (Unity built-in):

GameObject
├── Signal Receiver (built-in Unity component)
└── SignalReceiverScript (implements INotificationReceiver)

Why: Unity’s Timeline signals usually rely on the built-in Signal Receiver component to route notifications to your script.

---

✅ Step 4: Using Built-in Signal Receiver Component (Recommended)

Instead of directly implementing INotificationReceiver, it might be simpler and clearer to use the built-in Signal Receiver component provided by Unity:

• Create a public method in your script to handle signals:

public class SignalReceiverScript : MonoBehaviour
{
    public void HandleSignal()
    {
        Debug.Log("Signal received!");
    }
}

• In the Unity Inspector, select your Signal Receiver component:
  • Click ”+” → Select your Signal asset.
  • Assign the method HandleSignal() on your script as the callback.

---

✅ Step 5: Ensure Timeline is Running Correctly

Signals trigger only during Play mode when the Timeline is actively playing:

• Make sure you are in Play mode.
• Ensure your Timeline is playing correctly (use PlayableDirector.Play() to start playback if needed).

---

✅ Step 6: Verify Signal Assets

• Double-check that the SignalEmitter clip in your Timeline has a valid Signal asset:

  • Click your SignalEmitter → Confirm a Signal asset is assigned.

• Ensure the Signal asset itself is properly created:

  • Right-click in Project window → Create → Signal Asset

---

✅ Troubleshooting Checklist (Summary)

✔️ Script correctly implements INotificationReceiver.
✔️ Attached to correct GameObject.
✔️ Built-in Unity SignalReceiver component also attached and configured.
✔️ SignalEmitter is properly configured in Timeline with valid Signal Asset.
✔️ Timeline is actively playing in Play Mode.

---

🎯 Recommended Working Method (Guaranteed Solution):

For best reliability, use Unity’s built-in SignalReceiver component:

• Attach built-in SignalReceiver component to your GameObject.
• Add your script as a callback method for signals (no need for INotificationReceiver interface):

public class SignalReceiverScript : MonoBehaviour
{
    public PlayableDirector playableDirector;

    public void HandleSignal()
    {
        Debug.Log($"Signal received at exact Timeline time: {playableDirector.time}");
    }
}

• Set this method (HandleSignal) as the signal callback in the built-in Unity Signal Receiver component via Inspector.

---

If after following these steps your signals still don’t trigger, please provide additional details (screenshots or description) about your Timeline setup, GameObject hierarchy, and component configuration, and I’ll help further debug.

You

wait, the signalreceiver is there from Unity automatically. Is that script what i need to change?See in the image how i set it up. and here is my code

using System.Collections; using System.Collections.Generic; using UnityEngine; using UnityEngine.Playables; using UnityEngine.Timeline;

public class TimelineEventBroadcaster : MonoBehaviour, INotificationReceiver { public string event_name; // Start is called before the first frame update void Start() {

}

// Update is called once per frame
void Update()
{

}

public void OnNotify(Playable origin, INotification notification, object context)
{
    // Check if notification is a SignalEmitter
    if (notification is SignalEmitter signalEmitter)
    {
        double signalTime = origin.GetTime(); // This gives you the exact timeline time
        event_name = signalEmitter.asset.name;
        Debug.Log($"Signal '{event_name}' emitted at timeline time: {signalTime}");
    }
}

public void BroadcastEvent()
{
    Debug.Log(event_name);
}

}

ChatGPT

The reason why your OnNotify isn’t triggering is that you’re currently using Unity’s built-in SignalReceiver component’s inspector method (TimelineEventBroadcaster.BroadcastEvent) instead of allowing Unity to directly invoke your OnNotify method.

---

⚠️ Why it’s NOT working currently:

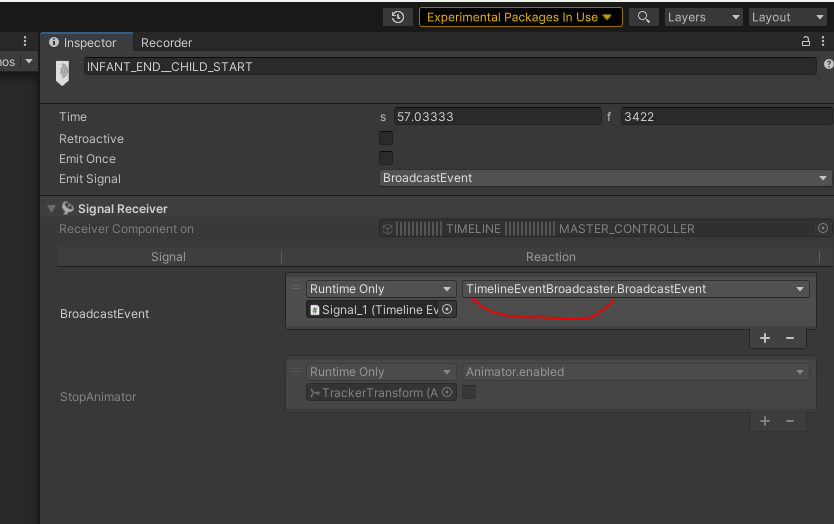

Your current setup (visible in your screenshot):

• You’re using Unity’s built-in Signal Receiver component, which invokes the BroadcastEvent() method directly.
• Your custom script (TimelineEventBroadcaster) implementing INotificationReceiver is NOT automatically linked or called by Unity if you only set a direct method callback (BroadcastEvent) in the Inspector.
• Unity does not invoke OnNotify() automatically when using inspector callbacks.

---

✅ The easiest working fix:

You don’t need INotificationReceiver if you prefer using Unity’s built-in inspector setup. To capture exact time and emitter name, use this simple fix:

Change your method to directly capture timeline time from the playable director:

using UnityEngine;
using UnityEngine.Playables;

public class TimelineEventBroadcaster : MonoBehaviour
{
    public PlayableDirector playableDirector;
    public string event_name;

    public void BroadcastEvent()
    {
        double exactTime = playableDirector.time;
        Debug.Log($"Signal '{event_name}' emitted at timeline time: {exactTime}");
    }
}

Important:

• Drag the PlayableDirector component (usually the Timeline object itself) into your script’s inspector (playableDirector slot).
• Keep your current inspector setup: calling BroadcastEvent().

---

🛠️ Alternative (advanced, if you want pure INotificationReceiver):

If you prefer using the OnNotify method directly (more automatic):

1. Remove Unity’s built-in Signal Receiver component from your GameObject to avoid confusion.

2. Ensure your Timeline’s SignalEmitter directly targets the GameObject with your custom script attached.
   (This is done by dragging your GameObject onto the track binding in Timeline.)

3. Your original code was almost correct, just adjust the OnNotify slightly for safety:

using UnityEngine;
using UnityEngine.Playables;
using UnityEngine.Timeline;

public class TimelineEventBroadcaster : MonoBehaviour, INotificationReceiver
{
    public string event_name;

    public void OnNotify(Playable origin, INotification notification, object context)
    {
        if (notification is SignalEmitter signalEmitter && signalEmitter.asset != null)
        {
            event_name = signalEmitter.asset.name;
            double signalTime = origin.GetTime();
            Debug.Log($"Signal '{event_name}' emitted at timeline time: {signalTime}");
        }
    }
}

Important:

• Don’t use the built-in SignalReceiver Inspector component.
• Directly bind your GameObject (with this script attached) to the Timeline track emitting the signals.

---

🚩 Recommended (simplest) approach in your case:

Use the simplified first approach above (BroadcastEvent() method with PlayableDirector reference):

• Easy, straightforward, requires minimal changes.
• Matches your current inspector setup.

---

Final Recommendation:

✅ Use the simplified script (no INotificationReceiver):

using UnityEngine;
using UnityEngine.Playables;

public class TimelineEventBroadcaster : MonoBehaviour
{
    public PlayableDirector playableDirector;
    public string event_name;

    public void BroadcastEvent()
    {
        double exactTime = playableDirector.time;
        Debug.Log($"Signal '{event_name}' emitted at timeline time: {exactTime}");
    }
}

Then:

• Assign your Timeline object’s PlayableDirector component in the inspector.
• Your signals will trigger your method and accurately

You

ok scratch that. I have a series of signal emitters on my timeline. I just want to iterte through them on an editor script and with a button geth a list of all their names and all their timings. Let’s do that instead.

ChatGPT

Here’s how to create a simple Unity Editor script to iterate through all Signal Emitters on a Timeline and list their names and timings clearly:

You

wtf, don;t do fancy ui stuff i just want a simple editor script that gives me these two list. Scratch the button. Lt’s get them on enable

ChatGPT

Here’s a minimal and straightforward Unity Editor script that, when you select a Timeline asset, will automatically output a list of all Signal Emitters along with their timings and signal asset names to the Unity console. No fancy UI, no buttons, just simple logic executed on selection (or script enable):

Editor Script:

Put this script in a folder named Editor within your Unity project’s Assets directory.

using UnityEngine;
using UnityEditor;
using UnityEngine.Timeline;

[InitializeOnLoad]
public static class TimelineSignalLister
{
    static TimelineSignalLister()
    {
        Selection.selectionChanged += OnSelectionChanged;
    }

    private static void OnSelectionChanged()
    {
        var timelineAsset = Selection.activeObject as TimelineAsset;

        if (timelineAsset == null)
            return;

        Debug.Log($"--- Signals for Timeline '{timelineAsset.name}' ---");

        foreach (var track in timelineAsset.GetOutputTracks())
        {
            foreach (var clip in track.GetClips())
            {
                if (clip.asset is SignalEmitter

You

no! not on selection. the lists should be obtained on the OnEnable of the editor script

ChatGPT

Here’s the simplest possible Unity editor script that retrieves two lists (signal names and timings) directly from a Timeline asset at the OnEnable() method of a custom Editor window.

ChatGPT

✅ How to use this script:

• Create

You

Why are you using editorwindow and not just unityeditor?

ChatGPT

Good question!

Using EditorWindow is just a convenient and standard Unity Editor practice to have a small, easy-to-use interface for assigning references directly in the editor.

If you prefer not to use any Editor UI (no window, no button), and just want the lists automatically on OnEnable as you stated, here’s the simplest and cleanest implementation as a plain editor script (ScriptableObject) without using EditorWindow:

Simplified Editor script (no window, no buttons):

using UnityEngine;
using UnityEditor;
using UnityEngine.Timeline;
using System.Collections.Generic;

[CreateAssetMenu(menuName = "Timeline/SignalLister")]
public class TimelineSignalLister : ScriptableObject
{
    public TimelineAsset timelineAsset;

    public List<string> signalNames = new List<string>();
    public List<double> signalTimings = new List<double>();

    private void OnEnable()
    {
        if (timelineAsset == null)
        {
            Debug.LogWarning("Assign a Timeline asset first.");
            return;
        }

        signalNames.Clear();
        signalTimings.Clear();

        foreach (var track in timelineAsset.GetOutputTracks())
        {
            foreach (var clip in track.GetClips())
            {
                if (clip.asset is SignalEmitter signalEmitter && signalEmitter.asset != null)
                {
                    signalNames.Add(signalEmitter.asset.name);
                    signalTimings.Add(clip.start);
                }
            }
        }

        // Output results immediately on enable
        Debug.Log("--- Signal Names and Timings ---");
        for (int i = 0; i < signalNames.Count; i++)
        {
            Debug.Log($"Signal: {signalNames[i]}, Time: {signalTimings[i]}");
        }
    }
}

How to use this:

• Create this asset from your Project Window:
  Assets → Create → Timeline → SignalLister
• Assign your Timeline asset to the new ScriptableObject asset in the inspector.
• As soon as it’s assigned or the asset reloads (including Unity startup), OnEnable runs automatically and your signals/timings appear in the console.

This is simpler, matches your requirements exactly, avoids any extra UI overhead, and gives you precisely two lists (names and timings) clearly and immediately.

You

How can i sort my dictionary here?

public void GetMarkerInfo() { if(timeline == null) return;

    eventNames.Clear();
    eventTimes.Clear();
    markerEvents.Clear();
    sortedMarkerEvents.Clear();

    foreach (var track in timeline.GetOutputTracks())
    {
        if (track.name == "Markers")
        {
            var markers = track.GetMarkers();
            foreach (var marker in markers)
            {
                if (marker is AnnotationMarker annotation)
                {
                    eventNames.Add(annotation.title);
                    eventTimes.Add(marker.time);
                    markerEvents.Add(annotation.title,annotation.time);

                }
            }
            sortedMarkerEvents = markerEvents.OrderByDescending(markerEvents => markerEvents.Value);
            foreach (var item in markerEvents.OrderByDescending(key => key.Value))
            {

            }
        }
    }
}

}

ChatGPT

Your code is almost correct, but to properly sort your dictionary (markerEvents) by value and store it into sortedMarkerEvents, use the following approach clearly and simply:

✅ Corrected Sorting Example:

using System.Linq;

// ...

public void GetMarkerInfo()
{
    if (timeline == null) return;

    eventNames.Clear();
    eventTimes.Clear();
    markerEvents.Clear();
    sortedMarkerEvents.Clear();

    foreach (var track in timeline.GetOutputTracks())
    {
        if (track.name == "Markers")
        {
            var markers = track.GetMarkers();
            foreach (var marker in markers)
            {
                if (marker is AnnotationMarker annotation)
                {
                    eventNames.Add(annotation.title);
                    eventTimes.Add(marker.time);
                    markerEvents.Add(annotation.title, marker.time);
                }
            }

            // Sorting the dictionary by value (marker time)
            sortedMarkerEvents = markerEvents
                .OrderBy(kvp => kvp.Value) // Ascending order (earliest marker first)
                .ToDictionary(kvp => kvp.Key, kvp => kvp.Value);

            // If you want Descending order (latest marker first):
            // sortedMarkerEvents = markerEvents
            //    .OrderByDescending(kvp => kvp.Value)
            //    .ToDictionary(kvp => kvp.Key, kvp => kvp.Value);

            // Example usage of sorted results:
            foreach (var item in sortedMarkerEvents)
            {
                Debug.Log($"Marker: {item.Key}, Time: {item.Value}");
            }
        }
    }
}

---

⚠️ Why your original sorting didn’t work:

• Your original code attempted to assign directly from an IOrderedEnumerable<KeyValuePair<string, double>> result (from .OrderByDescending) into a dictionary without converting back into a dictionary.
• Dictionaries themselves can’t be directly sorted. You need to convert the sorted result back into a dictionary using .ToDictionary() or store them as a List or IEnumerable.

---

🎯 Recommended approach:

Always use .OrderBy() or .OrderByDescending() followed by .ToDictionary() to preserve the sorted result clearly.

The above code clearly solves your sorting issue.

You

in unity can i get the current time of a timeline asset as it is playing?

ChatGPT

Yes, you can easily get the current playback time of a Unity Timeline asset as it’s playing, using the PlayableDirector component. Here’s the simplest method:

✅ Quick Example:

using UnityEngine;
using UnityEngine.Playables;

public class CurrentTimelineTime : MonoBehaviour
{
    public PlayableDirector playableDirector;

    void Update()
    {
        if (playableDirector != null && playableDirector.state == PlayState.Playing)
        {
            double currentTime = playableDirector.time;
            Debug.Log($"Current Timeline time: {currentTime}");
        }
    }
}

---

⚙️ How it Works:

• playableDirector.time gives you the exact current playback time (in seconds) of your Timeline.
• Checking playableDirector.state == PlayState.Playing ensures that the timeline is currently active.

---

📝 Setup (Unity Editor):

1. Attach this script to any GameObject in your scene.
2. Assign your PlayableDirector component (the one controlling the timeline) into the script’s inspector field.

---

This approach is clean, straightforward, and accurately provides the current playback time every frame.
