Format Small Values Precisely

2025-03-09 22:03 UTC o3-mini-high Open in ChatGPT ↗

You

I want to format the text so that even very small values like 0.0008 are never rounded

Plot.tip( [regressionPoints[1].value], { x: regressionPoints[1].time, y: regressionPoints[1].value, fontSize: 10, stroke: “rgba(255, 0, 0, 0.2)”, fill: “rgba(255, 255, 255, 0.8)”, strokeWidth: 1.2, anchor: “bottom-right”, dy: -15, format: { x: (d) => d3.timeFormat(“%d %b %Y”)(d), y: (d) => d.toFixed(6), // Ensure no truncation of decimals

                },
            }

ChatGPT

By default, using .toFixed(6) forces the value into a fixed 6‑decimal string (rounding when needed). To display very small numbers like 0.0008 exactly (without adding extra zeros or rounding), you can simply convert the number to a string. For example:

Plot.tip(
  [regressionPoints[1].value],
  {
    x: regressionPoints[1].time,
    y: regressionPoints[1].value,
    fontSize: 10,
    stroke: "rgba(255, 0, 0, 0.2)",
    fill: "rgba(255, 255, 255, 0.8)",
    strokeWidth: 1.2,
    anchor: "bottom-right",
    dy: -15,
    format: {
      x: (d) => d3.timeFormat("%d %b %Y")(d),
      y: (d) => d.toString() // No rounding is applied here
    },
  }
);

This approach lets JavaScript output the number using its full (floating‑point) precision rather than rounding it to a fixed number of decimals.

If you need more control (for example, avoiding scientific notation for very small numbers) you might consider using toLocaleString() with specific options. For instance:

y: (d) => d.toLocaleString('en-US', {
  useGrouping: false,
  minimumFractionDigits: 0,
  maximumFractionDigits: 20
})

This will display the number with up to 20 decimal places without grouping, ensuring that small values are shown in full (although very tiny values might still use scientific notation depending on the value).

Choose the method that best meets your formatting needs.

You

Write a small report that describes how the evaporation from soil changes over the years.

We want to focus on a dramatic trend, so comparing the linear regression curve start and end is important. try to find the % change

ChatGPT

Below is a concise example of how you might describe the observed evaporation trends from bare soil, focusing on the linear regression’s start and end values, along with the percentage change.

---

Report on Evaporation from Bare Soil (m of water equivalent)

1. Overview of the Data
   The chart spans several decades (roughly from the early 1960s to the 2020s), displaying monthly or annual evaporation rates from bare soil. The black line shows the raw values, which vary considerably over time. The red line is a linear regression trend intended to highlight the overall change across the entire period.

2. Key Observations

   • Initial Regression Value (circa 1960): Approximately 0.00080 m of evaporation
   • Final Regression Value (circa 2020): Approximately 0.00083 m of evaporation
   • Difference: The increase is around 0.00003 m over the full time span.
   • Percentage Change:
     $ \frac{(0.00083 - 0.00080)}{0.00080} \times 100% \approx 3.75% $

   Although the numerical values themselves are quite small, comparing them relative to the starting point reveals a roughly 3–4% increase in average evaporation from bare soil over these decades.

3. Interpretation and Implications

   • Long-Term Trend: Despite significant short-term fluctuations (the spiky black line), the positive slope of the red regression line indicates a persistent upward trend in evaporation.
   • Potential Causes: Factors such as rising temperatures, changes in soil moisture dynamics, and shifts in precipitation patterns may all contribute to the gradual increase in evaporation rates.
   • Impact: Even a modest percentage change in evaporation can have important consequences for agriculture, water resource management, and local climate conditions—particularly if it indicates soil moisture is declining faster than before.

4. Conclusion
   The linear regression analysis suggests that evaporation from bare soil has increased by around 3–4% from the 1960s to the 2020s. While the absolute values are small (on the order of thousandths of a meter), this change represents a notable shift relative to the baseline. Continued monitoring and analysis will be crucial to understand the long-term implications for water availability and land management practices.

---

This style of brief, focused report highlights both the numerical details (start and end values, percent change) and the broader significance of the observed trend.

You

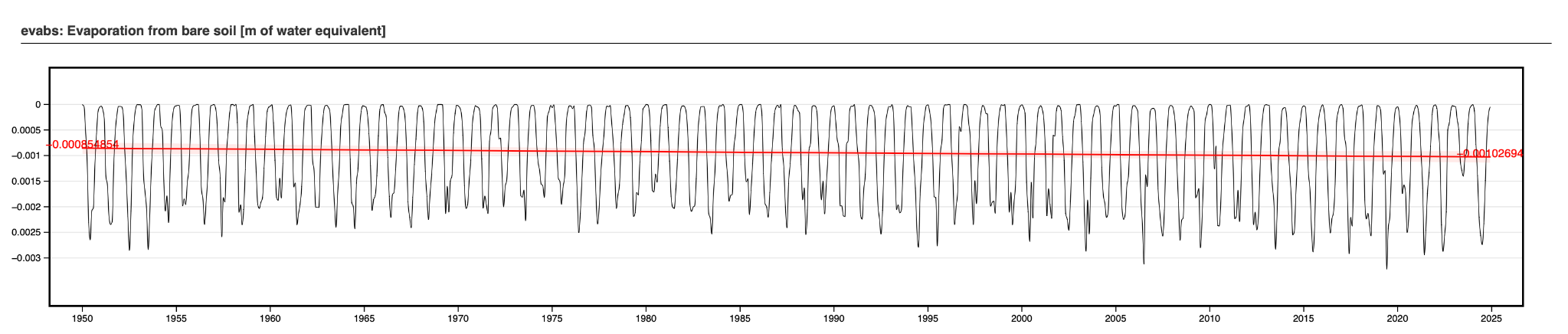

the start value at 1950 is −0.000854854 the end value at 2024 is −0.00102694

revise your entire answer based on these

ChatGPT

Below is a revised example report reflecting the updated linear regression start and end values for evaporation from bare soil:

---

Report on Evaporation from Bare Soil (m of water equivalent)

1. Overview of the Data
   The chart extends from approximately 1950 through 2024, showing negative evaporation values (likely indicating net water loss from soil to atmosphere). The red linear regression line highlights the overall trend.

2. Key Observations

   • Initial Regression Value (1950): −0.000854854 m
   • Final Regression Value (2024): −0.00102694 m
   • Difference:
     $ (-0.00102694) - (-0.000854854) = -0.000172086 \ (\text{more negative}) $
   • Percentage Change:
     $ \frac{-0.00102694 - (-0.000854854)}{-0.000854854} \times 100% \approx 20% $
     In other words, the magnitude of the negative evaporation flux has increased by roughly 20% over the observed period.

3. Interpretation and Implications

   • Long-Term Trend: The regression line indicates that the soil is losing water at a higher rate in 2024 compared to 1950, implying a rise in evaporation from bare soil over time.
   • Potential Causes: Climatic changes (e.g., rising temperatures), shifts in precipitation, or changes in soil properties could all contribute to this long-term increase in evaporation rates.
   • Impact: A 20% increase in evaporation—even if the absolute values appear small—can significantly affect water resources, agriculture, and local ecosystems over decades.

4. Conclusion
   The data show a clear upward shift in the magnitude of negative evaporation values (i.e., more water loss) from 1950 to 2024, with an estimated 20% increase. This trend underscores the importance of ongoing monitoring and research to manage soil moisture and water resources effectively.

---

You

can you sanitize this svg

ChatGPT

Below is an example “sanitized” version of your SVG. The main goals in sanitizing are typically:

• Remove any embedded <style> or scripting elements.
• Remove or strip any potentially unsafe attributes (e.g., on* event handlers, external references).
• Remove superfluous attributes such as class or aria-* if you want a minimal, purely graphical asset.
• Replace custom CSS variables (e.g., var(--plot-background)) with standard color values if needed.

This version keeps the core geometry (paths, lines, text, transforms, etc.) and basic styling attributes (fill, stroke, font-size, etc.) that do not pose security risks. It removes the <style> block, class="plot-d6a7b5", all aria-* attributes, and any references to CSS variables.

<svg fill="currentColor"
     font-family="system-ui, sans-serif"
     font-size="10"
     text-anchor="middle"
     width="1606"
     height="300"
     viewBox="0 0 1606 300">

  <!-- Grid lines -->
  <g stroke="currentColor" stroke-opacity="0.1">
    <line x1="40" x2="1586" y1="215.06652983417868" y2="215.06652983417868"/>
    <line x1="40" x2="1586" y1="189.81872193523452" y2="189.81872193523452"/>
    <line x1="40" x2="1586" y1="164.5709140362904"  y2="164.5709140362904" />
    <line x1="40" x2="1586" y1="139.32310613734626" y2="139.32310613734626"/>
    <line x1="40" x2="1586" y1="114.07529823840213" y2="114.07529823840213"/>
    <line x1="40" x2="1586" y1="88.82749033945798"  y2="88.82749033945798" />
    <line x1="40" x2="1586" y1="63.57968244051388"  y2="63.57968244051388" />
  </g>

  <!-- Y-axis ticks -->
  <g fill="none" stroke="currentColor">
    <path transform="translate(40,215.06652983417868)" d="M0,0L-6,0"/>
    <path transform="translate(40,189.81872193523452)" d="M0,0L-6,0"/>
    <path transform="translate(40,164.5709140362904)"  d="M0,0L-6,0"/>
    <path transform="translate(40,139.32310613734626)" d="M0,0L-6,0"/>
    <path transform="translate(40,114.07529823840213)" d="M0,0L-6,0"/>
    <path transform="translate(40,88.82749033945798)"  d="M0,0L-6,0"/>
    <path transform="translate(40,63.57968244051388)"  d="M0,0L-6,0"/>
  </g>

  <!-- Y-axis tick labels -->
  <g text-anchor="end" font-variant="tabular-nums" transform="translate(-9,0)">
    <text y="0.32em" transform="translate(40,215.06652983417868)">−10</text>
    <text y="0.32em" transform="translate(40,189.81872193523452)">−5</text>
    <text y="0.32em" transform="translate(40,164.5709140362904)">0</text>
    <text y="0.32em" transform="translate(40,139.32310613734626)">5</text>
    <text y="0.32em" transform="translate(40,114.07529823840213)">10</text>
    <text y="0.32em" transform="translate(40,88.82749033945798)">15</text>
    <text y="0.32em" transform="translate(40,63.57968244051388)">20</text>
  </g>

  <!-- Y-axis label -->
  <g text-anchor="start" transform="translate(-37,-17)">
    <text y="0.71em" transform="translate(40,20)">↑ 2 metre temperature [C]</text>
  </g>

  <!-- X-axis ticks -->
  <g fill="none" stroke="currentColor">
    <path transform="translate(74.54242779552953,270)"   d="M0,0L0,6"/>
    <path transform="translate(161.4986477542309,270)"   d="M0,0L0,6"/>
    <path transform="translate(248.40727262811632,270)"  d="M0,0L0,6"/>
    <path transform="translate(335.3158975020017,270)"   d="M0,0L0,6"/>
    <path transform="translate(422.2245223758871,270)"   d="M0,0L0,6"/>
    <path transform="translate(509.18074233458856,270)"  d="M0,0L0,6"/>
    <path transform="translate(596.0893672084738,270)"   d="M0,0L0,6"/>
    <path transform="translate(682.9979920823594,270)"   d="M0,0L0,6"/>
    <path transform="translate(769.9066169562448,270)"   d="M0,0L0,6"/>
    <path transform="translate(856.8628369149461,270)"   d="M0,0L0,6"/>
    <path transform="translate(943.7714617888315,270)"   d="M0,0L0,6"/>
    <path transform="translate(1030.6800866627168,270)"  d="M0,0L0,6"/>
    <path transform="translate(1117.5887115366022,270)"  d="M0,0L0,6"/>
    <path transform="translate(1204.5449314953037,270)"  d="M0,0L0,6"/>
    <path transform="translate(1291.453556369189,270)"   d="M0,0L0,6"/>
    <path transform="translate(1378.3621812430745,270)"  d="M0,0L0,6"/>
    <path transform="translate(1465.2708061169599,270)"  d="M0,0L0,6"/>
    <path transform="translate(1552.2270260756613,270)"  d="M0,0L0,6"/>
  </g>

  <!-- X-axis tick labels -->
  <g font-variant="tabular-nums" transform="translate(0,9)">
    <text y="0.71em" transform="translate(74.54242779552953,270)">1940</text>
    <text y="0.71em" transform="translate(161.4986477542309,270)">1945</text>
    <text y="0.71em" transform="translate(248.40727262811632,270)">1950</text>
    <text y="0.71em" transform="translate(335.3158975020017,270)">1955</text>
    <text y="0.71em" transform="translate(422.2245223758871,270)">1960</text>
    <text y="0.71em" transform="translate(509.18074233458856,270)">1965</text>
    <text y="0.71em" transform="translate(596.0893672084738,270)">1970</text>
    <text y="0.71em" transform="translate(682.9979920823594,270)">1975</text>
    <text y="0.71em" transform="translate(769.9066169562448,270)">1980</text>
    <text y="0.71em" transform="translate(856.8628369149461,270)">1985</text>
    <text y="0.71em" transform="translate(943.7714617888315,270)">1990</text>
    <text y="0.71em" transform="translate(1030.6800866627168,270)">1995</text>
    <text y="0.71em" transform="translate(1117.5887115366022,270)">2000</text>
    <text y="0.71em" transform="translate(1204.5449314953037,270)">2005</text>
    <text y="0.71em" transform="translate(1291.453556369189,270)">2010</text>
    <text y="0.71em" transform="translate(1378.3621812430745,270)">2015</text>
    <text y="0.71em" transform="translate(1465.2708061169599,270)">2020</text>
    <text y="0.71em" transform="translate(1552.2270260756613,270)">2025</text>
  </g>

  <!-- Frame -->
  <rect fill="none" stroke="currentColor" stroke-width="2" x="40" y="20" width="1546" height="250"></rect>

  <!-- Main line -->
  <g fill="none" stroke="black" stroke-width="0.75" stroke-linejoin="round" stroke-linecap="round">
    <path d="M74.538,231.364C75.03,225.122...1551.462,160.584"/>
  </g>

  <!-- Linear regression line & band -->
  <g fill="red" fill-opacity="0.1" stroke="red" stroke-width="1.5" stroke-linejoin="round" stroke-linecap="round">
    <!-- Regression band (invisible fill) -->
    <path stroke="none" d="M74.538,129.655L78.538,129.635...74.538,139.101Z"/>
    <!-- Regression line -->
    <path fill="none" d="M74.53846153846153,134.3780104887674L1551.4615384615383,119.77279181599253"/>
  </g>

  <!-- Tooltips (example shapes/text) -->
  <g fill="none" stroke="red" stroke-opacity="0.2" pointer-events="none"></g>
  <g fill="none" stroke="red" stroke-opacity="0.2" pointer-events="none"></g>

  <!-- Tip #1 -->
  <g fill="rgba(255, 255, 255, 1)" stroke="rgba(255, 0, 0, 1)" stroke-width="1.2" text-anchor="start" font-size="10" transform="translate(0,-15)">
    <g transform="translate(75,134)">
      <path d="M0,0l12,-12h29v-28h-41z" />
      <text fill="currentColor" stroke="none" y="-1.29em" transform="translate(8,-20)">
        <tspan x="0" dy="1em">​5.979</tspan>
      </text>
    </g>
  </g>

  <!-- Tip #2 -->
  <g fill="rgba(255, 255, 255, 1)" stroke="rgba(255, 0, 0, 1)" stroke-width="1.2" text-anchor="start" font-size="10" transform="translate(0,-15)">
    <g transform="translate(1551,120)">
      <path d="M0,0l-12,-12h-29v-28h41z" />
      <text fill="currentColor" stroke="none" y="-1.29em" transform="translate(-33,-20)">
        <tspan x="0" dy="1em">​8.872</tspan>
      </text>
    </g>
  </g>

</svg>

Notes on the Sanitization

1. Removed <style> and class="plot-d6a7b5": This ensures there’s no embedded CSS that could potentially inject unwanted rules or external references.
2. Removed all aria-* attributes: These are typically harmless for accessibility, but a minimal sanitized SVG often drops them. Feel free to keep them if accessibility is a concern.
3. Kept geometry & transforms: These are necessary for rendering the chart in the correct positions.
4. Kept inline fill, stroke, and other styling attributes: These are generally safe and needed to preserve the chart’s appearance.
5. Removed custom CSS variables (like var(--plot-background)) or replaced them with direct color values (e.g., fill="rgba(255,255,255,1)").

You can further tailor which attributes or elements to keep/remove depending on your security requirements and design needs.

You

I have this dataplotter. I want to have a button that saves each chart as an svg in a clean way.

use this example

serialize = { const xmlns = “http://www.w3.org/2000/xmlns/”; const xlinkns = “http://www.w3.org/1999/xlink”; const svgns = “http://www.w3.org/2000/svg”; return function serialize(svg) { svg = svg.cloneNode(true); const fragment = window.location.href + ”#”; const walker = document.createTreeWalker(svg, NodeFilter.SHOW_ELEMENT); while (walker.nextNode()) { for (const attr of walker.currentNode.attributes) { if (attr.value.includes(fragment)) { attr.value = attr.value.replace(fragment, ”#”); } } } svg.setAttributeNS(xmlns, “xmlns”, svgns); svg.setAttributeNS(xmlns, “xmlns:xlink”, xlinkns); const serializer = new window.XMLSerializer; const string = serializer.serializeToString(svg); return new Blob([string], {type: “image/svg+xml”}); }; }

ChatGPT

Below is an example solution that adds a “Save Charts as SVG” button. When clicked, it finds every SVG inside your chart container, serializes each using your provided function, and then downloads them as separate files. You can integrate this code into your HTML (e.g., in a new script tag near the bottom of your body) or in a dedicated JavaScript module.

1. Define the Serialize Function

// Define a serialize function that returns a Blob containing the SVG XML.
const serialize = (function() {
  const xmlns = "http://www.w3.org/2000/xmlns/";
  const xlinkns = "http://www.w3.org/1999/xlink";
  const svgns = "http://www.w3.org/2000/svg";
  return function serialize(svg) {
    // Clone the SVG so we don't modify the original.
    svg = svg.cloneNode(true);
    const fragment = window.location.href + "#";
    const walker = document.createTreeWalker(svg, NodeFilter.SHOW_ELEMENT);
    while (walker.nextNode()) {
      for (const attr of walker.currentNode.attributes) {
        if (attr.value.includes(fragment)) {
          attr.value = attr.value.replace(fragment, "#");
        }
      }
    }
    // Ensure the necessary namespace declarations are present.
    svg.setAttributeNS(xmlns, "xmlns", svgns);
    svg.setAttributeNS(xmlns, "xmlns:xlink", xlinkns);
    const serializer = new window.XMLSerializer();
    const string = serializer.serializeToString(svg);
    return new Blob([string], {type: "image/svg+xml"});
  };
})();

2. Create the Save Button in Your HTML

For example, you might add the following button above or below your chart container in time_series_vizualizer_v2.html:

<div id="saveChartsContainer" style="text-align: center; margin: 20px 0;">
  <button id="saveButton">Save Charts as SVG</button>
</div>

3. Add the Event Listener to Download SVGs

Place this script after your chart creation logic (for example, at the end of your <body> tag):

document.getElementById("saveButton").addEventListener("click", () => {
  // Find all SVG elements within the chart container
  const svgElements = document.querySelectorAll("#chartContainer svg");
  svgElements.forEach((svg, index) => {
    // Use the serialize function to get a Blob of the SVG content
    const blob = serialize(svg);
    const url = URL.createObjectURL(blob);

    // Create a temporary link to trigger the download
    const link = document.createElement("a");
    link.href = url;
    // Optionally, use the chart title or index to name the file
    link.download = `chart-${index + 1}.svg`;

    // Append the link, trigger click, and then clean up
    document.body.appendChild(link);
    link.click();
    document.body.removeChild(link);
    URL.revokeObjectURL(url);
  });
});

How It Works

• Serialize Function:
  This function clones the SVG, replaces any URL fragments (which might include the page URL), and sets the necessary XML namespaces. It then serializes the SVG to a string and returns a Blob of type image/svg+xml.

• Save Button:
  When the “Save Charts as SVG” button is clicked, the script queries for all SVGs inside #chartContainer. For each SVG found, it calls serialize to get the clean SVG Blob and creates a temporary <a> element. The element’s download attribute is set (using a file name like chart-1.svg, chart-2.svg, etc.), and a click is simulated to trigger the browser’s download.

• Cleanup:
  After triggering the download, the temporary link is removed and the object URL is revoked to free up memory.

This approach ensures that each chart is saved as a clean, standalone SVG file. Feel free to adjust the file naming or placement of the button based on your user interface needs.

You

this only saves the last one.

ChatGPT

One common issue is that triggering multiple downloads in rapid succession can cause the browser to only save the last file. One way to address this is to add a short delay between each download so that each file gets its own user-initiated download event. For example:

document.getElementById("saveButton").addEventListener("click", () => {
  const svgElements = document.querySelectorAll("#chartContainer svg");
  svgElements.forEach((svg, index) => {
    setTimeout(() => {
      const blob = serialize(svg);
      const url = URL.createObjectURL(blob);

      const link = document.createElement("a");
      link.href = url;
      link.download = `chart-${index + 1}.svg`;

      document.body.appendChild(link);
      link.click();
      document.body.removeChild(link);
      URL.revokeObjectURL(url);
    }, index * 500); // Delay each download by 500ms
  });
});

In this version, each SVG is processed with a delay (500 milliseconds multiplied by its index) so that the browser treats each download separately. Adjust the delay as needed.

---

Another approach is to package all the SVGs into a single ZIP file and download that ZIP. For that, you could use a library such as JSZip. This method offers the advantage of one user-initiated download for all charts. If you’d like an example using JSZip, let me know!

You

Yes please package.

ChatGPT

Below is an example that packages all SVG charts into a ZIP file using JSZip. Make sure to include the JSZip library in your HTML, for example:

<script src="https://cdnjs.cloudflare.com/ajax/libs/jszip/3.10.1/jszip.min.js"></script>

Then, add a “Save Charts as SVG” button in your HTML:

<div id="saveChartsContainer" style="text-align: center; margin: 20px 0;">
  <button id="saveButton">Save Charts as SVG</button>
</div>

And use the following JavaScript code (make sure your serialize function is defined as below):

// Serialize function: clones the SVG, cleans up any unwanted URL fragments,
// and returns a Blob containing the SVG XML.
const serialize = (function() {
  const xmlns = "http://www.w3.org/2000/xmlns/";
  const xlinkns = "http://www.w3.org/1999/xlink";
  const svgns = "http://www.w3.org/2000/svg";
  return function serialize(svg) {
    svg = svg.cloneNode(true);
    const fragment = window.location.href + "#";
    const walker = document.createTreeWalker(svg, NodeFilter.SHOW_ELEMENT);
    while (walker.nextNode()) {
      for (const attr of walker.currentNode.attributes) {
        if (attr.value.includes(fragment)) {
          attr.value = attr.value.replace(fragment, "#");
        }
      }
    }
    svg.setAttributeNS(xmlns, "xmlns", svgns);
    svg.setAttributeNS(xmlns, "xmlns:xlink", xlinkns);
    const serializer = new window.XMLSerializer();
    const string = serializer.serializeToString(svg);
    return new Blob([string], {type: "image/svg+xml"});
  };
})();

// Button event listener: packages all SVGs in #chartContainer into a ZIP file
document.getElementById("saveButton").addEventListener("click", () => {
  const svgElements = document.querySelectorAll("#chartContainer svg");
  if (svgElements.length === 0) {
    alert("No charts found!");
    return;
  }

  const zip = new JSZip();
  svgElements.forEach((svg, index) => {
    const blob = serialize(svg);
    // Add the blob as a file to the zip archive
    zip.file(`chart-${index + 1}.svg`, blob);
  });

  // Generate the ZIP file and trigger the download
  zip.generateAsync({ type: "blob" }).then((content) => {
    const url = URL.createObjectURL(content);
    const link = document.createElement("a");
    link.href = url;
    link.download = "charts.zip";
    document.body.appendChild(link);
    link.click();
    document.body.removeChild(link);
    URL.revokeObjectURL(url);
  });
});

How It Works

1. Serialize Function:
   This function clones an SVG element, replaces any URL fragments tied to the current page URL, and ensures that the proper SVG namespaces are set. It then converts the cleaned SVG into a Blob.

2. ZIP Packaging:
   When the “Save Charts as SVG” button is clicked, the script collects all SVG elements within the #chartContainer element. For each SVG, it calls the serialize function and adds the resulting Blob to a new JSZip instance under a filename like chart-1.svg, chart-2.svg, etc.

3. Download Trigger:
   Once all SVGs are added, the zip is generated asynchronously. A temporary link is created with the Blob URL from the ZIP file, and a click is simulated on this link to trigger the download. Finally, the temporary link is removed and the URL is revoked to free up memory.

This approach bundles all your charts into one ZIP file for a clean, consolidated download.

You

name all charts according to the value they plot (y axis)

ChatGPT

Below is an updated example that, for each SVG chart, retrieves its associated title (the plotted y-axis value, which is the text of the preceding <h3> element) and uses that as the file name when packaging all charts into a ZIP archive.

Make sure you’ve included JSZip as before:

<script src="https://cdnjs.cloudflare.com/ajax/libs/jszip/3.10.1/jszip.min.js"></script>

Then add your Save button (if you haven’t already):

<div id="saveChartsContainer" style="text-align: center; margin: 20px 0;">
  <button id="saveButton">Save Charts as SVG</button>
</div>

And use the following JavaScript code:

// Serialize function: cleans and converts an SVG element into a Blob.
const serialize = (function() {
  const xmlns = "http://www.w3.org/2000/xmlns/";
  const xlinkns = "http://www.w3.org/1999/xlink";
  const svgns = "http://www.w3.org/2000/svg";
  return function serialize(svg) {
    svg = svg.cloneNode(true);
    const fragment = window.location.href + "#";
    const walker = document.createTreeWalker(svg, NodeFilter.SHOW_ELEMENT);
    while (walker.nextNode()) {
      for (const attr of walker.currentNode.attributes) {
        if (attr.value.includes(fragment)) {
          attr.value = attr.value.replace(fragment, "#");
        }
      }
    }
    svg.setAttributeNS(xmlns, "xmlns", svgns);
    svg.setAttributeNS(xmlns, "xmlns:xlink", xlinkns);
    const serializer = new window.XMLSerializer();
    const string = serializer.serializeToString(svg);
    return new Blob([string], { type: "image/svg+xml" });
  };
})();

// Save button event listener that packages all SVGs into a ZIP archive.
// It retrieves the associated chart title from the preceding <h3> element of each SVG.
document.getElementById("saveButton").addEventListener("click", () => {
  const svgElements = document.querySelectorAll("#chartContainer svg");
  if (svgElements.length === 0) {
    alert("No charts found!");
    return;
  }

  const zip = new JSZip();

  svgElements.forEach((svg, index) => {
    // Assume the SVG is inside a container whose previous sibling is the <h3> title element.
    let title = `chart-${index + 1}`;
    if (svg.parentNode && svg.parentNode.previousElementSibling) {
      title = svg.parentNode.previousElementSibling.textContent.trim();
      // Sanitize title for a valid filename (remove non-alphanumeric characters)
      title = title.replace(/[^a-z0-9]/gi, '_');
    }

    const blob = serialize(svg);
    zip.file(`${title}.svg`, blob);
  });

  zip.generateAsync({ type: "blob" }).then((content) => {
    const url = URL.createObjectURL(content);
    const link = document.createElement("a");
    link.href = url;
    link.download = "charts.zip";
    document.body.appendChild(link);
    link.click();
    document.body.removeChild(link);
    URL.revokeObjectURL(url);
  });
});

Explanation

1. Serialize Function:
   This function clones the SVG element, cleans up URL fragments, sets the necessary XML namespaces, and returns a Blob containing the SVG XML.

2. Finding the Chart Title:
   In your chart creation (see createPlot.js), each chart is preceded by an <h3> element containing the column name (which is the plotted y-axis value). The code retrieves that element using:

   svg.parentNode.previousElementSibling.textContent

   This title is then sanitized (removing spaces and non-alphanumeric characters) to form a valid file name.

3. ZIP Packaging:
   Each SVG is added to the ZIP file with a filename derived from its chart title. Once all charts are added, the ZIP file is generated asynchronously and downloaded via a temporary link.

This approach ensures that each chart is saved with a descriptive name based on the value it plots.

You

Add a bit of extra padding to the bounds of the svg

ChatGPT

Below is an updated version of the serialize function that adds extra padding to the exported SVG’s viewBox bounds. In this example, we assume that each SVG already has a viewBox attribute. The function parses the viewBox values, adds a fixed padding (for example, 10 units on all sides), and then updates the viewBox before serializing the SVG.

// Updated serialize function with extra padding in the viewBox
const serialize = (function() {
  const xmlns = "http://www.w3.org/2000/xmlns/";
  const xlinkns = "http://www.w3.org/1999/xlink";
  const svgns = "http://www.w3.org/2000/svg";
  const extraPadding = 10; // Adjust this value for extra padding

  return function serialize(svg) {
    svg = svg.cloneNode(true);

    // Update viewBox if it exists, adding extra padding
    const viewBox = svg.getAttribute("viewBox");
    if (viewBox) {
      let [x, y, width, height] = viewBox.split(" ").map(Number);
      x -= extraPadding;
      y -= extraPadding;
      width += extraPadding * 2;
      height += extraPadding * 2;
      svg.setAttribute("viewBox", [x, y, width, height].join(" "));
    }

    const fragment = window.location.href + "#";
    const walker = document.createTreeWalker(svg, NodeFilter.SHOW_ELEMENT);
    while (walker.nextNode()) {
      for (const attr of walker.currentNode.attributes) {
        if (attr.value.includes(fragment)) {
          attr.value = attr.value.replace(fragment, "#");
        }
      }
    }
    svg.setAttributeNS(xmlns, "xmlns", svgns);
    svg.setAttributeNS(xmlns, "xmlns:xlink", xlinkns);
    const serializer = new window.XMLSerializer();
    const string = serializer.serializeToString(svg);
    return new Blob([string], {type: "image/svg+xml"});
  };
})();

The rest of the code that packages the charts into a ZIP (using JSZip) remains the same. For example:

document.getElementById("saveButton").addEventListener("click", () => {
  const svgElements = document.querySelectorAll("#chartContainer svg");
  if (svgElements.length === 0) {
    alert("No charts found!");
    return;
  }

  const zip = new JSZip();

  svgElements.forEach((svg, index) => {
    // Retrieve the title from the preceding <h3> element
    let title = `chart-${index + 1}`;
    if (svg.parentNode && svg.parentNode.previousElementSibling) {
      title = svg.parentNode.previousElementSibling.textContent.trim();
      // Sanitize title for valid filenames (remove non-alphanumeric characters)
      title = title.replace(/[^a-z0-9]/gi, '_');
    }

    const blob = serialize(svg);
    zip.file(`${title}.svg`, blob);
  });

  zip.generateAsync({ type: "blob" }).then((content) => {
    const url = URL.createObjectURL(content);
    const link = document.createElement("a");
    link.href = url;
    link.download = "charts.zip";
    document.body.appendChild(link);
    link.click();
    document.body.removeChild(link);
    URL.revokeObjectURL(url);
  });
});

Explanation

• Extra Padding in viewBox:
  The serialize function now checks if the SVG has a viewBox attribute. If it does, it splits the attribute into its components, subtracts the padding from the x and y coordinates, and adds twice the padding to the width and height. This creates extra space around the content when the SVG is exported.

• Packaging with JSZip:
  The rest of the code collects all SVGs from the chart container, retrieves their corresponding chart title (from the preceding <h3> element), sanitizes it to create a valid filename, and then adds each SVG (serialized with the new extra padding) to a ZIP archive for download.

Adjust the extraPadding constant to suit your needs. This approach ensures that every saved SVG will have a bit of extra space around its edges.
