Direct Pcache Generation Request

2024-10-05 07:28 UTC gpt-4o Open in ChatGPT ↗

I redundantly store the pacmap results to disk as csv, and then read to store as unity pcache.

what i want isntead is to use directly the data for the pcache generation:

@staticmethod
def export_pcache(file_path: str):

    # Reading the CSV file
    with open(file_path, 'r') as csv_file:
        csv_reader = csv.reader(csv_file)
        next(csv_reader)  # Skip the header

        # Processing each row in the CSV
        pcache_data = [
            [float(row[3]) / 6.0, float(row[3]) / 6.0, float(row[3]) / 6.0, 1, float(row[0]), float(row[1]),
             float(row[2])]
            for row in csv_reader]

        # Header for the pcache file
        pcache_header = [
            "pcache",
            "format ascii 1.0",
            "comment Example pcache file generated from CSV data",
            f"elements {len(pcache_data)}",
            "property float position.x",
            "property float position.y",
            "property float position.z",
            "property float color.r",
            "property float color.g",
            "property float color.b",
            "property float color.a",
            "end_header"
        ]

        # Combining header and data into the final pcache content
        final_content = "\n".join(pcache_header) + "\n"
        final_content += "\n".join([" ".join(map(str, row[-3:] + row[:4])) for row in pcache_data])

        # Writing the output to a .pcache file
        output_file_path = file_path.replace("csv", "pcache")

        with open(output_file_path, 'w') as f:
            f.write(final_content)

        print(f"File saved to {output_file_path}")

def run(self, features_csv: str, labels_csv: str, key_column: str, win_size: int):

    print("-" * 80)
    print(f"Loading Dataset...")
    print("-" * 80)

    X, y = self.load_data(features_csv, labels_csv, key_column, win_size)
    input_shape = (X.shape[1], X.shape[2])  # LSTM expects input as [samples, time steps, features]
    num_classes = y.shape[1]

    print("X shape: ", X.shape)
    print("y shape: ", y.shape)
    print(f"number of classes {num_classes}")

    print("-" * 80)
    print(f"Building LSTM model...")
    print("-" * 80)

    self.create_model(input_shape, num_classes)

    print("-" * 80)
    print(f"Training LSTM model...")
    print("-" * 80)

    self.train_model(X, y)

    print("-" * 80)
    print(f"Saving LSTM model to disk...")
    print("-" * 80)
    self.save_model()

    print("-" * 80)
    print(f"Running Dimensionality Reduction using PacMAP")
    print("-" * 80)

    classes, reduced_activations = LSTMNeuralNet.run_pacmap(self.model, X, y)

    # Convert one_hot class encoding to integer
    class_indices = np.argmax(classes, axis=1)

    min_values = reduced_activations.min(axis=0)
    max_values = reduced_activations.max(axis=0)

    # Convert the NumPy array to a DataFrame for easier CSV writing
    dim_redux_data_frame = pd.DataFrame(reduced_activations,
                                        columns=['PacMAP_Dim_1', 'PacMAP_Dim_2', 'PacMAP_Dim_3'])

    # Insert Class indices to the Dataframe
    dim_redux_data_frame['Class_Index'] = class_indices

    # Insert Min/Max values to the Dataframe
    dim_redux_data_frame['Min_values'] = pd.Series(min_values)
    dim_redux_data_frame['Max_values'] = pd.Series(max_values)

    dim_redux_data_frame.to_csv(path_or_buf=self.pacmap_file_loc, index=False)

    LSTMNeuralNet.export_pcache(self.pacmap_file_loc)

It sounds like you’re trying to avoid the redundant step of saving your PaCMAP results to a CSV and reading it back in before generating the pcache file. Instead, you’d prefer to directly pass the dimensionality reduction results into the export_pcache method, skipping the intermediate CSV step.

To achieve this, you’ll need to modify your workflow so that you pass the processed data (reduced_activations, class_indices, min_values, max_values) directly to the pcache generation code.

Here’s how you can refactor the export_pcache function to accept the data directly, rather than reading from a CSV:

Refactored `export_pcache` Method

@staticmethod
def export_pcache(reduced_activations, class_indices):
    # Processing each row in the reduced_activations and class_indices
    pcache_data = [
        [float(class_idx) / 6.0, float(class_idx) / 6.0, float(class_idx) / 6.0, 1, float(reduction[0]), float(reduction[1]),
         float(reduction[2])]
        for reduction, class_idx in zip(reduced_activations, class_indices)
    ]

    # Header for the pcache file
    pcache_header = [
        "pcache",
        "format ascii 1.0",
        "comment Example pcache file generated from PacMAP data",
        f"elements {len(pcache_data)}",
        "property float position.x",
        "property float position.y",
        "property float position.z",
        "property float color.r",
        "property float color.g",
        "property float color.b",
        "property float color.a",
        "end_header"
    ]

    # Combining header and data into the final pcache content
    final_content = "\n".join(pcache_header) + "\n"
    final_content += "\n".join([" ".join(map(str, row[-3:] + row[:4])) for row in pcache_data])

    # Specify the output file path (modify as needed)
    output_file_path = "output.pcache"

    # Writing the output to a .pcache file
    with open(output_file_path, 'w') as f:
        f.write(final_content)

    print(f"File saved to {output_file_path}")

Modifications to `run` Method

You’ll also need to modify your run method so that instead of writing the reduced_activations and class_indices to a CSV, you pass them directly to the export_pcache method.

Here’s the updated section of your run method:

def run(self, features_csv: str, labels_csv: str, key_column: str, win_size: int):

    print("-" * 80)
    print(f"Loading Dataset...")
    print("-" * 80)

    X, y = self.load_data(features_csv, labels_csv, key_column, win_size)
    input_shape = (X.shape[1], X.shape[2])  # LSTM expects input as [samples, time steps, features]
    num_classes = y.shape[1]

    print("X shape: ", X.shape)
    print("y shape: ", y.shape)
    print(f"number of classes {num_classes}")

    print("-" * 80)
    print(f"Building LSTM model...")
    print("-" * 80)

    self.create_model(input_shape, num_classes)

    print("-" * 80)
    print(f"Training LSTM model...")
    print("-" * 80)

    self.train_model(X, y)

    print("-" * 80)
    print(f"Saving LSTM model to disk...")
    print("-" * 80)
    self.save_model()

    print("-" * 80)
    print(f"Running Dimensionality Reduction using PacMAP")
    print("-" * 80)

    classes, reduced_activations = LSTMNeuralNet.run_pacmap(self.model, X, y)

    # Convert one-hot class encoding to integer
    class_indices = np.argmax(classes, axis=1)

    # Call the export_pcache directly with the data instead of writing to a CSV
    LSTMNeuralNet.export_pcache(reduced_activations, class_indices)

Key Changes

Removed CSV Step: Instead of saving the dimensionality reduction results to a CSV, you now pass the reduced_activations and class_indices directly to export_pcache.
Adjusted export_pcache: The method now processes the in-memory data instead of reading from a file, eliminating the need for a CSV.

With these changes, the workflow avoids redundant CSV storage and reads, directly passing the data to the pcache export.

You’re absolutely right to question why we need the reordering of data in the line:

final_content += "\n".join([" ".join(map(str, row[-3:] + row[:4])) for row in pcache_data])

This line shuffles the elements of each row in pcache_data, which may not be necessary if the data is laid out correctly in the first place. Let’s discuss why this reordering is happening and how to structure the data from the beginning so that no reordering is needed.

Why was reordering done?

In your current implementation, pcache_data is constructed with the color components first and the spatial coordinates at the end:

pcache_data = [
    [float(row[3]) / 6.0, float(row[3]) / 6.0, float(row[3]) / 6.0, 1, float(row[0]), float(row[1]), float(row[2])]
    for row in csv_reader
]

Here’s the layout of each row:

[color.r, color.g, color.b, color.a, position.x, position.y, position.z]

However, the final output format for the .pcache file expects the following layout:

[position.x, position.y, position.z, color.r, color.g, color.b, color.a]

Thus, the line:

final_content += "\n".join([" ".join(map(str, row[-3:] + row[:4])) for row in pcache_data])

is effectively reordering the row to match the .pcache format by taking the last three elements (the position) and putting them before the first four elements (the color).

How to lay out the data correctly from the beginning

Instead of generating the data in the wrong order and then reordering it, it’s better to structure the data correctly from the outset. This way, you avoid the need for reordering and make the code cleaner and more efficient.

Here’s how you can modify the pcache_data generation step to lay out the data correctly:

pcache_data = [
    [float(row[0]), float(row[1]), float(row[2]), float(row[3]) / 6.0, float(row[3]) / 6.0, float(row[3]) / 6.0, 1]
    for row in csv_reader
]

Now, the structure of each row is:

[position.x, position.y, position.z, color.r, color.g, color.b, color.a]

This matches the desired output format, so there’s no need to reorder the elements when writing them to the .pcache file.

Refactored `export_pcache` Method

Here’s how your refactored export_pcache method would look with the correct data layout from the beginning:

@staticmethod
def export_pcache(reduced_activations, class_indices):
    # Processing each row in the reduced_activations and class_indices
    pcache_data = [
        [float(reduction[0]), float(reduction[1]), float(reduction[2]), float(class_idx) / 6.0, float(class_idx) / 6.0, float(class_idx) / 6.0, 1]
        for reduction, class_idx in zip(reduced_activations, class_indices)
    ]

    # Header for the pcache file
    pcache_header = [
        "pcache",
        "format ascii 1.0",
        "comment Example pcache file generated from PacMAP data",
        f"elements {len(pcache_data)}",
        "property float position.x",
        "property float position.y",
        "property float position.z",
        "property float color.r",
        "property float color.g",
        "property float color.b",
        "property float color.a",
        "end_header"
    ]

    # Combining header and data into the final pcache content
    final_content = "\n".join(pcache_header) + "\n"
    final_content += "\n".join([" ".join(map(str, row)) for row in pcache_data])

    # Specify the output file path (modify as needed)
    output_file_path = "output.pcache"

    # Writing the output to a .pcache file
    with open(output_file_path, 'w') as f:
        f.write(final_content)

    print(f"File saved to {output_file_path}")

Key Benefits of This Approach

Simplicity: By structuring the data correctly from the start, you avoid unnecessary reordering logic, which simplifies the code and makes it easier to read and maintain.
Efficiency: Avoiding the data shuffle means less computational overhead, especially when working with large datasets.
Less Error-Prone: Explicitly organizing the data in the desired format reduces the likelihood of introducing subtle bugs due to reordering mistakes.

In short, this approach directly aligns the data layout with the desired output format, making your code more efficient and easier to understand.

Here is the refactored version of your export_pcache method, now with proper type hints, detailed docstrings, and the ability to accept a file path as an argument for saving the .pcache file:

Refactored `export_pcache` with Type Hints, Docstrings, and File Path Argument

from typing import List, Union
import numpy as np

class LSTMNeuralNet:

    @staticmethod
    def export_pcache(reduced_activations: np.ndarray, class_indices: Union[np.ndarray, List[int]], output_file_path: str) -> None:
        """
        Generates and saves a .pcache file from the reduced activation data and class indices.

        Args:
            reduced_activations (np.ndarray): A 2D NumPy array of shape (n_samples, 3) representing the reduced
                                              dimensionality data (e.g., PacMAP or other embeddings).
            class_indices (Union[np.ndarray, List[int]]): A 1D NumPy array or list of class indices for each sample.
                                                          These will be used to set the color values in the .pcache file.
            output_file_path (str): The path where the .pcache file will be saved.
                                    The file extension should be '.pcache'.

        Returns:
            None. Writes the formatted data to a .pcache file.

        Example:
            reduced_activations = np.array([[0.1, 0.2, 0.3], [0.4, 0.5, 0.6], [0.7, 0.8, 0.9]])
            class_indices = np.array([0, 1, 2])
            LSTMNeuralNet.export_pcache(reduced_activations, class_indices, 'output.pcache')
        """
        # Ensure the reduced_activations has exactly 3 dimensions per sample
        if reduced_activations.shape[1] != 3:
            raise ValueError("Reduced activations must have exactly 3 dimensions per sample (e.g., PacMAP results).")

        # Ensure class_indices matches the number of samples in reduced_activations
        if reduced_activations.shape[0] != len(class_indices):
            raise ValueError("The number of class indices must match the number of samples in reduced_activations.")

        # Processing each row in the reduced_activations and class_indices
        pcache_data = [
            [float(reduction[0]), float(reduction[1]), float(reduction[2]), float(class_idx) / 6.0, float(class_idx) / 6.0, float(class_idx) / 6.0, 1]
            for reduction, class_idx in zip(reduced_activations, class_indices)
        ]

        # Header for the pcache file
        pcache_header = [
            "pcache",
            "format ascii 1.0",
            "comment Example pcache file generated from PacMAP data",
            f"elements {len(pcache_data)}",
            "property float position.x",
            "property float position.y",
            "property float position.z",
            "property float color.r",
            "property float color.g",
            "property float color.b",
            "property float color.a",
            "end_header"
        ]

        # Combining header and data into the final pcache content
        final_content = "\n".join(pcache_header) + "\n"
        final_content += "\n".join([" ".join(map(str, row)) for row in pcache_data])

        # Writing the output to a .pcache file
        with open(output_file_path, 'w') as f:
            f.write(final_content)

        print(f"File saved to {output_file_path}")

Detailed Explanation:

Type Hints:
- reduced_activations: np.ndarray: This expects a NumPy array containing the reduced dimensional data.
- class_indices: Union[np.ndarray, List[int]]: This allows for either a NumPy array or a Python list of class indices.
- output_file_path: str: The path where the .pcache file will be saved. It’s expected to be a string, typically with a .pcache extension.
Docstrings:
- The docstring provides a detailed description of the function, its arguments, and what it returns. It also includes an example of how to use the method.
- The docstring explains the role of each argument clearly, ensuring future users of the function know what inputs it expects.
Validation:
- Checks are added to ensure that reduced_activations has 3 dimensions per sample (as this is the format expected for 3D spatial data).
- The number of class indices is validated to match the number of samples in the reduced_activations array to prevent errors later on.
File Path Argument:
- The output_file_path argument is now used to specify where the .pcache file will be saved, giving you flexibility in setting different file paths.

Example Usage:

Here’s how you can use the refactored method in your run method or elsewhere:

def run(self, features_csv: str, labels_csv: str, key_column: str, win_size: int, pcache_output_path: str):

    print("-" * 80)
    print(f"Loading Dataset...")
    print("-" * 80)

    X, y = self.load_data(features_csv, labels_csv, key_column, win_size)
    input_shape = (X.shape[1], X.shape[2])  # LSTM expects input as [samples, time steps, features]
    num_classes = y.shape[1]

    print("X shape: ", X.shape)
    print("y shape: ", y.shape)
    print(f"number of classes {num_classes}")

    print("-" * 80)
    print(f"Building LSTM model...")
    print("-" * 80)

    self.create_model(input_shape, num_classes)

    print("-" * 80)
    print(f"Training LSTM model...")
    print("-" * 80)

    self.train_model(X, y)

    print("-" * 80)
    print(f"Saving LSTM model to disk...")
    print("-" * 80)
    self.save_model()

    print("-" * 80)
    print(f"Running Dimensionality Reduction using PacMAP")
    print("-" * 80)

    classes, reduced_activations = LSTMNeuralNet.run_pacmap(self.model, X, y)

    # Convert one-hot class encoding to integer
    class_indices = np.argmax(classes, axis=1)

    # Export the pcache file directly
    LSTMNeuralNet.export_pcache(reduced_activations, class_indices, pcache_output_path)

In this run method, you would pass the file path for the .pcache as the pcache_output_path argument, ensuring flexibility in where the file is saved.

Let me know if you need any more clarification or further refinements!

If GPU memory isn’t cleared after successive runs in your machine learning model, this could be due to a few common reasons, particularly if you’re working with frameworks like TensorFlow or PyTorch. In these frameworks, memory management can sometimes be tricky, especially when running training loops or models multiple times.

Here are a few potential causes and solutions:

1. Explicitly Clearing GPU Memory with `K.clear_session()` (TensorFlow/Keras)

In TensorFlow (or Keras), the GPU memory can accumulate across successive runs because TensorFlow caches the memory used by previous models. To prevent this from happening, you can use the K.clear_session() function to clear the model from memory between runs.

Add this to your code after your model is done training:

from tensorflow.keras import backend as K

# After training or prediction
K.clear_session()

This will remove the model and its associated variables from memory, freeing up the GPU.

2. Using `torch.cuda.empty_cache()` in PyTorch

If you’re using PyTorch, the GPU memory might not be automatically cleared between successive runs. You can manually free up the memory using torch.cuda.empty_cache():

import torch

# Free GPU memory
torch.cuda.empty_cache()

This function releases all unoccupied cached memory that PyTorch is holding onto, making it available for other operations.

3. Disable GPU Memory Growth (TensorFlow)

Sometimes, TensorFlow allocates the entire GPU memory for the first session it runs, leaving little room for other operations or successive runs. To prevent this, you can control the memory allocation behavior by enabling memory growth, which allows TensorFlow to allocate only the required amount of GPU memory.

Add this at the start of your script:

import tensorflow as tf

# Limit TensorFlow's memory allocation
gpus = tf.config.experimental.list_physical_devices('GPU')
if gpus:
    try:
        for gpu in gpus:
            tf.config.experimental.set_memory_growth(gpu, True)
    except RuntimeError as e:
        print(e)

4. Deleting Model and Variables Manually

If you are reusing variables and models across multiple runs, explicitly delete these objects before starting a new run to ensure they are removed from memory.

Example:

del model  # If using TensorFlow or Keras
del X, y   # Your training data or any large variable
K.clear_session()  # Clear TensorFlow session

Using Python’s del and garbage collection ensures the old model is deleted, but for TensorFlow/Keras models, also clearing the session is crucial.

5. Restarting the Runtime

In some cases, if memory management becomes particularly tricky, a more brute-force approach is to restart the entire Python process. This can be automated, or you can manually restart the runtime in environments like Jupyter notebooks.

6. Check for Memory Leaks

If the issue persists even after manually clearing the GPU memory, there might be memory leaks in your code. Some steps to troubleshoot:

Ensure you’re not holding onto variables in global scope.
Make sure no unnecessary references to large variables, like models or datasets, are kept alive longer than needed.
Use Python’s gc module to force garbage collection:
```
import gc
gc.collect()
```

7. Check TensorFlow/PyTorch Version Compatibility

Ensure you are using the latest stable version of TensorFlow or PyTorch, as there have been improvements in GPU memory management in recent versions. Outdated versions of these libraries can often cause unexpected memory issues.

8. Multiple GPU Scenarios (Multi-GPU Setup)

If you are using multiple GPUs, make sure that your code correctly manages which GPU is being used. Memory can accumulate on one GPU even if another is used for computation. You can explicitly assign models to specific GPUs by setting CUDA_VISIBLE_DEVICES in PyTorch or by using TensorFlow’s tf.device context manager.

Summary

Here are some actions you can take to manage GPU memory better:

TensorFlow/Keras: Use K.clear_session() after each run, limit memory growth, and delete variables/models manually.
PyTorch: Use torch.cuda.empty_cache() to clear unused memory and manually delete variables when not needed.
Enable GPU memory growth to avoid TensorFlow allocating all available memory at once.
Use Python’s garbage collector to manually free up memory.
Restart the runtime if the issue is persistent.

Let me know if you need further help troubleshooting or tweaking any specific parts of the code!

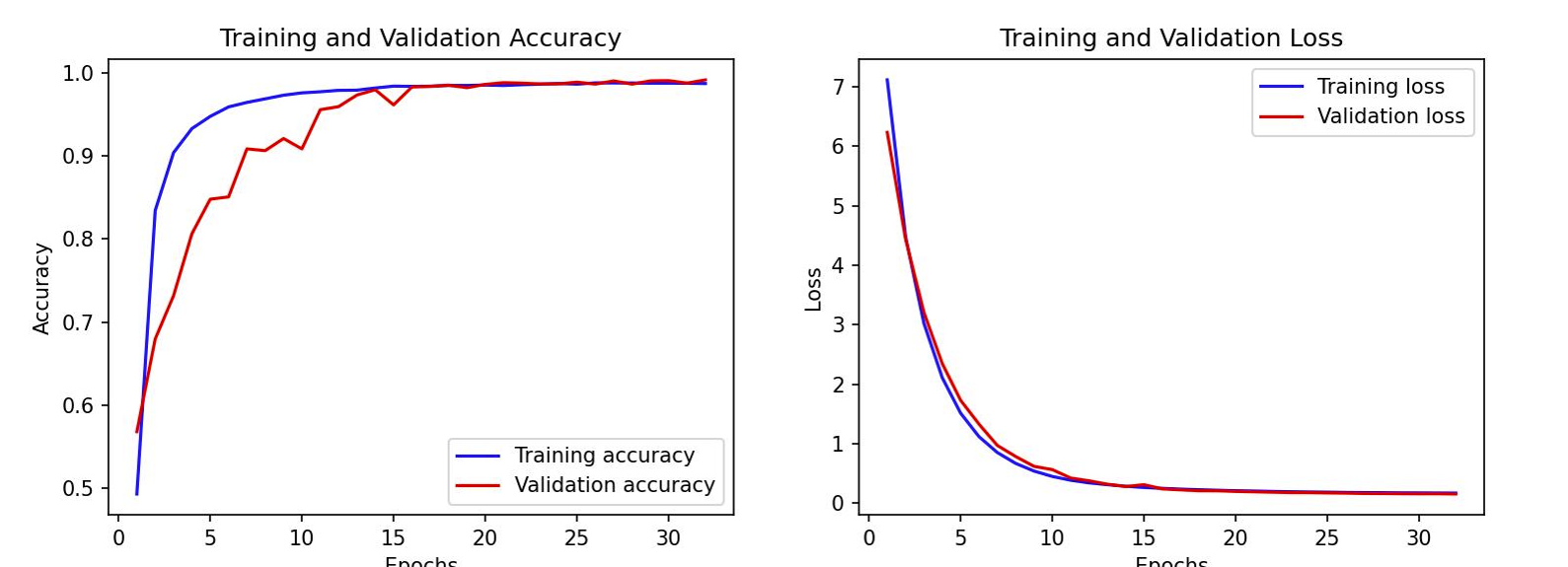

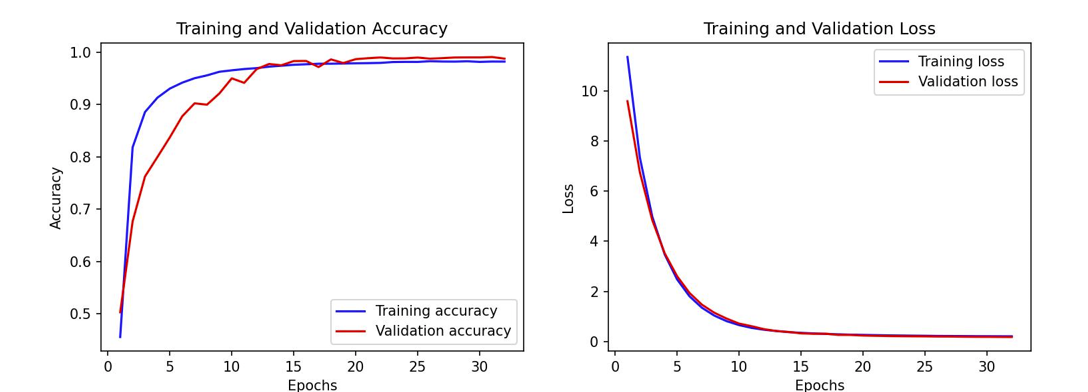

The plots you provided show both the training and validation accuracy, as well as the loss over multiple epochs. Here’s what we can interpret from these graphs:

1. Training and Validation Accuracy:

The blue line represents the training accuracy, and the red line represents the validation accuracy.
Both accuracy lines show a steady improvement and eventually flatten out, reaching a high value near 1.0, which indicates that the model is able to classify the training and validation sets with high accuracy.
Minor Overfitting: There’s a small gap between the training accuracy and validation accuracy early in the training, but they converge closely later on. This suggests that your model has learned the training data well but might slightly overfit to it. Overfitting is common when the training accuracy is much higher than the validation accuracy. Here, the gap is small, so overfitting seems minimal.

2. Training and Validation Loss:

The blue line represents the training loss, and the red line represents the validation loss.
Both the training and validation loss decrease rapidly in the first few epochs and level off later, which is expected behavior when training a model.
Importantly, the training and validation loss curves are very close to each other, meaning the model is generalizing well to the validation data.

What This Means:

Good Performance: The model seems to be performing well on both the training and validation sets. The accuracy is high and the loss is low, suggesting that the model has learned the patterns in the data effectively.
Minor Overfitting: There is a slight indication of overfitting (as seen from the small gap between the training and validation accuracy), but it’s not significant. You could try regularization techniques like dropout or L2 regularization if you want to further reduce overfitting.

What You Can Do Next:

Regularization: If you are worried about potential overfitting, you can add techniques like dropout, L2 regularization, or early stopping to prevent the model from overfitting too much.
Check for Data Leakage: Ensure there is no leakage of data between training and validation sets, as this could lead to artificially high validation accuracy.

In conclusion, your model looks like it has learned the task well, but with a slight potential for overfitting that you might want to monitor.

Data leakage occurs when information from outside the training dataset is used to create the model, causing overly optimistic performance estimates. To check for data leakage in your machine learning pipeline, here are some methods and tips to follow:

1. Check Train-Test Splits

Ensure that the training and validation/test datasets are completely disjoint. Data leakage can occur when the same or closely related data appears in both the training and test sets. Here are some key checks:

Unique Identifiers: If your dataset has IDs (e.g., customer ID, transaction ID), make sure that IDs appearing in the test set are not present in the training set.
Time-Based Splits: If your data is temporal (e.g., time series), ensure that future data is not accidentally included in the training set. This would give the model “insight” about the future during training, leading to leakage.

2. Check Preprocessing on Both Train and Test Sets

Some preprocessing steps can inadvertently cause leakage. Common pitfalls include:

Scaling/Normalizing Entire Dataset: If you scale (normalize or standardize) the data based on the entire dataset (train + test) before splitting, your test set could be influenced by the train set’s statistics. To prevent this, always fit your preprocessing (e.g., StandardScaler, MinMaxScaler) only on the training data and then apply the same transformation to the test set:
```
from sklearn.preprocessing import StandardScaler

scaler = StandardScaler()
X_train_scaled = scaler.fit_transform(X_train)  # Fit on training data
X_test_scaled = scaler.transform(X_test)        # Only transform test data
```
Data Imputation: Similar to scaling, if you fill missing values using global statistics (e.g., mean/median) across both train and test sets, this introduces leakage. Imputation should be done based on the training data only, and the same transformation should be applied to the test data.

3. Check Target Leakage

Target leakage happens when the model has access to data that reveals the target variable during training. This often happens when the target variable or information closely related to it is present in the features.

Feature Correlation with Target: Check if any of the features you are using are derived from or too closely correlated with the target variable.
- Example: In fraud detection, using the is_fraud column during feature engineering would result in target leakage.
Temporal Features: When using time-series data, ensure that no future information is included in the features for the current timestep. Only past and present information should be used to predict future outcomes.

4. Use Cross-Validation Properly

In some cases, leakage can occur if cross-validation is not performed correctly. To avoid this:

Stratified K-Folds: For classification problems with imbalanced classes, use stratified cross-validation (StratifiedKFold), which ensures that each fold maintains the class distribution.
Time-Series Data: If you’re working with time-series data, make sure to use time-based cross-validation (e.g., TimeSeriesSplit), which respects the temporal order. Otherwise, the model may “learn” from future data.

5. Check for Leakage in Feature Engineering

Leakage can also occur during feature engineering when you use information from the test set or from the future:

Rolling/Averaging Statistics: Be careful when creating features like rolling averages, cumulative sums, or lagged variables in time-series data. Ensure that you don’t accidentally compute these features using future data.
- Example: If you’re calculating a 7-day moving average, make sure it is computed using only past values up to the current timestep.
Aggregating Data: When performing group-based aggregation (e.g., mean values per group), make sure the aggregation is done only on the training set and applied consistently to the test set.

6. Examine Feature Importance

Sometimes, feature importance scores (e.g., from tree-based models) can reveal unexpected information leakage. If certain features are contributing more than they should, this might suggest leakage.

After training the model, analyze the importance of your features. If any feature shows up as suspiciously important and is related to the target, that feature might be leaking information.

7. Perform a Manual Check for Common Sources of Leakage

Some common patterns of data leakage you should manually inspect:

Duplicates: Ensure there are no duplicate rows between training and test datasets.
Temporal Features: Make sure there’s no backward-looking information that reveals future outcomes.
Inappropriate Features: Check if any features should have been excluded because they are unavailable during the prediction phase.

8. Check Validation Strategy

For models with hyperparameter tuning (e.g., grid search, random search, or Bayesian optimization), ensure that the validation process does not leak information from the test set back into the model. If you perform hyperparameter tuning based on performance on the test set, you’re indirectly leaking test information into your model. Always validate using the training set, and only use the test set for final evaluation.

9. Use `sklearn.model_selection` Tools Properly

If you are splitting your data manually, consider using sklearn.model_selection tools like train_test_split or cross-validation to handle this in a more structured way:

from sklearn.model_selection import train_test_split

X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=42, stratify=y)

These methods will ensure that your splits are randomized (or stratified, if needed) and prevent overlap between training and test sets.

10. Use Diagnostic Tools

Use diagnostic tools to check for data leakage:

Permutation Importance: Permutation importance tests the importance of each feature by permuting it. If the accuracy remains the same after permutation, it suggests that feature might be leaking information about the target variable.
Cross-validation Check: Compare cross-validation performance with test performance. If the test performance is significantly better than cross-validation, it could indicate leakage.

In Summary

Isolate Training and Test Data: Make sure there is no overlap or shared information between the training and test sets.
Preprocess Correctly: Apply all preprocessing (e.g., scaling, imputation) on the training set only, and then apply it to the test set.
Be Careful with Feature Engineering: Avoid using future data to create features and ensure that no target-related information is included in the features.
Examine Results: Check for unusually good test results compared to cross-validation scores, which may indicate leakage.

By systematically following these steps, you can greatly reduce the likelihood of data leakage and ensure your model’s performance is genuinely reflective of its ability to generalize to new data.

When working with time series data, it is critical to maintain the temporal order of the data during the splitting process. Unlike in regular datasets where you can randomly shuffle and split the data (such as using train_test_split), in time series data, shuffling can lead to “peeking” into the future. This would invalidate your model because, in real-world applications, you don’t have access to future data when making predictions.

Best Approach for Splitting Time Series Data

For time series problems, you should not randomly shuffle the data. Instead, you should always split the data in a way that respects the temporal ordering. The ideal approach depends on whether you are splitting for training/validation/testing purposes or performing cross-validation.

1. Simple Train-Test Split for Time Series

For a single train-test split in time series data, you should ensure that the training set comes from earlier time periods and the test set comes from later time periods. This is often referred to as a chronological split.

Here’s how to do it:

Example:

import pandas as pd
import numpy as np
from sklearn.model_selection import train_test_split

# Assuming `X` is your features and `y` is your target
# Example time series data
X = np.random.randn(100, 5)  # 100 time steps, 5 features
y = np.random.randn(100)     # 100 target values

# Instead of using train_test_split with random shuffling, split manually based on the time index
train_size = int(0.8 * len(X))  # Use the first 80% for training

X_train, X_test = X[:train_size], X[train_size:]
y_train, y_test = y[:train_size], y[train_size:]

print(f"Training data size: {len(X_train)}")
print(f"Test data size: {len(X_test)}")

This method ensures that no future data (from the test set) leaks into the training set.

2. TimeSeriesSplit (Cross-Validation for Time Series)

If you want to perform cross-validation on time series data (e.g., for hyperparameter tuning), using KFold or StratifiedKFold will not be appropriate because they randomly split the data, which doesn’t respect the temporal order.

Instead, use TimeSeriesSplit, a special form of cross-validation that incrementally increases the training set while keeping the test set in the future. Each fold maintains the temporal structure, ensuring no “future information” leaks into the training set.

Example using `TimeSeriesSplit`:

from sklearn.model_selection import TimeSeriesSplit

# TimeSeriesSplit for cross-validation
tscv = TimeSeriesSplit(n_splits=5)

# Example time series data
X = np.random.randn(100, 5)  # 100 time steps, 5 features
y = np.random.randn(100)     # 100 target values

# TimeSeriesSplit iterates through the dataset without shuffling it
for train_index, test_index in tscv.split(X):
    X_train, X_test = X[train_index], X[test_index]
    y_train, y_test = y[train_index], y[test_index]

    print(f"Train indices: {train_index}, Test indices: {test_index}")

In TimeSeriesSplit, each fold uses a growing portion of the earlier data for training and the subsequent portion of the later data for validation. It is a sequential process, and no data leakage happens because future data is not used in training.

Example Visualization of `TimeSeriesSplit`:

Split 1:
Train: [0:20], Test: [20:40]

Split 2:
Train: [0:40], Test: [40:60]

Split 3:
Train: [0:60], Test: [60:80]

Split 4:
Train: [0:80], Test: [80:100]

This method is well-suited for time series forecasting and ensures that your model generalizes well to future unseen data.

3. Walk-Forward Validation (Rolling Forecast)

If your task involves forecasting, you might want to use walk-forward validation. This is similar to TimeSeriesSplit, but rather than incrementally adding more training data, it uses a sliding window of fixed size for training and moves forward through the data.

In walk-forward validation:

A window of fixed size (e.g., 30 time steps) is used to train the model.
After training, the model is tested on the next time step.
The window is then shifted by one step and the process repeats.

This method ensures that each model is trained only on recent data and forecasts the next time period.

4. Combining Train-Validation-Test Split

For a real-world time series project, you typically want to split the data into three sets:

Training set: Used to fit the model.
Validation set: Used to tune hyperparameters and evaluate the model during training.
Test set: Used to assess the final model performance on unseen data.

Here’s how you can split time series data into train, validation, and test sets:

Example of Train-Validation-Test Split:

# Define split sizes (e.g., 60% training, 20% validation, 20% test)
train_size = int(0.6 * len(X))
val_size = int(0.2 * len(X))
test_size = len(X) - train_size - val_size

# Create train, validation, and test splits
X_train, X_val, X_test = X[:train_size], X[train_size:train_size + val_size], X[train_size + val_size:]
y_train, y_val, y_test = y[:train_size], y[train_size:train_size + val_size], y[train_size + val_size:]

print(f"Train set size: {len(X_train)}")
print(f"Validation set size: {len(X_val)}")
print(f"Test set size: {len(X_test)}")

This method ensures that you maintain the temporal order and prevent any future data from leaking into the training set.

Conclusion:

For a single train-test split: Always split based on time. Training data should come from earlier time points, and test data from later time points.
For cross-validation: Use TimeSeriesSplit to ensure the temporal structure is preserved.
For walk-forward validation: Use a sliding window approach to simulate how your model will work in real-time forecasting.
For multiple sets (train-validation-test): Split the data sequentially, making sure that validation and test sets come from later time points than the training set.

By following these guidelines, you will ensure that your model properly generalizes to future data, and you avoid data leakage in time series tasks.

how to make this work with timeseriessplit

    X_train, X_val, y_train, y_val = train_test_split(X, y, test_size=self.validation_split, random_state=42)


    print("X shape: ", X.shape)  # Ensure this is 3D: [samples, time steps, features]
    print("y shape: ", y.shape)  # Ensure this is 2D: [samples, number of classes]

    history = self.model.fit(X_train, y_train,
                             validation_data=(X_val, y_val),
                             epochs=self.noEpochs,
                             batch_size=self.batch_size,
                             verbose=2,
                             callbacks=[early_stopping, lr_scheduler])

To adapt your current model training process to use TimeSeriesSplit instead of train_test_split, you need to:

Remove the train_test_split call, which randomly shuffles the data.
Use TimeSeriesSplit to generate train-validation splits that respect the time order of your data.
Iterate over the splits and train your model for each fold.

TimeSeriesSplit generates multiple splits (like cross-validation), but since your code currently expects a single train-validation split (as seen in your use of train_test_split), you might want to modify it slightly to accommodate either multiple runs (for cross-validation) or just the first fold (if you’re aiming for a single train-validation split).

Modifying Your Code for `TimeSeriesSplit`

Here’s how you can make it work:

Step 1: Set up `TimeSeriesSplit`

You’ll initialize TimeSeriesSplit based on how many splits you need. Let’s say you’re doing a 5-fold time series cross-validation. You can choose a different number of splits depending on how much data you want to use for training and validation.

from sklearn.model_selection import TimeSeriesSplit

# Initialize TimeSeriesSplit
tscv = TimeSeriesSplit(n_splits=5)

Step 2: Modify the Model Training Loop

Since TimeSeriesSplit generates multiple train-validation splits, you’ll need to loop over each fold and train your model on each one. Here’s how to modify your code to accommodate TimeSeriesSplit.

Updated Code with `TimeSeriesSplit`

from sklearn.model_selection import TimeSeriesSplit

# Set up TimeSeriesSplit
tscv = TimeSeriesSplit(n_splits=5)

# Iterate over each split (train_index, val_index) provided by TimeSeriesSplit
for train_index, val_index in tscv.split(X):
    # Split the dataset into training and validation sets
    X_train, X_val = X[train_index], X[val_index]
    y_train, y_val = y[train_index], y[val_index]

    # Ensure your shapes are correct
    print("X_train shape: ", X_train.shape)  # Should be 3D: [samples, time steps, features]
    print("X_val shape: ", X_val.shape)      # Should be 3D: [samples, time steps, features]
    print("y_train shape: ", y_train.shape)  # Should be 2D: [samples, number of classes]
    print("y_val shape: ", y_val.shape)      # Should be 2D: [samples, number of classes]

    # Train the model on this split
    history = self.model.fit(X_train, y_train,
                             validation_data=(X_val, y_val),
                             epochs=self.noEpochs,
                             batch_size=self.batch_size,
                             verbose=2,
                             callbacks=[early_stopping, lr_scheduler])

    # Optionally, you can store results from each fold for further analysis
    # e.g., storing the history for each fold

Important Points:

No Shuffling: TimeSeriesSplit does not shuffle the data, so the training set always consists of earlier data and the validation set consists of later data.
Multiple Folds: If you want to use the results from multiple folds, you can store the training history for each fold. For example, append the history object returned by model.fit to a list for later analysis.
Single Fold Option: If you only want to train on the first split (or a specific fold), you can break the loop after the first iteration:

for train_index, val_index in tscv.split(X):
    X_train, X_val = X[train_index], X[val_index]
    y_train, y_val = y[train_index], y[val_index]

    # Your training logic here
    break  # Exit after first fold

Step 3: Handling Metrics for Multiple Splits

If you are using multiple splits, you might want to calculate the average performance metrics (accuracy, loss, etc.) across all the folds. After each fold, you can store the results (e.g., accuracy, loss) and then compute the mean performance across all splits.

Example to Track Performance:

# Initialize lists to track performance across folds
train_accuracies = []
val_accuracies = []

# Loop through splits
for train_index, val_index in tscv.split(X):
    X_train, X_val = X[train_index], X[val_index]
    y_train, y_val = y[train_index], y[val_index]

    # Train the model on this split
    history = self.model.fit(X_train, y_train,
                             validation_data=(X_val, y_val),
                             epochs=self.noEpochs,
                             batch_size=self.batch_size,
                             verbose=2,
                             callbacks=[early_stopping, lr_scheduler])

    # Append the accuracy/loss from the history object to your lists
    train_accuracies.append(history.history['accuracy'][-1])
    val_accuracies.append(history.history['val_accuracy'][-1])

# Calculate the average performance
avg_train_acc = np.mean(train_accuracies)
avg_val_acc = np.mean(val_accuracies)
print(f"Average training accuracy: {avg_train_acc}")
print(f"Average validation accuracy: {avg_val_acc}")

Key Differences from `train_test_split`:

No Random Shuffling: TimeSeriesSplit does not shuffle the data, maintaining the temporal structure.
Multiple Folds: You now loop through multiple training/validation splits (or just use one if you only want a single fold).

Conclusion:

By using TimeSeriesSplit, you’re ensuring that the model is always validated on future data and trained on past data, which is crucial in time series prediction tasks. This method respects the temporal ordering of data, avoiding data leakage from future to past.

Let me know if you need further clarifications or adjustments!

In your case, where your dataset consists of time series data with multiple labels (choreographies), and you want to ensure that each fold of the split contains samples from all choreographies, using a standard TimeSeriesSplit alone might not be sufficient. TimeSeriesSplit ensures that data is split sequentially, but it doesn’t guarantee that each fold will contain a good mix of different labels (choreographies).

You can handle this by combining stratification with a time-aware split, ensuring that each fold contains a representative distribution of choreographies while maintaining the temporal order.

Approach: Stratified Time Series Split with Label Groups

Since TimeSeriesSplit doesn’t allow for stratified splitting, we will need to customize the splitting process. Here are a few options you can consider:

Group K-Fold Cross-Validation with Choreographies as Groups: If each choreography is distinctly labeled, you can use GroupKFold to split the data by choreographies while ensuring no data leakage. However, GroupKFold doesn’t inherently respect the temporal order. To handle this, you may need to work with chunks of data and group them appropriately.
Customized Time Series Split with Choreography Groups: You can implement a custom time series splitter that performs the split based on a per-choreography level to ensure a representative mix of choreographies across splits.

Solution 1: Using `GroupKFold` for Cross-Validation with Choreographies

If you can treat each choreography as a distinct group (e.g., group_col), you can use GroupKFold from sklearn.model_selection. This method will ensure that the splits respect the choreography group boundaries and keep the samples from the same choreography together in one fold, but this might not respect the temporal ordering unless you handle time directly within each group.

Example:

from sklearn.model_selection import GroupKFold

# Assume that X is your feature data, y is the target, and group_col is the choreography ID
group_kfold = GroupKFold(n_splits=5)

# Create your groups (e.g., each choreography is a group)
groups = your_dataframe['choreography_id']  # Or however your choreographies are labeled

# Perform GroupKFold splitting
for train_index, val_index in group_kfold.split(X, y, groups):
    X_train, X_val = X[train_index], X[val_index]
    y_train, y_val = y[train_index], y[val_index]

    # Train your model as usual
    history = self.model.fit(X_train, y_train,
                             validation_data=(X_val, y_val),
                             epochs=self.noEpochs,
                             batch_size=self.batch_size,
                             verbose=2,
                             callbacks=[early_stopping, lr_scheduler])

    # Optionally, track performance for each fold

How `GroupKFold` Works:

No Choreography Overlap: It ensures that samples from one choreography are not split between training and validation sets.
Multiple Folds: Since it’s cross-validation, you can average performance metrics across all the splits.
Temporal Handling: However, this method doesn’t handle temporal ordering, so you will need to ensure time order is respected within each group.

Solution 2: Stratified Time Series Split (Custom Solution)

To stratify based on labels (choreographies) while maintaining the temporal order, you need a custom approach. Here’s a strategy you can adopt:

Sort the data by time: First, make sure your data is sorted by time within each choreography.
Group by Choreography: Group the data by choreography labels.
Split within each Choreography: Apply a TimeSeriesSplit (or other time-respecting splits) within each choreography and then combine the splits to ensure temporal order is maintained globally.

Here’s a high-level implementation:

Custom Stratified Time Series Split (Pseudocode)

import pandas as pd
from sklearn.model_selection import TimeSeriesSplit

def stratified_time_series_split(X, y, groups, n_splits=5):
    """
    Custom function to perform a stratified time series split that respects both
    time ordering and ensures each fold has a representative mix of choreography groups.

    Args:
        X (pd.DataFrame): Feature data
        y (pd.Series): Target labels
        groups (pd.Series): Grouping variable, e.g., choreography ID
        n_splits (int): Number of splits

    Yields:
        train_index, test_index: Indices for training and test set.
    """
    unique_groups = groups.unique()
    for group in unique_groups:
        # Filter the data for this group (choreography)
        X_group = X[groups == group]
        y_group = y[groups == group]

        # Perform a time-aware split within this group (choreography)
        tscv = TimeSeriesSplit(n_splits=n_splits)
        for train_idx, test_idx in tscv.split(X_group):
            # Append the group-wise indices back to global indices
            global_train_idx = X_group.index[train_idx]
            global_test_idx = X_group.index[test_idx]

            # Yield global indices for this fold
            yield global_train_idx, global_test_idx

Explanation:

Temporal Order: The TimeSeriesSplit ensures that within each choreography, the temporal order is respected.
Mix of Choreographies: Since you iterate over each choreography group and apply the same split logic, each fold gets a mix of choreographies.
Final Training: You would combine all these splits to form the global train-test indices and use them for training your model.

Solution 3: Time-Based Cross-Validation with Choreographies (Manual Method)

If you want a simpler approach, you can manually chunk the data by time and split it into sections for training and validation, ensuring that each chunk contains all choreographies. For example, you could:

Chunk data: Divide data into time-based windows, ensuring that each window contains samples from all choreographies.
Split manually: Create train-validation splits by using the earlier chunks for training and the later chunks for validation.

Conclusion:

GroupKFold: Use this if you want to split the data by choreography (ensuring no data leakage) but don’t need strict temporal ordering.
Custom Stratified Time Series Split: Use this if you need both time-respecting splits and representative samples from all choreographies in each fold.
Manual Time-based Cross-Validation: Split based on time, ensuring that each chunk contains all choreographies.

Let me know if you need further clarification or a more detailed implementation!

In machine learning, when you train a model again and again (as in each iteration of cross-validation or retraining), the model does not accumulate knowledge across iterations unless explicitly designed to do so (for example, in techniques like transfer learning or fine-tuning). Instead, each iteration starts fresh, meaning the model’s previous knowledge is completely overwritten by the new training process.

Here’s what happens when you train your model multiple times in standard scenarios:

Typical Training Behavior:

Fresh Start for Each Training:
- In each iteration of cross-validation or retraining, the model is initialized from scratch, and the weights are reset to their initial random values (or preset initialization if specified).
- During training, the model learns from the current training data, adjusts its weights based on the loss and optimizer, and after the training is complete, the final set of weights represents the knowledge from that training session.
Model Weights Are Overwritten:
- When you call model.fit() again in another training iteration (e.g., in the next fold of cross-validation), unless you manually save the model weights and reload them, the model will overwrite its previous weights and start with a fresh set of initialized weights.
- This means there is no accumulation of knowledge from previous training sessions unless explicitly designed to do so.

How Cross-Validation Works:

In cross-validation (e.g., with TimeSeriesSplit or KFold), each fold starts with a freshly initialized model. You train the model on a specific fold (a subset of the data), validate on the test portion of that fold, and then repeat this process for the next fold.
After all folds are complete, you typically evaluate the model’s performance by averaging the metrics across all the folds.

When Does Knowledge Accumulate? (Transfer Learning/Fine-Tuning)

In some specific cases, accumulation of knowledge can occur, but these require explicit instructions:

Transfer Learning:
- When you load a pre-trained model (e.g., a neural network pre-trained on a large dataset like ImageNet), and then fine-tune it on a new dataset. In this case, the model retains knowledge from the pre-training phase and adjusts it to fit the new dataset. Example:
```
base_model = keras.applications.VGG16(weights='imagenet', include_top=False)
# Freeze some layers to retain knowledge
for layer in base_model.layers[:15]:
    layer.trainable = False

# Add new layers for your specific task
model = Sequential([...])
```
Fine-Tuning:
- If you explicitly save the model weights after one training session and then load them before the next, the model can “accumulate” knowledge in a sense. You can fine-tune it further with new data by loading the previous weights and continuing training. Example:
```
# Save model after one iteration
model.save('model_iteration_1.h5')

# Load the saved model and continue training
model = load_model('model_iteration_1.h5')
model.fit(X_train, y_train)
```

Ensuring You Start Fresh for Each Training Iteration

If you want to ensure that the model starts fresh (as is typical in cross-validation or retraining scenarios), make sure to do the following:

Initialize the Model Each Time: If you’re using a loop for cross-validation, initialize the model from scratch within each iteration of the loop. Example:

for train_index, val_index in tscv.split(X):
    # Initialize a fresh model for each fold
    model = create_new_model()
    model.compile(optimizer='adam', loss='categorical_crossentropy', metrics=['accuracy'])

    # Train on the training set and validate on the validation set
    history = model.fit(X_train, y_train,
                        validation_data=(X_val, y_val),
                        epochs=self.noEpochs,
                        batch_size=self.batch_size,
                        verbose=2)

Avoid Accidental Weight Carryover: Ensure you’re not carrying over the model weights from previous iterations unless you’re intentionally doing transfer learning or fine-tuning. To ensure fresh training each time, initialize the model or reset the weights before each training iteration.

Recap:

Cross-validation or retraining starts with a fresh model each time unless you explicitly save and reload the model weights.
No knowledge is accumulated across different runs unless you use techniques like transfer learning or fine-tuning, where the weights from one model training session are carried forward and fine-tuned with new data.

If you don’t want the model to accumulate knowledge, make sure you’re initializing it freshly for each iteration. If you do want to accumulate knowledge, you would need to implement transfer learning or fine-tuning techniques explicitly.

Let me know if you need further clarification on this or help with implementing any specific behavior!

so, how is this good?

i’m losing 4/5ths of my dataset

Perform GroupKFold splitting

for train_index, val_index in group_kfold.split(X, y, groups): X_train, X_val = X[train_index], X[val_index] y_train, y_val = y[train_index], y[val_index]

# Train your model as usual
history = self.model.fit(X_train, y_train,
                         validation_data=(X_val, y_val),
                         epochs=self.noEpochs,
                         batch_size=self.batch_size,
                         verbose=2,
                         callbacks=[early_stopping, lr_scheduler])

You’re absolutely right to question this — losing 4/5ths of your dataset in each fold of cross-validation might seem wasteful, especially in time series or cases where data is valuable. However, cross-validation’s strength lies in its ability to help estimate model performance on unseen data, but it comes with trade-offs. Let’s dive into why this happens and how you can make the most of your dataset without “wasting” a large portion of it.

Why Cross-Validation Splits the Data

In your cross-validation loop, the model is trained on a fraction of the dataset (4/5ths) and validated on the remaining part (1/5th). After one fold, the training and validation sets switch, ensuring that every part of the dataset is used for validation at least once.

This process:

Ensures generalization: By validating on different folds, you get a better sense of how your model will perform on unseen data. The final performance is usually calculated as an average across the folds.
Prevents overfitting: It ensures that the model isn’t overfitting to just one subset of data and generalizes well to different parts of the dataset.

The Perceived Loss of Data:

In each fold, you are training on 4/5ths and validating on 1/5th. However, each fold uses a different part of the data for training and validation.
Over the entire cross-validation process, all data points are used both for training (in 4 folds) and for validation (in 1 fold). This way, no data is truly “wasted.”

What might feel like a loss of data is actually the model being trained on different subsets of data in each fold. So, although 1/5th is left out in each fold, that 1/5th will be used for training in the other folds.

But Still, Training on Only a Fraction Each Time…

If you’re concerned about not using the entire dataset for training in each fold, there are a few ways to address this concern:

Options to Maximize Data Usage

Use Cross-Validation for Hyperparameter Tuning, Then Train on the Full Dataset:
- Purpose of Cross-Validation: Often, cross-validation is primarily used for model selection or hyperparameter tuning. Once you’ve identified the best model/hyperparameters from cross-validation, you can train the final model on the entire dataset to make full use of your data.
- Train on the full dataset: After cross-validation, reinitialize your model and train it on the entire dataset. This way, you make use of all your data without leaving anything out.
Example:
```
# After cross-validation and selecting best hyperparameters
model = create_new_model()  # Initialize a fresh model
model.compile(optimizer='adam', loss='categorical_crossentropy', metrics=['accuracy'])
history = model.fit(X, y, epochs=self.noEpochs, batch_size=self.batch_size, verbose=2)
```
Stratified TimeSeriesSplit with a Larger Training Set:
- If your concern is about maximizing the training data at each fold, you can adjust your cross-validation strategy.
- Use fewer splits: Instead of 5-fold cross-validation (which uses 4/5ths of the data for training), you can opt for 2-fold cross-validation (which uses half for training and half for validation) or even leave-one-out cross-validation (which uses all but one sample for training).
- Customized TimeSeriesSplit: If the labels (choreographies) need to be balanced across splits, you can still maintain stratification but use fewer splits, so you’re using more data for training in each fold.
Rolling Window Validation (Walk-Forward Validation):
- This technique ensures you maximize training data over time. In each step, you train on increasing amounts of data and test on the next available data points.
- In Walk-Forward Validation, you train on past data and test on a future window, but unlike standard cross-validation, your training set grows as you move forward through time.
Example:
```
window_size = 1000  # Initial training set size
step_size = 200     # The number of steps forward in each iteration

for i in range(window_size, len(X) - step_size, step_size):
    X_train, X_val = X[:i], X[i:i + step_size]
    y_train, y_val = y[:i], y[i:i + step_size]

    model = create_new_model()  # Reinitialize the model each time
    model.compile(optimizer='adam', loss='categorical_crossentropy', metrics=['accuracy'])
    history = model.fit(X_train, y_train, validation_data=(X_val, y_val), epochs=self.noEpochs, batch_size=self.batch_size)
```
Pros:
- This method is time-sensitive, allowing you to maintain the temporal order of data.
- Maximizes training data: As you progress, more data is used for training, and only the immediate future is used for validation.
Use the Entire Dataset for Final Model Training:
- Once you’ve validated that your model generalizes well using cross-validation, you can train on the entire dataset for the final model before deploying it.
- This ensures that you aren’t losing any data when deploying your final model.

Why Cross-Validation Is Still Good:

Robust model evaluation: Cross-validation gives you a more reliable estimate of model performance by validating it on multiple splits of the data.
Reduces overfitting risk: It helps you avoid overfitting by evaluating the model on data it hasn’t seen during training.
No data is truly lost: Over the entire cross-validation process, every data point is used both for training and validation. Cross-validation allows you to better assess the model’s generalization ability on unseen data.

Final Workflow to Use All Data Efficiently:

Here’s an optimized workflow that ensures you make the best use of your data:

Cross-validate to tune hyperparameters and evaluate model performance:

for train_index, val_index in group_kfold.split(X, y, groups):
    X_train, X_val = X[train_index], X[val_index]
    y_train, y_val = y[train_index], y[val_index]
    history = self.model.fit(X_train, y_train, validation_data=(X_val, y_val),
                             epochs=self.noEpochs, batch_size=self.batch_size, verbose=2,
                             callbacks=[early_stopping, lr_scheduler])

Train final model on the entire dataset after cross-validation, ensuring you are using all data:

# After selecting the best hyperparameters or model type
model = create_new_model()
model.compile(optimizer='adam', loss='categorical_crossentropy', metrics=['accuracy'])
model.fit(X, y, epochs=self.noEpochs, batch_size=self.batch_size, verbose=2)

Conclusion:

Cross-validation does not “waste” data: Each part of the dataset is used for validation in one fold and for training in others.
If you’re concerned about using all data for training, you can train your final model on the entire dataset after cross-validation.
If the dataset is large or time-sensitive, consider walk-forward validation or using fewer folds to ensure more data is used for training in each fold.

By following this strategy, you’ll gain the benefits of robust model evaluation via cross-validation while still making full use of your data in the final model training stage. Let me know if you’d like further clarification or more specific advice!

Given the nature of your data (with sequences of small clips that belong to larger choreographies), and your goal of using LSTMs to classify the choreography, it’s crucial to maintain the sequential structure of the data during the train/test split. LSTMs rely heavily on temporal information, so splitting the data randomly across sequences will likely disrupt the learning of meaningful temporal patterns.

Key Requirements for the Split:

Sequence Integrity: Each clip belongs to a longer sequence (representing a choreography), and this sequence must not be randomly split into training and test sets. Instead, the full sequence (or a substantial part of it) should remain intact.
Temporal Consistency: Since LSTMs require sequential data to learn time-dependent features, the splitting should ensure that the time structure within each sequence is preserved.
Balanced Representation of Sequences: Ensure that both the training and test sets contain enough sequences from each choreography to allow the model to generalize.

Suggested Approach for Data Splitting:

Here’s a refined logic that maintains the integrity of the sequences while splitting the data for training and testing:

Group by Sequences: First, you should group your dataset by Sequence_ID (or whatever field uniquely identifies each sequence).
Split Entire Sequences: After grouping by sequence, split the sequences into training and test sets. Since you need enough sequential clips per sequence in both the training and test sets, you should:
- Either keep some sequences fully in the training set and some fully in the test set.
- Or, within each sequence, use a temporal split (e.g., the first 80% of the sequence for training, and the last 20% for testing).
Ensure Label Balance: While splitting, ensure that both the training and test sets have a representative number of sequences from each choreography label.

Parsing and Splitting the CSV

Let’s start by parsing your CSV data, grouping it by sequence, and then applying a temporal split on the sequences.

Here’s how you can implement this logic:

Step 1: Parse the CSV and Group by Sequence

This step reads the data, groups it by Sequence_ID, and prepares it for splitting.

import pandas as pd
from sklearn.model_selection import train_test_split

# Load the dataset
df = pd.read_csv('/mnt/data/your_data.csv')

# Group by the 'Sequence_ID' column
sequences = df.groupby('Sequence_ID')

# Get a list of unique Sequence_IDs
sequence_ids = df['Sequence_ID'].unique()

# Print some information about the data
print(f"Total Sequences: {len(sequence_ids)}")

Step 2: Split Sequences into Train and Test Sets

Now that we have grouped the sequences, we’ll split them such that whole sequences are either in the training set or the test set. We can use train_test_split on the sequence_ids, ensuring a balanced distribution.

# Split sequence IDs into train and test (80% train, 20% test)
train_seq_ids, test_seq_ids = train_test_split(sequence_ids, test_size=0.2, random_state=42)

# Create train and test dataframes by filtering the sequences
train_df = df[df['Sequence_ID'].isin(train_seq_ids)]
test_df = df[df['Sequence_ID'].isin(test_seq_ids)]

# Ensure sequences are intact in each set
print(f"Training Set Sequences: {train_df['Sequence_ID'].nunique()}")
print(f"Test Set Sequences: {test_df['Sequence_ID'].nunique()}")

Step 3: Split Within Each Sequence (Temporal Split)

If you want to split each sequence temporally, you can split the clips within each sequence. For each sequence, you can take the first 80% of the clips for training and the last 20% for testing:

train_data = []
test_data = []

# Iterate over each sequence and split the data temporally
for seq_id, seq_data in sequences:
    # Sort the sequence data by time (if applicable)
    seq_data = seq_data.sort_index()  # Adjust this if you have a specific time column

    # Split the sequence into train (80%) and test (20%) clips
    split_point = int(0.8 * len(seq_data))

    train_data.append(seq_data.iloc[:split_point])  # First 80% for training
    test_data.append(seq_data.iloc[split_point:])   # Last 20% for testing

# Combine the individual splits into full train/test sets
train_df = pd.concat(train_data)
test_df = pd.concat(test_data)

print(f"Train set size: {len(train_df)}, Test set size: {len(test_df)}")

Step 4: Check for Label Balance

After splitting the data, ensure that both the training and test sets have a representative distribution of labels (choreographies):

# Check label distribution in train and test sets
print("Training Label Distribution:")
print(train_df['Choreography_Label'].value_counts())

print("\nTest Label Distribution:")
print(test_df['Choreography_Label'].value_counts())

Key Considerations:

Temporal Splitting: For each sequence, the split is performed in a time-aware manner, ensuring that the time order is preserved. This way, the LSTM can still learn from temporal dependencies within each sequence.
Balanced Representation: You can ensure that both the training and test sets have an adequate number of sequences from each choreography. If necessary, adjust the train_test_split to stratify by choreography label as well, or manually adjust the split.
Edge Cases: If some sequences are too short to be split meaningfully (e.g., sequences with just a few clips), you can either discard them or assign them entirely to one of the sets.

Alternatives:

Walk-Forward Validation: In some time-series setups, instead of a single train-test split, you can use walk-forward validation where you iteratively train on an increasing amount of past data and test on future data.
Custom Cross-Validation: If you want to evaluate the model using cross-validation, you can create custom splits where entire sequences (or parts of sequences) are included in different folds.

Conclusion:

This approach ensures that:

Sequences are not split randomly.
Temporal order is preserved within each sequence.
You maintain a balance of sequences from different choreographies in the train and test sets.

By grouping by sequences and applying a temporal split within each sequence, you ensure the integrity of your time-series data for LSTM classification.

Let me know if you need further adjustments or clarifications!

Yes, your revised approach makes sense and is a more robust way to ensure that the validation set is representative of the entire choreography sequence rather than just the end portion. By taking 1 validation sample for every N training samples, spaced evenly throughout the sequence, you will ensure that the validation set contains information from different parts of the choreography, accounting for the temporal variations.

Key Idea:

Instead of simply splitting the sequence at a single point (e.g., 80%-20%), you take validation samples at regular intervals throughout the sequence.
For example, for every N training samples, you reserve 1 sample for validation, ensuring that the validation set is spread out across the entire sequence.

This ensures that the validation set is not biased by only containing the later part of the sequence (which might have different choreography patterns).

Strategy:

Group the data by sequence.
Select training and validation samples in a spaced manner: For each sequence, take every Nth sample for validation and use the rest for training.
Ensure each sequence contributes clips evenly to both the training and validation sets.

Step-by-Step Solution:

Step 1: Load and Group the Data by Sequence

We will start by loading the CSV and grouping it by Sequence_ID.

import pandas as pd

# Load the dataset (adjust the path to your actual CSV file)
df = pd.read_csv('/mnt/data/your_data.csv')

# Group the data by 'Sequence_ID' column (adjust this if necessary)
sequences = df.groupby('Sequence_ID')

# Get a list of unique sequence IDs
sequence_ids = df['Sequence_ID'].unique()

print(f"Total Sequences: {len(sequence_ids)}")

Step 2: Create Training and Validation Sets with Spaced Sampling

Now, for each sequence, we’ll create a training and validation set by taking every Nth sample for validation and the remaining for training.

Here’s how to implement this:

N: The number of training samples for each validation sample. For example, if N=4, you will take 1 validation sample for every 4 training samples.
You can adjust N based on how much data you want to allocate to validation.

train_data = []
val_data = []
N = 4  # Define the interval (1 validation sample for every N training samples)

# Iterate over each sequence and split it into training and validation sets
for seq_id, seq_data in sequences:
    # Sort the sequence data by time (if necessary)
    seq_data = seq_data.sort_index()  # Or use a specific time column if available

    # Create training and validation sets by taking every Nth sample for validation
    val_idx = seq_data.index[::N]  # Every Nth index for validation
    train_idx = seq_data.index.difference(val_idx)  # The rest for training

    # Append the data for this sequence to the global train/validation sets
    train_data.append(seq_data.loc[train_idx])
    val_data.append(seq_data.loc[val_idx])

# Concatenate all sequences together into final train/validation sets
train_df = pd.concat(train_data)
val_df = pd.concat(val_data)

print(f"Train set size: {len(train_df)}, Validation set size: {len(val_df)}")

Step 3: Check for Label Balance

After splitting the sequences, you can check that the training and validation sets contain a representative distribution of choreography labels:

# Check the label distribution in train and validation sets
print("Training Label Distribution:")
print(train_df['Choreography_Label'].value_counts())

print("\nValidation Label Distribution:")
print(val_df['Choreography_Label'].value_counts())

Step 4: Train the Model

Now that you have both training and validation sets, you can train your model as usual:

# Assuming self.model is your LSTM model and you've already compiled it

history = self.model.fit(train_df.drop(columns=['Choreography_Label']), train_df['Choreography_Label'],
                         validation_data=(val_df.drop(columns=['Choreography_Label']), val_df['Choreography_Label']),
                         epochs=self.noEpochs,
                         batch_size=self.batch_size,
                         verbose=2,
                         callbacks=[early_stopping, lr_scheduler])

# You can also check the performance after training

Adjusting the Split Based on Data Size:

If your dataset has many small clips, you might want to adjust N so that validation data is spread out more. For example, if N=2, you get more validation data at shorter intervals.
If you have very long sequences or lots of data, you could use a larger N (e.g., N=10) to space the validation clips further apart.

Key Benefits of This Approach:

Balanced Sampling: The validation samples are taken from different parts of the sequence, ensuring a good mix of early, middle, and late choreography patterns.
Avoiding Temporal Bias: This avoids the issue where validation samples only come from the end of the sequence, which might not be representative of the entire choreography.
Preserving Sequential Structure: You are still respecting the sequential structure of the data, making this approach suitable for LSTM-based models.

Conclusion:

This strategy effectively balances the validation data selection across different parts of the sequences, which is crucial when dealing with time-dependent data like choreographies. The resulting training and validation sets will both contain temporally diverse clips, allowing the LSTM to learn the sequential patterns more effectively and generalize better.

Let me know if you need further clarification or adjustments to the implementation!

the problem now is, the raw data need grouping in windows determined by win_size.

If we apply the logic above, we break the grouping.

see my code:

X = corrected.values

    number_of_features = X.shape[1]
    number_of_sequences = X.shape[0] // win_size

    print("Number of features: ", number_of_features)
    print("number of sequences: ", number_of_sequences)

    X_reshaped = X.reshape((number_of_sequences, win_size, number_of_features))

    print("Shape of X:", X_reshaped.shape)  # Debugging line to check the shape of X

we somehow need to use slices of [,win_size,features] and take 1 val for each N of train

Ah, I see the issue now. The challenge lies in the fact that your data needs to be grouped into windows of size win_size for the LSTM input. This means you need to apply the evenly spaced validation sampling logic on the windowed data rather than the raw data.

The solution needs to:

Group the data into windows of size win_size, which will result in 3D input data for the LSTM.
Apply the “1 validation sample for every N training samples” logic to these windowed groups, ensuring that the validation windows are spaced evenly across the sequence.
Maintain sequential integrity of the data while creating windows.

Approach to Fix the Problem:

Reshape Data into Windows: First, reshape the data into 3D arrays, where each window of win_size represents a new sequence (e.g., for LSTM input).
Select Training and Validation Windows: After reshaping, apply the spaced validation logic to these windows, so for every N training windows, you take 1 validation window. This will ensure the validation data is spread evenly across the entire sequence.

Step-by-Step Solution

Here’s how we can implement this:

Step 1: Load the Data and Group into Windows

You already have a good start with reshaping the data into windows based on win_size. Let’s keep that logic and adjust it to account for the split:

import pandas as pd
import numpy as np

# Assuming 'corrected' is your dataframe after preprocessing
X = corrected.values

win_size = 10  # Example window size
number_of_features = X.shape[1]
number_of_sequences = X.shape[0] // win_size  # Number of sequences after windowing

print("Number of features: ", number_of_features)
print("Number of sequences: ", number_of_sequences)

# Reshape the data into [sequences, win_size, features]
X_reshaped = X.reshape((number_of_sequences, win_size, number_of_features))

print("Shape of X:", X_reshaped.shape)  # Debugging line to check the shape of X

At this point, X_reshaped is a 3D array with shape (number_of_sequences, win_size, number_of_features).

Step 2: Apply the Evenly Spaced Validation Logic to the Windows

Now that the data is grouped into windows, we will apply the “1 validation for every N training” logic on these windows.

N: This parameter defines the ratio between training and validation windows. For instance, if N=4, it means 1 validation window is selected for every 4 training windows.

train_data = []
val_data = []
N = 4  # Take 1 validation window for every N training windows

# Loop over all the sequences and take every Nth sequence as validation
for i in range(number_of_sequences):
    if i % N == 0:
        val_data.append(X_reshaped[i])  # Take this window as a validation sample
    else:
        train_data.append(X_reshaped[i])  # Otherwise, it's a training sample

# Convert lists to numpy arrays
train_data = np.array(train_data)
val_data = np.array(val_data)

print("Training data shape:", train_data.shape)
print("Validation data shape:", val_data.shape)

train_data will contain (number_of_training_sequences, win_size, number_of_features) windows.
val_data will contain (number_of_validation_sequences, win_size, number_of_features) windows, spaced evenly across the full sequence.

Step 3: Handle the Labels (y)

Since your LSTM model will also require the corresponding labels (y) for training and validation, you need to ensure that the labels are split according to the same logic. If y is already aligned with X, you can apply the same index logic used for X_reshaped:

# Assuming 'y' is your label data (1D array, one label per sequence)
y = np.array(corrected_labels)  # Adjust this to your labels column
y_reshaped = y[:number_of_sequences]  # Ensure y has the same number of sequences as X_reshaped

# Now apply the same logic as for X
train_labels = []
val_labels = []

for i in range(number_of_sequences):
    if i % N == 0:
        val_labels.append(y_reshaped[i])  # Take this label as validation
    else:
        train_labels.append(y_reshaped[i])  # Otherwise, it's for training

# Convert lists to numpy arrays
train_labels = np.array(train_labels)
val_labels = np.array(val_labels)

print("Training labels shape:", train_labels.shape)
print("Validation labels shape:", val_labels.shape)

Step 4: Train the Model

Now that you have the training and validation data in the correct shape, you can proceed with training your LSTM model:

# Assuming self.model is your compiled LSTM model

history = self.model.fit(train_data, train_labels,
                         validation_data=(val_data, val_labels),
                         epochs=self.noEpochs,
                         batch_size=self.batch_size,
                         verbose=2,
                         callbacks=[early_stopping, lr_scheduler])

Summary:

Reshape the data into 3D windows: The input to the LSTM is reshaped into (number_of_sequences, win_size, number_of_features) for proper LSTM training.
Evenly spaced validation samples: By using 1 validation for every N training windows, you ensure the validation set is spread evenly across the full sequence.
Labels aligned with data: The labels are split according to the same logic, so they remain aligned with the windowed input data.

This approach allows you to train your LSTM on sequences while ensuring that validation samples are spaced across the entire choreography sequence, giving your model more representative validation data. Let me know if you need further adjustments or clarification!

Yes, we can absolutely verify that the 1 out of 4 split for validation is working correctly by showing the original indices of the data before it was grouped into windows. By doing this, we can see whether the validation data is being selected at regular intervals, maintaining the correct pattern across the original data.

Step-by-Step Solution:

We will:

Capture the original indices of the windows when reshaping.
Apply the 1 out of 4 validation split.
Print the original indices of both the training and validation data to visually confirm that the validation samples are spaced evenly.

Let’s walk through it:

Step 1: Keep Track of Original Indices

When reshaping the data into windows, we will store the original indices corresponding to each window. This will allow us to verify which slices (windows) of the original data are selected for training and which are selected for validation.

# Assuming 'corrected' is your dataframe
X = corrected.values

win_size = 10  # Example window size
number_of_features = X.shape[1]
number_of_sequences = X.shape[0] // win_size  # Number of sequences after windowing

# Reshape the data into [sequences, win_size, features]
X_reshaped = X.reshape((number_of_sequences, win_size, number_of_features))

# Capture the original indices for each window
original_indices = np.arange(len(X)).reshape(number_of_sequences, win_size)

print("Shape of X_reshaped:", X_reshaped.shape)
print("Shape of original_indices:", original_indices.shape)

Now, original_indices is a 2D array where each row contains the indices from the original dataset corresponding to that window.

Step 2: Apply the Validation Sampling Logic

Next, we will apply the same 1 validation for every N training windows logic to both the reshaped data and the original indices. This will help us verify the correctness of the split.

train_data = []
val_data = []
train_indices = []
val_indices = []

N = 4  # Take 1 validation window for every N training windows

# Loop over all the sequences
for i in range(number_of_sequences):
    if i % N == 0:
        val_data.append(X_reshaped[i])      # Validation data
        val_indices.append(original_indices[i])  # Corresponding indices
    else:
        train_data.append(X_reshaped[i])    # Training data
        train_indices.append(original_indices[i])  # Corresponding indices

# Convert lists to numpy arrays
train_data = np.array(train_data)
val_data = np.array(val_data)
train_indices = np.array(train_indices)
val_indices = np.array(val_indices)

print("Training data shape:", train_data.shape)
print("Validation data shape:", val_data.shape)
print("Train indices shape:", train_indices.shape)
print("Validation indices shape:", val_indices.shape)

Step 3: Print Original Indices for Verification

Now, let’s print the original indices of the training and validation sets to ensure that the validation data is being selected at regular intervals (i.e., every Nth window).

# Print out the first few training and validation indices
print("Original indices of training windows:")
print(train_indices[:5])

print("\nOriginal indices of validation windows:")
print(val_indices[:5])

For example, if N=4, the output should show that for every 4 windows, one window is selected for validation. You should see something like:

Training indices: [[0, 1, 2, 3, 4, 5, 6, 7, 8, 9], [10, 11, 12, 13, 14, 15, 16, 17, 18, 19], ...]
Validation indices: [[30, 31, 32, 33, 34, 35, 36, 37, 38, 39], ...]

This will allow you to visually inspect that the 1-out-of-N validation sampling is working as expected.

Full Code Summary

import pandas as pd
import numpy as np

# Assuming 'corrected' is your dataframe with features
X = corrected.values

win_size = 10  # Example window size
number_of_features = X.shape[1]
number_of_sequences = X.shape[0] // win_size  # Number of sequences after windowing

# Reshape the data into [sequences, win_size, features]
X_reshaped = X.reshape((number_of_sequences, win_size, number_of_features))

# Capture the original indices for each window
original_indices = np.arange(len(X)).reshape(number_of_sequences, win_size)

# Verify shapes
print("Shape of X_reshaped:", X_reshaped.shape)
print("Shape of original_indices:", original_indices.shape)

train_data = []
val_data = []
train_indices = []
val_indices = []

N = 4  # Take 1 validation window for every N training windows

# Loop over all the sequences
for i in range(number_of_sequences):
    if i % N == 0:
        val_data.append(X_reshaped[i])      # Validation data
        val_indices.append(original_indices[i])  # Corresponding indices
    else:
        train_data.append(X_reshaped[i])    # Training data
        train_indices.append(original_indices[i])  # Corresponding indices

# Convert lists to numpy arrays
train_data = np.array(train_data)
val_data = np.array(val_data)
train_indices = np.array(train_indices)
val_indices = np.array(val_indices)

# Check the results
print("Training data shape:", train_data.shape)
print("Validation data shape:", val_data.shape)
print("Train indices shape:", train_indices.shape)
print("Validation indices shape:", val_indices.shape)

# Print out the first few training and validation indices for verification
print("\nOriginal indices of training windows:")
print(train_indices[:5])

print("\nOriginal indices of validation windows:")
print(val_indices[:5])

Expected Output:

For instance, if the data consists of 100 samples and win_size = 10, the output of the original indices might look like:

Original indices of training windows:
[[10 11 12 13 14 15 16 17 18 19]
 [20 21 22 23 24 25 26 27 28 29]
 [40 41 42 43 44 45 46 47 48 49]
 ...]

Original indices of validation windows:
[[ 0  1  2  3  4  5  6  7  8  9]
 [30 31 32 33 34 35 36 37 38 39]
 [60 61 62 63 64 65 66 67 68 69]
 ...]

This verifies that validation samples are taken evenly across the sequence, and the training samples fill in the rest, preserving the desired pattern.

Conclusion:

By printing out the original indices for both the training and validation sets, you can confirm that the 1-out-of-N validation sampling is working correctly and that the validation data is spaced evenly throughout the sequence. This approach helps ensure the integrity of sequential data while verifying that the sampling logic is behaving as intended.

Let me know if this works for you or if you need further adjustments!

The graphs you provided show training and validation accuracy on the left and training and validation loss on the right, across the epochs. Let’s break down what these indicate:

1. Training and Validation Accuracy:

Training accuracy (blue): It starts low, then increases rapidly and eventually stabilizes close to 1.0 (near-perfect accuracy) after around 10 epochs.
Validation accuracy (red): It follows a similar trend, increasing along with the training accuracy and stabilizing around 1.0 after some fluctuations between epochs 10 and 15.

Interpretation:

Positive: Both training and validation accuracy are high and quite close to each other, which means the model is learning well and is able to generalize to unseen data (validation set).
Minor Overfitting: The validation accuracy fluctuates a bit around epochs 10-15, but since it stabilizes and catches up to the training accuracy, overfitting seems minimal.

2. Training and Validation Loss:

Training loss (blue): The loss starts high, decreases rapidly, and stabilizes around a very low value.
Validation loss (red): The validation loss follows a similar pattern, starting high, decreasing rapidly, and closely following the training loss throughout.

Interpretation:

Positive: The training and validation losses decrease similarly and follow the same trajectory, meaning the model is not significantly overfitting (which would show as a widening gap between the training and validation loss). The model is also effectively minimizing the loss, which is reflected in the accuracy.

Conclusion:

This appears to be a sign of a good model. The model has:
- High training and validation accuracy.
- Low training and validation loss.
- Only minor fluctuations in validation accuracy early on, which is normal.
- No significant signs of overfitting or underfitting, as the training and validation metrics follow each other closely.

What You Can Do Next:

Keep Monitoring for Overfitting: If you see the validation loss increase while the training loss decreases, it may be a sign of overfitting. Currently, that’s not an issue, but it’s good to keep track of it.
Early Stopping: If you want to further avoid overfitting and save training time, consider adding an early stopping callback to stop training when the validation loss stops improving for a few epochs.

In short, your model looks like it is learning well and generalizing to the validation data, making it a solid performing model.

Assuming i can associate class indices with words, plot the legend with color swatches for this scatter plot

def visualize_pacmap(info: str, reduced_activations: np.ndarray, class_indices: Union[np.ndarray, List[int]],
                     output_file_path: str):
    fig = plt.figure(figsize=(10, 8))

    plt.style.use('dark_background')

    ax = fig.add_subplot(111, projection='3d')

    ax.xaxis.pane.fill = False
    ax.yaxis.pane.fill = False
    ax.zaxis.pane.fill = False

    # Extracting the reduced dimensions
    x = reduced_activations[:, 0]
    y = reduced_activations[:, 1]
    z = reduced_activations[:, 2]

    scatter = ax.scatter(x, y, z, c=class_indices, cmap='RdYlBu', alpha=0.2, s=2)

    plt.title(info)
    plt.savefig(output_file_path, dpi=150)
    plt.close(fig)

To associate class indices with words and add a legend with color swatches for your scatter plot, you can follow these steps:

Map Class Indices to Words: First, create a dictionary that maps your class indices to corresponding words (labels).
Generate a Custom Legend: Use matplotlib.patches.Patch to create colored swatches for each class, and then use plt.legend to display them.

Here’s how you can modify your function to add a color legend with swatches:

Updated `visualize_pacmap` Function

import matplotlib.pyplot as plt
import matplotlib.patches as mpatches
from typing import Union, List
from mpl_toolkits.mplot3d import Axes3D  # Required for 3D plotting

def visualize_pacmap(info: str, reduced_activations: np.ndarray, class_indices: Union[np.ndarray, List[int]],
                     output_file_path: str, class_to_word: dict):
    """
    Visualizes the PaCMAP embeddings in 3D with a color-coded legend representing different classes.

    Args:
        info (str): Title information for the plot.
        reduced_activations (np.ndarray): 2D array of reduced activations with 3 columns representing x, y, z.
        class_indices (Union[np.ndarray, List[int]]): Class indices for coloring the points.
        output_file_path (str): Path where the plot will be saved.
        class_to_word (dict): A dictionary mapping class indices to words (class labels).
    """
    fig = plt.figure(figsize=(10, 8))

    plt.style.use('dark_background')

    ax = fig.add_subplot(111, projection='3d')

    ax.xaxis.pane.fill = False
    ax.yaxis.pane.fill = False
    ax.zaxis.pane.fill = False

    # Extracting the reduced dimensions
    x = reduced_activations[:, 0]
    y = reduced_activations[:, 1]
    z = reduced_activations[:, 2]

    # Create the scatter plot
    scatter = ax.scatter(x, y, z, c=class_indices, cmap='RdYlBu', alpha=0.2, s=2)

    # Create legend: Map class indices to colors and words
    unique_classes = sorted(set(class_indices))
    colors = scatter.cmap(scatter.norm(unique_classes))

    # Create custom patches for the legend
    legend_patches = [mpatches.Patch(color=colors[i], label=class_to_word[unique_classes[i]])
                      for i in range(len(unique_classes))]

    # Add the legend to the plot
    plt.legend(handles=legend_patches, loc='upper right', title='Classes')

    # Title and saving the plot
    plt.title(info)
    plt.savefig(output_file_path, dpi=150)
    plt.close(fig)

Explanation:

Input Arguments:
- class_to_word: A dictionary that maps class indices to words (or class labels). Example: {0: "Class A", 1: "Class B", 2: "Class C"}.
Legend Creation:
- The unique class indices are extracted using set(class_indices).
- The colors used for the points are fetched using scatter.cmap(scatter.norm(unique_classes)).
- mpatches.Patch is used to create custom color patches for each class, which are then used in plt.legend to create a legend with corresponding labels.
Color Swatches:
- Each class index gets a corresponding color from the colormap (RdYlBu), and these colors are used in the legend.
- The labels are displayed alongside their respective colors in the legend.

Example Usage:

# Assume `reduced_activations` is a 2D array of shape (n_samples, 3) and `class_indices` is a list or array of class indices
# Also assume `class_to_word` is a dictionary mapping class indices to words

class_to_word = {
    0: "Choreography A",
    1: "Choreography B",
    2: "Choreography C"
}

visualize_pacmap(info="PaCMAP Visualization",
                 reduced_activations=reduced_activations,
                 class_indices=class_indices,
                 output_file_path="output.png",
                 class_to_word=class_to_word)

Output:

A 3D scatter plot with points color-coded based on class_indices.
A legend with color swatches representing the different classes (Choreography A, Choreography B, etc.) located in the upper right of the plot.

This solution ensures that the legend visually connects class labels (words) with their corresponding color swatches, making the plot easier to interpret. Let me know if you need further customization!

To read the labels from the provided YAML file and use them in the visualize_pacmap function for generating a legend, we can use Python’s yaml module to parse the file and extract the labels.

Here’s how you can do it:

Step 1: Install PyYAML (if not already installed)

If you don’t have the PyYAML library installed, you can install it via pip:

pip install pyyaml

Step 2: Load the YAML file

Here’s how you can load the YAML file and extract the labels dictionary:

import yaml

# Function to read the labels from the YAML file
def load_labels_from_yaml(yaml_file_path: str):
    with open(yaml_file_path, 'r') as file:
        config = yaml.safe_load(file)
    return {int(key): value for key, value in config['MODEL']['labels'].items()}

# Example usage: Load the labels
yaml_file_path = 'path_to_your_yaml_file.yaml'
class_to_word = load_labels_from_yaml(yaml_file_path)

print(class_to_word)  # To verify the labels

Step 3: Integrate into `visualize_pacmap`

Now that you have the class_to_word dictionary loaded from the YAML file, you can pass it into your visualize_pacmap function.

Here’s how the full process looks:

import yaml
import matplotlib.pyplot as plt
import matplotlib.patches as mpatches
from typing import Union, List
from mpl_toolkits.mplot3d import Axes3D  # Required for 3D plotting

# Function to read labels from YAML file
def load_labels_from_yaml(yaml_file_path: str):
    with open(yaml_file_path, 'r') as file:
        config = yaml.safe_load(file)
    return {int(key): value for key, value in config['MODEL']['labels'].items()}

def visualize_pacmap(info: str, reduced_activations: np.ndarray, class_indices: Union[np.ndarray, List[int]],
                     output_file_path: str, class_to_word: dict):
    """
    Visualizes the PaCMAP embeddings in 3D with a color-coded legend representing different classes.

    Args:
        info (str): Title information for the plot.
        reduced_activations (np.ndarray): 2D array of reduced activations with 3 columns representing x, y, z.
        class_indices (Union[np.ndarray, List[int]]): Class indices for coloring the points.
        output_file_path (str): Path where the plot will be saved.
        class_to_word (dict): A dictionary mapping class indices to words (class labels).
    """
    fig = plt.figure(figsize=(10, 8))

    plt.style.use('dark_background')

    ax = fig.add_subplot(111, projection='3d')

    ax.xaxis.pane.fill = False
    ax.yaxis.pane.fill = False
    ax.zaxis.pane.fill = False

    # Extracting the reduced dimensions
    x = reduced_activations[:, 0]
    y = reduced_activations[:, 1]
    z = reduced_activations[:, 2]

    # Create the scatter plot
    scatter = ax.scatter(x, y, z, c=class_indices, cmap='RdYlBu', alpha=0.2, s=2)

    # Create legend: Map class indices to colors and words
    unique_classes = sorted(set(class_indices))
    colors = scatter.cmap(scatter.norm(unique_classes))

    # Create custom patches for the legend
    legend_patches = [mpatches.Patch(color=colors[i], label=class_to_word[unique_classes[i]])
                      for i in range(len(unique_classes))]

    # Add the legend to the plot
    plt.legend(handles=legend_patches, loc='upper right', title='Classes')

    # Title and saving the plot
    plt.title(info)
    plt.savefig(output_file_path, dpi=150)
    plt.close(fig)

# Example: Load labels and visualize PaCMAP
yaml_file_path = 'path_to_your_yaml_file.yaml'
class_to_word = load_labels_from_yaml(yaml_file_path)

# Use the class_to_word with your visualize_pacmap function
# visualize_pacmap(info="PaCMAP Visualization", reduced_activations, class_indices, "output.png", class_to_word)

Step 4: Verify and Run

Now, running the code will load the labels from the YAML file and pass them to the visualize_pacmap function to generate the legend.

Expected Output for `class_to_word`:

{
    0: 'chair',
    1: 'emerge',
    2: 'ethereal',
    3: 'horizonte',
    4: 'robotic',
    5: 'spin',
    6: 'stretch'
}

This dictionary will then be used in the legend to map class indices to human-readable class names in your scatter plot.

Conclusion:

By reading the labels from the YAML file, you ensure that the class indices are associated with the correct class names (words) and displayed appropriately in the plot’s legend. This process helps maintain flexibility, especially when the number of classes or their labels might change.
