Convert Parameter to CHOP

2024-07-02 09:51 UTC gpt-4o Open in ChatGPT ↗

You

In touchdesigner, I need to change this from a parameter execture to a chop execute:

def onValueChange(par, prev): # Get the Text TOP text_top = op(‘/project1/base1/TYPOGRAPHY_V2/arranging_text/text4’)

if text_top is None:
    print("Error: Could not find Text TOP at /project1/base1/TYPOGRAPHY_V2/arranging_text/text4")
    return

# Get the text parameter from the Text TOP
text_content = text_top.par.text.eval()

# Get the Text DAT
text_dat = op('/project1/base1/TYPOGRAPHY_V2/arranging_text/text1')

if text_dat is None:
    print("Error: Could not find Text DAT at /project1/TYPOGRAPH/project1/base1/TYPOGRAPHY_V2/arranging_text/text4Y_V2/arranging_text/text1")
    return

# Set the content of the Text DAT
text_dat.text = text_content

print("Text DAT updated with content from Text TOP")
return

ChatGPT

To convert the provided parameter execute script to a CHOP execute script in TouchDesigner, you need to adapt the code to work with CHOP channels instead of parameters. The key difference is that the CHOP execute script will be triggered by changes in the CHOP channel values rather than parameter changes.

Here is how you can modify the script:

1. Change the function signature to match CHOP execute script:
   • Use onValueChange(channel, sampleIndex, val, prev) as the function signature.
2. Replace parameter references with channel references:
   • Access the channel values instead of parameter values.

Here’s the updated script:

def onValueChange(channel, sampleIndex, val, prev):
    # Get the Text TOP
    text_top = op('/project1/base1/TYPOGRAPHY_V2/arranging_text/text4')

    if text_top is None:
        print("Error: Could not find Text TOP at /project1/base1/TYPOGRAPHY_V2/arranging_text/text4")
        return

    # Get the text parameter from the Text TOP
    text_content = text_top.par.text.eval()

    # Get the Text DAT
    text_dat = op('/project1/base1/TYPOGRAPHY_V2/arranging_text/text1')

    if text_dat is None:
        print("Error: Could not find Text DAT at /project1/base1/TYPOGRAPHY_V2/arranging_text/text1")
        return

    # Set the content of the Text DAT
    text_dat.text = text_content

    print("Text DAT updated with content from Text TOP")
    return

Explanation:

1. Function Signature:

   • def onValueChange(channel, sampleIndex, val, prev): replaces the parameter execute function signature.

2. Channel Handling:

   • The function signature now includes channel, sampleIndex, val, prev, which are the arguments passed by the CHOP execute DAT.

3. Checking for Errors:

   • The script includes checks to ensure the required operators (Text TOP and Text DAT) exist before attempting to access or modify them.

4. Updating Text DAT:

   • The content of the Text DAT is updated with the evaluated text from the Text TOP.

This updated script should work within a CHOP execute DAT, responding to changes in the specified CHOP channels and updating the Text DAT accordingly.

You

I now need to do the same for this:

def onValueChange(par, prev): # Get the Text TOP text_top = op(‘/project1/TYPOGRAPHY_V2/scroll_text/text6’)

if text_top is None:
    print("Error: Could not find Text TOP at /project1/TYPOGRAPHY_V2/scroll_text/text6")
    return

# Get the text parameter from the Text TOP
text_content = text_top.par.text.eval()

# Get the Text DAT
text_dat = op('/project1/TYPOGRAPHY_V2/scroll_text/text5')

if text_dat is None:
    print("Error: Could not find Text DAT at /project1/TYPOGRAPH/project1/TYPOGRAPHY_V2/arranging_text/text4Y_V2/scroll_text/text5")
    return

# Set the content of the Text DAT
text_dat.text = text_content

print("Text DAT updated with content from Text TOP")
return

ChatGPT

To convert the second parameter execute script to a CHOP execute script in TouchDesigner, you’ll follow a similar process as before. Here is the updated script:

def onValueChange(channel, sampleIndex, val, prev):
    # Get the Text TOP
    text_top = op('/project1/TYPOGRAPHY_V2/scroll_text/text6')

    if text_top is None:
        print("Error: Could not find Text TOP at /project1/TYPOGRAPHY_V2/scroll_text/text6")
        return

    # Get the text parameter from the Text TOP
    text_content = text_top.par.text.eval()

    # Get the Text DAT
    text_dat = op('/project1/TYPOGRAPHY_V2/scroll_text/text5')

    if text_dat is None:
        print("Error: Could not find Text DAT at /project1/TYPOGRAPHY_V2/scroll_text/text5")
        return

    # Set the content of the Text DAT
    text_dat.text = text_content

    print("Text DAT updated with content from Text TOP")
    return

Explanation:

1. Function Signature:

   • def onValueChange(channel, sampleIndex, val, prev): replaces the parameter execute function signature.

2. Operator Paths:

   • Ensure the paths to the Text TOP and Text DAT are correctly specified for the new scenario (/project1/TYPOGRAPHY_V2/scroll_text/text6 and /project1/TYPOGRAPHY_V2/scroll_text/text5).

3. Error Checking:

   • The script checks if the Text TOP and Text DAT exist before accessing them.

4. Updating Text DAT:

   • The Text DAT content is updated with the evaluated text from the Text TOP.

This script should now be placed in a CHOP execute DAT to handle changes in CHOP channels, updating the Text DAT accordingly when a change occurs.

You

The text top is picking up the correct text input but this isn’t being transferred to the text DAT text?

ChatGPT

It looks like the script and setup are mostly correct, but there might be a few things to check and tweak to ensure the text from the Text TOP is properly transferred to the Text DAT. Let’s go over some troubleshooting steps and possible adjustments:

1. Check Channel Activity: Ensure the CHOP channel that triggers the script is actually changing. You can add a print statement at the beginning of your function to print the channel value and see if the function is being triggered.

2. Ensure Correct Paths: Double-check that the operator paths (/project1/TYPOGRAPHY_V2/scroll_text/text6 and /project1/TYPOGRAPHY_V2/scroll_text/text5) are correct and match the actual paths in your project. It looks like there might be a mismatch based on the error message in the script comments.

3. Text Parameter Evaluation: Make sure that text_top.par.text.eval() is returning the correct string. You can print text_content before setting it to text_dat.text to verify this.

4. Text DAT Property: Confirm that text_dat.text is the correct property to set the text content. In some cases, you might need to use text_dat.write(text_content) instead.

Here is the updated script with additional debug print statements:

def onValueChange(channel, sampleIndex, val, prev):
    # Debug: print the channel value to ensure the function is being triggered
    print(f"Channel {channel.name} value changed to {val}")

    # Get the Text TOP
    text_top = op('/project1/TYPOGRAPHY_V2/scroll_text/text6')

    if text_top is None:
        print("Error: Could not find Text TOP at /project1/TYPOGRAPHY_V2/scroll_text/text6")
        return

    # Get the text parameter from the Text TOP
    text_content = text_top.par.text.eval()
    print(f"Text content from Text TOP: {text_content}")  # Debug: print text content

    # Get the Text DAT
    text_dat = op('/project1/TYPOGRAPHY_V2/scroll_text/text5')

    if text_dat is None:
        print("Error: Could not find Text DAT at /project1/TYPOGRAPHY_V2/scroll_text/text5")
        return

    # Set the content of the Text DAT
    text_dat.text = text_content  # or try text_dat.write(text_content)

    print("Text DAT updated with content from Text TOP")
    return

Additional Debugging Steps:

1. Verify Function Execution: Ensure the Value Change checkbox is enabled in the CHOP Execute DAT.

2. Check for Errors in Text DAT: Open the Text DAT and see if there are any errors or warnings that might indicate why the text is not being set.

3. Alternative Text Setting Method: If text_dat.text = text_content does not work, try using text_dat.write(text_content).

By adding these debug print statements and verifying each step, you should be able to identify where the issue lies and ensure the text is properly transferred from the Text TOP to the Text DAT.

You

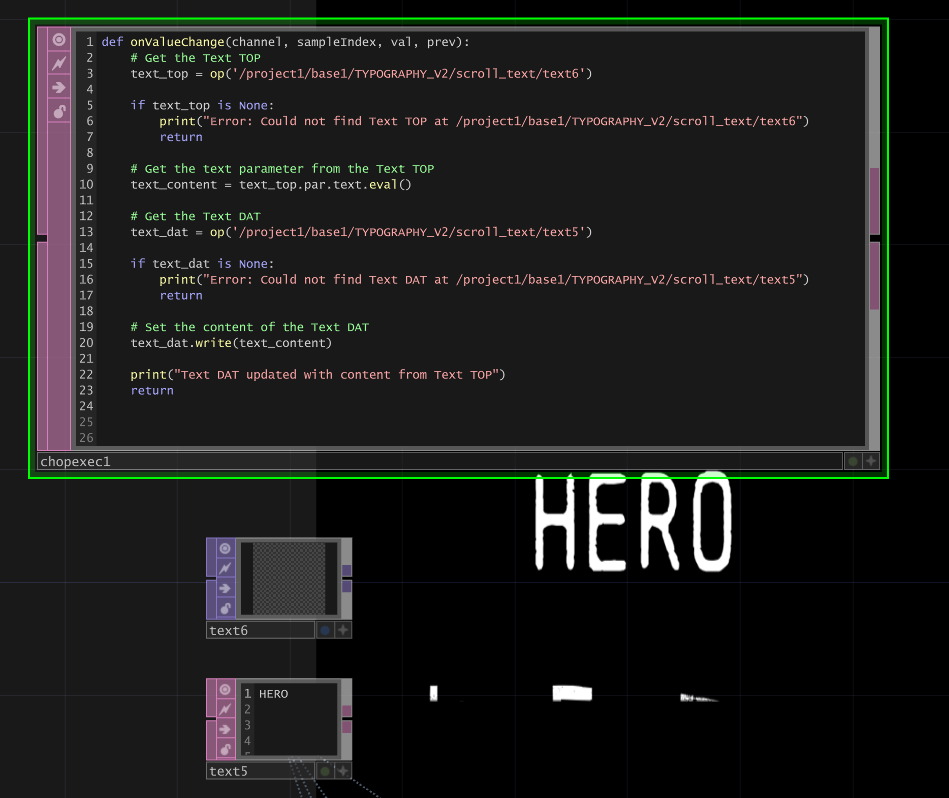

Text6 the top is working as expected, however the text in this top is not beign properly transferred to the text DAT

ChatGPT

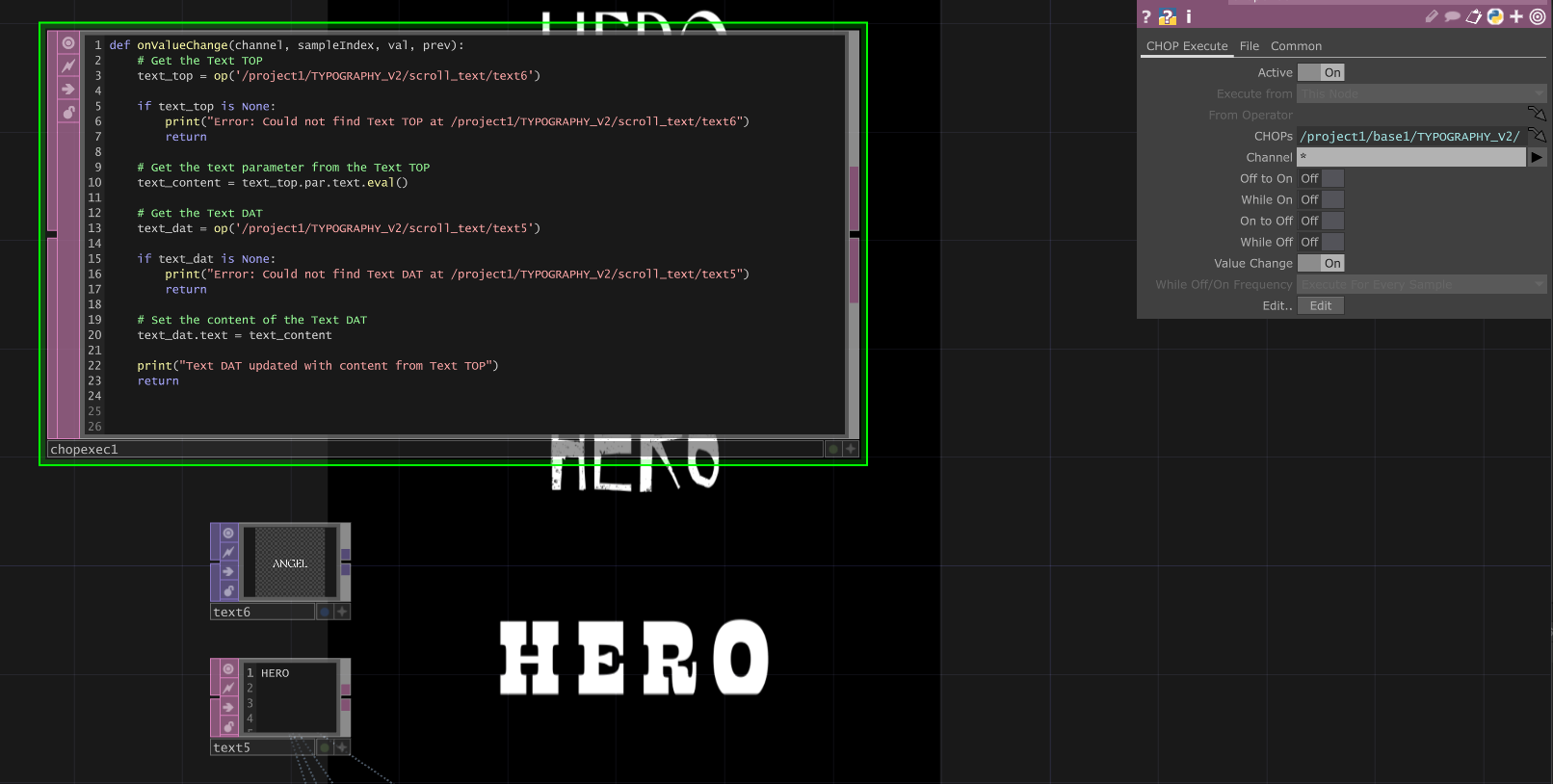

Thank you for the updated information and screenshot. It appears that the script is finding the operators correctly but is not transferring the text content as expected. Let’s ensure that the text is being correctly fetched and written to the Text DAT. We’ll add more detailed debug information to help pinpoint the issue.

Here’s an updated version of the script with enhanced debugging:

def onValueChange(channel, sampleIndex, val, prev):
    # Debug: print the channel value to ensure the function is being triggered
    print(f"Channel {channel.name} value changed to {val}")

    # Get the Text TOP
    text_top = op('/project1/base1/TYPOGRAPHY_V2/scroll_text/text6')

    if text_top is None:
        print("Error: Could not find Text TOP at /project1/base1/TYPOGRAPHY_V2/scroll_text/text6")
        return

    # Get the text parameter from the Text TOP
    text_content = text_top.par.text.eval()
    print(f"Text content from Text TOP: '{text_content}'")  # Debug: print text content

    # Get the Text DAT
    text_dat = op('/project1/base1/TYPOGRAPHY_V2/scroll_text/text5')

    if text_dat is None:
        print("Error: Could not find Text DAT at /project1/base1/TYPOGRAPHY_V2/scroll_text/text5")
        return

    # Debug: print the existing content of the Text DAT before updating
    print(f"Current content of Text DAT before update: '{text_dat.text}'")

    # Set the content of the Text DAT
    text_dat.text = text_content

    # Debug: print the updated content of the Text DAT after updating
    print(f"Updated content of Text DAT after update: '{text_dat.text}'")

    print("Text DAT updated with content from Text TOP")
    return

Steps to Verify and Debug:

1. Print Channel Value: Verify that the function is being triggered by printing the channel value change.

2. Print Fetched Text Content: Ensure that text_top.par.text.eval() is returning the correct text by printing text_content.

3. Print Existing Content of Text DAT: Print the existing content of the Text DAT before updating it to see if it’s being cleared or updated correctly.

4. Print Updated Content of Text DAT: Print the updated content of the Text DAT after setting it to verify the change.

5. Path Verification: Double-check the operator paths to make sure they are correct and match the structure in your project.

This script will provide detailed output in the console, allowing you to trace the text flow from the Text TOP to the Text DAT and identify any issues in the process. Run this script and observe the printed statements in the console to diagnose the problem further.
