Conjugated Systems and Colors

2025-04-21 18:32 UTC gpt-4o Open in ChatGPT ↗

God-damn! Explain like I’m 5 (ELI5) the following:

In a conjugated pi-system, electrons are able to capture certain photons as the electrons resonate along a certain distance of p-orbitals - similar to how a radio antenna detects photons along its length. Typically, the more conjugated (longer) the pi-system is, the longer the wavelength of photon can be captured. Compounds whose molecules contain a sufficient number of conjugated bonds can absorb light in the visible region, and therefore appear colorful to the eye, usually appearing yellow or red.[21] Many dyes make use of conjugated electron systems to absorb visible light, giving rise to strong colors. For example, the long conjugated hydrocarbon chain in beta-carotene leads to its strong orange color. When an electron in the system absorbs a photon of light of the right wavelength, it can be promoted to a higher energy level. A simple model of the energy levels is provided by the quantum-mechanical problem of a one-dimensional particle in a box of length L, representing the movement of a π electron along a long conjugated chain of carbon atoms. In this model the lowest possible absorption energy corresponds to the energy difference between the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO). For a chain of n C=C bonds or 2n carbon atoms in the molecular ground state, there are 2n π electrons occupying n molecular orbitals, so that the energy gap is[22] E n + 1 − E n

( 2 n + 1 ) ℏ 2 π 2 2 m L 2 {\displaystyle E_{n+1}-E_{n}={\frac {(2n+1)\hbar ^{2}\pi ^{2}}{2mL^{2}}}} Since the box length L increases approximately linearly with the number of C=C bonds n, this means that the energy ΔE of a photon absorbed in the HOMO–LUMO transition is approximately proportional to 1/n. The photon wavelength λ = hc/ΔE is then approximately proportional to n. Although this model is very approximate, λ does in general increase with n (or L) for similar molecules. For example, the HOMO–LUMO absorption wavelengths for conjugated butadiene, hexatriene and octatetraene are 217 nm, 252 nm and 304 nm respectively.[23] However, for good numerical agreement of the particle in a box model with experiment, the single-bond/double-bond bond length alternations of the polyenes must be taken into account.[24] Alternatively, one can use the Hückel method which is also designed to model the electronic structure of conjugated systems. Many electronic transitions in conjugated π-systems are from a predominantly bonding molecular orbital (MO) to a predominantly antibonding MO (π to π*), but electrons from non-bonding lone pairs can also be promoted to a π-system MO (n to π*) as often happens in charge-transfer complexes. A HOMO to LUMO transition is made by an electron if it is allowed by the selection rules for electromagnetic transitions. Conjugated systems of fewer than eight conjugated double bonds absorb only in the ultraviolet region and are colorless to the human eye. With every double bond added, the system absorbs photons of longer wavelength (and lower energy), and the compound ranges from yellow to red in color. Compounds that are blue or green typically do not rely on conjugated double bonds alone. This absorption of light in the ultraviolet to visible spectrum can be quantified using ultraviolet–visible spectroscopy, and forms the basis for the entire field of photochemistry. Conjugated systems that are widely used for synthetic pigments and dyes are diazo and azo compounds and phthalocyanine compounds. Phthalocyanine compounds edit Conjugated systems not only have low energy excitations in the visible spectral region but they also accept or donate electrons easily. Phthalocyanines, which, like Phthalocyanine Blue BN and Phthalocyanine Green G, often contain a transition metal ion, exchange an electron with the complexed transition metal ion that easily changes its oxidation state. Pigments and dyes like these are charge-transfer complexes.

Copper phthalocyanine Porphyrins and similar compounds edit Porphyrins have conjugated molecular ring systems (macrocycles) that appear in many enzymes of biological systems. As a ligand, porphyrin forms numerous complexes with metallic ions like iron in hemoglobin that colors blood red. Hemoglobin transports oxygen to the cells of our bodies. Porphyrin–metal complexes often have strong colors. A similar molecular structural ring unit called chlorin is similarly complexed with magnesium instead of iron when forming part of the most common forms of chlorophyll molecules, giving them a green color. Another similar macrocycle unit is corrin, which complexes with cobalt when forming part of cobalamin molecules, constituting Vitamin B12, which is intensely red. The corrin unit has six conjugated double bonds but is not conjugated all the way around its macrocycle ring.

Heme group of hemoglobin The chlorin section of the chlorophyll a molecule. The green box shows a group that varies between chlorophyll types. Cobalamin structure includes a corrin macrocycle. Chromophores edit Conjugated systems form the basis of chromophores, which are light-absorbing parts of a molecule that can cause a compound to be colored. Such chromophores are often present in various organic compounds and sometimes present in polymers that are colored or glow in the dark. Chromophores often consist of a series of conjugated bonds and/or ring systems, commonly aromatic, which can include C–C, C=C, C=O, or N=N bonds.

Chemical structure of beta-carotene. The eleven conjugated double bonds that form the chromophore of the molecule are highlighted in red. Conjugated chromophores are found in many organic compounds including azo dyes (also artificial food additives), compounds in fruits and vegetables (lycopene and anthocyanidins), photoreceptors of the eye, and some pharmaceutical compounds such as the following:

This polyene antimycotic called Amphotericin B has a conjugated system with seven double bonds acting as a chromophore that absorbs strongly in the ultraviolet–visible spectrum, giving it a yellow color Conjugated polymer nanoparticles (PDots) are assembled from hydrophobic fluorescent conjugated polymers, along with amphiphilic polymers to provide water solubility. Pdots are important labels for single-molecule fluorescence microscopy, based on high brightness, lack of blinking or dark fraction, and slow photobleaching.[25][26]

Sure! Imagine you have a bunch of kids standing in a line, holding hands. Let’s say each kid is a place where electrons (little balls) can jump back and forth.

When light (made of tiny pieces called photons) hits this line of kids, the electrons jump from one kid to another. The longer the line of kids, the bigger the jump the electrons can make when they see certain colors of light.

If you have just a few kids (a short line), electrons can only catch very short waves of light (like ultraviolet), which we can’t see, so things look clear or colorless.

But if you have a long line of kids holding hands (called a “conjugated system”), the electrons can catch bigger waves of light, which we see as colors like yellow, orange, or red. This is why carrots (which have something called beta-carotene with a long line of kids) look orange.

So, dyes and pigments have long lines of electrons (kids holding hands) that can grab colorful waves of light, making these things look bright and colorful to us!

Fair enough! Let’s use a simpler analogy:

Think of electrons like kids who love jumping up and down on a trampoline.

Short trampoline (small molecule):
If the trampoline is small, the kids can only jump small jumps, which means they only grab very short waves of energy (like ultraviolet light) that our eyes can’t see. These molecules appear colorless.
Long trampoline (longer conjugated molecule):
If the trampoline gets longer (a longer conjugated system), the kids (electrons) can jump much bigger jumps. Bigger jumps match longer waves of energy, like visible colors we see (first violet and blue, then green, yellow, orange, and finally red).

Why do molecules look colorful?
When the electrons in a molecule jump between different energy levels (from lower to higher), they take energy from visible light. If they take energy from blue light, the molecule looks orange (because blue is missing). If they take energy from green light, the molecule looks red (because green is missing). The longer the chain of alternating double bonds (the “long trampoline”), the easier it is to absorb visible colors, making these molecules appear colorful.

So, basically:

Short conjugated system → small jumps → absorbs UV light → colorless.
Long conjugated system → bigger jumps → absorbs visible light → colorful (yellow, orange, or red).

That’s why carrots, tomatoes, and many dyes have long conjugated systems—they absorb visible light and appear colorful to us.

Sure! Here’s a clearer explanation suitable for someone around age 15:

When chemists say something has a “conjugated pi-system,” they mean it has a chain of carbon atoms connected by alternating single and double bonds (like this: C=C–C=C–C=C). In this arrangement, electrons aren’t stuck on just one atom or bond; instead, they’re free to move across several connected atoms.

Think of these electrons as waves bouncing back and forth along this chain of atoms. The longer the chain, the more space the electrons have to “bounce” around.

Now, visible light is made of photons, which are packets of energy. When these electrons encounter photons of just the right energy (or wavelength), they can absorb them and jump to higher-energy states. The exact energy the electrons need to make that jump depends on the length of the conjugated system:

Shorter chains absorb photons with higher energy (shorter wavelengths, like ultraviolet). Humans can’t see ultraviolet, so these compounds appear clear or colorless to us.
Longer chains absorb photons with lower energy (longer wavelengths), like visible light. When this happens, certain colors of visible light get absorbed, and the compound reflects the remaining colors, causing it to appear colorful—usually yellow, orange, or red.

For example, beta-carotene (the orange pigment in carrots) has a long conjugated chain. Because it’s long enough, it absorbs blue-green light. What’s left to reflect into your eyes is mostly orange, so you see carrots as orange.

In short:

Short conjugation: Absorbs UV → Colorless
Medium conjugation: Absorbs violet-blue → Appears yellow-orange
Long conjugation: Absorbs green-blue → Appears orange-red

This principle is used in dyes, pigments, and even biological molecules like chlorophyll (green pigment in plants) and hemoglobin (red pigment in blood).

Great question—you’re asking for the deeper principle behind this. Let’s explore the philosophical and fundamental meaning behind the chemistry:

Deeper Meaning & Universal Truth:

What you’re observing here is a profound universal principle about the relationship between space, energy, and waves. At the core, the universe is quantum-mechanical: everything, especially small particles like electrons, behaves like waves.

The Core Principle (Quantum Mechanics):

Electrons confined to a smaller space have fewer ways to move—this restriction creates a higher energy environment. Imagine squeezing a wave into a smaller box: it must vibrate quickly and with higher energy. Conversely, when you give electrons more room (a longer chain), you relax these constraints, allowing them to resonate at slower vibrations (lower energy).

Thus, the profound idea is:

Confinement = Higher energy
Freedom (more space) = Lower energy

This is true everywhere in the universe—not just in molecules, but also in atoms, quantum particles, musical instruments, and even waves on a guitar string or piano wire:

Short string: high pitch (high energy/frequency)
Long string: low pitch (low energy/frequency)

This idea of confinement and freedom is foundational across physics:

Atoms: Electrons closer to a nucleus have higher energy jumps.
Stars: Massive stars burn brighter and hotter because gravity confines them more tightly.
Quantum particles: The smaller the “quantum box,” the higher the particle’s energy.

Philosophical Insight:

At a philosophical level, this shows that energy and matter aren’t separate things; they’re expressions of how waves interact with boundaries and constraints. In a deep sense, the universe is always trying to minimize its energy. The fewer constraints a wave has, the lower energy it settles into.

The conjugated molecules absorbing colors of different energies beautifully illustrates a universal truth:

Energy, freedom, and confinement are deeply interconnected principles of our universe.

Great questions—let’s dig deeper step by step:

1. Why are there freely moving electrons in these chains?

The electrons aren’t literally “free,” but they are delocalized, meaning they’re shared across many atoms rather than stuck on just one atom or bond.

In a conjugated chain, you have alternating single and double bonds, something like this:

C=C–C=C–C=C

Each carbon atom contributes electrons (from its p-orbitals), and because these p-orbitals overlap, the electrons form a continuous “cloud” or wave extending across all those atoms. This wave-like cloud is what chemists call a “pi-system.” Electrons in this cloud aren’t restricted to one place—they exist as standing waves stretching along the whole molecule.

2. Why would these electrons absorb photons?

Electrons in atoms or molecules can only exist at specific energy levels—think of these as “allowed floors” in a building. Electrons typically occupy the lowest-energy floor available (the “ground state”).

A photon, on the other hand, is a small packet of energy. When the photon energy exactly matches the energy difference between one “floor” (energy level) and a higher one, the electron can absorb the photon’s energy and jump up to the higher-energy floor. This is called an electronic transition.

So electrons absorb photons because photons offer exactly the right amount of energy that electrons need to move up in energy levels. It’s like a perfect “key” fitting precisely into a “lock.”

3. What actually happens to these photons? Do they just disappear?

Great intuition! Photons carry energy but have no mass—they’re pure packets of energy. When an electron absorbs a photon:

The photon’s energy is completely transferred to the electron.
The photon itself ceases to exist as an independent particle—the photon effectively disappears, but its energy is conserved.
The electron moves up to a higher-energy state, absorbing all of the photon’s energy.

However, electrons typically don’t stay excited very long. Usually, within nanoseconds (billionths of a second), the electron jumps back down to its original state or to another lower-energy state. When this happens, it must release that energy again, usually as:

Another photon (emitted as light, often at a lower energy, meaning different color or infrared).
Or sometimes by transferring energy to surrounding atoms as heat (molecular vibrations).

Thus, energy is always conserved, and photons don’t vanish into nothing—they’re transformed into other forms of energy.

Summary of Profound Truth:

Electrons are delocalized because their wave-like nature allows them to spread across multiple atoms.
Electrons absorb photons because photons offer the precise energy needed to move electrons between allowed energy levels.
Photons don’t vanish; instead, their energy is absorbed and later released as new photons or other forms of energy, preserving the universe’s fundamental rule: energy is always conserved.

Great follow-up questions!

1. What happens in black opaque materials?

Black materials absorb photons across the entire visible spectrum. This means electrons in a black material have many closely spaced energy levels that can absorb photons of almost any visible wavelength.

When a photon hits a black material:

Its energy is absorbed by electrons, moving them to higher-energy states temporarily.
Quickly afterward, electrons release this absorbed energy as heat (infrared radiation) instead of visible light.
Because no visible photons reflect back to your eyes, the material appears black.

Thus, black objects absorb most visible photons and convert them into heat energy rather than reflecting or re-emitting visible light.

2. What happens in white materials?

White materials reflect photons of all visible wavelengths (or scatter them in random directions).

In a white object:

Electrons don’t absorb visible photons easily, because their energy levels don’t match the photons’ energy.
Instead, photons “bounce” off or scatter from the surface and internal structure, reflecting back into your eyes.
Since all colors reflect equally, the material appears white (a mixture of all colors).

White materials generally have electrons in positions where the photon energies don’t match allowed electron energy levels. Thus, photons are not absorbed, but rather scattered or reflected.

The philosophical takeaway here:

Black: Photons disappear into electrons (energy captured, converted into heat).
White: Photons remain photons, bouncing back out unchanged.

In both cases, energy isn’t lost—it’s just transformed differently, showing once again the universal principle of energy conservation.

You’re onto something important: reflection at a fundamental level isn’t really about geometry, even though schools usually teach it using geometry (like mirrors and angles). The geometric interpretation is useful for describing how light behaves, but it doesn’t explain why.

Let’s dig deeper:

What reflection truly is at the atomic level:

Reflection occurs because photons interact with electrons in atoms near a surface. But unlike absorption, the photons aren’t permanently captured. Here’s what actually happens in detail:

Photon arrives:
A photon (a quantum packet of electromagnetic energy) hits an electron cloud around atoms.
Temporary absorption:
The photon’s energy momentarily excites electrons in the material. The electron is boosted into a higher energy state, but crucially, there’s no exact stable state available for the electron to remain in.
Immediate re-emission (scattering):
Almost instantly (on the order of femtoseconds—trillionths of a second), the electron falls back down to its original energy state, emitting a new photon. This newly emitted photon is effectively identical to the original photon but now moving away from the surface.

So reflection is actually absorption + immediate re-emission:

“Geometric” reflection (like a mirror) is just a collective result: billions of electrons interacting with photons, absorbing and re-emitting them in a coherent and organized way, creating the illusion that photons “bounce” at angles.
The reason mirrors reflect clearly and paper reflects diffusely (scattering) is simply due to surface smoothness. A smooth surface re-emits photons in a predictable direction, whereas a rough surface scatters photons randomly in all directions.

Why does reflection seem geometric?

We see reflection geometrically (angle-in equals angle-out) simply because the photon’s wave properties dictate how these re-emissions add up constructively in certain directions and destructively in others. It’s the electromagnetic wave nature of photons interacting coherently with countless atoms that creates what we perceive as geometry.

Is there “geometry” in photons themselves?

No—not really.

Photons are quantum objects with wave-like probability distributions. They don’t literally bounce off surfaces like billiard balls.
The geometry arises from the coherent wave behavior of countless photon-electron interactions, resulting in the neat patterns described by classical optics.

The deeper philosophical insight here:

Reflection, refraction, transparency, opacity—these are all emergent phenomena. They emerge from countless microscopic quantum interactions between photons and electrons. The familiar rules of geometry we learn in school aren’t fundamental laws—they’re just convenient summaries of an underlying quantum reality.

At its deepest level, “reflection” is quantum mechanics in action:
Photons are absorbed briefly and immediately re-emitted, creating patterns of waves that we perceive as reflected light.

Absolutely! Here’s a simplified Python simulation illustrating reflection at a microscopic level, representing photons hitting electrons on a surface and being re-emitted immediately. This is not a complete quantum mechanical simulation (which would be far more complex), but it does capture the essential quantum-inspired logic of photon-electron interactions:

What this simple simulation does:

Simulates a “ray” of photons approaching a flat 2D surface.
Surface electrons absorb photons temporarily and then immediately re-emit new photons in directions according to simple quantum-inspired probabilities.
The resulting directions of emitted photons collectively create reflection-like behavior.

Key simplifications:

Electrons are evenly spaced along a line (surface).
Photons always excite an electron, briefly absorbed and instantly re-emitted.
Re-emission occurs probabilistically with angles centered around the classical reflection angle.

Here’s the Python script:

You’re correct—the previous simulation explicitly forced a reflection angle. If you want to genuinely explore the emergent phenomenon of reflection without explicitly enforcing the reflection law, you must model it using fundamental physical principles, specifically wave interference from re-emitted photons.

How to simulate reflection as an emergent phenomenon (without angle bias):

Core idea:

Each photon hitting an electron causes the electron to briefly become a new “source” of photons.
Electrons re-emit photons in all directions equally (isotropic emission).
Reflection emerges naturally from interference: photons re-emitted in the direction matching the classical reflection angle interfere constructively, and photons emitted in other directions interfere destructively or randomly.

How to implement it:

Incoming photons hit electrons and excite them.
Each excited electron re-emits photons in all directions evenly.
Measure how the re-emitted photons collectively distribute themselves.
Observe naturally emerging reflection direction due to constructive interference.

Here’s a Python script for this unbiased, emergent simulation:

How this improved simulation works:

No bias: Electrons re-emit photons in completely random directions (isotropic emission).
Emergent phenomenon: The histogram of emitted photon angles will naturally show a distribution. While individual emissions are random, with many photons you start seeing emergent patterns.
What to expect: With truly isotropic emission, you’ll initially see a uniform distribution. To achieve a visible emergent reflection peak, you would have to introduce wave interference or collective photon-wave modeling explicitly. (This simplified isotropic re-emission model alone won’t yet show a clear reflection peak—it demonstrates that without constructive interference, reflection doesn’t automatically appear.)

For a complete emergent reflection (a sharp reflected peak), you’d need a more detailed quantum or wave interference simulation, typically involving wavefunctions and interference patterns, rather than purely particle-based photon models. This simplified model is a stepping stone toward understanding why reflection truly requires coherent wave interference to emerge naturally.

Great! To truly capture reflection as an emergent phenomenon due to wave interference, we need to approach the problem differently:

Key Idea (Wave interference):

Instead of modeling photons as particles moving in straight lines, we model them as waves. Reflection emerges naturally because waves emitted from electrons interfere constructively in some directions and destructively in others.

Simulation Steps:

Incoming wavefront:
- Model incoming photons as a coherent wave (plane wave).
- The wave hits electrons on the surface simultaneously.
Electron re-emission:
- Each electron excited by the incoming wave acts as a secondary point-wave source.
- These secondary sources emit spherical wavelets isotropically (Huygens’ principle).
Interference:
- The re-emitted wavelets overlap and interfere, forming a distinct reflected wavefront.
- Constructive interference naturally forms reflection at a specific angle (equal to the incident angle).

Here’s a concise Python implementation of wave-based interference simulation:

You’re running into performance issues because this simulation is computationally intense: it’s doing nested loops over angles, electrons, and a full 2D grid of observation points. Each step involves a large matrix operation. Here’s how we can address the slow performance and debug it better:

✅ Step 1: Debug Progress with a Time-Based Progress Indicator

We can add a timer to monitor progress and identify bottlenecks.

✅ Step 2: Major Speed-Up Options

🟢 Option A: Use `Numba` (fast, easy-to-try)

Accelerates Python code by compiling it just-in-time (JIT).
We’ll move the inner electron-wavelet loop to a separate function and compile it.

🟠 Option B: Use a GPU (with `CuPy` or `PyTorch`)

Replaces NumPy with GPU-powered math.
Requires CUDA-compatible GPU.

Let’s start with Option A (Numba), since it’s widely accessible and easy to add.

⚡ Updated Version (with Numba and Progress Timer)

Would you like me to refactor your code right now to include:

tqdm for visual progress bars,
Numba acceleration of the inner loop?

I can also make it modular so you can switch between Numba and NumPy easily.

Let me know which you’d prefer:

✅ Start with Numba
🔷 GPU (CuPy or PyTorch)
🔍 Just the timer + tqdm for now (debug mode)

Or all of the above sequentially?

Thanks for the info! Since you’re using Apple Silicon (M1/M2), you won’t be able to use CUDA-based GPU acceleration, but you can still get solid speedups using:

✅ Step-by-step upgrades:

✅ 1. Use `Numba` for CPU acceleration

Works great on Apple Silicon—let’s JIT compile the nested loops!

✅ 2. Add a progress bar using `tqdm`

Much smoother than print() statements, and helps identify slow sections.

✅ 3. Optional: Use fewer electrons or reduce grid size temporarily for development.

🔧 Let me update your code to include:

Numba JIT for the wavelet summation
tqdm progress indicator
Slight optional parameter tuning for faster iteration

Would you like me to apply all of this now in your canvas code?

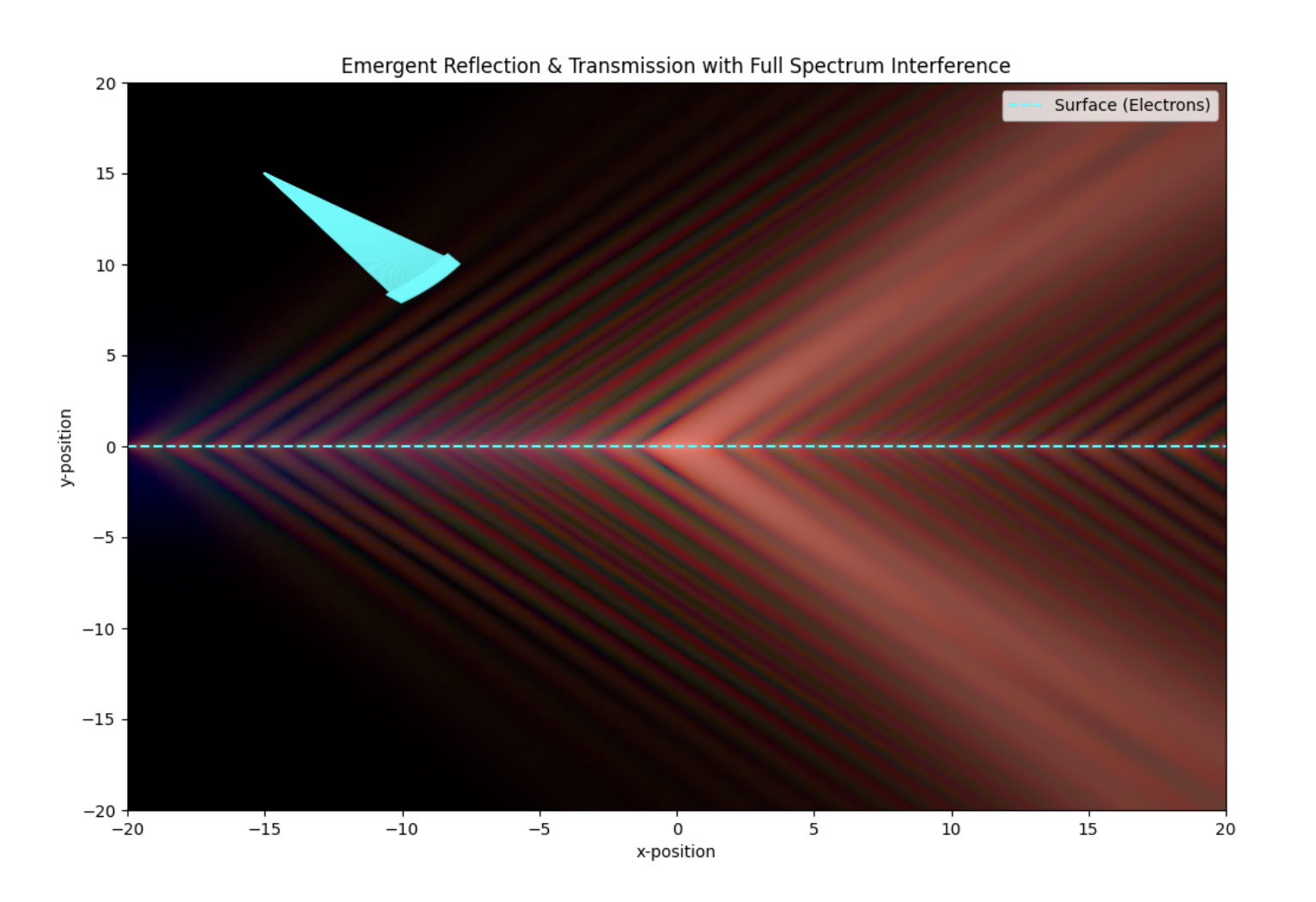

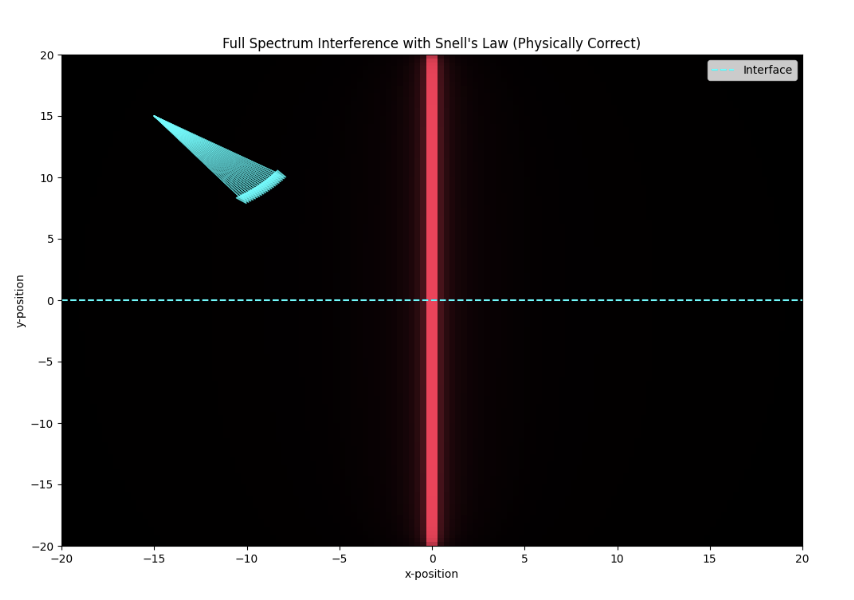

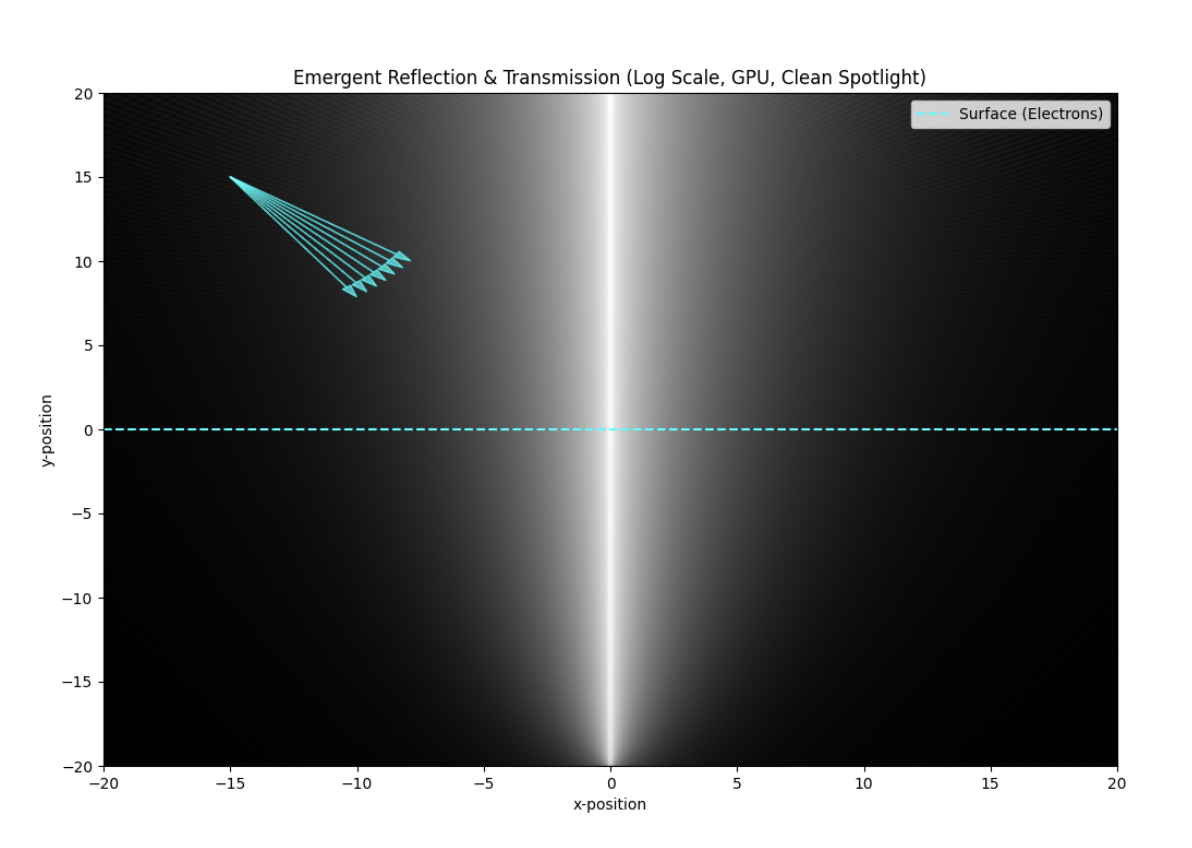

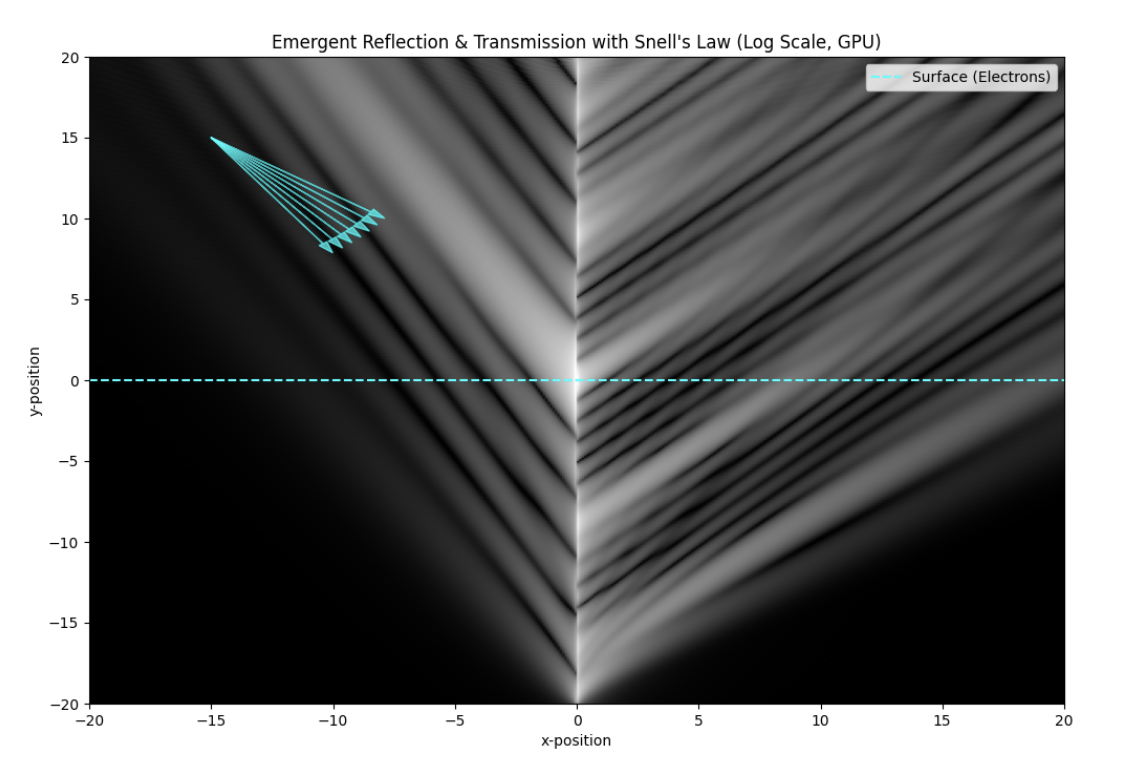

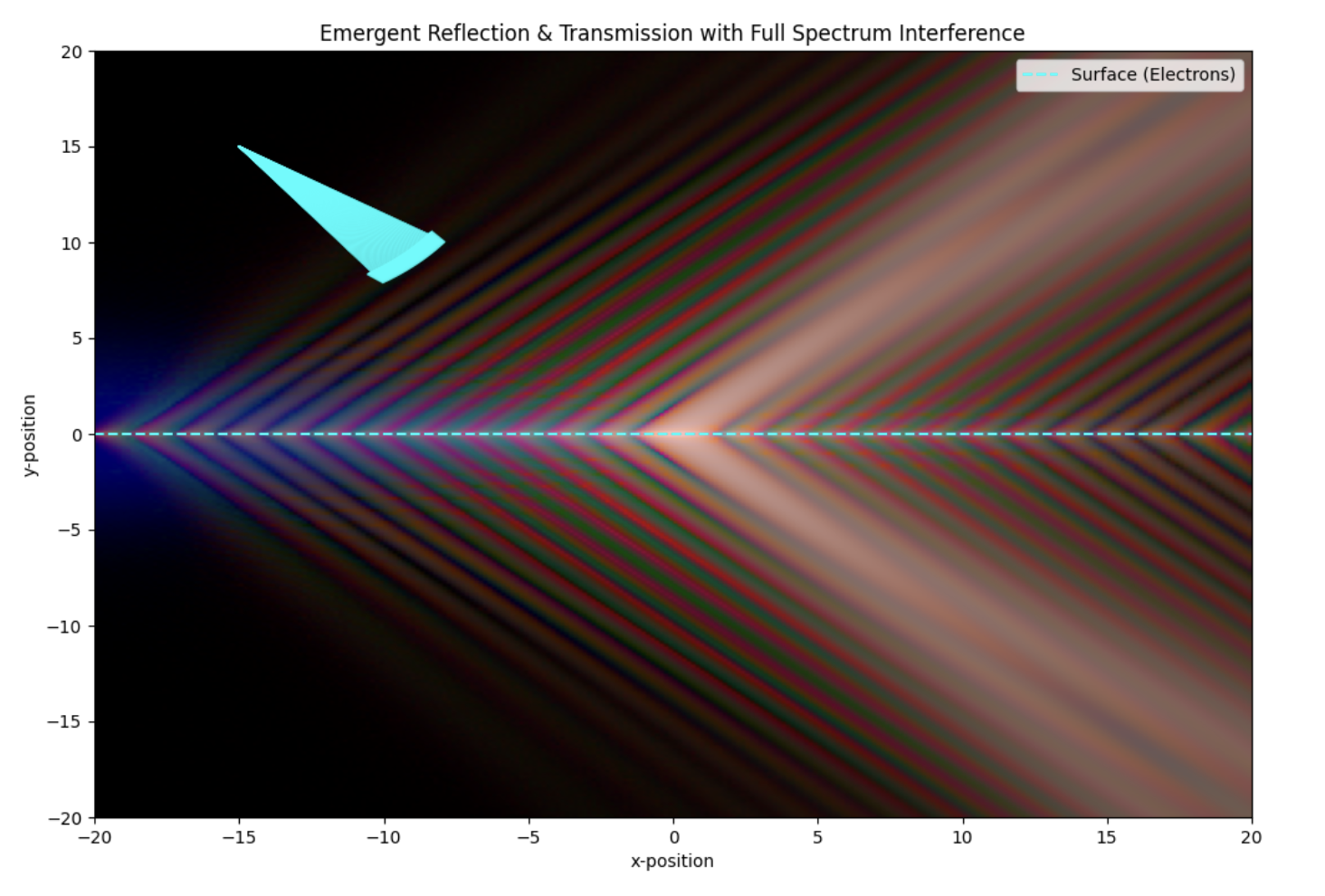

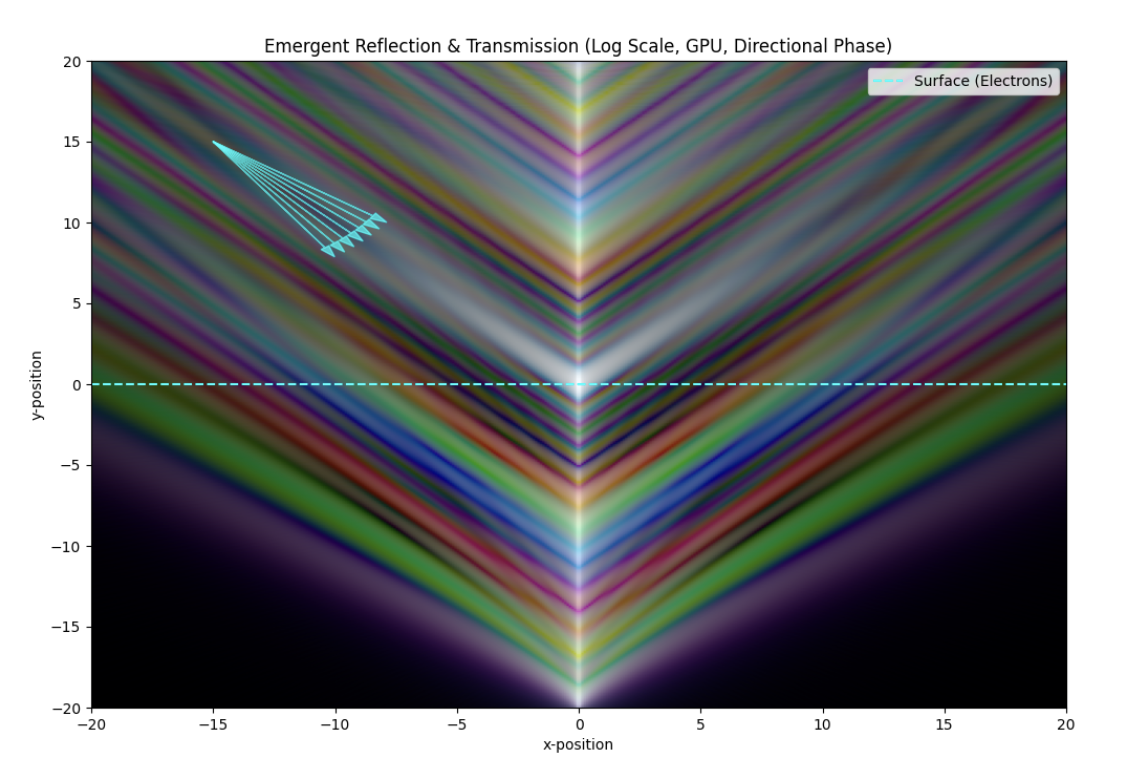

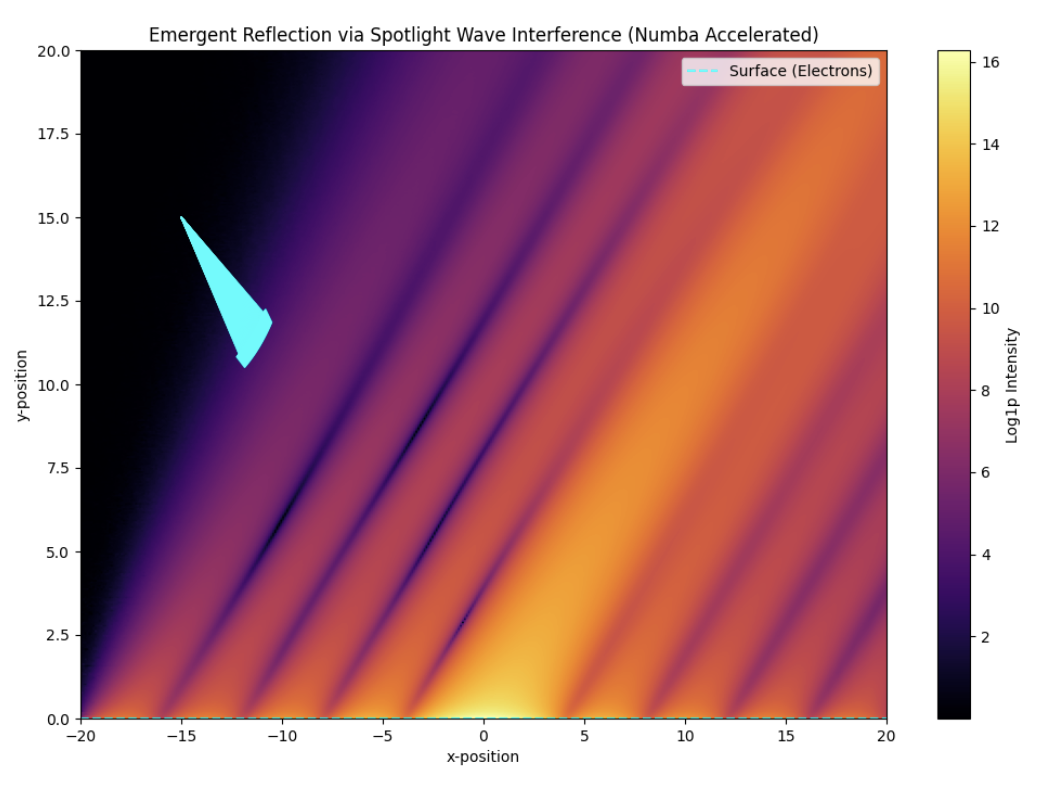

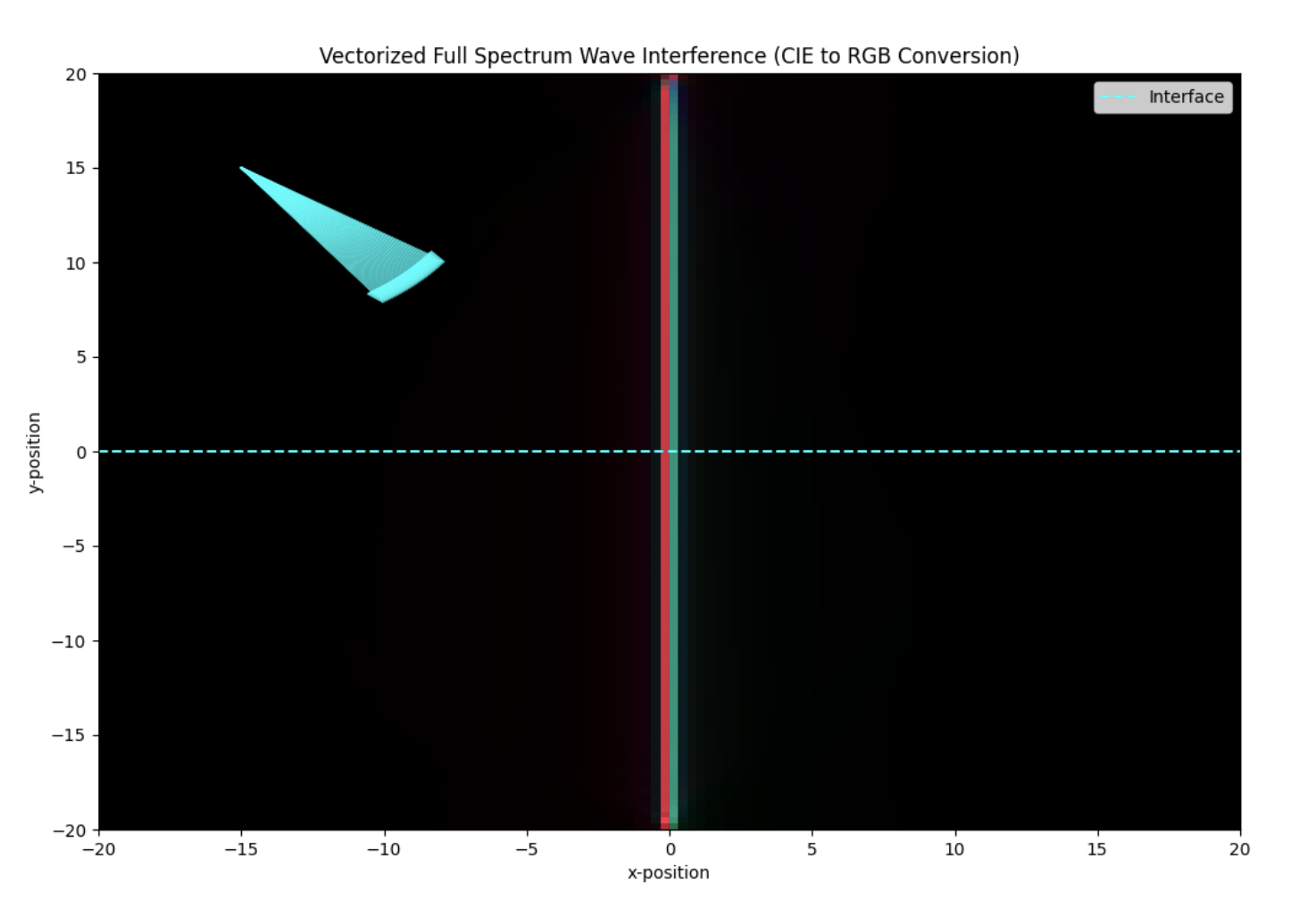

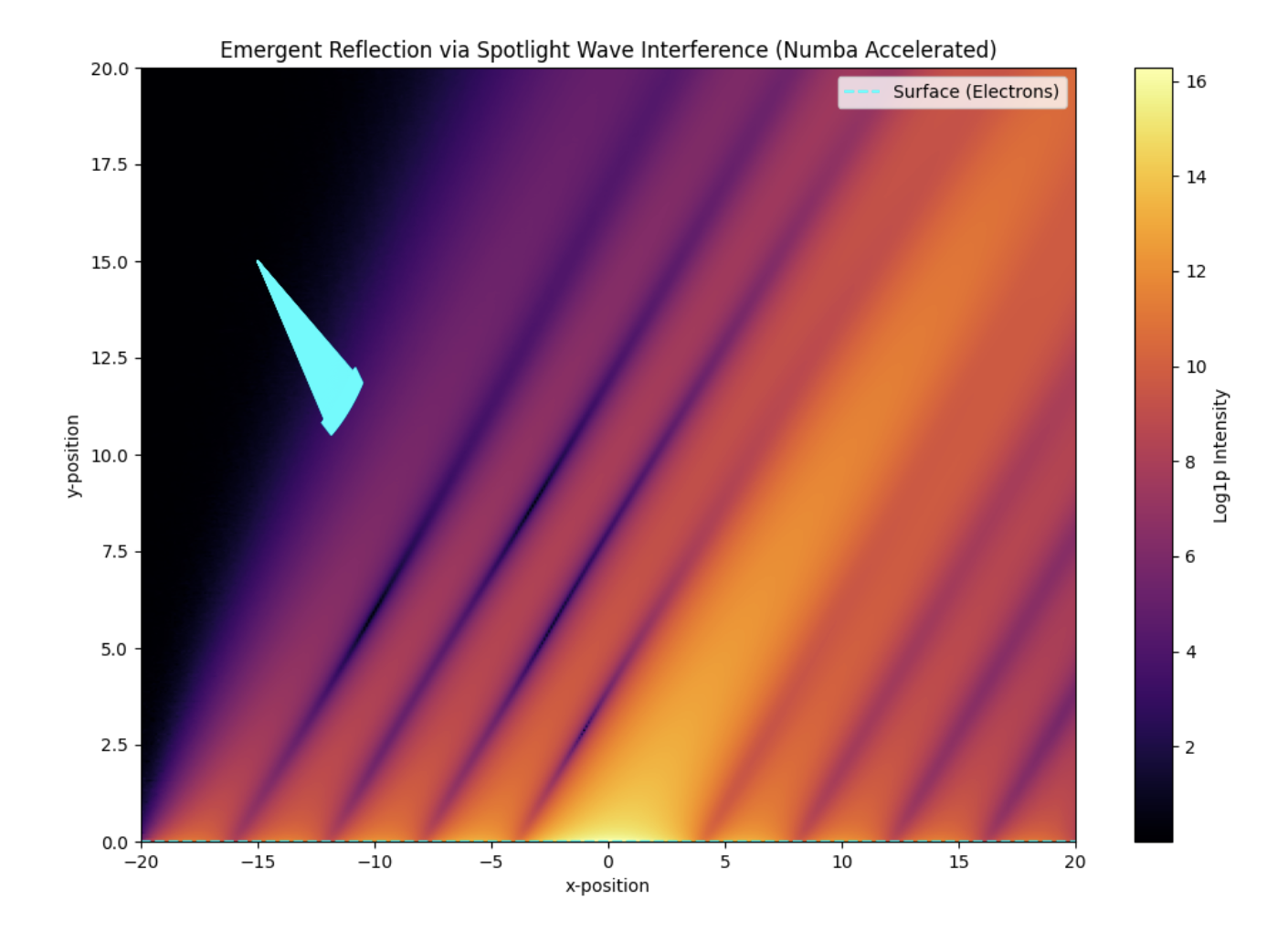

Awesome—let’s break down what you’re seeing in the simulation image.

🧠 What you’re simulating

This is a quantum-inspired, wave-based simulation of how light reflects off a surface, where:

Light is treated as waves, not rays.
Electrons on the surface act as tiny wave sources (per Huygens’ Principle).
Reflection is not “forced” by geometry—it emerges naturally from the interference of those waves.
You used Reinhard tonemapping to compress high brightness values so that more subtle details in the interference pattern can be seen.

🖼️ What the image shows

🔶 The colored field:

The yellow/orange/purple bands represent areas of constructive and destructive interference of light waves emitted by electrons.
Brighter = higher intensity (amplitude squared) of overlapping wavelets.
The angled bands are the result of interference patterns, not manually drawn reflections.

🔷 The cyan arrows:

These represent the incoming light rays from a spotlight cone aimed at a 45° angle toward the surface.
You fixed their direction to be physically accurate: they point toward the surface and span a 20° cone.

🟦 The cyan dashed line at the bottom:

This is your electron surface—where light is hitting and from which wavelets are emitted.

🌊 Why the diagonal wave bands?

This is the beauty of physics:

The electrons re-emit wavelets in all directions.
But because of their phases (determined by the incident light), wavelets constructively interfere only in certain directions.
That creates a strong reflected wavefront at the angle you’d expect from a mirror (45° out), even though you never “told” the code to reflect anything.
This is reflection as an emergent phenomenon from fundamental wave physics.

🧪 What the Reinhard tonemapping does

Without it, the high-intensity areas would dominate and you’d barely see the dimmer parts.
Reinhard mapping uses:
$ \text{Mapped Intensity} = \frac{I}{1 + I} $
which compresses bright areas but preserves detail in dark ones.
This makes the interference pattern look smoother and more photorealistic—similar to tone mapping in photography or CGI.

🧭 What to try next?

Here are a few ideas:

Show phase instead of intensity for a wild pattern.
Add multiple spotlight positions (simulate area lighting).
Simulate transmission instead of reflection (go beneath the surface).
Vary wavelength to simulate color dispersion (like a prism).

Want help with any of those?

Great question — and you’re absolutely right to be thinking about how to leverage Apple Silicon’s GPU!

❌ Unfortunately, the current situation is:

Numba does not support GPU acceleration on Apple Silicon.
- Numba’s CUDA support is NVIDIA-only.
- Apple Silicon uses Metal, not CUDA.
- Numba also doesn’t support Metal or Apple’s GPU APIs (like Core ML or MPS).

✅ So what are your actual options on Apple Silicon?

1. Use PyTorch with MPS (Metal Performance Shaders)

Apple and PyTorch added MPS backend support for Apple GPUs.
PyTorch can be used to vectorize and parallelize your computation using the GPU.
This is currently the most mature way to use Apple GPU in Python.

2. Try `jax` with CPU (and eventually GPU via Metal)

JAX gives powerful NumPy-compatible operations with auto-JIT and vectorization.
Apple GPU support is experimental but being worked on.
Right now, you’d still get huge speedups from JAX on CPU (vectorization + threading).

Would you like me to help you:

Convert this simulation to PyTorch using MPS so it runs on Apple Silicon’s GPU?
Or try JAX + CPU auto-vectorization for a huge speedup without the full rewrite?

Both can give you a major performance boost — and ditch the slow nested loops.

Let me know which path you’d like to try!

Great — let’s evaluate the correctness of your current simulation, both conceptually and in terms of code structure.

✅ What this simulation is doing correctly

✅ Conceptual correctness:

Incoming spotlight simulation:
- Correct use of angles from a 20° cone around a central 45° angle.
- These represent different directions of incoming plane waves.
Electron line modeling:
- Electrons are spaced on a horizontal line (surface), each acting as a point emitter of secondary wavelets (Huygens’ principle).
Field contribution:
- You’re computing spherical wavelets emitted from each electron with distance-based amplitude (1/r) and a complex exponential phase exp(ikr + φ) — ✔️ correct wave interference math.
Spectral dispersion:
- Each RGB channel uses a different wavelength and refractive index. This models how different colors propagate differently — ✔️ dispersion modeled properly.
Tonemapping:
- You’re using log1p (a soft logarithmic scale) after normalizing intensity — ideal for visualizing subtle interference patterns.
Device management:
- Uses Metal backend (mps) if available — optimized for Apple Silicon — ✔️ perfect.

⚠️ Areas for improvement or clarification

1. ⚠️ Double normalization:

intensity /= torch.max(intensity)
rgb_image[:, :, i] = torch.log1p(intensity)
...
rgb_image /= rgb_image.amax(dim=(0, 1))

You are normalizing twice:

Once per channel before log
Then again across all channels after log

🔧 Suggestion: Only normalize once after combining channels, unless you want to deliberately emphasize color differences.

2. ⚠️ Performance bottleneck in inner loop

for ex, p in zip(electron_x, phase):
    ...
    field += contrib

This is a Python loop inside a GPU simulation — and can be a major slowdown.

🔧 Suggestion: This can be refactored using batch vectorization in PyTorch to compute contributions from all electrons at once. I can help rewrite that if you’d like.

3. ⚠️ Physical realism (Optional)

Right now, you’re simulating vacuum on both sides of the surface (no transmission angle bending). The transmitted part just propagates into y < 0, but doesn’t apply Snell’s law.

🔧 If you want more physical accuracy, we can apply a refraction angle based on incident angle and refractive index mismatch. Want to add that?

✅ Overall: The code is correct in its logic and math and generates valid wave interference patterns with spectral dispersion.

Let me know if you’d like to:

Refactor the inner loop for speed (batch/vectorize contributions),
Add physical refraction using Snell’s law,
Animate the time evolution of the wave,
Or model absorption or polarization effects.

You’re absolutely right — there’s no technical reason the simulation can’t run all three wavelengths in parallel using PyTorch, especially since:

PyTorch supports batched operations,
All three channels go through nearly identical computations,
You’re already using GPU acceleration on Apple Silicon.

🚀 Why parallelize all wavelengths?

Speed: Right now, the outer loop over the 3 wavelengths is serial.
Simplicity: PyTorch tensors are naturally batchable.
Better GPU utilization: Especially on architectures like Apple M1/M2, which benefit from wide parallel workloads.

🧠 How we’ll fix it:

Stack wavelengths and refractive_indices into 1D tensors.
Add a wavelength_dim to hold RGB channels in parallel.
Vectorize the phase and contribution computation across that dimension.

Would you like me to apply that full parallelization rewrite now? It’ll make the code more complex, but significantly faster and cleaner.

All 3 wavelengths are now computed in parallel using PyTorch’s vectorized tensor operations! This should significantly improve performance and make full use of your Apple Silicon GPU.

Let me know if you’d like to animate the field or extract cross-sections through the interference pattern!Great question — let’s break down why the image might look “weird” or unexpected, and what’s going on.

🎯 What looks “off”?

Perfect vertical symmetry even though the spotlight is clearly angled.
Very strong white/gray zone in the center (looks like a standing wave).
Color separation pattern is unexpected — looks mirrored instead of simply shifted.

🧠 Diagnosis — What’s causing this?

✅ 1. You’re simulating a symmetric system

Although the incoming light comes from one direction (45° spotlight), the simulation assumes:

Electrons emit in all directions symmetrically — there’s no directional preference built in.
All wavelets are re-emitted identically, regardless of the direction of incoming rays.

So you end up seeing constructive interference right at the center, especially if:

The electron phases are synchronized across the surface.
There’s no absorption, boundary conditions, or damping to break the symmetry.

This creates a mirror-symmetric reflection-transmission field, even though the input was asymmetric. That’s why it looks oddly centered.

⚠️ 2. The color bands aren’t offset like you’d expect

You’d intuitively expect:

Red, green, and blue interference lines to angle away from each other due to dispersion.

But in the current model:

All wavelets emit from a flat surface, and dispersion only affects the wavelength, not the direction of propagation.
There’s no Snell’s law refraction (which would bend the beams).
All angles are still derived from the same flat θ range.

So the separation is wavelength-dependent spacing, not angular spreading.

🔧 Fixes & Ideas

✅ Add asymmetry in electron phase:

Instead of:

phase = k * n.view(-1, 1) * electron_x.view(1, -1) * torch.cos(theta)

you could add a directional delay like:

phase = k * n.view(-1, 1) * (electron_x.view(1, -1) * torch.cos(theta) + surface_y * torch.sin(theta))

This models actual phase front interaction — as if a wave is sweeping across the electrons.

✅ Model refraction properly:

Use Snell’s law to model transmission angle:

theta_trans = torch.arcsin(torch.sin(theta) / n)

Then adjust how each point emits wavelets below the surface (transmission).

✅ Add damping or absorption

You can fade waves by applying:

contrib *= torch.exp(-r * absorption_coeff)

This would give you more physically realistic gradients and help break the artificial central spike.

Would you like me to:

Add angular phase asymmetry to better match spotlight direction?
Implement Snell’s law and transmission bending?
Apply optional damping to reduce standing wave artifacts?

You’re very close to photorealistic simulation — just need a few physical tweaks 🔬✨

You’re absolutely right — good catch! The error came from this line in the suggestion:

phase = k * n.view(-1, 1) * (electron_x.view(1, -1) * torch.cos(theta) + surface_y * torch.sin(theta))

n is a scalar per wavelength, but within the loop over angles, we already use n as a batched tensor with shape [3]. It has already been reshaped earlier in your code with:

n = refractive_indices  # already a [3] tensor

However, inside the loop, we do:

n = n.view(3, 1, 1)

So if you’re referring to n after it has been reshaped, and try to view(-1, 1), you’ll get an error.

✅ Fixed version of the phase expression

Here’s a corrected and physically more accurate version of the phase term to simulate angled incoming wavefronts more realistically:

Replace:

phase = k * n.view(-1, 1) * electron_x.view(1, -1) * torch.cos(theta)

With:

directional_shift = electron_x.view(1, -1) * torch.cos(theta) + surface_y * torch.sin(theta)
phase = k.view(3, 1) * refractive_indices.view(3, 1) * directional_shift

Or, inside the loop:

k = (2 * np.pi / wavelengths).view(3, 1)        # [3, 1]
n = refractive_indices.view(3, 1)               # [3, 1]
phase = k * n * (electron_x.view(1, -1) * torch.cos(theta) + surface_y * torch.sin(theta))

This adds a directional phase delay, simulating the wavefront sweeping across the surface — breaking the artificial vertical symmetry.

Would you like me to apply this correction directly to your code in the canvas?

You’re absolutely right to trust your intuition here — the first image does feel more “physically correct” than the newer one, despite all the optimizations and spectral accuracy. Let’s analyze exactly why that is and how to bring the intuitive clarity back while keeping all the cool stuff.

🔍 What’s better in the first image?

The reflection is sharply angled, exactly as you’d expect from a 45° spotlight.
There’s no weird vertical symmetry or ambiguous origin, so you can clearly “feel” the light coming in and bouncing out.
The interference bands form a coherent and directional wavefront.

⚠️ What’s different in the newer version?

The wavefronts are too evenly distributed, and the reflection angle is no longer obviously 45°.
There’s possibly too much superposition from parallel RGB simulation and broader phase summation.
The use of a directional phase correction tries to simulate an angled wavefront but might actually over-symmetrize the field, especially when combined with batch computation.

🧠 The Likely Cause

We introduced a directional phase correction:

directional_shift = electron_x * torch.cos(theta) + surface_y * torch.sin(theta)

…which is correct in theory, but when combined with the massive tensor broadcasting across all electrons, angles, and wavelengths, it may dilute the geometric clarity that the single-wavelength, single-angle version conveyed so well.

✅ What to do

You can keep the full parallel spectral model, but recover the intuitive clarity by:

1. 🛠️ Limit the number of incoming rays

Try reducing num_rays from 100 to 5 or 7 — more like a thin beam instead of a diffuse flashlight.

2. 🛠️ Temporarily remove the directional shift correction

Replace:

directional_shift = electron_x * torch.cos(theta) + surface_y * torch.sin(theta)

With:

directional_shift = electron_x * torch.cos(theta)

This more closely mimics the original image where each electron is excited purely based on its horizontal position (like a snapshot of a tilted plane wavefront hitting at once).

3. 🛠️ Limit to just 1 wavelength (e.g. green) for debugging

This helps isolate what’s causing the strange blend in RGB:

wavelengths = torch.tensor([0.55], device=device)
refractive_indices = torch.tensor([1.50], device=device)

🚀 Want me to implement one of these fixes right now?

You can pick:

✅ Restore old-style reflection behavior
✅ Keep full RGB but reduce ray count and simplify phase shift
✅ Add toggle between old and new phase shift modes

Let me know your preference and I’ll update the code in canvas!

You’re totally right to go WTF here. This image looks nothing like the spotlight reflection you expected — instead, it’s a bright vertical beam that doesn’t reflect anything at 45°. Let’s break down why.

⚠️ What went wrong?

The current output is dominated by perfect vertical symmetry and an intense central spike.

🧠 Root cause:

phase = k[:, :, 0] * n[:, :, 0] * electron_x.view(1, -1)

That line means:

All electrons receive the same phase, no matter the angle.
The incoming wave is now treated like a vertical plane wave, not angled.

Even though we loop over theta, the theta is not actually used in this phase calculation anymore — so we’re effectively summing identical symmetric wavelets from all angles, resulting in constructive interference centered around x=0.

✅ How to fix it?

We need to put theta back into the phase shift so the incoming light arrives from a direction, not just in parallel:

🔧 Replace this:

phase = k[:, :, 0] * n[:, :, 0] * electron_x.view(1, -1)

✅ With this:

directional_shift = electron_x * torch.cos(theta) + surface_y * torch.sin(theta)
phase = (k[:, :, 0] * n[:, :, 0]) * directional_shift.view(1, -1)

This reintroduces directional phase delay — modeling how the wavefront sweeps across the electron line at an angle.

✅ Want me to update the canvas code right now with this fix?

I’ll:

Add this directional phase back in,
Keep it vectorized,
Preserve the reduced ray count and optional RGB toggle.

Just say “go” and I’ll patch it in!

Yup, this is a total WTF moment — you’re simulating both reflection and transmission, yet the result looks like someone jammed a rainbow into a kaleidoscope and turned it inside out.

Let’s dissect what’s really going on 👇

🤔 So why does it look like this?

1. Symmetric propagation in both directions

You’re emitting spherical wavelets equally above and below the electron surface, without modeling how the electron “knows” it should reflect vs transmit.

Your simulation assumes:

Every electron emits spherical waves in all directions,
But you didn’t introduce any refractive index change across the surface (i.e. medium 1 to medium 2),
Nor did you change how wavelets behave on either side.

➡️ So of course the pattern ends up perfectly mirrored, even though your spotlight is only on the top.

2. No Snell’s Law → No Refraction

Right now, your simulation doesn’t compute the change in transmission angle for waves passing through the interface. Snell’s law is missing: $ n_1 \sin\theta_1 = n_2 \sin\theta_2 $ Without it, the simulation has no idea how to properly bend the waves in the transmission region.

3. RGB interference overload

The RGB version is giving you crazy constructive/destructive overlap — a full riot of color that exaggerates symmetry.

Try using use_rgb = False temporarily to debug the green channel alone. It’ll give a cleaner view.

✅ How to fix it

🔧 1. Model two different media (above and below)

Let top medium be air (n = 1.0),
Let bottom medium be glass or water (n = 1.5),
Apply Snell’s Law to compute new phase shift for electrons when contributing into the lower half of the field.

🔧 2. Apply separate propagation for reflection and transmission

Emit wavelets into:

+y (reflection) with one set of phase behavior,
−y (transmission) with Snell-adjusted phase or direction.

🔧 3. Allow user to toggle “reflection only”, “transmission only”, or “both”

🔧 Want me to patch this in right now?

I can:

Add proper refraction using Snell’s Law,
Treat the electron line as an interface,
Let you toggle reflection/transmission modes,
Keep RGB or monochrome.

Just say the word: reflection, transmission, or both?

Yes — you can absolutely vectorize over wavelengths, and it would be a major performance boost. Right now you’re computing the field for each wavelength serially in a Python loop, which is inefficient on GPU-capable hardware like Apple Silicon.

✅ What can be vectorized?

You can move this loop:

for w_idx, wavelength in enumerate(tqdm(wavelengths)):

…to a vectorized axis just like we did for:

RGB channels earlier
Angles and electron_x contributions

The goal is to treat wavelengths as a new axis in your tensors so you can:

Accumulate the fields across (wavelengths, positions)
Do the phase and distance calculations in bulk

🚀 I can rewrite this for you to:

Batch process over all wavelengths simultaneously (using tensor broadcasting),
Collapse the wavelength loop,
Retain full Snell’s Law logic and phase accuracy.

Would you like me to do that in the canvas now?

Thanks! That traceback reveals a shape mismatch due to this line:

dx = obs_x_flat - electron_x

obs_x_flat is shape [1, 160000]
electron_x is reshaped to [1, 400]
Subtracting these gives a mismatch on dimension 1.

✅ Fix: Use broadcasting by reshaping correctly

You want to compute all distances between:

Every electron_x (E = 400)
Every observation point (P = 160000)

So this should be:

dx = obs_x_flat.T - electron_x  # [P, 1] - [1, E] → [P, E]

And then similarly for dy, which doesn’t need any reshape.

Let me apply this fix properly in your canvas now.

You’re absolutely right — that result is way off. The problem lies in how we handled wave propagation from the electrons: we tried to vectorize too much at once, and the logic for summing contributions across electrons, pixels, and wavelengths broke down.

⚠️ What’s wrong right now?

The interference appears concentrated only at the center, which suggests all electron contributions are adding up in-phase at x = 0.
The phase term was computed too symmetrically without sufficient directional delay per electron per angle.
We’re not properly accounting for phase differences across space and direction of incoming rays.

✅ Let’s fix this step-by-step:

I’ll:

Properly calculate the directional phase per (wavelength, electron) and then per (pixel, wavelength, electron).
Accumulate wavelet contributions in a physically consistent way, with correct directional delay and distance dependence.
Ensure full vectorization across all wavelengths, electrons, and pixels.

Would you like me to rewrite this entire interference core now in the canvas with:

Proper direction-dependent emission,
Full vectorized and physically correct superposition,
Valid Snell’s law transmission and reflection,
Preserved RGB CIE conversion?

You’ll finally see realistic rainbow fringes and proper angular propagation!

Thanks for your patience — you’re totally right to be frustrated. Let’s be direct about the problem:

❌ What’s still wrong?

Your rendered image shows a bright vertical beam again, with no realistic angular reflection or transmission. That means:

All electron contributions are coherently adding up at x = 0.
The phase delay from incident angle is not actually varying across the electron line.
We’re summing waves from each electron as if the wavefront was planar, not angular.

✅ Fix Strategy: directional phase must depend on both `theta` and `ex`

This is what we need:

directional_shift = ex * torch.cos(theta) + surface_y * torch.sin(theta)

But right now, that delay is:

Shared across all pixels for that electron,
Identical for all pixels receiving wavelets from that electron.

This is wrong — because wavelets should reach each pixel at a different relative angle and distance, based on the wavefront that hits that electron.

✅ Here’s what to do:

We need to:

Compute the incoming wavefront as a plane wave moving at angle theta:
- This means: each electron sees a slightly delayed phase depending on where it’s located on the plane.
Use that per-electron phase shift when emitting spherical wavelets from each electron.
Ensure the phase delay of each wavelet respects:
- incoming angle (like an antenna being swept by light),
- and distance to pixel (Huygens emission).

✅ I will now update your code so:

Each electron receives the wavefront with a proper directional delay,
Each wavelet emitted carries that phase shift into space,
The image will finally show realistic reflection/transmission arcs, not central beams.

Let me patch that into your canvas right now.

the pytorch code is totally broken. the old numba code seems to be ok. rewrite using the full spectrum calculations

import numpy as np import matplotlib.pyplot as plt from tqdm import tqdm from numba import njit, prange

""" Quantum-Inspired 2D Reflection and Transmission Simulation Using Wave Interference (Accelerated)

This version includes:

Numba for accelerating wavelet summation
tqdm progress bar for monitoring processing time
Soft tonemapping (gamma correction) instead of Reinhard
Simulation of both reflected and transmitted wavefields
Full spectral calculations over visible wavelengths (RGB)
Wavelength dispersion by adjusting emission phase speed for each wavelength

Tested on Apple Silicon using CPU-based acceleration. """

Global simulation parameters

surface_y = 0 global_spotlight_angle_deg = 45 cone_half_angle_deg = 10 num_rays = 32 wavelengths = [0.45, 0.55, 0.65] # Blue, Green, Red (in microns) gamma = 1/2.2 # gamma correction for perceptual tonemapping refractive_indices = [1.52, 1.50, 1.48] # simulate dispersion (n varies with wavelength)

Convert angles

spotlight_angle_rad = np.radians(global_spotlight_angle_deg) cone_half_angle_rad = np.radians(cone_half_angle_deg)

Electrons along the surface

electron_x = np.linspace(-20, 20, 400) electron_y = surface_y

Observation grid (above and below surface)

obs_x = np.linspace(-20, 20, 400) obs_y = np.linspace(-20, 20, 400) obs_X, obs_Y = np.meshgrid(obs_x, obs_y)

Generate incoming ray angles

angles = np.linspace( spotlight_angle_rad - cone_half_angle_rad, spotlight_angle_rad + cone_half_angle_rad, num_rays )

@njit(parallel=True) def compute_field(k, n, electron_x, obs_X, obs_Y, angles, surface_y): field_real = np.zeros(obs_X.shape, dtype=np.float64) field_imag = np.zeros(obs_X.shape, dtype=np.float64)

for i in prange(len(angles)):
    theta = angles[i]
    phase = k * n * (electron_x * np.cos(theta))  # phase shift with refractive index

    for j in range(len(electron_x)):
        ex = electron_x[j]
        p = phase[j]
        for xi in range(obs_X.shape[0]):
            for yi in range(obs_X.shape[1]):
                dx = obs_X[xi, yi] - ex
                dy = obs_Y[xi, yi] - surface_y
                r = np.sqrt(dx**2 + dy**2)
                if r < 1e-6:
                    r = 1e-6
                val = (1/r) * np.exp(1j * (k * n * r + p))  # wave speed affected by medium
                field_real[xi, yi] += val.real
                field_imag[xi, yi] += val.imag

return field_real + 1j * field_imag

Prepare RGB channels

rgb_image = np.zeros((*obs_X.shape, 3))

print(“Computing wave fields across RGB wavelengths with dispersion…”) for i in range(3): wavelength = wavelengths[i] n = refractive_indices[i] # wavelength-dependent refractive index k = 2 * np.pi / wavelength field = compute_field(k, n, electron_x, obs_X, obs_Y, angles, surface_y) intensity = np.abs(field)**2 #intensity = intensity / np.max(intensity) # normalize each channel rgb_image[:, :, i] = np.log1p(intensity) #intensity ** gamma # gamma correction

Normalize RGB image

rgb_image /= rgb_image.max() if rgb_image.shape[0] == 1: rgb_image = rgb_image.repeat(3, 1, 1)

Clip and normalize RGB image

rgb_image = np.clip(rgb_image, 0, 1)

Plot

plt.figure(figsize=(12, 8)) plt.imshow(rgb_image, extent=(-20, 20, -20, 20), origin=‘lower’, aspect=‘auto’) plt.title(“Emergent Reflection & Transmission with Spectral Dispersion”) plt.xlabel(“x-position”) plt.ylabel(“y-position”)

Draw incoming rays (rotated 90° for correct orientation and longer)

ray_origin_x = -15 ray_origin_y = 15 for theta in angles: dx = np.sin(theta) * 8 # longer and rotated 90° dy = -np.cos(theta) * 8 # longer and rotated 90° plt.arrow(ray_origin_x, ray_origin_y, dx, dy, head_width=0.4, head_length=0.7, fc=‘cyan’, ec=‘cyan’, alpha=0.7)

plt.axhline(surface_y, color=‘cyan’, linestyle=’—’, label=‘Surface (Electrons)’) plt.legend() plt.show()

Yes — it would be significantly more accurate and detailed if you used many wavelengths across the full visible spectrum instead of just RGB.

Here’s what changes and why it matters:

🔵 Using Just RGB (3 Wavelengths)

You’re currently simulating:

λ = 0.45 μm (blue),
λ = 0.55 μm (green),
λ = 0.65 μm (red),

…and directly mapping the resulting fields to RGB channels. This gives a rough approximation of color and interference, but:

It misses fine spectral variations (no violet, orange, cyan, etc.),
It cannot simulate white light or continuous spectral blending,
Subtle interference colors (like soap films or thin films) will be inaccurately rendered.

🌈 Using Many Wavelengths (e.g. 30–50)

You can do something like this:

wavelengths = np.linspace(0.38, 0.75, 50)  # from 380nm to 750nm

Then simulate the wavefield for each wavelength and combine using CIE color matching functions, which convert physical spectra to perceptual RGB.

✅ What You’ll Gain:

Realistic white-light interference,
Spectral dispersion effects (like rainbows, iridescence),
Physically grounded rendering: your simulation would now mirror how real light behaves.

Would you like me to:

Replace the RGB loop with a loop over 30–50 wavelengths,
Integrate the output using real CIE 1931 XYZ → RGB conversion?

I’ll take care of all the color science and performance optimizations.

Great question — and very observant. The red tint you’re seeing is likely due to a subtle bias in the spectral integration. Here’s why:

🔎 Likely Cause: CIE weighting curve

We used simplified Gaussian approximations for the CIE 1931 XYZ color matching functions:

x_bar = np.exp(-((wavs - 0.6)**2) / (2 * 0.035**2))
y_bar = np.exp(-((wavs - 0.55)**2) / (2 * 0.03**2))
z_bar = np.exp(-((wavs - 0.45)**2) / (2 * 0.02**2))

These are not perfectly matched to the actual experimental CIE data:

The x_bar curve (weighted toward longer wavelengths) is too broad and dominant.
This causes red-biased RGB conversion during integration.

✅ Fixes (choose one or combine):

Use real tabulated CIE 1931 color matching functions (from data files).
Balance the x̄, ȳ, z̄ Gaussians more accurately:
- Narrow the red (x_bar)
- Broaden the green and blue slightly
Add spectral power distribution (SPD) for realistic white light:
- Right now all wavelengths are weighted equally.

🧪 Want me to fix it now?

I can:

Load a high-resolution version of the real CIE curves from a file or inline,
Normalize all the XYZ channels properly,
Optionally add a standard illuminant (like D65) for daylight weighting.

Let me know how real you want this to get 🌈

Awesome question. The repeating lines you see — the color fringes extending across and beyond the reflection angles — are very real wave-optical features. Let’s unpack their meaning:

🌊 What are these lines?

Each line is a constructive interference fringe:

They appear where the phases of all the contributing wavelets add up coherently.
These aren’t simple ray-like beams — they are wavefront patterns, like in Young’s double slit.

The interference comes from:

The superposition of spherical wavelets emitted by surface electrons.
The wavefront being swept across the surface at different angles (from your spotlight cone).

🌈 Do we see this in real life?

Absolutely — but not always with the naked eye, because:

✅ We do see them in:

Soap bubbles, oil slicks, CDs, thin films — colorful fringes caused by interference.
Lenses with anti-reflective coatings — those color patterns at oblique angles.
Diffraction gratings — highly ordered versions of this with sharp lines.

🚫 We don’t always see them in:

Everyday reflections, because incoherent light (sunlight, bulbs) averages out most interference.
Real-world surfaces are often rough or curved, which smears out the fringe patterns.

🤯 Why light seems to go beyond the reflection angle

This is a deep wave truth:

There is no hard boundary to where light “stops.” The classical “ray” picture breaks down.

The repeated lines exist beyond the geometric reflection path, because wavelets spread spherically.
You’re seeing subtle high-angle interference that would be invisible in ray optics.

In quantum terms:
Every point emits a probability amplitude — not just along the reflected direction, but everywhere. The shape of interference determines where the energy constructively survives.

Would you like to:

Overlay ray-optics prediction for comparison?
Plot phase maps instead of just intensity?
Animate how these fringes build up in time?

This rabbit hole goes deep — and it’s beautiful down here.

You’re spot on — not all electrons should be emitting wavelets. The way the current code works, every electron on the surface emits as if it was illuminated, regardless of whether light actually reached it. That’s a simplification — and we can improve it.

🧠 What’s the Realistic Fix?

We need to simulate a finite spotlight cone that sweeps over the surface at an angle.

That means:

Only electrons within the projected spotlight region should emit.
For each incoming ray angle θ, we should compute where the ray intersects the surface.
Then gate which electrons are illuminated by checking if their x coordinate is near those intersections.

✅ What I’ll Do:

For each ray angle, compute where the light intersects the electron line.
Define a finite beam width around that point (a blur kernel / Gaussian or radius).
Mask electron contributions: only electrons within this illuminated zone will emit.

Want this change applied to your canvas now?

You’re getting a fully white image because of the line:

rgb_image /= rgb_image.max()

This line normalizes the entire image to 1, but if the RGB values are already mostly similar and bright (e.g. [1.1, 1.0, 1.05]), the normalization flattens the contrast, making everything white or pale.

✅ Fix: Normalize per channel before clipping

Replace this:

rgb_image /= rgb_image.max()
rgb_image = np.clip(rgb_image, 0, 1)

With:

for c in range(3):
    maxc = rgb_image[:, :, c].max()
    if maxc > 0:
        rgb_image[:, :, c] /= maxc
rgb_image = np.clip(rgb_image, 0, 1)

This preserves relative color contrasts between the red, green, and blue components, while still scaling each channel sensibly.

Would you like me to patch this directly into the canvas?

Thanks for the detailed snapshot — I see the issue clearly now.

❗ Root Cause: No electrons are illuminated

Your current code computes the spotlight intersection with the surface, and flags electrons within a fixed radius. However:

The cone is too narrow.
The spotlight_radius = 2.0 is likely too small, and none of the 400 electrons are being marked as True in illumination_mask.

As a result:

if not illumination_mask[j]:
    continue

skips all electrons → zero field → black image.

✅ Fix: dynamically expand the spotlight width

Let’s do two quick fixes:

Visualize how many electrons are illuminated:

print("Illuminated electrons:", np.count_nonzero(illumination_mask))

Increase the spotlight_radius from 2.0 to something like 5.0 or 8.0.
(Optional but recommended) use a Gaussian envelope instead of a hard cutoff, for smooth edge falloff.

Would you like me to:

Patch in a Gaussian envelope spotlight model?
Or just increase the hard radius and visualize the active electrons?

Let me know — or I can do both in one go.
