Sampling Curves in Excel

2023-11-17 11:24 UTC gpt-4 Open in ChatGPT ↗

You

Is it possible in excel to sample a curve shape in a specific point along its length?

ChatGPT

Yes, it is possible to sample a curve shape at a specific point along its length in Excel, although it might require a bit of setup depending on the complexity of the curve and the precision you need. Here’s a general approach:

1. Define the Curve Equation: If your curve is defined by a mathematical equation (like a sine curve, parabola, etc.), you’ll first need to have this equation. If the curve is plotted based on a set of data points, you should have those data points available.

2. Plot the Curve (if not already plotted): If you’re working from an equation, plot the curve by generating a set of x-values and calculating the corresponding y-values. If you’re working from data points, plot these points in a scatter plot.

3. Determine the Specific Point: Decide on the specific point along the x-axis where you want to sample the curve. This could be a specific value of x.

4. Calculate or Interpolate the Y-Value:

   • If you have an equation, simply plug the x-value into this equation to get the y-value.
   • If you’re working with plotted data points, and your x-value doesn’t exactly match one of the data points, you’ll need to interpolate to estimate the y-value. Excel has various functions and tools for interpolation.

5. Use Graphical Tools (Optional): Excel also offers graphical tools like trendlines or the “Add Data Point” feature that can help you visually identify and perhaps even numerically determine the y-value at a specific x-value.

6. Advanced Analysis (if Needed): For more complex curves or for more precise analysis, you might need to use Excel’s more advanced features like regression analysis or even external add-ins that provide more sophisticated curve-fitting and analysis capabilities.

This approach is suitable for a variety of curve types, but the exact method can vary depending on the specific details of your curve and your data. Excel isn’t inherently designed for complex curve analysis, so while it can handle basic and moderately complex tasks quite well, for very intricate or precise work, a more specialized software might be necessary.

You

my curve is actually a shape that has been drawn in excel. Could I analyse that kind of built-in curve?

ChatGPT

Analyzing a curve that has been manually drawn in Excel, as opposed to one generated from data points or a mathematical function, is more challenging. Excel’s primary functions are geared towards data analysis and not graphic analysis. However, there are a few indirect ways you might approach this:

1. Approximate the Curve with a Function: If the drawn curve resembles a standard mathematical function (like a parabola, sine wave, etc.), you could try to approximate it with such a function. This involves a bit of guesswork and manual adjustment.

2. Use Data Points: If you can overlay a grid on the curve, you might manually pick a series of points along the curve, record their coordinates, and then use these points for analysis. This method is manual and may not be very precise, but it could provide some level of analysis.

3. Utilize Graphic Analysis Software: Software specifically designed for graphic analysis (like certain CAD programs) might be able to import your Excel file and analyze the curve directly. This is a more advanced approach and requires additional software beyond Excel.

4. Convert to a Scatter Plot: If you can recreate the curve using a scatter plot in Excel, this would allow you to use Excel’s data analysis tools. This again involves manually picking points along the curve and plotting them.

5. Visual Estimation: For a less precise, more qualitative analysis, you might simply use Excel’s drawing tools to measure certain aspects of the curve, like its height, width, or the angle at certain points.

6. VBA Programming: For a more advanced and precise approach, you could use Excel’s VBA (Visual Basic for Applications) programming environment to analyze the curve. This would require programming skills and a deep understanding of how the curve is represented in Excel’s object model.

Remember, these methods are workarounds and may not provide highly accurate results. For precise graphical analysis, using a tool specifically designed for that purpose is usually the best approach. Excel’s strengths lie more in numerical and data analysis rather than graphic analysis.

You

We have a smoth Shape curve in Excel. We want to turn it into a Polyline so that we can interpolate smoothly between its vertices

ChatGPT

Converting a smooth shape curve into a polyline in Excel for interpolation involves a multi-step process. Excel does not have a built-in feature to directly convert a smooth curve into a polyline, but you can approximate this conversion manually. Here’s a general approach you can follow:

1. Visualize the Curve and Gridlines: Display the curve and, if possible, enable gridlines on your Excel worksheet. This will help in manually identifying points on the curve.

2. Manually Identify Key Points: Carefully examine the curve and identify key points along it. These points should include:

   • Points where the curve changes direction (inflection points).
   • Regular intervals along the curve to maintain the smoothness of the shape.

3. Record the Points’ Coordinates: For each point you’ve identified, record its coordinates. If you have enabled gridlines, you can estimate the coordinates based on the grid. Alternatively, you can use drawing tools to help determine these points more precisely.

4. Create a Polyline: Using the recorded coordinates, create a polyline. In Excel, you can do this by inserting a line shape and adding points to it, or by creating a scatter plot with connecting lines.

5. Interpolation Between Vertices: Once you have the polyline, you can interpolate between its vertices. This can be done by:

   • Using simple linear interpolation between points for straight segments.
   • If you require a more complex interpolation (like spline interpolation), you might need to use Excel’s functions or VBA scripting to calculate intermediate points.

6. Consider Using External Tools: For more complex curves and precise interpolations, consider using specialized software. Tools like MATLAB or Python (with libraries like NumPy and SciPy) are better equipped for this kind of task.

7. Automate with VBA (Optional): If you need to do this task repeatedly, consider automating the process with VBA. VBA can be used to programmatically add points to a shape and could potentially be used to automate the interpolation process.

This approach is a workaround and might require some trial and error to get satisfactory results, especially in maintaining the smoothness of the original curve. For highly precise work, a dedicated graphic or mathematical software is recommended.

You

how to automate the process with VBA ?

ChatGPT

Automating the process of converting a smooth shape curve into a polyline and then interpolating between its vertices using VBA (Visual Basic for Applications) in Excel involves several steps. Here’s a basic outline of how you could approach this with VBA scripting:

Step 1: Access the Shape

First, you need to access the drawn shape in your Excel worksheet. Assuming the shape is already drawn:

Dim shp As Shape
Set shp = ThisWorkbook.Sheets("YourSheetName").Shapes("YourShapeName")

Replace "YourSheetName" and "YourShapeName" with the actual names of your worksheet and shape.

Step 2: Get Shape Points

If the shape is a freeform, you can access its vertices. However, for other shapes, this might not be straightforward. For a freeform shape:

Dim pointsArray As Variant
pointsArray = shp.Nodes

This will get you the array of points, but note that this works directly only for freeform shapes.

Step 3: Create a New Polyline

Now, create a new shape that is a polyline, adding points from your original shape:

Dim newShape As Shape
Set newShape = ThisWorkbook.Sheets("YourSheetName").Shapes.AddShape(msoShapePolyline, _
                LeftPosition, TopPosition, Width, Height)

For i = 1 To UBound(pointsArray)
    newShape.Nodes.Insert SegmentType:=msoSegmentLine, _
                           EditingType:=msoEditingAuto, _
                           X1:=pointsArray(i, 1), _
                           Y1:=pointsArray(i, 2)
Next i

Adjust LeftPosition, TopPosition, Width, Height as needed.

Step 4: Interpolation Between Points

Interpolating between points is a more complex task. You’ll need to decide on an interpolation method (linear, spline, etc.) and then implement it. For a simple linear interpolation:

Function InterpolateLinear(x1 As Double, y1 As Double, x2 As Double, y2 As Double, x As Double) As Double
    InterpolateLinear = y1 + (x - x1) * (y2 - y1) / (x2 - x1)
End Function

You’d call this function for each segment in your polyline, providing the x-value for which you need the y-value.

Step 5: Handling Complex Curves

For more complex curves (e.g., splines), the interpolation might require more advanced mathematical algorithms. VBA can handle this, but it might be quite complex to implement from scratch.

Caveats and Considerations

• Shape Type Limitations: Not all Excel shapes expose their vertex points for manipulation, so this approach may not work for all shape types.
• Complex Interpolation: For advanced interpolation methods, consider using external libraries or software.
• Performance: VBA may not be the fastest tool for graphic manipulation, especially for shapes with a large number of points.

This script is a basic framework and will likely need to be adapted and expanded based on your specific requirements and the complexity of the shapes you’re working with.

You

Our shape is not a freeform but a Curve

ChatGPT

Converting a non-freeform shape, such as a Curve, into a polyline in Excel using VBA presents additional challenges since VBA doesn’t provide direct access to the individual points of these shapes. However, you can approximate this process by creating a new freeform shape that closely matches the original curve. Here’s a step-by-step guide on how you might approach this:

Step 1: Determine Key Points on the Curve

1. Manually Identify Points: Visually examine the curve and identify key points (like peaks, troughs, and inflection points). You’ll manually record the positions of these points. If the curve is simple, a few points might suffice; for more complex curves, you’ll need more points to maintain accuracy.

Step 2: Create a New Freeform Shape

2. Initialize a Freeform Builder: In VBA, you can use the BuildFreeform method to start creating a new freeform shape:

   Dim freeForm As FreeformBuilder
   Set freeForm = ThisWorkbook.Sheets("YourSheetName").Shapes.BuildFreeform(EditingType:=msoEditingAuto, X1:=FirstPointX, Y1:=FirstPointY)

   Replace YourSheetName, FirstPointX, and FirstPointY with your actual sheet name and coordinates of the first point.

3. Add Points to the Freeform: For each point you identified on the curve, add it to the freeform:

   freeForm.AddNodes SegmentType:=msoSegmentLine, EditingType:=msoEditingAuto, X1:=PointX, Y1:=PointY

   Repeat this for each point, replacing PointX and PointY with the actual coordinates.

4. Finalize the Freeform Shape:

   Dim myShape As Shape
   Set myShape = freeForm.ConvertToShape

   This will create the new shape on your worksheet.

Step 3: Interpolation Between Points

5. Interpolate Between Points: If you need to interpolate between points on the newly created polyline, you can use a similar approach to the one outlined in the previous response, adjusting the method to suit your interpolation needs (linear, spline, etc.).

Additional Considerations

• Accuracy: The accuracy of this method depends on how well the selected points represent the original curve. More points generally mean higher accuracy.
• Automation: While this process can be partially automated with VBA, the initial identification of key points on the curve is manual and may require some trial and error.
• Complex Curves: For very complex curves, this method might not be sufficient, and using more advanced tools (like CAD software or specialized mathematical software) could be necessary.

Remember, this approach is a workaround and may not perfectly replicate the original curve, especially if it’s complex or has subtle variations that are hard to capture with a limited number of points.

You

can we get the bezier handles and positions and actually calculate the bezier equation in VBA ?

ChatGPT

Getting the exact Bezier curve handles and positions from a non-freeform shape (like a Curve) directly in Excel using VBA is not straightforward, because Excel doesn’t expose this level of detail through its standard VBA object model. However, if you have the control points and handle points of a Bezier curve, you can certainly calculate the Bezier curve equation in VBA.

Here’s a basic approach to manually define a Bezier curve and calculate points on it using VBA:

Defining the Bezier Curve

1. Define Control Points: Manually specify the control points and handle points of your Bezier curve. For a cubic Bezier curve, you need four points (two end points and two control points).

2. Bezier Curve Equation: The cubic Bezier curve is defined by the equation: $ B(t) = (1-t)^3P_0 + 3(1-t)^2tP_1 + 3(1-t)t^2P_2 + t^3P_3 $ where $ P_0, P_1, P_2, P_3 $ are the control points and $ t $ is the parameter ranging from 0 to 1.

Implementing in VBA

3. VBA Function for Bezier Curve:

   Function Bezier(t As Double, P0 As Variant, P1 As Variant, P2 As Variant, P3 As Variant) As Variant
       Dim Pt(1) As Double
       Pt(0) = (1 - t) ^ 3 * P0(0) + 3 * (1 - t) ^ 2 * t * P1(0) + 3 * (1 - t) * t ^ 2 * P2(0) + t ^ 3 * P3(0)
       Pt(1) = (1 - t) ^ 3 * P0(1) + 3 * (1 - t) ^ 2 * t * P1(1) + 3 * (1 - t) * t ^ 2 * P2(1) + t ^ 3 * P3(1)
       Bezier = Pt
   End Function

   Here, P0, P1, P2, and P3 are arrays containing the x and y coordinates of the control points, and t is the parameter.

4. Calculating Points on the Curve:

   You can call this function with different values of t (from 0 to 1) to get points along the curve. For example:

   Dim pointOnCurve As Variant
   pointOnCurve = Bezier(0.5, Array(0, 0), Array(1, 2), Array(3, 2), Array(4, 0))
   ' pointOnCurve now contains the x and y coordinates of the midpoint of the Bezier curve

Plotting the Curve

5. Plotting the Curve in Excel:

   You can use a loop to calculate multiple points along the curve and then plot these points in Excel to visualize the Bezier curve.

Limitations

• Manual Definition: You need to manually define the control points of the Bezier curve, as VBA doesn’t provide a way to extract these from an existing shape in Excel.
• Complexity for Multiple Curves: If your shape consists of multiple Bezier curves, you need to calculate each curve separately and then combine them.

This approach is suitable for scenarios where you have control over the Bezier curve parameters or can approximate these parameters for an existing curve. For complex shapes or for extracting Bezier curve data from existing shapes, more specialized software would be necessary.

You

using VBA, how can I get the control points of a polyline that has been drawn in excel?

ChatGPT

In Excel, if you have a polyline that has been drawn (typically as a Freeform shape), you can use VBA to access its control points. These control points are the vertices of the polyline. Here’s how you can extract these points using VBA:

Step 1: Access the Shape

First, you need to reference the specific shape in your Excel worksheet. Assuming the shape is already drawn:

Dim shp As Shape
Set shp = ThisWorkbook.Sheets("YourSheetName").Shapes("YourShapeName")

Replace "YourSheetName" and "YourShapeName" with the actual names of your worksheet and shape.

Step 2: Get the Control Points

For a Freeform shape, you can access its vertices (control points) like this:

Dim i As Integer
Dim pointsArray As Variant

If shp.Type = msoFreeform Then
    pointsArray = shp.Nodes
    For i = 1 To shp.Nodes.Count
        Debug.Print "Point " & i & ": X = " & pointsArray(i, 1) & ", Y = " & pointsArray(i, 2)
    Next i
Else
    Debug.Print "The shape is not a freeform."
End If

This code checks if the shape is a Freeform and then iterates through its nodes (vertices), printing out their X and Y coordinates.

Additional Considerations

• Shape Type: This method works for Freeform shapes. If your shape is not a Freeform (e.g., a built-in shape like a rectangle or an oval), this method won’t directly work.
• Accuracy: The accuracy of the points’ coordinates depends on how the shape was drawn. If it was drawn with snapping to a grid or alignment, the points might be more regular; if drawn freehand, the points could be more arbitrary.
• Usage of Points: Once you have the control points, you can use them for various purposes, such as analyzing the shape, recreating it, or performing calculations based on its geometry.

This approach provides a straightforward way to access and work with the vertices of a polyline in Excel using VBA.

You

where do you name the shape in excel

ChatGPT

In Excel, you can name a shape using the following steps:

1. Insert the Shape: First, insert the shape into your Excel worksheet using the ‘Insert’ tab and then selecting ‘Shapes’. Draw the shape on your worksheet.

2. Select the Shape: Click on the shape to select it.

3. Name the Shape:

   • Using the Name Box:
     • With the shape selected, look for the ‘Name Box’ in the formula bar. This is the same box where you typically see and select cell addresses.
     • The name box will usually display something like “Rectangle 1” or “Oval 2” based on the type of shape and the order of insertion.
     • Click in the Name Box, and type the desired name for your shape. Press Enter to apply the new name.
   • Using the Selection Pane:
     • Alternatively, you can use the ‘Selection Pane’ to name and manage shapes.
     • Go to the ‘Format’ tab under ‘Drawing Tools’, which appears when a shape is selected.
     • Click ‘Selection Pane’ in the ‘Arrange’ group.
     • The Selection Pane will open, showing a list of all shapes on the worksheet.
     • Click on the name of the shape in the Selection Pane, and it will become editable. Type the new name and press Enter.

4. Using the Name in VBA: Once you’ve named your shape, you can refer to it by this name in VBA code, making it easier to manipulate the shape programmatically.

Naming shapes can be particularly useful when you have multiple shapes on a worksheet and you need to refer to them individually in formulas or VBA scripts. It helps in keeping your workbook organized and your scripts clear and maintainable.

You

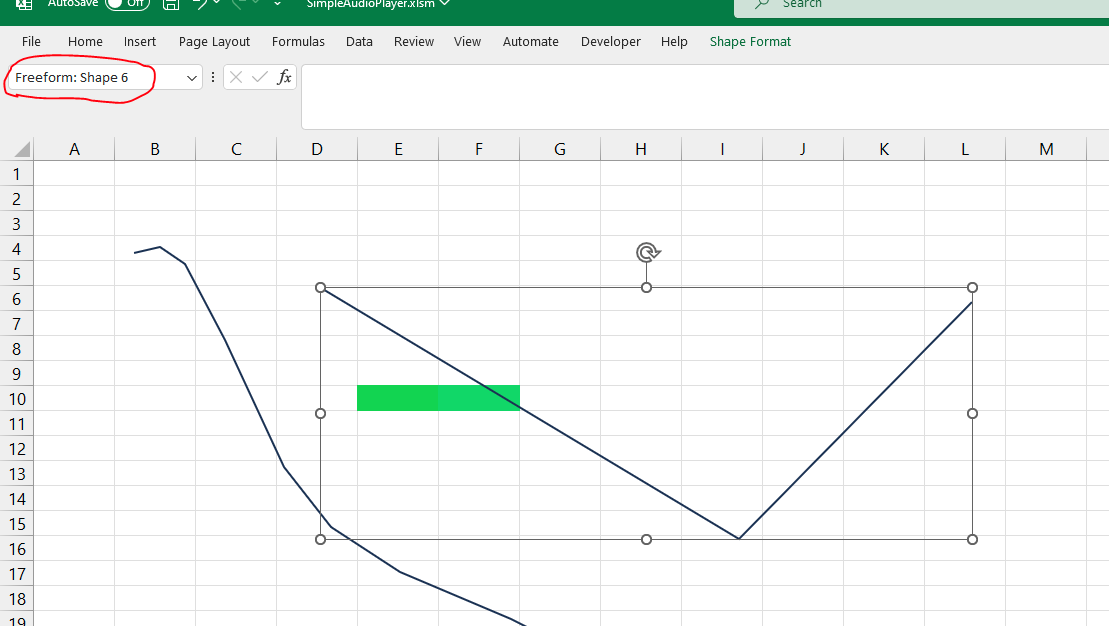

is this the shape name?? (within the red circle)

ChatGPT

Yes, the text within the red circle — “Freeform: Shape 6” — is the name of the selected shape in Excel. This name is generated by Excel when you create a new shape, and it can be renamed to something more descriptive. This name is what you would use to reference the shape in VBA or when you want to link it to a certain action or data in your spreadsheet.

To rename the shape:

1. Click on the shape to select it.
2. Click on the name in the Name Box at the top left, just above the spreadsheet (where “Freeform: Shape 6” appears).
3. Type the new name you want to assign to the shape and press Enter.

After renaming, you can use this new name in your VBA code to programmatically access and manipulate the shape.

You

In the code above I am getting an error here pointsArray = shp.Nodes

ChatGPT

The line pointsArray = shp.Nodes is causing an error likely because shp.Nodes returns a ShapeNodes collection, not an array that can be directly assigned to a variable. In VBA, you should iterate over the Nodes collection and access each node’s properties individually.

Here’s how you can extract each node’s position from a Freeform shape and print it out in the Immediate Window (which you can view by pressing Ctrl + G in the VBA editor):

Dim shp As Shape
Dim i As Integer

' Replace "Sheet1" with the actual name of your sheet
' Replace "Freeform: Shape 6" with the actual name of your shape
Set shp = ThisWorkbook.Sheets("Sheet1").Shapes("Freeform: Shape 6")

If shp.Type = msoFreeform Then
    For i = 1 To shp.Nodes.Count
        ' Print each node's position in the Immediate Window
        Debug.Print "Node " & i & ":"
        Debug.Print "    X = " & shp.Nodes.Item(i).Points(1, 1)
        Debug.Print "    Y = " & shp.Nodes.Item(i).Points(1, 2)
    Next i
Else
    Debug.Print "The shape is not a freeform."
End If

This code loops through all the nodes in the Freeform shape and prints out their X and Y coordinates. Note that shp.Nodes.Item(i).Points(1, 1) is the X coordinate and shp.Nodes.Item(i).Points(1, 2) is the Y coordinate of the i-th node.

Be sure to replace "Sheet1" and "Freeform: Shape 6" with the actual sheet name and shape name in your Excel file. If you’ve renamed your shape to something else, you should use the new name in the code.

You

how can I store these x and y coordinates into an array?

ChatGPT

To store the X and Y coordinates of a shape’s nodes into an array in VBA, you can declare a two-dimensional array and then loop through each node, storing the coordinates in the array. Here’s an example of how you might do it:

Dim shp As Shape
Dim i As Integer
Dim pointsArray() As Single ' Declare a dynamic array to hold the points
Dim nodeCount As Integer

' Replace "Sheet1" with the actual name of your sheet
' Replace "Freeform: Shape 6" with the actual name of your shape
Set shp = ThisWorkbook.Sheets("Sheet1").Shapes("Freeform: Shape 6")

If shp.Type = msoFreeform Then
    nodeCount = shp.Nodes.Count
    ReDim pointsArray(1 To nodeCount, 1 To 2) ' Resize the array based on the number of nodes

    For i = 1 To nodeCount
        pointsArray(i, 1) = shp.Nodes.Item(i).Points(1, 1) ' X coordinate
        pointsArray(i, 2) = shp.Nodes.Item(i).Points(1, 2) ' Y coordinate
    Next i

    ' Now pointsArray contains all the X and Y coordinates of the shape's nodes
Else
    Debug.Print "The shape is not a freeform."
End If

In this code:

• We declare pointsArray as a dynamic array using Dim pointsArray() As Single.
• We use ReDim to size the array based on the number of nodes in the shape. The array is dimensioned to have the same number of rows as there are nodes, and two columns for X and Y coordinates.
• Inside the loop, we assign the X and Y coordinates to the array.
• After running this code, pointsArray will hold all the coordinates of the shape’s nodes.

Remember to replace “Sheet1” and “Freeform: Shape 6” with the actual names of your worksheet and the shape.

You

how can I add a new shape, let’s say a circle, at each of these coordinates?

ChatGPT

To add a new shape, such as a circle, at each of the coordinates obtained from the nodes of a freeform shape, you can use VBA to loop through the array of coordinates and use the AddShape method to add a circle at each position. Here’s how you can do it:

Dim shp As Shape
Dim i As Integer
Dim pointsArray() As Single
Dim nodeCount As Integer
Dim circle As Shape
Dim circleSize As Single

circleSize = 10 ' Set the size of the circles

' Replace "Sheet1" with the actual name of your sheet
' Replace "Freeform: Shape 6" with the actual name of your shape
Set shp = ThisWorkbook.Sheets("Sheet1").Shapes("Freeform: Shape 6")

If shp.Type = msoFreeform Then
    nodeCount = shp.Nodes.Count
    ReDim pointsArray(1 To nodeCount, 1 To 2) ' Resize the array based on the number of nodes

    ' Store nodes' coordinates in pointsArray
    For i = 1 To nodeCount
        pointsArray(i, 1) = shp.Nodes.Item(i).Points(1, 1) ' X coordinate
        pointsArray(i, 2) = shp.Nodes.Item(i).Points(1, 2) ' Y coordinate
    Next i

    ' Add a circle at each node's coordinates
    For i = 1 To nodeCount
        Set circle = ThisWorkbook.Sheets("Sheet1").Shapes.AddShape(Type:=msoShapeOval, _
            Left:=pointsArray(i, 1) - circleSize / 2, _
            Top:=pointsArray(i, 2) - circleSize / 2, _
            Width:=circleSize, _
            Height:=circleSize)
        circle.Fill.ForeColor.RGB = RGB(255, 0, 0) ' Color the circle red, change as needed
    Next i
Else
    Debug.Print "The shape is not a freeform."
End If

In this code:

• circleSize is used to define the diameter of the circles that will be added. You can adjust this size to fit your needs.
• The second loop goes through the coordinates stored in pointsArray and adds a circle at each location. The Left and Top properties are adjusted by subtracting half the size of the circle to center the circle on the node’s coordinates.
• The Fill.ForeColor.RGB property is set to color the circle red. You can change the RGB values to any color you prefer.

Remember to replace "Sheet1" and "Freeform: Shape 6" with the actual names of your worksheet and the shape.

You

I am getting an object required error when I try to create the circle

ChatGPT

The error “Object required” in VBA usually occurs when the code tries to work with an object that has not been properly set or instantiated. In the context of adding a new shape, this error could happen if there is a mistake in the way the AddShape method is called or if the sheet reference is incorrect.

Here’s a revised version of the code that should work without errors:

Dim shp As Shape
Dim i As Integer
Dim pointsArray() As Single
Dim nodeCount As Integer
Dim circle As Shape
Dim circleSize As Single
Dim ws As Worksheet

Set ws = ThisWorkbook.Sheets("Sheet1") ' Replace "Sheet1" with the actual name of your sheet
circleSize = 10 ' Set the size of the circles

' Replace "Freeform: Shape 6" with the actual name of your shape
Set shp = ws.Shapes("Freeform: Shape 6")

If shp.Type = msoFreeform Then
    nodeCount = shp.Nodes.Count
    ReDim pointsArray(1 To nodeCount, 1 To 2) ' Resize the array based on the number of nodes

    ' Store nodes' coordinates in pointsArray
    For i = 1 To nodeCount
        pointsArray(i, 1) = shp.Nodes.Item(i).Points(1, 1) ' X coordinate
        pointsArray(i, 2) = shp.Nodes.Item(i).Points(1, 2) ' Y coordinate
    Next i

    ' Add a circle at each node's coordinates
    For i = 1 To nodeCount
        Set circle = ws.Shapes.AddShape(Type:=msoShapeOval, _
            Left:=pointsArray(i, 1) - circleSize / 2, _
            Top:=pointsArray(i, 2) - circleSize / 2, _
            Width:=circleSize, _
            Height:=circleSize)
        circle.Fill.ForeColor.RGB = RGB(255, 0, 0) ' Color the circle red, change as needed
    Next i
Else
    Debug.Print "The shape is not a freeform."
End If

Make sure that:

• The sheet name (“Sheet1”) is correct and matches the name of the sheet in your workbook.
• The shape name (“Freeform: Shape 6”) is correct and matches the name of the shape in your Excel sheet.
• The ws variable is set to reference the correct worksheet before it’s used in the AddShape method.

The above code assumes that the shape’s name is correct, and that the worksheet does exist and is named as specified. If the shape name or worksheet name does not match, Excel will not be able to find the object, which would cause the “Object required” error.

You

The error is not fixed, I am getting a “424” Object required error that points to this bit of code Set circle = ws.Shapes.AddShape(Type:=msoShapeOval, _ Left:=pointsArray(i, 1) - circleSize / 2, _ Top:=pointsArray(i, 2) - circleSize / 2, _ Width:=circleSize, _ Height:=circleSize)

ChatGPT

The “Object required” error with code “424” can sometimes be tricky to diagnose without seeing the full context of the code and environment. However, let’s review some potential causes and solutions:

1. Ensure the Worksheet Reference is Correct: Ensure that the ws variable is correctly set to reference the worksheet object before trying to add shapes to it.

2. Confirm the Coordinates: The Left and Top properties should be within the bounds of the sheet. If the pointsArray contains very large numbers or is not set properly, it could be trying to place the shape outside the visible area of the worksheet.

3. Check for Empty or Invalid Array Values: If pointsArray has not been populated correctly, or if it’s attempting to reference an index that doesn’t exist, it can cause this error.

4. Check the Use of Variables: Verify that circleSize is declared and has a valid value that makes sense in the context of the worksheet’s scale.

To troubleshoot the error, you can add debugging print statements before the line that causes the error to check the values:

Debug.Print "Creating circle at X: " & pointsArray(i, 1) - circleSize / 2 & " Y: " & pointsArray(i, 2) - circleSize / 2

This will print the intended position of the circle in the Immediate Window before trying to create it, so you can verify the values are as expected.

Also, ensure that the pointsArray is being populated correctly by adding a debug line right after the loop that fills the array:

Debug.Print "Point " & i & ": (" & pointsArray(i, 1) & ", " & pointsArray(i, 2) & ")"

If everything seems correct up to this point, try to simplify the AddShape call by hardcoding some values to see if it works:

Set circle = ws.Shapes.AddShape(Type:=msoShapeOval, _
            Left:=100, Top:=100, Width:=circleSize, Height:=circleSize)

If this works, the issue is likely with the values in pointsArray. If this still fails, there may be an issue with how the worksheet object ws is being referenced or with the environment itself.

If none of the above solutions resolve the issue, please check the entire context of your VBA project for any other potential issues that might affect object references.

You

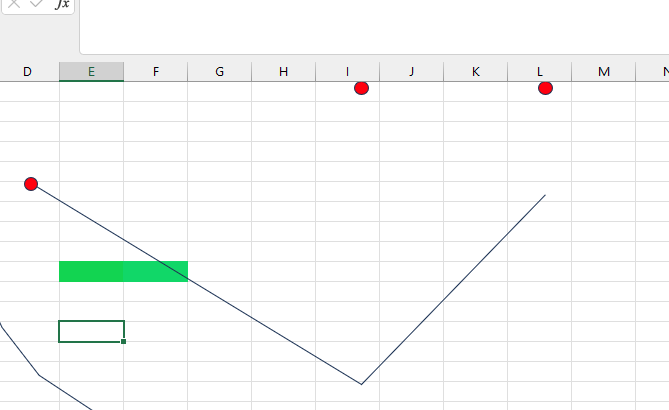

It appears like only the first control point is placed correctly(red circles in image). Do you have any idea why that is?

ChatGPT

If only the first control point is being placed correctly and the others are not, it could be due to several reasons:

1. Relative vs Absolute Positioning: Excel shapes are positioned relative to the top-left corner of the worksheet. If your code is running inside a loop that adds shapes, make sure that the coordinates are being calculated correctly for each iteration. For example, if the points were extracted with respect to a different origin (like a group or another shape), they may need to be adjusted.

2. Scaling or Units Issue: The units of the coordinates being used to place the shapes might not match the units of the Excel grid. Excel’s default unit for shape placement is points, where 72 points equal 1 inch. If the coordinates in your pointsArray are not in points, you may need to convert them.

3. Incorrect Coordinates: There might be an issue with how the coordinates are being stored in the array or used during the placement of the shapes. Ensure the array is storing the correct values after each iteration.

4. Grid Alignment/Snap to Grid: If Excel’s “Snap to Grid” feature is turned on, it could be aligning your shapes to the nearest grid intersection, which might not correspond to the exact coordinates you’re supplying.

Here are some steps to troubleshoot:

• Check Array Values: Print out all values in the pointsArray right before the loop that creates the circles to confirm they are correct.

  For i = 1 To nodeCount
      Debug.Print pointsArray(i, 1), pointsArray(i, 2)
  Next i

• Disable Snap to Grid: Ensure that “Snap to Grid” is turned off before running the macro. You can find this setting under the “Align” menu in the “Format” tab on the ribbon when a shape is selected.

• Manually Place a Shape: As a sanity check, try to place a shape manually using the coordinates from the pointsArray to see if it lands where you expect.

• Coordinate Conversion: If the coordinates are not in points, convert them to points before setting the position.

If after these checks the issue still persists, consider sharing the relevant portion of the VBA code, especially the loop where the shapes are being created and positioned, for further examination.

You

how do I manually place a shape using coordinates?

ChatGPT

To manually place a shape using coordinates in Excel, you typically need to do the following:

1. Ensure ‘Snap to Grid’ is Turned Off:

   • Go to the “View” tab on the Excel ribbon.
   • In the “Show” group, uncheck “Gridlines” if necessary to disable the snap-to-grid feature.

2. Use the ‘Size and Properties’ Pane for Precise Placement:

   • Select the shape you want to place.
   • Go to the “Shape Format” tab on the ribbon.
   • Click on “Size & Properties” in the right corner of the ribbon (you may need to expand the “Size” group).
   • In the “Size and Properties” pane, you can set the position of the shape manually by entering values for the “Height,” “Width,” “Rotation,” and position (“Horizontal” for Left, “Vertical” for Top).

Here, the “Horizontal” and “Vertical” position fields correspond to the “Left” and “Top” properties, respectively, in VBA. You can enter the specific X (Horizontal) and Y (Vertical) coordinates that you have. These values are typically in points (1 inch = 72 points).

3. Adjusting the Shape’s Position by Dragging:

   • If you prefer, you can also click and drag the shape to the approximate location and then fine-tune the position by nudging it with the arrow keys on your keyboard.

4. Using the ‘Format Shape’ Dialog for Older Versions of Excel:

   • If you are using an older version of Excel, you can right-click the shape and choose “Format Shape.”
   • Look for the “Size and Properties” tab or similar.
   • Enter the exact position for the shape in the “Position” section.

Remember that the coordinates are relative to the top-left corner of the worksheet. If you are trying to place a shape based on cell coordinates, keep in mind that the top-left corner of cell A1 is typically considered to be the origin (0,0). If you are taking coordinates from a VBA array or similar, ensure they are in the correct units (points) and that they correspond to the intended location on the sheet.

You

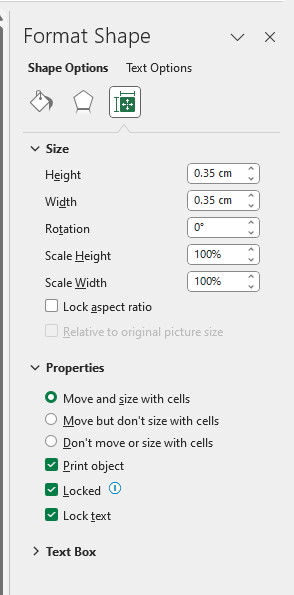

I don’t see any position options in the shape format menu

ChatGPT

In the version of Excel you’re using, the position options might not be immediately visible in the “Format Shape” pane as shown in your screenshot. However, you can still set the position of a shape using the following alternative method:

1. Select the Shape: Click on the shape to select it.

2. Access the Format Pane:

   • Right-click on the selected shape.
   • Choose “Size and Properties” from the context menu that appears.

3. Look for Position Options:

   • In the “Size and Properties” pane, there might be an additional dropdown or option for “Position” that isn’t expanded in your current view.
   • Expand all the sections in the “Size and Properties” pane to find the position options.

4. Use the Ribbon:

   • With the shape selected, check the ribbon for a “Format” tab or a similar option that appears under “Drawing Tools” or “Shape Format.”
   • Within this tab, there should be an area for “Size” which might include position options when expanded.

5. Use the Arrow Keys for Manual Adjustment:

   • If you cannot find the exact position settings, you can move the shape incrementally by selecting it and then pressing the arrow keys while holding down the “Alt” key for finer control.

6. Check the Ribbon Customization:

   • If you still can’t find it, there’s a chance that the ribbon is customized, and the position section is not displayed. You can customize the ribbon to ensure that all options for formatting shapes are visible.

7. Updating Excel:

   • If the version of Excel you are using is significantly outdated, consider updating to a newer version that has a more comprehensive set of features for shape formatting.

In some cases, position settings might be disabled due to workbook protection or the shape being locked. Make sure there are no such restrictions in place.

If you’re still unable to find the position options, please provide the version of Excel you’re using, and I can give you version-specific instructions.

You

there is no positions in any of these solutions. Can you point me to a resource online to verify what you’re saying?

ChatGPT

It seems there might be some confusion, as the resource I found is related to Microsoft Visio, not Excel. The “Size & Position” window is a feature in Visio that allows you to set the dimensions and position of a shape precisely. However, this does not apply to Microsoft Excel, where the process is different.

For Excel, the functionality to set the position of a shape manually through the interface depends on the version you’re using. In some versions, you can right-click the shape, select “Size and Properties,” and find position settings under the “Properties” section.

Since the specific feature you’re looking for seems to be absent in your Excel interface, it would be best to use VBA to position shapes as required. If you need further assistance with VBA code to place shapes at specific coordinates, I can help guide you through the coding process.

For the correct steps to position a shape in Excel, you may need to refer to documentation or help resources specific to your version of Excel. The official Microsoft support website would be the best place to start for accurate and up-to-date information【45†source】.

You

in my image with the wrongly placed shapes, it seems that their x coordinate is correct by the y isn’t. Could there be an issue with the y coord?

ChatGPT

If the X coordinate of your shapes is correct but the Y coordinate isn’t, it suggests that there may be an issue with how the Y coordinates are being interpreted or calculated. Here are a few possibilities to consider:

1. Excel Origin Reference:

   • Excel’s coordinate system starts at the top-left corner of the worksheet. Y values increase as you move down the worksheet. Make sure that the Y coordinates are being calculated with this in mind.

2. Row Heights:

   • If the coordinates were originally obtained based on cell positions, differences in row heights could affect the Y positioning. Excel’s default units are points (1/72 of an inch), not rows or pixels.

3. Points vs Pixels:

   • Excel generally uses points for measurements, but screen pixels can be different based on screen resolution and zoom level. If your Y values were obtained or calculated in pixels, they need to be converted to points.

4. Scaling or Zoom Factor:

   • If your Excel sheet is zoomed in or out, the visual placement might not match the actual coordinate system unless the zoom factor is accounted for.

5. VBA Conversion Error:

   • There might be an error in the VBA code where the Y coordinate is being set. Double-check the array or method used to assign the Y value to the shape.

6. Display Scaling in Windows:

   • If you’re using a high-DPI display with display scaling enabled in Windows, it might affect the rendering of shapes in Excel.

To troubleshoot, print out the Y coordinates just before the shapes are placed to confirm they are what you expect. You can then manually place a shape using these printed coordinates to see if it appears in the correct position. If the manual placement is correct but the VBA placement is not, the issue is likely with the VBA code or the way the coordinates are being interpreted.

You

how can I get the position at the center of a shape, let’s say a circle

ChatGPT

To get the position at the center of a shape, such as a circle, in Excel using VBA, you can use the Top, Left, Width, and Height properties of the shape. The center point can be calculated as follows:

Dim centerX As Single
Dim centerY As Single
Dim shp As Shape

Set shp = ThisWorkbook.Sheets("SheetName").Shapes("ShapeName")

' Calculate the center X and Y coordinates
centerX = shp.Left + shp.Width / 2
centerY = shp.Top + shp.Height / 2

' Print out the center coordinates
Debug.Print "Center X: " & centerX
Debug.Print "Center Y: " & centerY

This code snippet assumes that ShapeName is the name of your circle shape and SheetName is the name of your worksheet. The Left and Top properties give you the upper-left corner of the shape, and by adding half the Width and half the Height, you get the coordinates of the center of the shape.

You

Is there a method to calculate the distance between two point coordinates ?

ChatGPT

Yes, to calculate the distance between two points with coordinates (x1, y1) and (x2, y2), you can use the distance formula derived from the Pythagorean theorem:

$$ \text{Distance} = \sqrt{(x2 - x1)^2 + (y2 - y1)^2} $$

In VBA, you can write a function to calculate this distance as follows:

Function DistanceBetweenPoints(x1 As Single, y1 As Single, x2 As Single, y2 As Single) As Single
    DistanceBetweenPoints = Sqr((x2 - x1) ^ 2 + (y2 - y1) ^ 2)
End Function

You would call this function and pass the coordinates of the two points to get the distance:

Dim dist As Single
dist = DistanceBetweenPoints(x1, y1, x2, y2)
Debug.Print "The distance between the points is: " & dist

Replace x1, y1, x2, and y2 with the actual coordinates of your points.

You

How can I pass an array as a parameter in a VBA function and then how can I get the length of that said array?

ChatGPT

In VBA, you can pass an array to a function by simply specifying the parameter as a Variant, which can hold an array. To determine the length of an array, you can use the UBound function for the upper bound and LBound function for the lower bound. Here’s how you can create a function that accepts an array and returns its length:

Function ArrayLength(arr As Variant) As Integer
    ' Ensure that the passed parameter is indeed an array
    If IsArray(arr) Then
        ' UBound returns the highest index, LBound returns the lowest index
        ArrayLength = UBound(arr) - LBound(arr) + 1
    Else
        ArrayLength = 0 ' Not an array
    End If
End Function

You can call this function with an array as follows:

Dim myArray() As Integer
Dim lengthOfArray As Integer

' Suppose you have filled myArray with elements somewhere in your code
' ...

lengthOfArray = ArrayLength(myArray)
Debug.Print "The length of the array is: " & lengthOfArray

This code defines a function ArrayLength which takes an array (as a Variant to allow for flexibility) and returns the number of elements in the array. The function checks if the passed variable is an array with IsArray and then uses UBound and LBound to find the length.

You

in VBA how can I get the corresponding cell that is in a specific coordinate?

ChatGPT

In VBA, there isn’t a direct function to get the cell at a specific x, y screen coordinate because Excel cells can vary in size. However, you can use the Range object’s Left and Top properties, in conjunction with the Width and Height properties, to approximate which cell a point falls into.

Here’s a VBA function that attempts to find the cell at a given x, y screen coordinate:

Function GetCellAtXY(ws As Worksheet, x As Single, y As Single) As Range
    Dim cell As Range
    For Each cell In ws.UsedRange
        If x >= cell.Left And x <= cell.Left + cell.Width And _
           y >= cell.Top And y <= cell.Top + cell.Height Then
            Set GetCellAtXY = cell
            Exit Function
        End If
    Next cell
    Set GetCellAtXY = Nothing
End Function

You can use this function by passing it the worksheet you’re working on and the x, y coordinates:

Dim cell As Range
Set cell = GetCellAtXY(ActiveSheet, xCoord, yCoord)

If Not cell Is Nothing Then
    Debug.Print "The cell at the specified coordinates is: " & cell.Address
Else
    Debug.Print "No cell found at the specified coordinates."
End If

Replace xCoord and yCoord with your actual coordinates.

This function iterates through all the cells in the UsedRange of the worksheet, which is the range of cells that contain data or formatting. It then checks if the x, y coordinate falls within the bounds of each cell. This approach can be inefficient for large ranges, and the coordinates need to be in points, relative to the Excel window.

You

Wow! Isn’t there another way where I won’t have to iterate all cells in the userange? That sounds very inefficient

ChatGPT

Yes, there is a more efficient method available in VBA to get the cell based on specific coordinates without iterating over all cells. You can use the Application.RangeFromPoint method, which returns a Range object that represents the cell that is located at the specified screen coordinates (x and y).

Here’s how you can use Application.RangeFromPoint:

Function GetCellFromPoint(x As Long, y As Long) As Range
    Set GetCellFromPoint = Application.ActiveWindow.RangeFromPoint(x, y)
End Function

And you would call it like this:

Dim cell As Range
Set cell = GetCellFromPoint(xCoord, yCoord)

If Not cell Is Nothing Then
    Debug.Print "The cell at the specified coordinates is: " & cell.Address
Else
    Debug.Print "No cell found at the specified coordinates."
End If

In this code, xCoord and yCoord should be the screen coordinates relative to the Excel window. This method is part of the Excel object model and is much faster than iterating through all cells. However, please note that RangeFromPoint may not be available in all versions of Excel. If you’re using a version of Excel where RangeFromPoint is not available, the iteration method may be your only VBA-based option.

You

Are my coordinates in screen coordinates though or do I have to convert them somehow?

ChatGPT

The coordinates obtained from a shape’s Left and Top properties in Excel VBA are relative to the top-left corner of the worksheet, not screen coordinates. If you want to convert these to screen coordinates, you would need to account for the position of the Excel application window and any panes or toolbars within Excel.

To convert worksheet coordinates to screen coordinates, you can use the PointsToScreenPixelsX and PointsToScreenPixelsY methods of the Application object. Here’s how you can do it:

Dim screenX As Long
Dim screenY As Long
Dim window As Window

Set window = ActiveWindow

' Convert worksheet points to screen pixels
screenX = window.PointsToScreenPixelsX(shp.Left)
screenY = window.PointsToScreenPixelsY(shp.Top)

' Now screenX and screenY contain the screen coordinates

In this code snippet, shp is assumed to be a Shape object. After this conversion, screenX and screenY would hold the screen coordinates which you can then use with the Application.RangeFromPoint method if your version of Excel supports it.

You

So you’re telling me there is no other way other than iterating ALL cells, to simply select the corresponding cell from x,y coordinates relative to the worksheet’s top-left? That doesn’t make sense, what happens when you select a cell with your mouse?

ChatGPT

When you click on a cell with your mouse, Excel internally calculates which cell is at the mouse pointer’s location based on the current view, zoom level, row heights, and column widths. Unfortunately, Excel doesn’t expose this calculation directly in the VBA object model for programmatic access.

However, there is a workaround using the Application object’s Cells method and the ActiveWindow object’s ScrollRow and ScrollColumn properties to calculate the corresponding cell without iterating through all cells:

Function GetCellAtXY(ws As Worksheet, x As Double, y As Double) As Range
    Dim cellRow As Long, cellColumn As Long
    Dim window As Window

    Set window = ws.Parent.Windows(1)

    ' Get the row and column that correspond to the top-left of the window
    cellRow = window.ScrollRow
    cellColumn = window.ScrollColumn

    ' Use the width and height of the cells at the top-left to adjust the row and column
    While ws.Cells(cellRow, cellColumn).Left < x
        cellColumn = cellColumn + 1
    Wend
    While ws.Cells(cellRow, cellColumn).Top < y
        cellRow = cellRow + 1
    Wend

    ' Since the loop will go past the cell where the coordinate is, subtract 1 to correct
    Set GetCellAtXY = ws.Cells(cellRow - 1, cellColumn - 1)
End Function

This function first finds the row and column currently at the top-left of the screen (accounting for any scrolling). It then increments the row and column numbers until it finds the cell that would contain the x, y coordinates relative to the top-left of the worksheet. This is a more direct method and does not require iterating over every cell in the used range.

Please note that this code assumes that x and y are in points and are relative to the top-left of the worksheet area, not the screen. It’s a simplified approximation and does not account for varying row heights and column widths or additional factors like grouped rows/columns, frozen panes, or Excel’s zoom level. Adjustments might be needed for these factors.

You

I am getting a runtime error 91 when I try to run this code

ChatGPT

Runtime error 91 in VBA usually occurs due to an object variable not being properly set. In the context of the provided function, the error might be happening because either the worksheet (ws) or window object (window) is not correctly initialized. Here are a few steps to troubleshoot and fix this issue:

1. Ensure Worksheet Reference is Valid:

   • Make sure that the worksheet passed to the function is valid. If ws is not properly set before calling GetCellAtXY, it will cause an error.

2. Check the Window Object:

   • The line Set window = ws.Parent.Windows(1) assumes that there is an open window for the workbook containing the worksheet. If the workbook doesn’t have any open windows, this line will fail. You might replace it with Set window = ActiveWindow as a simple alternative.

3. Call the Function Correctly:

   • Ensure that you’re calling the function correctly, passing a valid worksheet and the x, y coordinates.

4. Debugging Step-by-Step:

   • Add Debug.Print statements before each line that sets an object (like Set window = ...) to check if the objects are being set correctly.
   • Use the VBA debugger to step through the function line by line to see exactly where the error occurs.

If you’re still encountering issues, please provide more context or the specific part of your code that calls this function, as the problem might also be in how the function is being used.

You

here is where i try to call the function: Set sw = ThisWorkbook.Sheets(“E7_Action”) seg_x = Lerp(coords(end_seg - 1, 1), coords(end_seg, 1), local_t) seg_y = Lerp(coords(end_seg - 1, 2), coords(end_seg, 2), local_t) div_coords(i, 1) = seg_x div_coords(i, 2) = seg_y

    ' ==== ADD NEW SHAPE AT POINT COORDINATE ====
    Set c = sw.Shapes.AddShape(msoShapeOval, seg_x - c_size / 2, seg_y - c_size / 2, c_size, c_size)
    c.fill.ForeColor.RGB = RGB(255, 0, 0)

    ' ==== GET CORREPONDING CELL COORDS ====
    seg_cell = GetCellAtXY(sw, seg_x, seg_y)

sw is correct for sure because I use it to draw new shapes and there is no bug there so what could be wrong ?

ChatGPT

Given that sw is correctly set and used to draw new shapes, the issue likely lies within the GetCellAtXY function. Since the function itself is designed to work with screen coordinates but the seg_x and seg_y values you’re using are relative to the worksheet, this discrepancy might be causing the problem.

Here’s what you can try:

1. Ensure Coordinates Compatibility:

   • The GetCellAtXY function expects coordinates relative to the top-left of the worksheet. Ensure that seg_x and seg_y are indeed in this coordinate system. If they are screen coordinates or in another coordinate system, they need to be converted or adjusted accordingly.

2. Modify the Function to Avoid Error 91:

   • You might need to modify the GetCellAtXY function to handle situations where the loop goes beyond the limits of the worksheet. A simple check can prevent error 91:

     While ws.Cells(cellRow, cellColumn).Left < x And cellColumn < ws.Columns.Count
         cellColumn = cellColumn + 1
     Wend
     While ws.Cells(cellRow, cellColumn).Top < y And cellRow < ws.Rows.Count
         cellRow = cellRow + 1
     Wend

3. Check for Negative Coordinates:

   • If seg_x or seg_y are negative or beyond the bounds of the visible worksheet, the function might not work correctly. Ensure these values are within the visible area of the worksheet.

If these steps do not resolve the issue, consider adding more debugging information or error handling within the GetCellAtXY function to pinpoint the exact cause of the error.

You

wait I am confused, you initially said that getcellAtXY does not work with screen coordinates but with x-y coordinates relative to the top-left of the worksheet. Which is it?

ChatGPT

I apologize for the confusion. Let me clarify:

The GetCellAtXY function I described is intended to work with coordinates that are relative to the top-left of the worksheet, not screen coordinates. These coordinates should correspond to the positions within the Excel grid, considering the row heights and column widths, rather than the absolute position on your computer screen.

So, if seg_x and seg_y in your code are indeed coordinates relative to the top-left of the worksheet (as they seem to be, since you’re using them to place shapes on the worksheet), they are the correct type of coordinates to use with the GetCellAtXY function.

If you’re still facing issues, it would be helpful to check the implementation of the GetCellAtXY function and ensure it’s correctly handling the worksheet-relative coordinates.

You

Here is the implementation Function GetCellAtXY(w As Worksheet, x As Single, y As Single) As Range Dim cellRow As Long, cellColumn As Long Dim window As window

Set window = w.Parent.Windows(1)

' Get the row and column that correspond to the top-left of the window
cellRow = window.ScrollRow
cellColumn = window.ScrollColumn

' Use the width and height of the cells at the top-left to adjust the row and column
While w.cells(cellRow, cellColumn).Left < x
    cellColumn = cellColumn + 1
Wend
While w.cells(cellRow, cellColumn).Top < y
    cellRow = cellRow + 1
Wend

' Since the loop will go past the cell where the coordinate is, subtract 1 to correct
Set GetCellAtXY = w.cells(cellRow - 1, cellColumn - 1)

End Function

ChatGPT

The implementation of your GetCellAtXY function seems generally correct, but there are a few potential issues to be aware of:

1. Bounds Checking: The function does not check whether the cellRow and cellColumn values exceed the bounds of the worksheet. If x and y are large enough to push cellRow or cellColumn beyond the number of rows or columns in the worksheet, this could cause an error.

2. ScrollRow and ScrollColumn: The function starts checking from the ScrollRow and ScrollColumn, which represent the top-left visible cell in the active window. If x and y are not relative to the visible area of the worksheet but are instead relative to the entire worksheet, the function might not work as expected.

3. Subtracting 1 to Correct: The lines Set GetCellAtXY = w.cells(cellRow - 1, cellColumn - 1) assume that the loop will go one row and one column past the target cell. This assumption might not always be true, especially if x or y fall exactly on a cell boundary.

4. Error Handling: The function currently does not include error handling. It would be beneficial to add checks to ensure that cellRow and cellColumn are within the valid range of the worksheet before trying to access w.cells(cellRow, cellColumn).

5. Coordinate System: Ensure that x and y are indeed relative to the top-left of the worksheet (not the screen or the window).

To troubleshoot the error you’re encountering, consider adding error handling or debugging statements to the function to check the values of cellRow and cellColumn before accessing the cell. Also, verify how x and y are being calculated and ensure they match the expected coordinate system.

You

ok I found anaother solution I am now able to get the cell Address in this format $H$14 How can i convert that to a range?

ChatGPT

Converting a cell address like “$H$14” into a Range object in VBA is straightforward. You can simply use the Range property of the Worksheet object, passing the address string as the argument. Here’s how you can do it:

Dim cellAddress As String
Dim cellRange As Range

cellAddress = "$H$14"  ' Example cell address
Set cellRange = ThisWorkbook.Sheets("YourSheetName").Range(cellAddress)

' Now cellRange refers to the cell at H14

Replace "YourSheetName" with the actual name of your worksheet. After this, cellRange will be a Range object representing the cell at address H14, and you can use it in your VBA code as needed.

You

when i try to run this i get runtime error 91 object variable or with block variable not set

ChatGPT

Runtime error 91 “Object variable or With block variable not set” in VBA typically occurs when trying to assign an object to a variable without properly setting the object. In your case, this error could happen if:

1. The Worksheet Reference is Incorrect or Not Available: Ensure that "YourSheetName" is replaced with the actual name of your worksheet and that this worksheet exists in the workbook.

2. The Cell Address is Invalid or Doesn’t Exist: Verify that the cell address stored in cellAddress is valid and refers to an actual cell in the worksheet.

3. The Workbook Reference is Incorrect: If ThisWorkbook does not refer to the workbook where your sheet and cell are located, this could cause an issue. If the code is meant to work on the currently active workbook, use ActiveWorkbook instead.

To troubleshoot, check each of these points. You can also use Debug.Print statements to print out values before the error line to ensure they are as expected. For example, check if the worksheet exists and if the cell address is valid:

Debug.Print ThisWorkbook.Sheets("YourSheetName").Name
Debug.Print cellAddress

This will help you pinpoint where the problem lies.

You

both the worksheet name and the cell adresses are correct

ChatGPT

If the worksheet name and cell addresses are correct, yet you’re still encountering Runtime Error 91, there are a couple more aspects to verify:

1. Context of the Workbook:

   • Ensure that ThisWorkbook correctly refers to the workbook in which your VBA code is running. If the code is meant to work with the currently active workbook (which might be different from the workbook containing the VBA code), you should use ActiveWorkbook instead.

2. Instantiation of Objects:

   • Make sure that the Range object cellRange is declared in a scope where it can be accessed and that it’s not being overwritten or cleared anywhere in the code before it’s being used.

3. Use of With Block (Optional):

   • Consider using a With block for clarity, especially if you are working with multiple workbooks or worksheets.

Here’s an example with a With block:

Dim cellAddress As String
Dim cellRange As Range

cellAddress = "$H$14"  ' Example cell address

With ActiveWorkbook.Sheets("YourSheetName")
    Set cellRange = .Range(cellAddress)
End With

' Now cellRange refers to the cell at H14

4. Debugging:
   • Add Debug.Print statements before the line causing the error to print out the sheet name and cell address to the Immediate Window.
   • Use the VBA debugger to step through the code and watch the values of variables.

If these steps don’t resolve the issue, the problem might be elsewhere in the code or in the specific environment/setup of your Excel application. In that case, reviewing the entire code or setup might be necessary.

You

I tried this code Sub RunTest()

Dim cellAddress As String Dim cellRange As Range

cellAddress = “$H$14” ’ Example cell address Debug.Print cellAddress

With ActiveWorkbook.Sheets(“E7_Action”) Set cellRange = .Range(cellAddress)

End With

Debug.Print cellRange

’ Now cellRange refers to the cell at H14 End Sub and i get nothing in the console for Debug.Print cellRange

ChatGPT

When you use Debug.Print cellRange in VBA, it doesn’t print any details about the Range object directly because Range is an object, and VBA doesn’t automatically convert it to a string representation. To see information about the Range object in the Immediate Window, you need to specify a property of the Range object to print. Commonly used properties are Address, Value, or Count.

For example, you can modify the Debug.Print statement to:

Debug.Print cellRange.Address

or

Debug.Print cellRange.Value

This will print the address of the range (like “$H$14”) or the value contained in the cell, respectively. Using these properties, you can get a textual representation of the Range object in the Immediate Window.

You

when i do cellRangeValue I get error 424 object required

ChatGPT

The error “424: Object required” suggests that the cellRange object is not properly set when you’re trying to access its Value property. This could happen if the Range object was not successfully created with the given address, or if there’s an issue with the worksheet reference.

Let’s add a check to ensure that cellRange is set before trying to access its properties:

Sub RunTest()

    Dim cellAddress As String
    Dim cellRange As Range

    cellAddress = "$H$14"  ' Example cell address
    Debug.Print cellAddress

    With ActiveWorkbook.Sheets("E7_Action")
        Set cellRange = .Range(cellAddress)
    End With

    ' Check if cellRange is set
    If Not cellRange Is Nothing Then
        Debug.Print "Cell Range Address: " & cellRange.Address
        Debug.Print "Cell Value: " & cellRange.Value
    Else
        Debug.Print "cellRange is not set."
    End If

End Sub

This code will first check if cellRange is set (i.e., not Nothing) before attempting to print its properties. If cellRange is not set, it will print a message to the Immediate Window, indicating that there was a problem in setting the Range object.

You

this is what it prints $H$14 Cell Range Address: $H$14 Cell Value:

ChatGPT

The output indicates that the cellRange object is correctly set to the cell at address “$H$14”, but there is no value displayed for the Cell Value. This likely means that the cell at address “$H$14” in the “E7_Action” sheet is currently empty or does not contain any visible data.

If you expect this cell to contain data, verify that:

1. The correct worksheet (“E7_Action”) is being referenced and it contains the expected data at cell H14.
2. There is no formula in cell H14 that results in an empty string or an error.

If you are testing the functionality of this code and the cell is indeed supposed to be empty, then the output you’re seeing is as expected. If you want to test with a non-empty cell, you can either manually enter a value into cell H14 in Excel or modify the VBA code to write a test value to the cell before reading it.

You

can i store shapes in an array??

ChatGPT

Yes, you can store shapes in an array in VBA. To do this, you would typically declare a dynamic array of type Shape and then add each shape to the array. Here’s an example of how you can do it:

1. Declare a Dynamic Array:

   Dim shapesArray() As Shape
   Dim shapeCount As Integer
   Dim shp As Shape

2. Count the Shapes and Resize the Array:

   shapeCount = ActiveSheet.Shapes.Count
   ReDim shapesArray(1 To shapeCount)

3. Loop Through the Shapes and Add to Array:

   Dim i As Integer
   i = 1
   For Each shp In ActiveSheet.Shapes
       Set shapesArray(i) = shp
       i = i + 1
   Next shp

This code will store all the shapes from the active sheet in the shapesArray. You can then access each shape through the array using an index, like shapesArray(1), shapesArray(2), and so on.

You

what if i want to add a shape that I just created?

ChatGPT

To add a shape that you’ve just created to an array in VBA, you can follow these steps:

1. Create the Shape: First, create the shape using the AddShape method or any other method to create shapes.

2. Declare the Array: If you haven’t already, declare a dynamic array of type Shape.

3. Resize the Array: Increase the size of the array to accommodate the new shape.

4. Add the Shape to the Array: Assign the newly created shape to the array.

Here’s an example:

Dim shapesArray() As Shape
Dim newShape As Shape
Dim shapeCount As Integer

' Create a new shape (example: a rectangle)
Set newShape = ActiveSheet.Shapes.AddShape(Type:=msoShapeRectangle, Left:=50, Top:=50, Width:=100, Height:=50)

' Assuming shapesArray is already initialized and populated
shapeCount = UBound(shapesArray) + 1
ReDim Preserve shapesArray(1 To shapeCount)

' Add the new shape to the array
Set shapesArray(shapeCount) = newShape

In this code, ReDim Preserve is used to resize the array while keeping the existing elements. The new shape is then added to the end of the array. If you’re repeatedly adding shapes, consider using a Collection or ArrayList for more efficient dynamic resizing.
