In Excel with VBA (Visual Basic for Applications), you can extract the fill color of a cell using the Interior.Color property of a Range object. The Interior.Color property returns the fill color of the cell as a Long value.

Here’s a basic example of how you can use VBA to get the fill color of a cell and display it in a message box:

Sub GetFillColor()
    Dim ws As Worksheet
    Set ws = ThisWorkbook.Sheets("Sheet1") 'Change "Sheet1" to your sheet name

    Dim cellColor As Long
    cellColor = ws.Range("A1").Interior.Color 'Change "A1" to your target cell

    MsgBox "The fill color of the cell is: " & cellColor
End Sub

This VBA script defines a subroutine named GetFillColor that:

Defines a worksheet object (ws) and sets it to the specific worksheet by name.
Declares a variable cellColor to store the color value of the cell’s fill.
Assigns the fill color of the specified cell (in this case, “A1” on “Sheet1”) to cellColor.
Displays a message box showing the numeric color value.

Remember, the color is returned as a Long value representing the RGB color code. This means it might not be immediately clear which color it corresponds to just by looking at the number. If you want to work with more human-readable color names or convert these values to RGB components, you might need additional code to parse the Long value into its constituent Red, Green, and Blue components.

To track the history of the last 7 cell addresses visited by a “moving” cell in Excel with VBA, you can use a combination of global variables and event handlers. The idea is to store each new address the cell visits in a global array, and update this array whenever the cell moves. This approach involves using the Worksheet_SelectionChange event to detect when the cell selection changes, indicating movement.

Here’s a basic implementation outline:

Declare a Global Array: This array will store the history of cell addresses. Because VBA arrays are fixed in size once initialized, you’ll need to manage the array contents manually to ensure it only keeps the last 7 addresses.
Use Worksheet_SelectionChange Event: This event is triggered whenever the selection changes in the worksheet. It can be used to detect when your “moving” cell changes position.
Update the History Array: Each time the cell moves, update the array with the new address, removing the oldest entry if the array already contains 7 addresses.

Below is a VBA example implementing this approach:

Dim history(1 To 7) As String ' Global array to store the last 7 cell addresses
Dim currentIndex As Integer ' Tracks the current position in the history array

Private Sub Worksheet_SelectionChange(ByVal Target As Range)
    ' This subroutine runs every time a cell selection changes in the worksheet
    Dim newAddress As String
    newAddress = Target.Address

    ' Initialize currentIndex if it's not already set
    If currentIndex = 0 Then currentIndex = 1

    ' Update the history with the new address
    history(currentIndex) = newAddress

    ' Increment currentIndex, resetting to 1 if it exceeds 7
    currentIndex = currentIndex Mod 7 + 1

    ' Optionally, print the history to the Immediate Window for debugging
    DebugPrintHistory
End Sub

Private Sub DebugPrintHistory()
    ' Utility function to print the cell history for debugging
    Dim i As Integer
    For i = 1 To 7
        If history(i) <> "" Then Debug.Print "History " & i & ": " & history(i)
    Next i
    Debug.Print "----------------"
End Sub

To use this code:

Open the VBA Editor: Press Alt + F11 in Excel.
Find Your Worksheet Code: In the Project Explorer, find the worksheet you want to track the cell movement on.
Insert the Code: Paste the above code into the code window for your specific worksheet.

This setup will track the movement of any cell in the worksheet, storing the addresses of the last 7 selections. You can adjust the logic in the Worksheet_SelectionChange event to track a specific cell’s movement by comparing Target.Address with the address of your “moving” cell.

Keep in mind, this code tracks selections, assuming selection change as a proxy for cell movement. If the cell’s “movement” is defined differently (e.g., through data changes), you’ll need to adjust the trigger event accordingly.

Yes, in VBA, to find the minimum of two numbers without using Application.WorksheetFunction.Min, you can use the simple VBA function IIf which performs a quick inline comparison between two values. The IIf function evaluates a condition and returns one of two values: if the condition is true, it returns the first value; if false, it returns the second.

Here’s how you can use IIf to get the minimum of two numbers:

Sub DemoMin()
    Dim num1 As Double
    Dim num2 As Double
    Dim minVal As Double

    num1 = 5
    num2 = 10

    ' Using IIf to determine the minimum value
    minVal = IIf(num1 < num2, num1, num2)

    MsgBox "The minimum value is: " & minVal
End Sub

In this example, num1 and num2 are compared directly within the IIf function. The condition num1 < num2 is evaluated, and if true, num1 is returned as the minimum value; otherwise, num2 is returned.

This method is straightforward and efficient for comparing just two values. For comparing more than two values or an array of values, you might need a different approach or use loops to iterate through the values.

Can you help me understand exactly what happens here? ’ Move the data from the temporary location to the destination range ws_t.Range(tempRange, tempRange.Offset(r_diff, 0)).Copy Destination:=destinationRange

' Clear the temporary data
ws_t.Range(tempRange, tempRange.Offset(r_diff, 0)).ClearContents
ws_t.Range(tempRange, tempRange.Offset(r_diff, 0)).ClearFormats

Certainly! The code snippet you’ve provided performs a series of operations on an Excel worksheet using VBA. It involves moving data from a temporary location to a destination range and then clearing the temporary data. Let’s break down what happens in each step:

Variables and Context

ws_t: A worksheet object. This variable references the worksheet containing the temporary data that needs to be moved.
tempRange: A range object or a string that specifies the starting cell of the temporary data in ws_t.
r_diff: An integer indicating the number of rows to include from the temporary range. It defines how far down from tempRange the data extends.
destinationRange: A range object specifying where the data from tempRange should be moved to. This is the destination for the copied data.

Operations

1. Copy Data to Destination

ws_t.Range(tempRange, tempRange.Offset(r_diff, 0)).Copy Destination:=destinationRange

ws_t.Range(tempRange, tempRange.Offset(r_diff, 0)): This part creates a range that starts from tempRange and extends down by r_diff rows. The Offset method is used to create this range. The .Offset(r_diff, 0) part means the range is offset by r_diff rows down from tempRange but not shifted horizontally (the second parameter is 0).
.Copy Destination:=destinationRange: This copies the entire range defined above to the destinationRange. The Copy method copies both the contents and formats of the cells.

2. Clear Temporary Data

ws_t.Range(tempRange, tempRange.Offset(r_diff, 0)).ClearContents

This line clears the contents (i.e., the values or formulas) of the temporary range defined by tempRange and its offset, without affecting the cell formatting.

ws_t.Range(tempRange, tempRange.Offset(r_diff, 0)).ClearFormats

This line clears the formatting of the temporary range defined by tempRange and its offset, without affecting the content. This includes any cell formatting like colors, borders, number formats, etc.

Summary

The entire operation effectively moves data (including its formatting) from a temporary location on a worksheet (ws_t) to a specified destination range (destinationRange). After the move, it cleans up the temporary location by removing both the contents and the formatting, leaving it as if no data had ever been there. This is a common practice in Excel VBA when you need to temporarily store data during processing and then clean up after yourself to maintain a tidy worksheet environment.

Yes, you can certainly use the Copy method in a simpler manner as you described. If you have a specific cell (or a range of cells) in a template sheet that you want to copy to another location, including both its value and formatting, you can do so with a single line of code. The syntax you’ve provided is correct and efficient for this purpose.

ws_t.Range("E7").Copy Destination:=destinationRange

Here’s what happens in this line:

ws_t.Range("E7"): This specifies the cell (or range of cells) you want to copy. In this case, it’s cell E7 on the worksheet referred to by the variable ws_t.
.Copy Destination:=destinationRange: This performs the copy operation. The cell’s content, including its value, formula (if any), and all formatting, is copied to the range specified by destinationRange.

The destinationRange should be a Range object specifying where you want to paste the copied cell. It can be a single cell or a range. If destinationRange is a single cell, Excel will paste the copied cell into this location. If it’s a larger range, Excel will still only paste starting from the top-left cell of the specified destinationRange.

For example, if you want to copy cell E7 from a template sheet to cell A1 on another sheet, you could use:

Dim ws_t As Worksheet
Dim ws_destination As Worksheet
Set ws_t = ThisWorkbook.Sheets("TemplateSheet") 'Assuming the name of your template sheet is "TemplateSheet"
Set ws_destination = ThisWorkbook.Sheets("DestinationSheet") 'Assuming you are copying to a sheet named "DestinationSheet"

ws_t.Range("E7").Copy Destination:=ws_destination.Range("A1")

This code snippet assumes you have defined and set ws_t as your template sheet and ws_destination as the sheet where you want to copy the cell E7’s content and formatting. This is a straightforward and effective way to copy cell data and formatting in Excel VBA.

In the image you’ve uploaded, it appears there is a cell with a thick border on one side, which is a kind of cell formatting in Excel. If you want to remove this particular formatting, you would typically do the following steps in Excel:

Select the Cell: Click on the cell or use your keyboard to select it.
Open the Format Cells Dialog:
- You can right-click on the cell and choose “Format Cells…” from the context menu.
- Alternatively, you can press Ctrl + 1 on your keyboard to open the “Format Cells” dialog directly.
Border Tab:
- In the “Format Cells” dialog, go to the “Border” tab.
Remove the Border:
- Here, you’ll see options for setting borders. If a thick border is applied to one side of the cell, it will be highlighted.
- Click on the border icons to toggle them off, or use the “None” button to remove all borders from the cell.
Click OK: Click the “OK” button to apply the changes.

To do this with VBA, you could use the following code:

Sub RemoveThickBorder()
    Dim ws As Worksheet
    Set ws = ActiveSheet ' or use a specific sheet e.g., ThisWorkbook.Sheets("SheetName")

    ' Assuming L1 is the cell with the thick border
    With ws.Range("L1").Borders(xlEdgeRight) ' Change xlEdgeRight to the specific border
        .LineStyle = xlNone
    End With
End Sub

Replace xlEdgeRight with the actual border you wish to remove (e.g., xlEdgeLeft, xlEdgeTop, xlEdgeBottom, or xlEdgeRight). The code removes the line style from the specified edge, effectively removing the border. If you want to remove all borders from the cell, you could loop through all the possible border positions and set their .LineStyle to xlNone.

Yes, if the columns have been set to a width of 0, they are effectively hidden. You can unhide them in Excel using the following steps:

Select the Columns: Click and drag to select the column headers on both sides of the hidden columns. For instance, if columns M to X are hidden, you would select columns L and Y.
Unhide Columns:
- Right-click on the selected columns and choose “Unhide” from the context menu.
- Alternatively, you can use the Excel menu by going to the “Home” tab, then in the “Cells” group, click on “Format”, point to “Hide & Unhide”, and then click on “Unhide Columns”.
Using the Keyboard Shortcut: If you prefer keyboard shortcuts, you can also unhide the columns by:
- Selecting the columns as mentioned above.
- Pressing Ctrl + Shift + 0 (the shortcut might be disabled in certain versions of Windows, in which case you would need to use the mouse method described above).

After performing these steps, the hidden columns should become visible. If for any reason the columns do not unhide (which could happen if there is some additional protection or specific settings in the workbook), you would then need to check for workbook or worksheet protection or other settings that might be preventing the change.

In VBA for Excel, horizontal alignment properties are typically stored as XlHAlign enumeration values. The XlHAlign enumeration contains constants that specify the horizontal alignment of cell contents.

To store the horizontal alignment of a cell, you would declare a variable of type XlHAlign. Here’s an example:

Dim cellAlignment As XlHAlign
cellAlignment = Range("A1").HorizontalAlignment

The HorizontalAlignment property can return values like xlHAlignCenter, xlHAlignLeft, xlHAlignRight, and others, depending on how the cell’s contents are aligned.

Note that when assigning or comparing these values, if you haven’t specified the type explicitly as XlHAlign, VBA will generally treat them as Variant or Long because the underlying value of the enumeration constants is actually a number. However, it’s good practice to use the specific enumeration type for clarity and to take advantage of IntelliSense in the VBA editor.

In VBA, all code execution is single-threaded; that means VBA does not support multithreading natively, so you cannot run multiple subroutines truly concurrently (at the same time). Each subroutine will run to completion before the next one begins when called in sequence.

However, there are a few workarounds that simulate concurrency:

DoEvents: You can use the DoEvents function within a loop or a lengthy process to allow other pending events to be processed, which can make it seem like two processes are running simultaneously. But this is not true parallel processing; it just yields time to other operations.
Timers: Use application-level timers to schedule different tasks. The Windows API provides timer functions that you can set up to call a subroutine after a specified interval.
Call External Programs: You can use VBA to call external programs or scripts that run in separate processes. These can truly run concurrently to your VBA code.
Asynchronous Execution: Some operations can be run asynchronously using specific object methods that support it, like sending an email in the background while your code continues to execute.
Parallel Processing Across Applications: You can use VBA to control other instances of Excel or other applications via OLE Automation, effectively allowing those applications to perform tasks in parallel to your main Excel process.
Scheduled Tasks: You can set up scheduled tasks using Windows Task Scheduler that trigger macros or scripts at certain intervals or times.
Use of Add-ins or COM Objects: Some add-ins or COM objects may offer multi-threading capabilities which you can harness from your VBA code.

It is important to note that while these methods can provide a semblance of concurrency, they don’t offer true parallel processing as you would get with a multi-threaded programming language. If your tasks require true parallel execution, you might need to consider using a different programming environment that supports multithreading, such as Python or .NET languages, and possibly interface with Excel from there.

In the context of programming, a module is a file that contains code—such as procedures, functions, and variable declarations—which can be included in and used by programs and scripts. In VBA for Excel, a module serves a specific role in organizing and segregating code for better manageability and reusability. Here’s a bit more detail about modules in VBA:

Standard Modules:

Standard Modules are where you write your VBA procedures (subroutines and functions) that aren’t directly tied to a worksheet or workbook events. These procedures can be called from anywhere within your VBA project.
You can insert a new standard module into your VBA project by right-clicking anywhere in the Project Explorer, selecting Insert, and then choosing Module.
Standard modules are great for storing user-defined functions that need to be accessed from multiple places within your workbook or from other workbooks.
The code in standard modules is typically general-purpose and not associated with specific Excel objects.

Class Modules:

Class Modules are used to define new object classes in VBA. These allow for the creation of custom objects with properties, methods, and events.
You can insert a class module in a similar way to a standard module but choose Class Module instead.
Class modules are a way to encapsulate and control access to data and functionality, following object-oriented programming practices.

Object Modules:

Object Modules are associated with specific Excel objects, like a particular worksheet or the workbook itself. These are not inserted manually; instead, they exist automatically for every sheet and for the workbook.
They contain event procedures—code that runs in response to events such as opening a workbook (Workbook_Open), changing a cell in a worksheet (Worksheet_Change), and so on.

Benefits of Using Modules:

Organization: Modules help you organize your code logically. For instance, you might have a module for all date-related functions, another for string manipulation, and so on.
Reusability: Once you’ve written code in a module, it can be easily reused in other projects.
Maintainability: Having code segregated into modules makes it easier to maintain. You can update the code in one place, and the changes will take effect wherever the module’s procedures are used.
Collaboration: Modules can be exported as separate files and shared between developers, allowing for easier collaboration on different parts of a project.

In summary, modules in VBA serve as containers for your code, allowing for better organization, maintenance, and reuse of your programming efforts within Excel.

In VBA, you can resize an array while preserving its contents using the ReDim Preserve statement. This statement allows you to change the size of the array’s last dimension while keeping all of its existing values intact.

Here’s how you can use ReDim Preserve:

Dim arr() As Integer
ReDim arr(1 To 5) ' Initial array size

' Populate the array with some values
arr(1) = 10
arr(2) = 20
arr(3) = 30
arr(4) = 40
arr(5) = 50

' Resize the array to a larger size while preserving its contents
ReDim Preserve arr(1 To 10)

In this example, we initially declare an array arr without specifying its size. We then use ReDim to initially dimension the array from 1 to 5. After populating the array with values, we use ReDim Preserve to resize the array to have 10 elements instead of 5. The original values in the array will be preserved after resizing.

A few things to note about ReDim Preserve:

You can only change the size of the last dimension of a multi-dimensional array with ReDim Preserve. If you try to change the size of any other dimension, VBA will throw an error.
Using ReDim Preserve can be inefficient with very large arrays or when used repeatedly within a loop because it may require allocating a new array and copying the old data to the new array each time it’s called.
If you ReDim Preserve to a smaller size, the excess elements at the end of the array will be lost.

Because of these limitations, it’s often a good practice to estimate the required size of an array as accurately as possible before you start using it, to minimize the need to use ReDim Preserve.

I have a function that gets two parameters Function MoveCellsDownTimelined(f As Long, isLast As Boolean) but when i try to call it here

If f < FRAMES + 1 Then last_frame = False Else last_frame = True End If

    MoveCellsDownTimelined(f,last_frame)

I get an error saying compile errror Expected: =

In VBA, when you are calling a function and not using its return value, you might inadvertently trigger a compile error if the function call looks like it could be a standalone statement. This is because VBA expects that a function, which returns a value, is being used on the right side of an assignment operator or in some other context where its return value is being utilized.

However, if you are using a function just for its side effects and not for its return value (which is not typical for functions; usually, that’s a job for a subroutine), you should either assign its return value to a variable or explicitly state that you are not interested in the return value. You can do this by using the Call keyword before the function name:

Call MoveCellsDownTimelined(f, last_frame)

Or, you could assign the return value to a variable, even if you don’t intend to use it:

Dim result As WhateverTypeMoveCellsDownTimelinedReturns
result = MoveCellsDownTimelined(f, last_frame)

However, if MoveCellsDownTimelined is meant to be a subroutine (i.e., a procedure that does not return a value), then you should declare it as Sub instead of Function:

Sub MoveCellsDownTimelined(f As Long, isLast As Boolean)
    ' ... your code ...
End Sub

Then you can call it without the Call keyword or assignment:

MoveCellsDownTimelined f, last_frame

Remember, if you’re not using parentheses when calling a Sub, you should also omit the Call keyword. If you use parentheses, you must include the Call keyword. This is specific to VBA and is different from most other programming languages.

The Range.Copy operation in Excel VBA can be relatively slow, especially if you’re working with large ranges or doing many copy-paste operations in a loop. This is because Range.Copy does more than just transfer values—it also copies the formatting, comments, and other cell properties, which can take up additional time and resources.

Additionally, interacting with the worksheet through VBA for individual cell operations can significantly slow down your code due to the overhead of communicating back and forth between VBA and Excel. This is exacerbated if you have screen updating, automatic calculations, or events enabled during the operation.

Here are some tips to speed up copy-paste operations in VBA:

Use Buffering: Instead of copying one cell at a time, copy larger ranges or even the whole set of data at once if possible.
Minimize Interactions: Reduce the number of interactions with the worksheet by performing bulk operations.
Disable Screen Updating: Set Application.ScreenUpdating to False at the beginning of your code to prevent Excel from updating the screen while your macro runs. Remember to set it back to True once your operations are complete.
```
Application.ScreenUpdating = False
' ... your copy-paste operations ...
Application.ScreenUpdating = True
```
Disable Automatic Calculations: If your workbook contains formulas, set Application.Calculation to xlCalculationManual at the start of your macro, and set it back to xlCalculationAutomatic at the end.
```
Application.Calculation = xlCalculationManual
' ... your copy-paste operations ...
Application.Calculation = xlCalculationAutomatic
```
Disable Events: Turn off event handling with Application.EnableEvents to prevent event-triggered code (like worksheet change events) from executing.
```
Application.EnableEvents = False
' ... your copy-paste operations ...
Application.EnableEvents = True
```
Use Array Transfer: For value-only transfers, consider reading the range values into a VBA array, manipulating the array data as needed, and then writing the array back to the range in one operation.
Limit Format Copying: If you only need to copy values, directly assign the values between ranges instead of using the copy method.
```
destinationRange.Value = sourceRange.Value
```

By implementing these practices, you can significantly reduce the execution time of your VBA code that involves range copying.

In VBA for Excel, to check if a range has horizontal borders, you can inspect the .Borders collection of the Range object. The .Borders collection includes various border types, which can be specified by the XlBordersIndex enum. For horizontal borders within a range, you are primarily interested in xlEdgeTop, xlEdgeBottom for the outer borders, and xlInsideHorizontal for borders between rows inside the range.

Here’s how you can check these border types for a specified range:

Sub CheckHorizontalBorders()
    Dim ws As Worksheet
    Set ws = ThisWorkbook.Sheets("Sheet1") ' Change to your actual sheet name

    Dim rng As Range
    Set rng = ws.Range("B2:D4") ' Change to your actual range

    With rng
        ' Check top border of the range
        If .Borders(xlEdgeTop).LineStyle <> xlLineStyleNone Then
            Debug.Print "Top border is present."
        Else
            Debug.Print "No top border."
        End If

        ' Check bottom border of the range
        If .Borders(xlEdgeBottom).LineStyle <> xlLineStyleNone Then
            Debug.Print "Bottom border is present."
        Else
            Debug.Print "No bottom border."
        End If

        ' Check inside horizontal borders
        If .Borders(xlInsideHorizontal).LineStyle <> xlLineStyleNone Then
            Debug.Print "Inside horizontal borders are present."
        Else
            Debug.Print "No inside horizontal borders."
        End If
    End With
End Sub

This script checks for the presence of horizontal borders at the top and bottom edges of the range, as well as any horizontal borders inside the range. It does this by comparing the .LineStyle property of each border type to xlLineStyleNone. If the .LineStyle is not xlLineStyleNone, it means that a border is present.

xlEdgeTop and xlEdgeBottom refer to the top and bottom borders of the entire range.
xlInsideHorizontal refers to borders between rows within the range.

You can run this subroutine to print messages to the Immediate Window in the VBA editor, indicating which types of horizontal borders are present in your specified range.

To store the border information of a cell in a variable in Excel VBA, you can use a custom data type or a class. Since a cell’s border has multiple properties (like style, color, and weight), you might want to encapsulate all these properties within a single variable. Here’s how you can do it using a custom data type (Type…End Type) for simplicity.

First, define a custom type to hold the border information:

Type BorderInfo
    Style As XlLineStyle
    Color As Long
    Weight As XlBorderWeight
End Type

Then, you can write a subroutine or function to populate this type with the border properties of a specified cell. Here’s an example that focuses on the bottom border of a cell, but you can easily extend it to handle other borders by adding more variables or making BorderInfo more complex:

Sub StoreBorderInfo()
    Dim cellBorderInfo As BorderInfo
    With ThisWorkbook.Sheets("Sheet1").Range("A1").Borders(xlEdgeBottom)
        cellBorderInfo.Style = .LineStyle
        cellBorderInfo.Color = .Color
        cellBorderInfo.Weight = .Weight
    End With

    ' Example: Use the stored border information
    Debug.Print "Style: " & cellBorderInfo.Style
    Debug.Print "Color: " & cellBorderInfo.Color
    Debug.Print "Weight: " & cellBorderInfo.Weight
End Sub

In this example, the StoreBorderInfo subroutine stores the bottom border’s style, color, and weight of cell A1 in Sheet1. It then prints this information to the Immediate Window.

If you need to store and use border information for multiple borders (top, bottom, left, right, inside horizontal, inside vertical) of a range, you might create an array of BorderInfo or define additional properties within the BorderInfo type to handle each specific border.

This approach encapsulates the border information neatly and allows for easy storage and retrieval of border properties for a cell or range in VBA.

Yes, you can move a shape down on a spreadsheet using VBA. Each shape in an Excel worksheet is an object that can be manipulated through its properties and methods. To move a shape, you can adjust its Top property, which determines the position of the shape’s top edge from the top of the worksheet. By increasing the Top property value, you effectively move the shape down.

Here’s a simple example that demonstrates how to move a specific shape down by a specified number of points:

Sub MoveShapeDown()
    Dim ws As Worksheet
    Set ws = ActiveSheet ' Use the active sheet, or specify a sheet like ThisWorkbook.Sheets("Sheet1")

    Dim shapeName As String
    shapeName = "MyShape" ' Change this to the name of your shape

    Dim moveDistance As Single
    moveDistance = 20 ' Distance to move the shape down in points

    ' Check if the shape exists
    On Error Resume Next ' In case the shape is not found
    Dim shp As Shape
    Set shp = ws.Shapes(shapeName)
    On Error GoTo 0 ' Turn back on regular error handling

    If Not shp Is Nothing Then
        ' Move the shape down
        shp.Top = shp.Top + moveDistance
    Else
        MsgBox "Shape not found."
    End If
End Sub

How it Works:

Worksheet Object (ws): This is set to the active worksheet, but you can modify it to target a specific worksheet by name.
Shape Name (shapeName): This is the name of the shape you want to move. You can find the name of a shape by selecting it and looking at the Name Box (left of the formula bar) or by checking the “Selection Pane” under the “Format” tab in the ribbon.
Move Distance (moveDistance): This variable specifies how far you want to move the shape down, in points. One point is approximately 1/72 of an inch.
Error Handling: The On Error Resume Next statement is used to avoid an error if the specified shape does not exist. After attempting to set the shp object, error handling is reset with On Error GoTo 0.
Move the Shape: If the shape is found (shp is not Nothing), its Top property is adjusted by adding moveDistance to it, moving the shape down.

Remember to replace "MyShape" with the actual name of the shape you wish to move. You can adjust moveDistance to specify how far down the shape should be moved.

In Excel, you can split a string at a specific character using several methods, depending on whether you prefer to do it directly in a worksheet with formulas, through a VBA macro, or using the built-in “Text to Columns” feature. Here’s how to accomplish this task using these different methods:

1. Using Excel Formulas

If you want to split a string at the first occurrence of a specific character, you can use a combination of the LEFT, FIND, and MID functions. Suppose you want to split the string at the character ”-” and the string is in cell A1:

Extract the part before the character:

=LEFT(A1, FIND("-", A1) - 1)

Extract the part after the character:

=MID(A1, FIND("-", A1) + 1, LEN(A1))

2. Using Text to Columns

Excel’s “Text to Columns” feature can split a string into multiple columns based on a specified delimiter.

Select the cell or column that contains the strings you want to split.
Go to the “Data” tab on the Ribbon.
Click on “Text to Columns.”
Choose “Delimited” and click “Next.”
Check the delimiter that matches the character you want to split by (e.g., Comma, Space, or Other if your character is not listed and then type the character into the box).
Click “Next” and then “Finish.”

3. Using Excel VBA

To split a string at a specific character in VBA, you can use the Split function. This function splits a string into an array of substrings based on a delimiter.

Here’s a VBA example that splits a string at the character ”-” and outputs the results in the Immediate Window (press Ctrl+G in the VBA editor to view it):

Sub SplitString()
    Dim inputString As String
    Dim delimiter As String
    Dim parts() As String

    inputString = "part1-part2" ' Example string
    delimiter = "-" ' Delimiter to split by

    ' Split the string
    parts = Split(inputString, delimiter)

    ' Output the parts to the Immediate Window
    Debug.Print "Part 1: " & parts(0)
    If UBound(parts) > 0 Then Debug.Print "Part 2: " & parts(1)
End Sub

This macro defines an input string and a delimiter. It then uses the Split function to divide the string into parts and prints those parts. The Split function returns an array, where parts(0) is the substring before the delimiter, and parts(1) is the substring after the delimiter. If the string contains multiple occurrences of the delimiter, parts will contain more elements (e.g., parts(2), parts(3), etc.).

Choose the method that best fits your needs, whether you’re working directly in an Excel sheet, prefer a more manual approach like “Text to Columns,” or need the flexibility of VBA.

That’s correct! In the VBA example I provided, the size of the parts array is determined at runtime by the Split function based on the number of substrings generated from splitting the input string. You don’t need to explicitly define the size of the array before using it.

The Split function automatically allocates the array size to fit the number of pieces that result from the split operation. For example, if the input string is "part1-part2-part3" and you’re splitting by the character "-", the Split function will create an array of three elements:

parts(0) ' Contains "part1"
parts(1) ' Contains "part2"
parts(2) ' Contains "part3"

The length of the array parts can then be determined using UBound(parts), which gives you the highest index in the array. Since VBA arrays are zero-based by default, the number of elements in the array is UBound(parts) + 1.

Here’s an extended example that handles a string with an unknown number of parts:

Sub SplitStringAndPrintAllParts()
    Dim inputString As String
    Dim delimiter As String
    Dim parts() As String
    Dim i As Integer

    inputString = "part1-part2-part3" ' Example string with more parts
    delimiter = "-" ' Delimiter to split by

    ' Split the string
    parts = Split(inputString, delimiter)

    ' Loop through the array and print all parts
    For i = 0 To UBound(parts)
        Debug.Print "Part " & i + 1 & ": " & parts(i)
    Next i
End Sub

This example splits the input string into multiple parts and then loops through the array, printing each part to the Immediate Window. This demonstrates how you can work with arrays whose size is determined dynamically at runtime.

Yes, in VBA for Excel, you can insert a new blank cell into a column, pushing all existing cells in that column down. To do this, you’ll use the Insert method on a specific cell or range. When you insert a cell, Excel shifts the existing cells down (or to the right, depending on your settings) to make space for the new cell.

Here’s how you can insert a new blank cell into a column:

Sub InsertBlankCell()
    Dim ws As Worksheet
    Set ws = ThisWorkbook.Sheets("Sheet1") ' Change to your sheet's name

    ' Specify the cell above which you want to insert a new blank cell
    Dim targetCell As Range
    Set targetCell = ws.Range("A2") ' Change to your target cell address

    ' Insert a new blank cell and shift existing cells down
    targetCell.Insert Shift:=xlDown, CopyOrigin:=xlFormatFromLeftOrAbove

    ' Optional: Clear the contents and formats of the new cell if needed
    ' targetCell.ClearContents ' Clears the content of the newly created cell
    ' targetCell.ClearFormats ' Clears the formatting of the newly created cell
End Sub

Here’s what the code does:

Worksheet Object (ws): First, it sets a worksheet object to the target sheet where you want to insert a blank cell.
Target Cell (targetCell): It specifies the cell above which the new blank cell will be inserted. In this example, it’s cell A2 of the worksheet. This means a new blank cell will be inserted at the position of A2, and the original A2 cell (and any below it) will be pushed down.
Insert Method: The Insert method is used with the Shift:=xlDown argument to push existing cells down. The CopyOrigin:=xlFormatFromLeftOrAbove argument is optional and determines how the formatting for the inserted cell is decided (in this case, it will take the format from the cell to the left or above).

Remember, when inserting cells in this manner, Excel’s behavior can be influenced by merged cells or tables in your range, which might cause errors or unexpected behavior. Always test such operations in a controlled environment (like a copy of your data) to ensure it works as expected in your specific context.

In VBA, you can determine the length of an array (i.e., the number of elements it contains) by using the UBound function to get the upper bound of the array. For a one-dimensional array, the length of the array is UBound(array) - LBound(array) + 1, considering that arrays can start at an index other than 0 if they are explicitly defined to do so.

Here’s how you can get the length of a string array:

Dim strArray() As String
'Redimension the array for the example
ReDim strArray(0 To 4)

'Populating the array with values
strArray(0) = "One"
strArray(1) = "Two"
strArray(2) = "Three"
strArray(3) = "Four"
strArray(4) = "Five"

'Calculating the length of the array
Dim arrayLength As Integer
arrayLength = UBound(strArray) - LBound(strArray) + 1

'Printing the length of the array
Debug.Print "The length of the array is: " & arrayLength

This example defines a string array strArray, resizes it to hold 5 elements, populates it with strings, and then calculates and prints the length of the array. The calculation uses UBound(strArray) to get the highest index and LBound(strArray) to get the lowest index of the array. For most arrays starting at index 0, this effectively gives you the count of elements in the array.

Keep in mind, if you’re working with multi-dimensional arrays, you’ll need to specify the dimension you’re interested in as a second argument to UBound and LBound. For example, for a two-dimensional array, UBound(strArray, 1) gives you the upper bound of the first dimension, and UBound(strArray, 2) gives you the upper bound of the second dimension.

If your array comes from splitting a string with the Split function, as in your example with rangeSegments = Split(range_text, ":"), the resulting array will be zero-based unless otherwise specified in your VBA project’s options. This means the first element of the array will have an index of 0.

Given that Split creates a one-dimensional array, you can determine the length (number of segments) of this array by using the UBound function, as previously mentioned. Since the array is zero-based by default, to get the number of elements in the array, you would add 1 to the UBound result.

For the specific example rangeSegments = Split(range_text, ":"), where range_text is a string you’re splitting into segments based on the colon character ":", you can get the length of the rangeSegments array like this:

Dim rangeSegments() As String
Dim range_text As String
range_text = "A1:B2" ' Example string to split

' Splitting the string into an array
rangeSegments = Split(range_text, ":")

' Getting the length of the array
Dim arrayLength As Integer
arrayLength = UBound(rangeSegments) - LBound(rangeSegments) + 1

' Displaying the length of the array
Debug.Print "Number of segments: " & arrayLength

In this example, if range_text is "A1:B2", splitting it by ":" results in an array where rangeSegments(0) will be "A1" and rangeSegments(1) will be "B2". Thus, UBound(rangeSegments) returns 1 (the highest index), and since the array is zero-based, the length of the array is 1 - 0 + 1 = 2. This means there are two segments in the rangeSegments array.

This approach works regardless of the character you’re using to split the string and can be used to determine the size of any array resulting from a Split operation.

Yes, when you insert a cell into a column in Excel, it will push everything below that cell down by one row. This behavior allows you to insert new data into a column without overwriting existing data. The cells below the insertion point are shifted downward, making room for the new cell.

Here’s a simple example to clarify this behavior:

Imagine you have data in cells A1 to A5.
If you insert a new cell at position A3, the original contents of A3 will be moved to A4, A4 to A5, and A5 to A6.
The new cell will now be at A3, ready for you to input data, and it will be blank initially unless you specify otherwise during the insertion process.

In VBA, you can insert a cell using the .Insert method. Here’s how you might do it:

Sub InsertCell()
    Dim ws As Worksheet
    Set ws = ActiveSheet ' Or specify a sheet like ThisWorkbook.Sheets("Sheet1")

    ' Specify the cell at which you want to insert a new cell
    Dim insertAt As Range
    Set insertAt = ws.Range("A3")

    ' Insert a new cell at the specified position, shifting cells below down
    insertAt.Insert Shift:=xlDown, CopyOrigin:=xlFormatFromLeftOrAbove
End Sub

This script inserts a new cell at position A3 in the active worksheet (or a specified sheet), moving the existing cells at A3 and below down by one row. The CopyOrigin parameter specifies how Excel should determine the formatting for the new cell, in this case, taking the format from the cell above or to the left.

Remember, inserting cells in this manner can affect formulas, references, and the structure of your worksheet, so it’s wise to ensure that the insertion won’t inadvertently disrupt your data organization or calculations.

When you use insertAt.Insert Shift:=xlDown to insert a new cell at a specific location in Excel via VBA, and then immediately clear the formats of insertAt using insertAt.ClearFormats, you’re observing that the original formats of the cell at insertAt (before it was pushed down) are lost. This happens because of the sequence of operations and how Excel handles the insertion and formatting of cells.

Here’s the sequence of what’s happening:

Insert a New Cell: The cell at insertAt (let’s say A3) and all cells below it are pushed down by one row. The new cell inserted at insertAt inherits the format of the cell that was originally at that position (now pushed to A4).
Clear Formats of insertAt: When you clear the formats of insertAt after insertion, you are clearing the formats of the new cell at A3. However, since the original cell (previously at A3, now at A4) was pushed down, it appears as though its formats are lost. What actually happens is the new cell at A3 takes the format of the original A3, and then you clear this format.

The cell that was originally in A3 and is now in A4 does not have its format cleared by the insertAt.ClearFormats command; instead, it loses its original formatting because the new cell inserted at A3 initially takes on the old A3’s formatting before you clear it.

To preserve the formatting of the cell that gets pushed down (from A3 to A4 in this example), you should not clear formats of insertAt immediately after insertion. If your intention is to clear formats of the newly inserted cell only, the sequence you’ve followed does correctly apply to the new cell at A3, but it’s important to understand that the original A3 cell’s formatting is being applied to the new cell at A3 before you clear it, which might not be the behavior you expected.

If you need to preserve the format of the cell that is being pushed down (now in A4) and apply specific formatting to the new cell at A3, you should adjust the formatting explicitly after the insertion, something like this:

Sub InsertAndFormatCell()
    Dim ws As Worksheet
    Set ws = ActiveSheet ' Or specify your sheet
    Dim insertAt As Range
    Set insertAt = ws.Range("A3")

    ' Insert a new cell, pushing existing ones down
    insertAt.Insert Shift:=xlDown, CopyOrigin:=xlFormatFromLeftOrAbove

    ' Now, explicitly set the format of the new cell at A3 as needed
    insertAt.ClearFormats ' Clear formats if you really need to, but consider setting specific formats instead
    ' insertAt.NumberFormat = "General" ' Example of setting a specific format
    ' insertAt.Interior.Color = RGB(255, 255, 255) ' Example of setting background color
End Sub

This approach gives you full control over the formatting of both the new cell and the cells that are being pushed down.

Not necessarily. When you insert a new cell (or row, or column) in Excel via VBA and shift existing cells down (or right), Excel automatically shifts the contents and formats of the displaced cells. This means that the cell content and format that was originally in A3 will automatically be in A4 after the insertion, including its format. However, the new cell inserted at A3 will often inherit the format of the cell that was previously at A3.

If you want to insert a new cell at A3 and clear its formats without affecting the formatting of the cell that gets pushed to A4 (since the formatting of the cell that was at A3 is preserved when it’s pushed down to A4), you should only clear or modify the formats of the new cell at A3 after the insertion. The cell that gets pushed down (to A4 in this case) retains its original formatting automatically, so there’s no need for you to manually reapply its previous formats.

Here’s the clarified approach:

Insert a new cell at A3, which pushes the original A3 cell down to A4. The cell now at A4 retains its original content and formatting.
Clear or modify formats of the new cell at A3 as desired. This action does not affect the formatting of the cell now at A4, which retains its original formats as it was pushed down.

Here’s how the code looks:

Sub InsertCellAndClearFormats()
    Dim ws As Worksheet
    Set ws = ActiveSheet ' Or specify your sheet

    Dim insertAt As Range
    Set insertAt = ws.Range("A3")

    ' Insert a new cell at A3, shifting the original A3 cell (and those below it) down
    insertAt.Insert Shift:=xlDown, CopyOrigin:=xlFormatFromLeftOrAbove

    ' Clear formats of the new cell at A3 without affecting the cell now at A4
    insertAt.ClearFormats
    ' If needed, apply specific formatting to the new cell at A3 here
End Sub

By following this approach, you insert a new cell at A3, the cell originally at A3 is pushed to A4 with its content and formatting intact, and then you clear (or adjust) the formats of the newly inserted cell at A3. There’s no need for manual reassignment of formats for the cell that gets pushed down.

Yes, you’ve made a crucial observation regarding the CopyOrigin:=xlFormatFromLeftOrAbove argument in the .Insert method. When you use this argument, Excel determines the formatting for the newly inserted cell based on the cell directly above it (or to the left, in case of inserting columns). If the cell above is plain (with default or no specific formatting), then the new cell will inherit that plain format, and you indeed won’t need to clear the formats of the newly inserted cell at all.

To elaborate on your situation:

Inserting the Cell: When you insert a new cell into a worksheet using the .Insert Shift:=xlDown, CopyOrigin:=xlFormatFromLeftOrAbove method, Excel shifts the existing cell(s) downward and inserts a new cell at the specified location. The CopyOrigin:=xlFormatFromLeftOrAbove part dictates that the formatting for this new cell should be copied from the cell immediately above it (or from the left, if inserting a column). If the cell above has no special formatting, the inserted cell will also have no special formatting applied.
Effect on the Format of the Shifted Cell: The cell that gets pushed down (from A3 to A4 in your case) retains its original content and format. If you are experiencing the format at A4 (previously A3) being lost, it should not be due to the .ClearFormats applied to the newly inserted cell at A3, assuming that .ClearFormats is being applied correctly only to the new cell. The behavior you described might need a closer look to diagnose—perhaps there’s another operation affecting A4, or there may have been a misunderstanding of how .ClearFormats is being applied.
No Need to Clear Formats: If your goal was to insert a new cell with plain formatting, and the cell above the insertion point is also plain, then using CopyOrigin:=xlFormatFromLeftOrAbove suffices for your need, and you do not need to clear the formats afterward.

Given your insights, if the cell above the insertion point is indeed plain, the inserted cell should automatically have the desired plain formatting without any additional steps to clear it. This makes the process more straightforward for your specific use case.

Setting a cell’s formatting to match the default Excel formatting (as seen in a new worksheet) can be achieved by clearing all custom formatting from the cell, returning it to its default state. However, it’s important to note that Excel’s default formatting for a new sheet typically includes:

The default font (usually Calibri 11-point for newer versions of Excel).
No fill (background color).
General number format.
No specific text alignment (although it defaults to bottom-aligned for numbers and bottom-left for text).
No borders.

To programmatically reset a cell’s formatting to these defaults in VBA, you would use a combination of methods and properties to clear any custom formatting and apply the default settings. Here’s how you can do it:

Sub ResetCellToDefaultFormatting()
    Dim ws As Worksheet
    Set ws = ThisWorkbook.Sheets("Sheet1") ' Specify your worksheet

    With ws.Range("A1") ' Specify your target cell
        ' Clear formats and styles
        .ClearFormats
        .ClearComments
        .Style = "Normal" ' Reset to the Normal style, which is the default Excel style

        ' Apply default font settings (assuming Calibri 11-point, which is the usual default)
        .Font.Name = "Calibri"
        .Font.Size = 11
        .Font.Bold = False
        .Font.Italic = False
        .Font.Underline = xlUnderlineStyleNone
        .Font.Strikethrough = False

        ' Reset number format
        .NumberFormat = "General"

        ' Reset alignment
        .HorizontalAlignment = xlGeneral
        .VerticalAlignment = xlBottom

        ' Reset fill
        .Interior.ColorIndex = xlNone

        ' Reset borders
        .Borders.LineStyle = xlNone
    End With
End Sub

This VBA script clears the formats and comments for the target cell, resets it to the “Normal” style, and then explicitly sets properties to reflect the default formatting typically seen in new Excel sheets. Note that the “Normal” style’s default settings might vary based on Excel’s version and user modifications. Therefore, explicitly setting each property ensures the cell matches the standard default formatting.

Keep in mind that default font size and type might vary depending on the Excel version and user or system settings. Adjust the .Font.Name and .Font.Size properties as needed to match your Excel’s default settings.

To make the text in a cell display vertically through VBA, you can use the .Orientation property of the Range object. Setting this property to specific values allows you to control the text orientation within the cells. For vertical text, where the letters are stacked top-to-bottom but not rotated, you would typically set the .Orientation to 90 or -90 degrees for a simple vertical orientation. However, for “vertical text” in the sense that Excel allows text to appear with each character in a single column (often used in East Asian text layouts), you’d use the .Orientation property differently, or more specifically, you might need to adjust the .VerticalAlignment or use the .TextOrientation property depending on your version of Excel and what exactly you mean by “vertical text.”

Here’s a basic example to set the text orientation to vertical (characters are top-to-bottom but not rotated):

Sub SetVerticalText()
    Dim ws As Worksheet
    Set ws = ThisWorkbook.Sheets("Sheet1") ' Specify your worksheet name

    With ws.Range("A1") ' Target cell
        ' Set text orientation
        .Orientation = 90
    End With
End Sub

If you’re looking to achieve the effect where text is written vertically (used commonly in East Asian languages), Excel’s GUI refers to this as “Vertical Text” in the format cells dialog under alignment. However, controlling this specific setting directly through VBA isn’t as straightforward as setting the .Orientation property because it involves changing the text direction to vertical.

For the closest approximation to “Vertical Text” formatting through VBA, adjusting the .Orientation as shown above is typically how you manipulate text direction. If Excel’s VBA supports a more direct approach to the specific “Vertical Text” format seen in the UI, it’s not widely documented or may depend on newer Excel features beyond my last update.

Always remember to test VBA scripts on a small portion of your data or a separate workbook to ensure it meets your needs before applying it broadly, as undoing VBA changes can be more complicated than manual changes.

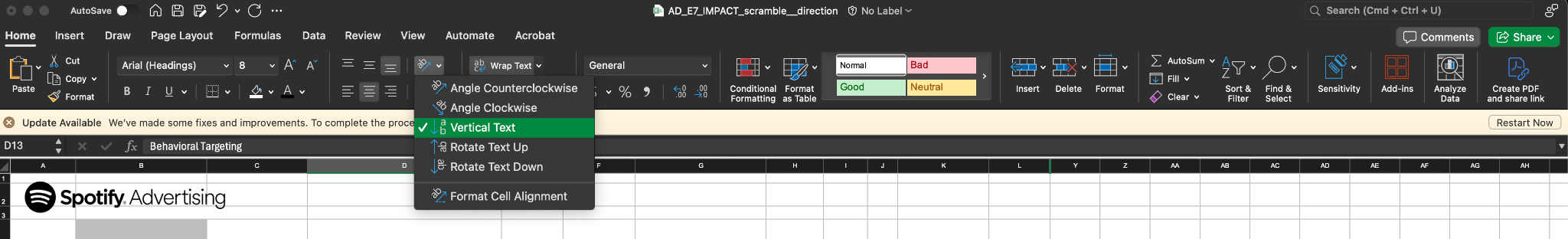

The feature shown in the image is the “Vertical Text” orientation option from Excel’s alignment settings. This option stacks the text vertically, and is often used for column headers.

To apply both vertical text orientation and center alignment to a cell via VBA, you can set the Orientation property of the cell to xlVertical for vertical text. Additionally, you can use HorizontalAlignment and VerticalAlignment to center the text horizontally and vertically within the cell. Here’s how you do it:

Sub SetVerticalAndCenterText()
    Dim ws As Worksheet
    Set ws = ThisWorkbook.Sheets("Sheet1") ' Specify your worksheet name

    With ws.Range("A1") ' Target cell
        ' Set text orientation to vertical
        .Orientation = xlVertical

        ' Center the text in the cell
        .HorizontalAlignment = xlCenter
        .VerticalAlignment = xlCenter
    End With
End Sub

The above VBA code sets the text in cell A1 of “Sheet1” to be vertical and centers it within the cell. If you have multiple cells to apply this formatting to, you can extend the range accordingly, like ws.Range("A1:A10").

Keep in mind that vertical text orientation may look different depending on the version of Excel and the width and height of the cell, so you might want to adjust the cell dimensions for the best visual result.

In Excel VBA, if you want the text to be horizontal (which is the default orientation), you should set the .Orientation property of the cell to 0 (zero). There’s no constant like xlHorizontal for setting text orientation; instead, you use numerical values to specify the degrees of rotation. A value of 0 degrees corresponds to the standard horizontal text orientation.

Here’s how you could modify the cell to have horizontal text orientation and center the text:

Sub SetHorizontalAndCenterText()
    Dim ws As Worksheet
    Set ws = ThisWorkbook.Sheets("Sheet1") ' Specify your worksheet name

    With ws.Range("A1") ' Target cell
        ' Set text orientation to horizontal
        .Orientation = 0

        ' Center the text in the cell
        .HorizontalAlignment = xlCenter
        .VerticalAlignment = xlCenter
    End With
End Sub

Setting .Orientation to 0 degrees will ensure the text is fully horizontal, which is the normal reading orientation. Combined with the HorizontalAlignment and VerticalAlignment properties set to xlCenter, the text will be centered within the cell both horizontally and vertically.

To ensure that the text in a cell is wrapped, you can set the WrapText property of the Range object to True in your VBA code. When WrapText is set to True, text will wrap within the cell at the end of the cell’s width, allowing for multiple lines of text within the same cell.

Here’s how you can modify the subroutine to set text wrapping in addition to centering the text:

Sub SetWrapAndCenterText()
    Dim ws As Worksheet
    Set ws = ThisWorkbook.Sheets("Sheet1") ' Specify your worksheet name

    With ws.Range("A1") ' Target cell
        ' Set text orientation to horizontal (0 degrees)
        .Orientation = 0

        ' Center the text in the cell
        .HorizontalAlignment = xlCenter
        .VerticalAlignment = xlCenter

        ' Enable text wrapping
        .WrapText = True
    End With
End Sub

This code will apply horizontal orientation, center alignment, and text wrapping to cell A1. If the cell content exceeds the width of the cell, it will automatically wrap to the next line within the cell. Remember to adjust the height of the cell as needed to display all wrapped text.

To set a cell’s fill to “no fill” in VBA, you can modify the Interior.ColorIndex property of the cell and set it to xlNone. This will remove any fill color from the cell, effectively making it transparent or filled with no color, which is the default state for cells in Excel.

Here’s an example of how you can do this:

Sub SetNoFill()
    Dim ws As Worksheet
    Set ws = ThisWorkbook.Sheets("Sheet1") ' Specify your worksheet name

    With ws.Range("A1") ' Target cell
        ' Set the fill to no fill
        .Interior.ColorIndex = xlNone
    End With
End Sub

When you run this subroutine, it will remove any fill from cell A1 in “Sheet1”, resetting it to the default no fill state. If you want to apply this to a range of cells, you can simply expand the range in the .Range method, like ws.Range("A1:C3").

You can set the row height of a specific row in VBA by accessing the Height property of the Rows object within the Worksheet object. Here’s an example of how to set the row height for row 3 to 25 points:

Sub SetRowHeight()
    Dim ws As Worksheet
    Set ws = ThisWorkbook.Sheets("Sheet1") ' Change to your actual sheet name

    ' Set the height of row 3 to 25 points
    ws.Rows(3).RowHeight = 25
End Sub

When you run this subroutine, it will change the height of the third row in “Sheet1” to 25 points. You can modify the row number and the height value as needed for your specific requirements. If you have AutoFit functionality in mind, you can use .AutoFit instead of setting a specific height:

Sub AutoFitRowHeight()
    Dim ws As Worksheet
    Set ws = ThisWorkbook.Sheets("Sheet1") ' Change to your actual sheet name

    ' AutoFit the height of row 3
    ws.Rows(3).AutoFit
End Sub

The AutoFit method adjusts the row height to fit the contents of the tallest cell in the row.

In VBA, a variable declared as a Worksheet object can be reassigned to another worksheet. Here’s an example of how this works:

Dim ws As Worksheet

' Set ws to the first worksheet
Set ws = ThisWorkbook.Sheets(1)
' Do something with ws

' Later, reassign ws to point to another worksheet
Set ws = ThisWorkbook.Sheets("AnotherSheetName")
' Now ws refers to the other worksheet

In this code snippet, ws is initially set to reference the first worksheet in the workbook. Later, ws is reassigned to reference another worksheet by its name.

Keep in mind that when you reassign ws, it no longer holds a reference to the first worksheet and any operations you perform on ws after reassignment will affect the newly assigned worksheet. If you want to keep a reference to the first worksheet for later use, you should use another variable to hold that reference.

In VBA, you can get the position of a shape on a spreadsheet using the Top and Left properties of the Shape object. These properties give you the position of the shape relative to the top-left corner of the worksheet.

Here’s how you can retrieve the position of a shape named “MyShape” on “Sheet1”:

Sub GetShapePosition()
    Dim ws As Worksheet
    Set ws = ThisWorkbook.Sheets("Sheet1") ' Change to your actual sheet name

    Dim shp As Shape
    Set shp = ws.Shapes("MyShape") ' Change to your actual shape name

    Dim shapeTop As Single
    Dim shapeLeft As Single

    shapeTop = shp.Top
    shapeLeft = shp.Left

    ' Print the position to the Immediate Window (Ctrl+G in the VBA editor to view it)
    Debug.Print "Shape Top: " & shapeTop
    Debug.Print "Shape Left: " & shapeLeft
End Sub

When you run this subroutine, it will print the top and left position of the shape to the Immediate Window in the VBA editor. The Top property represents the distance from the top of the worksheet to the top of the shape, and the Left property represents the distance from the left side of the worksheet to the left side of the shape. The units for these properties are points, where 1 point is 1/72 of an inch.

Yes, you can use the Top and Left property values to place a copy of a shape at the same position on another sheet. First, you would copy the shape, then you can set the Top and Left properties of the newly pasted shape to match the original.

Here’s how you could do it:

Sub CopyShapeToSamePositionOnAnother

Yes, you can declare a global array in VBA that is accessible to all procedures in the module. This array can be filled under specific conditions in a function or subroutine, and its values will persist throughout the session of the Excel application until it is closed, or until the array is explicitly cleared or reset.

Here’s how to declare a global array and use it across different procedures:

Declare the array at the top of a module, before any procedures, using the Global or Public keyword. This makes the array accessible to all procedures in all modules within the VBA project.

Global myGlobalArray() As Variant ' or use Public

Fill the array under specific conditions within a function or subroutine.

Sub FillGlobalArrayIfConditionIsMet()
    If SomeCondition Then ' Replace SomeCondition with your actual condition
        ' Redimension the global array with the ReDim statement
        ReDim myGlobalArray(1 To 5) ' Example size

        ' Fill the array with values
        myGlobalArray(1) = "Value 1"
        ' ... fill other elements ...
        myGlobalArray(5) = "Value 5"
    End If
End Sub

Access or modify the array in another procedure.

Sub UseGlobalArray()
    ' Check if the array has been initialized
    If Not IsEmpty(myGlobalArray) Then
        ' Use the array as needed
        ' For example, print the first element
        Debug.Print myGlobalArray(1)
    End If
End Sub

Remember to check if the array has been initialized before trying to access its elements, as attempting to access an element of an uninitialized array will cause a runtime error. The IsEmpty function only works to check if a Variant is uninitialized; it won’t work on an array. Instead, you may want to use a separate Boolean flag to track whether the array has been filled.

Additionally, note that ReDim will erase any existing data in the array unless you use ReDim Preserve. However, ReDim Preserve can only resize the last dimension of the array, and it can have performance implications if used repeatedly or with large arrays.

In the context of VBA, filling an array with values, as shown in the example where you use ReDim to specify the array size and then assign values to its elements, does indeed count as initialization. Initialization, in this case, refers to the process of defining the array’s size (dimensioning it) and optionally setting its initial values.

Here’s the critical distinction:

Declaration: You declare an array to specify its type and name, but at this stage, it doesn’t have a defined size, nor does it contain any data. For global arrays declared at the module level using Global or Public, this happens outside any procedures.
```
Global myGlobalArray() As Variant
```
Initialization: This involves setting up the array’s dimensions (its size) using ReDim and optionally filling it with data. This step “initializes” the array, making it ready for use.
```
ReDim myGlobalArray(1 To 5)
myGlobalArray(1) = "Value 1"
...
myGlobalArray(5) = "Value 5"
```

When you use ReDim on the global array within a function or subroutine and assign values to it, you’re both initializing and filling the array: you’re giving it a specific size and populating it with data.

Remember, once an array is initialized and filled, its contents will persist until the array is either cleared (using Erase), resized (with ReDim), or until the Excel session ends. If you need to check if the array has been initialized before using it, since VBA arrays don’t have a built-in method to check their initialization status directly, you often manage this with additional logic, such as tracking initialization with a separate variable or handling errors that occur when accessing an uninitialized array.

The act of filling the array with values indeed counts as part of its initialization, as it’s at this point the array is actually being prepared for use.

Well here is my situation I am declaring three arrays

Public E7_tail_cells() As String Public E7_unique_cells() As String Public E7_tail_colors() As Long

and then within a function that takes f as a Long parameter I have this

If f = 2 Then ReDim Preserve E7_tail_cells(1 To E7_tail_length) As String ReDim Preserve E7_unique_cells(1 To E7_tail_length) As String ReDim Preserve E7_tail_colors(1 To E7_tail_length) As Long

    For i = 1 To E7_tail_length
        color = cw.Range("I" & i + 1).Interior.color
        E7_tail_colors(i) = cw.Range("I" & i + 1).Interior.color
    Next i
    Debug.Print ("tail " & UBound(E7_tail_colors) - LBound(E7_tail_colors) + 1)
    E7_prev_type = 0
End If

Debug.Print ("tail !!!! " & UBound(E7_tail_colors) - LBound(E7_tail_colors) + 1)

however when I try to print the length of the E7_tail_colors for example I am getting an index out of range

What is happening? f=2 is the first f value I am getting so it is the very first time my array gets activated

Based on the situation you described, it seems like you’re encountering a “Subscript out of range” error when trying to print the length of the E7_tail_colors array. This error typically occurs when an array has not been properly initialized or resized before you attempt to access its elements or properties, such as using UBound and LBound.

In your case, there are a few potential issues to consider:

1. First Use of `ReDim Preserve` on Uninitialized Arrays

Using ReDim Preserve on an array that has not yet been initialized (i.e., has not been previously dimensioned with ReDim) can lead to issues. Normally, you would first ReDim an array without Preserve to establish its initial size. However, since you’re directly using ReDim Preserve within the If f = 2 Then condition, ensure that E7_tail_length is appropriately defined and greater than 0 at this point. If E7_tail_length has not been set to a positive value before this code runs, it would not correctly dimension the arrays.

2. Conditional Initialization and Scope

If the block of code inside If f = 2 Then hasn’t executed (even though you mentioned f=2 is the first value you’re getting), for any reason, the arrays wouldn’t be initialized when you try to access their bounds. This doesn’t seem to be the issue since you expect f=2 to run first, but it’s worth double-checking the logic and flow leading up to this point, ensuring that f indeed equals 2 when you think it does, and that E7_tail_length is correctly set.

Suggested Fix:

Make sure E7_tail_length is initialized to a valid positive number before you use it to dimension the arrays.
Since you’re using Public declarations, these arrays are available module-wide. Ensure the first operation on them is when f=2.

Additionally, here’s a slightly modified approach to ensure E7_tail_length is considered:

Public E7_tail_cells() As String
Public E7_unique_cells() As String
Public E7_tail_colors() As Long

Function YourFunctionName(f As Long)
    If f = 2 Then
        ' Assume E7_tail_length is properly initialized and > 0 here.
        ' First dimension without Preserve to initialize
        ReDim E7_tail_cells(1 To E7_tail_length)
        ReDim E7_unique_cells(1 To E7_tail_length)
        ReDim E7_tail_colors(1 To E7_tail_length)

        Dim i As Long
        For i = 1 To E7_tail_length
            ' Assuming cw is a properly defined and accessible Worksheet object
            E7_tail_colors(i) = cw.Range("I" & i + 1).Interior.Color
        Next i
        Debug.Print "tail " & UBound(E7_tail_colors) - LBound(E7_tail_colors) + 1
        ' E7_prev_type = 0 ' Assuming this is properly declared elsewhere
    End If

    ' This print statement needs to be inside the condition where arrays are initialized
    ' or after ensuring the arrays have been initialized.
    ' Debug.Print "tail !!!! " & UBound(E7_tail_colors) - LBound(E7_tail_colors) + 1
End Function

Remember to ensure E7_tail_length is set to a meaningful value before this function runs. If this function is meant to initialize these arrays only when f=2, subsequent calls or logic must account for whether the arrays have been initialized. The debugging print statements related to the array’s bounds should be logically placed where you’re certain the arrays have been initialized to avoid the “Subscript out of range” error.

Can you help me understand why this bit of code has error?

I have defined a class named E7_Player which has a subroutine:

Public Sub Init_E7(path_id As Long, blink_id As Long, emotion_id As Long, bump_id As Long, tail_length As Long) ’ === initialize tail related arrays === E7_tail_length = tail_length ReDim E7_tail_cells(1 To E7_tail_length) As String ReDim E7_unique_cells(1 To E7_tail_length) As String ReDim E7_tail_colors(1 To E7_tail_length) As Long

For i = 1 To E7_tail_length
    color = cw.Range("I" & i + 1).Interior.color
    E7_tail_colors(i) = cw.Range("I" & i + 1).Interior.color
Next i

 ' ------ ASSIGN MAIN VARIABLES ------------------
Set tw = ThisWorkbook.Sheets("M_Timeline")
Set ew = ThisWorkbook.Sheets("E7_Animation")
Set cw = ThisWorkbook.Sheets("E7_Schedule")

' ------ READ/ASSIGN TIMELINED VALUES ------------------
tE7 = path_id
bE7 = blink_id
eE7 = emotion_id
sE7 = bump_id

' ------ READ/ASSIGN E7 VALUES -------------------------
E7_color = RGB(0, 255, 0)
E7_tail_length = 7

scrambled_range = "B6:K28"
E7_prev_type = 0

End Sub

but when i try to call the subroutine I am getting the error: Object variable or with block variable not set

here is how I call it Dim e7 As New E7_Player Call e7.Init_E7(6, 7, 8, 9, 7)

what is the issue?

The error message “Object variable or With block variable not set” in your case likely points to an issue with an object variable that hasn’t been initialized before it’s being accessed. Based on your code snippet, the most probable cause is the use of the cw worksheet object variable before it has been set to reference the “E7_Schedule” worksheet.

In the Init_E7 subroutine, you attempt to access cw to set colors in the E7_tail_colors array:

For i = 1 To E7_tail_length
    color = cw.Range("I" & i + 1).Interior.color
    E7_tail_colors(i) = cw.Range("I" & i + 1).Interior.color
Next i

However, the actual initialization of cw (along with tw and ew) occurs later in the subroutine:

Set tw = ThisWorkbook.Sheets("M_Timeline")
Set ew = ThisWorkbook.Sheets("E7_Animation")
Set cw = ThisWorkbook.Sheets("E7_Schedule")

To resolve this issue, you should move the initialization of cw (and potentially tw and ew if they are used similarly before being set) to the beginning of your subroutine, before any access or reference to these worksheet object variables:

Public Sub Init_E7(path_id As Long, blink_id As Long, emotion_id As Long, bump_id As Long, tail_length As Long)
    ' Set worksheet references first
    Set tw = ThisWorkbook.Sheets("M_Timeline")
    Set ew = ThisWorkbook.Sheets("E7_Animation")
    Set cw = ThisWorkbook.Sheets("E7_Schedule")

    ' === Initialize tail related arrays ===
    E7_tail_length = tail_length
    ReDim E7_tail_cells(1 To E7_tail_length) As String
    ReDim E7_unique_cells(1 To E7_tail_length) As String
    ReDim E7_tail_colors(1 To E7_tail_length) As Long

    ' Now it's safe to use cw
    For i = 1 To E7_tail_length
        E7_tail_colors(i) = cw.Range("I" & i + 1).Interior.color
    Next i

    ' Continue with the rest of your subroutine
    ...
End Sub

By ensuring cw is set to the appropriate worksheet before it’s used, the “Object variable or With block variable not set” error should be resolved. This adjustment ensures all object variables are initialized and ready for use before you attempt to access their properties or methods.

To set the active sheet in Excel through VBA, you can use the Worksheet.Activate method. This method brings the specified worksheet into focus within the Excel application. Here’s how you can do it:

Sub ActivateSheet()
    Dim ws As Worksheet
    Set ws = ThisWorkbook.Sheets("SheetName") ' Replace "SheetName" with the actual name of your sheet
    ws.Activate
End Sub

When this subroutine is run, it sets the worksheet named “SheetName” as the active sheet. Make sure to replace "SheetName" with the actual name of the worksheet you want to activate.

If you know the name of the sheet or its index number directly, you can also activate it without first assigning it to a Worksheet variable:

Sub ActivateSheetDirectly()
    ' Using the sheet name
    ThisWorkbook.Sheets("SheetName").Activate

    ' Or using the sheet index
    ' ThisWorkbook.Sheets(1).Activate
End Sub

This approach is straightforward and effective for focusing on a specific worksheet through VBA.

Keep in mind, however, that changing the active sheet with VBA can disrupt the user if the macro is run while they are working on a different sheet. Use this functionality thoughtfully to ensure a smooth user experience.
