Excel Cell Fill Color

2023-12-11 15:12 UTC text-davinci-002-render-sha Open in ChatGPT ↗

In Excel, the fill color of a cell is not stored as a typical value like numbers or text. Instead, it is part of the cell’s formatting properties. Excel stores formatting information, including fill color, separately from the cell’s value. This formatting information is part of the overall layout and design settings of a spreadsheet and is managed by Excel’s styling and formatting system.

If you need to work with the fill color of a cell programmatically, such as in VBA (Visual Basic for Applications) or other automation scripts, you would access it through the properties of the cell object, specifically through the Interior.Color or Interior.ColorIndex properties in VBA. However, it’s important to note that this color information is not stored as a conventional value like the text or numeric content of a cell.

To extract the fill color of a cell in Excel using VBA (Visual Basic for Applications), you can use the Interior.Color property of a cell object. This property will give you the color of the cell as a Long integer value representing an RGB color.

Here is a basic example of how you can use VBA to get the fill color of a specific cell:

Sub GetCellFillColor()
    Dim ws As Worksheet
    Dim targetCell As Range
    Dim fillColor As Long

    ' Set the worksheet - change "Sheet1" to your sheet's name
    Set ws = ThisWorkbook.Sheets("Sheet1")

    ' Set the target cell - change "A1" to your target cell's address
    Set targetCell = ws.Range("A1")

    ' Get the fill color
    fillColor = targetCell.Interior.Color

    ' Output the color to Immediate Window (Ctrl + G to view)
    Debug.Print "The fill color of the cell is: " & fillColor
End Sub

This script will output the fill color of cell A1 in the “Immediate Window” in the VBA editor. The color is represented as a Long integer. If you want to convert this number into RGB values, you can use the RGB function in reverse:

Dim red As Integer
Dim green As Integer
Dim blue As Integer

red = fillColor Mod 256
green = (fillColor \ 256) Mod 256
blue = (fillColor \ 65536) Mod 256

Debug.Print "Red: " & red & ", Green: " & green & ", Blue: " & blue

This will give you the red, green, and blue components of the color. Remember that if the cell has no fill color (i.e., it’s transparent), the Interior.Color property might return a value that represents no color, or you might need to check the Interior.ColorIndex property, which will be -4142 in the case of no fill.

Extracting the fill color of a cell that is applied through conditional formatting in Excel using VBA is a bit more complex because the color set by conditional formatting is not directly accessible through the regular cell properties like Interior.Color. However, you can use a workaround to determine the color applied by conditional formatting.

Here’s a general approach:

Identify the Conditional Formatting Rules: First, you need to access the conditional formatting rules applied to the cell.
Evaluate the Conditions: Then, determine if the conditions of these rules are met for the specific cell.
Extract the Color from the Rule: If a condition is met, extract the color specified in that conditional formatting rule.

Here’s an example VBA script to demonstrate this process:

Sub GetConditionalFormatColor()
    Dim ws As Worksheet
    Dim targetCell As Range
    Dim cfRule As FormatCondition
    Dim evaluated As Boolean

    ' Set the worksheet - change "Sheet1" to your sheet's name
    Set ws = ThisWorkbook.Sheets("Sheet1")

    ' Set the target cell - change "A1" to your target cell's address
    Set targetCell = ws.Range("A1")

    ' Check if there are any conditional formats in the cell
    If targetCell.FormatConditions.Count > 0 Then
        For Each cfRule In targetCell.FormatConditions
            ' Evaluate the condition - this is a simplified check
            ' More complex conditions might need additional logic
            evaluated = Application.Evaluate(cfRule.Formula1)
            If evaluated Then
                ' Output the fill color to Immediate Window
                Debug.Print "Fill color from conditional formatting is: " & cfRule.Interior.Color
                Exit For ' Exit the loop if you just want the first applicable rule
            End If
        Next cfRule
    Else
        Debug.Print "No conditional formatting in the cell"
    End If
End Sub

This script will check the conditional formatting rules of a specific cell and print the fill color of the first rule that is applied. Please note the following:

Complex Conditions: This script may not work with all types of conditional formatting conditions, especially complex ones. You might need to adapt the logic to evaluate different types of conditions.
Multiple Rules: If a cell has multiple conditional formatting rules, this script will only consider the first applicable one. You might need to modify it if you want to handle multiple rules.
Performance: Be aware that using Application.Evaluate on complex conditional formulas might impact performance, especially if done for many cells.

Remember to adjust the worksheet and cell references to match your specific Excel workbook.

If you want to extract just the first conditional formatting rule from a cell without iterating through all the rules with a For Each loop, you can directly access the first item in the FormatConditions collection. In VBA, collections are generally 1-based, so the first item would be indexed as 1.

Here’s how you can modify the script to extract only the first conditional formatting rule:

Sub GetFirstConditionalFormatColor()
    Dim ws As Worksheet
    Dim targetCell As Range
    Dim cfRule As FormatCondition

    ' Set the worksheet - change "Sheet1" to your sheet's name
    Set ws = ThisWorkbook.Sheets("Sheet1")

    ' Set the target cell - change "A1" to your target cell's address
    Set targetCell = ws.Range("A1")

    ' Check if the cell has conditional formatting
    If targetCell.FormatConditions.Count > 0 Then
        ' Get the first conditional formatting rule
        Set cfRule = targetCell.FormatConditions(1)

        ' Assuming the rule type is one that applies fill color
        ' Output the fill color to Immediate Window
        Debug.Print "First conditional formatting rule's fill color: " & cfRule.Interior.Color
    Else
        Debug.Print "No conditional formatting in the cell"
    End If
End Sub

In this script:

targetCell.FormatConditions(1) directly accesses the first conditional formatting rule applied to targetCell.
The script then prints the fill color specified in this rule to the Immediate Window.
Keep in mind that this script assumes the first conditional formatting rule applies a fill color. If the rule doesn’t involve fill color (e.g., it changes font color or adds data bars), the script may need to be adjusted accordingly.

Also, remember that the color obtained from cfRule.Interior.Color will be in the form of a Long integer representing an RGB color, and if you need to convert this into separate RGB values, you can use the method described in the previous responses.

The “Type Mismatch” error you are encountering in VBA typically occurs when there is an attempt to assign a value to a variable that is not compatible with the variable’s data type. In the context of your script, it might be happening because FormatConditions(1) is not returning a FormatCondition object as expected. This can occur under certain circumstances, such as when the first conditional format is not a standard format condition.

To address this issue, we can add a check to ensure that the item we are trying to access is indeed a FormatCondition. Here’s an updated version of the script with additional error handling:

Sub GetFirstConditionalFormatColor()
    Dim ws As Worksheet
    Dim targetCell As Range
    Dim cfRule As FormatCondition

    ' Set the worksheet - change "Sheet1" to your sheet's name
    Set ws = ThisWorkbook.Sheets("Sheet1")

    ' Set the target cell - change "A1" to your target cell's address
    Set targetCell = ws.Range("A1")

    ' Check if the cell has conditional formatting
    If targetCell.FormatConditions.Count > 0 Then
        ' Check if the first item is a FormatCondition
        If TypeOf targetCell.FormatConditions(1) Is FormatCondition Then
            Set cfRule = targetCell.FormatConditions(1)

            ' Output the fill color to Immediate Window
            Debug.Print "First conditional formatting rule's fill color: " & cfRule.Interior.Color
        Else
            Debug.Print "First item is not a standard format condition."
        End If
    Else
        Debug.Print "No conditional formatting in the cell"
    End If
End Sub

In this updated script:

A check using TypeOf ... Is FormatCondition is added to ensure that the first item in the FormatConditions collection is indeed a FormatCondition.
If the first item is not a FormatCondition, the script will output a message indicating this.

This approach should help you avoid the “Type Mismatch” error. If the first conditional format is not a standard format condition, you may need to further investigate the types of conditional formats applied to the cell and adjust your script accordingly to handle different types.

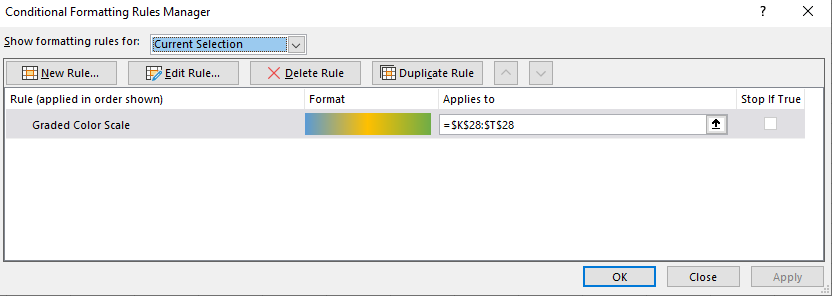

The conditional formatting you’re showing in the screenshot indicates a “Graded Color Scale” type. Unfortunately, this type of conditional formatting rule doesn’t create a FormatCondition object that can be accessed like the standard conditional formatting rules in VBA. Instead, it’s a more complex rule that Excel applies dynamically based on the value of the cell relative to other cells in the range.

The colors for this type of conditional formatting are not set as direct properties that can be easily read. Instead, they are calculated on-the-fly by Excel depending on the cell’s value and the gradient scale defined.

If you still need to extract the color for a cell with this type of conditional formatting, you would have to manually calculate the color based on the cell’s value and the gradient thresholds defined in the conditional formatting rule. However, this is complex and would involve a detailed understanding of the algorithm Excel uses for gradient scales, which is not publicly documented.

If you’re looking to extract the specific RGB values for the start, midpoint, and end of the gradient, you can attempt to access the ColorScaleCriteria of the FormatConditions object, which can give you the colors that are set for the minimum, midpoint, and maximum of the scale. However, translating a cell’s value into a position on that scale and then into an RGB value is a manual process and can be quite challenging to implement correctly.

For cells that are not at the minimum, midpoint, or maximum, you would need to interpolate between these colors based on the cell’s value, which as mentioned, is not straightforward and would require custom code to approximate Excel’s behavior.

If you still want to proceed with this, you could extract the minimum, midpoint, and maximum colors and attempt to interpolate between them. If you need assistance with that, I can guide you on how to get started with the code to extract these threshold colors.

You are correct, starting from Excel 2010, the DisplayFormat property can be used to get the display attributes (including conditional formatting) of a cell as they are shown in Excel. This is particularly useful when working with cells that have conditional formatting applied to them.

Here is how you can use the DisplayFormat property in VBA to get the color of a cell that has conditional formatting applied:

Sub GetCellDisplayColor()
    Dim ws As Worksheet
    Dim targetCell As Range
    Dim displayColor As Long

    ' Set the worksheet - change "Sheet1" to your sheet's name
    Set ws = ThisWorkbook.Sheets("Sheet1")

    ' Set the target cell - change "A1" to your target cell's address
    Set targetCell = ws.Range("A1")

    ' Get the display color, which includes conditional formatting
    displayColor = targetCell.DisplayFormat.Interior.Color

    ' Output the color to Immediate Window (Ctrl + G to view)
    Debug.Print "The display color of the cell is: " & displayColor
End Sub

This code gets the color of the cell as displayed in Excel, which includes any colors applied by conditional formatting. The DisplayFormat.Interior.Color property returns the color of the cell as a Long integer value representing an RGB color, even if the color is a result of conditional formatting.

Do note that the DisplayFormat property can only be used in Excel when it is not in a mode that requires recalculation (e.g., during the execution of a macro). It cannot be used in UDFs (User Defined Functions) or when Excel is calculating. If you try to use DisplayFormat during recalculation, it will raise an error.

Yes, in Excel, you can apply a formula to an entire row that will generate a different random number for each cell. You can use the RAND() function for a random number between 0 and 1, or RANDBETWEEN(bottom, top) for a random integer between the bottom and top parameters you specify.

To apply the formula to the whole row, you can:

Enter the formula in the first cell of the row.
Then, copy the cell by selecting it and using Ctrl+C.
Finally, select the entire row by clicking on the row number on the left side of the Excel window and paste the formula using Ctrl+V.

Here’s a step-by-step guide:

Click on the first cell of the row where you want the random numbers to appear (e.g., A1).
Enter the formula for generating a random number. For example:
- =RAND() if you want a random decimal number between 0 and 1.
- =RANDBETWEEN(1, 100) if you want a random integer between 1 and 100.
Press Enter to confirm the formula.
Move the mouse cursor to the bottom right corner of the cell until it changes to a small cross (this is called the fill handle).
Double-click the fill handle or drag it across to fill the formula across the entire row.

Alternatively, after entering the formula in the first cell:

Select the cell with the formula, then press Ctrl+Shift+Right Arrow to select all the cells in that row to the right.
Press Ctrl+R to fill the formula to the right.

Please note that every time the worksheet recalculates, the random numbers will change unless you have calculations set to manual. If you need static random numbers, you would have to copy the cells with the random numbers and then paste them as values (Right-click -> Paste Special -> Values) to replace the formulas with their calculated values.

Excel’s built-in random number functions, RAND() and RANDBETWEEN(), do not allow you to specify a seed value directly within the function to ensure reproducible results. This is different from many programming languages where you can set a seed for random number generation.

However, if you want to generate reproducible random numbers (i.e., the same set of random numbers every time the calculations are performed), you can use VBA to set the seed for random number generation. The Randomize statement in VBA allows you to provide a seed for the random number generator.

Here is an example of how you can use VBA to set a fixed seed for random numbers:

Sub SetFixedSeed()
    ' Set the seed for the random number generator
    Randomize 1 ' You can replace 1 with your desired seed number

    Dim ws As Worksheet
    Set ws = ThisWorkbook.Sheets("Sheet1") ' Change to your sheet name

    Dim lastColumn As Long
    lastColumn = ws.Cells(1, ws.Columns.Count).End(xlToLeft).Column

    Dim i As Long
    For i = 1 To lastColumn
        ws.Cells(1, i).Value = Rnd ' This will generate a random number using the seed
    Next i
End Sub

This VBA script sets the random number seed to 1 and then fills the first row of the sheet with random numbers generated from that seed. Every time this macro is run, it will produce the same sequence of random numbers.

If you need to use the random numbers within Excel formulas, you would need to generate the numbers using VBA as shown above and then store them as static values in the cells. This is because there is no formula in Excel that allows you to set a seed within a worksheet function.

Remember that the use of Randomize with a fixed value in VBA is typically used for testing purposes. In production, you would usually want to use Randomize without an argument to initialize the random number generator with a more unpredictable seed based on the system clock.

To generate random numbers in a selected row range using VBA in Excel, you can use the following steps:

Open the VBA editor by pressing Alt + F11.
Insert a new module by right-clicking on any existing items in the Project Explorer, selecting Insert, and then Module.
Write a VBA subroutine using Rnd function to fill the selected range with random numbers.
Run the subroutine.

Here is an example of a VBA subroutine that fills the selected row range with random numbers:

Sub FillSelectedRowRangeWithRandomNumbers()
    ' Check if there is a selection and it is a range
    If Not TypeOf Selection Is Range Then Exit Sub

    ' Check if the selection is a single row
    If Selection.Rows.Count > 1 Then
        MsgBox "Please select cells within a single row."
        Exit Sub
    End If

    Dim cell As Range

    ' Iterate over each cell in the selected range
    For Each cell In Selection
        ' Assign a random number between 0 and 1 to each cell
        cell.Value = Rnd
    Next cell
End Sub

To use this subroutine:

Go back to Excel and select the cells in the row where you want to generate random numbers. You can select a range in a row by clicking and dragging across the cells.
Press Alt + F8, find FillSelectedRowRangeWithRandomNumbers in the list, and click Run.

Each selected cell in the row will now contain a random decimal number between 0 and 1. If you prefer to generate random integers between two values, you can modify the line within the loop as follows:

cell.Value = Int((upperBound - lowerBound + 1) * Rnd + lowerBound)

Replace upperBound and lowerBound with the desired integer limits for your random numbers. For example, for numbers between 1 and 100, use:

cell.Value = Int((100 - 1 + 1) * Rnd + 1)

Remember, the Rnd function generates a new random number each time it is called, so each cell in the selected range will get a different random number.

In VBA, you can get the number of a column using the Column property of a Range object. The Column property returns the column number of the leftmost column within the range. Here’s how you can use it:

Sub GetColumnNumber()
    Dim selectedRange As Range
    Dim columnNumber As Long

    ' Assuming you have a selected range in Excel
    Set selectedRange = Selection ' You can also set this to a specific range

    ' Get the column number of the leftmost column in the range
    columnNumber = selectedRange.Column

    ' Display the column number in a message box
    MsgBox "The leftmost column number in the range is: " & columnNumber
End Sub

In this example:

We declare a Range object named selectedRange.
We set selectedRange to the currently selected range in Excel using Selection, but you can also set it to a specific range as needed.
We use the selectedRange.Column property to get the column number of the leftmost column within the range.
We display the column number in a message box using MsgBox.

When you run this VBA macro, it will show a message box with the column number of the leftmost column in the selected range.
