Animate Column Width in Excel

2023-11-16 15:32 UTC gpt-4 Open in ChatGPT ↗

You

Can I animate the column width in excel through VBA?

ChatGPT

Yes, you can animate the column width in Excel using VBA (Visual Basic for Applications). This involves gradually changing the width of a column over a period of time. Here’s a simple example to demonstrate how you can do this:

1. Open the VBA Editor: In Excel, press ALT + F11 to open the VBA Editor.

2. Insert a New Module: In the VBA Editor, right-click on any of the items in the ‘Project’ window (usually on the left side), choose ‘Insert’, then ‘Module’. This action adds a new module to your project.

3. Write the Animation Code: In the new module, paste the following VBA code:

   Sub AnimateColumnWidth()
       Dim targetWidth As Double
       Dim currentWidth As Double
       Dim stepSize As Double
       Dim i As Integer

       ' Set the target width and the step size
       targetWidth = 25    ' Target width of the column
       stepSize = 0.5      ' Change in width per step

       ' Initial width of the column (e.g., Column A)
       currentWidth = Columns("A").ColumnWidth

       ' Animate the width
       If currentWidth < targetWidth Then
           For i = currentWidth To targetWidth Step stepSize
               Columns("A").ColumnWidth = i
               DoEvents    ' This line keeps Excel responsive
           Next i
       Else
           For i = currentWidth To targetWidth Step -stepSize
               Columns("A").ColumnWidth = i
               DoEvents    ' This line keeps Excel responsive
           Next i
       End If
   End Sub

4. Run the Macro: Return to Excel and run the macro by pressing F5 while in the VBA Editor or by assigning the macro to a button in the Excel sheet.

This script gradually changes the width of column A to 25 units. You can modify the targetWidth, stepSize, and Columns("A") in the code to suit your needs. The DoEvents function is used to keep Excel responsive during the animation.

Remember, this kind of animation is quite basic and may not be very smooth, especially for larger step sizes or faster changes, as Excel is not designed for visual animations.

You

nothing seems to be happening

ChatGPT

If nothing seems to be happening when you run the VBA macro, there could be a few reasons why the animation is not working as expected. Here are some troubleshooting steps you can try:

1. Check the Macro Security Settings:

   • In Excel, go to File > Options > Trust Center > Trust Center Settings > Macro Settings.
   • Ensure that macros are enabled. Select “Disable all macros with notification” or “Enable all macros” (not recommended for security reasons).
   • After changing these settings, restart Excel and try running the macro again.

2. Verify the Code:

   • Ensure that you’ve pasted the code correctly into a module in the VBA Editor.
   • Check if you are targeting the correct column. The provided example animates the width of column A (Columns("A")).

3. Debug the Macro:

   • Place a breakpoint in the code by clicking on the margin next to a line in the VBA Editor. A red dot will appear.
   • Run the macro. The execution will pause at the breakpoint.
   • Use F8 to step through the code line by line and watch how the column width changes.

4. Check Excel’s Responsiveness:

   • The DoEvents function should keep Excel responsive, but if the step size is too small and the target width is significantly different from the starting width, the animation might be slow.
   • Try increasing the stepSize to see if there’s a more noticeable change.

5. Ensure Excel is in View Mode:

   • Sometimes, if Excel is in a different mode (like editing a cell), the macro might not visibly update the column widths as expected.
   • Click away from any cell to ensure Excel is not in edit mode.

6. Test with a Simple Macro:

   • To confirm that macros are working in your Excel, try creating and running a simple macro, like one that just sets the column width to a specific value without animation.

7. Excel Version:

   • Some older versions of Excel might behave differently. Make sure you are using a relatively recent version of Excel.

If you have tried these steps and still encounter issues, it may be helpful to provide more specific details about what is happening when you attempt to run the macro. This can include any error messages you receive or more details about your Excel environment.

You

No the macro is running, but the column width is not changing

ChatGPT

If the macro is running but the column width isn’t changing, there might be

You

is it possible to colorize a full column through VBA?

ChatGPT

Yes, it’s definitely possible to colorize a full column in Excel using VBA. You can do this by setting the Interior.Color property of the entire column. Here’s a simple VBA example to colorize a column:

1. Open the VBA Editor: Press ALT + F11 in Excel to open the VBA Editor.

2. Insert a New Module: In the VBA Editor, right-click on any of the items in the ‘Project’ window, choose ‘Insert’, then ‘Module’.

3. Write the VBA Code: In the new module, paste the following code:

   Sub ColorizeColumn()
       ' Change "A" to the column you want to colorize
       Columns("A").Interior.Color = RGB(255, 0, 0) ' Red color
   End Sub

   This example will colorize Column A with a red color. You can change Columns("A") to target a different column. The RGB function is used to set the color, where RGB(255, 0, 0) represents red. You can change the values 255, 0, 0 to any other RGB color values as desired.

4. Run the Macro: Go back to Excel and run the macro by pressing F5 in the VBA Editor, or by attaching the macro to a button or a shortcut key in Excel.

This macro will instantly change the background color of the entire column to your chosen color. Remember, if you’re working with a very large dataset, changing the color of an entire column can increase the file size and might slow down Excel, especially if you’re applying colors to multiple columns.

You

and how can I make sure that the column cells retain their borders during that color change?

ChatGPT

To ensure that the column cells retain their borders during the color change with VBA in Excel, you’ll need to make sure that the code for coloring the cells does not alter the border properties. The Interior.Color property, which is used to change the cell color, does not affect borders, so your existing borders should remain intact when you change the cell color.

Here is a step-by-step guide to ensure that borders are retained:

1. Check Existing Borders: Before you run the VBA script, ensure that the borders are already set up as you want them. This could be done manually in Excel or through another VBA script.

2. Apply the Color Change: Use the VBA script to change the cell color. For example:

   Sub ColorizeColumnAndRetainBorders()
       ' Change "A" to the column you want to colorize
       Columns("A").Interior.Color = RGB(255, 0, 0) ' Red color
   End Sub

3. Run the Macro: Execute this macro in the same way as before. It will change the color of the cells in the specified column without altering the borders.

If, for some reason, your borders are being affected, or if you want to ensure specific border styles are applied along with the color change, you can include additional VBA code to set the borders explicitly. Here’s an example of how to do that:

Sub ColorizeColumnAndSetBorders()
    With Columns("A")
        ' Colorize the column
        .Interior.Color = RGB(255, 0, 0) ' Red color

        ' Set borders
        With .Borders(xlEdgeLeft)
            .LineStyle = xlContinuous
            .Color = RGB(0, 0, 0)
            .Weight = xlThin
        End With
        With .Borders(xlEdgeTop)
            .LineStyle = xlContinuous
            .Color = RGB(0, 0, 0)
            .Weight = xlThin
        End With
        ' Repeat for xlEdgeBottom, xlEdgeRight, xlInsideVertical, xlInsideHorizontal as needed
    End With
End Sub

This script will colorize the column and set the borders for each cell in the column. You can adjust the .LineStyle, .Color, and .Weight to suit your border preferences. The RGB(0, 0, 0) sets the border color to black. Adjust it if you need a different color for the borders.

You

I am using this code but it seems like it creates a border only around the colum. How can i ensure that I also get the borders in the cells included in the column?

Columns(“C”).BorderAround color:=RGB(0, 0, 0), Weight:=xlThin

ChatGPT

The BorderAround method in VBA applies a border around the outside of a range, which is why you are seeing a border only around the outside of the column. To add borders to each individual cell within the column, you’ll need to use a different approach. You can use the Borders property of the cells to apply borders to each cell.

Here’s an example of how you can modify your code to add borders to each cell within the column:

Sub ColorizeColumnAndAddCellBorders()
    With Columns("C")
        ' Colorize the column
        .Interior.Color = RGB(255, 0, 0) ' Example: Red color

        ' Add borders to each cell in the column
        .Borders(xlInsideVertical).LineStyle = xlContinuous
        .Borders(xlInsideVertical).Color = RGB(0, 0, 0)
        .Borders(xlInsideVertical).Weight = xlThin

        .Borders(xlInsideHorizontal).LineStyle = xlContinuous
        .Borders(xlInsideHorizontal).Color = RGB(0, 0, 0)
        .Borders(xlInsideHorizontal).Weight = xlThin

        ' Add border around the column
        .BorderAround Color:=RGB(0, 0, 0), Weight:=xlThin
    End With
End Sub

This code will apply borders inside the column (xlInsideVertical and xlInsideHorizontal) as well as around the entire column (BorderAround). The xlInsideVertical adds vertical borders within the column, and xlInsideHorizontal adds horizontal borders. The color and weight of the borders can be adjusted as needed.

You

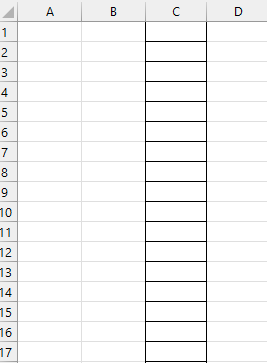

ok this works but xlThin seems to create a formatting that is not the same as the other cells. How can make the cell borders in column C go back to normal outline and lineweight?

ChatGPT

To match the default line weight and style of the borders in Excel using VBA, you should use the xlHairline constant for the Weight property, and xlContinuous for the LineStyle property. The default line style in Excel is typically a continuous, thin line, which xlHairline will match.

Here’s how you can modify the VBA code to set the borders of cells in column C to the default style:

Sub SetDefaultBorders()
    With Columns("C")
        ' Set the interior color as needed
        .Interior.Color = RGB(255, 255, 255) ' White color for example

        ' Set borders to default thin line (hairline)
        .Borders.LineStyle = xlContinuous
        .Borders.Weight = xlHairline
        .Borders.Color = RGB(0, 0, 0) ' Black color
    End With
End Sub

This code sets the border style to the default thin lines for all the possible borders within the column cells. If you want to apply this to only the inside borders and leave the outer border as is, you would modify the .Borders(xlInsideVertical) and .Borders(xlInsideHorizontal) properties specifically, like so:

Sub SetDefaultBordersInsideColumn()
    With Columns("C")
        ' Set the interior color as needed
        .Interior.Color = RGB(255, 255, 255) ' White color for example

        ' Set inside vertical borders to default thin line (hairline)
        .Borders(xlInsideVertical).LineStyle = xlContinuous
        .Borders(xlInsideVertical).Weight = xlHairline
        .Borders(xlInsideVertical).Color = RGB(0, 0, 0) ' Black color

        ' Set inside horizontal borders to default thin line (hairline)
        .Borders(xlInsideHorizontal).LineStyle = xlContinuous
        .Borders(xlInsideHorizontal).Weight = xlHairline
        .Borders(xlInsideHorizontal).Color = RGB(0, 0, 0) ' Black color
    End With
End Sub

Run this macro to apply the default thin line borders to the interior of column C. If the borders still do not match the rest of your cells, you might need to check other properties such as TintAndShade and ThemeColor that might be set on the default cells and ensure that they match.

You

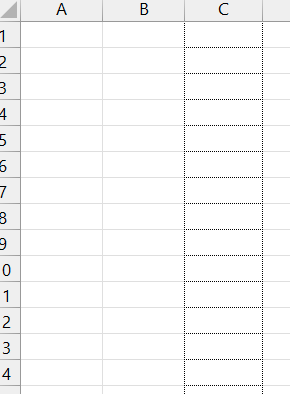

it’s still not the same and now the line seems not continuous

ChatGPT

The dashed lines suggest that the LineStyle is not set to xlContinuous, which is necessary for a solid line. Also, xlHairline is typically the thinnest line style available, but it may not match the default border style in some cases. Instead, you should use xlThin which is the standard border weight for cell borders in Excel.

Here’s the VBA code that should apply a continuous, thin border to each cell in column C, which is usually the default border style:

Sub SetNormalBorders()
    With Columns("C")
        ' Set the interior color as needed
        .Interior.Color = RGB(255, 255, 255) ' White color for example

        ' Set all borders to thin and continuous, which is the default style
        .Borders(xlEdgeLeft).LineStyle = xlContinuous
        .Borders(xlEdgeLeft).Weight = xlThin
        .Borders(xlEdgeLeft).Color = RGB(0, 0, 0)

        .Borders(xlEdgeTop).LineStyle = xlContinuous
        .Borders(xlEdgeTop).Weight = xlThin
        .Borders(xlEdgeTop).Color = RGB(0, 0, 0)

        .Borders(xlEdgeBottom).LineStyle = xlContinuous
        .Borders(xlEdgeBottom).Weight = xlThin
        .Borders(xlEdgeBottom).Color = RGB(0, 0, 0)

        .Borders(xlEdgeRight).LineStyle = xlContinuous
        .Borders(xlEdgeRight).Weight = xlThin
        .Borders(xlEdgeRight).Color = RGB(0, 0, 0)

        .Borders(xlInsideVertical).LineStyle = xlContinuous
        .Borders(xlInsideVertical).Weight = xlThin
        .Borders(xlInsideVertical).Color = RGB(0, 0, 0)

        .Borders(xlInsideHorizontal).LineStyle = xlContinuous
        .Borders(xlInsideHorizontal).Weight = xlThin
        .Borders(xlInsideHorizontal).Color = RGB(0, 0, 0)
    End With
End Sub

This macro sets a thin, solid border for the left, right, top, and bottom edges of the column, as well as for the inside vertical and horizontal borders, effectively outlining each cell. The RGB(0, 0, 0) sets the border color to black, and xlThin applies the standard thin border weight.

Please run this code in your VBA editor, and it should give you the continuous, thin borders that are the default style in Excel.

You

can I assign a style to column?

ChatGPT

Yes, you can assign a predefined cell style to a column in Excel using VBA. Excel has a number of built-in styles that you can apply, or you can create your own custom style. To apply one of these styles using VBA, you would use the Style property of the Range object.

Here’s how you can do it:

Sub ApplyStyleToColumn()
    ' Apply the "Normal" style to column C
    Columns("C").Style = "Normal"
End Sub

Replace "Normal" with the name of any built-in style or your custom style. Built-in style names can include “Good”, “Bad”, “Neutral”, and so on. If you have created your own style, use the name you gave it.

To create a custom style through VBA and apply it to a column, you can use the following code:

Sub CreateAndApplyCustomStyle()
    Dim customStyle As Style

    ' Create a new style called "MyCustomStyle"
    ' If the style already exists, this will throw an error
    On Error Resume Next ' Ignore errors if style already exists
    Set customStyle = ThisWorkbook.Styles.Add("MyCustomStyle")
    On Error GoTo 0 ' Resume normal error handling

    With customStyle
        .Font.Name = "Arial"
        .Font.Size = 10
        .Interior.Color = RGB(200, 200, 200) ' Light gray background
        .Borders(xlEdgeLeft).LineStyle = xlContinuous
        .Borders(xlEdgeLeft).Weight = xlThin
        .Borders(xlEdgeLeft).Color = RGB(0, 0, 0)
        ' Add additional formatting as needed...
    End With

    ' Apply the custom style to column C
    Columns("C").Style = "MyCustomStyle"
End Sub

This code snippet first attempts to create a new style named “MyCustomStyle”. If the style already exists, the error is ignored. It then sets various formatting properties on the new style. Finally, it applies this style to column C. Adjust the properties to match your desired formatting.

When using custom styles, make sure the style name is unique and does not clash with any existing style names in the workbook.

You

can I play multiple macros froma single button in excel?

ChatGPT

Yes, you can execute multiple macros from a single button in Excel. To do this, you create a master macro that calls other macros in sequence. Here’s how you can set it up:

1. Create Individual Macros: Write the macros that you want to run. For example, let’s say you have two macros named Macro1 and Macro2.

2. Create a Master Macro: Write a new macro that calls the individual macros in the order you want them to be executed.

   Sub MasterMacro()
       Call Macro1
       Call Macro2
       ' You can add more macros to call here
   End Sub

   Alternatively, you can call the macros without the Call keyword:

   Sub MasterMacro()
       Macro1
       Macro2
   End Sub

3. Assign the Master Macro to a Button:

   • Go to your Excel worksheet.
   • Insert a button from the Developer tab (Insert > Form Controls > Button).
   • Right-click the button and choose “Assign Macro…”
   • Select MasterMacro from the list.

4. Run the Master Macro: Click the button in your Excel worksheet, and it will run Macro1 followed by Macro2.

This way, you can execute a sequence of actions with a single click. The master macro can include as many calls to other macros as needed, and you can control the order in which they are run.

You

What if I want the macros to be executed simultaneously?

ChatGPT

In Excel VBA, macros run sequentially, not simultaneously, because VBA is single-threaded and does not support multithreading. This means that each macro will start only after the previous one has finished executing.

If you want to give the impression that macros are running “simultaneously,” you could design your macros to work on different parts of a task in sequence so quickly that it seems like they are running at the same time. However, this still wouldn’t be true parallel execution, just a rapid sequence of tasks.

If you have long-running macros that you want to run “at the same time,” you could consider:

• Splitting the Task: If possible, divide the task into separate parts and run each part on a different set of data.
• Optimizing the Code: Ensure that each macro is as efficient as possible, which can sometimes make it seem as though tasks are running concurrently due to the speed of execution.
• Scheduled Tasks: If you’re trying to run entire macros independently, you could schedule them using Windows Task Scheduler to start Excel and run a macro at specific times, but this is outside the scope of VBA and Excel itself.

For tasks that genuinely require parallel processing, you would typically need to step outside of VBA and use a programming language or environment that supports multithreading or asynchronous processing, such as Python, C#, or Java. Then you could use Excel interop libraries in those environments to perform actions in Excel. However, this is quite advanced and requires a good deal of programming knowledge outside of VBA.

You

How can I do a linear interpolation in VBA?

ChatGPT

Linear interpolation is a method used to estimate a new data point within the range of a set of known data points. In VBA, you can write a function to perform linear interpolation given two points (x1, y1) and (x2, y2) and a value of x for which you want to find the corresponding y.

Here is an example of a VBA function that performs linear interpolation:

Function LinearInterpolation(x1 As Double, y1 As Double, x2 As Double, y2 As Double, x As Double) As Double
    ' Ensure that x1 and x2 are not equal to avoid division by zero
    If x1 = x2 Then
        MsgBox "x1 and x2 cannot be the same value."
        Exit Function
    End If

    ' Perform the interpolation
    LinearInterpolation = y1 + (x - x1) * (y2 - y1) / (x2 - x1)
End Function

You would use this function by passing the x and y values for the two points you know and the x value you want to interpolate. The function returns the corresponding y value.

Here is how you could call this function in VBA:

Sub TestInterpolation()
    Dim x1 As Double, y1 As Double
    Dim x2 As Double, y2 As Double
    Dim x As Double, y As Double

    ' Known points
    x1 = 1
    y1 = 2
    x2 = 3
    y2 = 4

    ' x value to interpolate
    x = 2

    ' Perform interpolation
    y = LinearInterpolation(x1, y1, x2, y2, x)

    ' Output result
    MsgBox "The interpolated y value is: " & y
End Sub

When you run TestInterpolation, it should display a message box with the interpolated y value. In this case, since we’re interpolating halfway between two points on a straight line, the result would be 3.

You

Can we simplify that when onw of the two ranges is known to be from 0 to 1?

ChatGPT

Certainly! If one of the ranges is known to be from 0 to 1, the linear interpolation simplifies significantly. The function then only needs the y-value at x = 0 (y1), the y-value at x = 1 (y2), and the x-value for which you want to interpolate.

Here’s how the simplified VBA function would look:

Function LinearInterpolationSimple(y1 As Double, y2 As Double, x As Double) As Double
    ' Perform the interpolation between x = 0 and x = 1
    LinearInterpolationSimple = y1 + (y2 - y1) * x
End Function

In this function, x is assumed to be between 0 and 1. y1 is the y-value at x = 0, and y2 is the y-value at x = 1.

To use this simplified function, you would call it as follows:

Sub TestInterpolationSimple()
    Dim y1 As Double, y2 As Double
    Dim x As Double, y As Double

    ' Known y-values at x = 0 and x = 1
    y1 = 5 ' y-value at x = 0
    y2 = 10 ' y-value at x = 1

    ' x value to interpolate
    x = 0.5 ' For example, halfway between 0 and 1

    ' Perform interpolation
    y = LinearInterpolationSimple(y1, y2, x)

    ' Output result
    MsgBox "The interpolated y value is: " & y
End Sub

When you run TestInterpolationSimple, it should display a message box with the interpolated y-value. For x = 0.5, y1 = 5, and y2 = 10, the function would return 7.5, which is halfway between 5 and 10.

You

So I have written this LinearInterpolation Function

Function LinearInterpolationSimple(y1 As Double, y2 As Double, x As Double) ’ Perform the interpolation between x = 0 and x = 1 LinearInterpolationSimple = y1 + (y2 - y1) * x End Function

and when I try to call it in the code below I am gettong an error that says ByRef argument type mismatch

Sub AnimateWidth(c As String, t As Double) Dim targetWidth As Double Dim currentWidth As Double Dim startWidth As Double

' Set the target width and the step size
startWidth = 8
targetWidth = 25    ' Target width of the column

' Initial width of the column (e.g., Column A)
Columns(c).ColumnWidth = startWidth
Columns(c).Interior.color = RGB(255, 255, 255)

currentWidth = LinearInterpolationSimple(startWdith, targetWidth, t)
column(c).ColumnWidth = currentWidth
Columns("C").Interior.color = RGB(255, 0, 0)

End Sub

why is that?

ChatGPT

The error “ByRef argument type mismatch” in VBA typically means that you are trying to pass a variable to a function where its expected reference type does not match the parameter type defined in the function. In your case, this could be caused by a few things:

1. A typo in your AnimateWidth Sub procedure. You have startWdith instead of startWidth when calling LinearInterpolationSimple.
2. The parameter c in AnimateWidth is declared as String, but when you call Columns(c) without checking if c is indeed a valid column identifier, it might cause issues if c isn’t a string representing a column in Excel (like “A”, “B”, “C”, etc.).
3. The t argument should be a Double between 0 and 1 for interpolation, make sure it’s being passed correctly.
4. Make sure column(c) is written as Columns(c) - VBA is case-insensitive but requires correct method/property names.

Here’s the corrected version of your AnimateWidth Sub:

Sub AnimateWidth(c As String, t As Double)
    Dim targetWidth As Double
    Dim currentWidth As Double
    Dim startWidth As Double

    ' Set the target width and the step size
    startWidth = 8
    targetWidth = 25    ' Target width of the column

    ' Initial width of the column (e.g., Column A)
    Columns(c).ColumnWidth = startWidth
    Columns(c).Interior.Color = RGB(255, 255, 255)

    ' Correct the typo here: startWidth instead of startWdith
    currentWidth = LinearInterpolationSimple(startWidth, targetWidth, t)
    Columns(c).ColumnWidth = currentWidth ' Correct the method name here: Columns instead of column
    Columns(c).Interior.Color = RGB(255, 0, 0) ' Maintain consistency in the property name: Color instead of color

End Sub

Make sure that when you call AnimateWidth, the arguments are of the correct type. For instance:

Call AnimateWidth("C", 0.5)

Here, “C” is the column identifier and 0.5 is a Double, representing the t value for the interpolation, where 0.5 would be halfway between the start and target width.
