To remap an audio spectrum band to a normalized 0–1 range in TouchDesigner, the key is to first analyze the actual range of that band over time, then use a Math CHOP to rescale it accordingly. Here’s a professional workflow to do this efficiently:

✅ Step-by-Step Guide

1. Get Your Audio Spectrum Band

Use an Audio Spectrum CHOP connected to your Audio Device In or Audio File In.
Isolate the specific band using a Select CHOP (or a Shuffle CHOP if you need to rearrange).

2. Analyze the Actual Value Range

To normalize properly, you need to know the min and max values of that band.

🔍 Use a Trail CHOP + Analyze CHOP:

Trail CHOP: Add one and connect your selected band to it. This stores a window of recent values (set a window length, e.g., 5–10 seconds).
Analyze CHOP: Connect it to the Trail. Set to “Minimum” and then duplicate another for “Maximum”.

This gives you dynamic min/max values over time.

3. Normalize to 0–1 Range

Use a Math CHOP to do the mapping.

Connect your original band to a Math CHOP.
Under the From Range, use exported values from the Analyze CHOPs (min/max).
- Set “From Range” Min to the output of the Analyze MIN.
- Set “From Range” Max to the output of the Analyze MAX.
Set “To Range” from 0 to 1.

Now your band is dynamically remapped to 0–1 based on recent history.

✅ Pro Tips

Clamp values in the Math CHOP to avoid overshooting 0–1.
For more stable normalization, consider using a Lag CHOP or Filter CHOP on the Analyze outputs to smooth them a bit.
If you want fixed remapping (e.g., across multiple shows), record some real audio and note typical min/max values, then hardcode them into the Math CHOP.

Would you like a simple TouchDesigner network for this? I can sketch it out.

Great question — and yes, while TouchDesigner doesn’t support native freeform drawing or boxes like you did with red in your screenshot, there are some pro-level ways to visually group and organize your networks for clarity:

✅ 1. Use Network Boxes (recommended)

Network Boxes are built-in tools for grouping operators visually.

How to create a Network Box:

Select the group of operators you want to group.
Press “N” on your keyboard
(or right-click > Network Box > Add to New Network Box).

This creates a colored box around your selected nodes that you can label and color-code for clarity.

Bonus Tips:

Double-click the box title to rename it (e.g., “Audio Band Normalize”).
You can change the color via the parameter window of the Network Box.
You can collapse/expand them to clean up the network visually.

✅ 2. Sticky Notes (Annotations)

Add comments right in your network:

Press “Tab” → go to the “Dialogs” tab → choose “Text DAT”.
Place it near your operators and type your notes.
You can make it look like a sticky note by setting its background color, or even using a Panel COMP for more advanced layout.

✅ 3. Color Operators

Coloring CHOPs or other nodes helps visually organize things even further:

Select one or more operators.
Right-click > Color… or press “C”.

Use different colors for different functional areas (e.g., input, normalization, output).

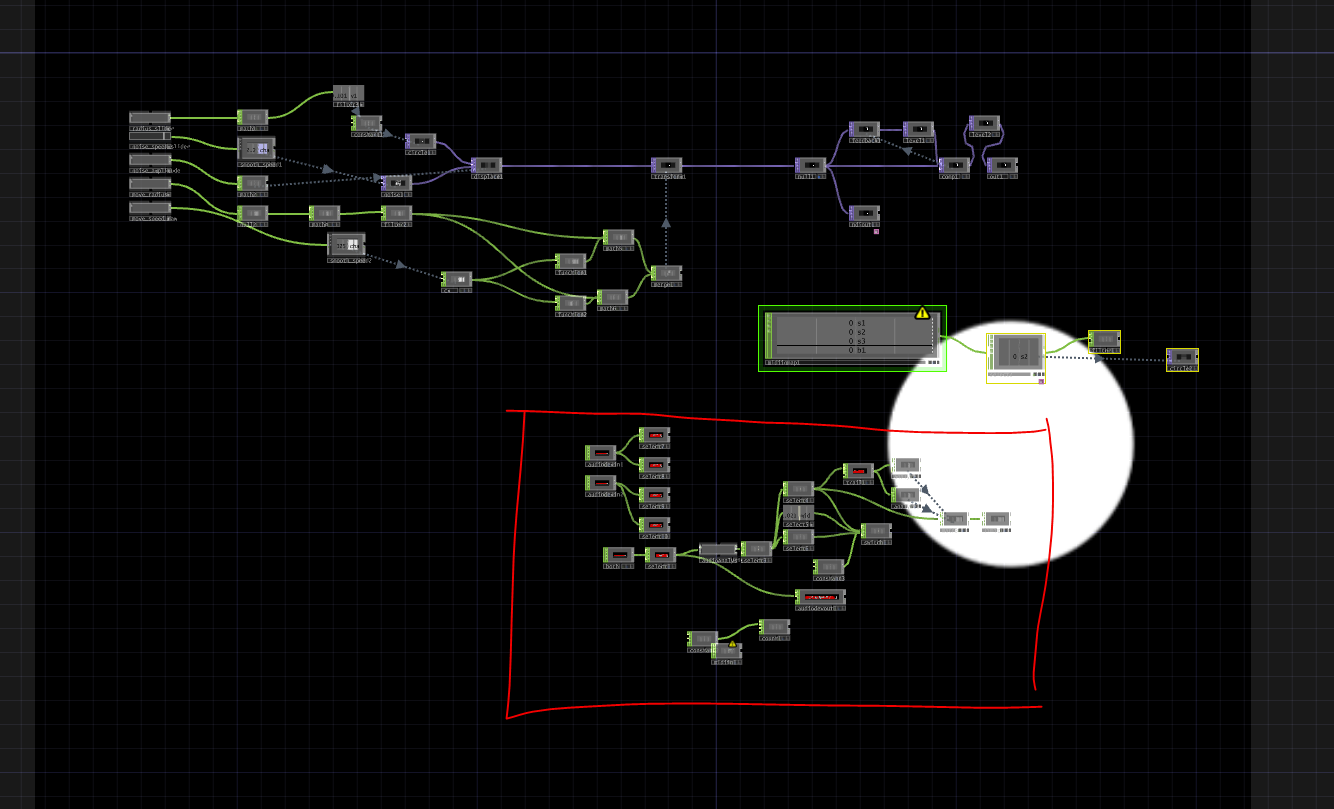

Would you like me to sketch how your red-boxed region could look cleaned up with Network Boxes and notes?

Yes, you absolutely can control a Switch CHOP with a Toggle in TouchDesigner — it’s a super common and handy trick! Here’s how to set it up properly:

✅ How to Control a `Switch CHOP` with a Toggle:

🔹 Step-by-Step:

Create a Toggle Button:
- Place a Button COMP.
- In the Button parameter set the Button Type to Toggle.
Export the Toggle State:
- The Toggle’s value is found in its panel value (panel/ path).
- Add a Panel CHOP, and connect it to the Button COMP.
- This gives you a channel like panel1/select (value: 0 or 1).
Connect to the Switch CHOP:
- Take the output of the Panel CHOP (the toggle state).
- Connect or export it to the index parameter of your Switch CHOP.
You can drag-drop the CHOP channel onto the index parameter of the Switch and choose “Export CHOP”.

🔁 Notes:

If your Switch CHOP has more than 2 inputs, the toggle will only flip between index 0 and 1. If you want to control more options, consider using a Radio Button COMP or a Slider instead.
If you want the toggle to cycle through multiple switch indices, use a Count CHOP triggered by a Momentary button instead.

Want to build a little demo network? I can guide you through that too.

Great question — and yes, you can elegantly centralize your OSC network settings in TouchDesigner so all OSC Out CHOPs use a single global address (and port) by using OP references or exports from a central control panel.

✅ Strategy: Use a Global Control via `Constant CHOP` or `Parameter CHOP`

🔹 Step-by-step:

🧭 Create a Central Control Container
Section titled “🧭 Create a Central Control Container”
- Drop in a Base COMP somewhere in your project and name it something like:
  networkControl or oscSettings.
📡 Add OSC Settings Inside It
Section titled “📡 Add OSC Settings Inside It”

Inside this container:
- Constant CHOP for the IP address (set String Mode to On).
- Constant CHOP or Slider/Field for the port (if needed).
Example:
- ip channel: 192.168.0.101
- port channel: 9000
🔗 Reference These in OSC Out CHOPs
Section titled “🔗 Reference These in OSC Out CHOPs”

Go to each of your OSC Out CHOPs and:
- In the Network Address parameter, type:
```
op('networkControl/ip')['chan1']
```
  (Assuming ip is in a Constant CHOP and it’s named ip, and channel is chan1.)
- In the Port parameter, type:
```
op('networkControl/port')[0]
```
This uses expression referencing to pull in centralized values.

🛠️ Pro Tip:

Use a Parameter DAT or Text DAT with a DAT Execute to even save/load your OSC settings dynamically.
Or make it user-friendly by putting a Field COMP (text input) in a UI to set the IP, and link that to a CHOP via Parameter CHOP.

🔁 Result:

Now, any time you update the IP or Port in your central controller, all OSC Out CHOPs update automatically. 🎯

Want me to mock up a mini working .toe file or layout idea for this?

You’re totally right — Constant CHOPs only handle numeric values, not strings. So for a global IP address or hostname (string) value, you’ll want to use a Text DAT instead!

✅ Use a `Text DAT` to Store a Global String (like IP address)

🔹 Step-by-Step:

Create a Text DAT
- Name it something like ipAddress.
- In the text field, type your IP as a plain string:
```
192.168.0.101
```
Reference It in OSC Out CHOPs In the Network Address parameter of your OSC Out CHOP, use a DAT expression like:
```
op('networkControl/ipAddress')[0, 0]
```
This grabs the first row, first column of the DAT — i.e., the IP string.

Optional: Make It UI-Friendly

If you want a text input field in a control panel:

Add a Field COMP (set to Text mode).
Connect it to a Parameter CHOP to monitor changes (if needed).
Or export its value to the Text DAT using a DAT Execute DAT.

🔁 Bonus: For the Port (numeric), use a `Constant CHOP` or `Field COMP` → `Parameter CHOP`

Let me know if you want help wiring that up visually. It’s a clean and powerful pattern for centralized OSC control.Awesome question — and you’re close to the truth: in TouchDesigner, string values (like IP addresses) aren’t natively handled by CHOPs, so yeah, the only way to use strings like that (for Network Address, file paths, OSC addresses, etc.) is through DATs or Python expressions.

🔥 TL;DR:

✅ YES, the only way to dynamically assign a string like an IP address globally is:

via Text DATs
or Field COMPs → DATs
and reference them with Python expressions (no CHOP-style exporting for strings)

🛠️ Your options for global string management:

Method	Editable in UI?	Use Case
Text DAT	✔️ (manual edit or script)	Global static values
Field COMP → DAT Execute DAT	✔️ (UI input)	Editable user input
Storage on a COMP (`store('ip', '192.168.0.1')`)	❌ (code only)	Programmatic control

🧠 Example Expression in an OSC Out CHOP:

If you store the IP in a Text DAT called ipAddress, you’d set the Network Address parameter of your OSC Out CHOP to:

op('networkControl/ipAddress')[0, 0]

📌 Why There’s No CHOP for Strings:

TouchDesigner’s CHOP system is all about real-time numeric signal processing, so strings live in DATs or COMPs (Panel or UI elements).

Let me know if you want a plug-and-play setup that lets you edit the IP via UI (Field COMP) and have it affect all OSC outputs automatically. I can sketch it out.

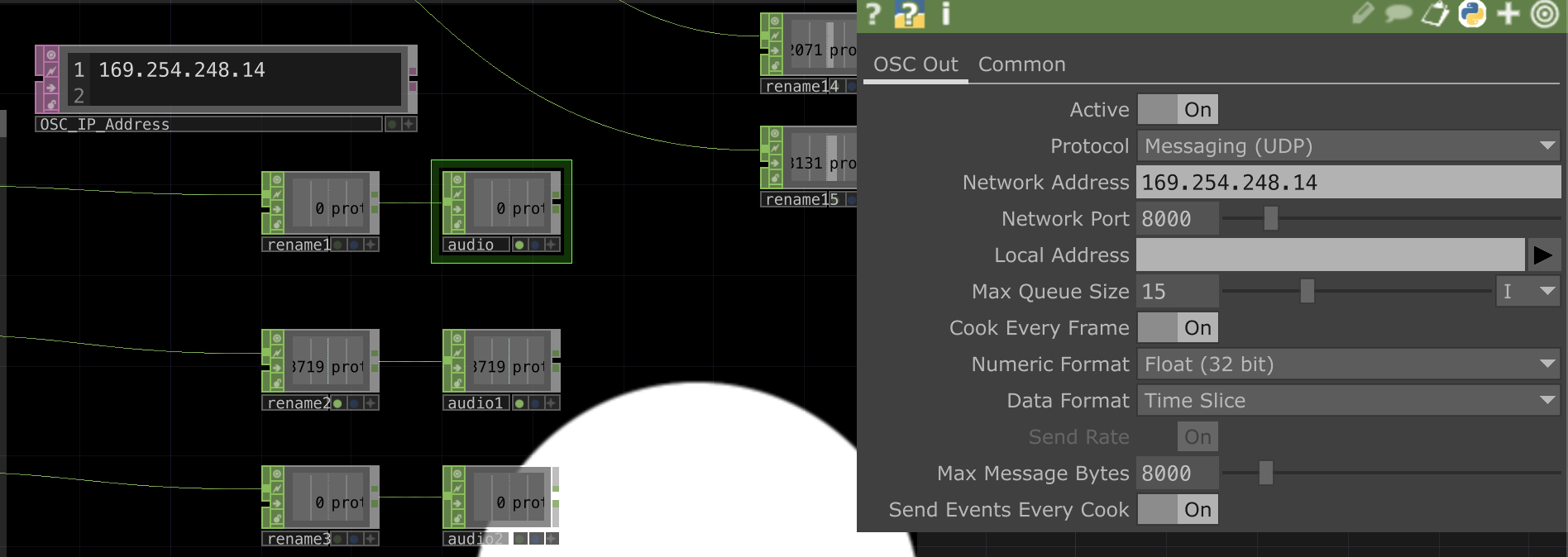

Ah, great clarification — and you’re absolutely right to push this a bit deeper.

❓So, does referencing a `Text DAT` set the address on all `OSC Out CHOPs` globally?

➡️ Not automatically. Each OSC Out CHOP still needs to reference the value manually or via script.

✅ Here’s how to make it truly global:

Option 1: Manual Expression on Each OSC Out CHOP (cleanest, readable)

In each OSC Out CHOP’s Network Address parameter:

op('networkControl/ipAddress')[0, 0]

Pros:

Simple.
Easy to debug.
Dynamically updates when the DAT changes.

Cons:

You have to add it to each OSC Out CHOP manually (but once only).

Option 2: Use a Script to Apply It to All OSC Out CHOPs (automated)

If you have many OSC Out CHOPs, write a script that sets the expression in bulk.

Here’s a quick example you could run in a Text DAT:

ip = "op('networkControl/ipAddress')[0, 0]"
for op in op('/').findChildren(type=oscOutCHOP):
    op.par.address.expr = ip

This finds all OSC Out CHOPs in the project and sets their address parameter to pull from your central Text DAT.

Option 3: Store the IP in Global Storage (Advanced)

Store it in the global storage dictionary:

# Storing it
project.store('osc_ip', '192.168.0.101')

Then reference it in all OSC Out CHOPs:

project.fetch('osc_ip')

Could still automate it via script, just like in Option 2.

✨ TL;DR:

There’s no built-in automatic binding to make all OSC Out CHOPs follow one central value — you must set the reference manually or script it.
Best practice: use a Text DAT + expression reference in each OSC Out.
For large projects, use a script to apply expressions to all.

Want a ready-to-run script that also updates ports or handles toggling outputs? I can drop that in too.

Perfect — you’re diving into the good stuff now!

To run the Python script for Option 2 (applying an expression to all OSC Out CHOPs), you can do it right inside TouchDesigner using a Text DAT.

✅ Where to Write the Script

🔹 Step-by-Step:

Drop in a Text DAT
- Press Tab → go to “DATs” tab → add a Text DAT to your network.
- Name it something like applyOSCip.
Paste This Script Into It:

# Define the expression to use
ip_expr = "op('networkControl/ipAddress')[0, 0]"

# Search from root (or a specific COMP if you want)
for o in op('/').findChildren(type=oscOutCHOP, depth=10):
    o.par.address.expr = ip_expr

This assumes your central Text DAT is at /networkControl/ipAddress.

Right-click the Text DAT → select “Run Script”

✏️ You Can Customize This:

Change the search depth (depth=10) if your network is deeply nested.
Add more parameters (like .par.port) if you’re centralizing the port too.

🧠 Pro Tip:

If you’re working on a project template, you could trigger this script automatically:

On project start (via /local/init or ui.project.start callback)
Or hook it up to a button to apply settings on-demand

Let me know if you’d like to expand it for port control or auto-run on startup 👇

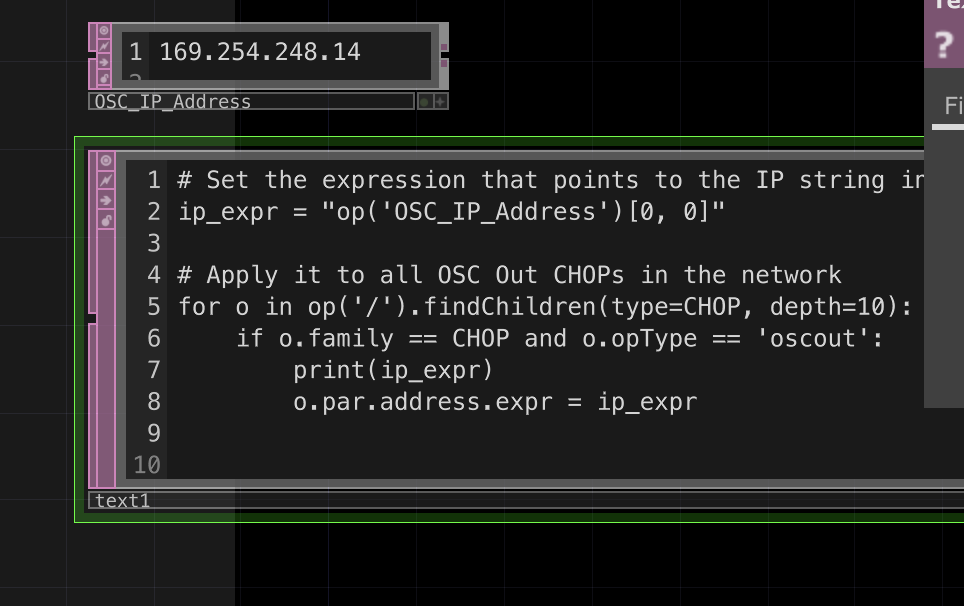

Ah no worries — great question. That should be a separate Text DAT from the one where you store the IP address.

🔄 Clarified Setup:

1. ✅ Text DAT for your IP address

Name: something like ipAddress
Contents:
```
192.168.0.101
```

This is just a storage DAT holding your actual IP address string.

2. ✅ Separate Text DAT for your Python script

Name: something like applyOSCip
This DAT contains and runs the script that applies your central IP to all OSC Out CHOPs.

Example content for applyOSCip:

# Set the expression that points to the IP string in the other DAT
ip_expr = "op('networkControl/ipAddress')[0, 0]"

# Apply it to all OSC Out CHOPs in the network
for o in op('/').findChildren(type=oscOutCHOP, depth=10):
    o.par.address.expr = ip_expr

Then right-click this DAT and select “Run Script” whenever you want it to apply.

Let me know if you want to link this script to a button so it can be run via UI instead of right-clicking.

Great question — and yes, you’re noticing that by default, TouchDesigner opens Text DATs in its built-in basic editor, which is very minimal. But there is a way to use an external editor of your choice (like VS Code, Sublime Text, etc.) for editing Text DATs!

✅ How to Use Your Own Editor for Text DATs

🛠️ Step-by-Step:

Go to Edit → Preferences in the top menu.
Navigate to the DATs tab.
Look for the field: “DAT External Editor”
Enter the full path to your preferred editor’s executable.

Example paths:
Section titled “Example paths:”
- VS Code (Windows):
```
"C:\Program Files\Microsoft VS Code\Code.exe"
```
- VS Code (macOS):
```
/Applications/Visual\ Studio\ Code.app/Contents/Resources/app/bin/code
```
- Sublime Text (Windows):
```
"C:\Program Files\Sublime Text\sublime_text.exe"
```

Wrap the path in quotes if it has spaces!

🚀 How to Use It After Setting

Once set:

Right-click any Text DAT.
Choose “Edit in External Editor”.
It will now open in the editor you chose.

Let me know if you’re using macOS or Windows and I can help you find the exact path to your favorite editor if needed.

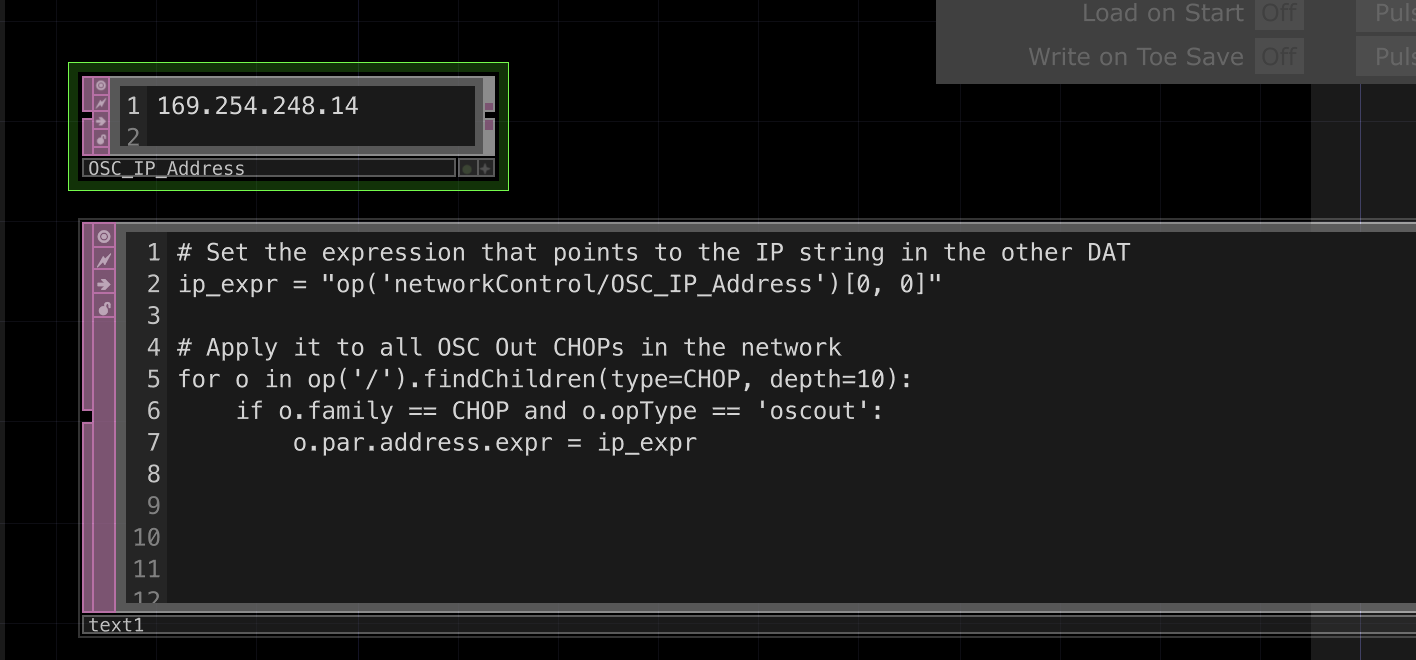

Ahh — love the attention to detail. Let’s clarify that key point 👇

🔍 Does the second Text DAT (the script one) automatically read the IP address?

➡️ No — it doesn’t “read” the IP directly.
Instead, it writes a Python expression into each OSC Out CHOP’s Address parameter that points to the IP stored in your first Text DAT.

✅ How It Works (Think of It Like Wiring)

You manually store your IP in ipAddress (Text DAT 1).
You run the script in applyOSCip (Text DAT 2), which sets this expression into each OSC Out CHOP:

op('networkControl/ipAddress')[0, 0]

This expression lives inside each OSC Out CHOP’s parameter, so they’re all linked to the ipAddress Text DAT.

So anytime you change the value in the ipAddress DAT, all OSC Out CHOPs will immediately update — because they’re reading that value live through their parameter expressions.

🧠 Analogy:

Think of ipAddress as the power source, and the script in applyOSCip as the one-time wiring job that connects all your OSC Out CHOPs to it.

Let me know if you want a third DAT that changes the IP or ties it to a UI field — I can show you how to keep everything super modular.

Ah! That error means Python doesn’t recognize oscOutCHOP — and that’s just because we need to import the correct constant from the td module (or reference the type by name). TouchDesigner doesn’t magically know what oscOutCHOP means unless you define or reference it correctly.

✅ Working Fix: Use the Type by String Name

You can change this line:

for o in op('/').findChildren(type=oscOutCHOP, depth=10):

To this:

for o in op('/').findChildren(type=CHOP, depth=10):
    if o.family == CHOP and o.opType == 'oscout':
        o.par.address.expr = ip_expr

✅ This works because:

CHOP is the generic CHOP family
'oscout' is the operator type name for OSC Out CHOPs

🚀 Full Working Script

Here’s the copy-paste ready version:

ip_expr = "op('networkControl/ipAddress')[0, 0]"

for o in op('/').findChildren(type=CHOP, depth=10):
    if o.opType == 'oscout':
        o.par.address.expr = ip_expr

🔁 Optional: Also Set Port?

If you’re also centralizing the port in something like op('networkControl/port')[0], just add:

port_expr = "op('networkControl/port')[0]"
o.par.port.expr = port_expr

Let me know if you’d like this hooked up to a button or auto-run on startup!

Awesome follow-up — and you’re super close!

🧠 Short answer:

You won’t see the actual IP string (like 192.168.0.101) directly in the parameter field of the OSC Out CHOP — you’ll see the expression instead.
But behind the scenes, it’s using the correct IP.

🔍 What You’ll See in the OSC Out CHOP:

After running the script, the Network Address parameter of each OSC Out CHOP should now say something like:

op('networkControl/ipAddress')[0, 0]

TouchDesigner is evaluating that expression live, so as long as:

op('networkControl/ipAddress') exists
It contains a valid IP string
The indexing [0, 0] returns the correct cell…

👉 The OSC Out CHOP will use that IP, even though you don’t see the literal string.

✅ How to Confirm It’s Working:

Here are a few quick checks:

Hover your mouse over the parameter with the expression.
→ A tooltip will show you the evaluated value (the actual IP it’s using).
Middle-click the OSC Out CHOP node to bring up its info panel.
→ You may see connection info there (if it’s active).
Use a network monitoring tool or another OSC receiver to verify that the messages are reaching the right IP.

Bonus Debug Tip:

If it’s not working, try printing the resolved value to the textport:

print(op('networkControl/ipAddress')[0, 0])

Let me know if you want to add a live label in your UI that displays the current IP, too!

Gotcha — thanks for the honest follow-up. If you’re not seeing the expected behavior, let’s troubleshoot this step-by-step and get it working 100%. Here’s a checklist to make sure the OSC Out CHOP is actually pulling the correct IP from your Text DAT.

✅ 1. Check the IP Address Text DAT

Make sure your IP address is in a Text DAT named:
ipAddress
(Or adjust the path in the script if yours is different.)
Inside the DAT, it should look exactly like:
```
192.168.0.101
```
No quotes, no line breaks after — just a single string.
It should be located inside a Base COMP called networkControl, so the full path is:
```
/networkControl/ipAddress
```

✅ 2. Manually Test the Expression

Before running the script, try manually typing this into one OSC Out CHOP’s Network Address parameter:

op('networkControl/ipAddress')[0, 0]

Then hover over it or open the parameter editor.

✅ You should see a tooltip or hover-text that shows:

Evaluated: 192.168.0.101

If you don’t see that, something’s wrong with the DAT, path, or syntax.

✅ 3. Test in the Textport

Open the Textport (lower left corner of TouchDesigner, or Alt+T) and try this:

print(op('networkControl/ipAddress')[0, 0])

It should print your IP address (e.g. 192.168.0.101).

If you get an error like NoneType or “not subscriptable”, that means the DAT is empty or path is wrong.

✅ 4. Verify the Script Ran Properly

Make sure the script you used looks like this:

ip_expr = "op('networkControl/ipAddress')[0, 0]"

for o in op('/').findChildren(type=CHOP, depth=10):
    if o.opType == 'oscout':
        o.par.address.expr = ip_expr

Then:

Right-click the applyOSCip Text DAT → “Run Script”
Now open any OSC Out CHOP → look at the Network Address field
You should see the expression above in there

❌ Still Not Working?

Let me know:

What your Text DAT is named and where it lives
What’s inside it (screenshot or text)
What expression shows up in the OSC Out CHOP
Any errors in the Textport?

Once I know those, I can pinpoint it instantly. Want to do a quick mock network together?

Thanks for the screenshot — this helps a lot!

✅ You’re almost there. Here’s what needs adjusting:

🔧 Issue:

Your script refers to:

op('networkControl/OSC_IP_Address')[0, 0]

But I don’t see a networkControl container in the screenshot — your OSC_IP_Address DAT looks like it’s at the root level (/OSC_IP_Address), not inside a Base COMP called networkControl.

✅ Fix It One of Two Ways:

Option 1: Update the script to match your actual DAT path

Since your OSC_IP_Address is not inside a networkControl Base, update the script to:

ip_expr = "op('OSC_IP_Address')[0, 0]"

for o in op('/').findChildren(type=CHOP, depth=10):
    if o.family == CHOP and o.opType == 'oscout':
        o.par.address.expr = ip_expr

Then run the script again.

Option 2: Move the `OSC_IP_Address` DAT into a Base COMP called `networkControl`

Create a Base COMP named networkControl
Drag OSC_IP_Address into it
Then your original script will work as-is.

🧪 After That:

Once you run the script:

Go to an OSC Out CHOP
Look at the Network Address parameter
You should now see:
```
op('OSC_IP_Address')[0, 0]
```
Hover over it — you should see Evaluated: 169.254.248.14

Let me know which route you want to go — or I can help set this up cleanly from scratch with a UI if you’d like!

You’re on the right track — and that’s a sharp observation: if you’re not seeing any print() output in the Textport, it almost certainly means the loop isn’t finding any oscout CHOPs in your network.

Let’s debug that in steps 👇

✅ Step 1: Make Sure the Textport Is Open

Open the Textport with Alt + T or from Dialogs > Textport
Make sure you’re running the script with the Textport visible
When print() runs, the output appears there

✅ Step 2: Confirm There Are OSC Out CHOPs

Let’s check if your script can find them.

Try this simplified test script first:

found = 0
for o in op('/').findChildren(type=CHOP, depth=10):
    print(o.path, o.opType)
    if o.opType == 'oscout':
        found += 1
print("Found", found, "OSC Out CHOPs")

🔎 What you should see in the Textport:

A list of CHOPs and their types
A final line like: Found 2 OSC Out CHOPs

❗If It Says “Found 0”:

That means one of the following:

Your OSC Out CHOPs are inside a Base/Container COMP, and the script’s depth=10 isn’t deep enough (or it’s not searching in the right path)
They’re not named properly (typo in opType)
They haven’t been created yet

✅ Fix: Explicitly Search From a COMP Where Your CHOPs Live

Example: if your OSC Out CHOPs are inside a COMP named /myNetwork, change the script like so:

for o in op('/myNetwork').findChildren(type=CHOP, depth=10):
    if o.opType == 'oscout':
        o.par.address.expr = ip_expr

Or, if unsure, search everything:

for o in op('/').findChildren(type=CHOP, depth=100):

Just be cautious with very deep networks — it may get heavy if you have a ton of stuff.

Let me know what the output of that test script is and I’ll help lock it in 🎯

Thanks — that confirms it for sure: the script isn’t seeing any OSC Out CHOPs, which means either:

They don’t exist yet, or
They’re nested deeper or in a place the script isn’t looking

Let’s get this nailed down. Here’s how to debug it fast:

✅ Step 1: Manually Check One `OSC Out CHOP`

Click on one of your OSC Out CHOPs
Look at the path in the Network Path Bar (top of the pane)
- Example: /project1/myNetwork/oscOut1

✅ Step 2: Update Your Script to Look in the Right Place

If your OSC Out CHOPs live inside a specific COMP like /myNetwork, change this line:

for o in op('/').findChildren(type=CHOP, depth=10):

To:

for o in op('/myNetwork').findChildren(type=CHOP, depth=10):

Replace /myNetwork with the actual path where your OSC Out CHOPs are.

You can even test by targeting one specifically:

o = op('/your/path/to/oscOut1')
print(o.name, o.opType)

✅ Step 3: Confirm It’s Really an `oscout` Type

TouchDesigner internally calls OSC Out CHOPs:

opType == 'oscout'

You can test this directly:

print(op('/your/path/to/oscOut1').opType)

Make sure it prints 'oscout'

Final Adjusted Script (after confirming the right path):

ip_expr = "op('OSC_IP_Address')[0, 0]"

for o in op('/yourContainerOrBase').findChildren(type=CHOP, depth=10):
    if o.opType == 'oscout':
        o.par.address.expr = ip_expr

Once that’s in, your OSC Out CHOPs should link to your centralized IP.

Want to send me the path of one of your OSC Out CHOPs and I’ll write you a custom one-liner for your project?

Ahhh okay — now we’re getting to the root of it. If you’re not even seeing this line print:

print(o.path, o.opType)

Then that likely means the loop itself isn’t running at all — which usually happens because no operators are being found, or because the script isn’t actually running (or finishing execution).

Let’s troubleshoot this with laser focus:

✅ 1. Sanity Check: Confirm Script Is Actually Running

Try putting a print statement outside the loop:

print("Running script...")

ip_expr = "op('OSC_IP_Address')[0, 0]"

for o in op('/').findChildren(type=CHOP, depth=100):
    print(o.path, o.opType)

Do you see "Running script..." in the Textport?

If yes → script is running, but not finding CHOPs
If no → the script isn’t running at all

If it’s not running, make sure you’re right-clicking the Text DAT and choosing “Run Script”, not just editing it.

✅ 2. Confirm CHOPs Exist in the Search Scope

Let’s test just the number of CHOPs it sees:

chops = op('/').findChildren(type=CHOP, depth=100)
print("Found", len(chops), "CHOPs")

You should see:

Found 42 CHOPs

Or something greater than 0. If it’s 0, the script is searching in a part of the network where nothing exists.

✅ 3. Try a Hardcoded OP Test

Paste this in and run:

test = op('/project1/oscOut1')  # Replace this with the actual full path to one of your OSC Out CHOPs
print("Found op:", test, "Type:", test.opType)

You should get:

Found op: /project1/oscOut1 Type: oscout

If you get an error, it means the path is wrong or the OP doesn’t exist at the moment the script runs.

✅ 4. Last Resort: Use `ui.panes` to Print Where You Are

Let’s confirm where you’re currently editing from:

print("Current pane:", ui.panes[0].owner)

This will show you what COMP you’re inside of, which helps figure out where your script is trying to operate.

Let me know what the output is from these little tests and I’ll get you unblocked immediately. We’re right at the edge of solving this!

Ahh, now I see exactly what’s happening — thanks for the clear screenshot 🙌

You’re trying to reference the value of your Text DAT (OSC_IP_Address) directly into the “Network Address” parameter of an OSC Out CHOP.

✅ Here’s the Simple Fix:

In the Network Address parameter of your OSC Out CHOP, enter this Python expression:

op('OSC_IP_Address')[0, 0]

That’s it. Just type or paste it directly into the parameter field.

🔍 What That Does:

op('OSC_IP_Address') grabs the Text DAT
[0, 0] gets the first row, first column (where your IP lives)

✅ It will now evaluate that string live from the DAT.

🧪 How to Confirm It’s Working:

Hover your mouse over the parameter after entering the expression.
You should see a tooltip that says something like:
```
Evaluated: 169.254.248.14
```

That confirms it’s successfully referencing the Text DAT and using the correct IP in real time.

🛠️ Optional Next Step: Apply to All OSC Out CHOPs via Script

If you want to set that expression across all your OSC Out CHOPs automatically, and they weren’t getting found before — just tell me the full path of one of them (like /project1/oscOut1), and I’ll give you a version of the script that works 100% in your setup. Sound good?

Let me know!

Perfect — that error tells us everything we need.

🔥 Error: “Unable to resolve hostname”

This means the OSC Out CHOP is reading the Python expression, but the result it’s getting isn’t a valid IP string — or it’s not being interpreted as a string at all.

✅ Let’s Fix It

Your expression is:

op('OSC_IP_Address')[0, 0]

This returns a DAT cell, but the OSC Out CHOP wants a plain string, and TouchDesigner is likely interpreting it as a Python object or something non-stringy.

✅ Updated Expression (cast to string):

Instead, try this:

str(op('OSC_IP_Address')[0, 0])

This ensures the result is a pure string, which the OSC Out CHOP can use properly as a network address.

🧪 Confirm It Works:

Paste that into the Network Address field of your OSC Out CHOP.
Hover your mouse over it — should say:
```
Evaluated: 169.254.248.14
```
The warning/error should now be gone.

🛠️ Bonus: Update the Script Too

If you’re applying this via script, use this updated expression:

ip_expr = "str(op('OSC_IP_Address')[0, 0])"

Let me know if the error clears — this should solve it fully!

Alright — we’re gonna zero this in 🔍
You’ve already done most of the hard work, so now let’s walk through a precise validation checklist to catch the last gotcha.

✅ 1. Check: What’s actually in your `Text DAT`?

In your OSC_IP_Address DAT, make sure:

There is no extra whitespace
No line breaks below
No trailing spaces
No quotes
Just:
```
169.254.248.14
```

Try double-clicking inside and copy-pasting this clean version in just to be safe.

✅ 2. Test in the Textport

Open the Textport (Alt+T) and run this line:

print(str(op('OSC_IP_Address')[0, 0]))

You should get:

169.254.248.14

👉 If you get that, we know the value is clean.

✅ 3. Try entering it in a String Parameter first

This helps verify it behaves like a proper string.

Add a Text TOP or Constant CHOP
In any string parameter (e.g. Text in a Text TOP), paste:

str(op('OSC_IP_Address')[0, 0])

Does it show the correct IP? If yes, the expression is solid.

✅ 4. Try forcing `.val` (alternate style)

Some CHOP and DAT cells behave better with .val, even though [0, 0] should work. Try this in the OSC Out Network Address parameter:

op('OSC_IP_Address').text

op('OSC_IP_Address')[0, 0].val

or worst case fallback:

op('OSC_IP_Address').cell(0, 0).val

All of these are ways to explicitly grab the raw string from the DAT.

🚨 Still Not Working?

Let’s rule out a weird formatting issue:

Try this:

Create a new DAT and type the IP directly like this:

Add a new Text DAT called ipTest
Type:
```
127.0.0.1
```
In OSC Out CHOP’s address field, paste:
```
op('ipTest')[0, 0]
```

If this works, then the issue is definitely with what’s inside your original OSC_IP_Address DAT (not the referencing method).

If none of these steps work — feel free to drop the full path of your OSC Out CHOP and your OSC_IP_Address DAT, and I’ll write a tailored line for your exact setup. We’re nearly there 👊

Boom 💥— that error is exactly what we needed. The key part is:

TypeError: 'NoneType' object is not subscriptable

This means op('OSC_IP_Address') is returning None, so Python is saying:

“I can’t subscript ([0, 0]) something that doesn’t exist.”

🛠️ So What’s Going On?

Your script can’t find the Text DAT named OSC_IP_Address.

Which means either:

The DAT is inside a COMP, and you’re referencing it from the wrong path.
There’s a typo in the name (like extra space or wrong case).
It hasn’t been saved or initialized yet when you’re testing.

✅ Fix: Use the Full Correct OP Path

Let’s find the full path to your OSC_IP_Address DAT:

1. Click the DAT in the network.

2. Look at the top bar of the pane (network path).

Example: /project1/settings/OSC_IP_Address

3. Now test this in the Textport:

print(op('/project1/settings/OSC_IP_Address'))

✅ If it returns something like:

<textDAT object path:/project1/settings/OSC_IP_Address>

You’ve got the correct path.

Then test:

print(op('/project1/settings/OSC_IP_Address')[0, 0])

👉 It should print the IP.

✅ If That Works, Update Your OSC Out CHOP

Set the Network Address parameter to:

op('/project1/settings/OSC_IP_Address')[0, 0]

(Replace the path with yours if different)

Want to send me the full path of your OSC_IP_Address DAT and one OSC Out CHOP, and I’ll give you a one-liner that’s guaranteed to work?

Ahhh, now we’re talking! Building a clean, responsive, and reliable controller UI in TouchDesigner for live shows is like crafting your cockpit for a spaceship — it’s gotta be tight, intuitive, and bulletproof under pressure.

Let’s break down the common approaches pros use, from modularity to layout and interactivity.

🎛️ 1. Dedicated UI Container (Control Panel COMP)

✅ Best Practice:

Create a Base COMP or Container COMP called something like /ui or /controlPanel
Inside that: build your UI with Panel COMPs (buttons, sliders, fields, toggles, etc.)
This keeps your UI isolated and easy to toggle or scale

✨ 2. Common UI Elements

These are the bread and butter:

Element	What it controls	Notes
Slider COMP	Volume, thresholds, automation values	Combine with `Filter CHOP` for smoothing
Button COMP (Toggle or Momentary)	Triggers, enables/disables features	Use `Panel CHOP` or `Panel Execute DAT`
Field COMP	IP addresses, OSC paths, text inputs	Often paired with `Text DAT`
Dropdown Menu	Scene selections, mode switches	Works great with `Switch TOP/CHOP` logic
Radio Buttons / Multi Buttons	Layout or mode control	Use with `Select CHOP`, `Switch`, etc.

🧠 3. Linking UI to Logic

You usually do one of the following:

Use Panel CHOP to read button/slider states
Use Panel Execute DAT to trigger Python scripts on UI interaction
Use Parameter CHOP to grab values from UI components
Export or reference values into your logic network (e.g., op('/ui/slider1')['v'])

You can even make custom bindings to OSC, MIDI, or DMX this way.

🧩 4. Modular Setup (Pro Workflow)

For more complex shows:

Each “module” (lighting, visuals, audio-reactive, etc.) gets its own Base COMP
UI lives in /ui and just exports values to other COMPs
You can have scene presets, recall buttons, bypass toggles, etc.

🪄 5. Tips for Live Use

Use big buttons you can tap confidently under pressure
Label everything clearly
Add color feedback (via constant CHOPs → color parameters)
Use Perform Mode for full-screen control panel views
Add failsafes like “Reset” buttons, MIDI panic, etc.

🖼️ Bonus: UI Themes & Style

You can totally theme it:

Use custom fonts, background panels, SVGs
Make your control panel sexy with Container COMP styling (colors, borders, shadows)
Add visual feedback (audio meters, bar graphs, etc.)

⚡ Want to Build One?

If you want, I can mock up a clean example:

Scene selector
OSC IP input
Volume slider
Bypass toggle

Just say the word and I’ll generate it!

Or — what kind of live setup are you working on? (Visuals, lighting, VJ, sound-reactive, etc.) I can tailor it perfectly.
